The Snowflake Elastic Data Warehouse

Papers We Love San Diego

February 6th, 2020

Presented by Michael Jalkio

Today

• Data Warehousing History
• Enter Snowflake, Inc.
• Innovations in the paper
• Changes in the last few years

Data Warehousing History

*Credit to

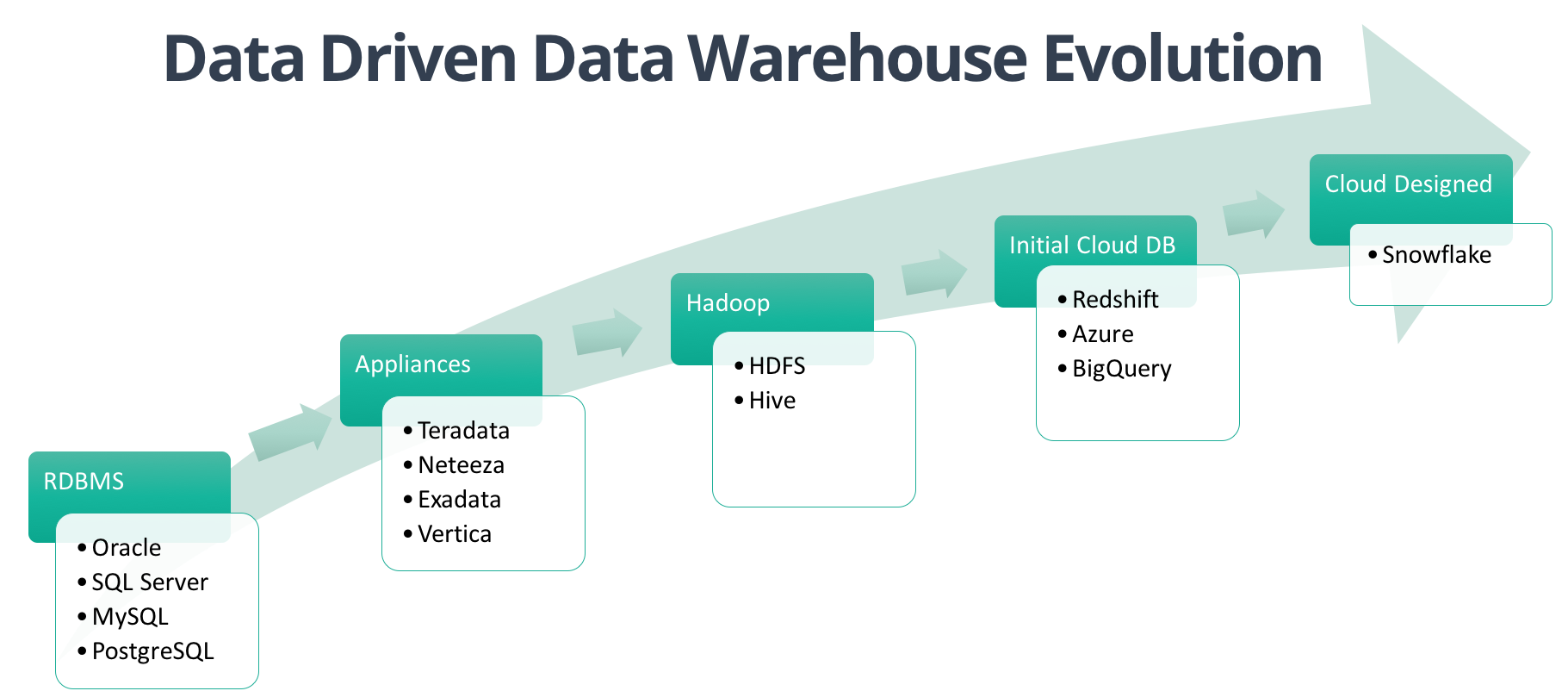

The Data Warehousing Evolution

by Frank Bell

Relational Database Management System (RDBMS)

• First proposed by EF Codd at IBM in 1970
• Commercial systems available from 1979 (with SQL)
• SQL Server (1989), MySQL (1995), PostgreSQL (1996)
• Mainly designed for transaction processing, start to hit issues with scaling

OLTP vs OLAP Databases

• OLTP = Transaction = Row-Based
• OLAP = Analytics = Column-Based
• OLAP is optimized for aggregations over large datasets
• OLTP is optimized for INSERTs, UPDATEs, DELETEs, etc.

Specialized DW Appliances

• Teradata, Netezza, Vertica, etc.
• Massively parallel processing (MPP) architectures
• Very expensive, only for large enterprises
• No elasticity, Monday mornings are very hard

Google File System (2003)

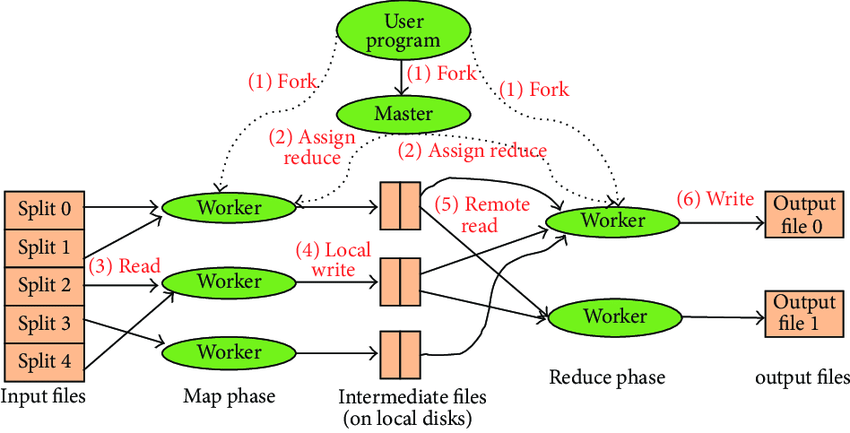

MapReduce (2004)

Hadoop (2006)

Issues with the Hadoop Ecosystem

• New model to gain expertise in
• Didn't play nicely with existing tooling
• Complemented the data warehouse

AWS (2006)

BigQuery (2010)

Redshift (2012)

Snowflake (2014/2015)

About Snowflake

• Raised over $920M with a valuation of $3.9B
• 1,400+ customers
• ~1,000 employees
• Available on all major public clouds

The Paper!

Introduction

• The cloud is great
• Data warehouses (DWs) don't fit the cloud model
• Today's data can't be processed by many DWs
• Big Data platforms don't fit the DW model
• Can we build a DW for the cloud?

Key Features of Snowflake

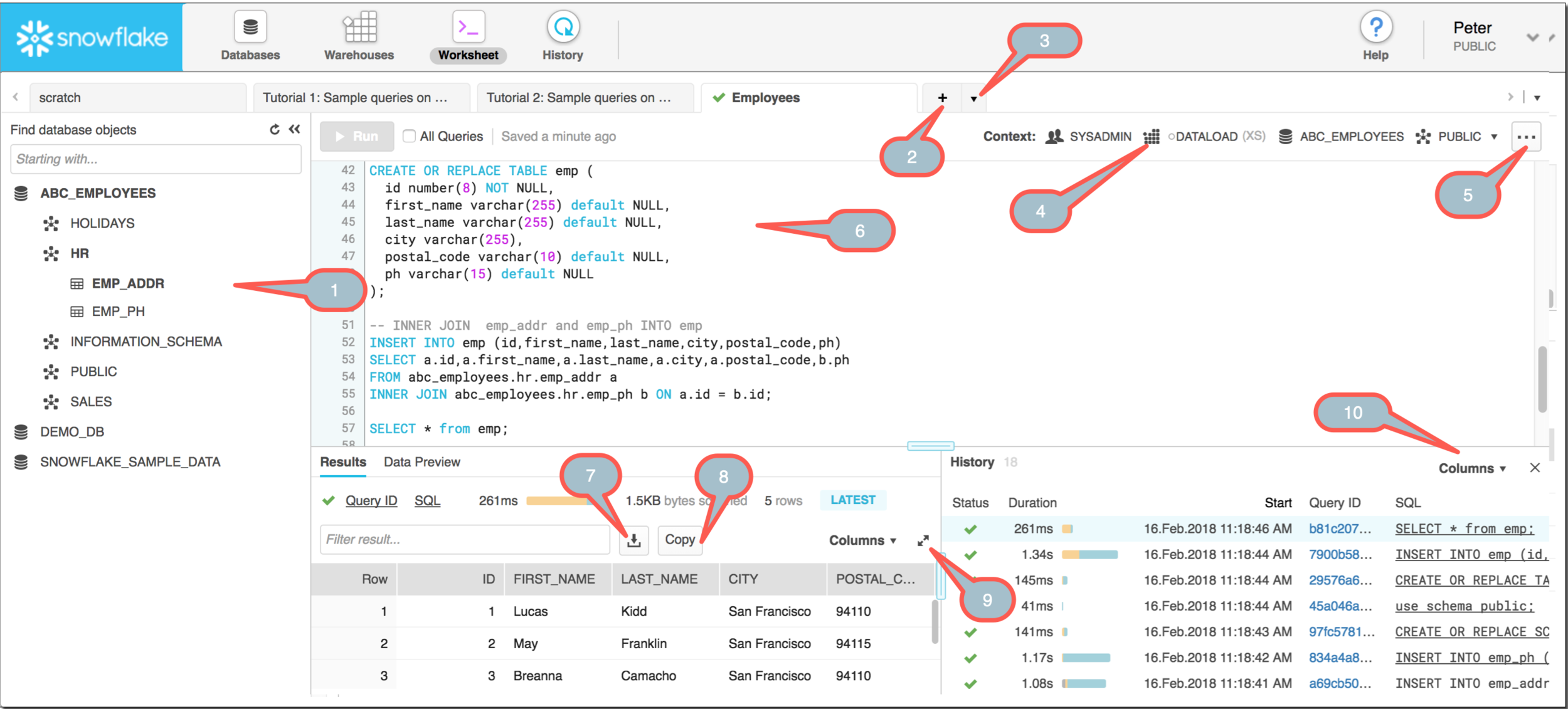

• Software-as-a-service (SaaS) experience
• Relational w/ ANSI SQL and ACID transactions
• Semi-Structured data support (JSON)
• Elastic: storage and compute are independent
• Highly available
• Durable
• Cost-efficient
• Secure

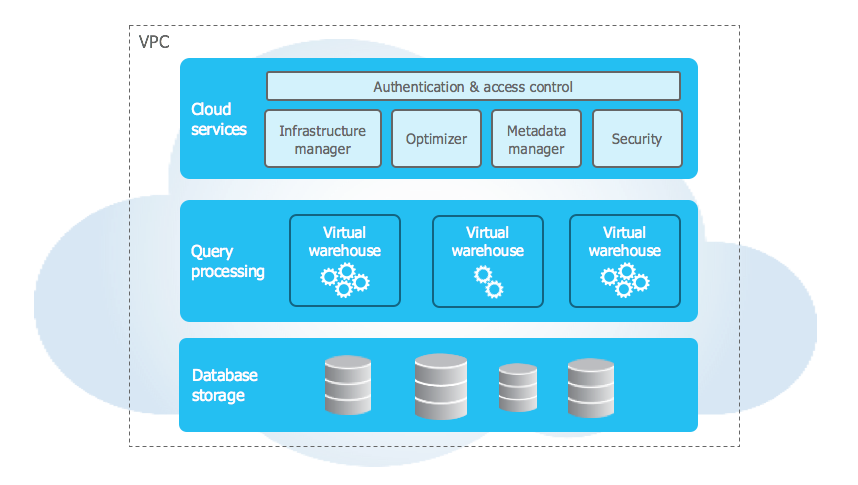

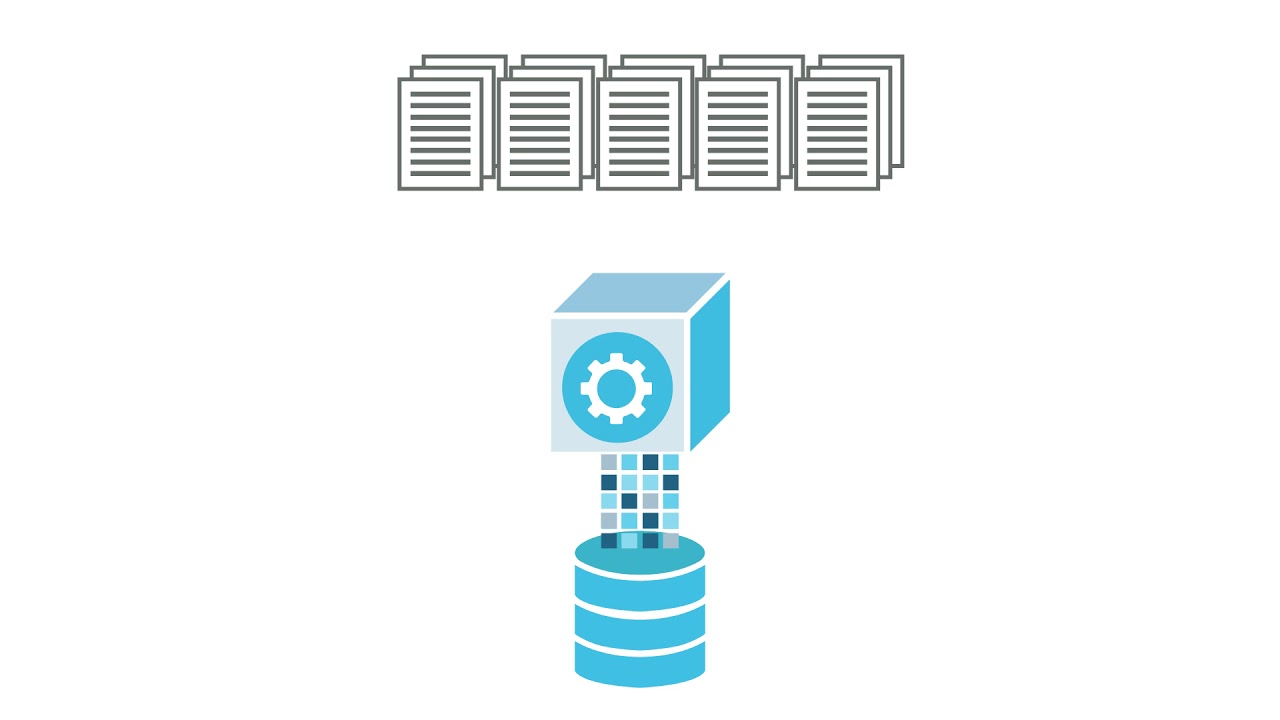

The Secret Sauce

• Random access of files & custom data format
• Columnar storage lends itself to compression

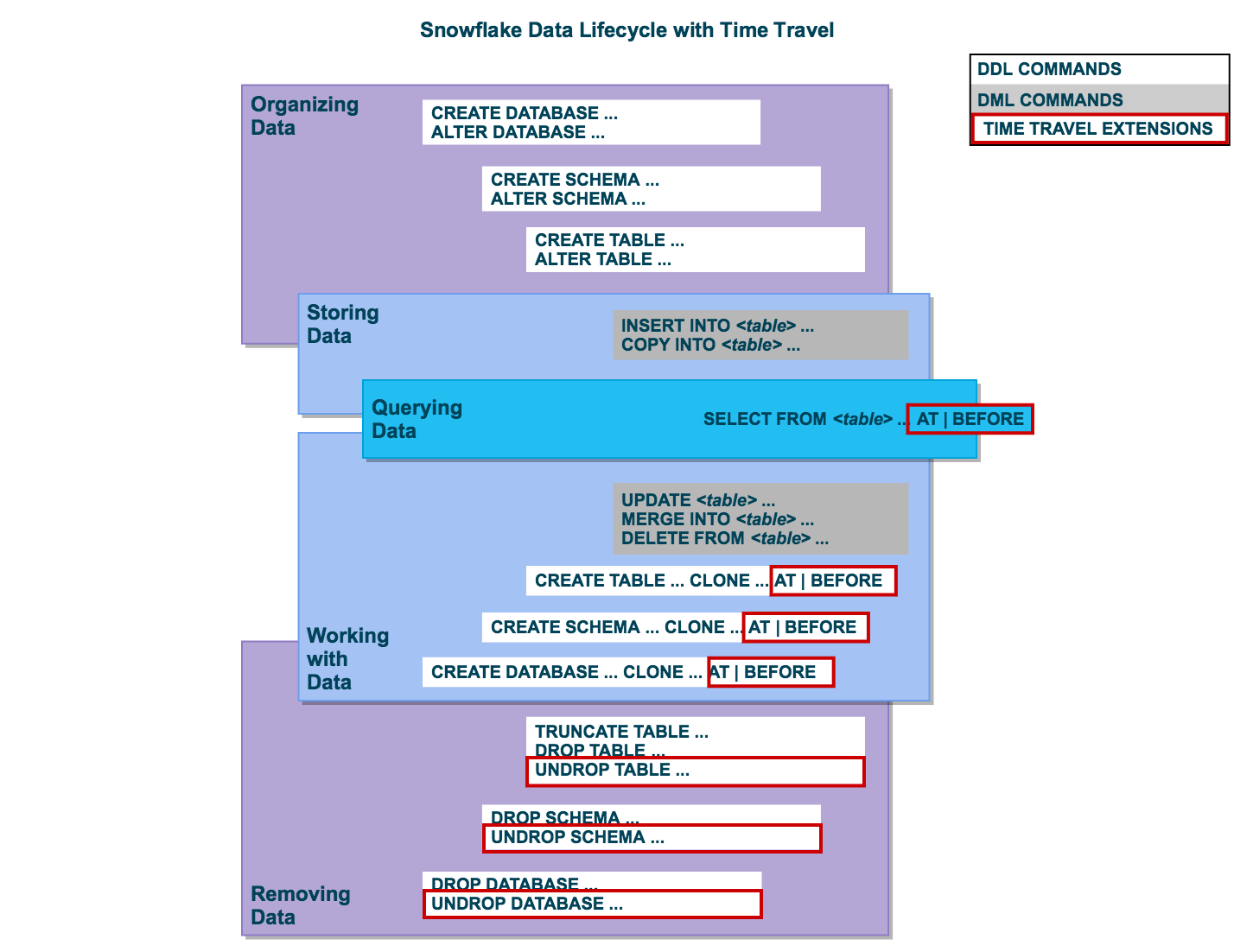

The Secret Sauce

• Provides availability & durability
• Immutability provides some of Snowflake's best features
• Storage is cheap

Virtual Warehouses

• Easy to start/stop and scale up/down
• Allows different teams/processes to be isolated
• Claims of "better performance for same price"

Cloud Stuff

• Fault resilience across AZs (except warehouses)
• Designed to be seamlessly upgraded

JSON/XML Support

• Allows Snowflake to be used for ELT
• Basically encourages you to dump tons of data straight into your warehouse
• Automated type inference for columnar storage
  • Happens for each file, which supports schema changes over time and makes it more efficient
  • Optimistic conversion of types

Snowflake vs Competitors

(at the time)

Redshift

• No database maintenance and tuning
• Faster scale up and down
• Compute and storage are separated
• JSON support

BigQuery

• Actual ANSI SQL
• Supports updates and deletes for data

Today...

Redshift Spectrum

• Allows compute and storage to be separated
• Files in S3 need to be managed manually and schema needs to be defined
• Still requires a Redshift cluster (but it's not used)
• Compute capacity is not something the user controls
• Pay per data scanned, not servers

BigQuery

• It's really, really good now
• No tuning (not even t-shirt sizes)
• Pay per-query or for dedicated resources

Questions?
