wordseg

text-based word segmentation

Mathieu Bernard - CoML

Abasictaskinfirstlanguageacquisitionlikelyinvolvesdiscoveringtheboundariesbetweenwordsormorphemesininputwherethesebasicunitsarenotovertlysegmented...

A basic task in first language acquisition likely involves discovering the boundaries between words or morphemes in input
where these basic units are not overtly segmented.

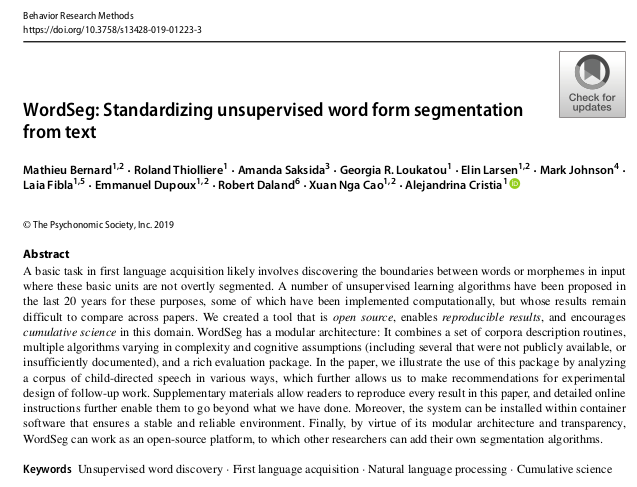

Started in 2017... Just published!

Why to present it?

mini-case of development issues in the team
was a set of heteregoneous tools from various sources
needed a unified pipeline, easy to use, reliable

What inside?

a Python library and collection of command-line tools
several algorithms (pure Python or wrapped C++)
standardized interfaces and evaluations
good coding standards

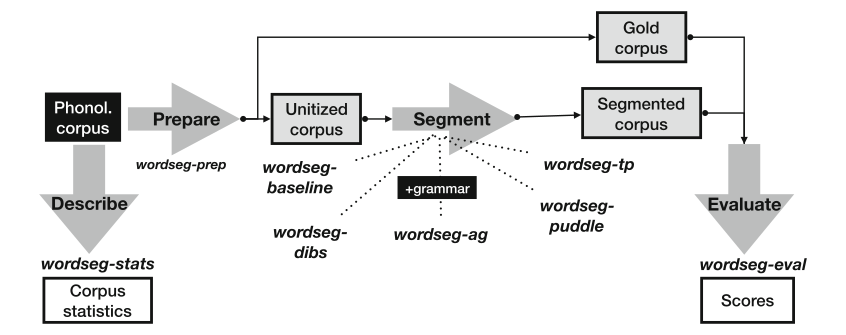

Full pipeline for word segmentation

A "hello world" example

$ echo "hello world" | phonemize -p ' ' -w ';eword ' -b festival
hh ax l ow ;eword w er l d ;eword

$ echo "hh ax l ow w er l d" | wordseg-baseline -P 0.2
hhaxloww erld

$ echo "hh ax l ow ;eword w er l d ;eword " | wordseg-prep -p' ' -w';eword' -g gold.txt
hh ax l ow w er l d
$ cat gold.txt
hhaxlow werld

text preparation

text phonemization

text segmentation

segmentation evaluation

$ echo "hhaxloww erld" | wordseg-eval gold.txt
token_fscore	        0
type_fscore	        0
boundary_all_fscore	0.6667
boundary_noedge_fscore	0
... more skipped ...

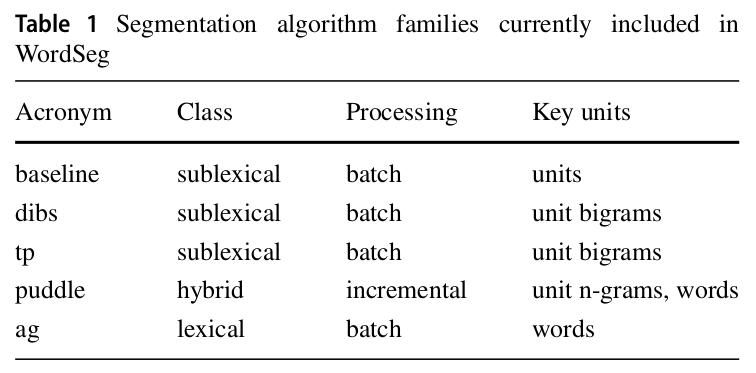

Segmentation algorithms

dpseg ?? ?? ?? C++ external (bug)

language origin

python own

python external

python own

python internal

C++ external

heteregoneous implementation but homogoneous interface :

python
bash

segmented_text = segment(input_text, **args)

cat input_text | wordseg-XXX [--args] > segmented_text

Coding standards

coding style

https://pep8.org

unit tests

https://docs.pytest.org

docstrings

https://www.sphinx-doc.org

hosting

hosted on private gitlab => deploy to oberon

mirrored on public github => public access

continuous integration

def gold(text, separator=Separator()):
    """Returns a gold text from a phonologized one

    The returned gold text is the ground-truth segmentation. It has
    phone and syllable separators removed and word separators replaced
    by a single space ' '. It is used to evaluate the output of
    segmentation algorithms.

    Parameters
    ----------
    text : sequence
        The input text to be prepared for segmentation. Each element
        of the sequence is assumed to be a single and complete
        utterance in valid phonological form.
    separator : Separator, optional
        Token separation in the `text`

    Returns
    -------
    gold_text : generator
        Gold utterances with separators removed and words separated by
        spaces. The returned text is the gold version, against which
        the algorithms are evaluated.

    """
    # delete phone and syllable separators. Replace word boundaries by
    # a single space.
    gold = (line.replace(separator.syllable, '')
            .replace(separator.phone or '', '')
            .replace(separator.word, ' ') for line in text)

    # delete any duplicate, begin or end spaces. As for prepare, we
    # ignore empty lines.
    return (line for line in (utils.strip(line) for line in gold) if line)

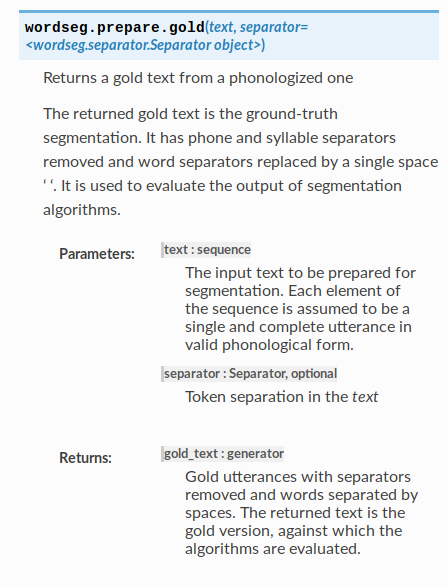

Docstrings using sphinx

https://wordseg.readthedocs.io

Unit tests using pytest


def test_paiwise():
    assert list(_pairwise([])) == []
    assert list(_pairwise([1])) == []
    assert list(_pairwise([1, 2])) == [(1, 2)]
    assert list(_pairwise([1, 2, 3])) == [(1, 2), (2, 3)]


@pytest.mark.parametrize('utt', BAD_UTTERANCES)
def test_bad_utterances(utt):
    with pytest.raises(ValueError):
        check_utterance(utt, separator=Separator())


@pytest.mark.parametrize('utt', GOOD_UTTERANCES)
def test_good_utterances(utt):
    assert check_utterance(utt, separator=Separator())


@pytest.mark.parametrize(
    'utt', ['n i2 ;eword s. w o5 ;eword s. əɜ n ;eword m o-ɜ ;eword',
            'ɑ5 ;eword j iɜ ;eword (en) aɜ m (zh) ;eword',
            't u b l i ;eword p o i i s^ s^ ;eword'])
def test_punctuation(utt):
    with pytest.raises(ValueError):
        list(prepare([utt], check_punctuation=True))

    list(prepare([utt], check_punctuation=False))


def test_empty_lines():
    text = ['', '']
    assert len(list(prepare(text))) == 0
    assert len(list(gold(text))) == 0

    text = [
        'hh ax l ;esyll ow ;esyll ;eword',
        '',
        'hh ax l ;esyll ow ;esyll ;eword']
    assert len(list(
        prepare(text, separator=Separator(), unit='phone'))) == 2
    assert len(list(gold(text, separator=Separator()))) == 2

(wordseg) mathieu@deaftone:~/dev/wordseg$ pytest
============================= test session starts ==============================
platform linux -- Python 3.7.2, pytest-4.3.1, py-1.8.0, pluggy-0.9.0
cachedir: .pytest_cache
rootdir: /home/mathieu/dev/wordseg, inifile: setup.cfg
plugins: cov-2.6.1
collected 290 items

test/test_algo_ag.py::test_grammar_files PASSED                          [  0%]
test/test_algo_ag.py::test_check_grammar PASSED                          [  0%]
test/test_algo_ag.py::test_segment_single PASSED                         [  1%]
test/test_algo_ag.py::test_counter PASSED                                [  1%]
test/test_algo_ag.py::test_yield_parses PASSED                           [  1%]
test/test_algo_ag.py::test_setup_seed PASSED                             [  2%]
test/test_algo_ag.py::test_ignore_first_parses[-10] PASSED               [  2%]
test/test_algo_ag.py::test_ignore_first_parses[-5] PASSED                [  2%]
test/test_algo_ag.py::test_ignore_first_parses[-1] PASSED                [  3%]
test/test_algo_ag.py::test_ignore_first_parses[0] PASSED                 [  3%]
test/test_algo_ag.py::test_ignore_first_parses[5] PASSED                 [  3%]
test/test_algo_ag.py::test_ignore_first_parses[6] PASSED                 [  4%]
test/test_algo_ag.py::test_parse_counter[1] PASSED                       [  4%]
test/test_algo_ag.py::test_parse_counter[2] PASSED                       [  5%]
test/test_algo_ag.py::test_parse_counter[4] PASSED                       [  5%]
test/test_algo_ag.py::test_parse_counter[10] PASSED                      [  5%]
test/test_algo_ag.py::test_default_grammar PASSED                        [  6%]
test/test_algo_ag.py::test_mark_jonhson PASSED                           [  7%]
test/test_algo_baseline.py::test_proba_bad[1.01] PASSED                  [  7%]
test/test_algo_baseline.py::test_proba_bad[-1] PASSED                    [  7%]
test/test_algo_baseline.py::test_proba_bad[a] PASSED                     [  8%]
test/test_algo_baseline.py::test_proba_bad[True] PASSED                  [  8%]
test/test_algo_baseline.py::test_proba_bad[1] PASSED                     [  8%]
test/test_algo_baseline.py::test_hello PASSED                            [  9%]
test/test_algo_dibs.py::test_basic[gold-0-None] PASSED                   [  9%]
test/test_algo_dibs.py::test_basic[gold-0-0.2] PASSED                    [ 10%]
test/test_algo_dibs.py::test_basic[gold-0.5-None] PASSED                 [ 10%]

...
test/test_wordseg_commands.py::test_command_help[baseline] PASSED        [ 98%]
test/test_wordseg_commands.py::test_command_help[ag] PASSED              [ 98%]
test/test_wordseg_commands.py::test_command_help[dibs] PASSED            [ 98%]
test/test_wordseg_commands.py::test_command_help[dpseg] PASSED           [ 99%]
test/test_wordseg_commands.py::test_command_help[tp] PASSED              [ 99%]
test/test_wordseg_commands.py::test_command_help[puddle] PASSED          [100%]
=================== 280 passed, 10 skipped in 45.54 seconds ====================

https://travis-ci.org/bootphon/wordseg

Build system

mix of Python and C++
use CMake instead of setup.py

not really portable on Windows
provide a Docker image

git clone https://github.com/bootphon/wordseg.git
mkdir -p wordseg/build && cd wordseg/build
cmake ..
make
make test
make install

Continuous integration

push

on master

build

test

install

oberon

mirror

build / test

test coverage

doc

citation

Usage on the cluster

./wordseg-slurm.sh <jobs-file> <output-directory> [<options>]

<jobs-files> defines the jobs, one per line

simply schedule a list of wordseg jobs

<job-name>  <input-file>  <unit>  <separator>         <wordseg-command>
exemple     ./input.txt   phone   -p ' ' -w ';eword'  wordseg-baseline -P 0.2

after execution, <output-directory>/<job-name> contains:

input.txt
gold.txt
stats.json
output.txt

eval.txt
eval_summary.json
log.txt
job.sh

for each job, execute the full processing pipeline

input | stats | prepare | segment | evaluate
