CUSP PUI - Class 1

Extension of UCSL bootcamp

- Mohit Sharma
CUSP 2018

Coursework

CUSP 2018
Using ADRF

Using Docker Image

Hands On
CUSP 2018

Using Docker Image

What is

container
decouples
infrastructure
portable
scalable
platform-independent
high-density
Deployment
CUSP 2018

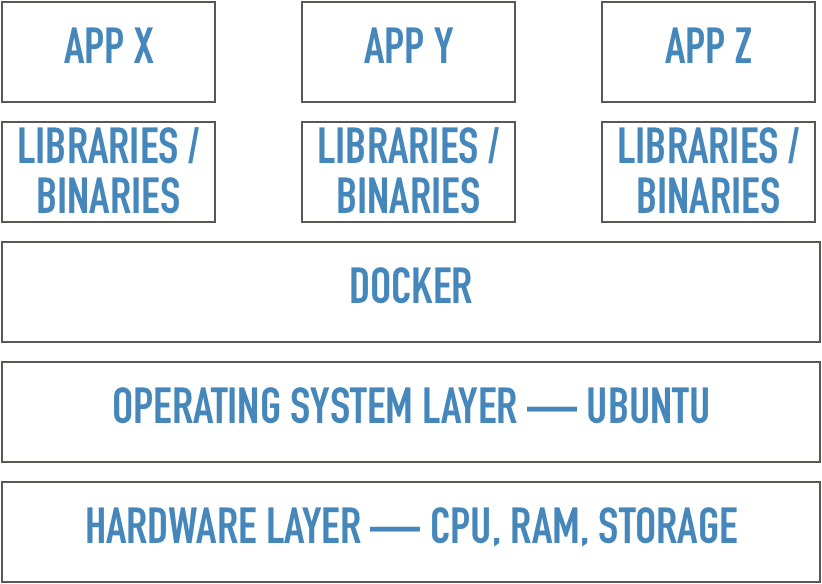

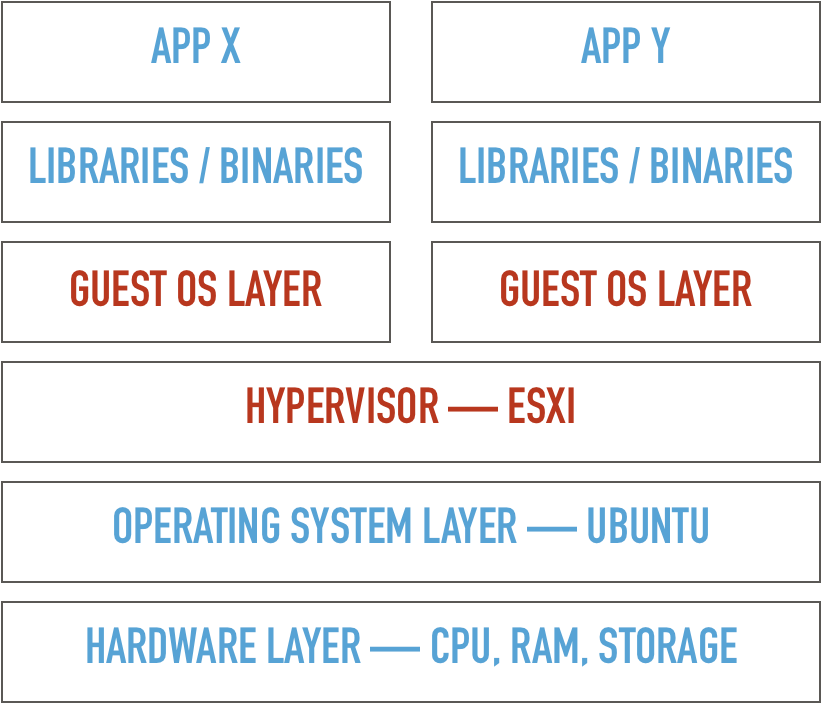

Using Docker Image

BareMetal
VM
Container

Demystifying

CUSP 2018

Using Docker Image

Platform

Independent

Container 1
Container 2
Container 3
Laptop, Amazon EC[X], GKE, Azure, CUSP Compute^, Kubernetes/Swarm cluster...

^ will be available soon

Demystifying

Using Docker Image

Demystifying

Container

What is a

Made of ?

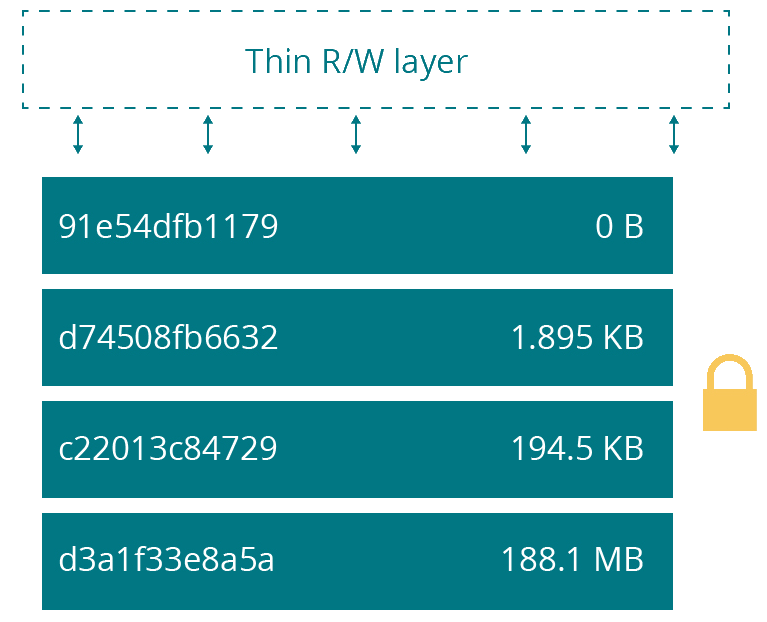

(Layered) Image

Ubuntu

Python3

Jupyter

(current)

Using Docker Image

Demystifying

How to access the data?

Container

Storage

Local Storage/ Network Storage

Bind

Volume

preferred
CUSP 2018
CUSP 2018

Demystifying

HANDS ON

Demystifying

HANDS ON

- Download the github repo:
https://github.com/Mohitsharma44/ucsl-image

- Make sure you have done the following:

    # created an account on https://hub.docker.com
    # installed docker
    # installed docker-compose^
    # pulled the ucsl-image
(docker pull mohitsharma44/ucsl-image:latest)
^ Linux users:
- sudo curl -L https://github.com/docker/compose/releases/download/1.22.0/docker-compose-$(uname -s)-$(uname -m) -o /usr/local/bin/docker-compose.
- sudo chmod +x /usr/local/bin/docker-compose

Demystifying

HANDS ON

Make sure everything is working

docker --version

docker-compose --version
:Make sure you get No Errors:

Demystifying

HANDS ON

Fire up the container

cd ucsl-image/image

docker-compose up
(you can pass -d flag to run it as daemon)
Laptop, Amazon EC[X], GKE, Azure, CUSP Compute^, Kubernetes/Swarm cluster...

HANDS ON

Demystifying

Saving the Current state of Container

docker commit -m "Added x package"
ucsl-container mohitsharma44/ucsl-image:latest
docker commit -m <commit_msg> <container_id/name>

<repository>:[tag]

e.g.

CUSP 2018

Demystifying

Pushing an image to a registry^

docker push mohitsharma44/ucsl-image:latest
docker push <repository>:[tag]

e.g.

CUSP 2018

^ We will be using docker hub, so create an account first.

^ You may also need to type docker login in the terminal.

HANDS ON

Demystifying

Stopping^ the container

docker stop ucsl-container -t 5
docker stop <container_name/id> [-t time_to_kill]

e.g.

^ Just stopping the container will not delete your data

CUSP 2018

HANDS ON

Demystifying

Stopping and Removing the container

docker rm -f ucsl-container
docker rm -f <container_name/id>

e.g.

^ To remove an already stopped container, don't use -f flag

CUSP 2018

HANDS ON

CUSP 2018
CUSP 2018

Learning by doing

Fire up your terminal
Mac:            Cmd + Space <type> Terminal

Windows:        Start -> run -> <type> cmd

Linux (maybe?): Ctrl + Alt + T
CUSP 2018

Learning by doing

1. Open your File Browser
2. go to Downloads directory

GUI

Terminal

cd ~/Downloads
~ is the expansion of your home directory

Changing directory

CUSP 2018

Learning by doing

1. Open your File Browser
2. go to Downloads directory

GUI

Terminal

ls -lht ~/Downloads
~ is the expansion of your home directory
long format
human readable format
sort by time

Listing contents of a directory

CUSP 2018

Learning by doing

1. Open your File Browser
2. Go to Downloads
3. Click on New Folder.
4.Name it PUIrocks

GUI

Terminal

mkdir ~/Downloads/PUIrocks
~ is the expansion of your home directory

Creating directorY

CUSP 2018

Learning by doing

1. Open your File Browser
2. Go to Downloads
3. Right-Click on PUIrocks -> Delete

GUI

Terminal

rm -rf ~/Downloads/PUIrocks
~ is the expansion of your home directory

Removing directories

recursive
force
CUSP 2018

Learning by doing

1. Open your File Browser

GUI

Terminal

pwd

current working directory

CUSP 2018

Learning by doing

1. Open your File Browser
2. Go to A, Right Click -> Copy
3. Go to B, Right Click -> Paste

GUI

Terminal

cp -rp /path/to/A /path/to/B

copying files from A to B

recursive
preserve:
timestamps
ownership
mode
CUSP 2018

Learning by doing

1. Open your File Browser
2. Go to A, Right Click -> Move
3. Go to B, Right Click -> Paste

GUI

Terminal

mv /path/to/A /path/to/B

Moving files from A to B

Mac doesn't have Move to option

CUSP 2018

Learning by doing

1. Open your File Browser
2. Go to Directory with the file.
3. Open the file

GUI

Terminal

more /path/to/file

Print contents of file

cat -l /path/to/file
line numbers

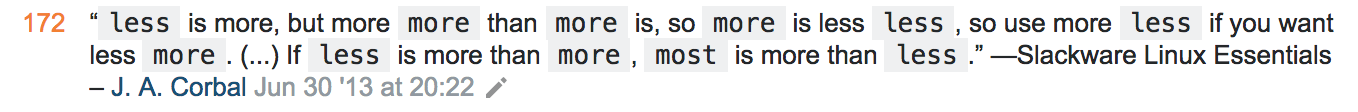

less /path/to/file
most /path/to/file
CUSP 2018

Learning by doing

1. Open your File Browser
2. Type string in search bar

GUI

Terminal

grep -rli "foo" /path/to/*.py

Find a string in File/ Directory

recursively
file name
ignore case
wild card
CUSP 2018

Learning by doing

1. fuhgeddaboudit

GUI

redirecting I/O

Learning by doing

redirect output of one command as an input to the next

Counting number of directories
ls ~/Downloads | wc -l
pipe
line count
Output to a file
echo "Hello World" > myfile.txt
echo "Bye" >> myfile.txt
overwrite
append

Learning by doing

process manipulation

List all processes
ps -ef
Find your specific process
ps aux

OR

CUSP 2018
ps -ef | grep -i <parent_process>

Learning by doing

process manipulation

Kill specific Process
CUSP 2018
1. ps -ef | grep -i <parent_process>
2. kill -9 <pid>

OR

pkill -9 <name>
# SIGXXX
2 SIGINT
9 SIGKILL

Learning by doing

history

Access history
CUSP 2018
history
reverse-i-search
ctrl + r
