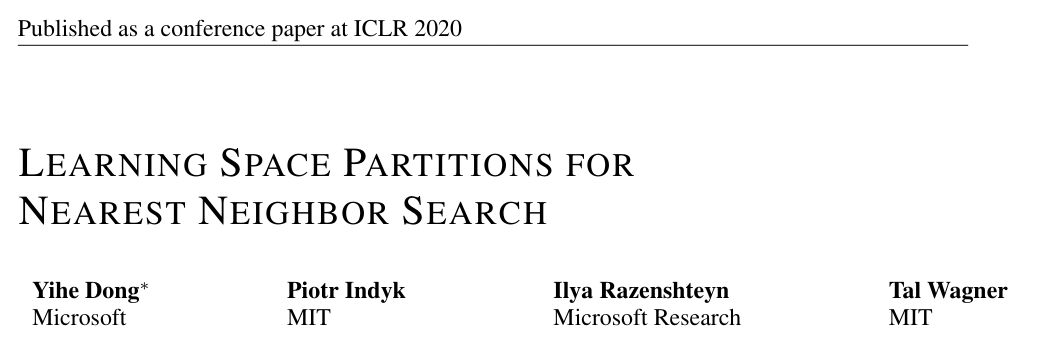

Learning Space Partitions for Nearest Neighbor Search

Instituto de Telecomunicações

March 17, 2020

Brief look into the future

  • Nearest Neighbor Search (NNS) paper

  • Based on space partitions of \(\mathbb{R}^d\)

  • Balanced graph partitioning -> supervised classification
    • Neural LSH

  • Outperforms classical NNS methods
    • Quantization-based
    • Tree-based
    • Data-oblivious LSH

Refs

Nearest Neighbor Search (NNS)

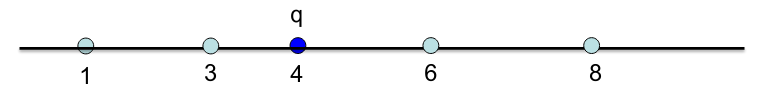

  • 1D case
    • \(P \in \mathbb{R}^{n \times 1}\)  (dataset)
    • query \(q \in \mathbb{R}\)

  • Sort the dataset -> binary search!
    • O(log n) time
    • O(n) memory

Nearest Neighbor Search (NNS)

  • 2D case
    • \(P \in \mathbb{R}^{n \times 2}\)  (dataset)
    • query \(q \in \mathbb{R^2}\)

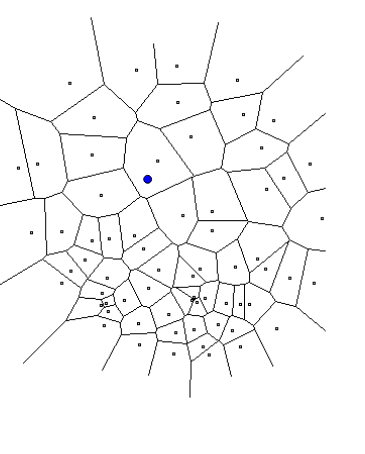

  • Build a Voronoi diagram
    • O(log n) time
    • O(n) memory

Nearest Neighbor Search (NNS)

  • 3+D case
    • \(P \in \mathbb{R}^{n \times d}\)  (dataset)
    • query \(q \in \mathbb{R^d}\)

  • Build a Voronoi diagram
    • \(n^{⌈d/2⌉}\) edges
    • \(O(d + log n)\) time
    • \(O(n^d)\) memory

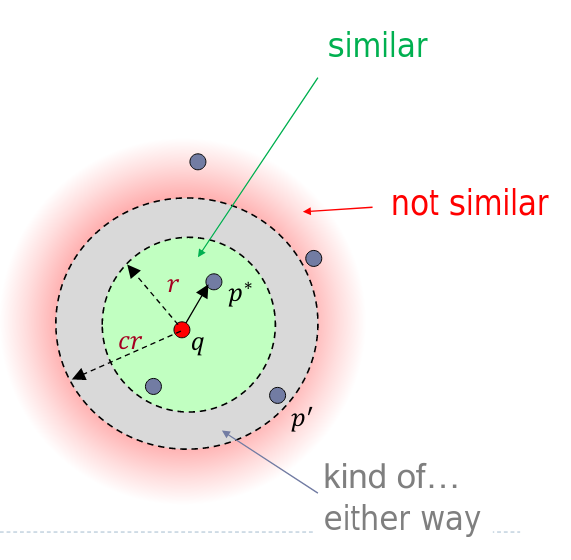

Approximated Near Neighbor Search

  • \((c,r)\)-approximate near neighbor: given a query \(q\), report a point \(p \in P\) s.t. \(||p' - q|| \leq cr\)
    • as long there is some
      point within       distance \(r\)

  • Can get the nearest neighbor
    \(||p^*-q|| \leq \min_p c||p-q||\)

  • Randomized algorithms:
    each point     reported with 90%
    probability

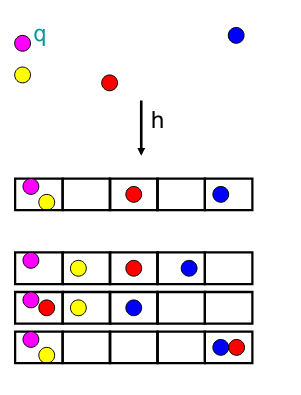

Locality Sensitive Hashing (LSH)

  • Map points \(g(p)\) into "codes" s.t. similar points have the same code

  • \(\mathrm{Pr}[g(p) = g(q)]\) is high
    when \(||p-q|| \leq cr \)

  • \(\mathrm{Pr}[g(p') = g(q)]\) is low
    when \(||p'-q|| > cr\)

  • Space partitions
    • LSH (data independent map)
    • This paper (data dependent map)

Locality Sensitive Hashing (LSH)

  • Map points \(g(p)\) into "codes" s.t. similar points have the same code

  • \(\mathrm{Pr}[g(p) = g(q)]\) is high
    when \(||p-q|| \leq cr \)

  • \(\mathrm{Pr}[g(p') = g(q)]\) is low
    when \(||p'-q|| > cr\)

  • Space partitions
    • LSH (data independent map)
    • This paper (data dependent map)

Locality Sensitive Hashing (LSH)

  • Map points \(g(p)\) into "codes" s.t. similar points have the same code

  • \(\mathrm{Pr}[g(p) = g(q)]\) is high
    when \(||p-q|| \leq cr \)

  • \(\mathrm{Pr}[g(p') = g(q)]\) is low
    when \(||p'-q|| > cr\)

  • Space partitions
    • LSH (data independent map)
    • This paper (data dependent map)

Locality Sensitive Hashing (LSH)

  • Map points \(g(p)\) into "codes" s.t. similar points have the same code

  • \(\mathrm{Pr}[g(p) = g(q)]\) is high
    when \(||p-q|| \leq cr \)

  • \(\mathrm{Pr}[g(p') = g(q)]\) is low
    when \(||p'-q|| > cr\)

  • Space partitions
    • LSH (data independent map)
    • This paper (data dependent map)

Locality Sensitive Hashing (LSH)

  • Map points \(g(p)\) into "codes" s.t. similar points have the same code

  • \(\mathrm{Pr}[g(p) = g(q)]\) is high
    when \(||p-q|| \leq cr \)

  • \(\mathrm{Pr}[g(p') = g(q)]\) is low
    when \(||p'-q|| > cr\)

  • Space partitions
    • LSH (data independent map)
    • This paper (data dependent map)

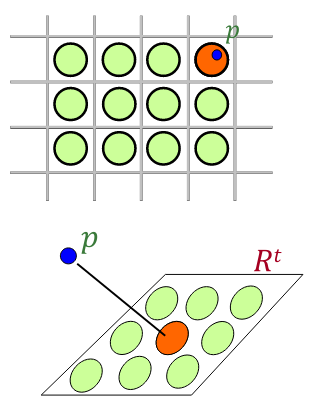

The best map

we can have in

terms of time and

memory complexity

\(O(n^{1/c^2})\) time
\(O(n^{1+1/c^2})\) memory

Locality Sensitive Hashing (LSH)

  • Map points \(g(p)\) into "codes" s.t. similar points have the same code

  • \(\mathrm{Pr}[g(p) = g(q)]\) is high
    when \(||p-q|| \leq cr \)

  • \(\mathrm{Pr}[g(p') = g(q)]\) is low
    when \(||p'-q|| > cr\)

  • Space partitions
    • LSH (data independent map)
    • This paper (data dependent map)

The best map

we can have in

terms of time and

memory complexity

\(O(n^{1/c^2})\) time
\(O(n^{1+1/c^2})\) memory

This paper (Neural LSH)

  • Given:
    • Dataset \(P \in \mathbb{R}^{n \times d}\)
    • \(m\) bins

  • The goal is to find a partition \(\mathcal{R} \in \mathbb{R}^d\) into \(m\) bins
  1. Balanced: \(|\mathcal{R}| \approx n/m\)
  2. Locality sensitive:  \( q \in \mathbb{R}^d,  m_{q} \approx m_{\mathcal{N}(q)} \)
  3. Simple: the point location alg. should be efficient

Formulation

\min\limits_{\mathcal{R}} \, \mathbb{E}_q \Big[\sum_{p \in N_k(q)} [[\mathcal{R}(p) \neq \mathcal{R}(q)]] \Big]
\mathrm{s.t.} \qquad \forall_{p \in P} |\mathcal{R}(p)| \leq (1+\eta)\dfrac{n}{m}

\(q\) is sampled from the query distribution

\(N_k(q)\) is the set of \(k\) nearest neighbors of \(q\)

\(\eta\) is a balance parameter

\(\mathcal{R}(p)\) is the partition of \(P\) that contains \(p\)

Building a graph

  • Suppose that the query is sampled from the dataset \(q \sim P\)
  • Let \(G\) be the \(k\)-NN graph
    • each vertex is a data point \(p \in P\)
    • edges connect nearest neighbors of \(p\)

  • \(\implies\) partition vertices of \(G\) into \(m\) bins, such that
    • each bin has roughly \(n/m\) vertices
    • number of edges crossing bins is small as possible

Building a graph

Learning partitions

  • Suppose that the query is not sampled from the dataset:
    • \( q \notin P \)

  • We need to extend the partition \(\tilde{\mathcal{R}}\) of \(G\) to a partition \(\mathcal{R}\) of the whole space \(\mathbb{R}^d\)

  • Learn a partition in a supervised way:
    • \(y_i = m_{\tilde{\mathcal{R}}(p_i)}\)
    • \(\mathcal{R}(p) := f(p_i) \approx y_i \)
    • \(f\) can be any classifier

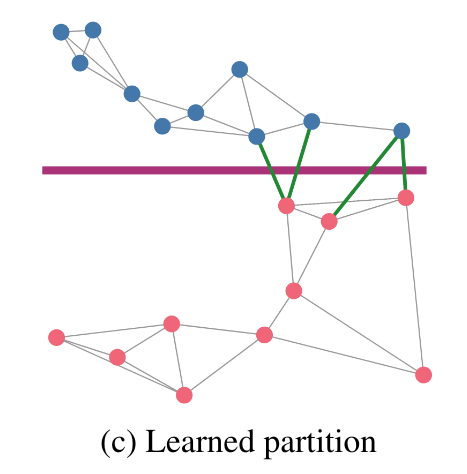

Learning partitions

More ideas

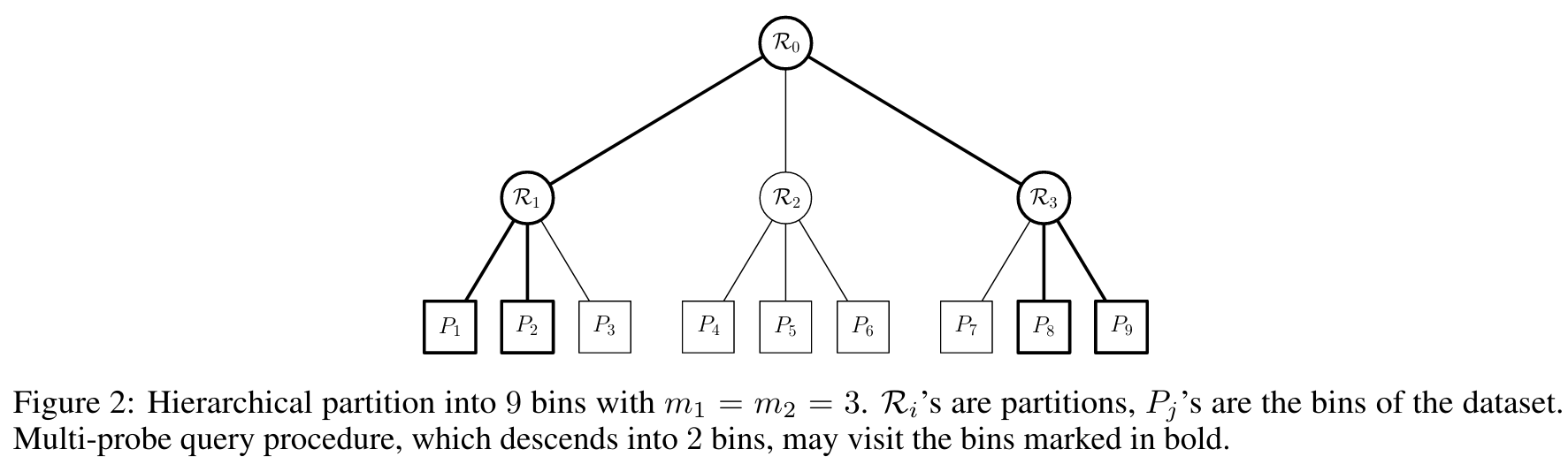

  • Hierarchical partitions: If the number of bins \(m\) is large
    • Create partitions recursively
  • Multi-probe querying: predict several bins!
    • e.g. top-k softmax

  • Soft labels: infer a probability distribution over bins

\(\mathcal{P} = (p_1, p_2, ..., p_m)\)

\(\mathcal{Q} = (q_1, q_2, ..., q_m)\)

\(\min D_{KL}(\mathcal{P}||\mathcal{Q})\)

Among \(S\) bins sampled uniformly from \(m_{N(p)} \cup m_p \)

For a point \(p\):

More ideas

Experiments

  • Standard datasets for ANN benchmarks:
    • SIFT; Glove embeddings; MNIST

  • Metrics:
    • top-k accuracy
    • average number of candidates
    • 0.95th quantile of the number of candidates

  • Methods:
    • Neural LSH: small neural net (3x512 and 2x390)
    • Regression LSH: logistic regression

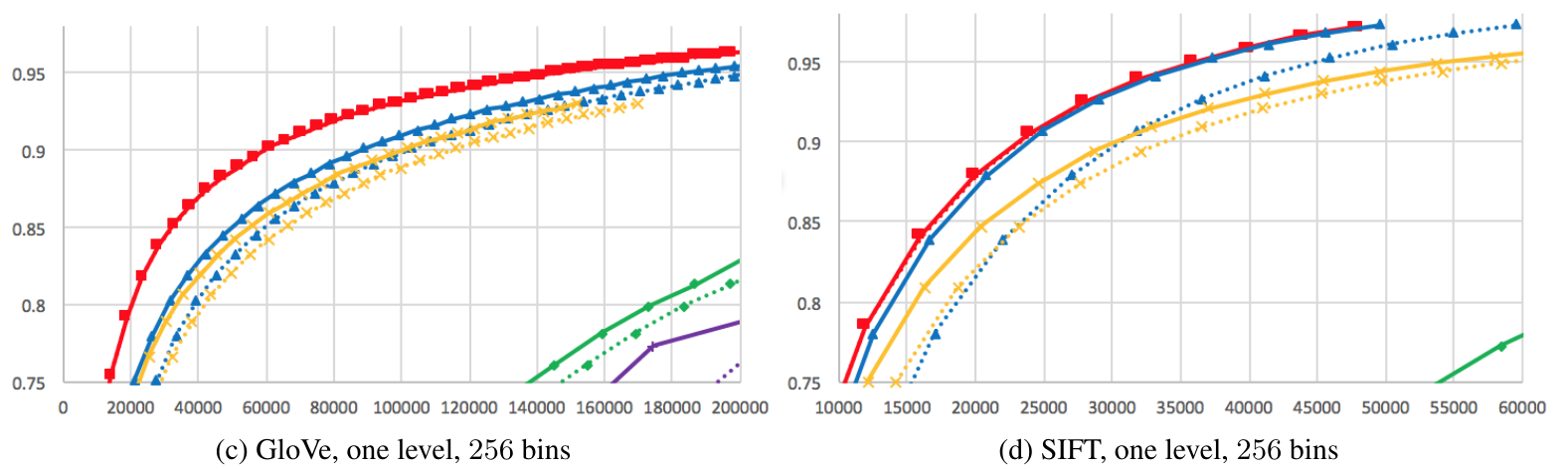

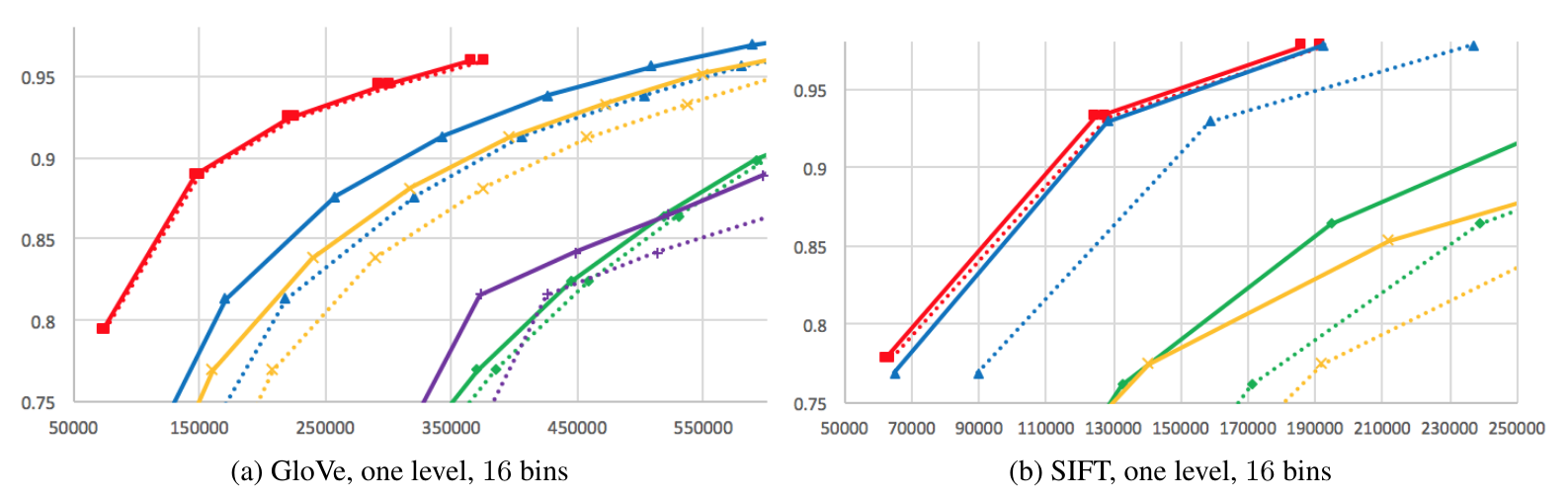

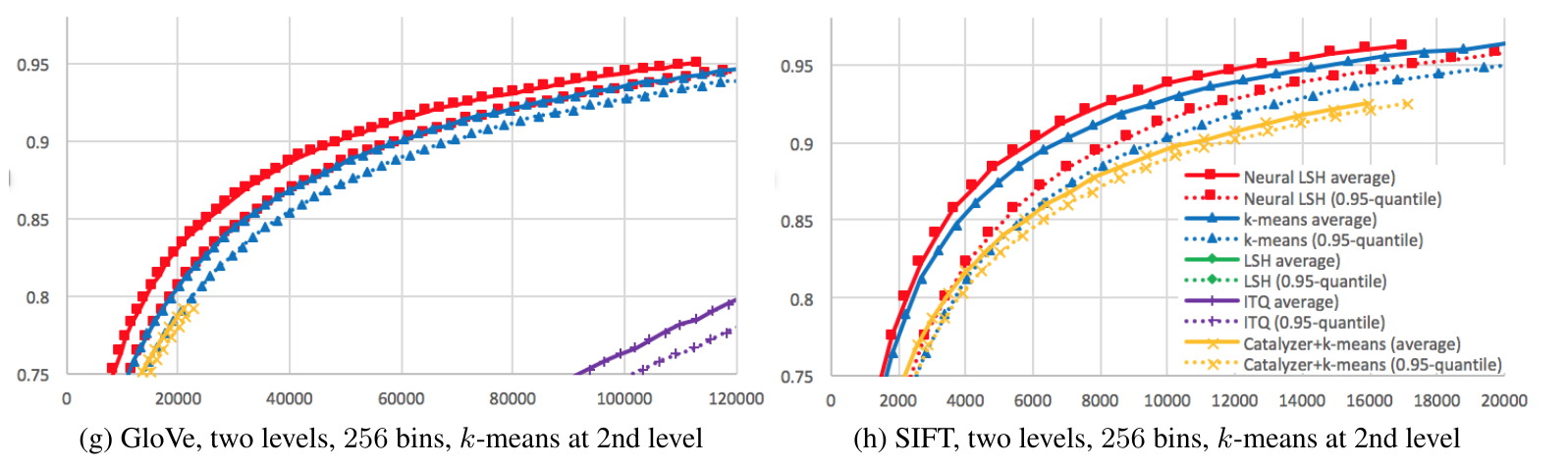

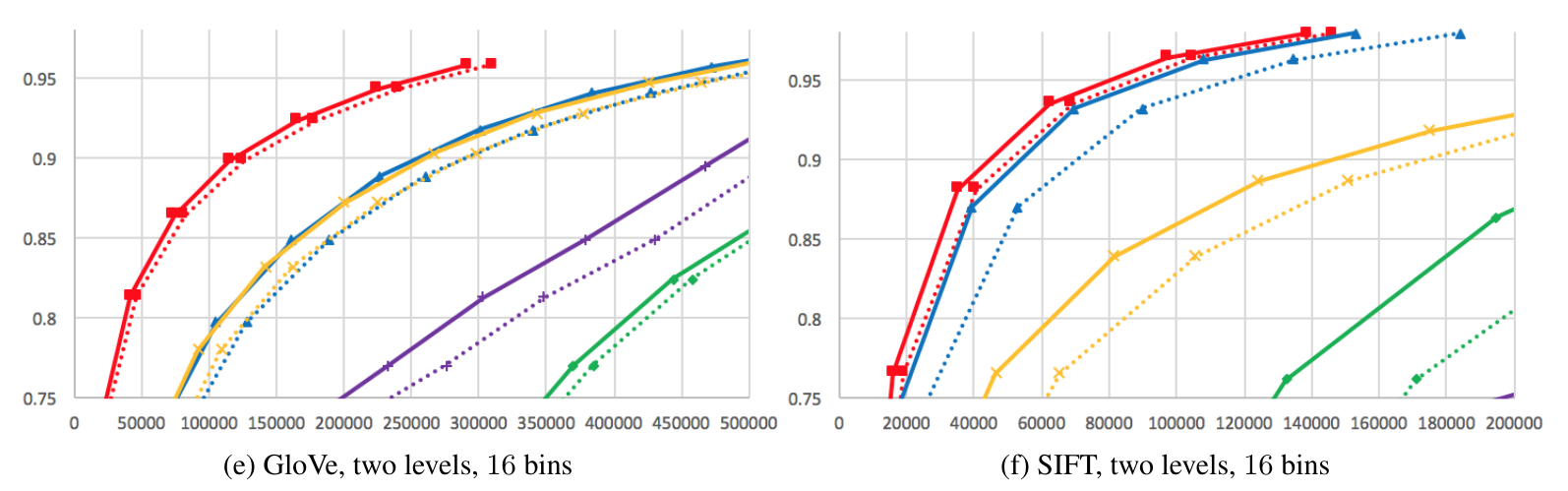

Results - neural net

Results - neural net

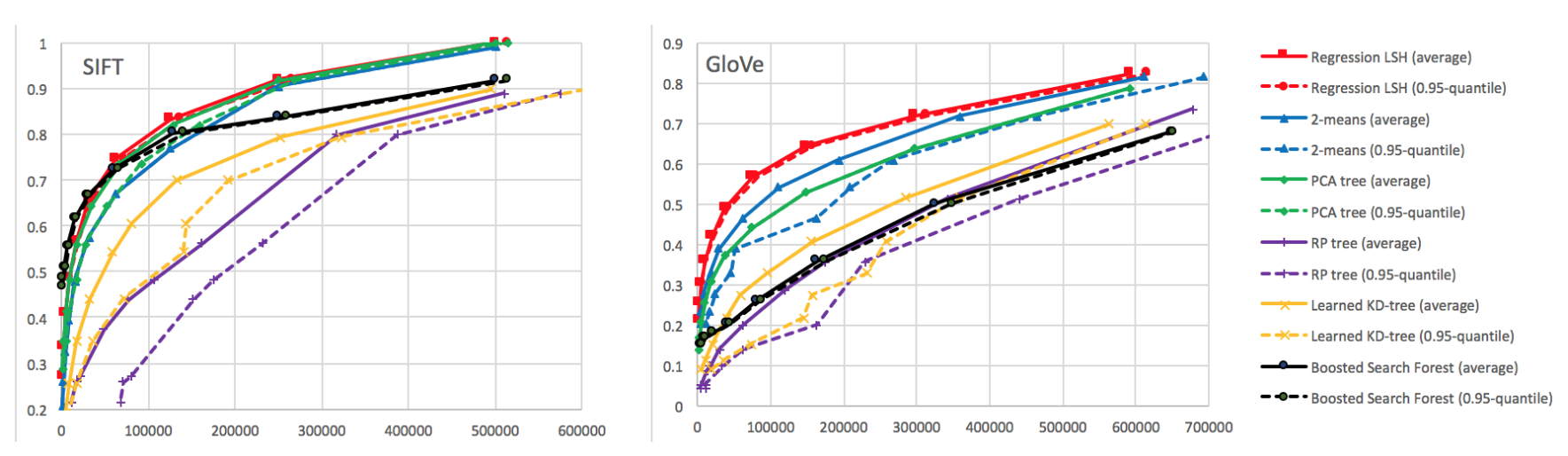

Results - linear classifier

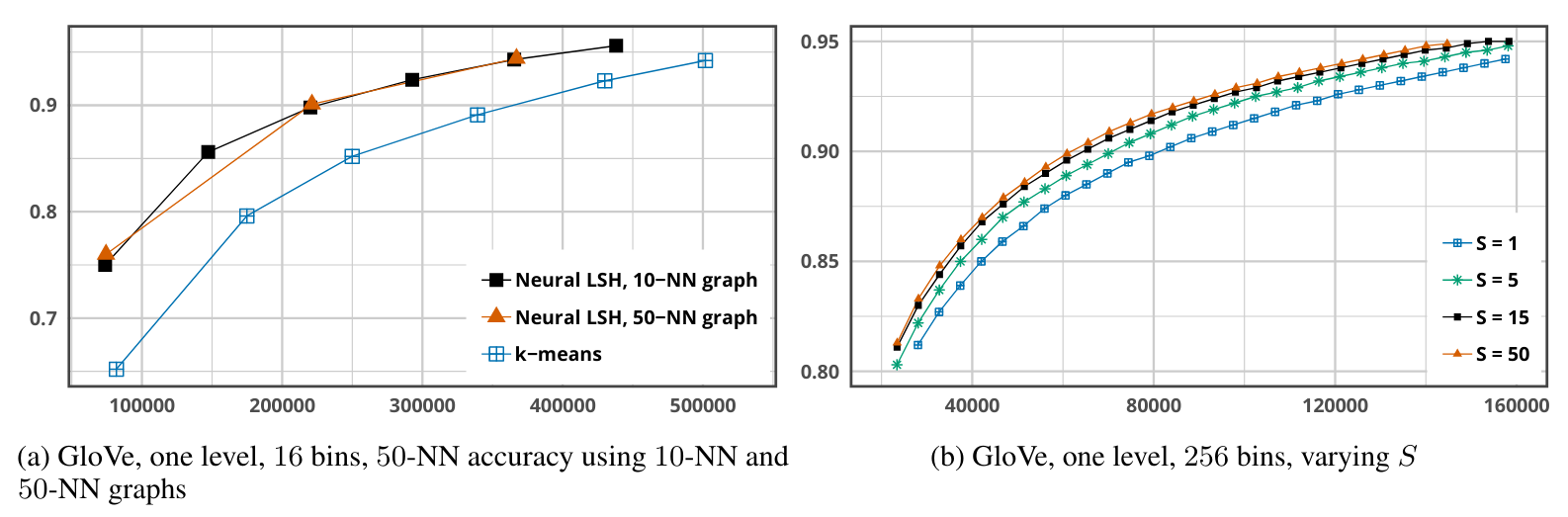

Results - hyperparams

Future ideas

  • Other distances
    • Edit distance
    • Earth mover's distance

  • Jointly optimize the graph partitioning & classifier

  • What about graph-indexing based on neural nets?

  • “continuous” sparsemax?
