Hackrf one
Neil Koul

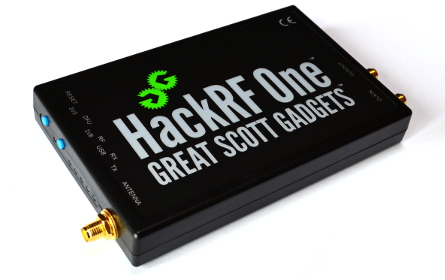

What is a HackRF?
Features
1 MHz to 6 GHz
Half-duplex transceiver
20 million samples per second
Compatible with GQRX and SDR#
USB powered, but can be modified to run standalone
Everything is open source
$300 device

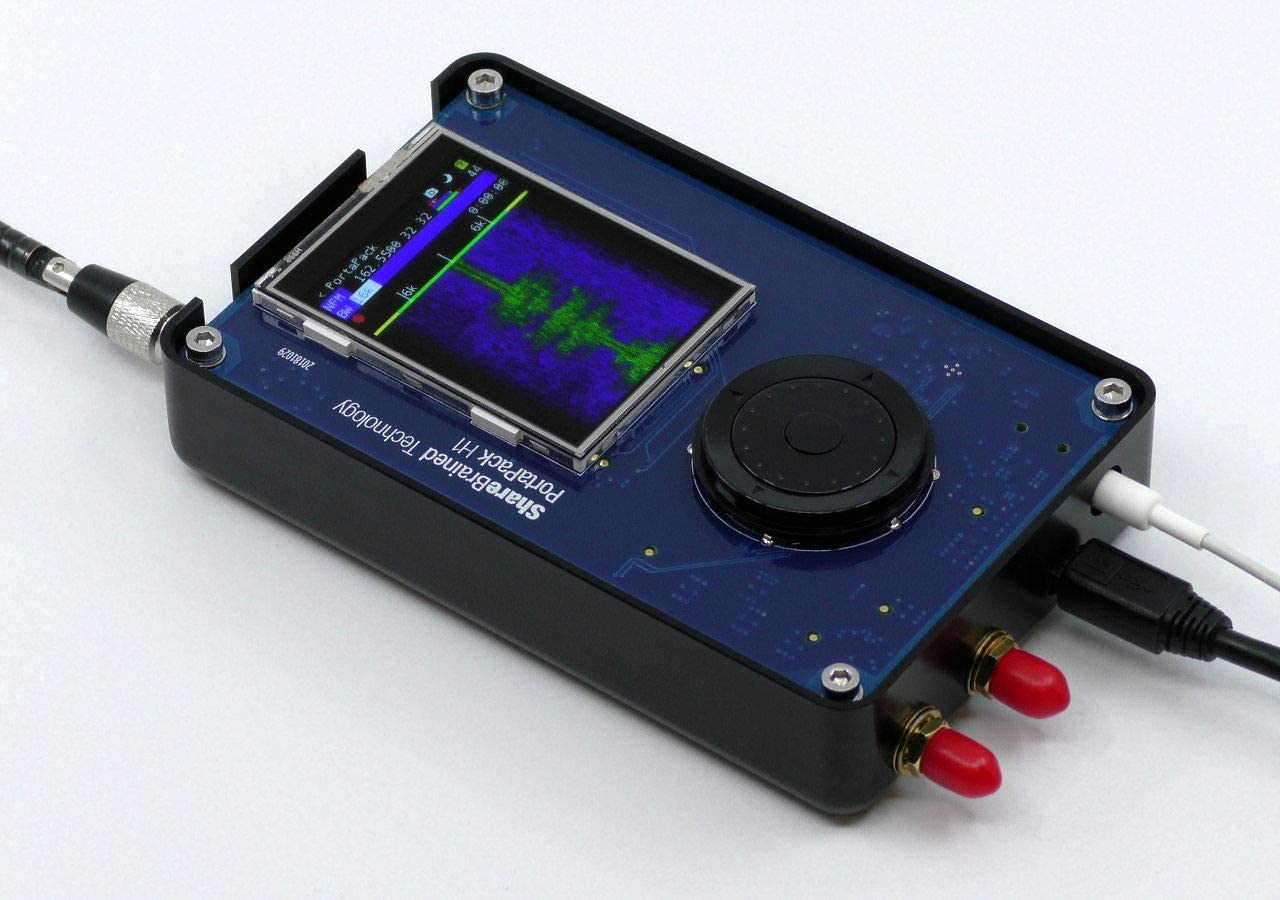

Portapack
A $225 add on for the HackRF
Requires an additional external battery
Provides device with LCD and touch controls
Alternatives

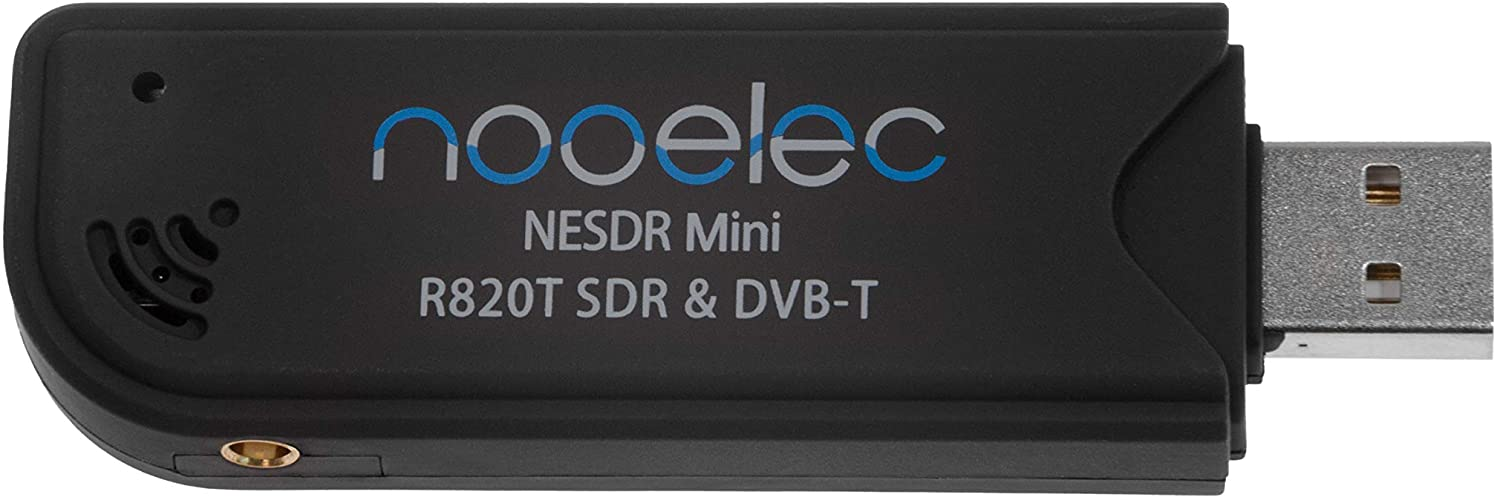

RTL-SDr
Only 12MHz-1750MHz
Reception only
replay attackĀ
On a Wireless Doorbell
find Frequency
The back of the doorbell remote has an FCC ID
fcc.io is an easy way to lookup FCC data
Download test report

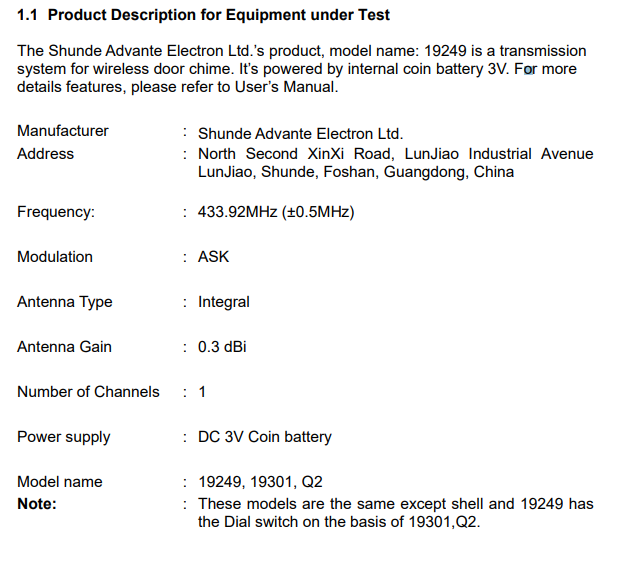

test report

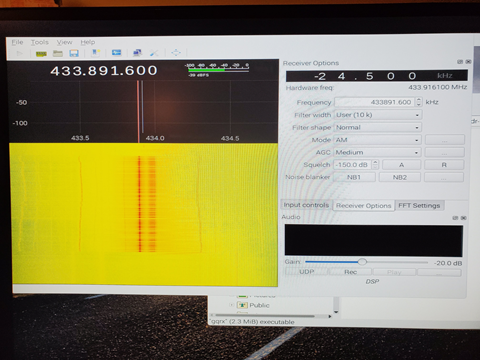

gqrx report

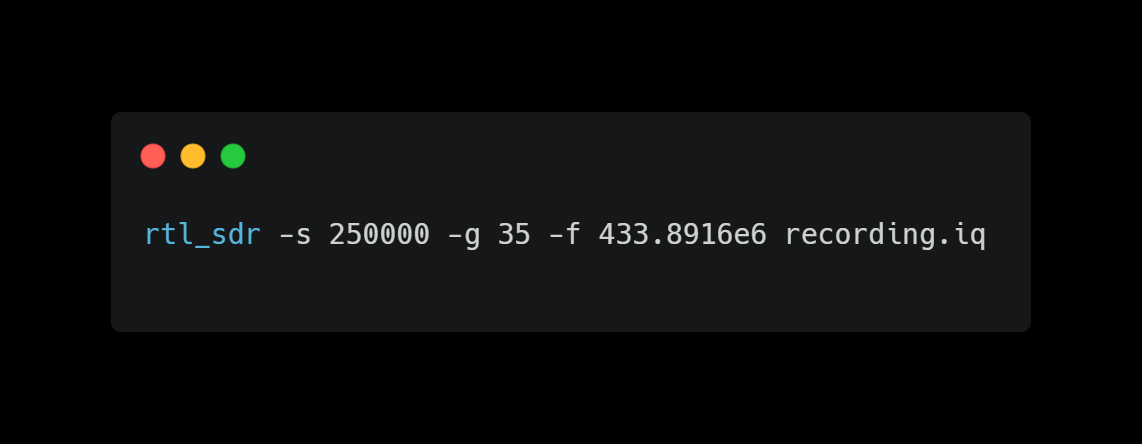

Record xmission

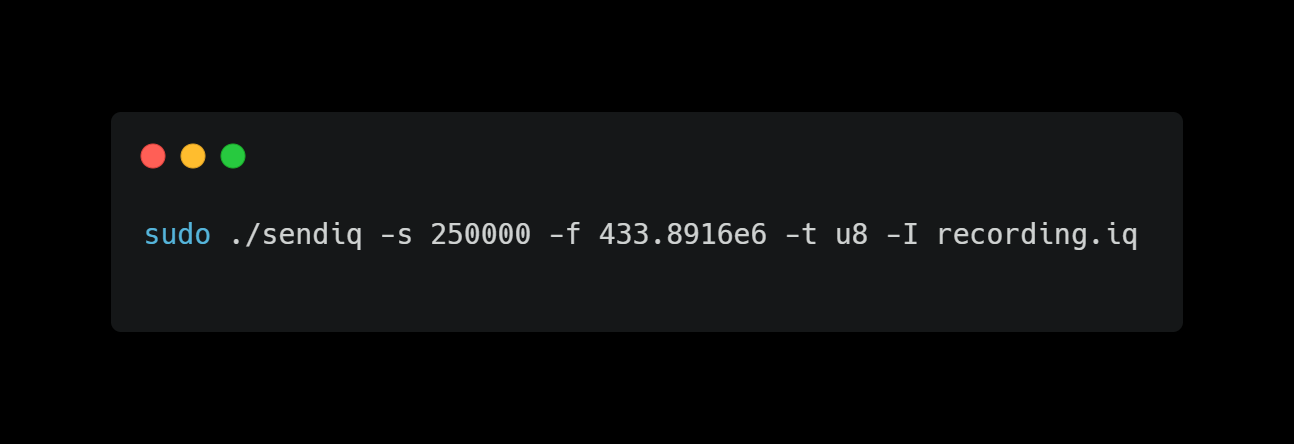

Replay
Foundations Final Presentation
By Neil Koul
