Introduction

目標

• 與 build system 串接
  • 每版跑 test
  • 每版跑 performance test
• 提供統一介面運行各種 test
  • regression test
  • performance test
  • unit test
  • ...
• 任何 RD/QC 都可輕易利用這套 framework 跑 test

參與人員

• RD
  • regression test
  • unit test
• QC
  • 將現有制式化的 check list 改寫成 test case

Schedule

Phase1 (Now)

• 完成基礎的 CI framework
  • 快速布置 test 環境
  • 簡易的透過 command line 運行 test
  • 大量的 python wrapper webapi & utils 幫助部屬及測試 DSM
• Output log
• Regression test cases Examples

Schedule

Phase2

• Support Unit Test
• Test Case grouping
• 連接 Build System 做 CI
  • CI 執行時間
    • DS: 新版本 DSM version build 出來後
  • CI 執行 branch
    • 目前只會 run 在 master 上
  • 執行結果可利用網站瀏覽並寄信告知 owner failed
• 撰寫 CI framework 本身的 test case

​

Schedule

Phase3

• 定義規範
  • 誰或是何時該寫 test、每天要跑哪些 test ...
• 支援 Package CI (每 build 出一版 package 就跑)
• 支援其他 branch CI (eg. SRM、NVR、5.2 branch ...)
• CI 網頁
• 許願池 ...

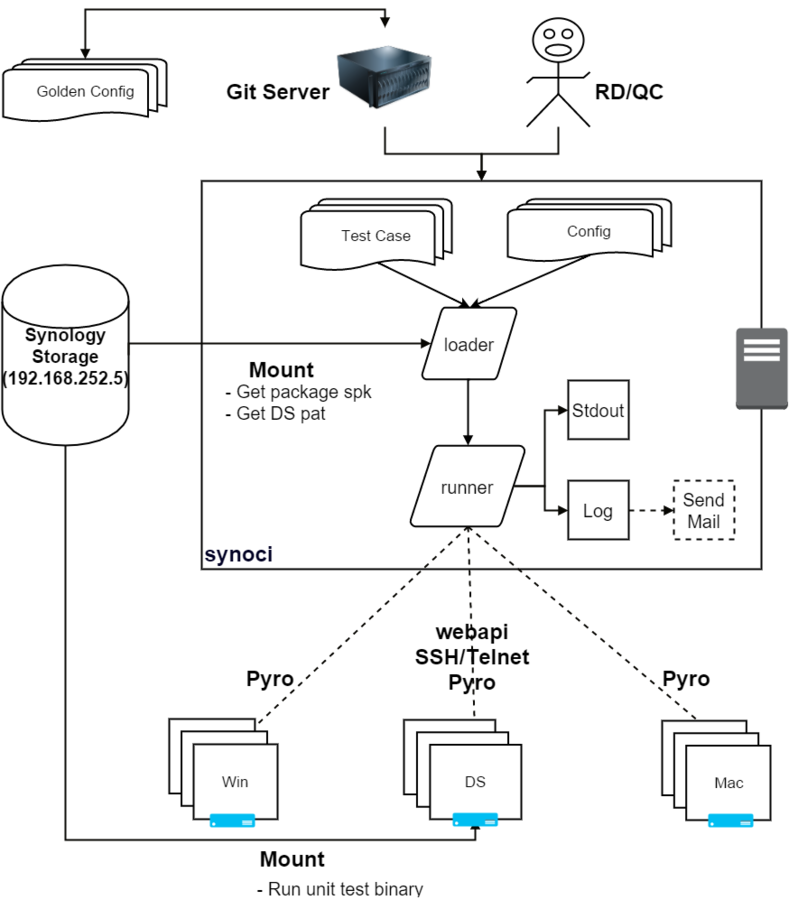

Architecture

Projects

synotestscripts

• All Test Cases

• synoci framework

  • Tow binaries

    • bin/synoci (BuildAll)

    • bin/mkpyenv (BaseAll)

Projects

python-synowebapi

• provide python wrapper webapi

python-synodeploy (misc)

• all python wrapper utils
  • eg. install DS, install package, execute remote command, create volume/share …

python-synopyro

• DS、Win、Mac pyro related code

Python Coding Style

• Use 4 space instead of tab
• Class use camelcase others use underscores
  • eg.
    • class TestClass
    • def test_func()
    • test_num = 100
• Library have to write usage comment

class DSMPatPath():
    """
    Get DSM pat path

    >>> with DSMPatPath("10.13.22.213") as pat:
    ...     print pat[7166]
    synostorage/DSM6.0/7166-dev-6.0.0/synology_alpine_ds2015xs/DSM_DS2015xs_7166.pat
    """

Setup & Run

Virtual Env

• virtualenv is a tool to create isolated Python environments (like chroot)

• All python library would install in ven

• Setup

Synoci FHS

• Test Suite
  • Sub Test Suite
    • Test Case
      • Test Case Item

synotestscripts/
├── bin
│   ├── mkpyenv
│   └── synoci
├── README.md
├── requirements.txt
├── suites
│   ├── __init__.py
│   ├── mailplus_server #Test suite
│   │   ├── bootstrap.py
│   │   ├── config.py
│   │   ├── ds_config.py
│   │   ├── __init__.py
│   │   └── test_webapi #Sub test suite
│   │       ├── smtp_webapi.py #Test case
│   │       └── __init__.py
│   │   └── test_cluster #Sub test suite
│   │       ├── setup.py #Test case
│   │       └── __init__.py
├── test
│   ├── main.py
│   ├── test_runner.py
│   └── test_synoci.py
└── utils
    ├── code_generator.py
    ├── code_update.py
    ├── __init__.py
    ├── loader.py
    ├── macro.py
    └── runner.py

mkpyenv

• Create venv (similar chroot environment)

  • path "synotestscripts/.CIENVS/venv"

• Install necessary python library base on "requirements.txt"

  • pip install -r requirements.txt

• Into venv

• Clone & Install python-syno* projects

• Create template DS config

Limitation

• All operation have to run in venv
• All operation have to in dir "synotestscripts"
  • eg.
    • cd synotestscripts
    • ./bin/synoci -h

Test Case

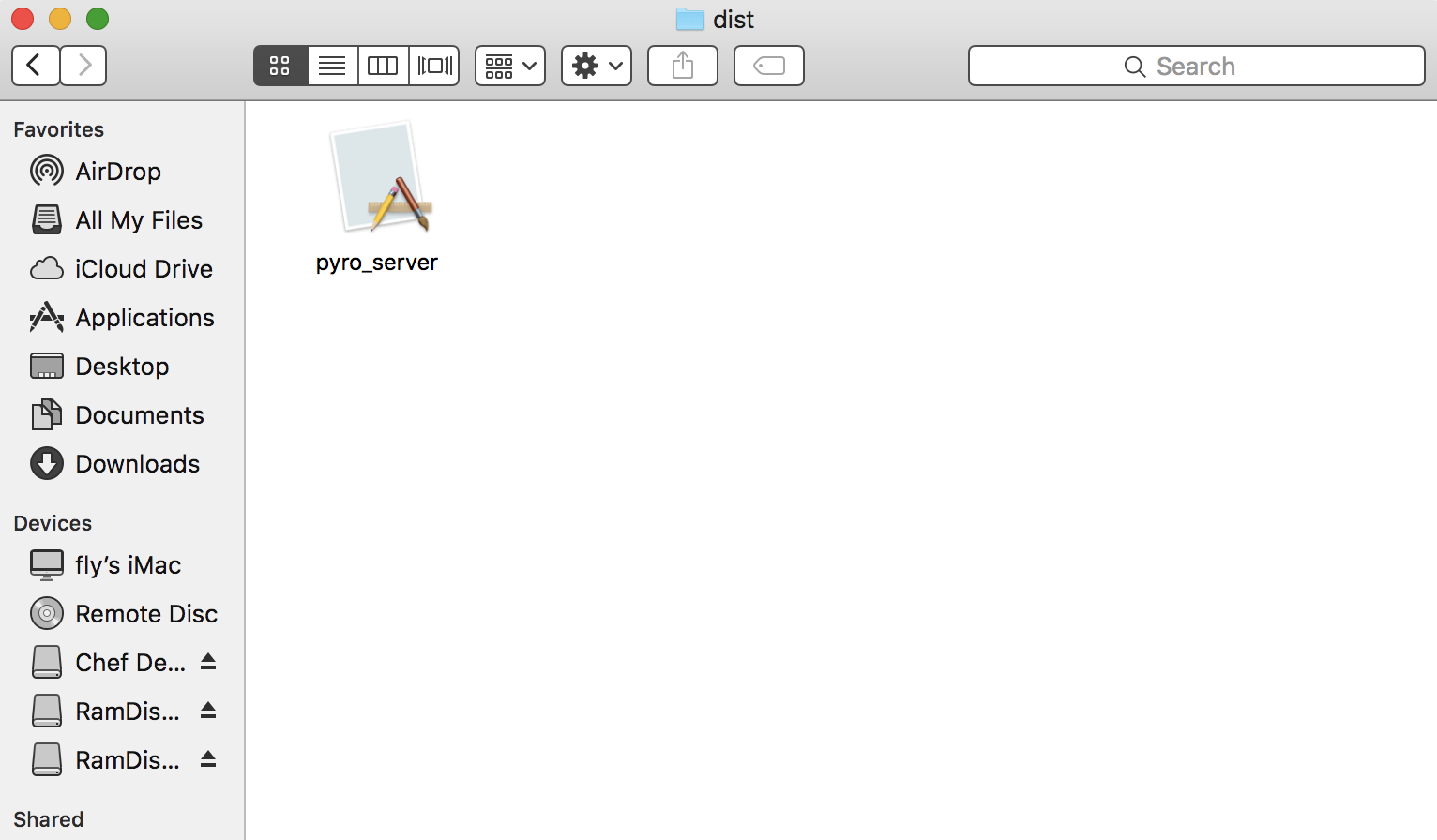

Pyro: Python Remove Object

A Python Remote Object Server

mac_os = PyroObject('192.168.55.66', 'os')
mac_os.uname()
('Darwin', 'flys-iMac.local' ...
mac_os.system('mount_afp ds.local/share /Volums/share')
mac_os.system('cp -rf ~/5G /Volumes/share')

What Can We Do Now?

• Quickly deploy synoci environment
• Lots library to setup DSM
  • baseInstall DSM to any version
  • Install Package
  • Create/Delete Volume,share
  • Remote command through SSH/Telnet
• Pyro server to control Win/Mac/DSM
• Easy way to test Webapi/CGI

Pyro Demo: AFP Performance
