Engrade Integration

Acceptance Criteria

• Integrate Engrade Assessments into existing products

• Engrade has established UIs
• Engrade exposes everything via RESTful web services
• MHE owns Engrade, so they will accommodate our every whim
• We can have a single experience across all apps

Engrade UI Components

Customers

• Everyday Math 4
• Reading Wonders (Replacing Cognero)
• Open Court Reading
• Music

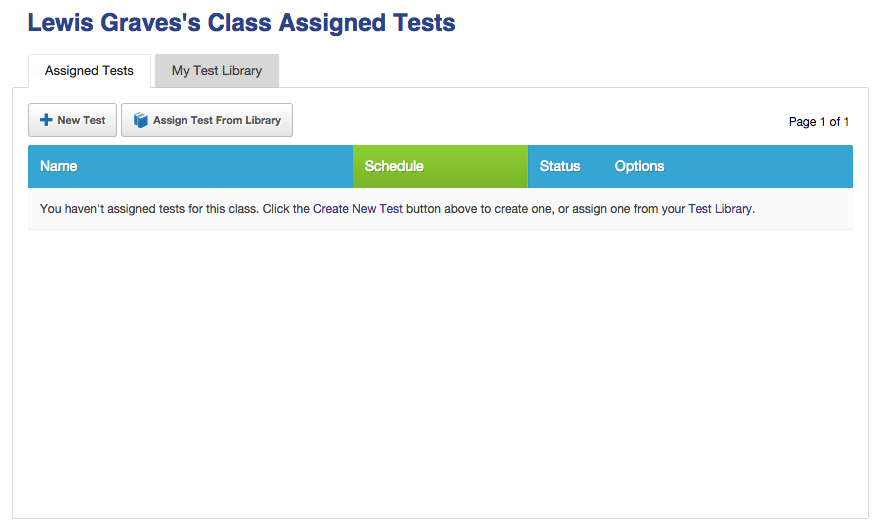

Teacher-Facing Tests & Quizzes

• Test creation and question pool management
• Class assignments
• Schedule tests
• Per-test submission results
• Access to preset test banks and question banks

How Many UIs?

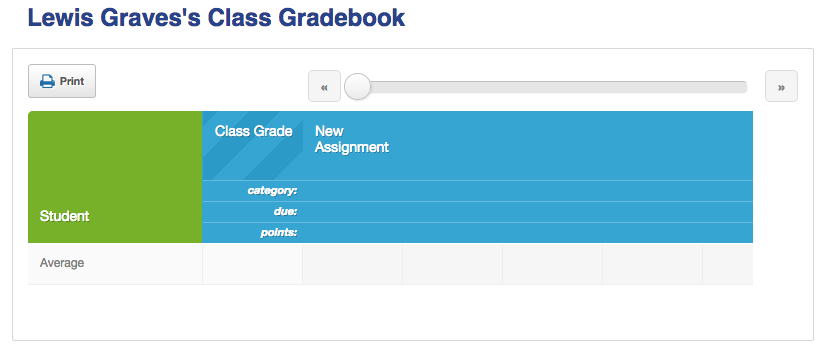

Teacher-Facing Gradebook

• Grid view
• All students in the class
• All assignments for the year
• All scores for every student and every assignment
• Drill downs for test details and standards coverage

How Many UIs?

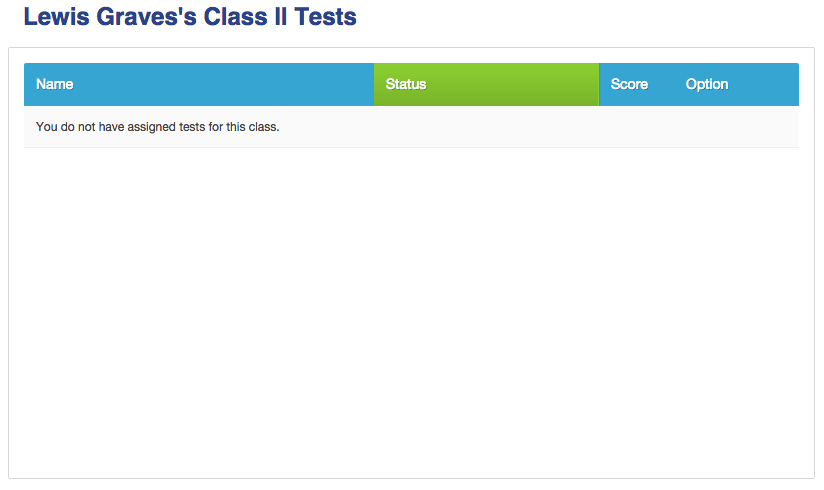

Student-Facing Test & Quizzes

• Grid view
• All students in the class
• All assignments for the year
• All scores for every student and every assignment
• Drill downs for test details and standards coverage

How Many UIs?

Customer Requirements

• Wanted the Engrade UIs to launch in same window
• Wanted to customize the look & feel
• Some customers do not want to expose Gradebook

How Can We Embed?

• Engrade is not componentized
• (Some) customers would not accept a popup experience
• Not too many options...

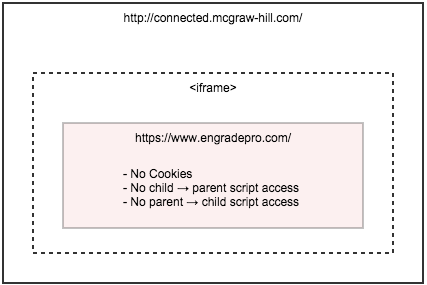

iFrame

• Bad user experience
• "seamless" attribute is the worst supported specification
• Third-party cookie problems

Seamless iFrame

• Eliminate scrollbars - iFrame resizes according to content size
• CSS Injection (L&F and hiding functionality)
• Keep alive callbacks
• Needs to work across domains (iframe restrictions)

CSS Injection

• Engrade had to add ids and classes to items we need to hide
• Parent page includes CSS

mhe-engrade iframe .content h2 {
    color: #4444cc;
}

Third Party Cookies

• https://goo.gl/O9Vjhi

Project

• svn://srcrep.cdiapps.com/ConnectED/trunk/mhe-engrade
• Exposed to developers via sharedwebassets-mhe
• Documentation - http://srcrep.cdiapps.com/sites/mhe-engrade/

Data Sync

Engrade Coordination

• Engrade UIs are powered by Engrade data
• Engrade knows absolutely nothing about ConnectED
• It is not data sync, it is data push
• Proactive Push or Reactive Push?

Data Push Highlights

• The push begins with a class (docs)
• Class ->  School -> District (no subdistricts)
• Class -> Teacher -> Students
• Calling User

Data Push Lowlights

• One call to sync a class can result in more than 50 individual HTTP requests to Engrade
• ConnectED does not have good support to track whether push is needed
• Push typically takes more than 10 seconds
• Engrade has different constraints on data that are opaque to us
• Many edge cases for failure
• No collaboration

Authentication

Engrade SSO

• ConnectED shim generates Engrade SSO endpoints

GET /connected/shim.do?uri=/engrade/sso/classes/M7XC4N7NOYHM297GMJXDOXL4BQ

{
    "student_quizzes": "https://www.engradesandbox.com/user/sso-login.php
        ?uid=10000000005981833
        ×tamp=1433514066
        &nonce=413
        &token=MCwCmg
        &next=class%2Fquizzes/index-stu.php
            ?hideframe=1
            &stuid=C8YZR9Z99ZWSO82S6427D3NKBQ
            &clid=5000007032229",

    "gradebook": ...,

    "teacher_quizzes": ...
}

Custom UI

Customer Request

• Engrade UIs are too complicated or aesthetically dissimilar from desired interfaces

Engrade Public API Access

• Engrade APIs return data specific to the authenticated user
• Engrade does not have the ability to authenticate on behalf of a user (aka user spoofing, runas, etc.)
• Our only option at this time is to authenticate as the user using an Engrade password we store in cleartext in our database

Better Solution (maybe)

• user-login
  • apikey
  • usr - username
  • pwd - password
  • remember - (Optional) remember password? (1 = Yes, 0 = No)

• • runas - username to associate with session

Reporting

Acceptance Criteria

• Reading Wonders wants to provide data-driven recommendations to students
• Teachers want to see students grouped by their proficiency
• View student's response at the question level
• iPad friendly
• Later: support for other applications

How is Proficiency Measured?

• Difficult to quantify proficiency vs. performance
• Proficiency is science, performance is 3rd grade math
• Proficiency has meaning, performance has none

MHE: The Learning Science Company

• Educational Data Mining, Learning Science, Learning Analytics, Item Response Theory, Bayesian Knowledge Trace, Performance Factors Analysis
• Dr. Ryan Baker is consulting with MHE
• Internal whitepaper: https://goo.gl/l8IvZR
• Who has a higher proficiency?

Alice

Bob

☒ ☒ ☒ ☒ ☒ ☒ ☑ ☑ ☑ ☑ ☑

☑ ☑ ☒ ☑ ☑ ☒ ☑ ☒ ☑ ☒ ☒

t →

Data Sources

In Priority Order

• Engrade Assessments
• Teacher Observations (Rubric)
• Interactive Activities (Games, PBL)

• Engrade Assessments
• Interactive Activities (Games, PBL)
• Teacher Observations (Rubric)

Architecture

Architecture

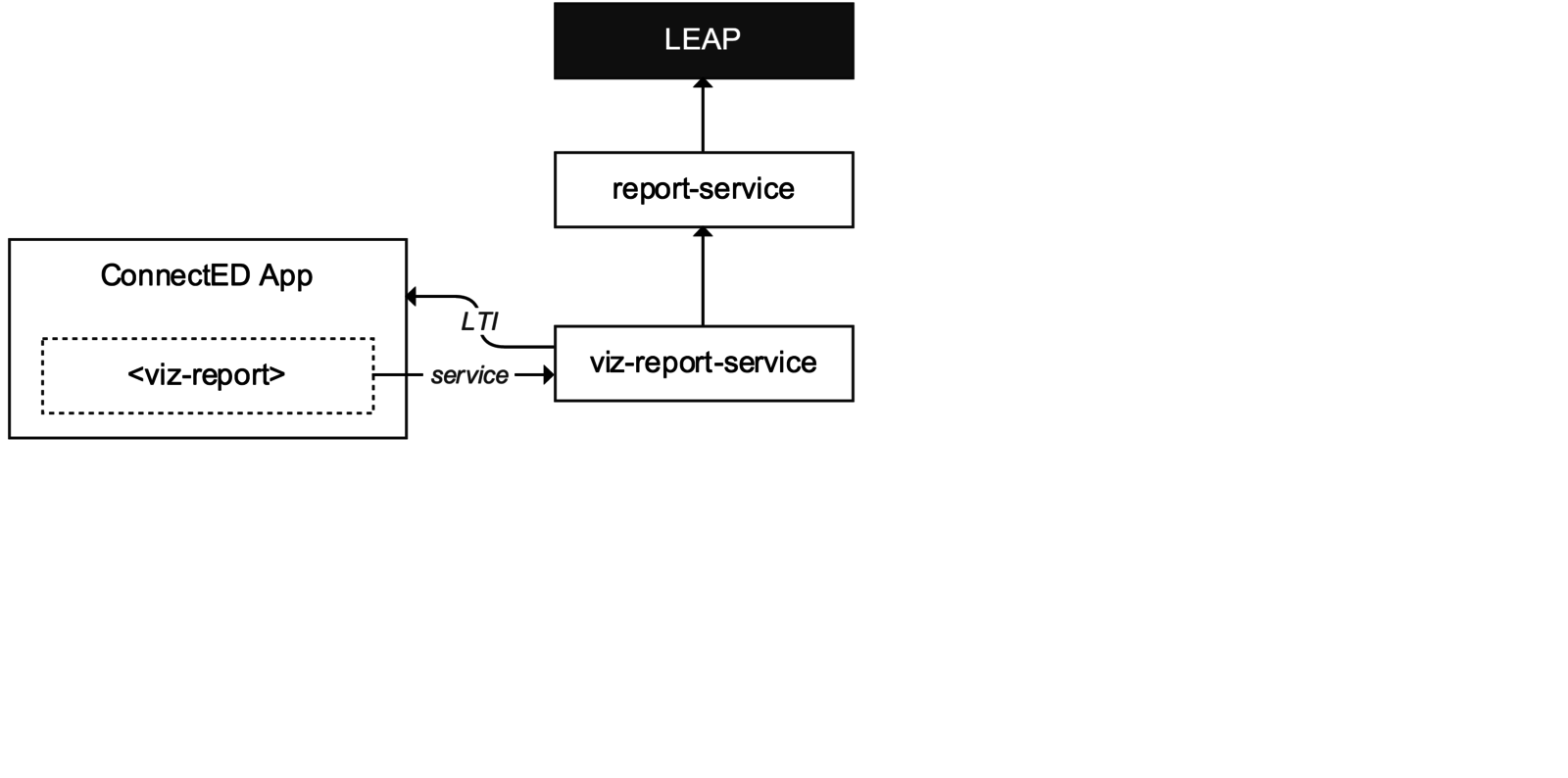

https://goo.gl/paCjmY

viz-report

• AngularJS Component
• Designed to be embedded into any application
• Currently AngularJS 1.3
• Using ui-router

• svn://srcrep.cdiapps.com/ConnectED/trunk/viz-app

viz-report-service

• Not started - AIRR effort
• REST endpoints specific to needs of viz-report

report-service

• Not started - LEAP/AIRR effort
• General queries of LEAP data
• PII information hydration

Reporting UI

Explorable

• The entire UI experience is designed to be touchable
• Instant feedback to users
• Visual transitions and data animations
• Using D3 and Angular
• Meant to be a showcase to demonstrate what Columbus is capable of implementing

Documentation

• CA Submission (compromised navigation, no working components, performance data)
  • http://goo.gl/HRSC7l
• Full UX documentation
  • https://goo.gl/Gfrad6
• Screen Mockups
  • https://goo.gl/519nKc

Pseudo LTI

Reporting Data Needs

• Reporting component will have to make LTI-like callbacks to embedding application for some data
  • Class rostering data (student names -> id)
  • Mastery threshold settings
  • Recommendations by taxon
  • Lesson and resource preview
  • Configuration data (may be specified declaratively)
• Nice to have: actually implement as an LTI Provider

Learning Events

Acceptance Criteria

• Set of data structures to represent student interactions with the system
• Require events necessary to support the needs of the viz-report component

Specifications

Required Events

• activity started
• activity ended
• item graded
  • question on assessment
  • challenge in a game
  • observation on a rubric
• https://goo.gl/loEI9z

Formalized Specification

• Began with xAPI, switched to Caliper
• https://goo.gl/0SwVZI
• Analytics team is the owner of schemas
• 95% complete (need to define how to store outcome results)

Data Generator

Generator Tool

• Developed by Chris in Node.js

• svn://srcrep.cdiapps.com/ConnectED/trunk/viz-tools/generator

• Simulates a year's worth of Reading Wonders assessment events for a single student

• Extreme data sets when specifying number of districts, schools and classes

• Mastery heuristics

• Needs more work to match final Caliper specification

PII

Acceptance Criteria

• No personal identifying information will be included on a learning event

Identified PII

• districtID
• schoolID
• classID
• instructorID
• studentID

Remaining Tasks

• Affirm with Andy Bloom (CPO) that our externalized ids will provide sufficient obscurity to satisfy PII

Learning Event Factory

Learning Event System

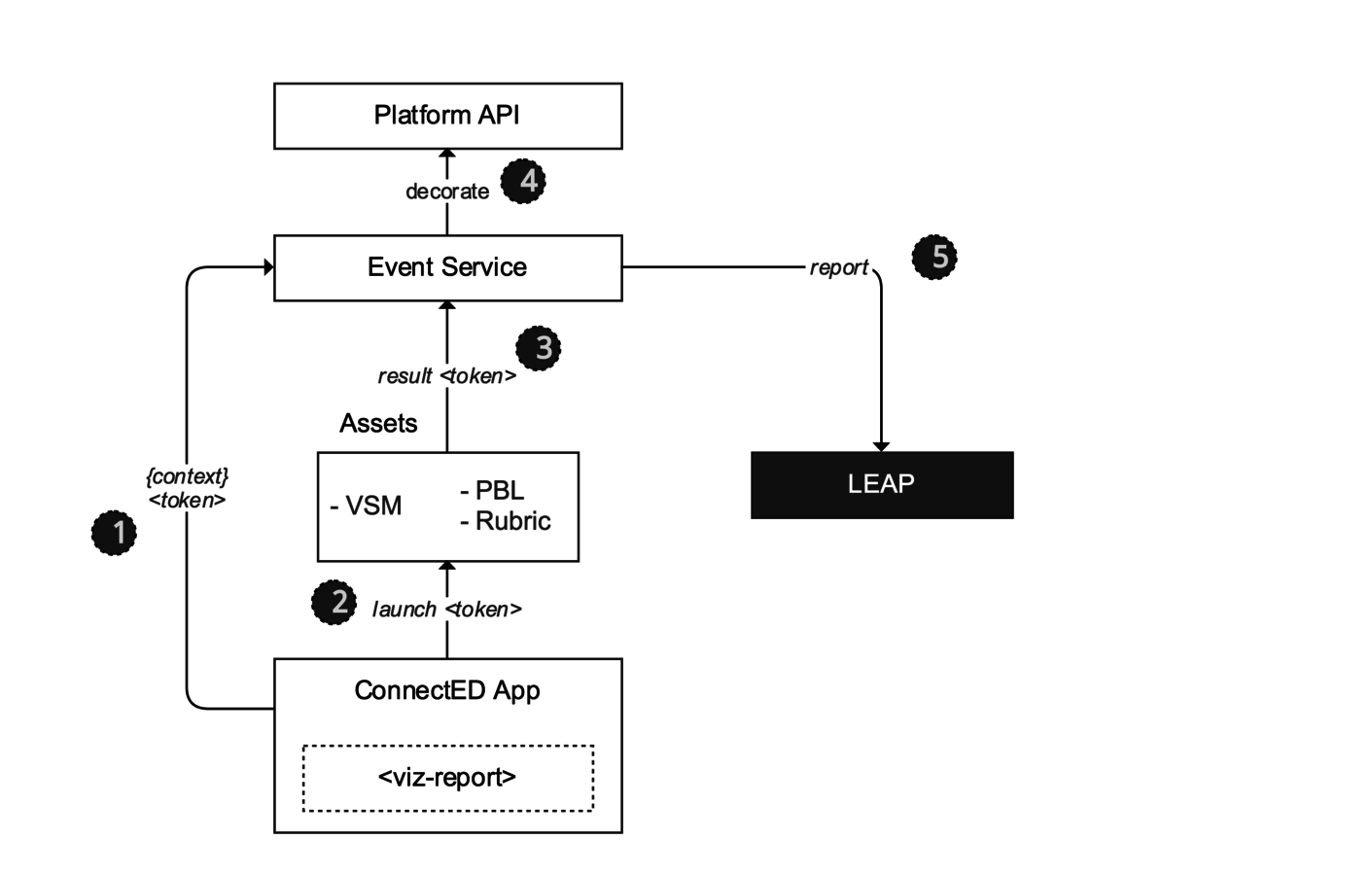

https://goo.gl/B6UB7e

Environmental

• MHE Github: https://goo.gl/okuPUy
• New JVM (Java 8, Tomcat 6)
• Limited memory
• Spring Boot, Groovy, Spring Data
• Couchbase

Q3 2015

• Integration with Reading Wonders and VSM games
• New microservice to return all standards associated with any asset
• Assist RW in context generation
• Performance testing
• Final product delivered in Q3

SensorJS

Acceptance Criteria

• Provide third-parties with a Javascript library to make it simple for them to report their result data
• This result data will be converted to a viable learning event

SensorJS

• Small JS utility that will generate learning event fragments and send them to ConnectED event factory
• MHE GitHub
  • https://goo.gl/gluPrC
• Demo
  • https://goo.gl/OLBSQa

California Submission

Acceptance Criteria

• Provide a working UI for California reviewers to understand how data-driven instruction will be supported in the forthcoming Reading Wonders product

Mock UI

Q2 2015 Deliverable

• Delivered a working version of the reporting UI
• Embedded in Reading Wonders 2.0
• Sample data provided by RW AD
• http://goo.gl/HRSC7l

Mock Components

• A separate project created to house all components
• Designed for reuse, AngularJS components

• svn://srcrep.cdiapps.com/ConnectED/trunk/viz-ui

• Documentation

  • ​http://goo.gl/5xgWMw

Sample Data

• AD used a Google Spreadsheet to collaboratively enter data
• https://goo.gl/9tTdCm
• Zayeem created an add-on to export data from spreadsheet into a JSON object plugged directly into the Mock UI
