Programming for Visual Artists
ARTS-A0701 – Digital Art 1
2024 - Lecture 3
- Mon, 26.2: Introduction, P5.js editor, shapes, coordinates and colours
- Tue, 27.2.: Variables, randomness
- Mon, 4.3: Animating with trigonometric functions
- Tue, 5.3: Animating with noise
- Mon, 11.3.: If-else, for-loop
- Tue, 12.3.: For-loop, noise
- Mon, 18.3.: Audio input, Interaction
- Tue, 19.3.: Images and video
- Mon, 25.3.: Recap, personal project
- Tue, 26.3.: Personal project
- Mon, 8.4.: Personal project, course feedback
- Tue, 9.4.: Presentations / exhibition?
8 assignments and course project
Submit at least 6 assignments and present course project to pass the course
![](https://s3.amazonaws.com/media-p.slid.es/uploads/1244600/images/10278246/pasted-from-clipboard.png)
![](https://s3.amazonaws.com/media-p.slid.es/uploads/1244600/images/10278247/20220405_183356.jpg)
Today - movement and animation
- A bit more about variables (variable scopes)
- Animate with trigonometric functions
- Transformations (translate, Rotate, Push/Pop)
Moving things with variables

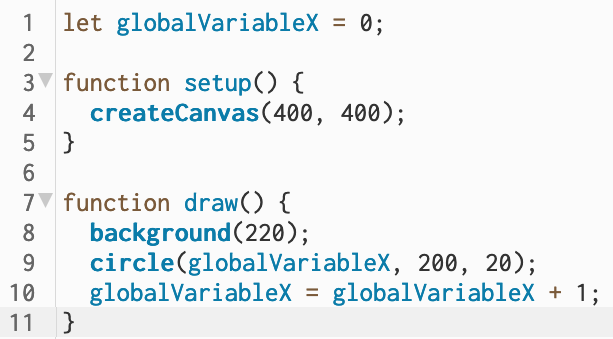

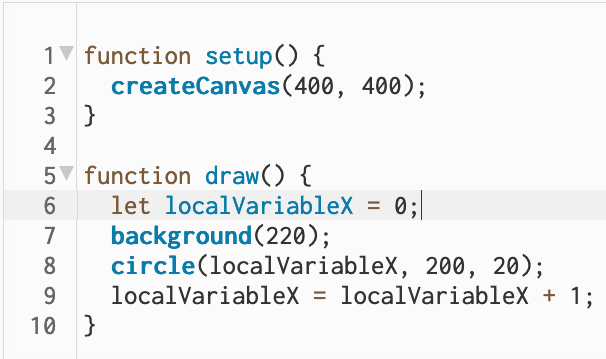

Global and local variable scope
![](https://s3.amazonaws.com/media-p.slid.es/uploads/1244600/images/8313255/Screenshot_2021-03-06_at_10.00.44.png)
![](https://s3.amazonaws.com/media-p.slid.es/uploads/1244600/images/8313256/Screenshot_2021-03-06_at_10.01.41.png)
![](https://s3.amazonaws.com/media-p.slid.es/uploads/1244600/images/8313257/Screenshot_2021-03-06_at_10.02.03.png)
let thisIsGlobal;
function setup() {
createCanvas(windowWidth, windowHeight);
thisIsGlobal = 0;
}
function draw() {
thisIsGlobal = thisIsGlobal + 10;
}
function setup() {
createCanvas(windowWidth, windowHeight);
let thisIsGlobal = 0;
}
function draw() {
thisIsGlobal = thisIsGlobal + 10;
// ReferenceError!
// Variable is not visible here
}
Variable visibility example
let posX;
let posY;
function setup() {
createCanvas(400, 400);
posX = 200;
posY = 200;
}
function draw() {
background(220);
posX = posX + -2 + random(4);
posY = posY + -2 + random(4);
ellipse(posX, posY, 50,50);
}
function setup() {
createCanvas(400, 400);
}
function draw() {
background(220);
let posX = random(width);
let posY = random(height);
ellipse(posX, posY, 50,50);
}

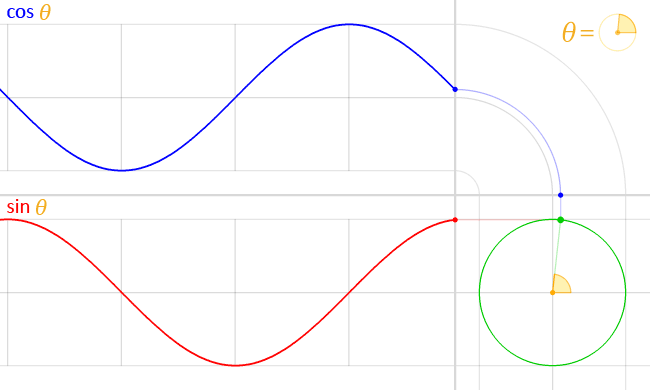

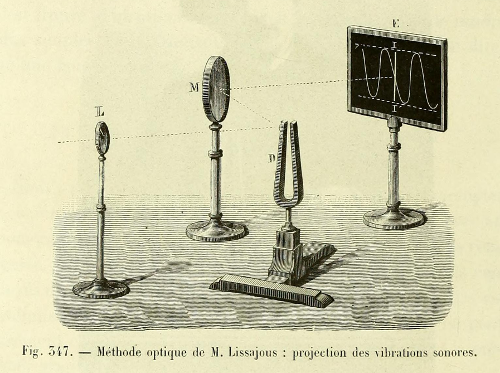

Animate with trigonometric functions
![](https://s3.amazonaws.com/media-p.slid.es/uploads/1244600/images/8311336/pasted-from-clipboard.png)
sin(x)
regardless of x, output is allways between -1 and 1

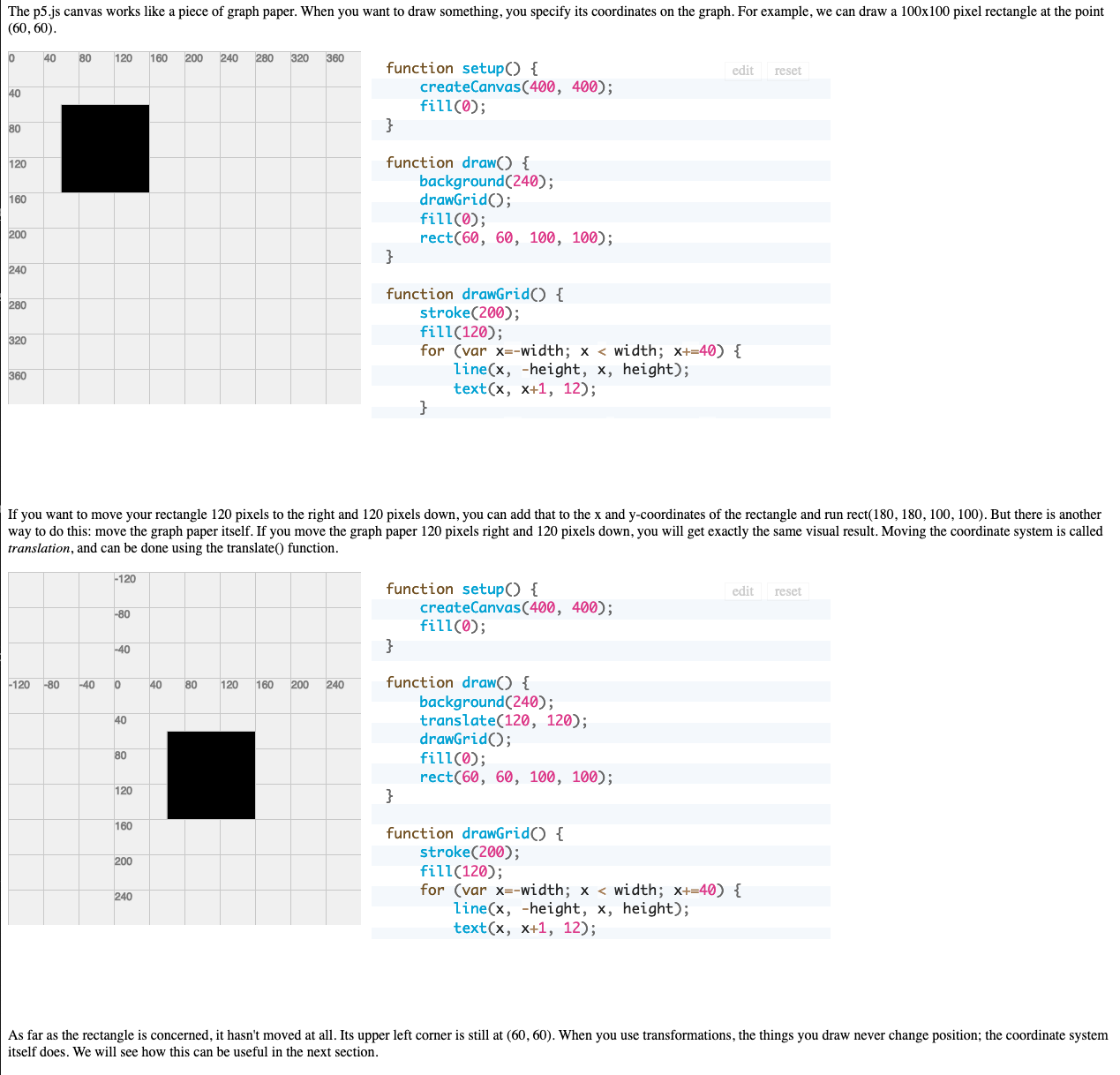

Transformations (translate, Rotate, Push/Pop)
