Recharts

What is Recharts ?

Simply deploy with React components.
Native SVG support, lightweight depending only on some D3 submodules.
Declarative components, components of charts are purely presentational.

The main purpose of this library is to help you to write charts in React applications without any pain.

Support

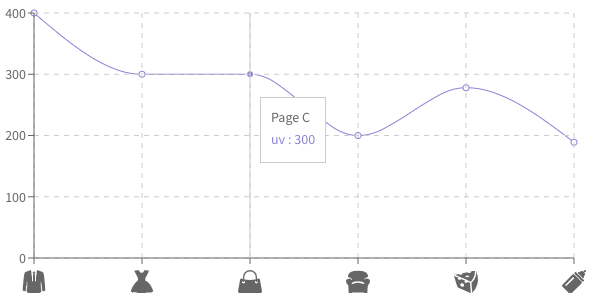

Simple Example:

import { LineChart, Line, CartesianGrid, XAxis, YAxis, Tooltip } from 'recharts';
const data = [{name: 'Page A', uv: 400, pv: 2400, amt: 2400}, ...];

const renderCustomAxisTick = ({ x, y, payload }) => {
  let path = '';

  switch (payload.value) {
    case 'Page A':
      path = 'M899.072 99.328q9.216 13.312 17.92 48.128t16.384 81.92 13.824 100.352 11.264 102.912 9.216 90.112 6.144 60.928q4.096 30.72 7.168 70.656t5.632 79.872 4.096 75.264 2.56 56.832q-13.312 16.384-30.208 25.6t-34.304 11.264-34.304-2.56-30.208-16.896q-1.024-10.24-3.584-33.28t-6.144-53.76-8.192-66.56-8.704-71.68q-11.264-83.968-23.552-184.32-7.168 37.888-11.264 74.752-4.096 31.744-6.656 66.56t-0.512 62.464q1.024 18.432 3.072 29.184t4.608 19.968 5.12 21.504 5.12 34.304 5.12 56.832 4.608 90.112q-11.264 24.576-50.688 42.496t-88.576 29.696-97.28 16.896-74.752 5.12q-18.432 0-46.08-2.56t-60.416-7.168-66.048-12.288-61.952-17.92-49.664-24.064-28.16-30.208q2.048-55.296 5.12-90.112t5.632-56.832 5.12-34.304 5.12-21.504 4.096-19.968 3.584-29.184q2.048-27.648-0.512-62.464t-6.656-66.56q-4.096-36.864-11.264-74.752-13.312 100.352-24.576 184.32-5.12 35.84-9.216 71.68t-8.192 66.56-6.656 53.76-2.56 33.28q-13.312 12.288-30.208 16.896t-34.304 2.56-33.792-11.264-29.696-25.6q0-21.504 2.048-56.832t4.096-75.264 5.632-79.872 6.656-70.656q2.048-20.48 6.144-60.928t9.728-90.112 11.776-102.912 13.824-100.352 16.384-81.92 17.92-48.128q20.48-12.288 56.32-25.6t73.216-26.624 71.168-25.088 50.176-22.016q10.24 13.312 16.896 61.44t13.312 115.712 15.36 146.432 23.04 153.6l38.912-334.848-29.696-25.6 43.008-54.272 15.36 2.048 15.36-2.048 43.008 54.272-29.696 25.6 38.912 334.848q14.336-74.752 23.04-153.6t15.36-146.432 13.312-115.712 16.896-61.44q16.384 10.24 50.176 22.016t71.168 25.088 73.216 26.624 56.32 25.6';
      break;
    case 'Page B':
      path = 'M662.528 451.584q10.24 5.12 30.208 16.384t46.08 31.744 57.856 52.736 65.024 80.896 67.072 115.2 64.512 154.624q-15.36 9.216-31.232 21.504t-31.232 22.016-31.744 15.36-32.768 2.56q-44.032-9.216-78.336-8.192t-62.976 7.68-53.248 16.896-47.616 19.968-46.08 16.384-49.664 6.656q-57.344-1.024-110.592-16.896t-101.376-32.256-89.6-25.088-75.264 4.608q-20.48 8.192-41.984 1.024t-38.912-18.432q-20.48-13.312-39.936-33.792 37.888-116.736 86.016-199.68t92.672-136.704 78.848-81.408 43.52-33.792q9.216-5.12 10.24-25.088t-1.024-40.448q-3.072-24.576-9.216-54.272l-150.528-302.08 180.224-29.696q27.648 52.224 53.76 79.36t50.176 36.864 45.568 5.12 39.936-17.92q43.008-30.72 80.896-103.424l181.248 29.696q-20.48 48.128-45.056 99.328-20.48 44.032-47.616 97.28t-57.856 105.472q-12.288 34.816-13.824 57.344t1.536 36.864q4.096 16.384 12.288 25.6z';
      break;
      ...
    default:
      path = '';
  }

  return (
    <svg x={x - 12} y={y + 4} width={24} height={24} viewBox="0 0 1024 1024" fill="#666">
      <path d={path} />
    </svg>
  );
};
const renderLineChart = (
  <LineChart width={600} height={300} data={data} margin={{ top: 5, right: 20, bottom: 5, left: 0 }}>
    <Line type="monotone" dataKey="uv" stroke="#8884d8" />
    <CartesianGrid stroke="#ccc" strokeDasharray="5 5" />
    <XAxis dataKey="name" tick={renderCustomAxisTick} />
    <YAxis />
    <Tooltip />
  </LineChart>
);

Label ＆ LabelList

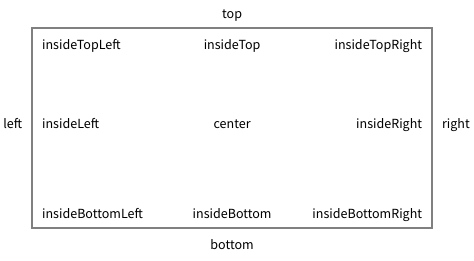

The "position" in view box of Cartesian Coordinates

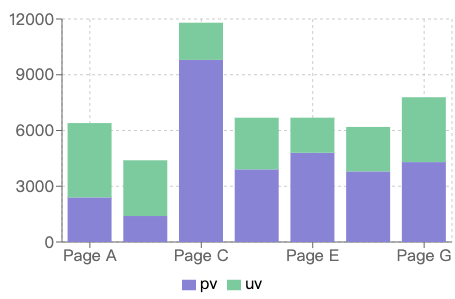

<BarChart
  width={730}
  height={250}
  data={data}
  margin={{ top: 15, right: 30, left: 20, bottom: 5 }}
>
  <CartesianGrid strokeDasharray="3 3" />
  <XAxis dataKey="name">
    <Label value="Pages of my website" offset={0} position="insideBottom" />
  </XAxis>
  <YAxis label={{ value: 'pv of page', angle: -90, position: 'insideLeft', textAnchor: 'middle' }} />
  <Bar dataKey="pv" fill="#8884d8">
    <LabelList dataKey="name" position="insideTop" angle="45"  />
  </Bar>
  <Bar dataKey="uv" fill="#82ca9d">
    <LabelList dataKey="uv" position="top" />
  </Bar>
</BarChart>

Cell

Cell can be wrapped by Pie, Bar, or RadialBar to specify attributes of each child.

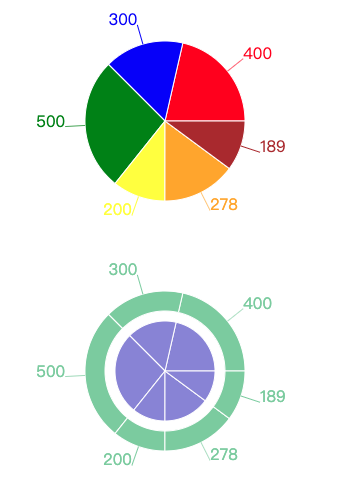

<PieChart width={730} height={250}>
  <Pie data={data} cx="35%" cy="50%" outerRadius={80} label>
  	{data.map((entry, index) => (
      	<Cell key={`cell-${index}`} fill={colors[index]} />
     ))}
  </Pie>
</PieChart>

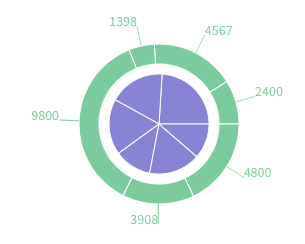

<PieChart width={730} height={250}>
  <Pie
  data={data}
  dataKey="value"
  nameKey="name"
  cx="35%"
  cy="50%"
  outerRadius={50}
  fill="#8884d8"
  />
  <Pie
  data={data}
  dataKey="value"
  nameKey="name"
  cx="35%"
  cy="50%"
  innerRadius={60}
  outerRadius={80}
  fill="#82ca9d"
  label
  />
</PieChart>

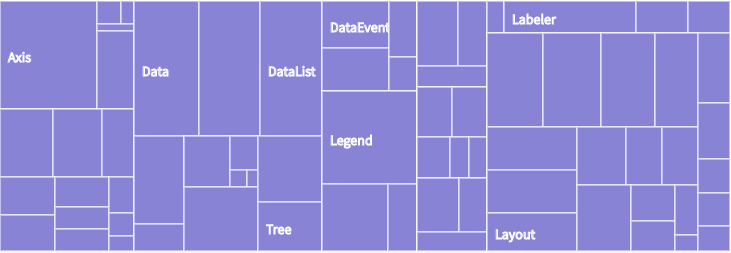

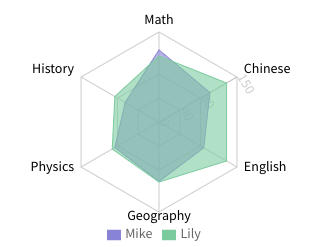

More Example :
