COSCUP 2022

讓PHP再次偉大 By Laravel Taiwan

Peter

2022/07/31

Is it possible to build a Smart home for PHP developers?

Slide

About me

  • Peter, GitHub

  • Active open source contributor

  • Speaker

    • ​COSCUP、MOPCON......

  • An associate engineer

    • DevOps

    • Back-end

    • System Architecture Researching

    • Web Application Security

    • PHP, Python and JavaScript

  • Industrial Technology Research Institute

    • Smart Grid Technology (2017~2021)

  • Institute for Information Industry

    • Database, Data platform architecture (2021~)

Outlines

  • The motivation

  • IoT and smart home introduction

  • Choosing the proper IoT devices, manual or existed?

  • The fundamentals are for initializing selected IoT devices setting

  • What's IFTTT? And how to use the IFTTT service?

  • The demonstration for Integrating the IoT devices with IFTTT

  • Using the PHP program to develop the Webhook on IFTTT service

  • The demonstration for the completed smart home application

  • Estimating the budget & Summary

The motivation

  • It's hard for the old people to switch the night light

  • I don't like to switch the night light manually everyday

The motivation

IoT and smart home introduction

  • Internet of Things

  • Smart Home

Choosing the proper IoT devices, manual or existed?

  • Manual

    • ​Pros

      • ​It can control all of components. E.g. hardware and software.

      • It's for maker

    • Cons

      • ​It's hard and unfriendly for web or software developers.

  • Existed

    • ​Pros

      • ​It's the completed products.

      • It's friendly for web and software developers.

    • Cons

      • ​It cannot set some detailed setting for the products.

      • It's not full-control for the hardware.

      • Customized hardware specifications or behaviors are limited.

Choosing the proper IoT devices, manual or existed?

Manual

Choosing the proper IoT devices, manual or existed?

Existed

The fundamentals are for initializing selected IoT devices setting

  • Prepare for the WiFi at home

  • Download the Wemo App

  • Check the Wemo device id

  • Pairing the device in the App

  • Done!

The fundamentals are for initializing selected IoT devices setting

Pairing the device in the App

The fundamentals are for initializing selected IoT devices setting

Pairing the device in the App

The fundamentals are for initializing selected IoT devices setting

Pairing the device in the App

The fundamentals are for initializing selected IoT devices setting

Pairing the device in the App

The fundamentals are for initializing selected IoT devices setting

  • Prepare for the WiFi at home

  • Download the Wemo App

  • Check the Wemo device id

  • Pairing the device in the App

  • Done!

The fundamentals are for initializing selected IoT devices setting

Pairing the device in the App

The fundamentals are for initializing selected IoT devices setting

Pairing the device in the App

The fundamentals are for initializing selected IoT devices setting

Pairing the device in the App

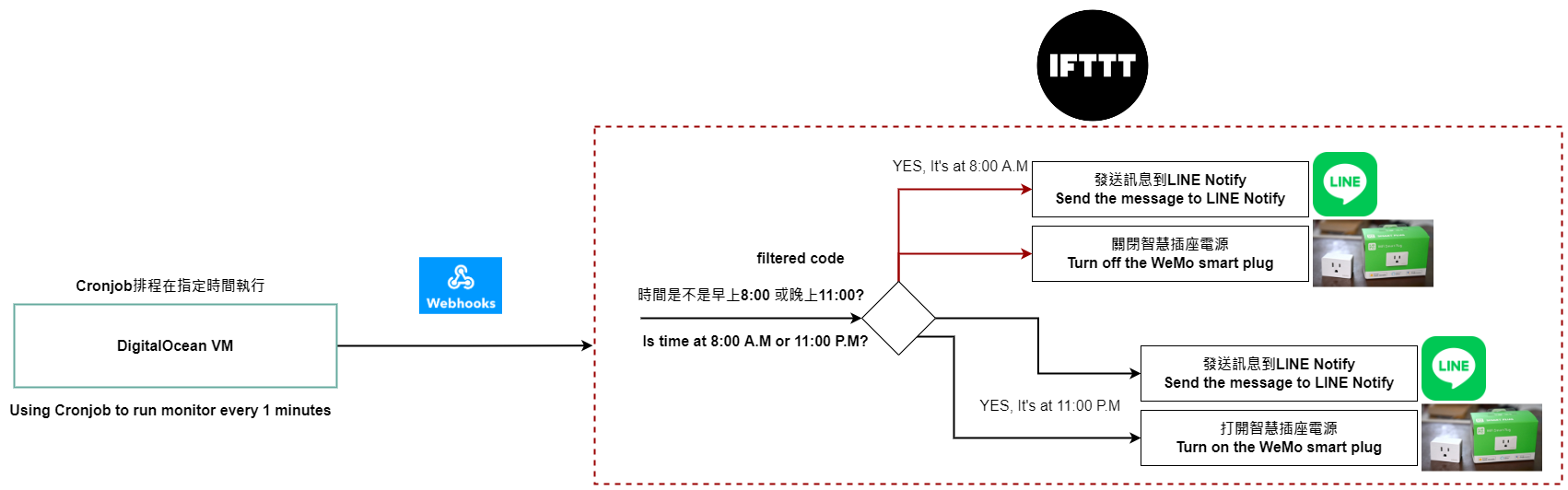

Short summary about architecture

What's IFTTT?

  • if this then that

And how to use the IFTTT service?

And how to use the IFTTT service?

And how to use the IFTTT service?

And how to use the IFTTT service?

And how to use the IFTTT service?

And how to use the IFTTT service?

And how to use the IFTTT service?

And how to use the IFTTT service?

And how to use the IFTTT service?

And how to use the IFTTT service?

And how to use the IFTTT service?

And how to use the IFTTT service?

And how to use the IFTTT service?

And how to use the IFTTT service?

And how to use the IFTTT service?

The demonstration for Integrating the IoT devices with IFTTT

And how to use the IFTTT service?

Discussing the issue

  • Date and time trigger is not good enough

    • ​It's not good enough to customized specific date time

  • Consider using the webhook trigger

The Webhook fundemental

And how to use the IFTTT service?

Using the Webhook example

And how to use the IFTTT service?

Using the Webhook example

ifttt-web-monitor

And how to use the IFTTT service?

Using the Webhook example

ifttt-web-monitor

And how to use the IFTTT service?

Using the Webhook example

https://ifttt.com/maker_webhooks

And how to use the IFTTT service?

Using the Webhook example (Find the service key)

https://ifttt.com/maker_webhooks

And how to use the IFTTT service?

Using the Webhook example (Create Applet)

And how to use the IFTTT service?

Using the Webhook example (Write the PHP program)

And how to use the IFTTT service?

Using the Webhook example (Result)

And how to use the IFTTT service?

Integrating the Existed Componenets with WeMo Smart Plug

And how to use the IFTTT service?

Integrating the Existed Componenets with WeMo Smart Plug

And how to use the IFTTT service?

Integrating the Existed Componenets with WeMo Smart Plug

And how to use the IFTTT service?

Integrating the Webhook with WeMo Smart Plug

Using the PHP program to develop the Webhook on IFTTT service

And how to use the IFTTT service?

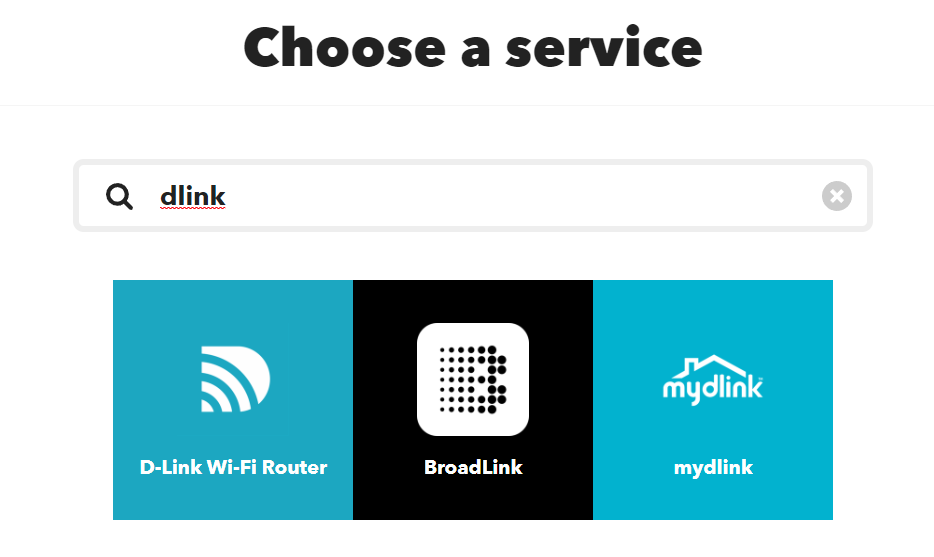

Integrating the Webhook with D-Link Smart Plug

Using the PHP program to develop the Webhook on IFTTT service

Demonstration

The demonstration for the completed smart home application

D-Link DSP-W215 Example

localadmin@clickhouse02:~$ mkdir light-dlink
localadmin@clickhouse02:~$ cd light-dlink/
localadmin@clickhouse02:~/light-dlink$ php ~/composer.phar require lee/light-controller
Info from https://repo.packagist.org: #StandWithUkraine
Using version ^0.1.0 for lee/light-controller
......
Generating autoload files
4 packages you are using are looking for funding.
Use the `composer fund` command to find out more!
localadmin@clickhouse02:~/light-dlink$

Demonstration

The demonstration for the completed smart home application

D-Link DSP-W215 Example

Demonstration

The demonstration for the completed smart home application

D-Link DSP-W215 Example

Demonstration

The demonstration for the completed smart home application

D-Link DSP-W215 Example

Demonstration

The demonstration for the completed smart home application

D-Link DSP-W215 Example

Demonstration

The demonstration for the completed smart home application

D-Link DSP-W215 Example

Demonstration

The demonstration for the completed smart home application

D-Link DSP-W215 Example

Demonstration

The demonstration for the completed smart home application

D-Link DSP-W215 Example

Demonstration

The demonstration for the completed smart home application

D-Link DSP-W215 Example

Demonstration

The demonstration for the completed smart home application

D-Link DSP-W215 Example

Demonstration

The demonstration for the completed smart home application

D-Link DSP-W215 Example

localadmin@clickhouse02:~/light-dlink$ cat light.php
<?php

require_once __DIR__ . '/vendor/autoload.php';

use lee\Light;

$light = new Light('webhook-maker-service-key', 'dlink-light-on');
$response = $light->sendRequest();

var_dump($response);
localadmin@clickhouse02:~/light-dlink$ php light.php
object(GuzzleHttp\Psr7\Response)#29 (6) {
  ["reasonPhrase":"GuzzleHttp\Psr7\Response":private]=>
  string(2) "OK"
  ["statusCode":"GuzzleHttp\Psr7\Response":private]=>
  int(200)
  ["headers":"GuzzleHttp\Psr7\Response":private]=>
  array(13) {
    ["Content-Type"]=>
    array(1) {
      [0]=>
      string(24) "text/html; charset=utf-8"
........

Demonstration

The demonstration for the completed smart home application

D-Link DSP-W215 Example

localadmin@clickhouse02:~/light-dlink$ cat light.php
<?php

require_once __DIR__ . '/vendor/autoload.php';

use lee\Light;

$light = new Light('webhook-maker-service-key', 'dlink-light-off');
$response = $light->sendRequest();

var_dump($response);
localadmin@clickhouse02:~/light-dlink$ php light.php
object(GuzzleHttp\Psr7\Response)#29 (6) {
  ["reasonPhrase":"GuzzleHttp\Psr7\Response":private]=>
  string(2) "OK"
  ["statusCode":"GuzzleHttp\Psr7\Response":private]=>
  int(200)
  ["headers":"GuzzleHttp\Psr7\Response":private]=>
  array(13) {
    ["Content-Type"]=>
    array(1) {
      [0]=>
      string(24) "text/html; charset=utf-8"
........

Demonstration

The demonstration for the completed smart home application

D-Link DSP-W215 Example

<?php

require_once __DIR__ . '/vendor/autoload.php';

use lee\Light;

$light = new Light('webhook-maker-service-key', 'dlink-light-on');
$response = $light->sendRequest();

var_dump((string)$response->getBody());
localadmin@clickhouse02:~/light-dlink$
ocaladmin@clickhouse02:~/light-dlink$ php light.php
string(59) "Congratulations! You've fired the dlink-light-on json event"
localadmin@clickhouse02:~/light-dlink$

Demonstration

The demonstration for the completed smart home application

D-Link DSP-W215 Example

Demonstration

The demonstration for the completed smart home application

D-Link DSP-W215 Example

Demonstration

The demonstration for the completed smart home application

D-Link DSP-W215 Example

localadmin@clickhouse02:~/light-dlink$ cat light.php
<?php

require_once __DIR__ . '/vendor/autoload.php';

use lee\Light;

$light = new Light('webhook-maker-service-key', 'dlink-light-off');
$response = $light->sendRequest();

var_dump((string)$response->getBody());
localadmin@clickhouse02:~/light-dlink$ php light.php
string(60) "Congratulations! You've fired the dlink-light-off json event"
localadmin@clickhouse02:~/light-dlink$

同場加映

Acer Air Monitor

Download the App

Pair the device

Pair the device

Successful Pairing the device

Connect the Acer Air Monitor

Connect the Acer Air Monitor

Create Acer Air Monitor Trigger

Create Acer Air Monitor Trigger

Create Acer Air Monitor Trigger

Create Acer Air Monitor Trigger

Create Acer Air Monitor Trigger

Collecting the time series data by yourself

Create Acer Air Monitor Trigger

Create Acer Air Monitor Trigger

Create Acer Air Monitor Trigger

Create Acer Air Monitor Trigger

High Temperature Triggering result

Checking whether it's high temperature every five minutes!

Create Acer Air Monitor Trigger

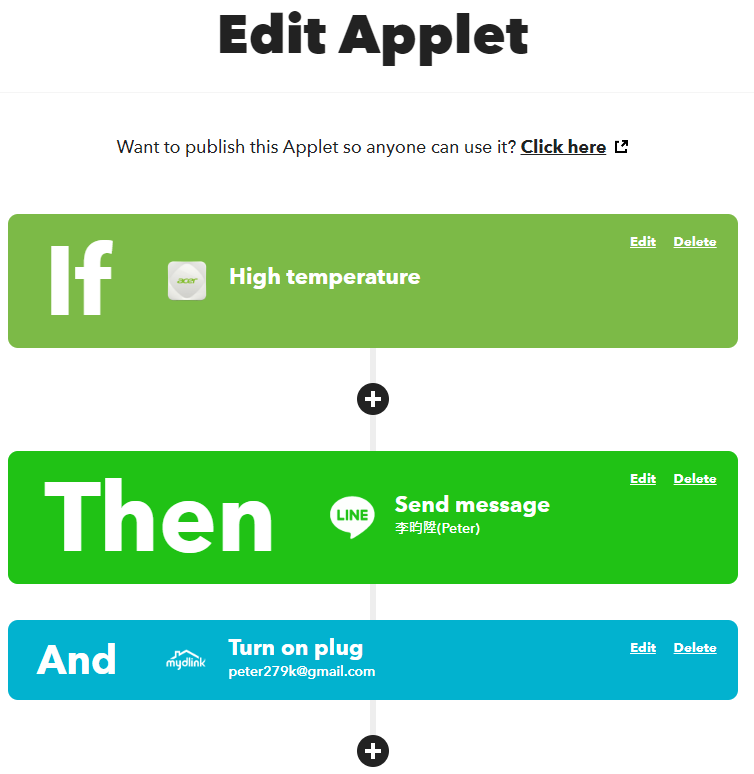

High Temperature Triggering (complex)

Create Acer Air Monitor Trigger

High Temperature Triggering (complex)

Create Acer Air Monitor Trigger

High Temperature Triggering (delay.php)

root@web-monetization-demo:~# cat /var/www/2020datathon.peterli.website/html/delay.php
<?php

$postdata = file_get_contents("php://input", 'r');
$decoded = json_decode($postdata, true);

sleep(60);

$eventname = 'dlink-light-off';
$key = 'webhook-maker-key';

$url = sprintf('https://maker.ifttt.com/trigger/%s/json/with/key/%s', $eventname, $key);
$curl = curl_init($url);
curl_exec($curl);
curl_close($curl);

Estimating the Budget & Summary

  • Hardware Device

    • ​Wemo Smart Plug: NT $899

    • D-Link DSP-W215: NT $499

    • (Acer Air Monitor): NT $1990 or NT $4490

  • DigitalOcean VM

    • NT $300/month (NT $3600/year)

  • Upgrading IFTTT Plan (Choosing the one of)

    • ​NT $150/month

    • NT $75/month

Known issues

  • The paired Smart plug Device will be gone

    • Pairing the device again

    • The reason is about WiFi signal is unstable

    • Trying to improve the WiFi signal

  • The light bulb is broken

    • This reason cannot be avoided

    • This situation is not happened frequently

    • It only switch the bulb manually

  • The light switch is turned off

    • The light switch always should be turned on

    • ​The reason is someone turn off the light switch

    • Telling them: don't switch the light

References

  • https://ifttt.com/maker_webhooks

  • https://ifttt.com/wemo_switch

  • https://ifttt.com/mydlink

  • https://ifttt.com/Air_Monitor

  • https://github.com/peter279k/ifttt-web-monitor

  • https://github.com/peter279k/ifttt-wemo-light-controller

  • https://github.com/peter279k/light-controller

Any Questions?

COSCUP 2022

By peter279k

COSCUP 2022

COSCUP 2022, Making PHP great again community talk

  • 555

More from peter279k

  • 那些關於我開發碳排放量計算系統的經驗談
    peter279k
    162
  • COSCUP 2024: Getting started with developing your first FHIR client with Python!
    peter279k
    158
  • COSCUP 2024: My best practices for interacting between PostgreSQL and ClickHouse
    peter279k
    201
