Green Button, OpenID & OAuth


  • Green Button Developers

  • Atom XML

  • OAuth 2.0

  • OpenID

  • OpenID Connect

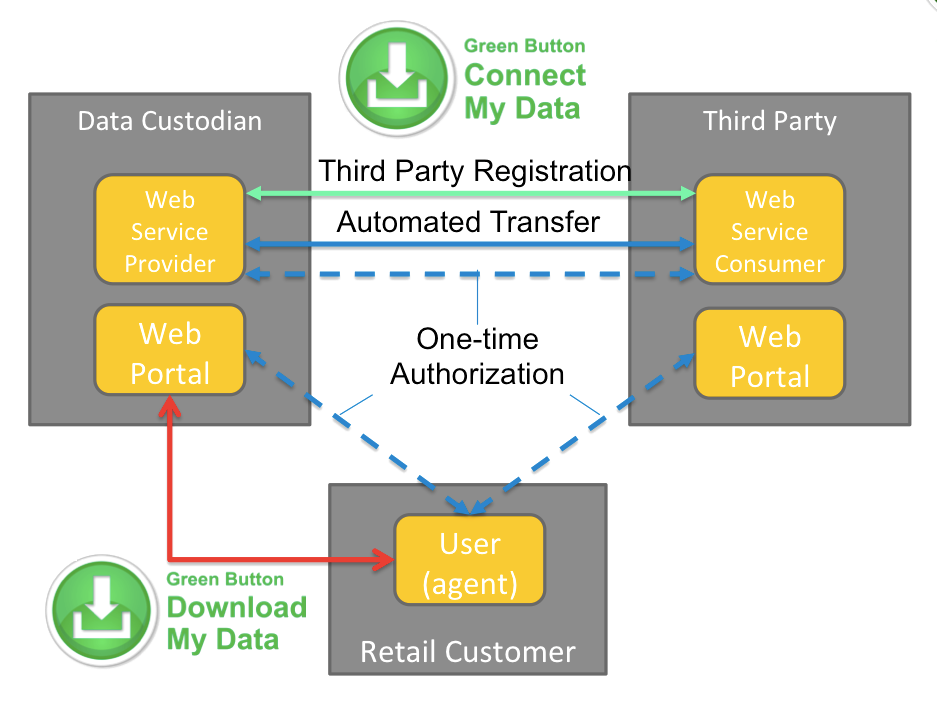

Green Button Developers

  • Metered resources

    • electricity

    • gas

    • water.

  •  Using atom+xml based streams of Energy Usage

    • Information (EUI) encapsulated within an Atom Feed

Green Button Developers

Green Button Developers

  • Atom Syndication Format Standard

  • Using atom+xml based streams of Energy Usage

    • Information (EUI) encapsulated within an Atom Feed

  •  XML schema References

Atom XML

  • Atom Syndication Format Standard

  • Web feed and News feed

  • RFC 4287

  • RFC 5023

Atom XML Data

<?xml version="1.0" encoding="utf-8"?>

<feed xmlns="">

	<title>Example Feed</title>
	<subtitle>A subtitle.</subtitle>
	<link href="" rel="self" />
	<link href="" />
		<name>John Doe</name>
		<title>Atom-Powered Robots Run Amok</title>
		<link href="" />
		<link rel="alternate" type="text/html" href=""/>
		<link rel="edit" href=""/>
		<summary>Some text.</summary>



  • A open Standard

  • Commonly used as a way for Internet users to grant

    • websites and applications access to their information
  • Designed specifically to work with Hypertext Transfer Protocol (HTTP)

  • Essentially allows access tokens to be issued to third-party clients by an authorization


  •  It allows users to be authenticated by co-operating sites (known as relying parties, or RP) using a third-party service.

OpenID connect

  • It is an authentication layer on top of OAuth 2.0

  • The standard is controlled by the OpenID Foundation.


OpenID and OAuth difference

  • OpenID is about authentication (ie. proving who you are)

  • OAuth is about authorization (ie. to grant access to functionality/data/etc.. without having to deal with the original authentication).

  • OAuth could be used in external partner sites to allow access to protected data without them having to re-authenticate a user.

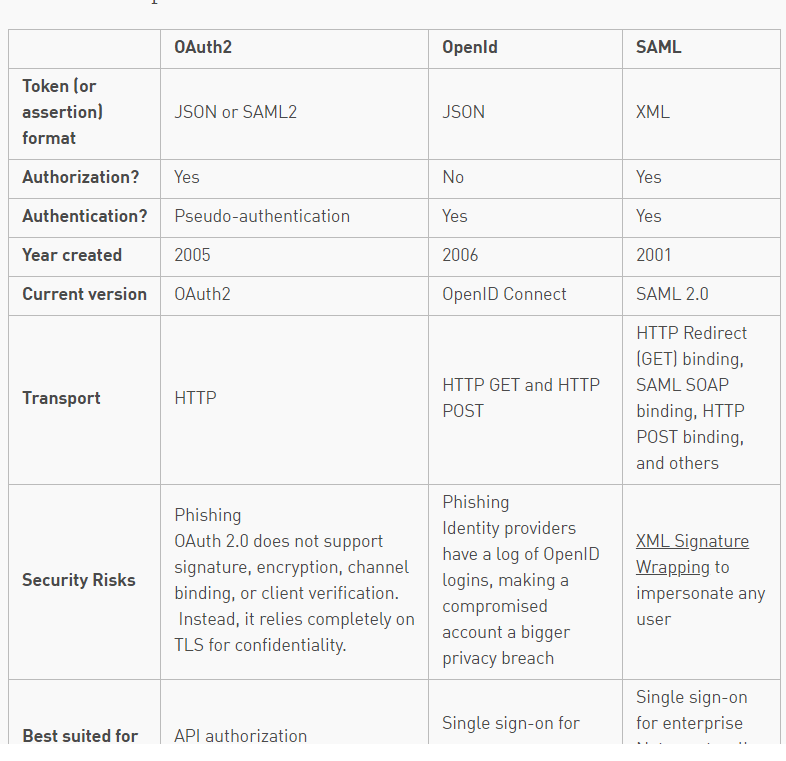

OpenID, OpenID Connect and OAuth difference

  • OpenID and OpenID Connect are authentication protocols while OAuth2 is an authorization protocol.

  • The most significant difference between OpenID Connect and OAuth2 is the id_token.

    • OIDC contains an id_token while OAuth2 does not.

  • In OpenID Connect it contains user info endpoint while OAuth2 does not.

  • OpenID Connect defines how to send a signed and encrypted request object where OAuth2 does not.

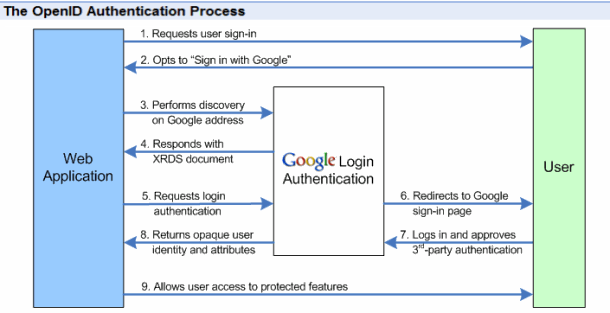

OpenID scenario

  • The scenario for OpenID:

    • User wants to access his account on
    • (the "Relying Party" in OpenID lingo) asks the user for his OpenID
    • User enters his OpenID redirects the user to his OpenID provider

    • User authenticates himself to the OpenID provider
      OpenID provider redirects the user back to allows the user to access his account


OAuth scenario

  • And now the scenario for OAuth

    • User is on and wants to import his contacts from

    • (the "Consumer" in OAuth lingo) redirects the user to (the "Service Provider")
    • User authenticates himself to (which can happen by using OpenID)
    • asks the user whether he wants to authorize to access his contacts
    • User makes his choice
    • redirects the user back to
    • retrieves the contacts from
    • informs the user that the import was successful


Any questions?
