The symbiotic relationship between optimization and deep learning

Pierre Ablin

CNRS - Université paris-dauphine

Joint works with :

T. Moreau, M. Massias, A.Gramfort, M. Sander, M.Blondel and G.peyré

optimization

Optimization: how to minimize a function ?

$$\min_{x\in\mathcal{X}} f(x)$$

Challenges:

Algorithm design

Find algorithms depending on assumptions on $f$ (convex, smooth, ...) and on $\mathcal{X}$ (convex, manifold, discrete...)

Theoretical guarantees

Convergence ? In which sense ? At which speed ?

Implementation

Numerical complexity, practical computational costs, hardware

Deep learning

Design a parametrized transform $$ \phi_{\theta}: x \to y$$ by composition of simple, differentiable blocks

Challenges:

Network design

Design networks that work well depending on the task / input data / output data

Theoretical guarantees

What can we say about generalization of the network ? About the learned weights?

Implementation

Fast training and inference, deal with memory issues,...

The obvious link

Neural networks are usually trained by optimizing a function

Empirical risk minimization:

$$\min_{\theta} \frac1n\sum_{i=1}^n \ell_i(\phi_{\theta}(x_i))$$

Basic algorithm: stochastic gradient descent

$$\text{sample } i\sim [1, n]$$

$$\theta \leftarrow \theta - \rho \nabla_{\theta}[\ell_i(\phi_{\theta}(x_i))]$$

Today's talk :

Learning to optimize: neural networks for optimization

Inverse problems

Latent process $z $ generates observed outputs $x$:

$z \to x $

The forward operation "$ \to$" is generally known:

$x = f(z) + \varepsilon $

Goal of inverse problems: find a mapping

$x \to z$

Example: MEG acquisition

$ z $ : current density in the brain

$ x $ : observed MEG signals

$D$ : linear operator given by physics (Maxwell's equations)

$ x $

$ D $

$ = $

$ z $

Linear regression

Linear forward model : $z \in \mathbb{R}^m$, $x\in\mathbb{R}^n$, $D \in \mathbb{R}^{n \times m} $

$x = Dz + \varepsilon $

Problem: in some applications, $m \gg n $, least-squares ill-posed

$\to$ bet on sparsity : only a few coefficients in $z^*$ are $ \neq 0 $

$z$ is sparse

Simple solution: least squares

$ z^* \in \arg\min \frac12 \|x - Dz\|^2$

The Lasso

$ \lambda > 0 $ regularization parameter :

$z^*\in\arg\min \frac12\|x - Dz\|^2 + \lambda \|z\|_1 = F_x(z)$

Enforces sparsity of the solution.

Easier to see on the equivalent problem: $z^* \in \arg\min \frac12 \|x-Dz\|^2 $ s.t. $\|z\|_1\leq C$

Tibshirani, Regression shrinkage and selection via the lasso, 1996

Lasso induces sparsity

$z^*\in \arg\min \frac12 \|x - Dz \|^2 $s.t. $\|z\|_1\leq C$

$z^*\in \arg\min \frac12 \|x - Dz \|^2 $

Iterative shrinkage-thresholding algorithm

ISTA: simple algorithm to fit the Lasso.

$F_x(z) = \frac12\|x-Dz\|^2 + \lambda \|z\|_1$

Idea: use proximal gradient descent

$\to$ $\frac12\|x - Dz\|^2$ is a smooth function

$$\nabla_z \left(\frac12\|x-Dz\|^2\right) = D^{\top}(Dz-x)$$

$\to$ $\lambda \|z\|_1$ has a simple proximal operator

Iterative shrinkage-thresholding algorithm

ISTA: simple algorithm to fit the Lasso.

$F_x(z) = \frac12\|x-Dz\|^2 + \lambda \|z\|_1$

Daubechies et al., An iterative thresholding algorithm for linear inverse problems with a sparsity constraint. , 2004

ISTA: gradient descent step on the smooth part + proximal step

$z^{(t+1)} = \text{st}(z^{(t)} - \frac1LD^{\top}(Dz^{(t)} - x), \frac{\lambda}{L})$

ISTA as a Recurrent neural network

Solving the lasso many times

Assume that we want to solve the Lasso for many observations $x_1, \cdots, x_N$ with a fixed dictionary $D$

e.g. MEG inverse problem:

$D$ is fixed given by Maxwell's equations, $x_i$ is one sample of the recording:

up to 100K samples !

This is an optimization problem:

Learning to optimize

We want to solve the Lasso many times with same $D$; can we accelerate ISTA ?

ISTA is a Neural Net

ISTA:

$z^{(t+1)} = \text{st}(z^{(t)} - \frac1LD^{\top}(Dz^{(t)} - x), \frac{\lambda}{L})$

Let $W_1 = I_m - \frac1LD^{\top}D$ and $W_2 = \frac1LD^{\top}$:

$z^{(t+1)} = \text{st}(W_1z^{(t)} +W_2x, \frac{\lambda}{L})$

3 iterations of ISTA = 3 layers NN

Learned-ISTA

Gregor, LeCun, Learning Fast Approximations of Sparse Coding, 2010

A $T$-layer Lista network is a function $\Phi$ parametrized by $T$ parameters $ \Theta = (W^t_1,W^t_2, \beta^t )_{t=0}^{T-1}$

Learned-ISTA

A $T$-layer Lista network is a function $\Phi$ parametrized by $T$ parameters $ \Theta = (W^t_1,W^t_2, \beta^t )_{t=0}^{T-1}$

$z^{(0)} = 0$
$z^{(t+1)} = st(W^t_1z^{(t)} + W^t_2x, \beta^t) $
Return $z^{(T)} = \Phi_{\Theta}(x) $

The parameters of the network are learned to get better results than ISTA

learning parameters

Unsupervised

Learn to solve the Lasso:

$$\Theta \in \argmin\mathcal{L}(\Theta) = \sum_{i=1}^N F_{x_i}(\Phi_{\Theta}(x_i))$$

If we see a new sample $x$, we expect:

$$F_x(\Phi_{\Theta}(x)) \leq F_x(ISTA(x)) \enspace, $$

where ISTA is applied for $T$ iterations.

Lista

Advantages:

Can handle large-scale datasets
GPU friendly

Drawbacks:

Learning problem is non-convex, non-differentiable: no practical guarantees, and generally hard to train
Can fail badly on unseen data

what does the network learn?

Consider a "deep" LISTA network: $T\gg 1$, assume that we have solved the expected optimization problem:

$$\Theta \in \argmin \mathbb{E}_{x\sim p}\left[F_x(\Phi_{\Theta}(x))\right]$$

As $T \to + \infty $, assume $ (W_1^t, W_2^t, \beta^t) \to (W_1^*,W_2^*, \beta^*)$. Call $\alpha = \beta^* / \lambda$. Then:

$$ W_1^* = I_m - \alpha D^{\top}D$$

$$ W_2^* = \alpha D^{\top}$$

$$ \beta^* = \alpha \lambda$$

A., Moreau et al., Learning Step Sizes for Unfolded Sparse Coding, 2019

Corresponds to ISTA with step size $\alpha$ instead of $1/L$

$$ W_1 = I_m - \frac1LD^{\top}D$$

$$ W_2 = \frac1L D^{\top}$$

$$ \beta = \frac{\lambda}{L}$$

what does the network learn?

As $T \to + \infty $, assume $ (W_1^t, W_2^t, \beta^t) \to (W_1^*,W_2^*, \beta^*)$. Call $\alpha = \beta^* / \lambda$. Then:

$$ W_1^* = I_m - \alpha D^{\top}D$$

$$ W_2^* = \alpha D^{\top}$$

$$ \beta^* = \alpha \lambda$$

A., Moreau et al., Learning Step Sizes for Unfolded Sparse Coding, 2019

Corresponds to ISTA with step size $\alpha$ instead of $1/L$

$$ W_1 = I_m - \frac1LD^{\top}D$$

$$ W_2 = \frac1L D^{\top}$$

$$ \beta = \frac{\lambda}{L}$$

Optimization theory helps up characterize precisely what the network learns !

Network architecture guided by optimization

Residual networks

Classical networks :

$x_{n+1} = f(x_n, \theta_n)$, e.g. $x_{n+1} = \sigma(Wx_n + b)$

Problem :

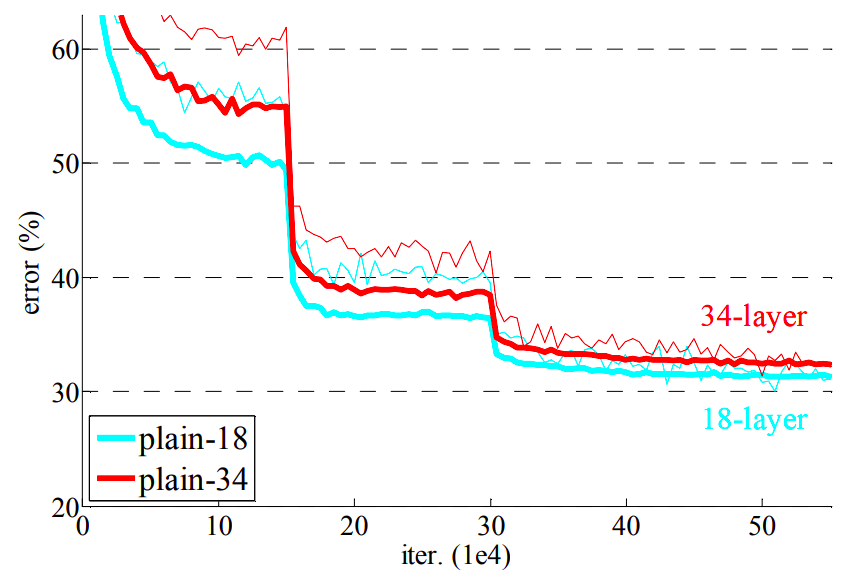

Stacking too many layers degrades perf

Residual networks

$x_{n+1} = x_n + f(x_n, \theta_n)$

Easy to learn identity !

Can stack many layers :)

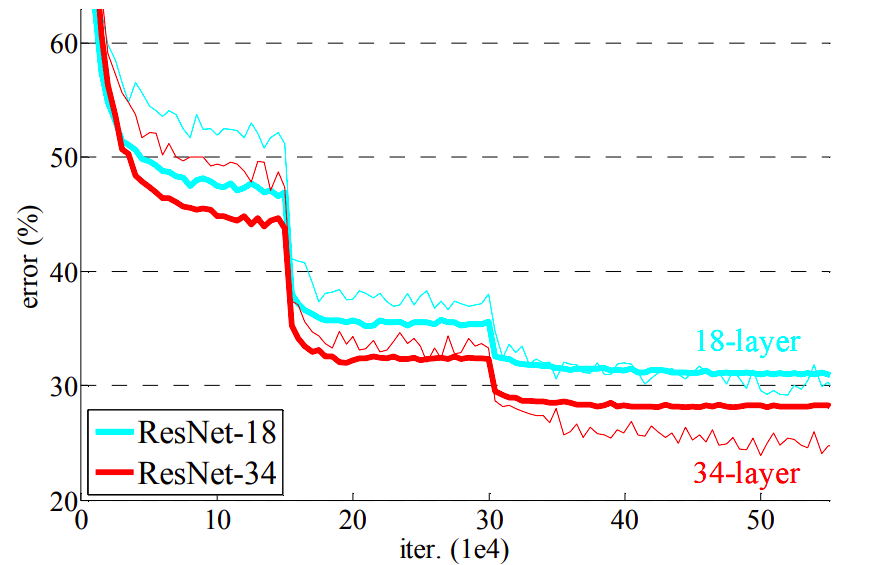

Residual networks

Allows to stack many layers (100s')

- State of the art on many problems for a long time

- Still widely used today

He et al., Deep residual learning for image recognition, 2015

Memory issues...

Forward pass: evaluate network

$x_0 = x$

$x_{n+1}= x_n + f(x_n , \theta_n)$

$y = x_N$

Backward pass: compute gradients

$\frac{\partial \ell(y)}{\partial y} = \ell'(y)$

$\frac{\partial \ell(y)}{\partial x_n} = \frac{\partial \ell(y)}{\partial x_{n+1}}(I + \partial_{x}f(x_n, \theta_n))$

$\frac{\partial \ell(y)}{\partial \theta_n} = \frac{\partial \ell(y)}{\partial x_{n+1}}\partial_{\theta}f(x_n, \theta_n)$

Start from output : need to store $x_n$

Memory issues...

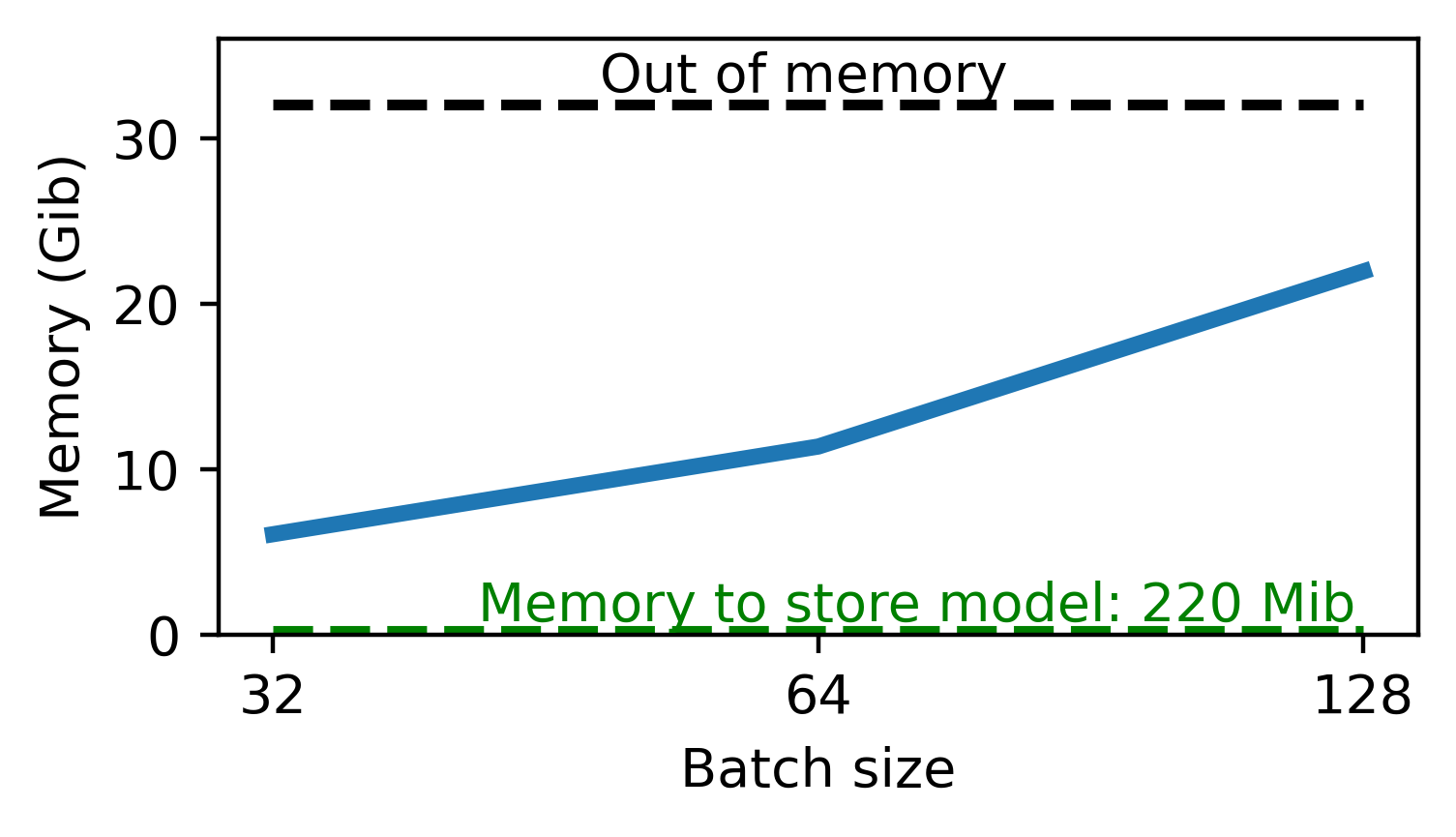

Need to store all activations $x_n$ for backprop : huge memory cost !

On a classical image classification task :

PARALLEL with optimization

Residual network

$x_{n+1} = x_n + f(x_n, \theta) $

Gradient descent

$x_{n+1} = x_n -\rho \nabla g(x_n, \theta) $

Equivalent if $f = - \rho \nabla_xg$

Momentum Gradient descent

$v_{n+1}= \beta v_n - \rho \nabla g(x_n, \theta)$

$x_{n+1} = x_n +v_{n+1} $

Momentum residual network

$v_{n+1}= \beta v_n + f(x_n, \theta)$

$x_{n+1} = x_n +v_{n+1} $

Sander, A., Blondel & Peyré, Momentum residual neural networks, 2021

Invertible layers

Momentum residual network

$v_{n+1}= \beta v_n + f(x_n, \theta)$

$x_{n+1} = x_n +v_{n+1} $

Inverted by:

$x_n = v_{n+1} - x_n$

$v_n = \frac1\beta(v_{n+1} - f(x_n, \theta))$

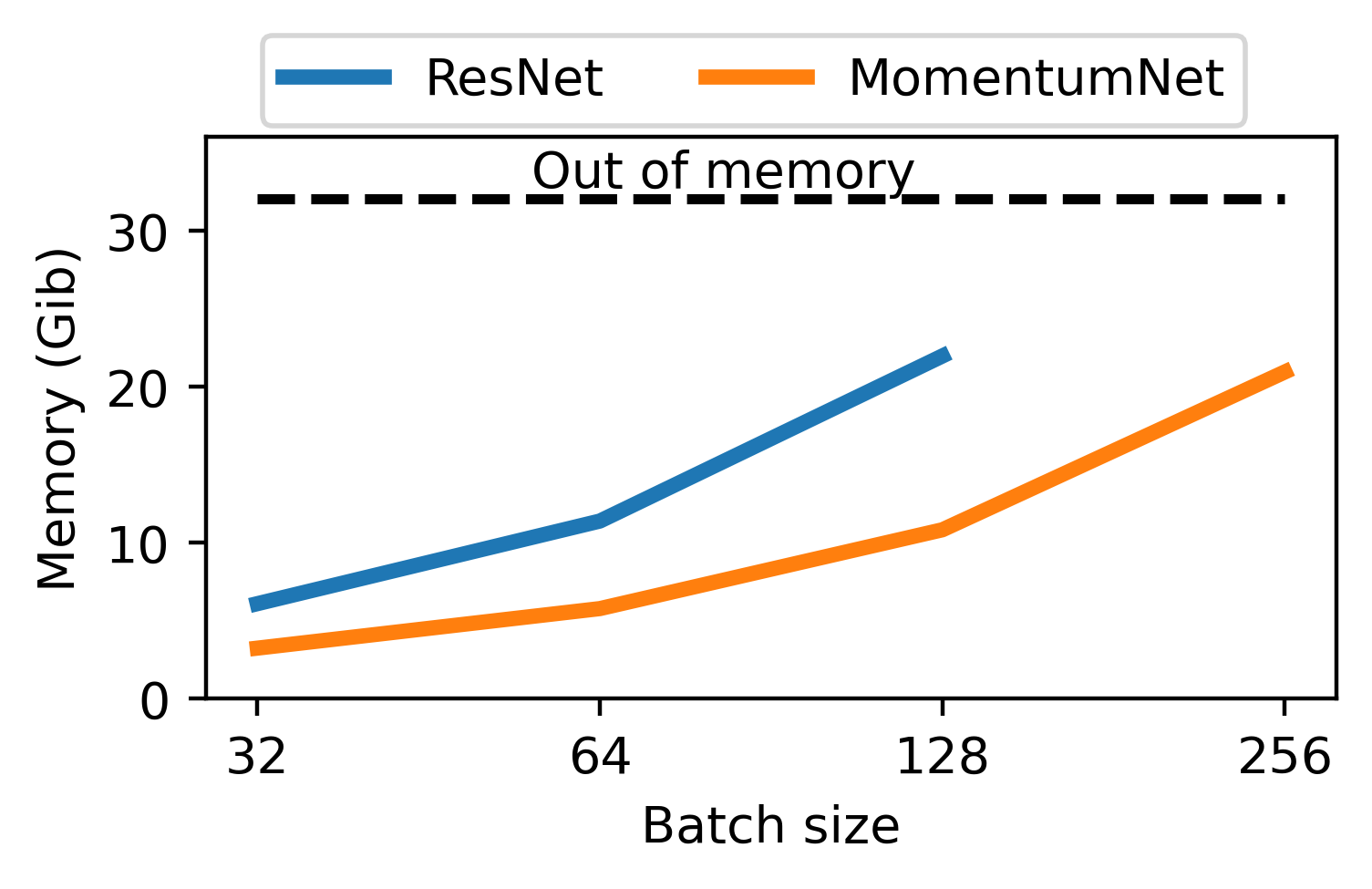

No need to store activations ! They can be recomputed on the fly during backprop

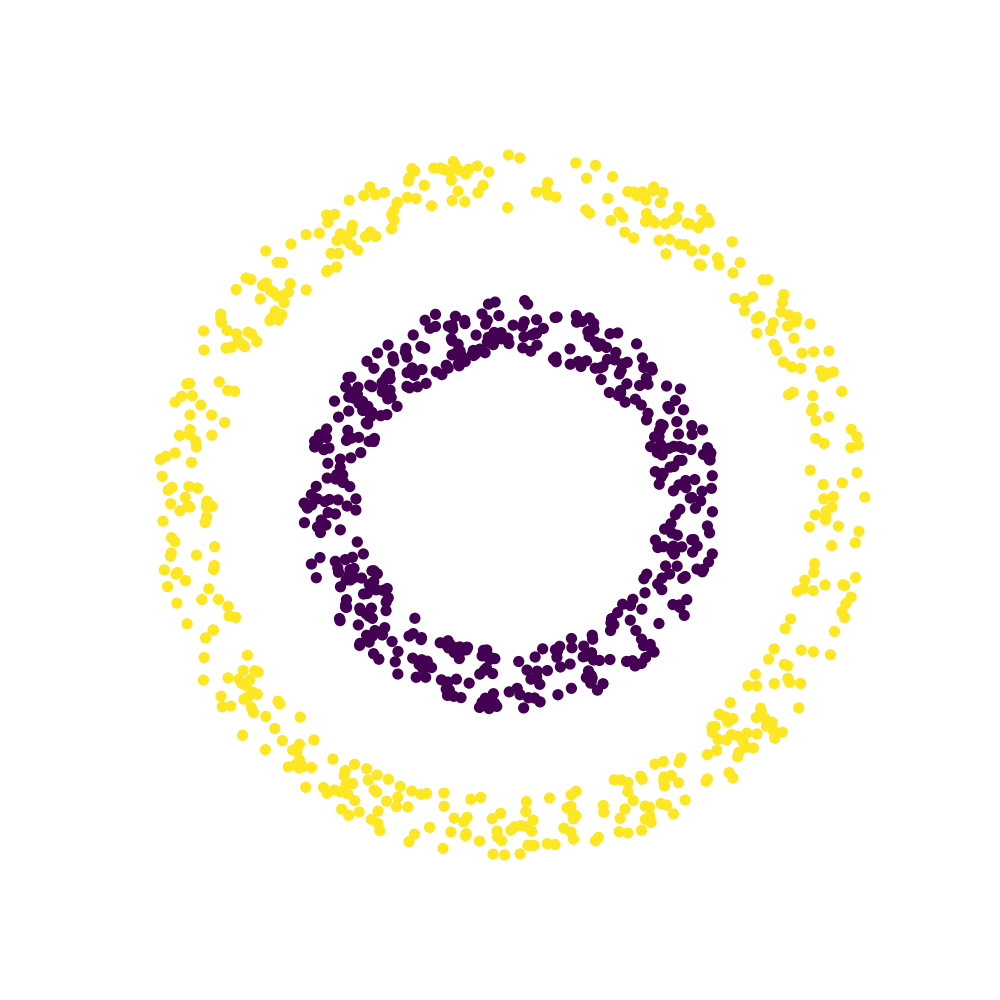

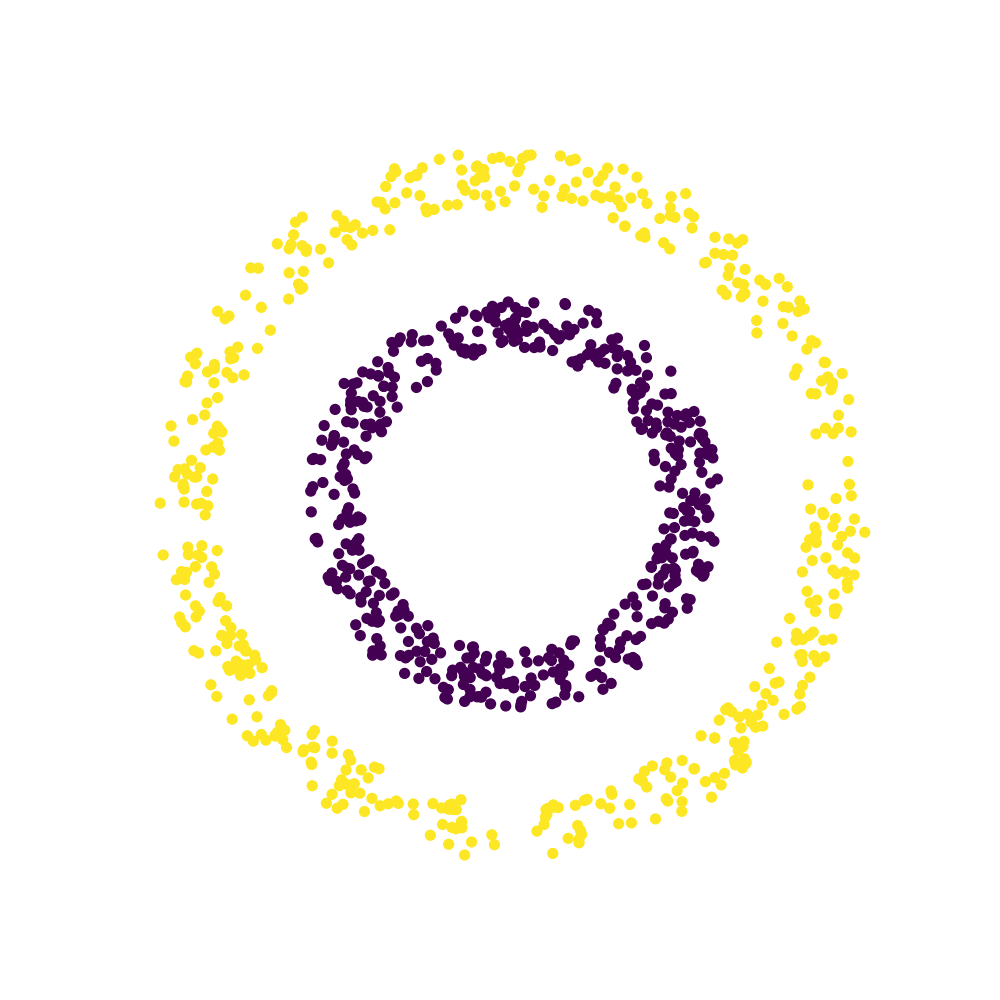

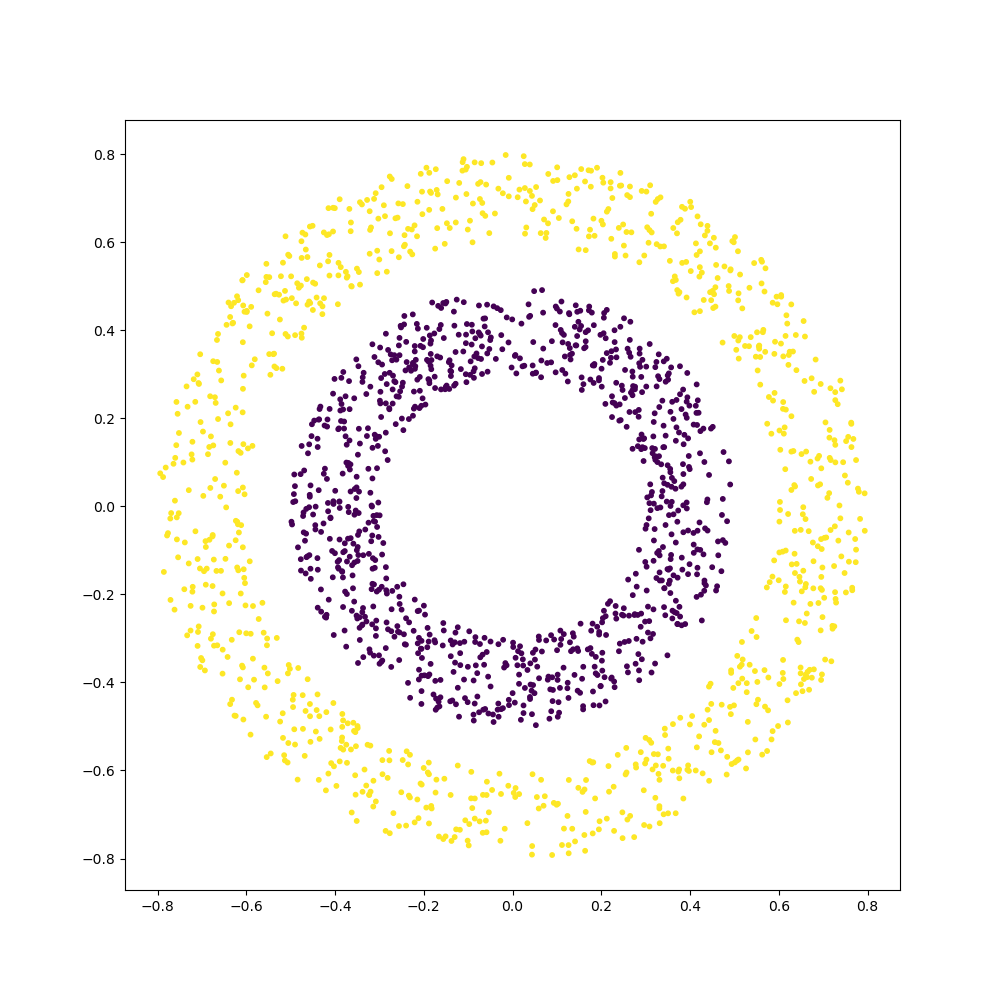

representation capacity

Momentum residual network

$v_{n+1}= \beta v_n + f(x_n, \theta)$

$x_{n+1} = x_n +v_{n+1} $

Continuous equivalent:

$\varepsilon \ddot x +\dot x = f(x, \theta)$

Residual network

$x_{n+1} =x_n + f(x_n, \theta)$

Continuous equivalent:

$\dot x = f(x, \theta)$

Open source code

>>> pip install momentumnet

Get python code :

import torch
from torchvision.models import resnet101

from momentumnet import transform_to_momentumnet

resnet = resnet101(pretrained=True)
mresnet101 = transform_to_momentumnet(resnet)

Transform a resnet into a momentum net :

Documentation:

michaelsdr.github.io/momentumnet/

Conclusion

- There are many links between deep learning and optimization

- Deep neural networks can accelerate optimization when training is possible

- Optimization can guide the design of deep networks and lead to intriguing properties
