L-systems as Rose Trees

Wiebe-Marten Wijnja

Summary

  • L-systems?
  • Existing Algorithms
  • Rose Trees?
  • New Algorithms
  • Benchmarking
  • Conclusions

What is an L-system?

  • What: Parallel Rewrite System
  • Why: Plants, Trees, Cells, Fractals
  • How:
    • generation
      • (short) procedural description \(\longrightarrow\) (long) string
    • interpretation
      • (long) string \(\longrightarrow\) 2D/3D picture/statistic/...

L-system Generation

Theory

alphabet: A set of symbols \(V\)

axiom: starting string \(\omega \in V^+\)
production rules: \(P \subset V \times V^+\)


Each rule is usually written as \( a \rightarrow \chi \) where:

  • \(a\), is called the antecedent
  • \(\chi\), is called the consequent

Context-free L-system \(G = \langle V, \omega, P \rangle\)

Deterministic Context-Free ('D0')

more powerful classes of L-systems expand on this

L-system Generation

Theory

alphabet: A set of symbols \(V\)

axiom: starting string \(\omega \in V^+\)
production rules: \(P \subset V \times V^+\)


Each rule is usually written as \( a \rightarrow \chi \) where:

  • \(a\), is called the antecedent
  • \(\chi\), is called the consequent

Context-free L-system \(G = \langle V, \omega, P \rangle\)

Generation: transforming $$ \mu = a_1 a_2\ldots a_n $$ into

$$ \nu = \chi_1 \chi_2 \ldots \chi_n $$

... and repeat as desired

to arbitrary depth \(d\)

Deterministic Context-Free ('D0')

more powerful classes of L-systems expand on this

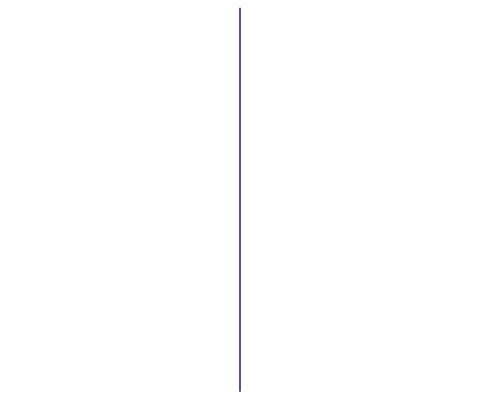

0

1

2

3

L-system Generation

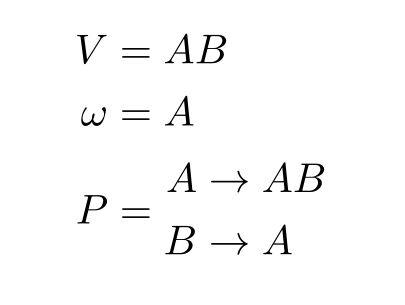

Example: Algae

L-system Generation

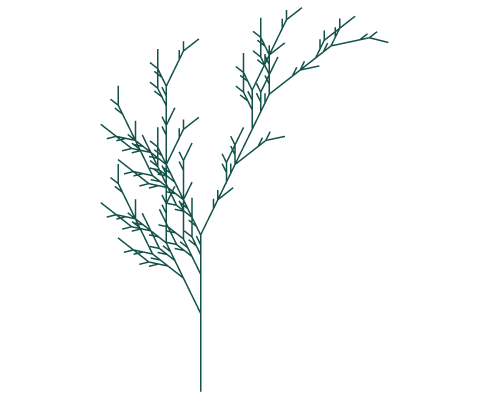

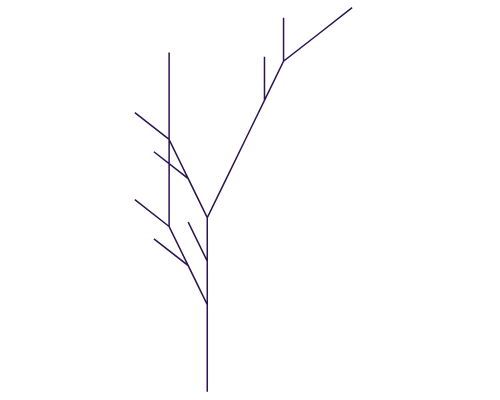

Example: Plant

L-system Generation

Algorithm

rewriteString(rules: LSystemRules, string: String) {
  string
  |> map(|symbol| lookupSymbol(rules, symbol))
  |> flatten()
}
sequentialRewrite(rules: LSystemRules, string: String, depth: ℤ) {
  if depth == 0 {
    string
  } else {
    let result <- rewriteString(string, rules);
    sequentialRewrite(rules, result, depth - 1)
  }
}

L-system Generation

Algorithm

rewriteString(rules: LSystemRules, string: String) {
  string
  |> map(|symbol| lookupSymbol(rules, symbol))
  |> flatten()
}
sequentialRewrite(rules: LSystemRules, string: String, depth: ℤ) {
  if depth == 0 {
    string
  } else {
    let result <- rewriteString(string, rules);
    sequentialRewrite(rules, result, depth - 1)
  }
}

Oof \(\longrightarrow\)

L-system Generation

Problems

  • Paralellize?
  • Prevent repeated work?

L-system Generation

Problems

  • Paralellize? \(\rightarrow\) Gathering results = difficult
  • Prevent repeated work?

L-system Generation

Lipp-Wonka-Wimmer

lippWonkaWimmerRewrite(rules: LSystemRules, string: String, depth: ℤ)
if depth == 0 {
  string
} else {
  let rewrite_lengths <- scatterJoin(string, |string_part|
    rewriteLength(string_part, rules)
  );
  let mut result <- allocateString(∑(rewrite_lengths));
  let indexes <- prefixSum(rewrite_lengths);
  scatterJoin(⧼string, indexes, rewrite_lengths⧽, |⧼string_part, start_index, length⧽|
    let end_index <- start_index + length;
    result[start_index..end_index] <- rewriteString(string_part, rules);
  );
  lippWonkaWimmerRewrite(rules, result, depth - 1)
}
  • 3 boundaries
    • threads need to wait for slowest
  • still repeated work

Can we do better?

Rose Trees

  • 'multi-way' tree
  • Each node has many (ordered) children

Rose Trees

  • 'multi-way' tree
  • Each node has many (ordered) children

Rose Trees

  • 'multi-way' tree
  • Each node has many (ordered) children

\(\uparrow\) Always the same!



Rose Trees

  1. Different L-system generation algorithms different tree traversals
  2. Rules are self-similar at every level ⟶  prevent repeated work!

Still holds true for more powerful classes of L-systems,
with some exceptions

TreeConquer

  • Depth-first tree-traversal
  • 'Parallel Divide-And-Conquer'
treeConquerRewrite(rules: LSystemRules, string: String, depth: ℤ){
  if(depth == 0) {
    string
  } else if(*small amount of work*) {
    let result <- rewriteString(string, rules);
    treeConquerRewrite(rules, result, depth - 1);
  } else { /* string is long, large amount of work */
    let (left_half, right_half) <- splitInHalf(string);
    let (left_res, right_res) <- forkJoin(
      || treeConquerRewrite(rules, left_half, depth),
      || treeConquerRewrite(rules, right_half, depth)
    );
    concatenate(left_res, right_res)
  }
}

Penultimate

  • Leverage structure of rules
    • same at every level
    • flatten, bottom-up
penultimateRewrite(rules: LSystemRules, string: String, depth: ℤ) {
  if depth == 0 {
    string
  } else {
    let mut flat_rules <- rules;
    for depth > 1; depth <- depth - 1 {
      flat_rules <- flattenRules(rules, flat_rules);
    }
    rewriteString(string, flat_rules)
  }
}

Variant: PenultimateSquaring, based on exponentiation by squaring,

needs only \(\mathcal{O}(\log(d))\) rewrites.

Benchmarking is fun!

Benchmarking is fun!

Benchmarks

  • Without Peregrine, it would have taken weeks rather than days...
  • ...if finishing at all: 16+ GB of RAM usage for some L-systems at double-digit depths
  • Thank you, Peregrine!

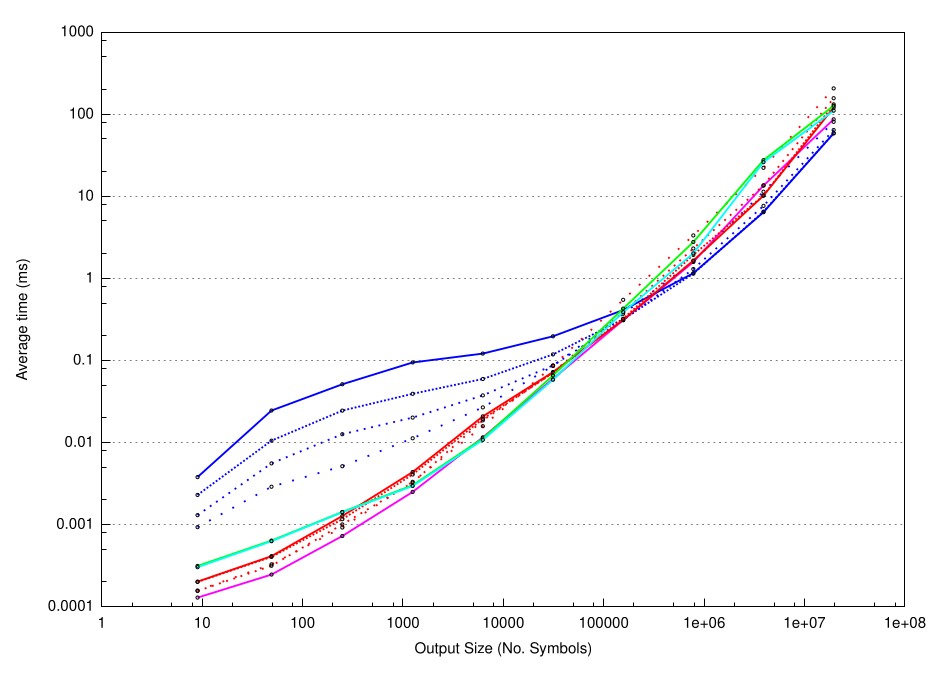

But now, time for graphs!

Algae

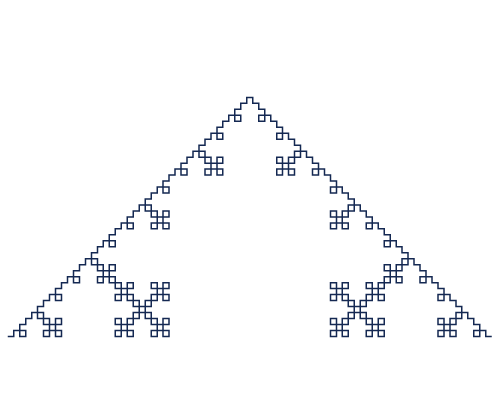

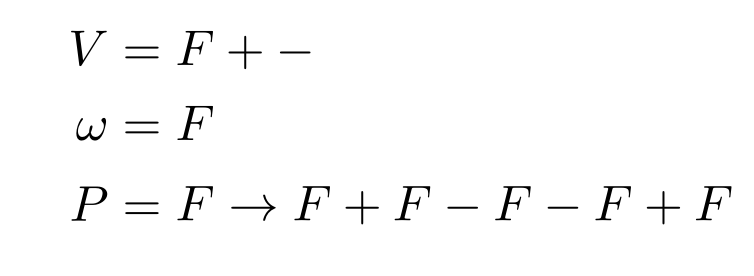

Koch

Plant

AlphabetExplosion

More graphs in the report

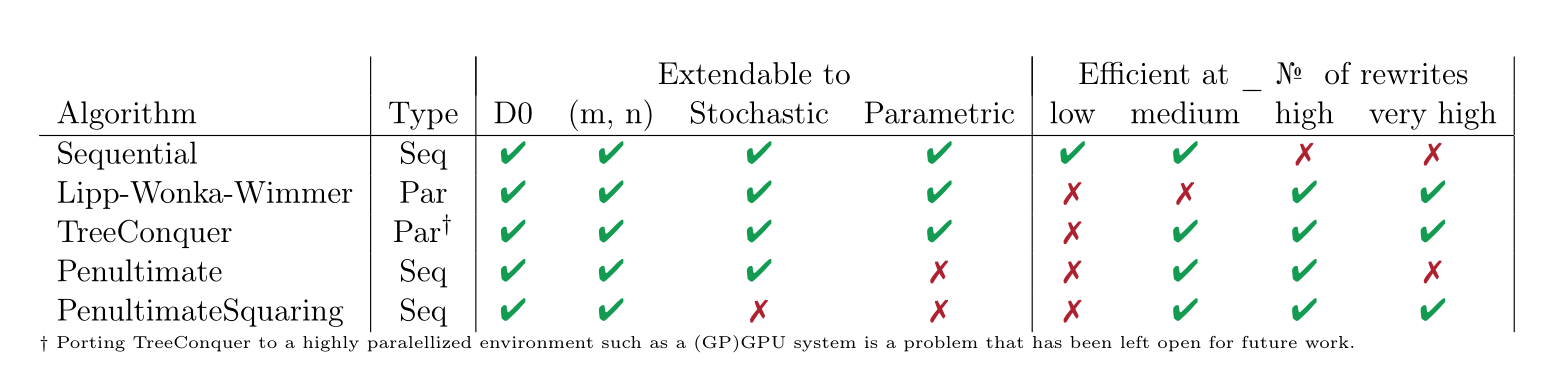

Conclusions

Remarks

  • How fast it 'fast enough'?
    • generation does not seem to be the bottleneck
  • At double-digit depths, gigabytes of RAM are used

Summary

  • L-systems?
  • Existing Algorithms
  • Rose Trees?
  • New Algorithms
  • Benchmarking
  • Conclusions

Thank you!

Thanks to

  • Job Talle for his web-applet to quickly render arbitrary L-systems
  • Luc van den Brand for making me interested in L-systems in the first place
  • Jiří Kosinka for always being available to answer my weird questions

Thank you!

Questions?
