Web and Cloud Computing

Architecture Overview

Group 13

Contents

  1. Architectural Overview
  2. The Seascape Wave Agent
  3. The central elixir application
  4. Conclusion

High-Level Architecture

Architecture Overview

  1.  Agent 'Seascape Wave'.
  2.  Ingest listening/computing nodes.
  3.  Analytics-focused distributed database (ElasticSearch).
  4.  Web user-interaction nodes.

Four key components:

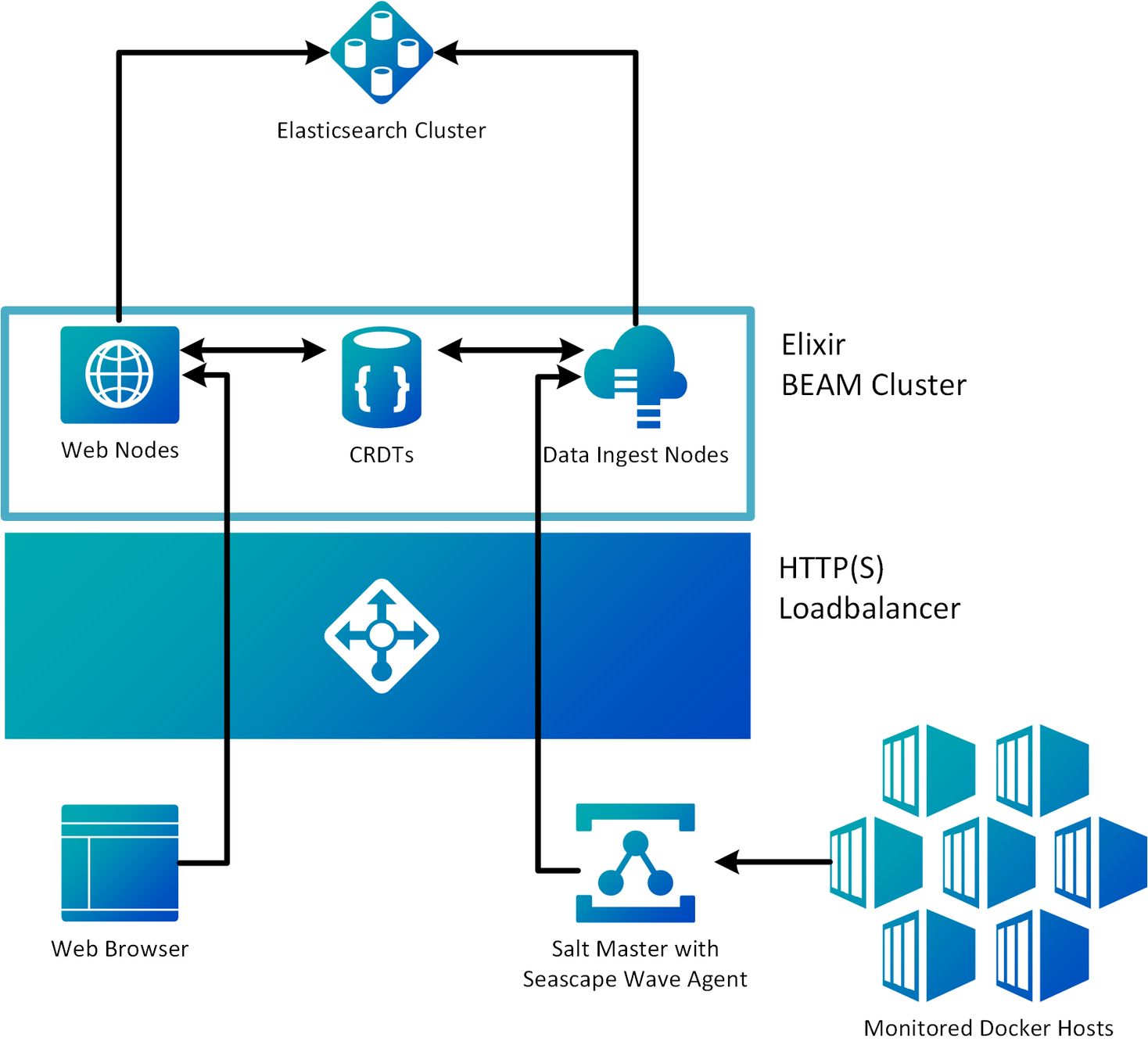

Architecture Diagram

"Seascape Wave" Agent

Contents

  1. Architectural Overview
  2. The Seascape Wave Agent
  3. The central elixir application
  4. Conclusion

Agent: 'Seascape Wave'

Agent: 'Seascape Wave'

  • Runs on a centralized machine where metrics can be aggregated.
  • We want to construct the system to easily allow adding other agents in the future (might run inside environments without access to the host machine).
    • Start with saltstack
    • Allow for further expansion

Agent: 'Seascape Wave'

  • Built using Python/SaltStack
    • Built-in cryptography
      • Verified identities
      • Encrypted communication
    • Built-in message queue
  • Runs on the 'Salt master' which manages the container hosts (minions):
    • Minions can be configured by the agent to send metrics to the master. The agent can then format and send them to the ingest nodes.
    • Agent must have access to the machine hosting the containers.

Elixir Systems

Contents

  1. Architectural Overview
  2. The Seascape Wave Agent
  3. The central elixir application
  4. Conclusion

Ingest nodes

  • Built using Elixir.
  • Part of the BEAM cluster (see later slide).
  • Horizontally scalable by running many behind a load-balancer (distributing sessions in a round-robin fashion).
  • Listens for a data from an Agent.

Analytics-focused distributed database

  • For this task we've chosen to use Elasticsearch.
    Reasons:
    • Built to work with metric-based data like what we have in this project.
    • Built to scale to large mountains amounts of data.
    • Built to refine the interpretation of data (e.g what kind of queries you might want to do) later.

Web nodes: construction

  • Built using Elixir/Phoenix LiveView.
    • A user connects to it with their browser.
    • LiveView serves a static HTML page containing the SPA on first visit which then starts up a WebSocket connection through which all later interaction takes place:
      • DOM-diffing happens server-side, simplifying implementation.
    • Does not interfere with SEO, for example
  • Part of the BEAM cluster (see later slide).

Web nodes: scaling

  • Part of the BEAM cluster (see later slide).
  • Horizontally scalable by running many behind a load-balancer (distributing sessions in a round-robin fashion).
  • Requests data from the database whenever required, caches data locally.

The BEAM cluster: actors

  • Elixir works using the Actor model, allowing for a scalable and fault-tolerant implementation of concurrent services that is comprehensible and therefore maintainable.

The BEAM cluster: actors

  • Ingest and Web nodes are connected to the same Erlang/BEAM cluster, enabling:
    • Transparent message-passing, in particular:
    • Transparent pub-sub for real-time data updates which can be sent without going through the database.
    • CRDT-based real-time information about what agents (e.g. the user's clusters and containers within them) are currently 'up' and their health.

The BEAM cluster

  • On top of this, we run the distributed database Mnesia on all nodes in the cluster, to enable:
    • Persistent user sessions (without complicating the load balancers).
    • Storage of ephemeral (e.g. current 'real-time' data).

Conclusion

Contents

  1. Architectural Overview
  2. The Seascape Wave Agent
  3. The central elixir application
  4. Conclusion

General Remarks

  • For our particular project, there is no functionality we can provide to the user when they are offline. (Except telling them that they are disconnected and that the current metrics/graphs thus are stale.
    • This in part influenced our design decisions.
  • We are not adding extra 'message queues' (like e.g. RabbitMQ) to our stack, besides the message queue that is part of the Agent (internally in Saltstack in our case).
    • Of course, all Elixir processes (actors) have their own internal message queue ('mailbox').
      Fun fact: RabbitMQ is itself written in Erlang and thus uses these techniques under the hood
  • We are not adding external caches/message brokers (like e.g. Redis) to our application. Instead, we use direct message passing instead of an external message broker and Mnesia for persistent user sessions and ephemeral caching.
