FESTIM meeting

January 2024

Agenda

General updates
FESTIM review paper
NumFOCUS application

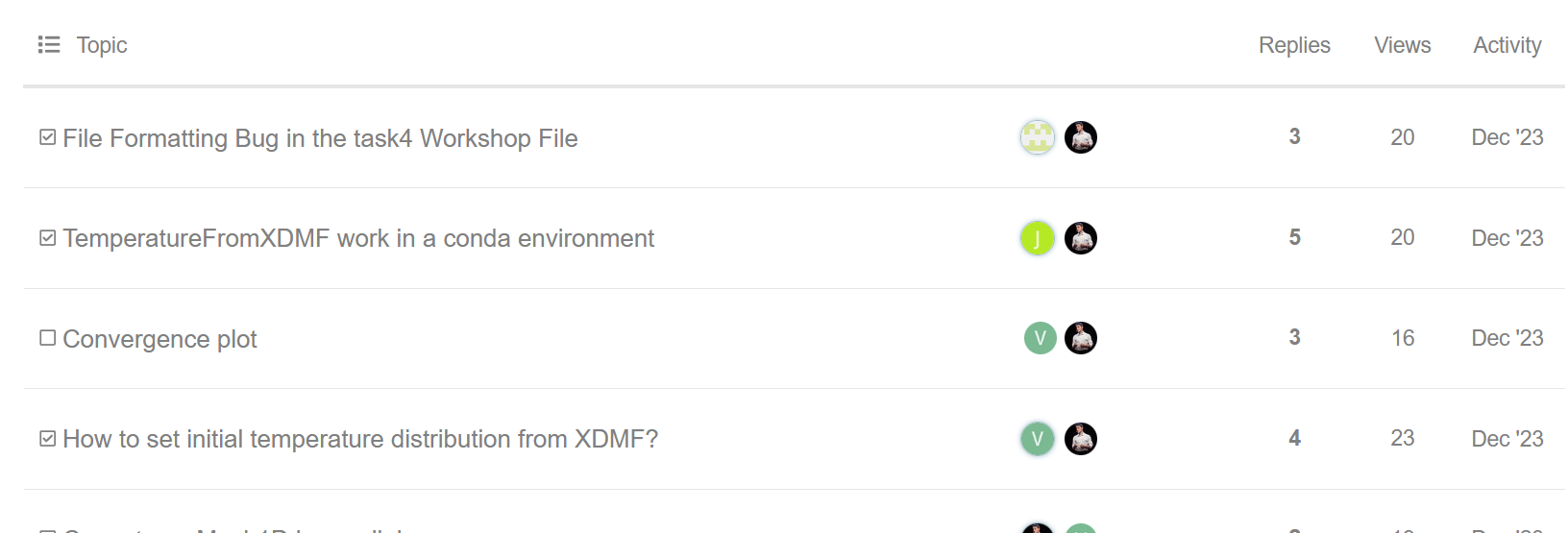

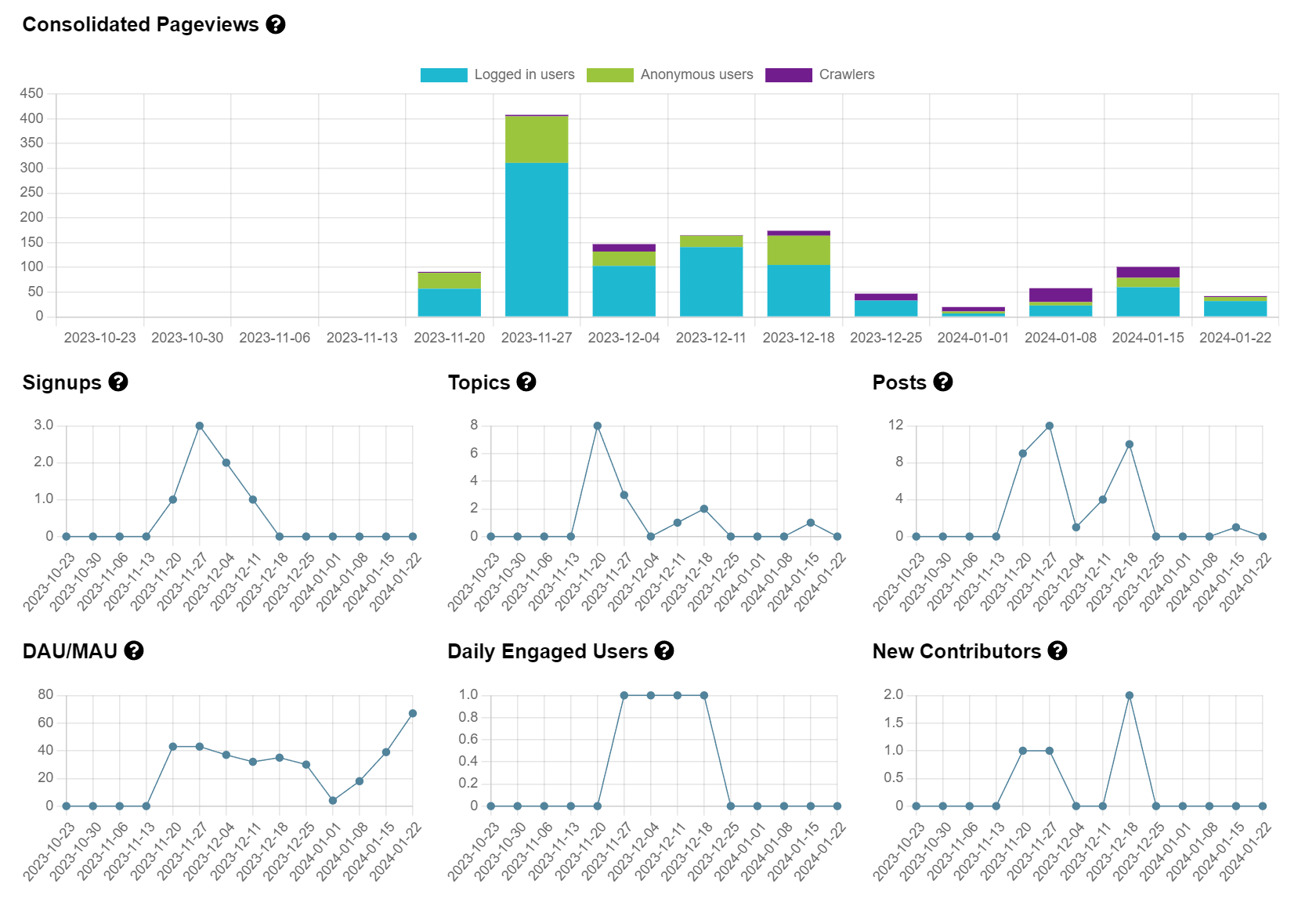

Community tools

General updates

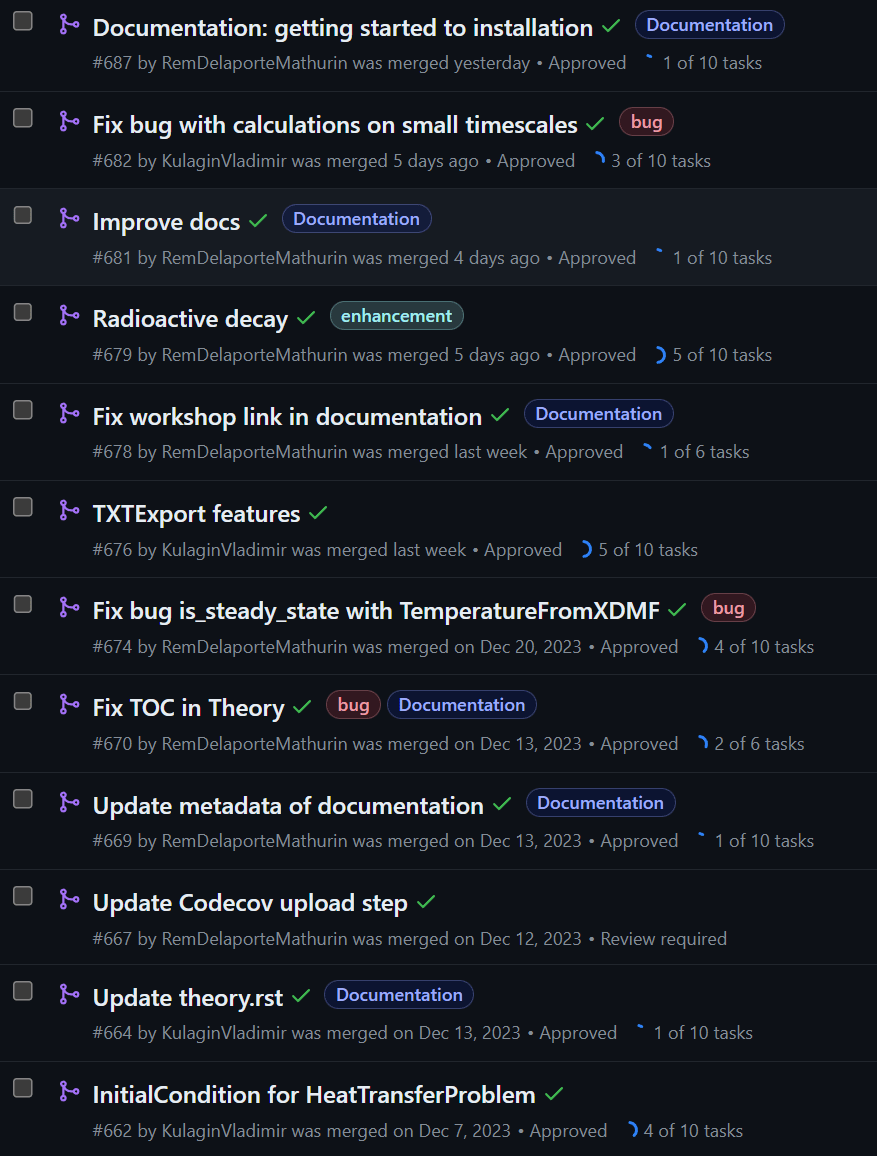

PRs merged into main

Documentation updates
Bug fixes
New features
- Radioactive decay ☢️
- Initial conditions for Heat transfer problems

General updates

Radioactive decay ☢️

import festim as F

my_model = F.Simulation()

my_model.sources = [
    F.RadioactiveDecay(
        decay_constant=1.78e-9,
        volume=1,
        fields="all",
        ),
    ]

⚠️ not in the fenicsx branch

General updates

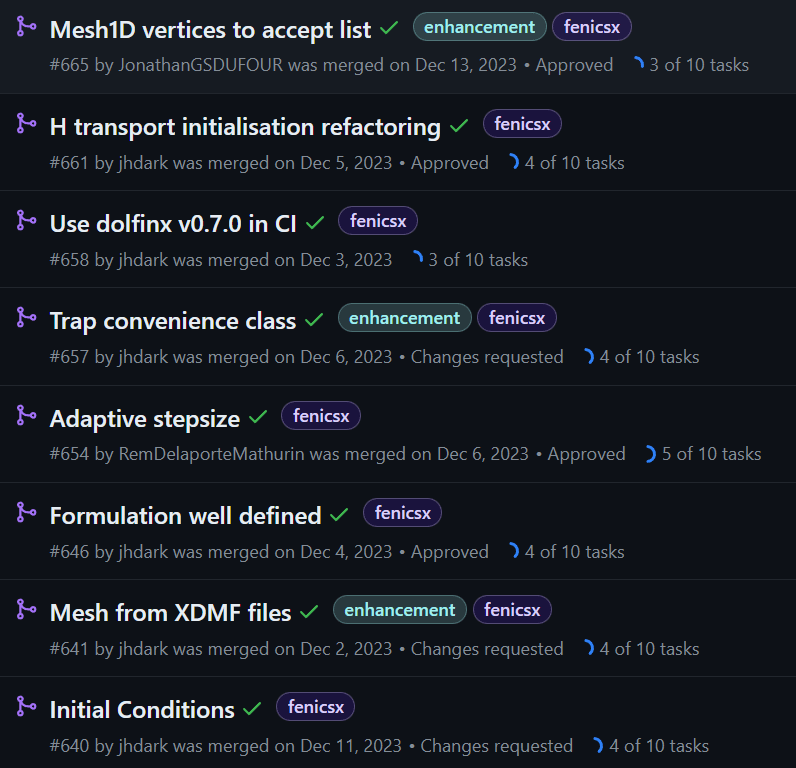

PRs merged into fenicsx

CI changes
New features

General updates

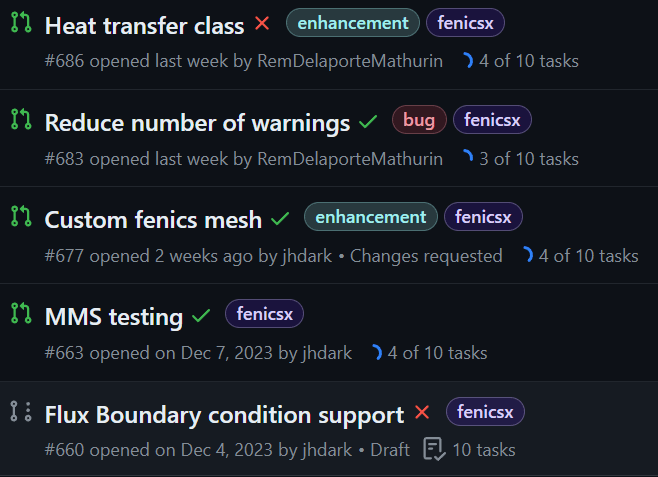

Open PRs

Testing
Bug fixes
New features

General updates

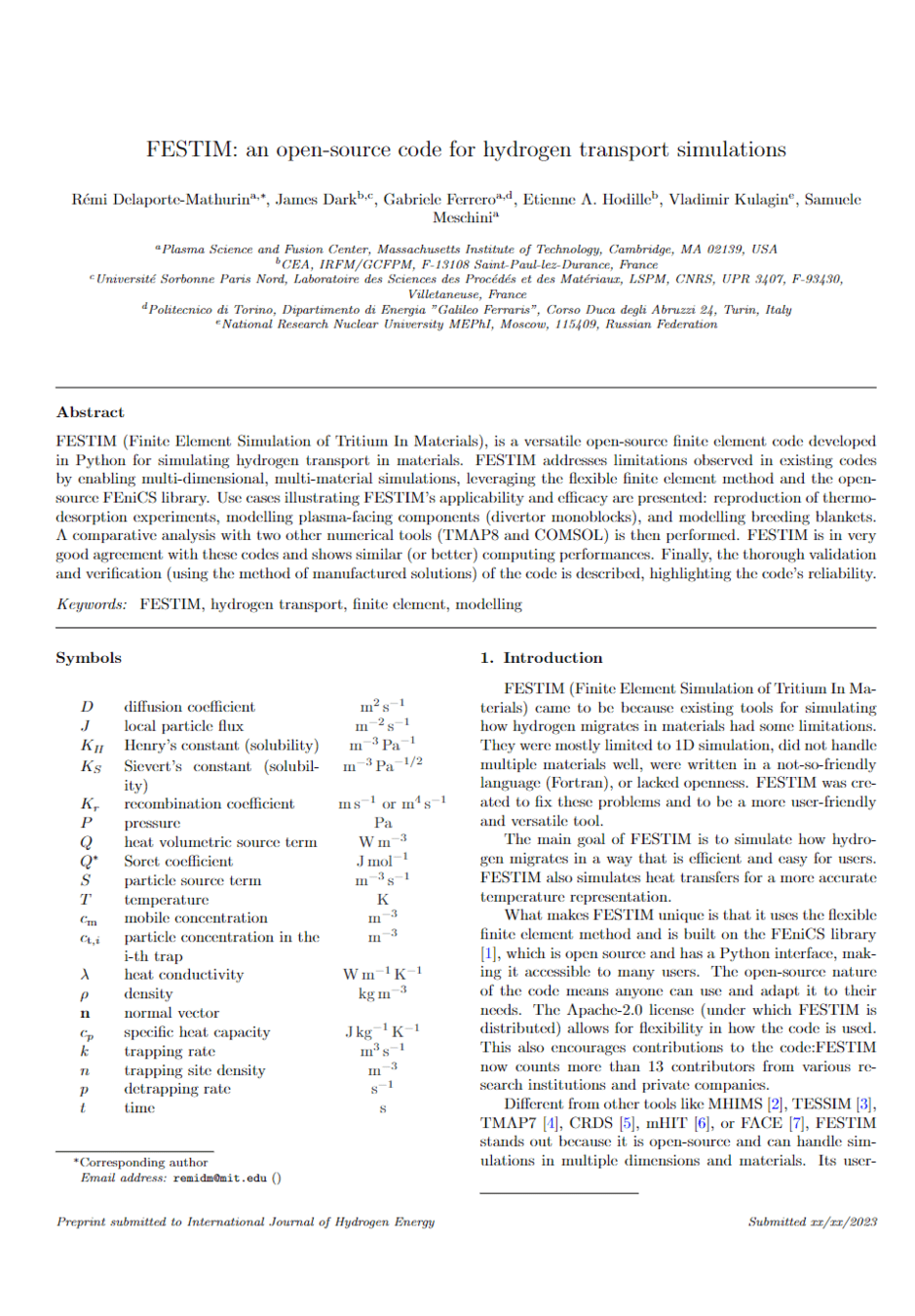

FESTIM review paper

Submitted to International Journal of Hydrogen Energy

github.com/RemDelaporteMathurin/FESTIM-review

Paper repository

100% automated (kinda... 97%)

FESTIM review paper

Code description

Maths
Features
Code development

Gallery (lit. review)

TDS

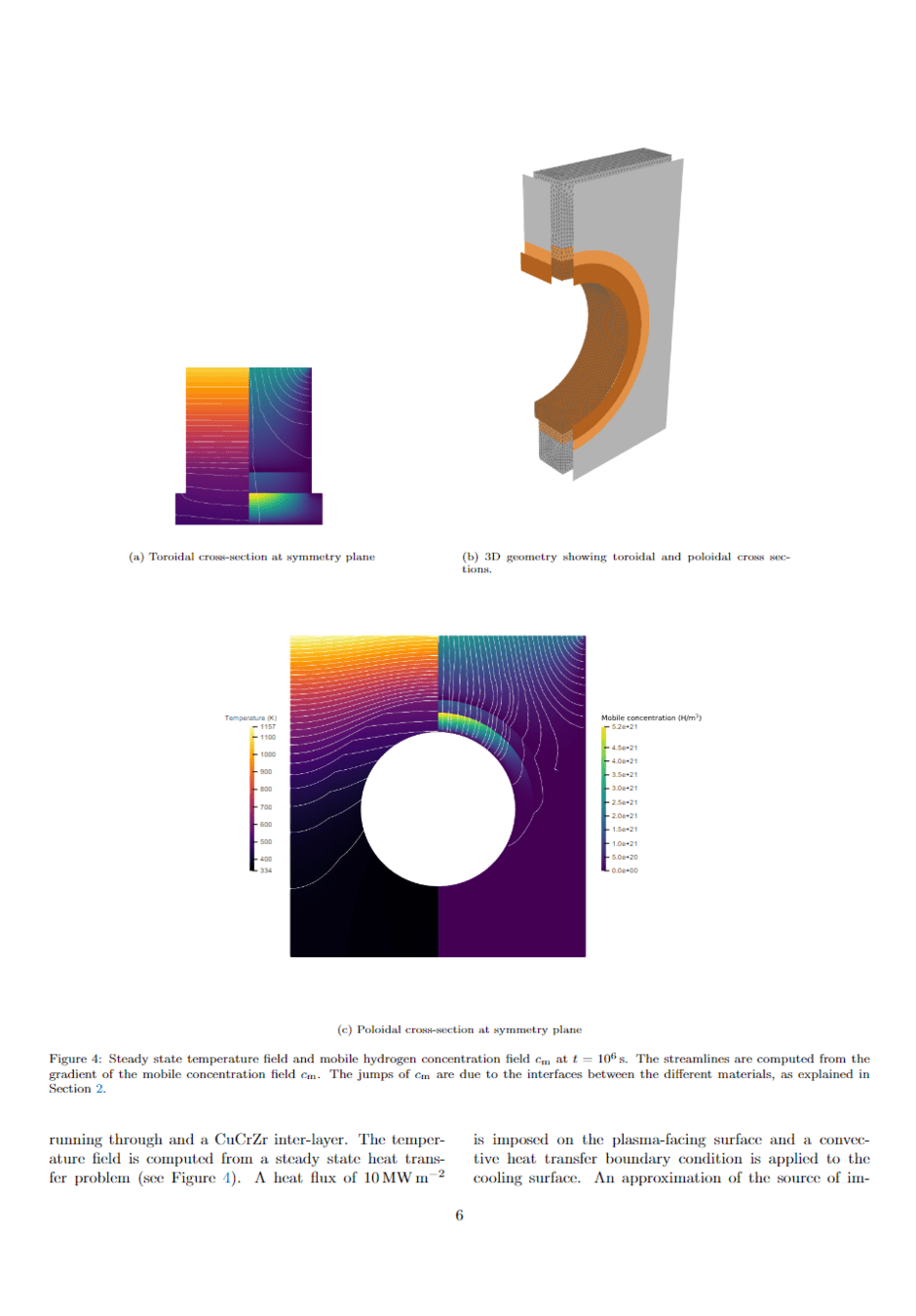

3D monoblocks
Breeding blankets

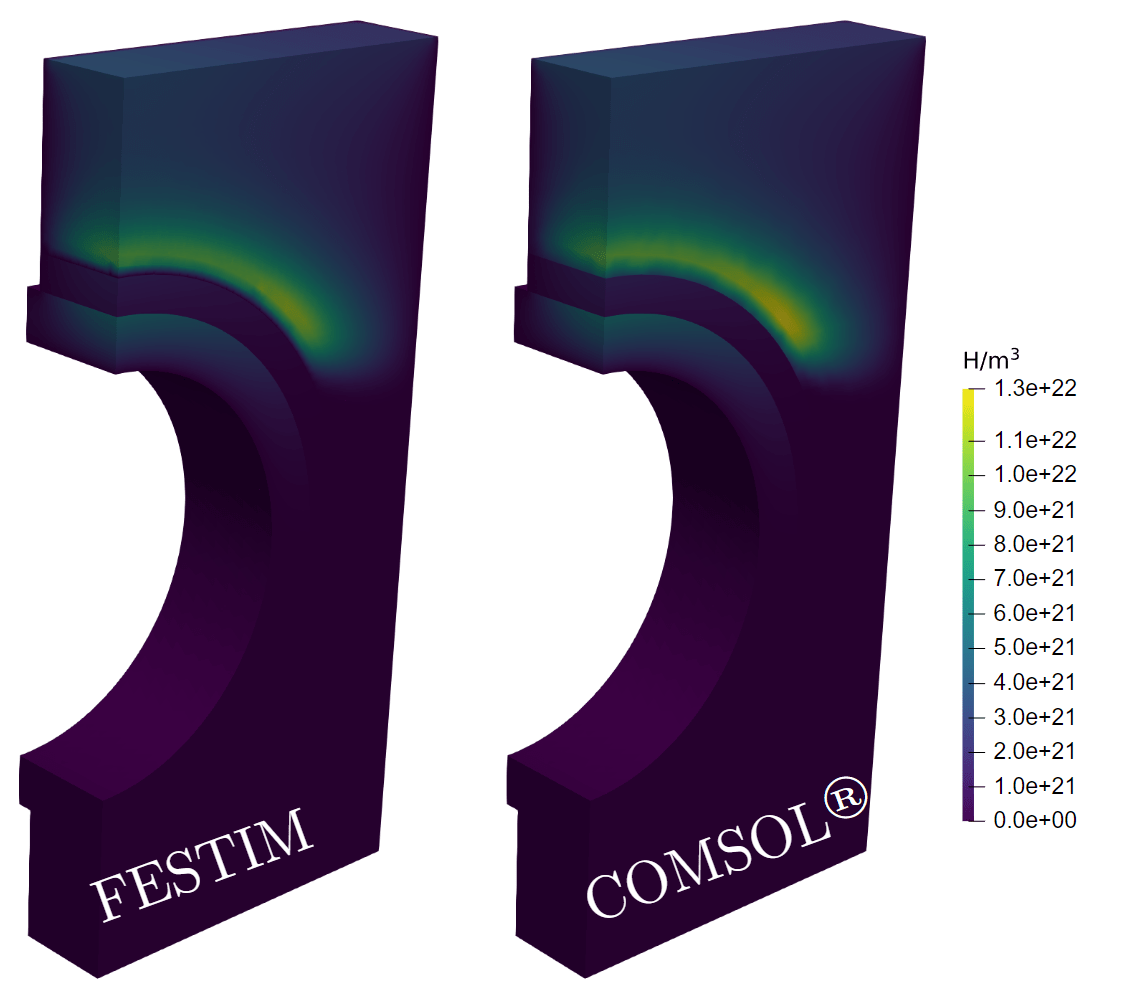

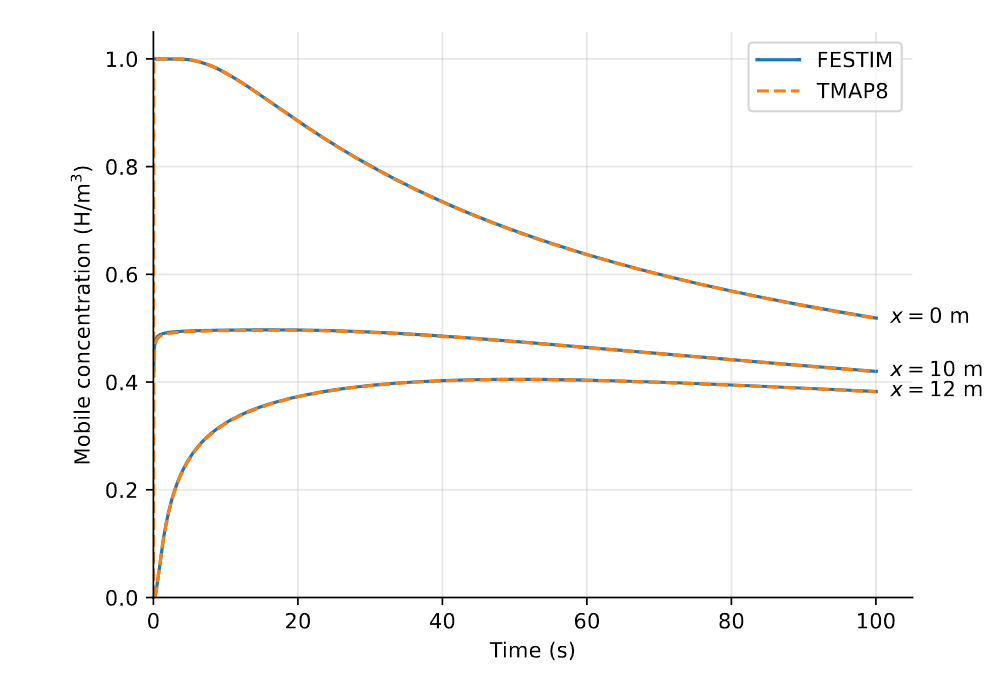

Code comparison

TMAP8
COMSOL (thanks Gabriele!)

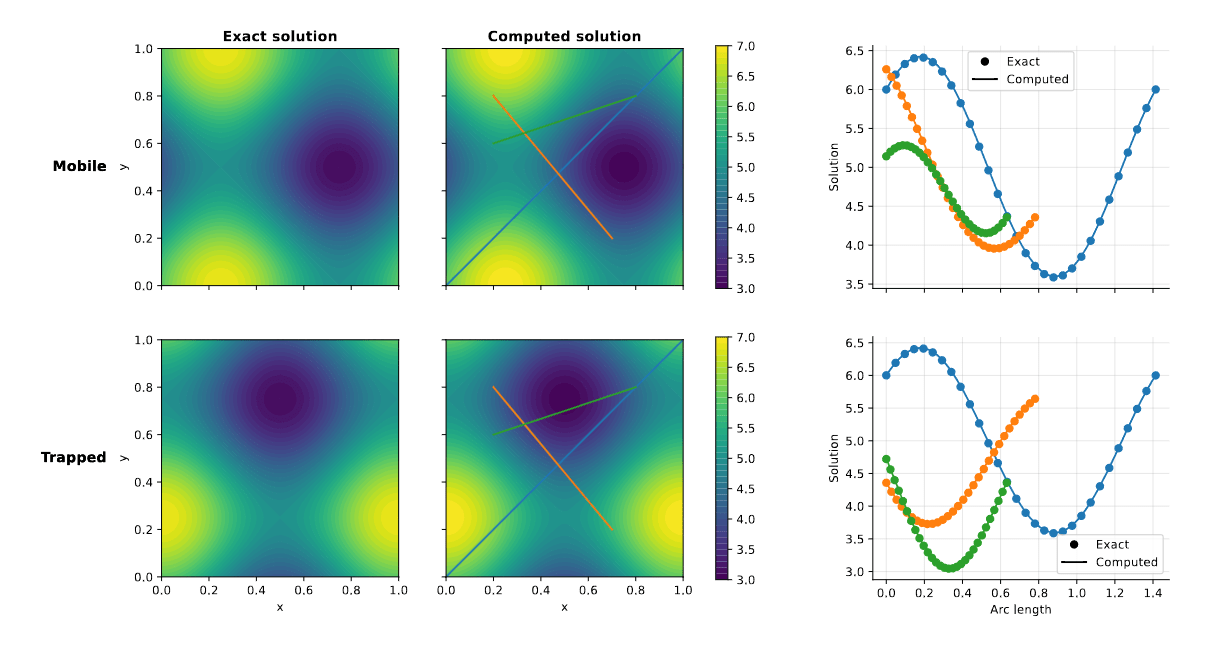

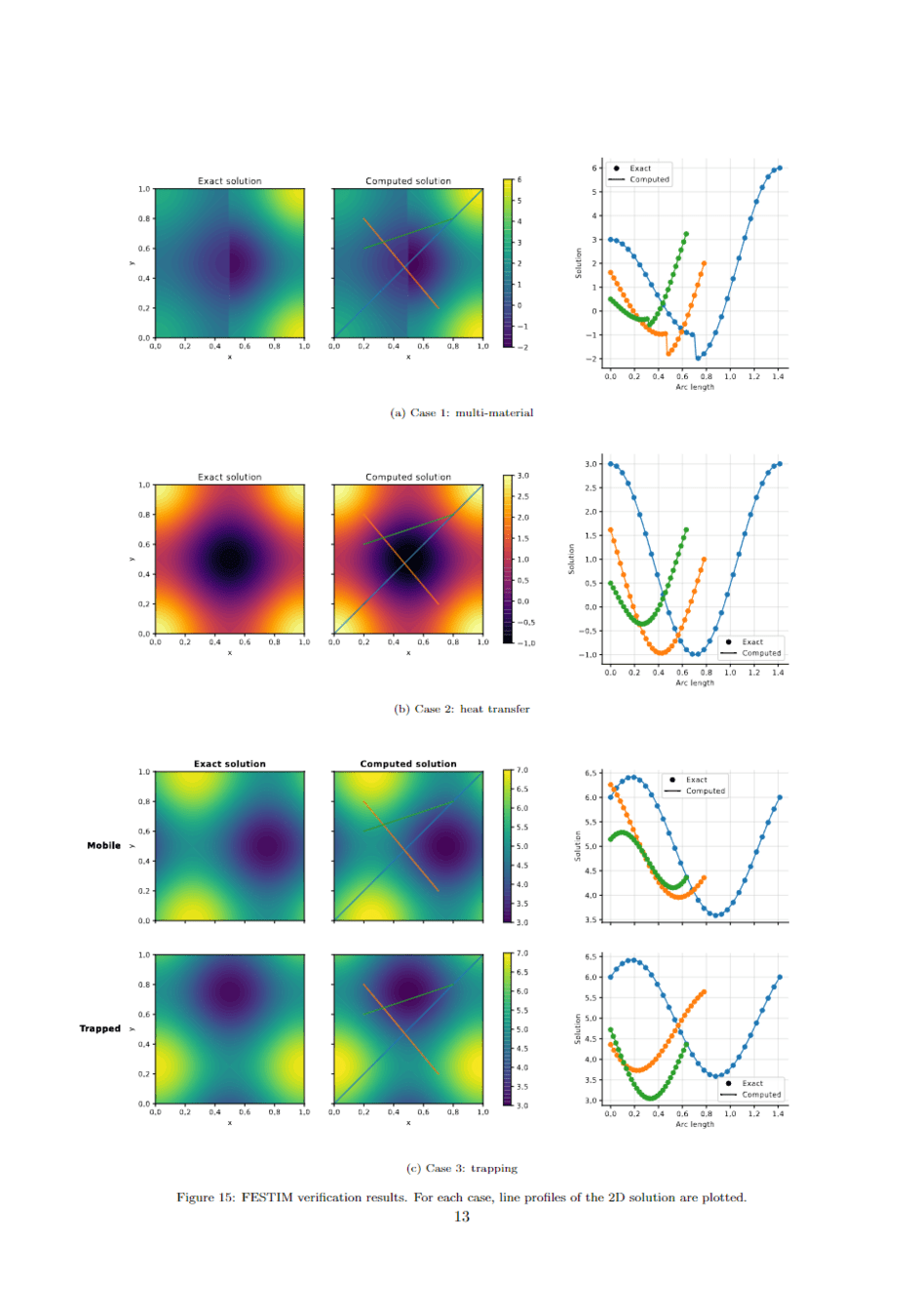

V&V

Heat transfer
Trapping
Multi-material

FESTIM review paper

\(P(t)\)

permeation flux

Enclosure

\frac{dP(t)}{dt} \propto \varphi_\mathrm{permeation}\\ \varphi_\mathrm{permeation} \propto P(t)

→ coupled problem

solved with explicit method

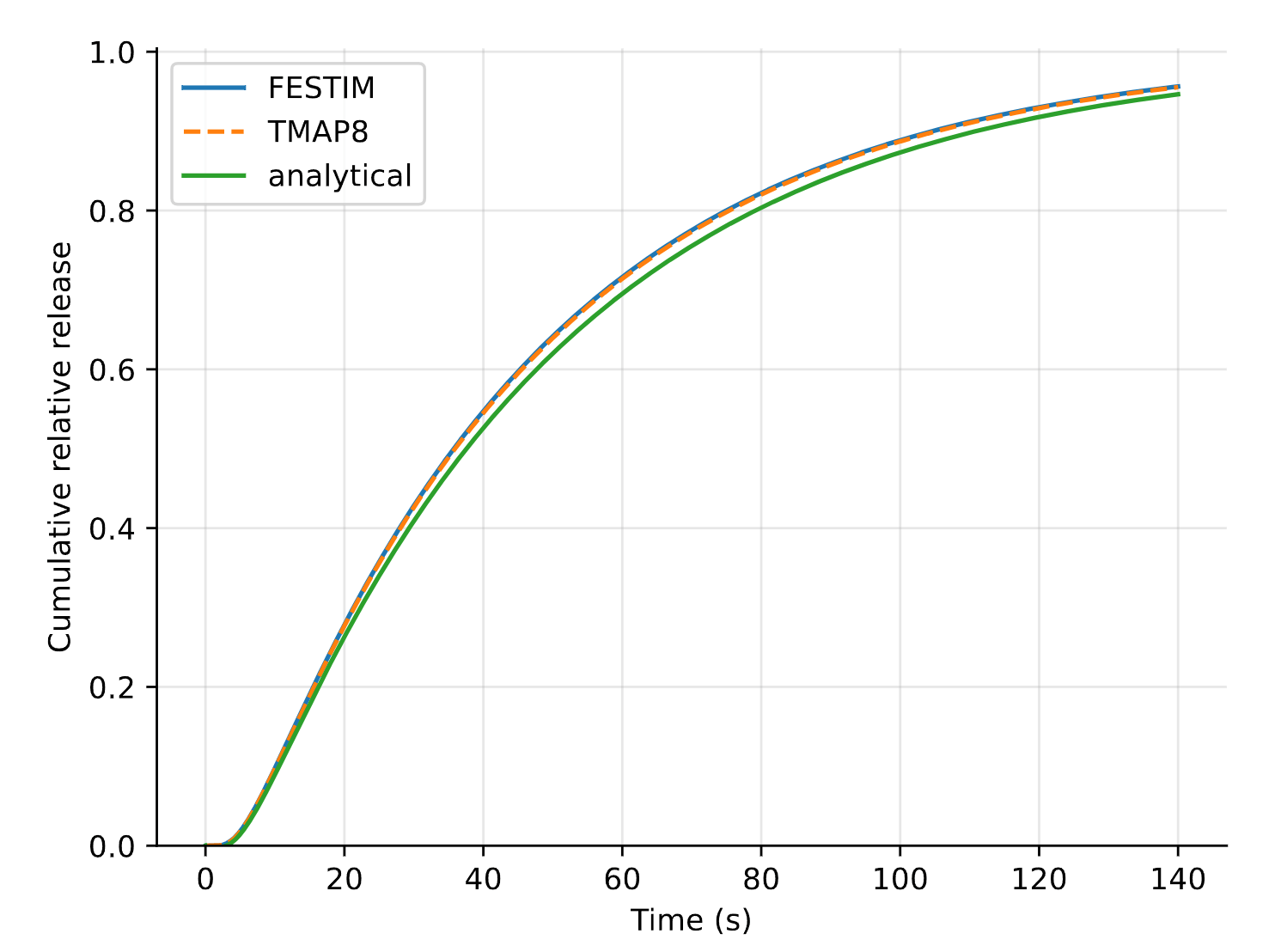

ver-1a case TMAP8

class PressureExport(F.DerivedQuantity):
    def __init__(self, **kwargs):
        super().__init__(field="solute", **kwargs)
        self.title = "enclosure_pressure"
        self.data = []


    def compute(self):
        return float(left_bc.pressure)




class CustomHenrysBC(F.HenrysBC):
    def create_expression(self, T):
        value_BC = F.BoundaryConditionExpression(
            T,
            henrys_law,
            S_0=self.H_0,
            E_S=self.E_H,
            pressure=self.pressure,
        )
        self.expression = value_BC
        self.sub_expressions = [self.pressure]




class CustomSimulation(F.Simulation):
    def iterate(self):
        super().iterate()
        # Update pressure based on flux
        left_flux_val = left_flux.compute()
        old_pressure = float(left_bc.pressure)
        new_pressure = (
            old_pressure
            - (left_flux_val * encl_surf / encl_vol * R * self.T.T(0) / avogadro)
            * self.dt.value
        )
        left_bc.pressure.assign(new_pressure)
