Constraining modifications of gravity using Galaxy Clustering, Weak Lensing and Intensity Mapping with SKA-1

Santiago Casas,

Isabella Carucci, Valeria Pettorino,

Stefano Camera, Matteo Martinelli

CEA Paris-Saclay, DAp

Cosmic Microwave Background

Planck 2018 CMB Temperature map (Commander) . wiki.cosmos.esa.int/planck-legacy-archive/index.php/CMB_maps

Large Scale Structure

Illustris Simulation: www.nature.com/articles/nature13316

Santiago Casas, SKAO Conference, 17.03.21

The Standard \(\Lambda\)CDM model

\(\Lambda\)CDM is still best fit to observations.
Predictive model with few free parameters.

Lensing
CMB
Clustering
Supernovae
Clusters

G_{\mu \nu} + \Lambda g_{\mu \nu} = 8\pi G T_{\mu \nu}

Concordance Cosmology:

Santiago Casas, SKAO Conference, 17.03.21

The Standard \(\Lambda\)CDM model

\(\Lambda\)CDM is still best fit to observations.
Some questions remain:
\(\Lambda\) and CDM.
Cosmological Constant Problem:

O(100) orders of magnitude wrong
(Zeldovich 1967, Weinberg 1989, Martin 2012).
Composed of naturalness and coincidence
sub-problems, among others.

Quantum Gravity?

G_{\mu \nu} + \Lambda g_{\mu \nu} = 8\pi G T_{\mu \nu}

Santiago Casas, SKAO Conference, 17.03.21

Tensions in the \(\Lambda\)CDM model

\(\Lambda\)CDM is still best fit to observations.
Some questions remain:
H0 tension, now ~5\(\sigma\)

Planck, Clusters and Lensing tension on clustering amplitude \(\sigma_8\)

KiDS 1000 Cosmology, arXiv:2010:16416

L.Verde, et al 2019. arXiv:1907.10625

Santiago Casas, SKAO Conference, 17.03.21

Alternatives to \(\Lambda\)CDM

Ezquiaga, Zumalacárregui, Front. Astron. Space Sci., 2018

Santiago Casas, SKAO Conference, 17.03.21

Parametrized modified gravity

\rm{d}s^2 = -(1+2\Psi) \rm{d}t^2 + a^2(1-2\Phi) \rm{d}x^2

In \(\Lambda\)CDM the two linear gravitational potentials \(\Psi\) and \(\Phi\) are equal to each other

We can describe general modifications of gravity (of the metric) at the linear level with 2 functions of scale (\(k\)) and time (\(a\))

\Sigma(a,k) = \frac{1}{2}\mu(a,k)(1+\eta(a,k))

Only two independent functions

Santiago Casas, SKAO Conference, 17.03.21

Late-time parametrization: Planck constraints

Using Planck satellite data in 2015 and 2018, constraints were obtained on these two functions \(\mu\) and \(\eta\).
Late-time parametrization: dependent on Dark Energy fraction

Planck 2015 results XIV, arXiv:1502.01590

Planck 2018 results VI, arXiv:1807.06209

Casas et al (2017), arXiv:1703.01271

Forecasts for Stage-IV surveys in:

Santiago Casas, SKAO Conference, 17.03.21

SKA Probes

Image credit: Isabella Carucci

Continuum emission: Allows detection of position and shapes of galaxies.
Line emission of neutral Hydrogen (HI, 21cm):

Using redshifted HI line -> spectroscopic galaxy survey

2. Intensity Mapping: Large scale correlations in HI brightness temperature -> very good redshift resolution,
good probe of structres

Santiago Casas, SKAO Conference, 17.03.21

SKA Probes

Image credit: Isabella Carucci

Continuum emission: Allows detection of position and shapes of galaxies.
Line emission of neutral Hydrogen (HI, 21cm):

Using redshifted HI line -> spectroscopic galaxy survey

2. Intensity Mapping: Large scale correlations in HI brightness temperature -> very good redshift resolution,
good probe of structres

Santiago Casas, SKAO Conference, 17.03.21

SKA1 Surveys

HI galaxies spectroscopic survey

GCsp: HI galaxy spec. redshift survey: \(0.0 < z < 0.5\)
probes 3D matter power spectrum in Fourier space.

SKA1 Redbook 2018, arXiv:1811.02743

SKA1 Medium Deep Band 2: \(5000 \, \rm{deg}^2\)

Santiago Casas, SKAO Conference, 17.03.21

Galaxy Clustering Recipe

BAO

Clustering

RSD

Spec-z

Euclid Collaboration, IST:Forecasts, arXiv: 1910.09273

Santiago Casas, SKAO Conference, 17.03.21

SKA1 Surveys

GCsp: HI galaxy spec. redshift survey: \(0.0 < z < 0.5\)
probes 3D matter power spectrum in Fourier space
GCco + WL + XCco (Continuum): \(0.0 < z < 3.0 \)
probes angular clustering of galaxies, Weak Lensing (Weyl potential) and galaxy-galaxy-lensing.
Angular number density:
\( n \approx 3.2 \rm{arcmin}^{-2}\)

SKA1 Redbook 2018, arXiv:1811.02743

SKA1 Medium Deep Band 2: \(5000 \, \rm{deg}^2\)

Continuum galaxy survey

Santiago Casas, SKAO Conference, 17.03.21

Weak Lensing

Influence of matter-energy: galaxies align and get distorted
Correlation function
of cosmic shear: information about matter content
and expansion.

Directly constrains MG function \(\Sigma\) through Weyl potential

-k^2(\Phi(a,k)+\Psi(a,k)) \equiv 8\pi G a^2 \Sigma(a,k)\rho(a)\delta(a,k)

Santiago Casas, SKAO Conference, 17.03.21

SKA Surveys

IM: Intensity mapping survey
\(0.4 < z < 2.5\)
Very good redshift resolution: \(\Delta z \approx \mathcal{O}(10^{-3}) \)
We use: 11 redshift bins
Single dish mode:
\(N_d = 197\)
\(t_{obs} = 10000 \, \rm{hr} \)
We limit to the scales
\(0.001 < k < 0.25 \, [h/\rm{Mpc}] \)

SKA1 Medium Deep Band 1: \(20000 \,\rm{deg}^2\)

Santiago Casas, SKAO Conference, 17.03.21

Intensity Mapping

IM probes the underlying matter power spectrum.
There is a density bias given by the HI mass contained in dark matter halos.
21cm brightness temperature depends on cosmological background evolution and the energy fraction of neutral Hydrogen in the Universe \(\Omega_{HI}\).

\(P^{\rm HI}(z,k) = \bar{T}_b(z)^2b_{\rm HI}(z)^2[1+\beta_{\rm HI}(z)\mu^2]^2P(z,k) \)

\( b_{\rm HI}(z) = 0.3(1+z) + 0.6 \)

\(\Omega_{HI} = 4(1+z)^{0.6} \times 10^{-4} \)

\( \bar{T}_{\mathrm{HI}}(z)= 189h \frac{(1+z)^2 H_0}{H(z)}\Omega_{HI}(z) \,\,{\rm mK} \)

Jolicoeur et al (2020) arXiv:2009.06197

Carucci et al (2020) arXiv:2006.05996

Santiago Casas, SKAO Conference, 17.03.21

Intensity Mapping

\(P_{gg}\) underlying galaxy power spectrum.
\(P_{HI}/T_{HI}^2\) IM power spectrum.
\(P_{noise} \) for single dish mode in SKA1-MID Band 1 survey.
Angle-dependent beam effect is in the signal.

Santiago Casas, SKAO Conference, 17.03.21

Intensity Mapping Noise Terms

Number of dishes

Effective beam

\(\beta_{SD} = \exp[-\frac{k_\perp r(z)^2 \theta_b (z)^2}{8 \ln 2}] \)

\( \alpha_{SD} = \frac{1}{N_d} \)

Jolicoeur et al (2020) arXiv:2009.06197

Santiago Casas, SKAO Conference, 17.03.21

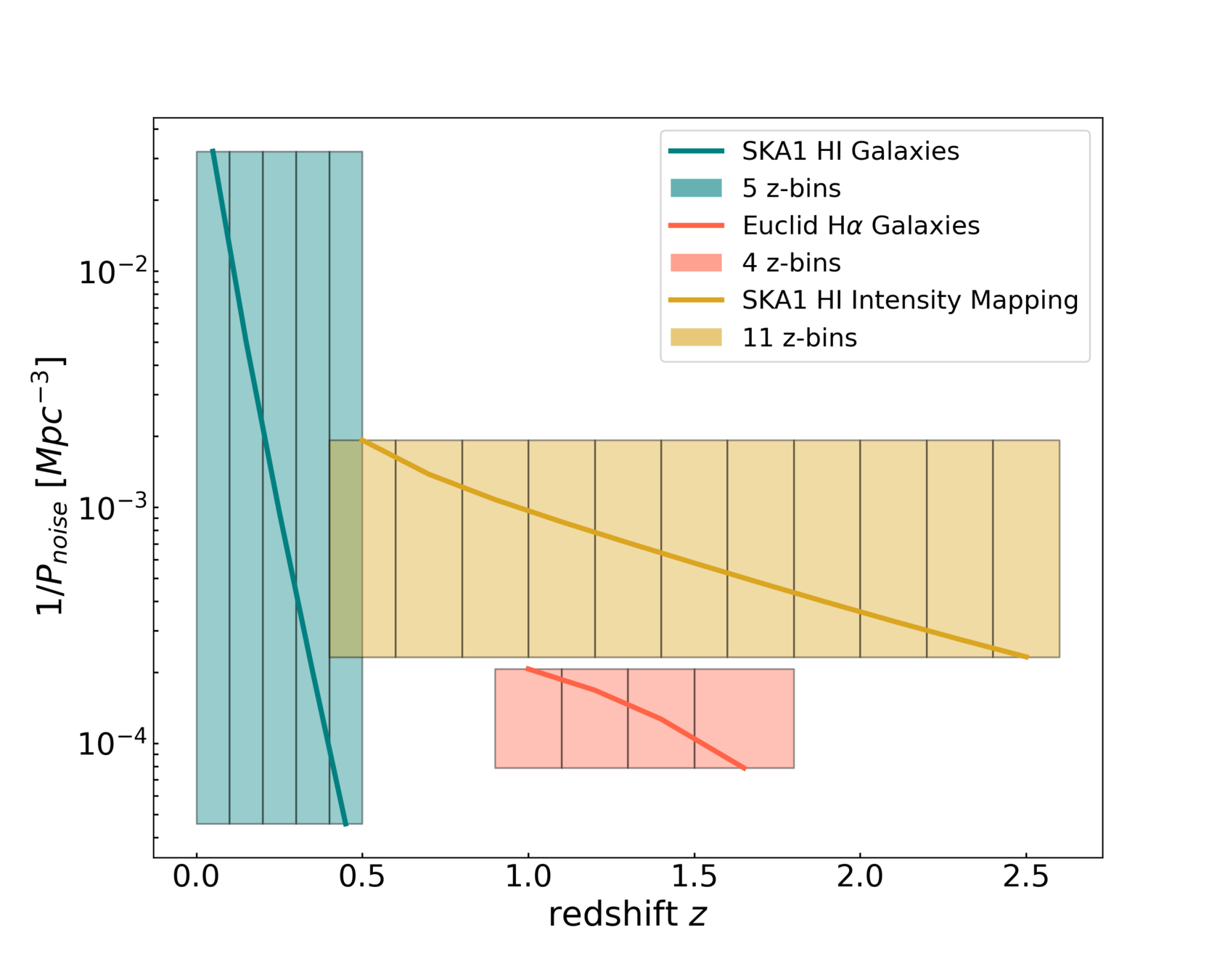

Galaxy Clustering - IM Synergies

SKA1 and Euclid probe complementary redshifts in spectroscopic GC.
IM and GC cross-correlation offers gain in information and reduction of systematics

Santiago Casas, SKAO Conference, 17.03.21

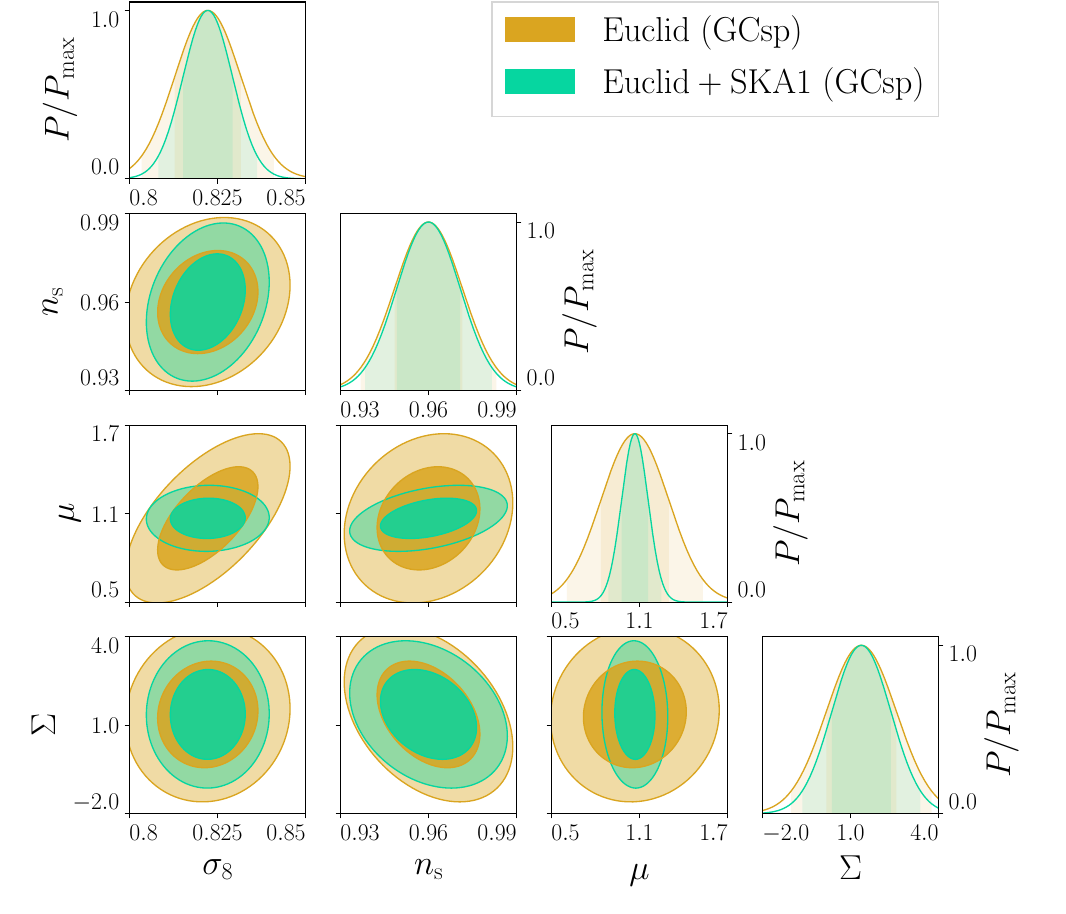

SKA1 Results

Euclid GCsp
+
SKA1 GCsp (HI galaxies)

Improved constraints on \(\mu\) since it covers a larger redshift range at small \(z\) where \(\mu\) becomes important.

PRELIMINARY

Santiago Casas, SKAO Conference, 17.03.21

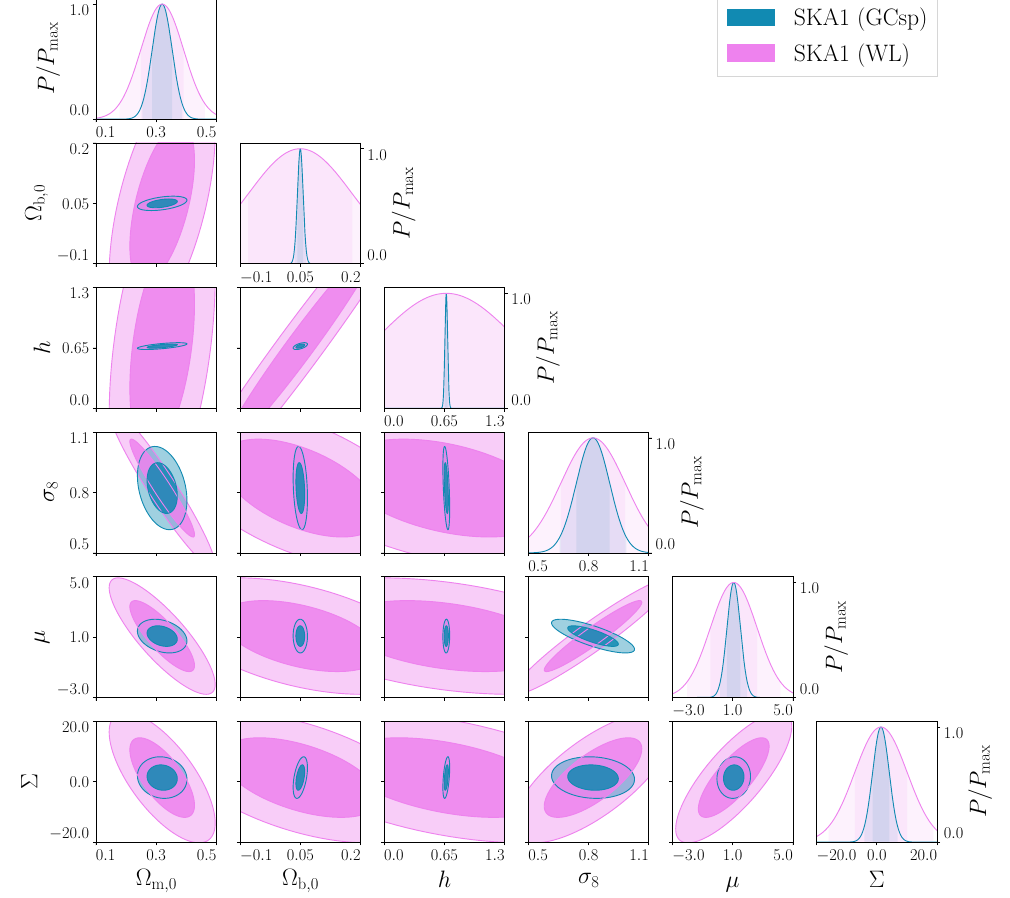

SKA1 Results

SKA1:

GCsp (HI galaxies)

WL (Continuum)

WL is not very constraining on its own, but offers some improvement in \(\sigma_8\).

PRELIMINARY

Santiago Casas, SKAO Conference, 17.03.21

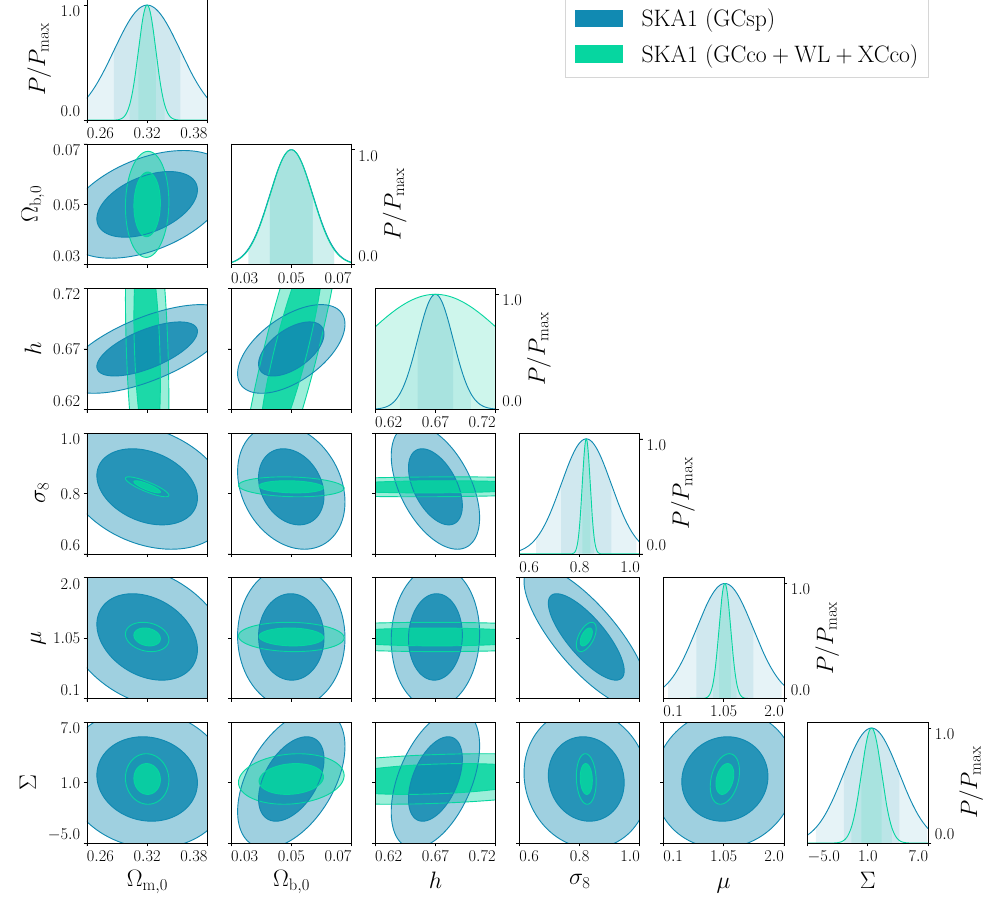

SKA1 Results

SKA1:

GCsp (HI galaxies)

GC+WL+XC (Continuum)

The combination of WL and angular galaxy correlations, (3x2pt) is very good at constraining \(\Sigma\) as expected, but not so good in \(h\).

PRELIMINARY

Santiago Casas, SKAO Conference, 17.03.21

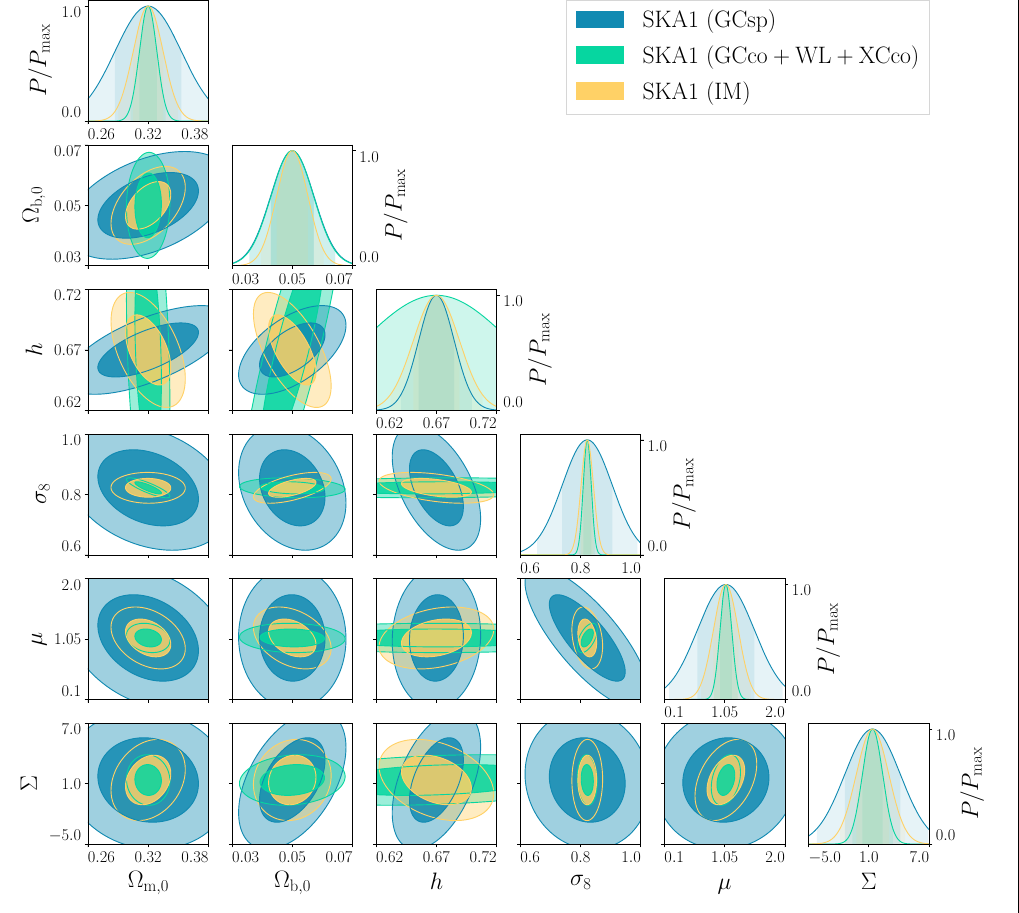

SKA1 Results

SKA1:

GCsp (HI galaxies)

GC+WL+XC (Continuum),
IM (HI 21cm)

Intensity Mapping offers interesting complementarity in certain subspaces.

PRELIMINARY

Santiago Casas, SKAO Conference, 17.03.21

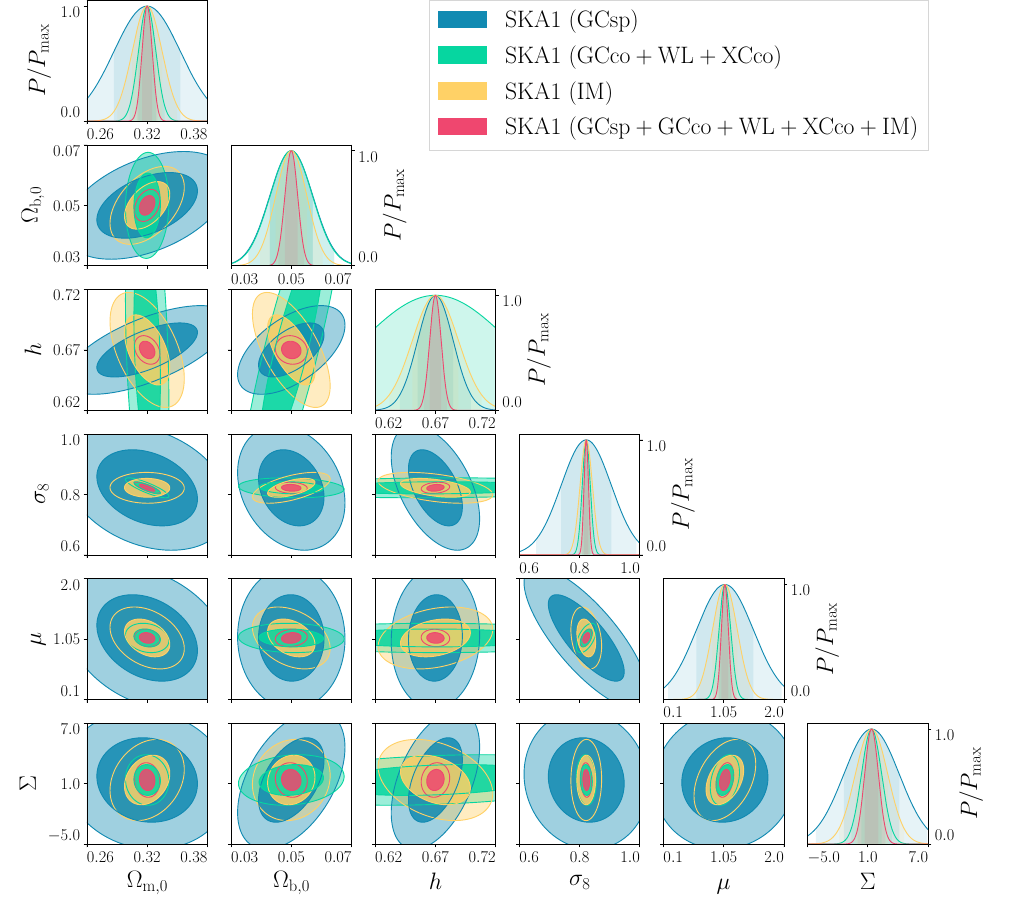

SKA1 Results

SKA1:

GCsp (HI galaxies) +

GC+WL+XC (Continuum)
+ IM (HI 21cm)

HI galaxies at small z, IM at higher z and angular resolution of continuum galaxies provide good complementary constraints.
* All cross-correlations not taken into account here

PRELIMINARY

Santiago Casas, SKAO Conference, 17.03.21

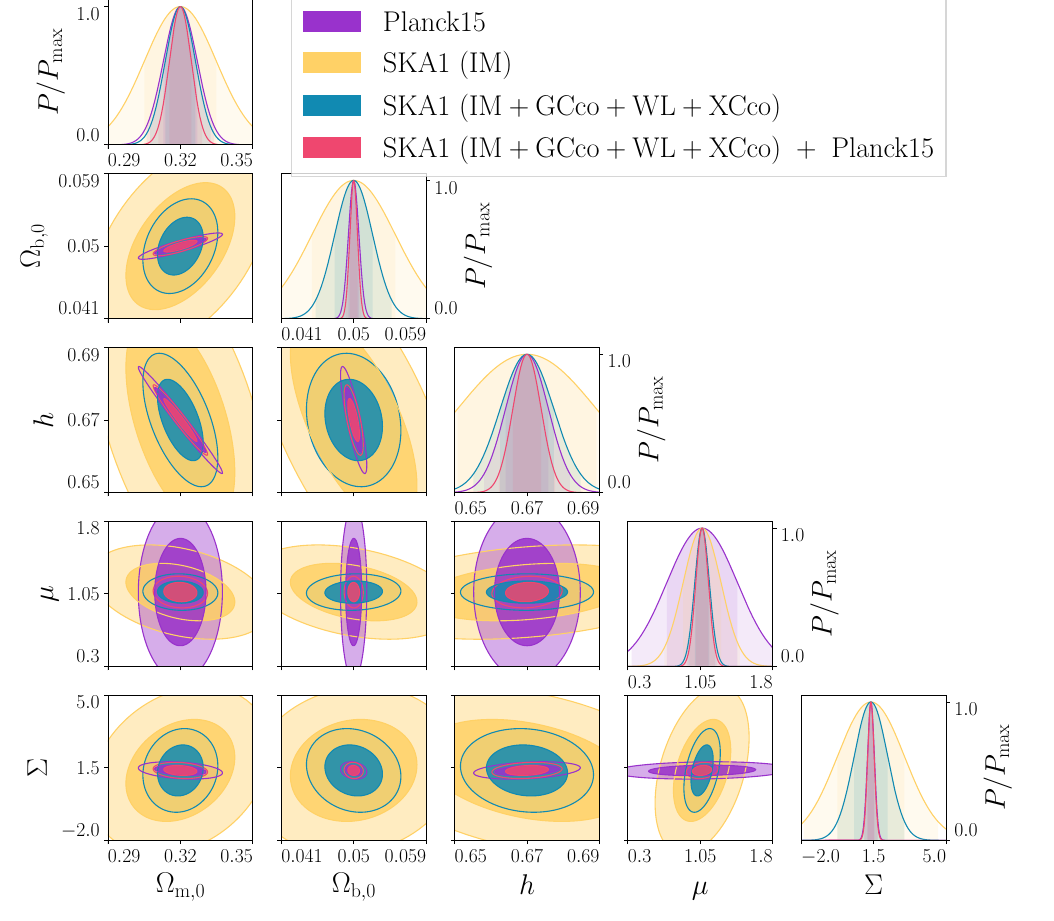

SKA1 Results

SKA1:

GC+WL+XC (Continuum) +
IM (HI 21cm)
+ Planck'15 (BSH)

Planck provides information on \(\Omega_{b}, \, \Omega_{m}\) but also on the MG parameter \(\Sigma\).
In the \(\mu\)-\(\Sigma\) plane it complements very well with the IM constraints
Combined \(1\sigma\) constraints on MG ~10% around fiducial

PRELIMINARY

Santiago Casas, SKAO Conference, 17.03.21

Text

Conclusions

\(\Lambda\)CDM is still the best fit to observations, however certain theoretical uncertainties and tensions in data are still of concern.
Constraining modifications of gravity at the level of perturbations -> hints for alternative models.
SKA1 will be able to probe weak lensing and matter density perturbations in novel and independent ways compared to optical surveys.
This will place constraints on deviations of standard gravity at yet unexplored redshifts.
Synergies with optical surveys, like Euclid, including cross-correlations are promising (work in progress).
Using the good z-resolution of SKA1 HI could place tight constraints on redshift-binned parametrizations.
