Signal Flow I

CMS 3510/3511 - Fall 2018

Signal Flow

RUBE GOLDBERG

IN                         (cable)                       OUT



(brain)

(audio mixer)

(video cable)

(highway)

(river)

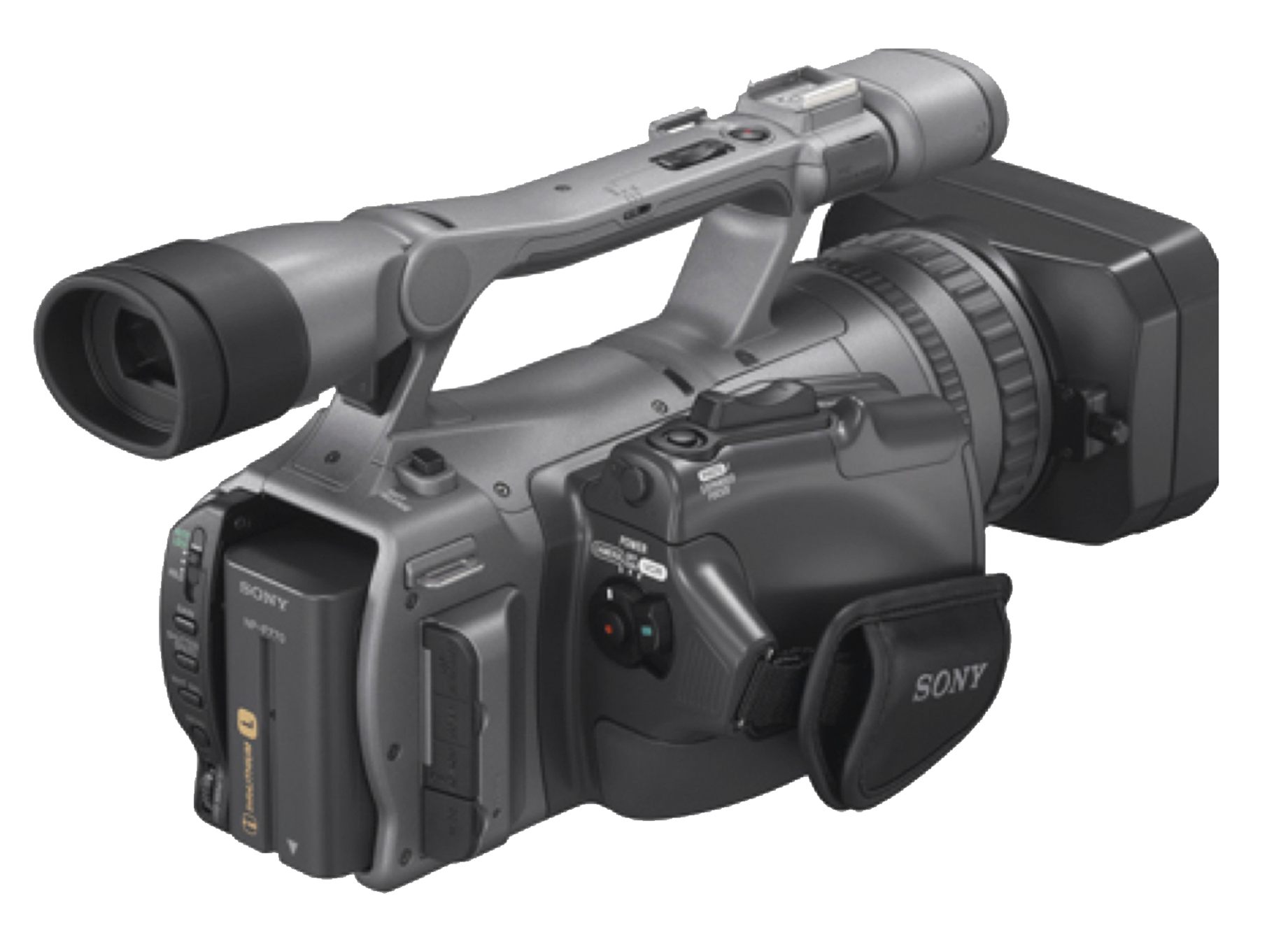

Video source

(camera 1)

video out             video cables



            HD-SDI

           or HDMI

1st destination -

video switcher

Video source

(camera 2)

video out

Video source

(camera 3)

video out

  • multiple inputs
  • one main output...

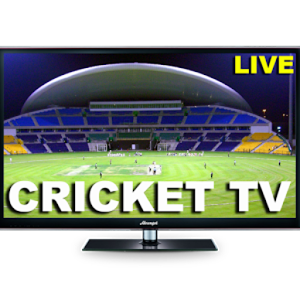

Final destination -

Your TV program

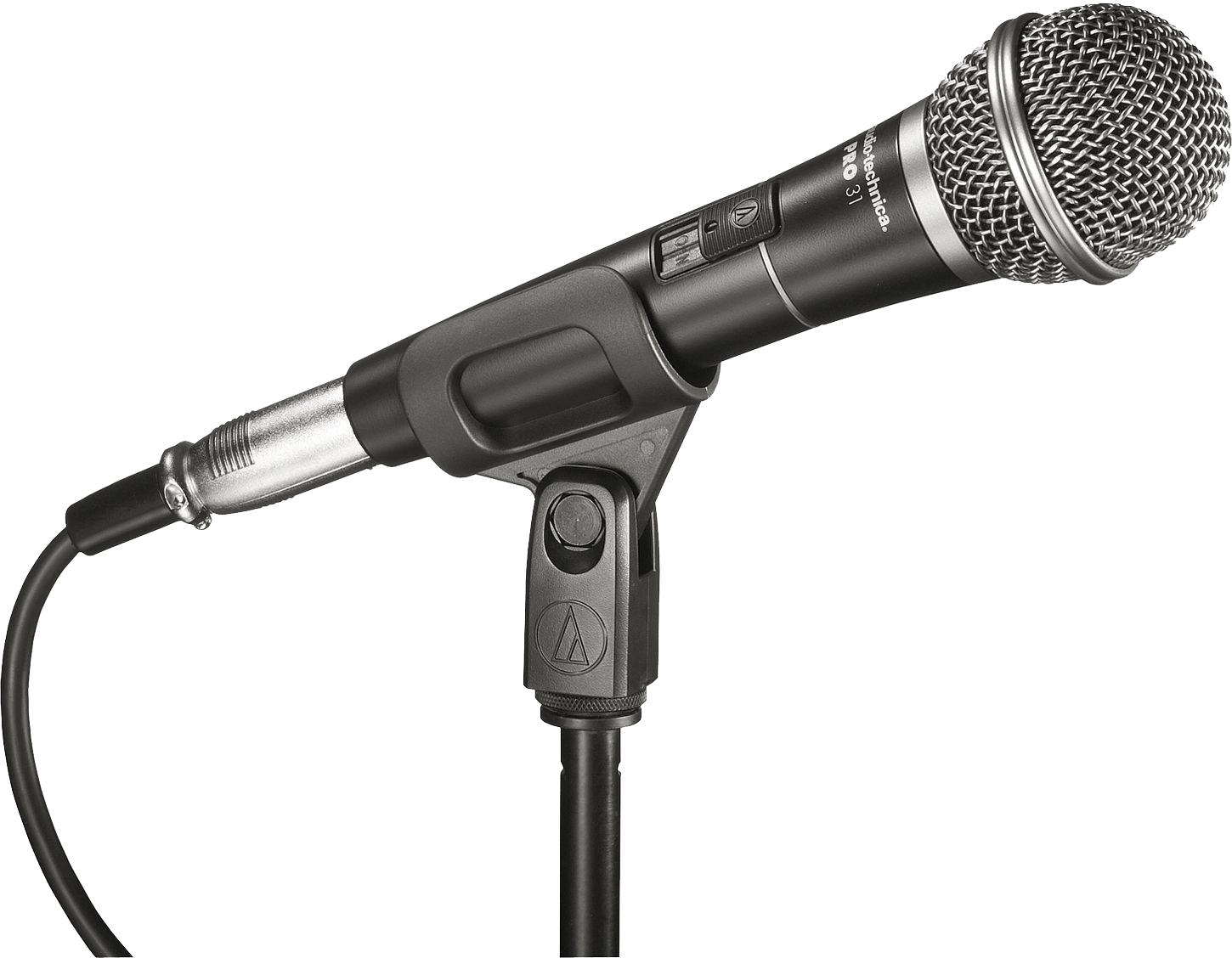

Audio source

(mic 1)

audio out                               XLR

1st destination -

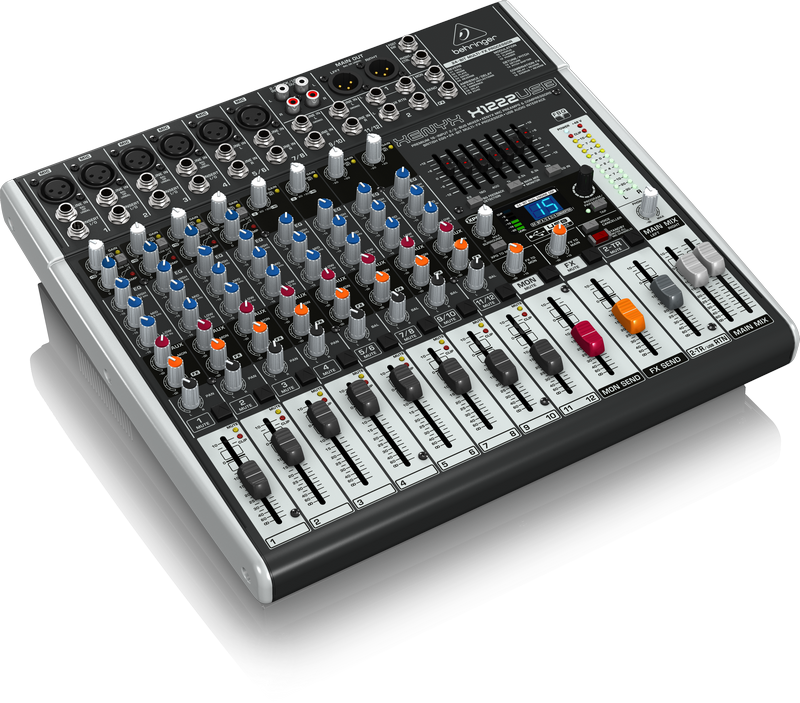

Audio mixer



Audio source

(mic 2)

audio out

Audio source

(mic 3)

audio out

  • Multiple inputs
  • One main ouput...

Final destination -

Your program sound

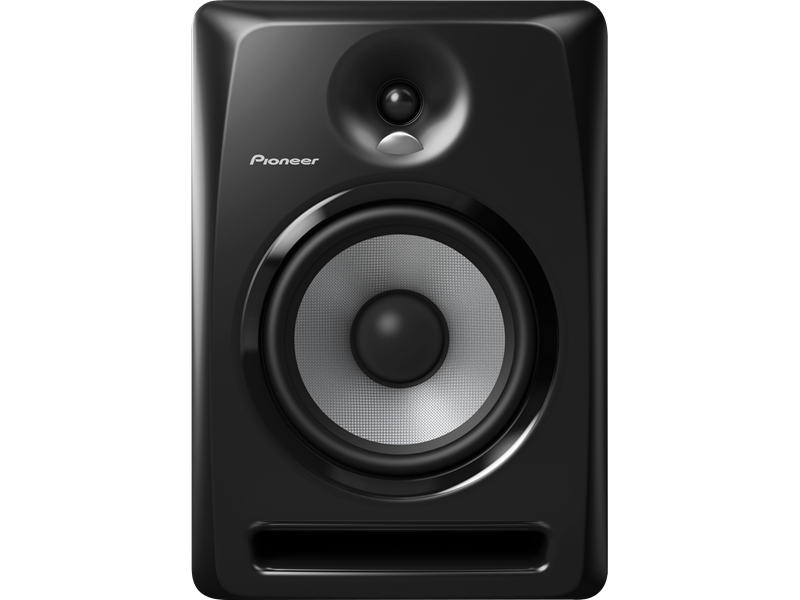

's

speakers

(audio

monitors)

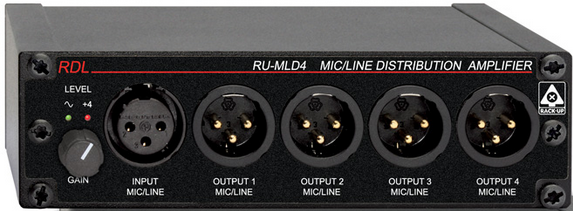

DA - Distribution Amplifier

in

Multiple outs

audio out                               XLR cables

audio out

audio out

audio in

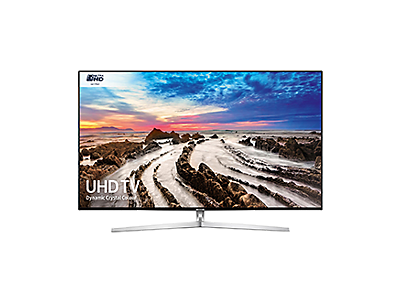

TVs

(video

monitors)

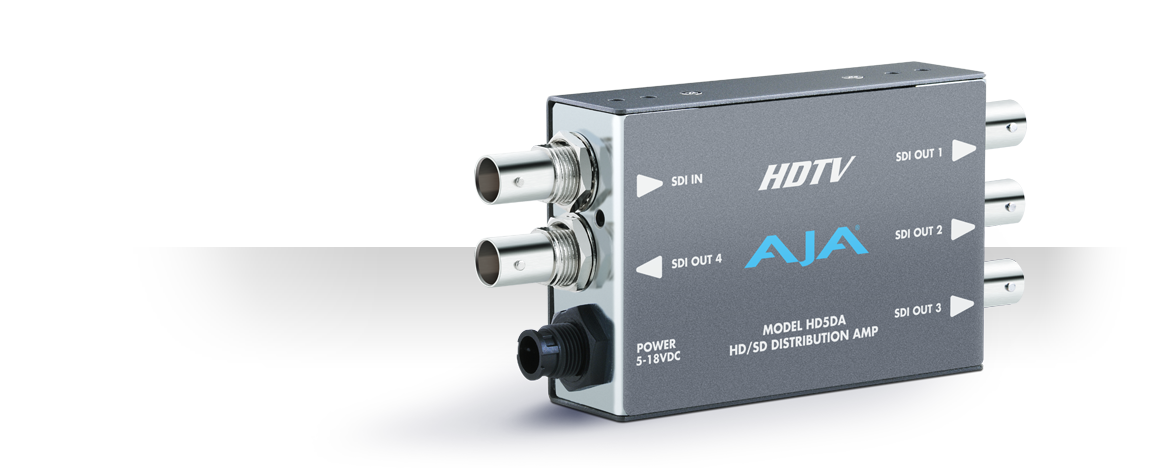

DA - Distribution Amplifier for video

one input

multiple outputs

video out 1

video out  3

video out 2

Video source

HD-SDI cables

(with BNC connectors)

Components

of Signal Flow for Television...

  • Cable (audio, video, or both) - transmits the signal
  • Video source (camera) - captures the signal
  • Audio source (mic or device) - captures the signal

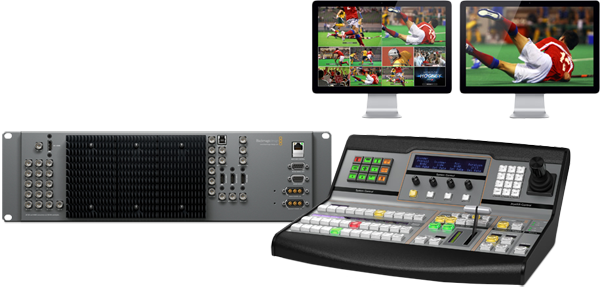

  • Video switcher (tricaster or ATEM) - mixes the video and audio (post-mixer)
  • Audio mixer - mixes down the audio
  • DA - Distribution Amplifier - distributes and amplifies a signal
  • Monitors (audio or video) - shows the signal

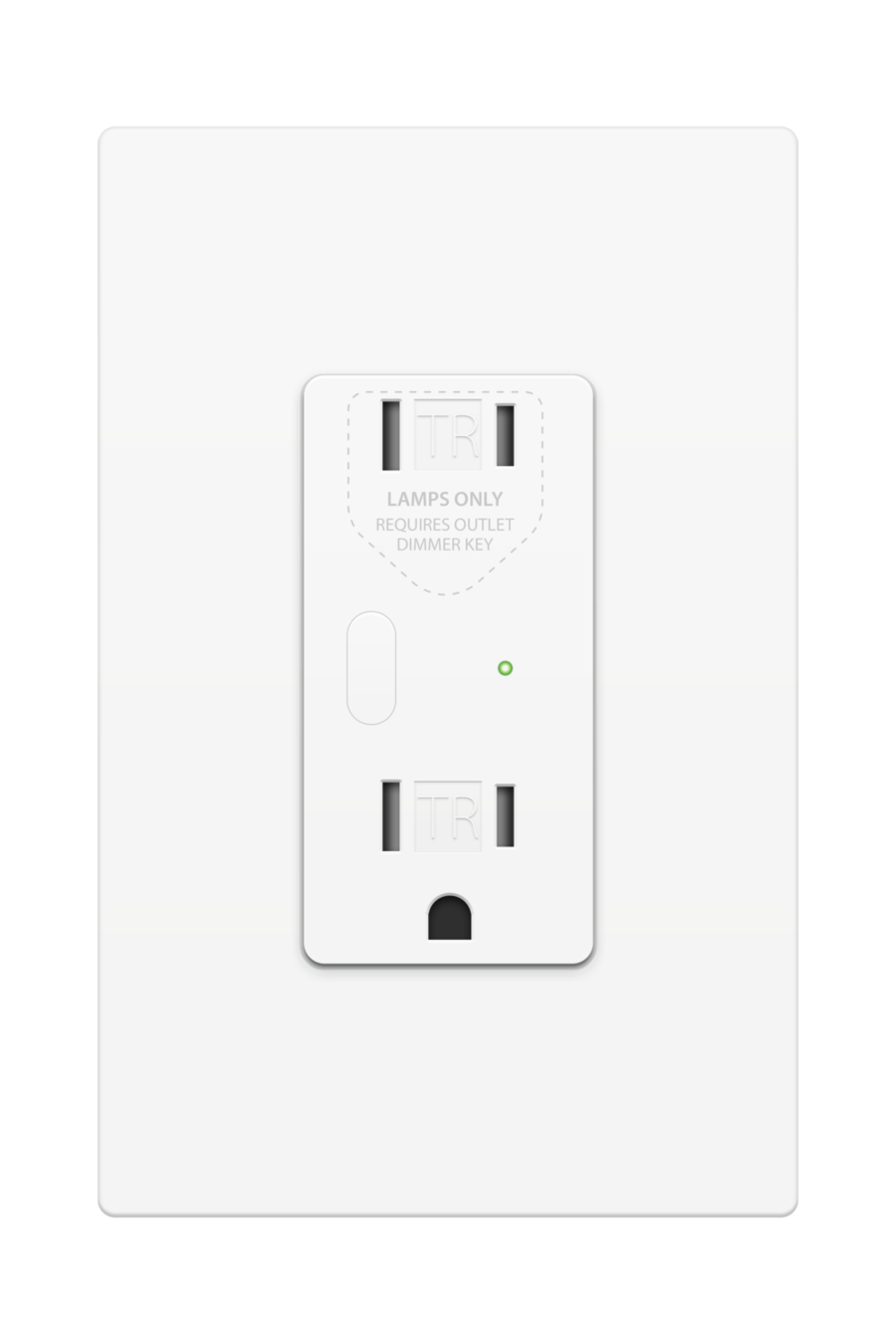

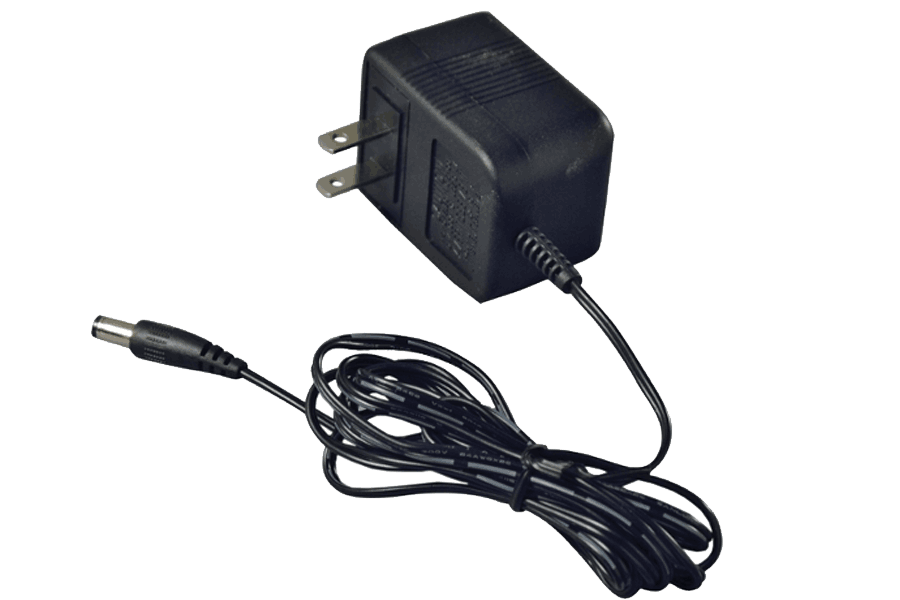

AC/DC

Alternating Current

Direct Current

Can be transmitted

over long distances

Needed to power household appliances etc.

Other signal Flows...

Freeway Mazes - Traffic Flow

Wired Magazine

(flow chart)

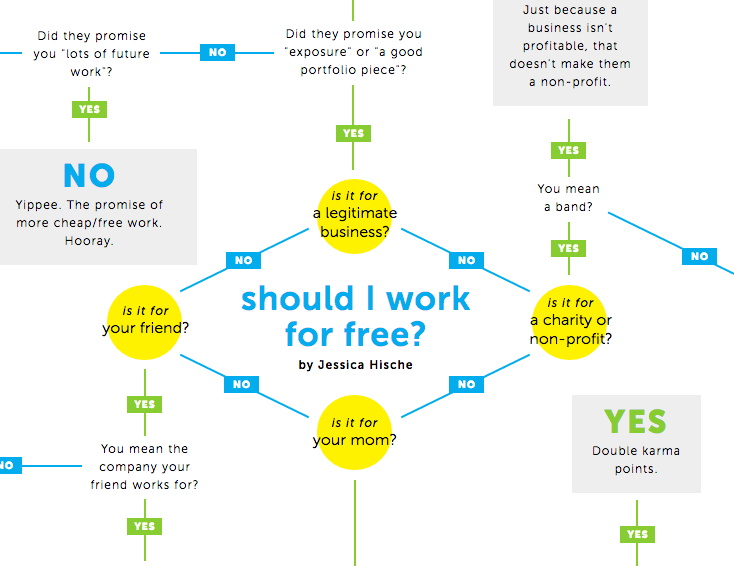

Should I work for Free?

(flow chart)

Full flow chart at:

http://shouldiworkforfree.com/

Can I park in the Fire Lane?

(flow chart)

Engineering...

(flow chart)

Maps

Geographic                     Semi-Schematic                      Schematic

Realistic                                                                       Abstract

London Underground Schematic (map)

Internet Speed and Connectivity of Japan

Signal Flow I S19

By Scott Calhoun

Signal Flow I S19

The concept of signal flow as a thinking tool.
