Climbing Up and Down the Abstraction Ladder

Empirically Modeling Visual Perception for Effective Information Visualization

Hook

Visualizations are everywhere

Framing / Grounding Model

possible framing 1:

Abstraction Ladder

More concrete

More abstract

Framing / Grounding Model

possible framing 2:

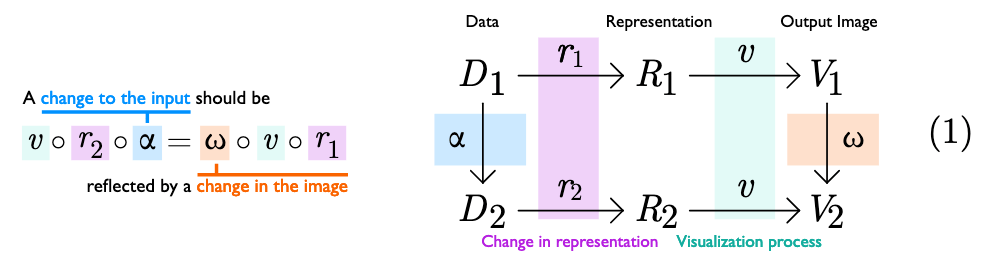

Algebraic Visualization Design

Framing / Grounding Model

possible framing 3:

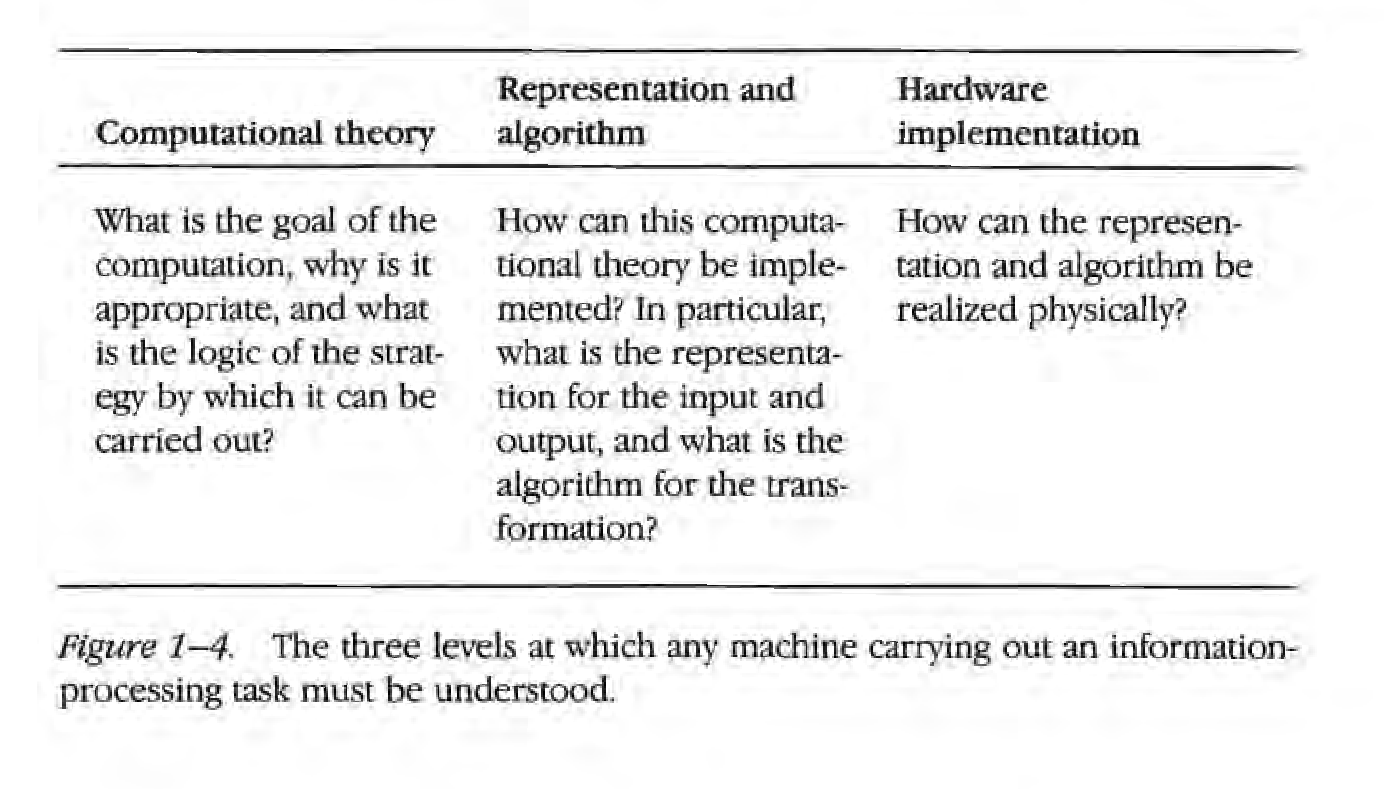

Marr's levels of analysis

More concrete

More abstract

Background

Or: what's up with existing work?

Existing empirical studies are often black-box and descriptive

Cleveland and McGill, position-length experiment

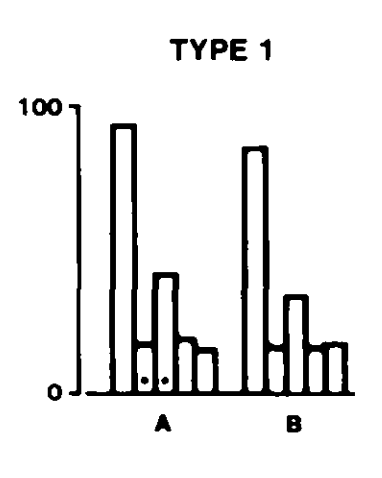

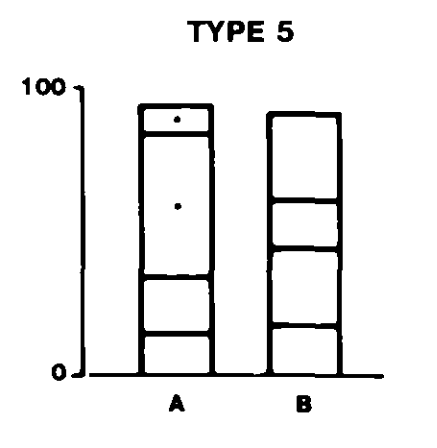

Q: What percent is the smaller of the larger?

accuracy

ranking

position

length

position > length

automatic tool design

BUT WHY?

Background

Proposed theories of graph comprehension are too high-level to aid experiment design

in fact, the most cited Theory of Graph Comprehension was influenced by theories of language comprehension at the time it was proposed

How do you measure "graph schema" or "internal representation of display"?

Not falsifiable

Background

When they're not high-level, they focus on things like predicting eye scan paths or time it takes to finish task

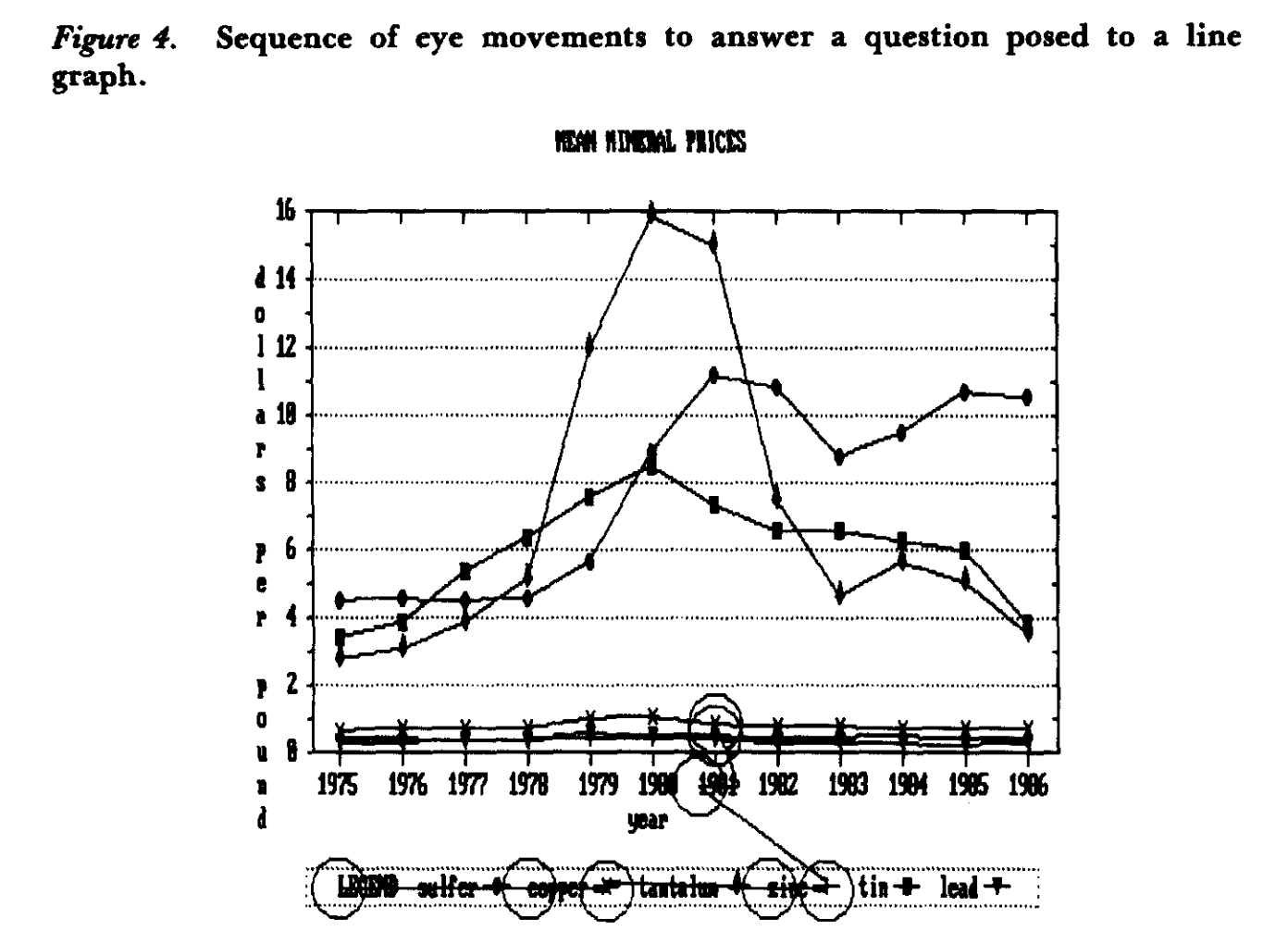

Q: Did tin exceed $8.00 per pound in 1981?

Background → Motivation

building computational, predictive models that operationalize the algorithmic level of visualization perception using empirically measurable data.

Paper 1: Old Wine in A New Bottle? Signal Detection Theory to Lineups

* Research question: How do we quantify the "signal" in visual discoveries, and why we should use Signal Detection Theory to analyze the performance on visual lineup data

* Contribution: re-analyzed prior study data using SDT

* Key Takeaway: Average participant most sensitive to rainbow but still have conservative criterion → Reda and Szafir's finding that rainbow color ramps don't lead to false discoveries

* Link to thesis: the need for more rigorous, theory-driven methods to understand users' perceptual sensitivity an decision bias and move beyond simple "correct/incorrect" evaluations

Paper 2: To Cut or Not to Cut? Y-Axis Truncation

* Research question: When are y-axis truncations actually "deceptive"?

* Contribution: controlled study + Data <-> Visual Forms <-> Tasks

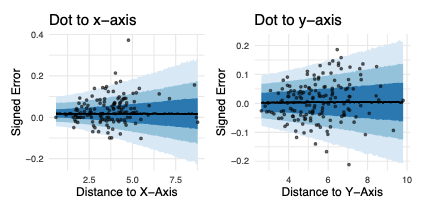

* Key Takeaway: y-axis truncation has minimal impact on visuals whose data relations are unaffected by truncation; non-monotonic truncation is especially bad for visual whose data relations are affected by truncation

* Link to thesis: the need for more rigorous, theory-driven methods to understand users' perceptual sensitivity an decision bias and move beyond simple "correct/incorrect" evaluations

Paper 3: Seeing Eye to AI? Deep-feature based similarity metrics

* Research question: Do DF-based similarity metrics "judge" the similarity of visualizations that same way that humans do?

* Contribution: replication of two prior studies using extended DF-based metrics

* Key Takeaway: Approximates well for scatterplot similarity but fail for basic visual channels like glyph shape and color

* Link to thesis: while computational models can approximate some aspect of human visual perception, they don't inherently explain the underlying process or why we perceive

→ We need computational theories that are explicitly about the decoding process, moving beyond just mimicking outcomes
