Basic introduction to software containers

Application in scientific practice

Docker and Singularity

Toni Hermoso Pulido

Bioinformatics Unit

CRG, Barcelona

Reproducibility Crisis

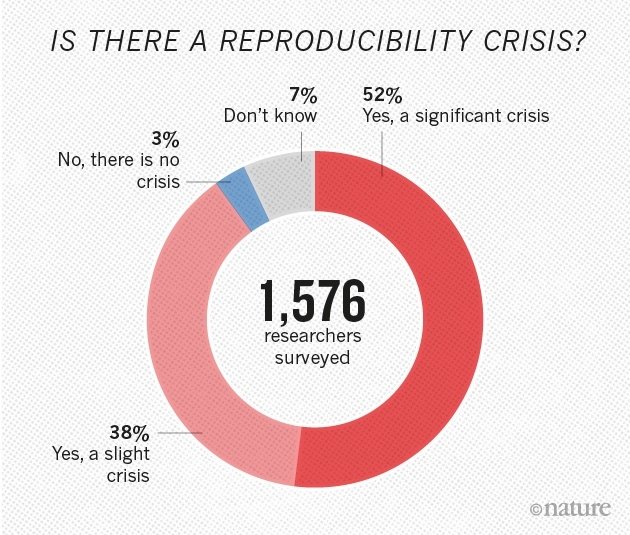

According to a 2016 poll of 1,500 scientists reported in the journal Nature, 70% of them had failed to reproduce at least one other scientist's experiment (50% had failed to reproduce one of their own experiments).  ​Ref

Reproducibility Crisis

According to a 2016 poll of 1,500 scientists reported in the journal Nature, 70% of them had failed to reproduce at least one other scientist's experiment (50% had failed to reproduce one of their own experiments).  ​Ref

Containers

Containers in New Jersey

Containers in science

• Mantainability
• Portability
• Reproducibility

Virtual machines vs containers

http://www.zdnet.com/article/what-is-docker-and-why-is-it-so-darn-popular/

Virtualisation

Pros and Cons

• PRO: Very similar to a full OS
• PRO: With current solutions, high OS diversity
• CON: Need of more space and resources
• CON: Slower than containers
• CON: Not as good automating

Containerisation

Pros and Cons

• PRO: Faster
• PRO: No need of full OS installation. Less space.
• PRO: Current solutions allow easier distribution of recipes. More portability
• PRO: Easier automation
• CON: Some cases might not be exactly the same as a full OS
• CON: With current solutions, still less OS diversity

Docker

Docker

• Platform for developing, shipping, and running applications
• Infrastructure as application/code
• Established Open Container Initiative

As a software:

• Docker Community Edition
• Docker Enterprise Edition

Docker architecture

Docker image

• Read-only templates.
• Containers are run from them
• Images are not run
• Images have several layers

Docker image - Instructions

• Recipe file:

  • Dockerfile Reference

• Instructions
  • Every instruction generates an image layer
  • FROM: use a base image (notice tag)
  • ADD, COPY: add files to image filesystem
  • RUN: execute command in image
  • ENV, ARG: Run and build environment variables
  • CMD, ENTRYPOINT: Command to execute when generated container starts

Docker container

• Generated from an image (template)
• Image: read-only
• Container: read-write
• Can be converted into image

  • docker commit

• 1 imatge -> n diverse containers
  • Diversity:
    • Volumes / Mounting points
      • Different data or configs
    • Different exposed ports

Run container

$ docker run biocorecrg/c4lwg-2018 /bin/echo "Hello world!"

Docker registry and

Docker hub

https://hub.docker.com/u/biocorecrg/

https://github.com/CRG-CNAG/docker-debian-perlbrew

• Images are stored locally
• They can also be shared in a registry
• Main Public one: Docker hub

Examples:

Singularity

https://singularity.lbl.gov/

containers for HPC

https://doi.org/10.1371/JOURNAL.PONE.0177459

Singularity vs Docker

• Docker -> Microservices
• Singularity -> HPC

Summarising

Singularity architecture

http://geekyap.blogspot.com.es/2016/11/docker-vs-singularity-vs-shifter-in-hpc.html

Singularity - Strenghts

• No dependency of a daemon
• Can be run as a simple user
• Image/container is a file (or directory)
  • More easily portable
• Two type of images
  • Read-only (production)
  • Writable (development)

Singularity - Weaknesses

• At the time of writing only good support in Linux
  • Not a big deal in HPC environments, though
• For some uses you need root account (or sudo)
• Still young project compared to other solutions

Singularity - run

$ singularity exec c4lwg-2018.simg /bin/echo 'Hello world'

$ singularity exec -e c4lwg-2018.simg /bin/echo 'Hello world'

Execute a command

Execute a command (with clean environment)

Execute a shell

$ singularity shell c4lwg-2018.simg

$ singularity run c4lwg-2018.simg

Execute defined runscript (parameters can be used)

Scientific containers

good pratices

• Put data and configuration files outside of images
  • Mount them if necessary
• Choose specific software/distribution versions
  • Not latest tags
• Save container recipes
• Save also binary container/images if possible

Further reading

• The impact of Docker containers on the performance of genomic pipelines.

• Performance Evaluation of Container-based Virtualization for High Performance Computing Environments
