Projet ANR- 16-CE33-0002



Interactive

Optical Tweezers

with Tactile Feedback

Sinan HALIYO, Ph.D, Associate Professor, is the project coordinator. He's the leader of 'Multi-scale Interactions' group at ISIR/Sorbonne.



Michaël WIERTLEWSKI, Ph.D, was a CNRS researcher at the Etienne-Jules Marey Institute.

The Consortium

Edison GERENA

PhD Candidate

ISIR/Sorbonne

Florent LEGENDRE

Engineer

ISIR/Sorbonne

Nicolas HULOUX

PhD Candidate

ISM/AMU

Stéphane Violet, Thibaut Raharijaona



Stéphane Régnier, Vincent Hayward

Julien

DIPERI

Engineer

ISM/AMU

Touching the microworld

What if you could touch objects smaller then the width of your hair and perceive their universe ?



This is the aim of IOTA Project, funded by ANR France. We are using the power of light to manipulate cells and molecules, and let the user control and feel the interaction with his fingertips.

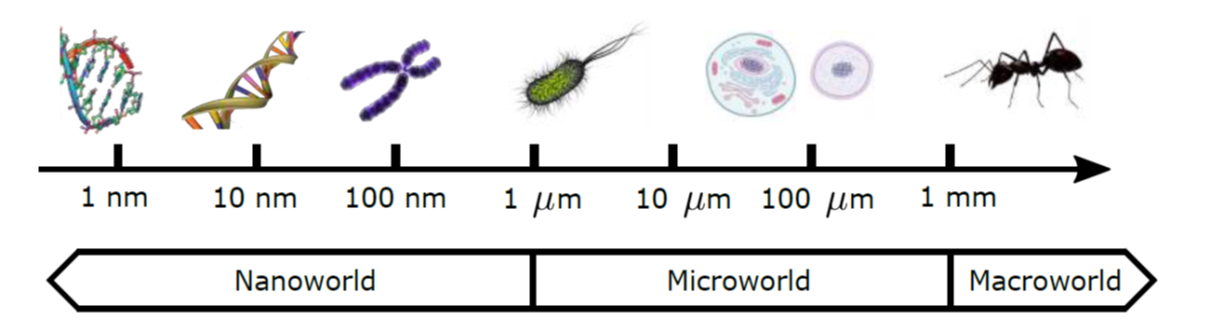

Fundamental mechanisms of the Universe stem from the microscale phenomena

Understanding and controlling small scales is the current challange in Physics, Biology, Chemistry & Engineering

  • An interactive instrument for exploration, manipulation and characterization at small scales
  • Biomedical applications, microassembly
  • Tactile force-feedback user interface
  • Transscale coupling and natural interaction

A Brand-NEw Scientific instrument

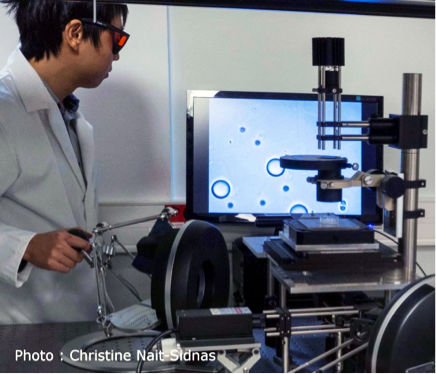

Optical Tweezers

2018 Nobel prize in Physics were awarded to A. Ashkin for Optical Tweezers. We take it one step further by integrating real-time high-band force feedback, measuring interactions forces in picoNewton range

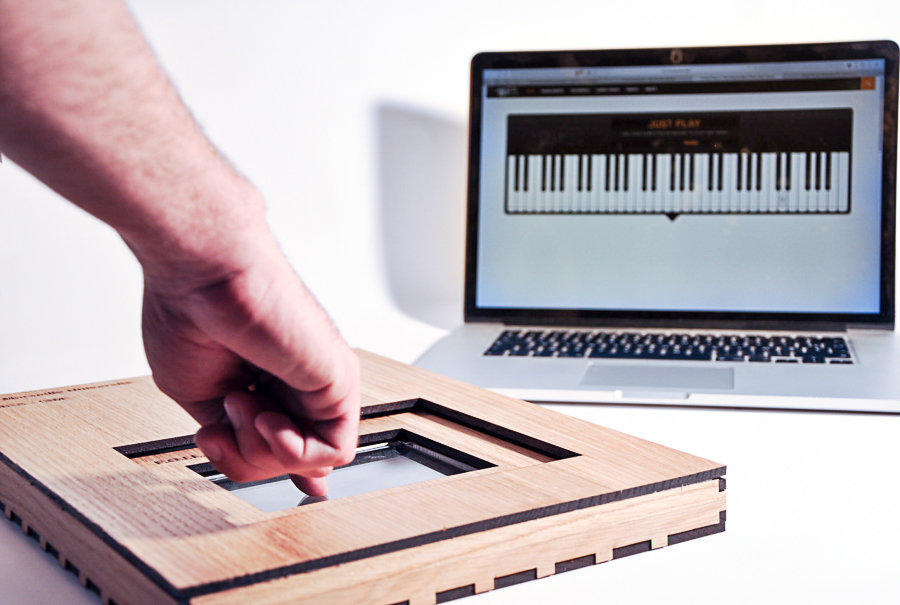

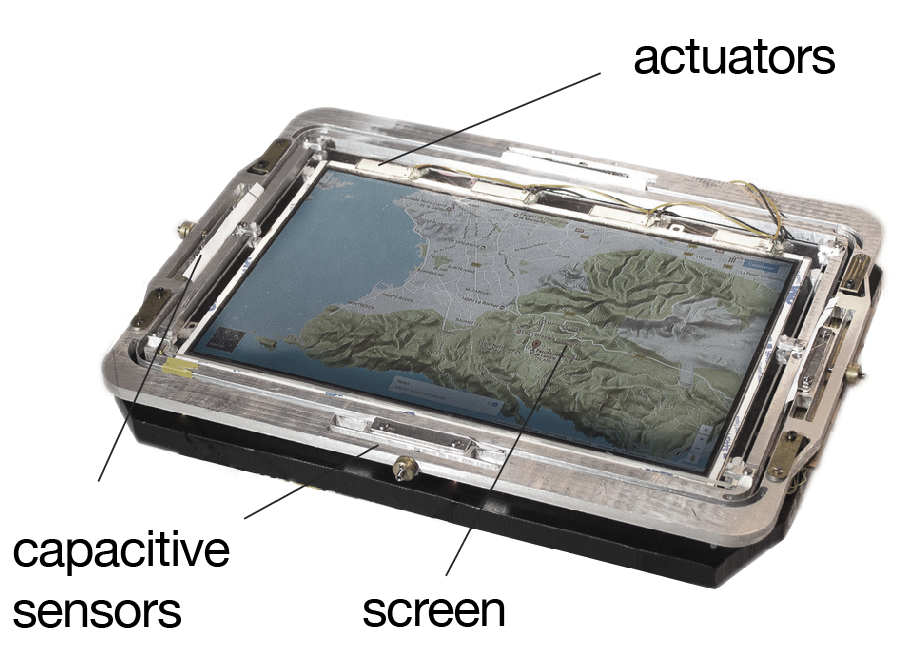

Surface haptics

Directly modifying the friction of the bare finger sliding on glass using ultrasonic vibrations enables the production of virtual relief, texture and buttons on touchscreens.

The Technology

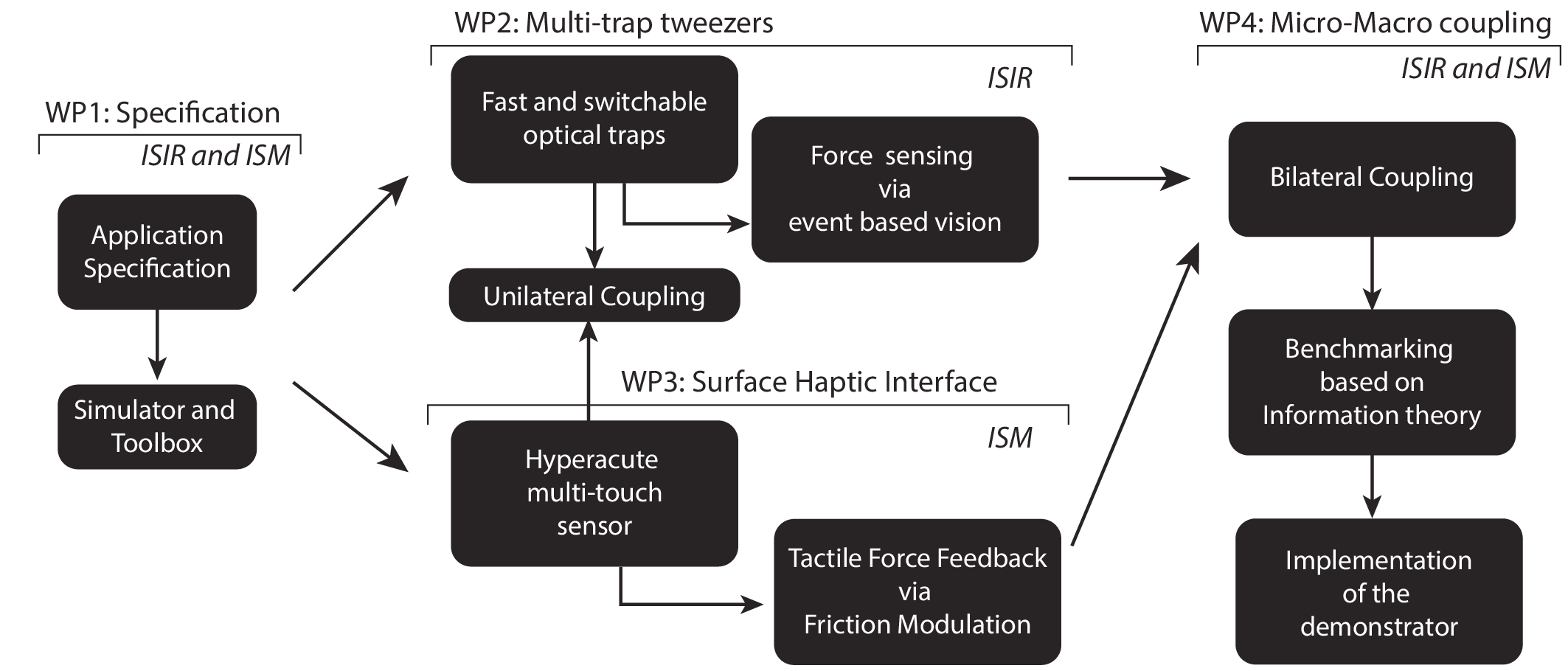

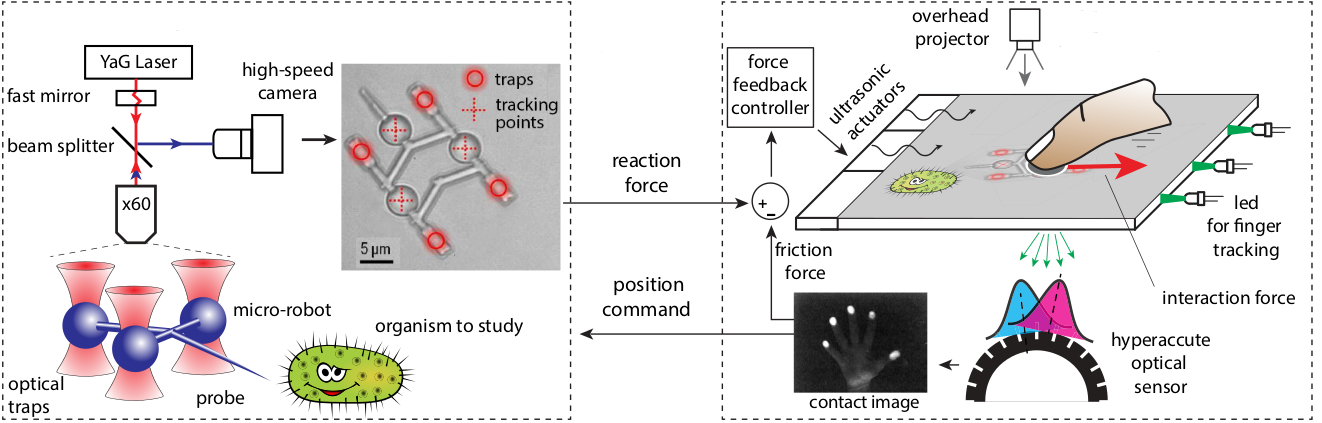

Project Organisation

SURFACE HAPTICS

Capabilities

  • Modulates fingertip friction digitally
  • Continuous and transients features
  • High-bandwidth position measurement

Challenges

  • Variability of friction force
  • Effect of pressing force

Subtitle

Principle

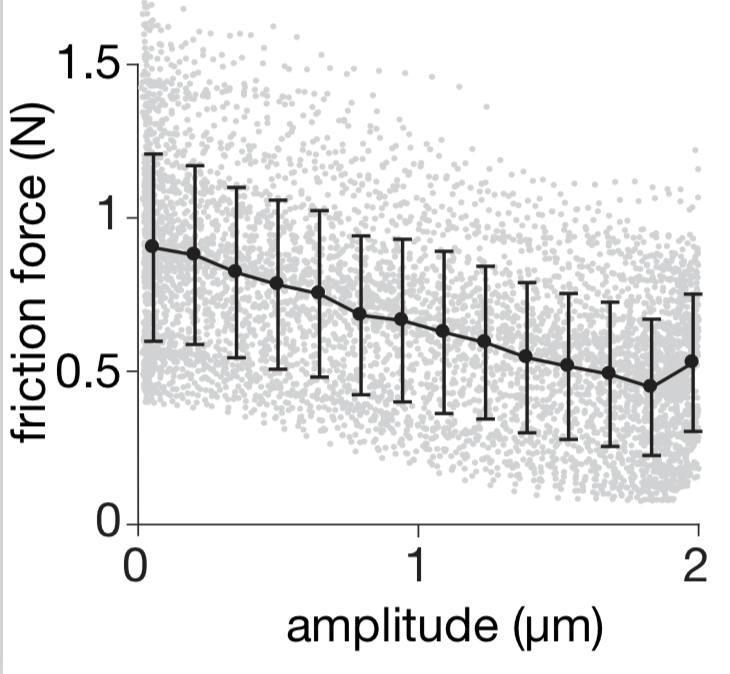

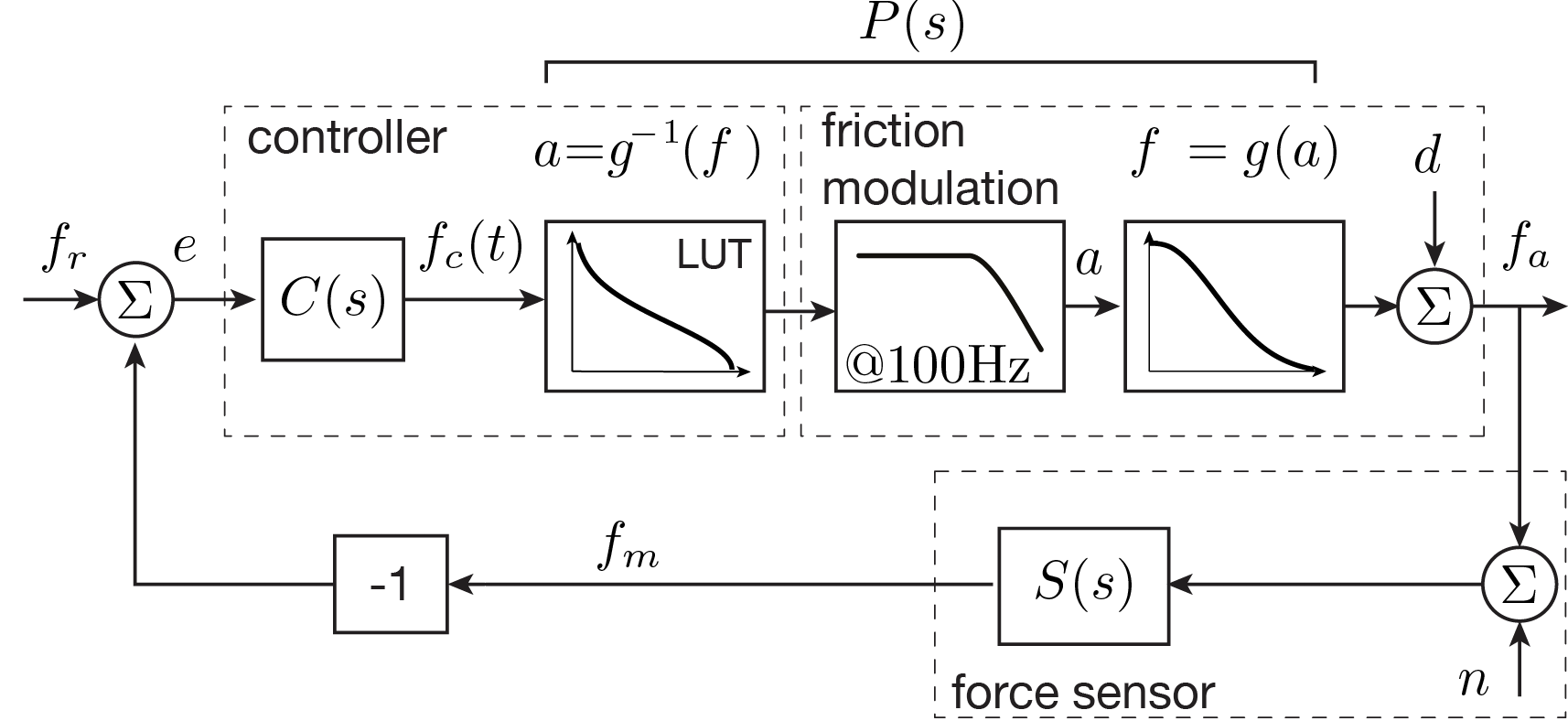

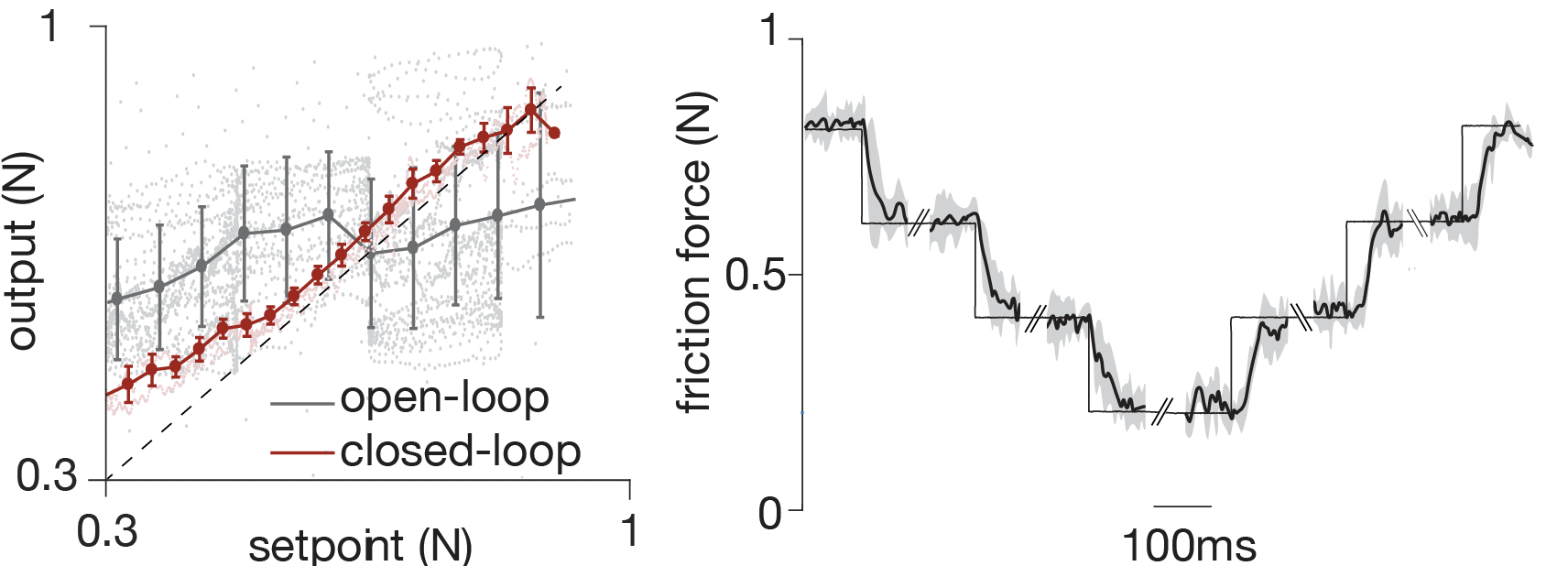

Overcoming variability

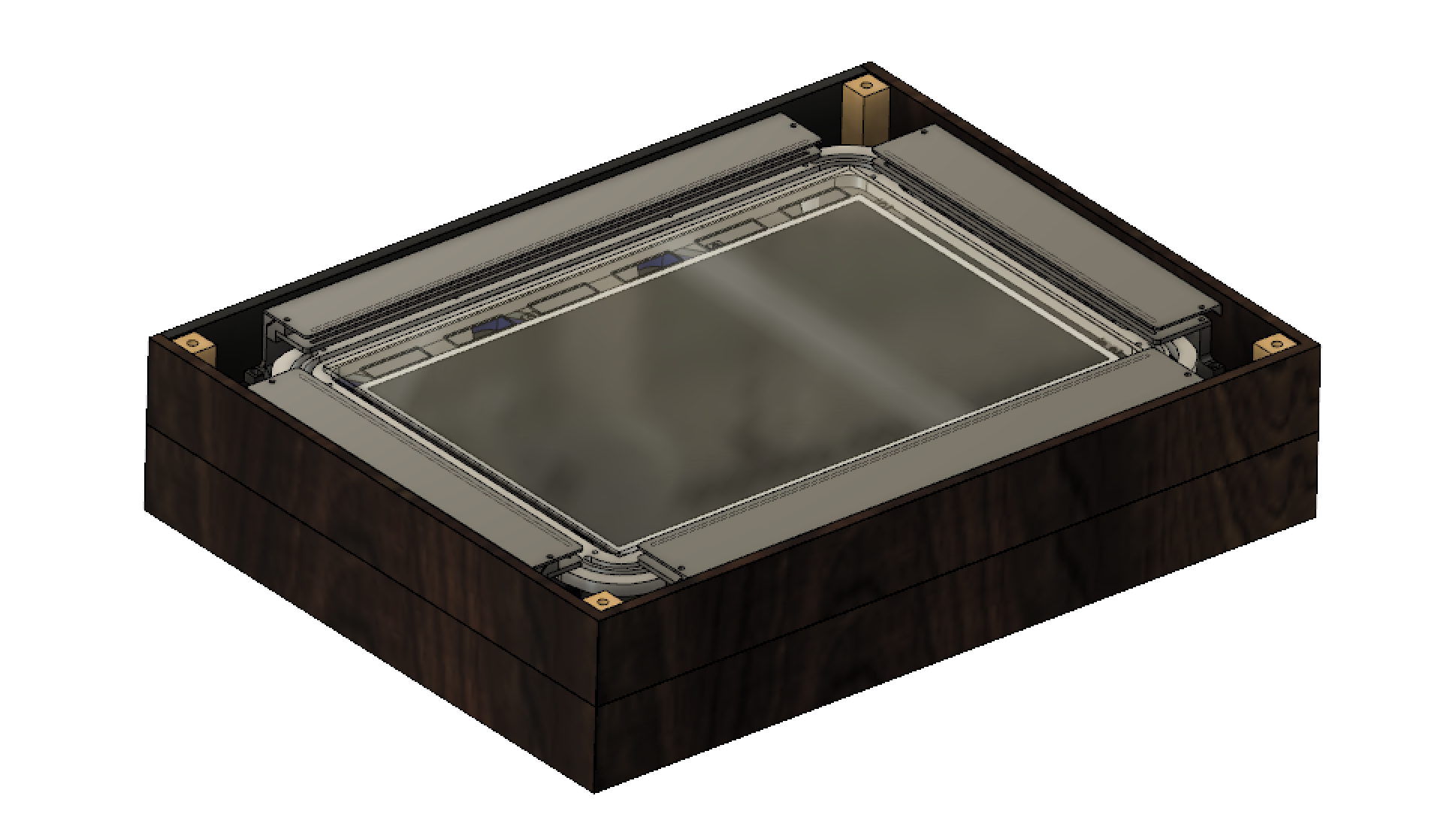

High fidelity version



  • 1 kHz refresh rate
  • 50mN force resolution
  • 100µm position resolution

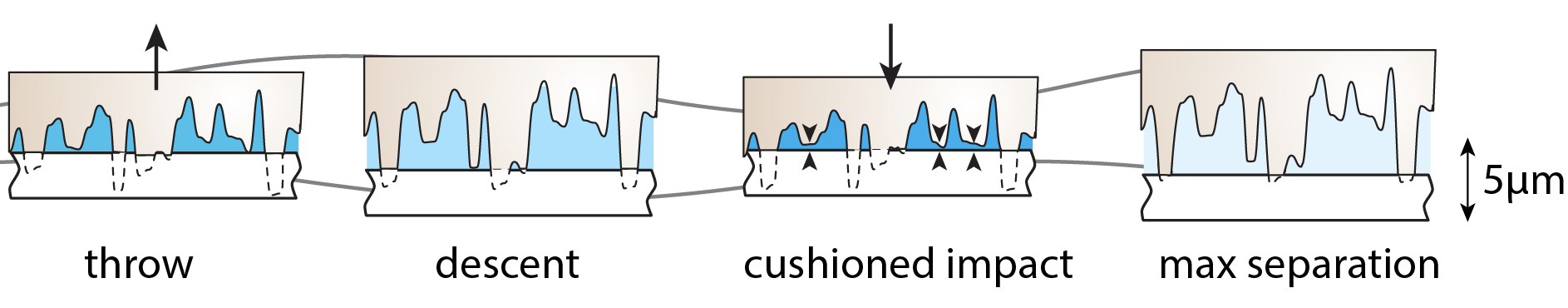

Effect on Incipient Slippage

Optical Tweezers

  • A tightly focused laser beam to trap micro objects (1 - 5 µm)
  • Non-contact multi object manipulation
  • Laser wavelength : 1070nm
  • Lase power: 400mW
  • 3D force measurement  :
  • High bandwidth position measurement with an asynchronous camera
  • Trap stiffness calibration

3D actuation and measurement

Design of the optical path

Multitrap OPTOBOTS

Microrobots Optiques

Des microrobots produits par impression 3D (nanoscribe)

  • Téléopérés en 6D en milieu liquide
  • Capture d'efforts d'interaction
  • Actionnement sans contact
  • Outils terminaux variés
  • Biocompatibles

Publications and events

  • Ultrasonic friction modulation modifies the area of contact, not the shear strength, IEEE Eurohaptics 2022, Hambourg, Germany

  • Interactive Laser-actuated micro-robots for Experimental Biology. International Symposium on Optomechatronic Technology (ISOT) 2021 - Best Paper Award

  • Étude de la réflexion et de l'absorption des ondes ultrasonores par le doigt : application aux surfaces haptiques. Thèse de Doctorat de AMU 2021, Nicolas Huloux

  • 6-DoF Optical-driven Micro-robots with Force Feedback Capabilities for Interactive Bio-manipulation. Thèse de Doctorat de Sorbonne Université 2020, Edison Gerena, GDR Robotique Prix de la Thèse

  • Tele–Robotic Platform for Dexterous Optical Single-Cell Manipulation. Micromachines, 2019

  • Improving optical micromanipulation with force-feedback bilateral coupling. ICRA 2020, Paris, France

  • Robotic Optical-micromanipulation Platform for Dexterous Remote Single-Cell Manipulation. MARSS 2019 July, Helsinki, Finland

  • High-bandwidth 3D Multi-Trap Actuation Technique for 6-DoF Real-Time Control of Optical Robots, IEEE Robotics and Automation Letters 2019  [DOI]

  • Overcoming fingertip friction variability with surface haptics force-feedback, In proc. of Eurohaptics 2018, Pisa, Italy. Best Student Paper award  [DOI]

  • Perception of ultrasonic switches involves large discontinuity of the mechanical impedance,     IEEE Transactions on Haptics [DOI]

  • High-bandwidth 3D Force Feedback Optical Tweezers for Interactive Bio-manipulation. 2017 IEEE/RSJ International Conference on Intelligent Robots and Systems (IROS), Vancouver, Canada. Best Student Paper nominee [DOI]



Public presentations

  • Salon Forum Labo 2017, Paris

  • Salon ELRIG 2017, Monaco

  • Demonstration Worldhaptics 2017

  • Demonstration Eurohaptics 2018

Valorisation

Etude du marché (SATT Lutech)

Recherche de Partenaires Biomédicale/pharmacologie:

      Instituts Pasteur, de Vision, de Cerveau et de la moelle épinière



Transfert Industriel:

     Création Stratup,

     Programme CNRS RISE, i-Phd Bpifrance



DIM-Elicit: « Technologies Innovantes

                          pour les Sciences de la Vie »



Enseignement:

        Cours de M2 commun AMU / UPMC



ETAT d'AVANCEMENT

WP1

  • API de communication en place

  • Définition de l'application finale

WP2

  • Pinces optiques 3D avec mesure de force, OptoBots

  • Simulateur multitrap, avec couplage et retour de force

  • Implémentation de l'API pour le couplage bilatérale (commande en position/vitesse multi pièges, couplage entre les pièges, retour de mesure d'effort)

  • Validé sur interfaces haptiques classique

WP3

  • Validation du retour de force sur les doigts
  • Capteurs de position des doigts très haute vitesse et très haute précision
  • Banc experimental pour l'etude de l'effet des ultrasons sur le décollement du doigt

travaux en cours



WP2

  • Mesure de force 3ddl sur un robot

  • Mesure de force multipièges synchronisées

WP3

  • Fabrication et test des surfaces haptiques
  • Mesures sur le banc experimental
  • Etude psychophysique de la perception de la viscosité

WP4

  • Couplage bilateral à friction
  • Benchmarking



Dissemination

LIVRables

D1.1 Specifications M3 M6
D1.2 Simulateur M6 M6
D2.2 Multi-ddl motion control M24 M12
D2.3 External Control M24 M36
D3.3 Interface tactile M27 M12

A VENIR

D1.2 API Interface utilisateur M6 M36
D2.1 Mesure de force multitrap M12 M36
D3.1 Capteur hyper-acuité M12 M30
D3.2 Capteur multi-touch M24 M30
D4.1 Schéma de commande bilatérale M30 M36
D4.2 Evaluation utilisateurs M36 M36
D4.3 Demonstrateur complet M36 M48

Jalons validés

M1.1 Validation du simulateur M6
M2.1 Beam Switcher M12
M3.1 Validation capteur M12
M3.2 Mesure de force sous le doigt M18
M3.3 Validation de réduction de friction M20
M2.2 Asynchronious vision M30
M2.3 Synchro beam switch + vision M30
M4.1 OT avec retour haptique M33
M4.2 Protocole expé validé M33
