Research Object

Stian Soiland-Reyes, Carole Goble

eScience lab, The University of Manchester

Research Data Packaging workshop

Open Repositories (OR2019), Hamburg, 2019-06-10

This work is licensed under a
Creative Commons Attribution 4.0 International License.

researchobject.org

@soilandreyes

https://orcid.org/0000-0001-9842-9718
https://slides.com/soilandreyes/

https://doi.org/10.1038/sdata.2016.18

Findable

Accessible

Interoperable

Reusable

https://doi.org/10.1038/sdata.2016.18

F1. (meta)data are assigned a globally unique and persistent identifier

F2. data are described with rich metadata (defined by R1 below)

F3. metadata clearly and explicitly include the identifier of the data it describes

F4. (meta)data are registered or indexed in a searchable resource

To be Findable:

https://doi.org/10.1038/sdata.2016.18

A1. (meta)data are retrievable by their identifier using a
standardized communications protocol

A1.1 the protocol is open, free, and universally implementable

A1.2 the protocol allows for an authentication and authorization
procedure, where necessary

A2. metadata are accessible, even when the data are no longer available

To be Accessible:

https://doi.org/10.1038/sdata.2016.18

I1. (meta)data use a formal, accessible, shared, and
broadly applicable language for knowledge representation.

I2. (meta)data use vocabularies that follow FAIR principles

I3. (meta)data include qualified references to other (meta)data

To be Interoperable:

https://doi.org/10.1038/sdata.2016.18

R1. meta(data) are richly described with a plurality of
accurate and relevant attributes

R1.1. (meta)data are released with a clear and accessible data usage license

R1.2. (meta)data are associated with detailed provenance

R1.3. (meta)data meet domain-relevant community standards

To be Reusable:

https://doi.org/10.1038/d41586-019-01307-2

They ride with what I refer to as the four horsemen of the reproducibility apocalypse:

Publication bias
Low statistical power
P-value hacking
HARKing (hypothesizing after results are known)

https://doi.org/10.1038/s41586-019-0965-1

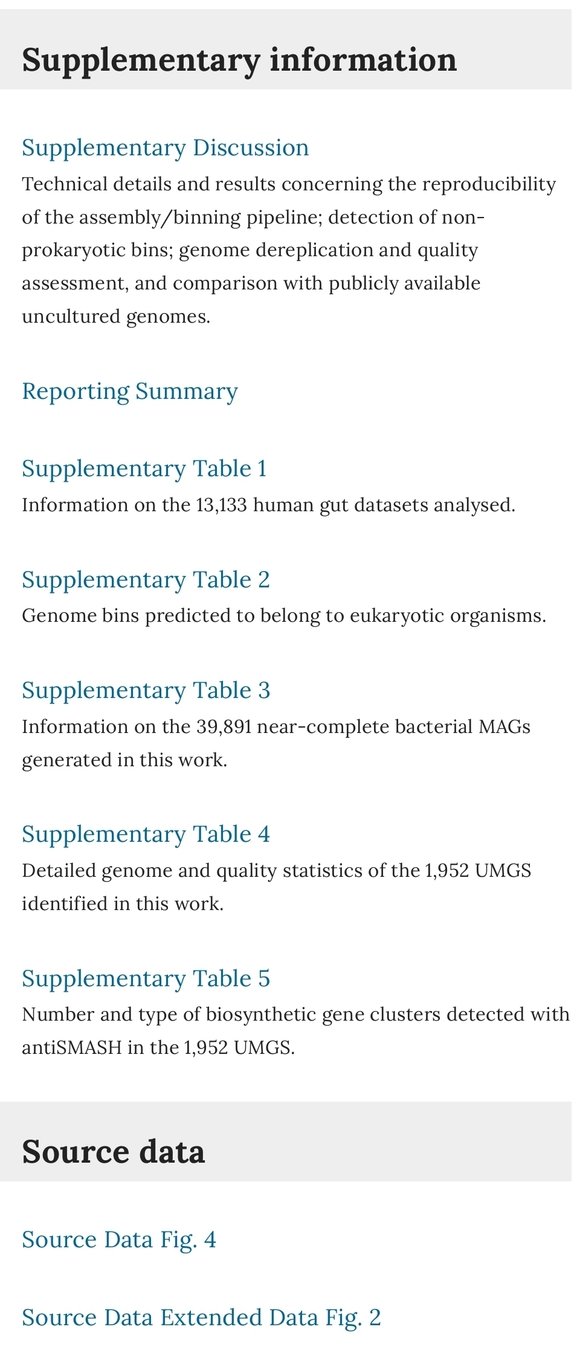

State of art in reproducibility

https://doi.org/10.1038/s41586-019-0965-1

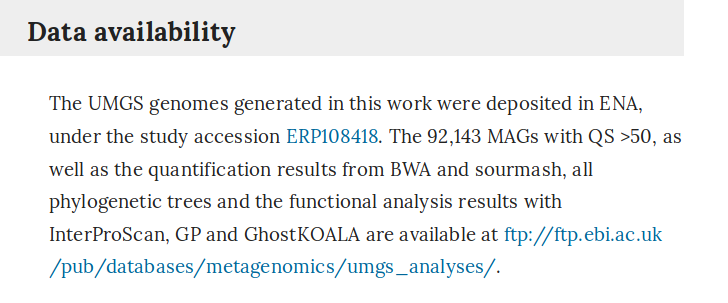

Data availability:

Domain-specific databases

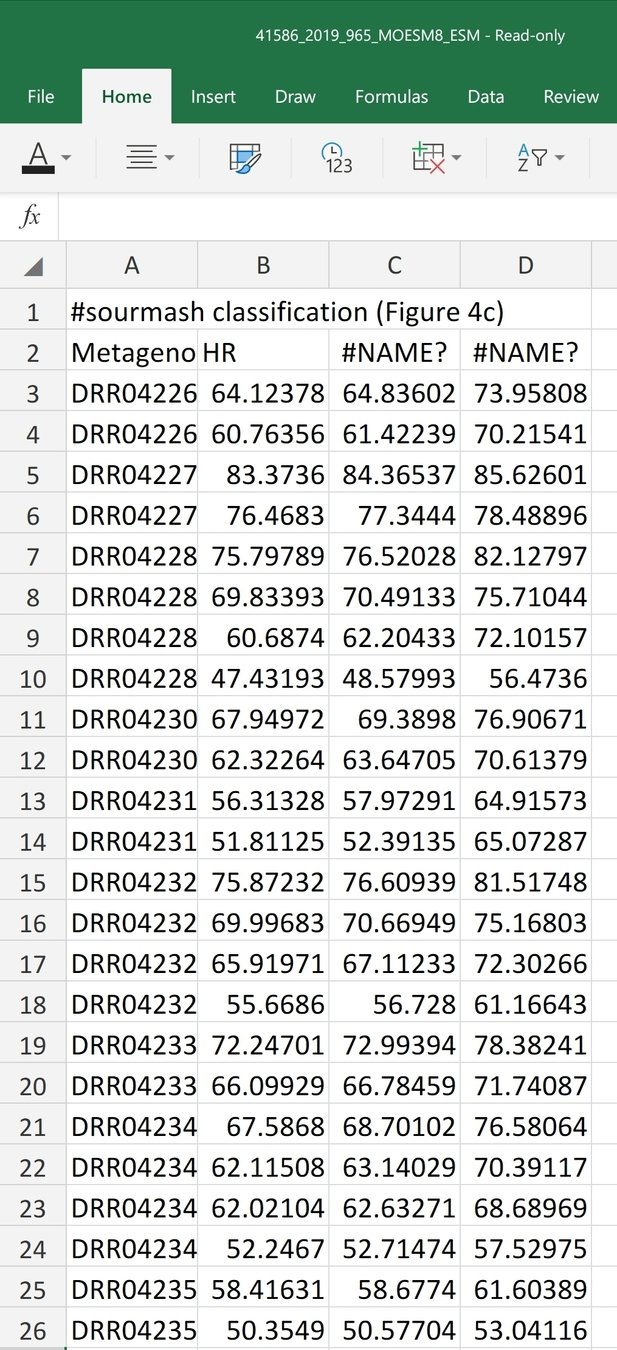

CSV

FTP

Reproducibility?

https://doi.org/10.1038/s41586-019-0965-1

Attribution

A Research Object bundles and relates digital resources of a scientific experiment or investigation:

Data used and results produced in experimental study

Methods employed to produce and analyse that data

Provenance and settings for the experiments

People involved in the investigation

Annotations about these resources, to improve understanding and interpretation

Research Object

id:        doi:10.15490/seek.1.investigation.56
createdOn: 2015-07-10T16:46:00Z
createdBy: http://orcid.org/0000-0001-9842-9718

aggregates:
 - id:         data/sequence/specimen5.bam
   conformsTo: http://gemrb.org/iesdp/file_formats/ie_formats/bam_v1.htm

 - id:         http://example.com/blog/about-specimen5
   authoredBy: http://orcid.org/0000-0001-7066-3350

 - id:         http://www.myexperiment.org/workflows/3355
   history:    provenance/workflow-evolution.ttl

annotations:
 - about:       data/sequence/specimen5.bam
   content:     annotations/specimen5-properties.jsonld
   createdBy:   http://orcid.org/0000-0001-7066-3350

 - about:       data/sequence/specimen5.bam
   content:     http://example.com/blog/about-specimen5
   motivatedBy: oa:questioning

Research Object manifest

(simplified)

Reuse standards:
OAI-ORE, BagIt, W3C JSON-LD, PROV, Web Annotation Model

metadata/manifest.json
data/sequence/specimen5.bam
provenance/workflow-evolution.ttl
http://example.com/blog/about-specimen5
http://www.myexperiment.org/workflows/335

http://orcid.org/0000-0001-7066-3350
http://gemrb.org/iesdb/
   file_formats_ie_formats_bam_v1.html

https://w3id.org/ro/bagit
doi:10.1109/BigData.2016.7840618

https://github.com/fair-research/bdbag

pip install bdbag

https://www.w3.org/TR/json-ld/

https://json-ld.org/

http://www.openarchives.org/ore/

https://www.w3.org/TR/annotation-model/

https://osf.io/h59uh/

doi:10.1101/191783

How can we capture the methods?

http://www.commonwl.org/

cwlVersion: v1.0
class: Workflow
inputs:
  inp: File
  ex: string

outputs:
  classout:
    type: File
    outputSource: compile/classfile

steps:
  untar:
    run: tar-param.cwl
    in:
      tarfile: inp
      extractfile: ex
    out: [example_out]

  compile:
    run: arguments.cwl
    in:
      src: untar/example_out
    out: [classfile]

https://github.com/rabix/composer

https://view.commonwl.org/

https://w3id.org/cwl/view/git/933…/workflows/hello/hello.cwl#main

{
  "@context" : [ "https://w3id.org/bundle/context" ],
  "id" : "/",
  "manifest" : [ "manifest.json" ],
  "createdOn" : "2017-08-24T10:57:46.325Z",
  "createdBy" : {
    "uri" : "https://view.commonwl.org",
    "name" : "Common Workflow Language Viewer"
  },
  "authoredBy" : [ {
    "uri" : "mailto:peter.amstutz@curoverse.com",
    "name" : "Peter Amstutz"
  }, {
    "uri" : "mailto:luka.stojanovic@sbgenomics.com",
    "name" : "Luka Stojanovic"
  }, {
    "uri" : "mailto:crusoe@ucdavis.edu",
    "name" : "Michael R. Crusoe"
  }, {
    "uri" : "mailto:porter@porter.st",
    "name" : "Andrey Kartashov"
  }, {
    "uri" : "mailto:janko.simonovic@sbgenomics.com",
    "name" : "Janko Simonovic"
  } ],
  "retrievedFrom" : "https://github.com/common-workflow-language/workflows/blob/lobstr-v1/workflows/lobSTR/",
  "retrievedOn" : "2017-08-24T10:57:46.325Z",
  "retrievedBy" : {
    "uri" : "https://view.commonwl.org",
    "name" : "Common Workflow Language Viewer"
  },
  "history" : [ "http:/git2prov.org/git2prov?giturl=https:/github.com/common-workflow-language/workflows.git&serialization=PROV-JSON" ],
  "aggregates" : [ {
    "uri" : "/workflow/tmp_2.fq",
    "mediatype" : "application/octet-stream",
    "createdOn" : "2017-08-24T10:57:46.923Z",
    "authoredBy" : [ {
      "uri" : "mailto:peter.amstutz@curoverse.com",
      "name" : "Peter Amstutz"
    } ],
    "retrievedFrom" : "https://raw.githubusercontent.com/common-workflow-language/workflows/lobstr-v1/workflows/lobSTR/tmp_2.fq",
    "retrievedBy" : {
      "uri" : "https://view.commonwl.org",
      "name" : "Common Workflow Language Viewer"
    },
    "bundledAs" : {
      "uri" : "urn:uuid:61579f3e-63e6-49c2-b780-f67b2df461b7",
      "folder" : "/workflow/"
    }
  }, {
    "uri" : "/workflow/lobSTR-demo.json",
    "mediatype" : "application/json",
    "createdOn" : "2017-08-24T10:57:47.216Z",
    "authoredBy" : [ {
      "uri" : "mailto:peter.amstutz@curoverse.com",
      "name" : "Peter Amstutz"
    } ],
    "retrievedFrom" : "https://raw.githubusercontent.com/common-workflow-language/workflows/lobstr-v1/workflows/lobSTR/lobSTR-demo.json",
    "retrievedBy" : {
      "uri" : "https://view.commonwl.org",
      "name" : "Common Workflow Language Viewer"
    },
    "bundledAs" : {
      "uri" : "urn:uuid:973caa0e-f3bd-45e8-8d29-70123bc8715a",
      "folder" : "/workflow/"
    }
  }, {
    "uri" : "/workflow/models/illumina_v3.pcrfree.stuttermodel",
    "mediatype" : "application/octet-stream",
    "createdOn" : "2017-08-24T10:57:47.239Z",
    "authoredBy" : [ {
      "uri" : "mailto:peter.amstutz@curoverse.com",
      "name" : "Peter Amstutz"
    } ],
    "retrievedFrom" : "https://raw.githubusercontent.com/common-workflow-language/workflows/lobstr-v1/workflows/lobSTR/models/illumina_v3.pcrfree.stuttermodel",
    "retrievedBy" : {
      "uri" : "https://view.commonwl.org",
      "name" : "Common Workflow Language Viewer"
    },
    "bundledAs" : {
      "uri" : "urn:uuid:62bbcbea-f34f-463f-990d-6148f8ed5e5c",
      "folder" : "/workflow/models/"
    }
  }, {
    "uri" : "/workflow/models/illumina_v3.pcrfree.stepmodel",
    "mediatype" : "application/octet-stream",
    "createdOn" : "2017-08-24T10:57:47.266Z",
    "authoredBy" : [ {
      "uri" : "mailto:peter.amstutz@curoverse.com",
      "name" : "Peter Amstutz"
    } ],
    "retrievedFrom" : "https://raw.githubusercontent.com/common-workflow-language/workflows/lobstr-v1/workflows/lobSTR/models/illumina_v3.pcrfree.stepmodel",
    "retrievedBy" : {
      "uri" : "https://view.commonwl.org",
      "name" : "Common Workflow Language Viewer"
    },
    "bundledAs" : {
      "uri" : "urn:uuid:03439ae7-cd94-42a3-b5fe-40bfff6882d8",
      "folder" : "/workflow/models/"
    }
  }, {
    "uri" : "/workflow/samtools-sort.cwl",
    "mediatype" : "text/x-yaml",
    "createdOn" : "2017-08-24T10:57:47.269Z",
    "authoredBy" : [ {
      "uri" : "mailto:luka.stojanovic@sbgenomics.com",
      "name" : "Luka Stojanovic"
    }, {
      "uri" : "mailto:crusoe@ucdavis.edu",
      "name" : "Michael R. Crusoe"
    }, {
      "uri" : "mailto:porter@porter.st",
      "name" : "Andrey Kartashov"
    }, {
      "uri" : "mailto:peter.amstutz@curoverse.com",
      "name" : "Peter Amstutz"
    } ],
    "retrievedFrom" : "https://raw.githubusercontent.com/common-workflow-language/workflows/lobstr-v1/workflows/lobSTR/samtools-sort.cwl",
    "retrievedBy" : {
      "uri" : "https://view.commonwl.org",
      "name" : "Common Workflow Language Viewer"
    },
    "conformsTo" : "https://w3id.org/cwl/v1.0",
    "bundledAs" : {
      "uri" : "urn:uuid:2dc07859-efc2-4945-a95f-ba7815b68d07",
      "folder" : "/workflow/"
    }
  }, {
    "uri" : "/workflow/lobSTR-workflow.cwl",
    "mediatype" : "text/x-yaml",
    "createdOn" : "2017-08-24T10:57:47.42Z",
    "authoredBy" : [ {
      "uri" : "mailto:luka.stojanovic@sbgenomics.com",
      "name" : "Luka Stojanovic"
    }, {
      "uri" : "mailto:crusoe@ucdavis.edu",
      "name" : "Michael R. Crusoe"
    }, {
      "uri" : "mailto:peter.amstutz@curoverse.com",
      "name" : "Peter Amstutz"
    } ],
    "retrievedFrom" : "https://raw.githubusercontent.com/common-workflow-language/workflows/lobstr-v1/workflows/lobSTR/lobSTR-workflow.cwl",
    "retrievedBy" : {
      "uri" : "https://view.commonwl.org",
      "name" : "Common Workflow Language Viewer"
    },
    "conformsTo" : "https://w3id.org/cwl/v1.0",
    "bundledAs" : {
      "uri" : "urn:uuid:58bc1895-3460-46d6-91d7-fa1718d09631",
      "folder" : "/workflow/"
    }
  }, {
    "uri" : "/workflow/lobSTR-arvados-demo.json",
    "mediatype" : "application/json",
    "createdOn" : "2017-08-24T10:57:47.453Z",
    "authoredBy" : [ {
      "uri" : "mailto:peter.amstutz@curoverse.com",
      "name" : "Peter Amstutz"
    } ],
    "retrievedFrom" : "https://raw.githubusercontent.com/common-workflow-language/workflows/lobstr-v1/workflows/lobSTR/lobSTR-arvados-demo.json",
    "retrievedBy" : {
      "uri" : "https://view.commonwl.org",
      "name" : "Common Workflow Language Viewer"
    },
    "bundledAs" : {
      "uri" : "urn:uuid:30c683bc-69fb-4d93-8dad-65b663783af5",
      "folder" : "/workflow/"
    }
  }, {
    "uri" : "/workflow/samtools-index.cwl",
    "mediatype" : "text/x-yaml",
    "createdOn" : "2017-08-24T10:57:47.458Z",
    "authoredBy" : [ {
      "uri" : "mailto:luka.stojanovic@sbgenomics.com",
      "name" : "Luka Stojanovic"
    }, {
      "uri" : "mailto:crusoe@ucdavis.edu",
      "name" : "Michael R. Crusoe"
    }, {
      "uri" : "mailto:porter@porter.st",
      "name" : "Andrey Kartashov"
    }, {
      "uri" : "mailto:peter.amstutz@curoverse.com",
      "name" : "Peter Amstutz"
    } ],
    "retrievedFrom" : "https://raw.githubusercontent.com/common-workflow-language/workflows/lobstr-v1/workflows/lobSTR/samtools-index.cwl",
    "retrievedBy" : {
      "uri" : "https://view.commonwl.org",
      "name" : "Common Workflow Language Viewer"
    },
    "conformsTo" : "https://w3id.org/cwl/v1.0",
    "bundledAs" : {
      "uri" : "urn:uuid:8235d3f8-6927-4f73-b160-8521838a1cbb",
      "folder" : "/workflow/"
    }
  }, {
    "uri" : "/workflow/lobSTR-tool.cwl",
    "mediatype" : "text/x-yaml",
    "createdOn" : "2017-08-24T10:57:47.476Z",
    "authoredBy" : [ {
      "uri" : "mailto:luka.stojanovic@sbgenomics.com",
      "name" : "Luka Stojanovic"
    }, {
      "uri" : "mailto:crusoe@ucdavis.edu",
      "name" : "Michael R. Crusoe"
    }, {
      "uri" : "mailto:peter.amstutz@curoverse.com",
      "name" : "Peter Amstutz"
    } ],
    "retrievedFrom" : "https://raw.githubusercontent.com/common-workflow-language/workflows/lobstr-v1/workflows/lobSTR/lobSTR-tool.cwl",
    "retrievedBy" : {
      "uri" : "https://view.commonwl.org",
      "name" : "Common Workflow Language Viewer"
    },
    "conformsTo" : "https://w3id.org/cwl/v1.0",
    "bundledAs" : {
      "uri" : "urn:uuid:7fa6fbe4-1fc5-4cb5-9c1a-56b96c5f7aaf",
      "folder" : "/workflow/"
    }
  }, {
    "uri" : "/workflow/allelotype.cwl",
    "mediatype" : "text/x-yaml",
    "createdOn" : "2017-08-24T10:57:47.537Z",
    "authoredBy" : [ {
      "uri" : "mailto:luka.stojanovic@sbgenomics.com",
      "name" : "Luka Stojanovic"
    }, {
      "uri" : "mailto:janko.simonovic@sbgenomics.com",
      "name" : "Janko Simonovic"
    }, {
      "uri" : "mailto:crusoe@ucdavis.edu",
      "name" : "Michael R. Crusoe"
    }, {
      "uri" : "mailto:peter.amstutz@curoverse.com",
      "name" : "Peter Amstutz"
    } ],
    "retrievedFrom" : "https://raw.githubusercontent.com/common-workflow-language/workflows/lobstr-v1/workflows/lobSTR/allelotype.cwl",
    "retrievedBy" : {
      "uri" : "https://view.commonwl.org",
      "name" : "Common Workflow Language Viewer"
    },
    "conformsTo" : "https://w3id.org/cwl/v1.0",
    "bundledAs" : {
      "uri" : "urn:uuid:3706bd2f-e53f-431d-b32a-deb661d9b292",
      "folder" : "/workflow/"
    }
  }, {
    "uri" : "/workflow/README",
    "mediatype" : "application/octet-stream",
    "createdOn" : "2017-08-24T10:57:47.555Z",
    "authoredBy" : [ {
      "uri" : "mailto:crusoe@ucdavis.edu",
      "name" : "Michael R. Crusoe"
    }, {
      "uri" : "mailto:peter.amstutz@curoverse.com",
      "name" : "Peter Amstutz"
    } ],
    "retrievedFrom" : "https://raw.githubusercontent.com/common-workflow-language/workflows/lobstr-v1/workflows/lobSTR/README",
    "retrievedBy" : {
      "uri" : "https://view.commonwl.org",
      "name" : "Common Workflow Language Viewer"
    },
    "bundledAs" : {
      "uri" : "urn:uuid:ed54c4d6-c585-4dc9-b7bc-0cf299e20b91",
      "folder" : "/workflow/"
    }
  }, {
    "uri" : "/workflow/tmp_1.fq",
    "mediatype" : "application/octet-stream",
    "createdOn" : "2017-08-24T10:57:47.738Z",
    "authoredBy" : [ {
      "uri" : "mailto:peter.amstutz@curoverse.com",
      "name" : "Peter Amstutz"
    } ],
    "retrievedFrom" : "https://raw.githubusercontent.com/common-workflow-language/workflows/lobstr-v1/workflows/lobSTR/tmp_1.fq",
    "retrievedBy" : {
      "uri" : "https://view.commonwl.org",
      "name" : "Common Workflow Language Viewer"
    },
    "bundledAs" : {
      "uri" : "urn:uuid:5d431f81-ad0b-4acf-903a-9d5aa03b04df",
      "folder" : "/workflow/"
    }
  }, {
    "uri" : "/visualisation.png",
    "mediatype" : "image/png",
    "createdOn" : "2017-08-24T10:57:47.801Z",
    "retrievedFrom" : "https://view.commonwl.org/graph/png/github.com/common-workflow-language/workflows/blob/lobstr-v1/workflows/lobSTR/lobSTR-workflow.cwl",
    "bundledAs" : {
      "uri" : "urn:uuid:ff9ace37-e76c-49f8-8d36-60f11ff6d257",
      "folder" : "/"
    }
  }, {
    "uri" : "/visualisation.svg",
    "mediatype" : "image/svg+xml",
    "createdOn" : "2017-08-24T10:57:47.821Z",
    "retrievedFrom" : "https://view.commonwl.org/graph/svg/github.com/common-workflow-language/workflows/blob/lobstr-v1/workflows/lobSTR/lobSTR-workflow.cwl",
    "bundledAs" : {
      "uri" : "urn:uuid:a6cfb437-8818-4ab2-9081-efc74c5109e8",
      "folder" : "/"
    }
  } ],
  "annotations" : [ {
    "uri" : "urn:uuid:9f602fff-b280-41c5-9590-ab95a49c85ad",
    "about" : "/",
    "content" : "annotations/merged.cwl"
  }, {
    "uri" : "urn:uuid:0ce4b727-ff61-4534-9afb-e3d676d2782d",
    "about" : "/",
    "content" : "annotations/workflow.ttl"
  } ]
}

https://view.commonwl.org/

#!/usr/bin/env cwl-runner
cwlVersion: v1.0
class: Workflow

label: "Hello World"
doc: "Outputs a message using echo"

inputs: []

outputs:
  response:
    outputSource: step0/response
    type: File

steps:
  step0:
    run:
      class: CommandLineTool
      inputs:
        message:
          type: string
          doc: "The message to print"
          default: "Hello World"
          inputBinding:
            position: 1
      baseCommand: echo
      stdout: response.txt
      outputs:
        response:
          type: stdout
    in: []
    out: [response]

Who is using Research Objects?

http://www.researchobject.org/ro2019/

Workshop on
Research Objects (RO2019)

At IEEE eScience 2019,
San Diego, CA

2019-06-24 Abstracts due

2019-09-24 RO2019 workshop at IEEE eScience 2019

Submitted abstracts and articles can be in a range of open formats (e.g. HTML, ePub) and are particularly encouraged to be submitted in a FAIR research data packing format.

..extra slides

https://doi.org/10.5281/zenodo.3196309

Identifying intermediate data

Output 1B file is also Input 2C and Input 3D downstream

Simple filenames -> duplications

  ./data/step1/outputB.txt
./data/step2/inputC.txt
./data/step3/inputD.txt

Content-adressable

SHA-256 hash of bytes as filename:

./data/51/51fb8af0c4ae0422fbe88340d91880ecb9d7537cf57339c1cf1256b7ca58f32d

RFC6920 URI as global identifier:

nih:sha-256;51fb8af0c4ae0422fbe88340d91880ecb9d7537cf57339c1cf1256b7ca58f32d

http://s11.no/2018/arcp.html

https://tools.ietf.org/html/draft-soilandreyes-arcp-03

http://s11.no/2018/arcp.html

2019-06-10 Research Objects

By Stian Soiland-Reyes

2019-06-10 Research Objects

Presented at Open Repositories (OR2019), Hamburg 2019-06-10

2,514

Stian Soiland-Reyes PRO

Technical architect at eScience Lab, Dept of Computer Science, The University of Manchester. Open Source research software engineer. Interest: Linked Data, Web, provenance, annotations, Open Science, reproducible research results.

Research Object

To be Findable:

To be Accessible:

To be Interoperable:

To be Reusable:

Research Object

Research Object manifest

How can we capture the methods?

Who is using Research Objects?

Workshop on Research Objects (RO2019)

At IEEE eScience 2019, San Diego, CA

..extra slides

Identifying intermediate data

2019-06-10 Research Objects

More from Stian Soiland-Reyes

Workshop on
Research Objects (RO2019)

At IEEE eScience 2019,
San Diego, CA
