Web Audio

Audio on Web

• <audio> Tag
• Web Audio API

Main Elements

• AudioContext
• AudioNode
• connect

var AudioContext = AudioCOntext || webkitAudioContext;
var context = new AudioContect;

Main Elements

• AudioContext
• AudioNode
• connect

var AudioContext = AudioCOntext || webkitAudioContext;
var context = new AudioContect;

聲音來源

Main Elements

• AudioContext
• AudioNode
• connect

var AudioContext = AudioCOntext || webkitAudioContext;
var context = new AudioContect;

聲音來源

聲音處理模組

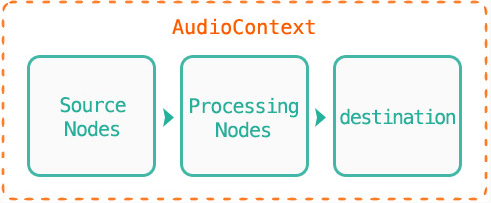

Main Elements

• AudioContext
• AudioNode
• connect

var AudioContext = AudioCOntext || webkitAudioContext;
var context = new AudioContect;

聲音來源

聲音處理模組

輸出節點

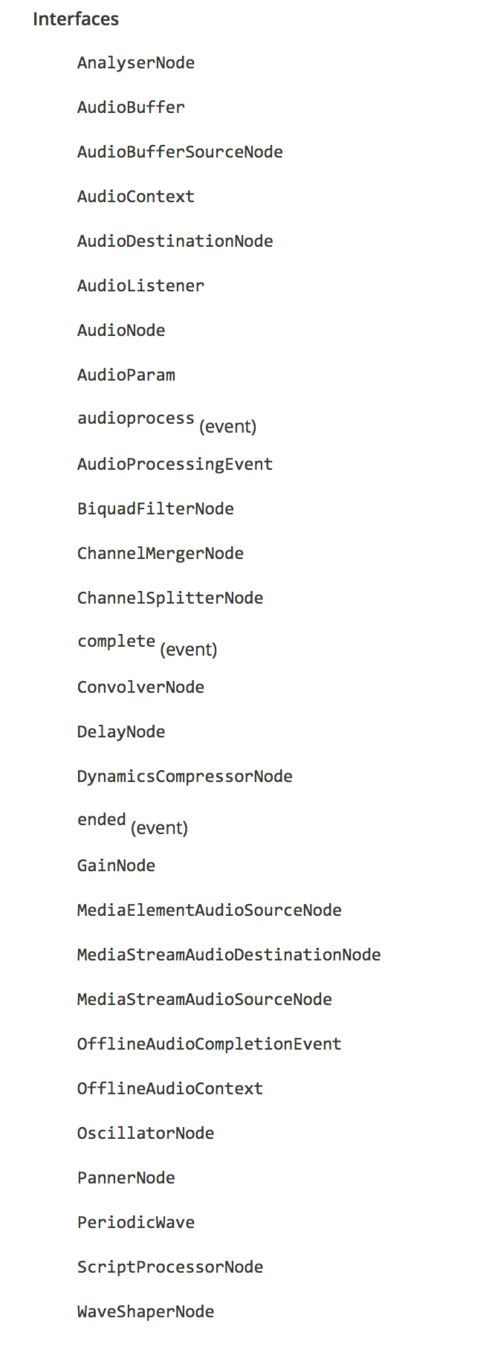

Node Modules

• GainNode // 音量
• Audio Param // 某個時間點的變化量


Node Modules

• GainNode // 音量
• Audio Param // 某個時間點的變化量

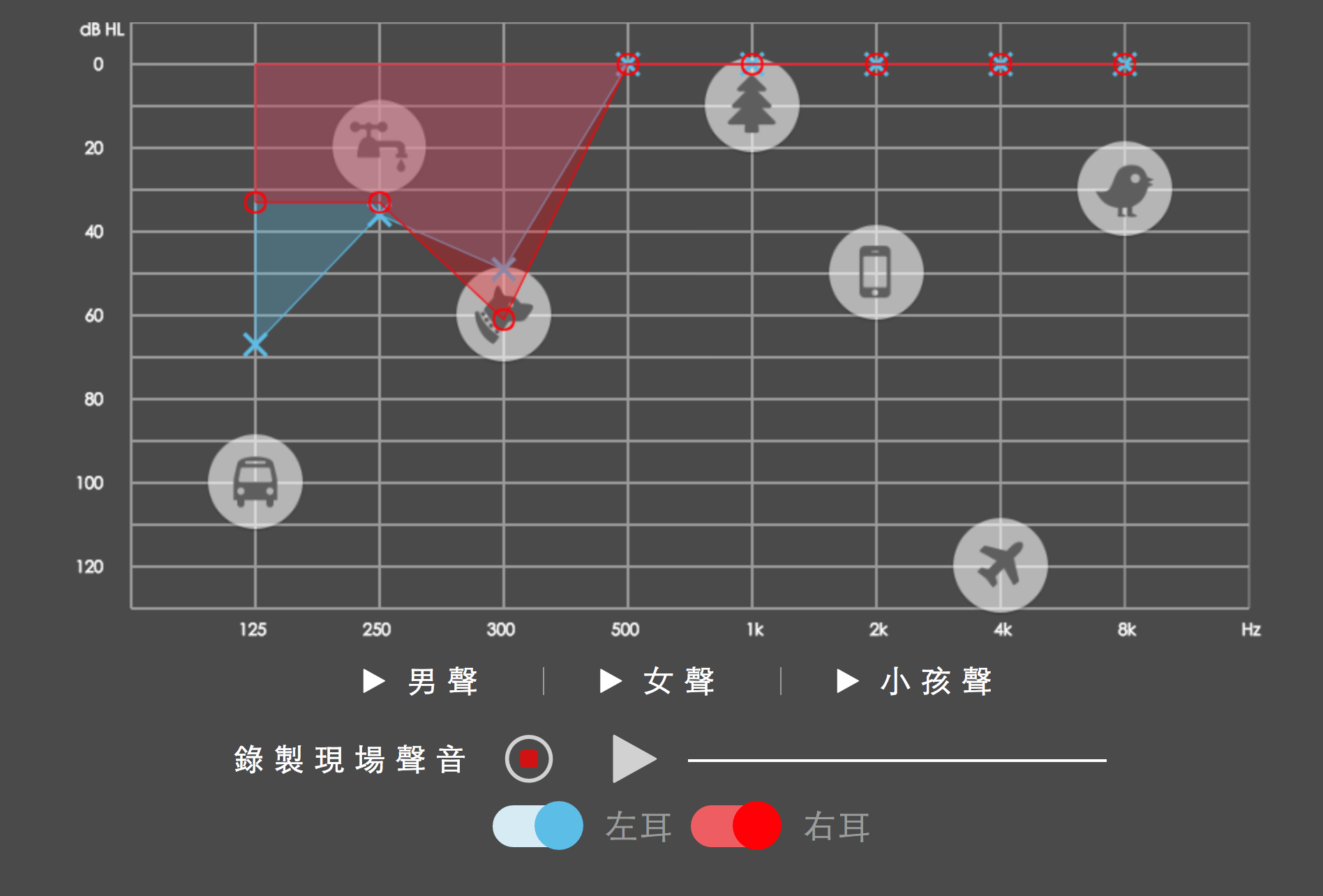

  Live DEMO!!!!

What we need...

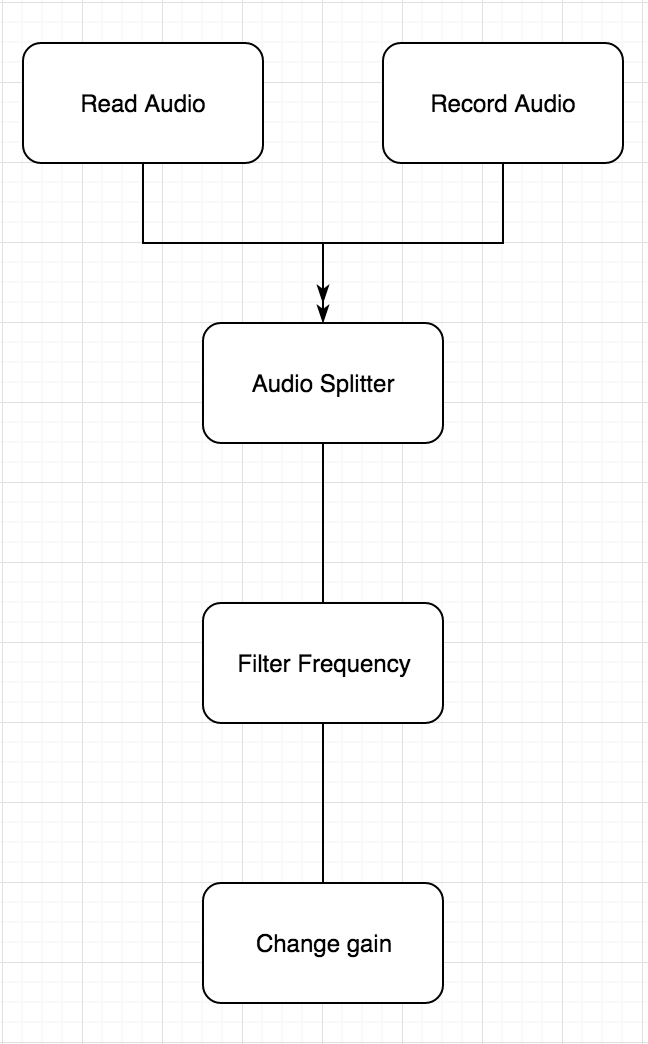

So we need...

• Control Volume
• Split audio to left and right
• Filter Frequency
• Read .mp3 aduio
• Record audio

Read Audio

<audio controls autoplay>
  <source src="test.mp3">
</audio>

--

var audioCtx = new(window.AudioContext || window.webkitAudioContext)();
var myAudio = document.querySelector('audio');
var source = audioCtx.createMediaElementSource(myAudio);

fetch(url)
  .then(response => response.arrayBuffer())
  .then(response => context.decodeAudioData(response, audioBuffer => {
    // Play Audio
    const source = context.createBufferSource();
  });

Record Audio

• getUserMedia
• Stream

navigator.getUserMedia = (navigator.getUserMedia ||
                              navigator.mozGetUserMedia ||
                              navigator.msGetUserMedia ||
                              navigator.webkitGetUserMedia);


    if (navigator.getUserMedia) {
      const constraints = { audio: true };

      navigator.getUserMedia(constraints, (stream) => {
        source = context.createMediaStreamSource(stream);
        // create a ScriptProcessorNode
        if (!context.createScriptProcessor) {
          node = context.createJavaScriptNode(BUFFER_SIZE, 1, 1);
        } else {
          node = context.createScriptProcessor(BUFFER_SIZE, 1, 1);
        }

        // listen to the audio data, and record into the buffer
        node.onaudioprocess = (e) => {
          const channel = e.inputBuffer.getChannelData(0);
          const buffer = new Float32Array(BUFFER_SIZE);
          for (let i = 0; i < BUFFER_SIZE; i++) {
            buffer[i] = channel[i];
          }

          arrayBuffer.push(buffer);
        };

        // connect the ScriptProcessorNode with the input audio
        source.connect(node);
        node.connect(context.destination);
      }, (e) => reject(e));
    } else {
      return false;
    }

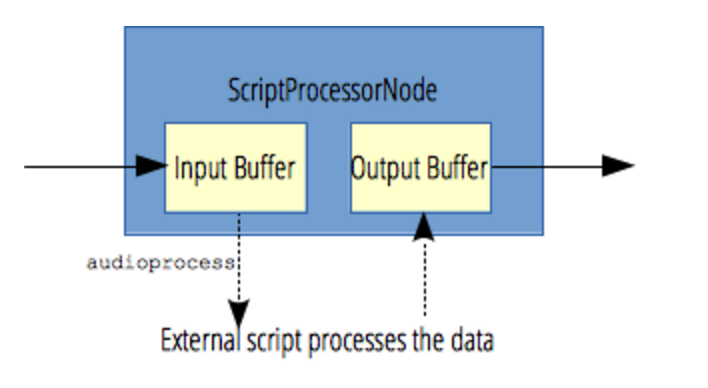

ScriptProcessorNode

Fill Audio Buffer

const audioBuffer =
      context.createBuffer(2, buffer.length * BUFFER_SIZE * 2, context.sampleRate);
const channel = audioBuffer.getChannelData(0);
const channel2 = audioBuffer.getChannelData(1);
for (let i = 0; i < buffer.length; i++) {
  for (let j = 0; j < BUFFER_SIZE; j++) {
    channel[i * BUFFER_SIZE + j] = buffer[i][j];
    channel2[i * BUFFER_SIZE + j] = buffer[i][j];
  }
}

Audio Splitter

var ac = new AudioContext();
ac.decodeAudioData(someStereoBuffer, function(data) {
 var source = ac.createBufferSource();
 var splitter = ac.createChannelSplitter(2);
 var merger = ac.createChannelMerger(2);

 source.buffer = data;
 source.connect(splitter);

 var gainNode = ac.createGain();
 gainNode.gain.value = 0.5;
 splitter.connect(gainNode, 0);

 gainNode.connect(merger, 0, 1);

 var dest = ac.createMediaStreamDestination();

 merger.connect(dest);
});

BiquadFilterNode

• lowpass
• highpass
• bandpass - 除了設定頻率之外的全濾掉
• ...

  filter.type = 'bandpass';
  filter.frequency.value = frequency;

return fetch(url)
  .then(response => response.arrayBuffer())
  .then(response => context.decodeAudioData(response, audioBuffer => {
    // Play Audio
    const source = context.createBufferSource();
    source.buffer = audioBuffer;
    source.loop = true;

    const splitter = context.createChannelSplitter(2);
    const merger = context.createChannelMerger(2);

    source.connect(splitter);

    setting.left.forEach(set => bindSetting(context, splitter, merger, set, false));
    setting.right.forEach(set => bindSetting(context, splitter, merger, set, true));

    merger.connect(context.destination);

    resolve(source);
  }, e => reject(e))
)

const filter = ctx.createBiquadFilter();
const gainNode = ctx.createGain();

filter.type = 'bandpass';
filter.frequency.value = frequency;

gainNode.gain.value = 2 - gain;

splitter.connect(filter, 1);
filter.connect(gainNode);
gainNode.connect(merger, 0, right ? 1 : 0);
