RankSEG: A Consistent Framework

for Segmentation

Ben Dai

The Chinese University of Hong Kong

Evolution of Consistency

A statistic is said to be a consistent estimate of any parameter, if when calculated from an indefinitely large sample it tends to be accurately equal to that parameter.

                                           - Fisher (1925)                            Theory of Statistical Estimation

Ronald Fisher (1890 - 1962)

Evolution of Consistency

Ronald Fisher (1890 - 1962)

A statistic is said to be a consistent estimate of any parameter, if when calculated from an indefinitely large sample it tends to be accurately equal to that parameter.

                                           - Fisher (1925)                            Theory of Statistical Estimation

\( \hat{\theta}(X_1, \cdots, X_n) \xrightarrow{\mathbb{P}}  \theta_0, \quad n \to \infty  \)

Probability Consistency

Evolution of Consistency

Fisher, R. A. (1922). On the mathematical foundations of theoretical statistics.

Consistency -- A statistic satisfies the criterion of consistency, if, when it is calculated from the whole population, it is equal to the required parameter.

                                                  - Fisher (1922)

Ronald Fisher (1890 - 1962)

Evolution of Consistency

\( \hat{\theta}(X_1, \cdots, X_n) \xrightarrow{\mathbb{P}}  \theta_0, \quad n \to \infty  \)

\( \hat{\theta} = \hat{\theta}(X_1, \cdots, X_n) \)

Evolution of Consistency

Fisher / Fisherian

\( \hat{\theta}(X_1, \cdots, X_n) \xrightarrow{\mathbb{P}}  \theta_0, \quad n \to \infty  \)

\( \hat{\theta} = \hat{\theta}(X_1, \cdots, X_n) \)

\( \hat{\theta}= \hat{\theta}(F_n) \)

Fisher / Fisherian

Evolution of Consistency

Fisher / Fisherian

\( \hat{\theta}(F_n) \xrightarrow{\mathbb{P}}  \theta(F), \quad n \to \infty  \)

\( \hat{\theta}(X_1, \cdots, X_n) \xrightarrow{\mathbb{P}}  \theta_0, \quad n \to \infty  \)

\( \hat{\theta} = \hat{\theta}(X_1, \cdots, X_n) \)

\( \hat{\theta}= \hat{\theta}(F_n) \)

Fisher / Fisherian

Evolution of Consistency

Fisher / Fisherian

\( \hat{\theta}(F_n) \xrightarrow{\mathbb{P}}  \theta(F), \quad n \to \infty  \)

\( \hat{\theta}(X_1, \cdots, X_n) \xrightarrow{\mathbb{P}}  \theta_0, \quad n \to \infty  \)

\( \hat{\theta} = \hat{\theta}(X_1, \cdots, X_n) \)

\( \hat{\theta}= \hat{\theta}(F_n) \)

\(\theta(F) = \theta_0\)

Fisher / Fisherian

Evolution of Consistency

Fisher / Fisherian

\( \hat{\theta}(X_1, \cdots, X_n) \xrightarrow{\mathbb{P}}  \theta_0, \quad n \to \infty  \)

\( \hat{\theta} = \hat{\theta}(X_1, \cdots, X_n) \)

\(\theta(F) = \theta_0\)

Fisher / Fisherian

Evolution of Consistency

Fisher / Fisherian

\( \hat{\theta}(X_1, \cdots, X_n) \xrightarrow{\mathbb{P}}  \theta_0, \quad n \to \infty  \)

\( \hat{\theta} = \hat{\theta}(X_1, \cdots, X_n) \)

\(\theta(F) = \theta_0\)

Gerow, K. (1989): In fact, for many years, Fisher took his two definitions to be describing the same thing... Fisher 34 years to polish the definitions of consistency to their present form.

Evolution of Consistency

Fisher / Fisherian

\( \hat{\theta}(F_n) \xrightarrow{\mathbb{P}}  \theta(F), \quad n \to \infty  \)

\( \hat{\theta}(X_1, \cdots, X_n) \xrightarrow{\mathbb{P}}  \theta_0, \quad n \to \infty  \)

\( \hat{\theta} = \hat{\theta}(X_1, \cdots, X_n) \)

\( \hat{\theta}= \hat{\theta}(F_n) \)

\(\theta(F) = \theta_0\)

Glivenko–Cantelli theorem (1933);

"Continuous mapping theorem"

Fisher / Fisherian

Evolution of Consistency: PC and FC

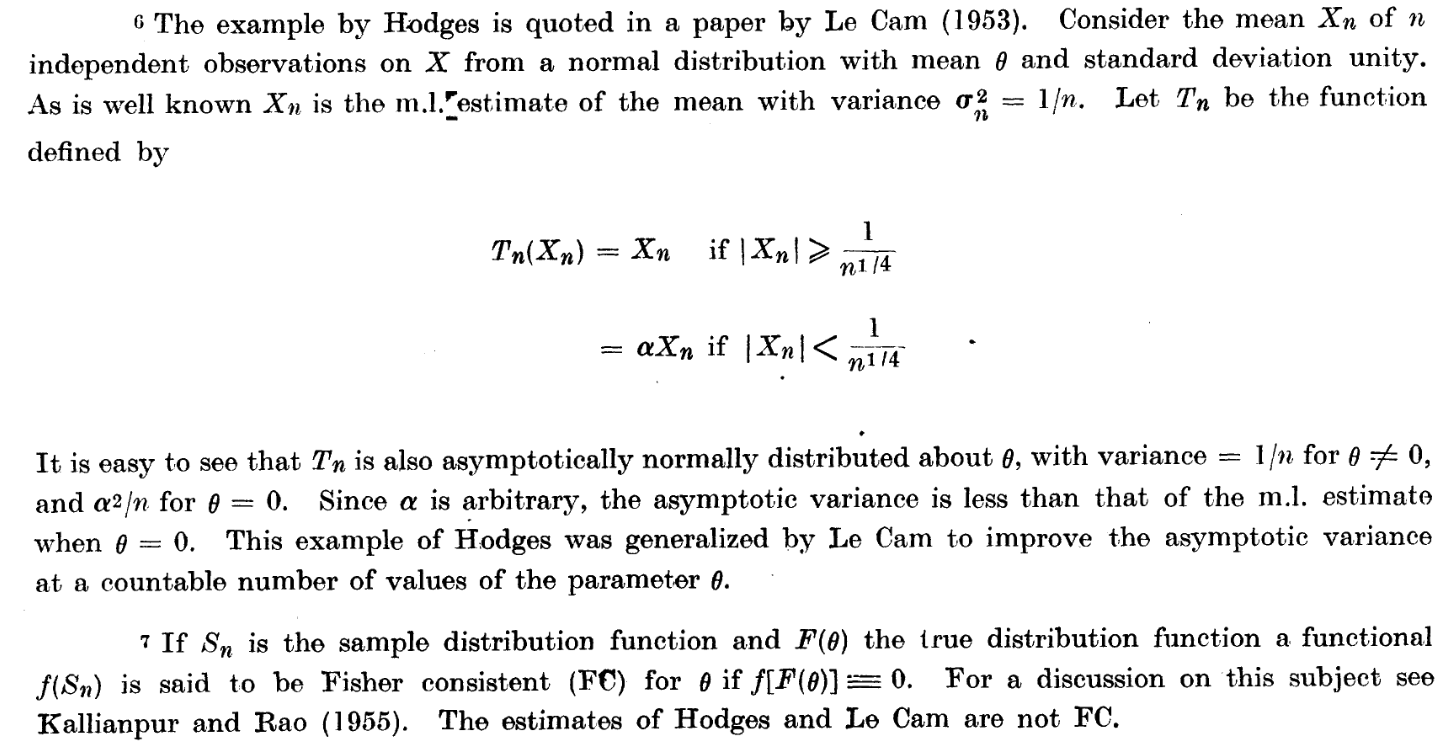

Hodges and Le Cam example is PC but not FC!

CR, Rao. (1962) Apparent Anomalies and Irregularities in Maximum Likelihood Estimation

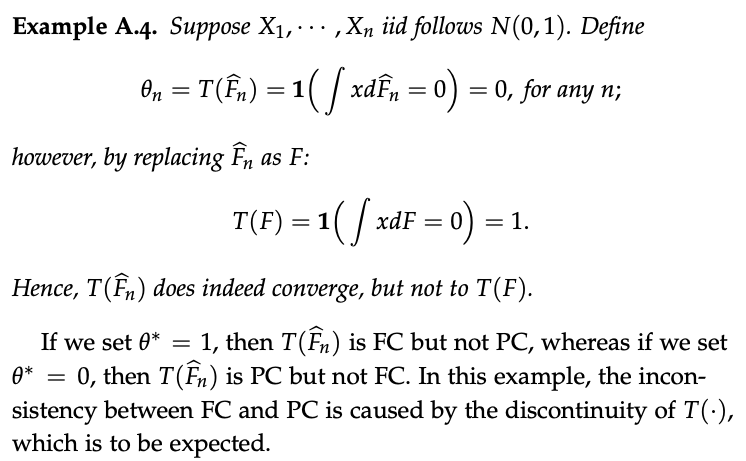

Evolution of Consistency: PC and FC

CR, Rao. (1962) Apparent Anomalies and Irregularities in Maximum Likelihood Estimation

With continuous functionals; FC iff PC.

FC

• Strength
  • FC almost implies PC (with continuous functionals)
    • Distribution-free
    • Practical and fundamentally true
  • FC provides a deterministic equality
    • Easy to use
    • Directly motivate a consistent method via the FC equality

FC

• Strength
  • FC almost implies PC (with continuous functionals)
    • Distribution-free
    • Practical and fundamentally true
  • FC provides a deterministic equality
    • Easy to use
    • Directly motivate a consistent method via the FC equality
• Weakness

  • Not all estimators can be easily expressed in the form of an empirical cdf.

FC

• Strength
  • FC almost implies PC (with continuous functionals)
    • Distribution-free
    • Practical and fundamentally true
  • FC provides a deterministic equality
    • Easy to use
    • Directly motivate a consistent method via the FC equality
• Weakness

  • Not all estimators can be easily expressed in the form of an empirical cdf.

• MLE / ERM are functionals of an empirical cdf
• FC has become the minimal requirement for ML methods
• You are estimating what you want

FC in ML

Classification

• Data: \( \mathbf{X} \in \mathbb{R}^d \to Y \in \{0,1\} \)
• Decision function: \( \delta(\mathbf{X}): \mathbb{R}^d \to \{0,1\} \)
• Evaluation:

$$ Acc( \delta) = \mathbb{E}\big( \mathbb{I}( Y = \delta(\mathbf{X}) )\big) $$

FC in ML

Classification

• Data: \( \mathbf{X} \in \mathbb{R}^d \to Y \in \{0,1\} \)
• Decision function: \( \delta(\mathbf{X}): \mathbb{R}^d \to \{0,1\} \)
• Evaluation:

$$ Acc( \delta) = \mathbb{E}\big( \mathbb{I}( Y = \delta(\mathbf{X}) )\big) $$

ML Consistency. if when calculated from an indefinitely large sample it tends to be accurately equal to that parameter the best decision function (with best evaluation performance).

FC in ML

How can we develop an FC method?

Classification

• Data: \( \mathbf{X} \in \mathbb{R}^d \to Y \in \{0,1\} \)
• Decision function: \( \delta(\mathbf{X}): \mathbb{R}^d \to \{0,1\} \)
• Evaluation:

$$ Acc( \delta) = \mathbb{E}\big( \mathbb{I}( Y = \delta(\mathbf{X}) )\big) $$

ML Consistency. if when calculated from an indefinitely large sample it tends to be accurately equal to that parameter the best decision function (with best evaluation performance).

FC in ML

How can we develop an FC method?

Classification

• Data: \( \mathbf{X} \in \mathbb{R}^d \to Y \in \{0,1\} \)
• Decision function: \( \delta(\mathbf{X}): \mathbb{R}^d \to \{0,1\} \)
• Evaluation:

$$ Acc( \delta) = \mathbb{E}\big( \mathbb{I}( Y = \delta(\mathbf{X}) )\big) $$

ML Consistency. if when calculated from an indefinitely large sample it tends to be accurately equal to that parameter the best decision function (with best evaluation performance).

(Plug-in rule).

$$ \delta^* = \argmax_{\delta} \ Acc(\delta) $$

$$ \delta^* = \delta^*(F)  \to \delta^*(F_n)$$

$$ \delta^* = \argmax_{\delta} \ Acc(\delta) \ \ \to \  \delta^*(\mathbf{x}) = \mathbb{I}( p(\mathbf{x}) \geq 0.5 ) $$

$$ p(\mathbf{x}) = \mathbb{P}(Y=1|\mathbf{X}=\mathbf{x})$$

• Obtain the probabilistic form of the Bayes rule (optimal decision)
• Re-write the Bayes rule as \( \delta(F) \)

(Plug-in rule).

Simplest FC method

$$\delta^*(F)$$

$$ \delta^* = \argmax_{\delta} \ Acc(\delta) \ \ \to \  \delta^*(\mathbf{x}) = \mathbb{I}( p(\mathbf{x}) \geq 0.5 ) $$

$$ p(\mathbf{x}) = \mathbb{P}(Y=1|\mathbf{X}=\mathbf{x})$$

• Replace \(F\) by \(F_n\):

$$ \hat{\delta}(\mathbf{x}) = \mathbb{I}( \hat{p}_n(\mathbf{x}) \geq 0.5 ) $$

• Obtain the probabilistic form of the Bayes rule (optimal decision)
• Re-write the Bayes rule as \( \delta(F) \)

(Plug-in rule).

Simplest FC method

$$\delta^*(F)$$

$$ \delta^* = \argmax_{\delta} \ Acc(\delta) \ \ \to \  \delta^*(\mathbf{x}) = \mathbb{I}( p(\mathbf{x}) \geq 0.5 ) $$

$$ p(\mathbf{x}) = \mathbb{P}(Y=1|\mathbf{X}=\mathbf{x})$$

• Replace \(F\) by \(F_n\):

$$ \hat{\delta}(\mathbf{x}) = \mathbb{I}( \hat{p}_n(\mathbf{x}) \geq 0.5 ) $$

Plug-in rule method:

• Step 1. Estimate \( \hat{p}_n \) from MLE
• Step 2. Plug-in \( \hat{p}_n \) in \( \hat{\delta}(\mathbf{x}) \)

(Plug-in rule).

Simplest FC method

• Obtain the probabilistic form of the Bayes rule (optimal decision)
• Re-write the Bayes rule as \( \delta(F) \)

Examples

kNN classifier

kernel logistic regression

nonparametric

$$\delta^*(F)$$

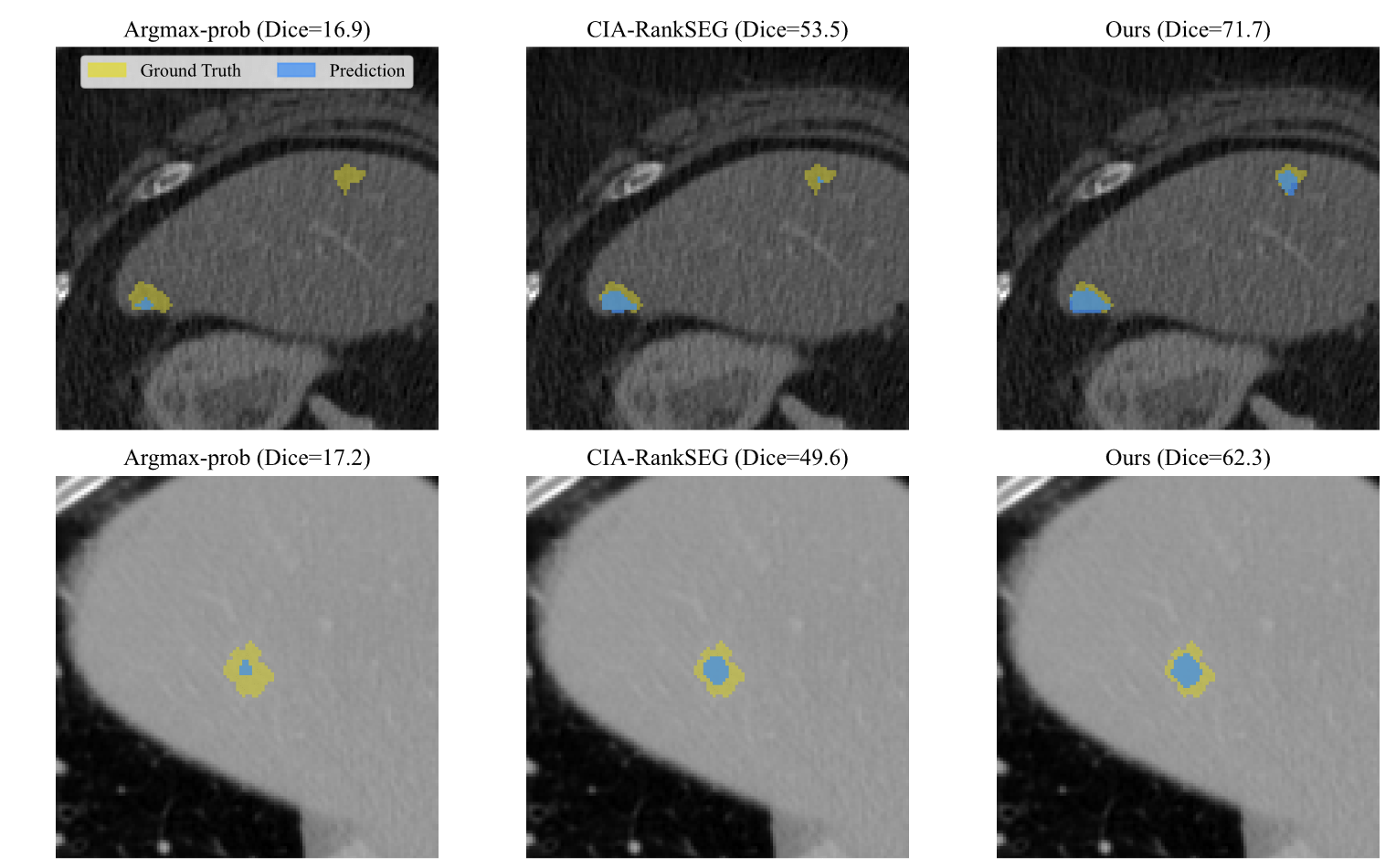

Segmentation

Medical image segmentation

Autonomous vehicles

Agriculture

Segmentation

Input

output

Input: \(\mathbf{X} \in \mathbb{R}^d\)

Outcome: \(\mathbf{Y} \in \{0,1\}^d\)

Segmentation function:

• \( \pmb{\delta}: \mathbb{R}^d \to \{0,1\}^d\)
• \( \pmb{\delta}(\mathbf{X}) = ( \delta_1(\mathbf{X}), \cdots, \delta_d(\mathbf{X}) )^\intercal \)

Predicted segmentation set:

• \( I(\pmb{\delta}(\mathbf{X})) = \{j: \delta_j(\mathbf{X}) = 1 \}\)

Segmentation

Input

output

Input: \(\mathbf{X} \in \mathbb{R}^d\)

Outcome: \(\mathbf{Y} \in \{0,1\}^d\)

Segmentation function:

• \( \pmb{\delta}: \mathbb{R}^d \to \{0,1\}^d\)
• \( \pmb{\delta}(\mathbf{X}) = ( \delta_1(\mathbf{X}), \cdots, \delta_d(\mathbf{X}) )^\intercal \)

Predicted segmentation set:

• \( I(\pmb{\delta}(\mathbf{X})) = \{j: \delta_j(\mathbf{X}) = 1 \}\)

Segmentation

Input

output

$$ Y_j | \mathbf{X}=\mathbf{x} \sim \text{Bern}\big(p_j(\mathbf{x})\big)$$

$$ p_j(\mathbf{x}) :=  \mathbb{P}(Y_j = 1 | \mathbf{X} = \mathbf{x})$$

Probabilistic model:

The Dice and IoU metrics are introduced and widely used in practice:

Evaluation

IoU

The Dice and IoU metrics are introduced and widely used in practice:

Evaluation

Goal: learn segmentation function \( \pmb{\delta} \) maximizing Dice / IoU

Dice

• Given training data \( \{\mathbf{x}_i, \mathbf{y}_i\} _{i=1, \cdots, n}\), most existing methods characterize segmentation as a classification problem:

Existing frameworks

• Given training data \( \{\mathbf{x}_i, \mathbf{y}_i\} _{i=1, \cdots, n}\), most existing methods characterize segmentation as a classification problem:

Existing frameworks

Classification-based loss

CE + Focal

CE

CE

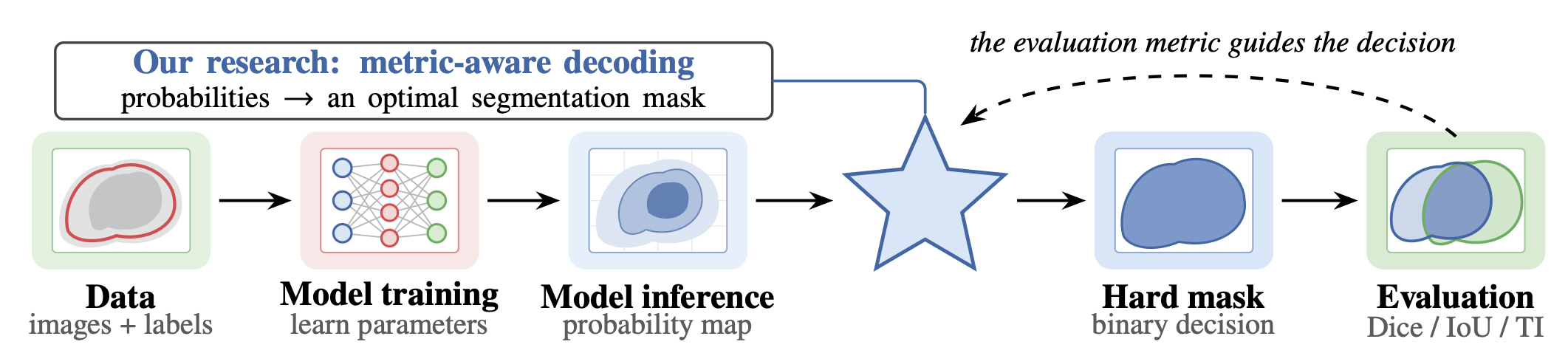

We aim to leverage the principles of FC to develop an consistent segmentation method.

FC in Segmentation

Recall (Plug-in rule in classification).

$$ \delta^* = \argmax_{\delta} \ Acc(\delta) $$

$$ \delta^* = \delta^*(F)  \to \delta^*(F_n)$$

We aim to leverage the principles of FC to develop an consistent segmentation method.

FC in Segmentation

Recall (Plug-in rule in segmentation).

$$ \delta^* = \argmax_{\delta} \ Acc(\delta) $$

$$ \delta^* = \delta^*(F)  \to \delta^*(F_n)$$

$$ \pmb{\delta}^* = \text{argmax}_{\pmb{\delta}} \ \text{Dice}_\gamma ( \pmb{\delta})$$

Bayes segmentation rule

We aim to leverage the principles of FC to develop an consistent segmentation method.

FC in Segmentation

Recall (Plug-in rule in segmentation).

$$ \delta^* = \argmax_{\delta} \ Acc(\delta) $$

$$ \delta^* = \delta^*(F)  \to \delta^*(F_n)$$

$$ \pmb{\delta}^* = \text{argmax}_{\pmb{\delta}} \ \text{Dice}_\gamma ( \pmb{\delta})$$

Bayes segmentation rule

What form would the Bayes segmentation rule take?

Bayes segmentation rule

Theorem 1 (Dai and Li, 2023). A segmentation rule \(\pmb{\delta}^*\) is a global maximizer of \(\text{Dice}_\gamma(\pmb{\delta})\) if and only if it satisfies that

\( \tau^*(\mathbf{x}) \) is called optimal segmentation volume, defined as

$$ \tau^* = \arg\max_{\tau \in \{0,1,\cdots,d\}} \Big( \sum_{j \in J_\tau(\mathbf{x})}  \mathbb{E} \big( \frac{2p_j(\mathbf{x})}{\tau + \Gamma_{-j}(\mathbf{x}) + \gamma + 1 } \big) + \gamma \mathbb{E} \big( \frac{1}{\tau + \Gamma + \gamma} \big) \Big)  $$

Theorem 1 (Dai and Li, 2023). A segmentation rule \(\pmb{\delta}^*\) is a global maximizer of \(\text{Dice}_\gamma(\pmb{\delta})\) if and only if it satisfies that

\( \tau^*(\mathbf{x}) \) is called optimal segmentation volume, defined as

Obs: both the Bayes segmentation rule \(\pmb{\delta}^*(\mathbf{x})\) and the optimal volume function \(\tau^*(\mathbf{x})\) are achievable when the conditional probability \(\mathbf{p}(\mathbf{x}) = ( p_1(\mathbf{x}), \cdots, p_d(\mathbf{x}) )^\intercal\) is well-estimated

Bayes segmentation rule

$$ \tau^* = \arg\max_{\tau \in \{0,1,\cdots,d\}} \Big( \sum_{j \in J_\tau(\mathbf{x})}  \mathbb{E} \big( \frac{2p_j(\mathbf{x})}{\tau + \Gamma_{-j}(\mathbf{x}) + \gamma + 1 } \big) + \gamma \mathbb{E} \big( \frac{1}{\tau + \Gamma + \gamma} \big) \Big)  $$

Theorem 1 (Dai and Li, 2023). A segmentation rule \(\pmb{\delta}^*\) is a global maximizer of \(\text{Dice}_\gamma(\pmb{\delta})\) if and only if it satisfies that

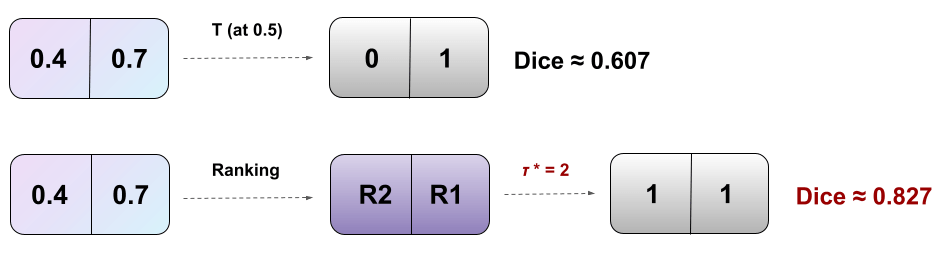

RankDice inspired by Thm 1 (plug-in rule)

1. Ranking the conditional probability \(p_j(\mathbf{x})\)

Plug-in rule

\( \tau^*(\mathbf{x}) \) is called optimal segmentation volume, defined as

RankDice inspired by Thm 1

1. Ranking the conditional probability \(p_j(\mathbf{x})\)

2. searching for the optimal volume of the segmented features \(\tau(\mathbf{x})\)

Plug-in rule

RankDice

RankDice

RankDice

RankDice

O( d log(d) )

RankDice

In practice, the DFT–CF method is generally recommended for computing. The RF1 method can also been used when n < 1000, because there is not much difference in computing time from the DFT–CF method. The RNA method is recommended when n > 2000 and the cdf needs to be evaluated many times. As shown in the numerical study, the RNA method can approximate the cdf well, when n is large, and is more computationally efficient.

Hong. (2013) On computing the distribution function for the Poisson binomial distribution

O( d^2 )

$$ \tau^* = \arg\max_{\tau \in \{0,1,\cdots,d\}} \Big( \sum_{j \in J_\tau(\mathbf{x})} \mathbb{E} \big( \frac{2p_j(\mathbf{x})}{\tau + \Gamma_{-j}(\mathbf{x}) + \gamma + 1 } \big) + \gamma \mathbb{E} \big( \frac{1}{\tau + \Gamma + \gamma} \big) \Big)  $$

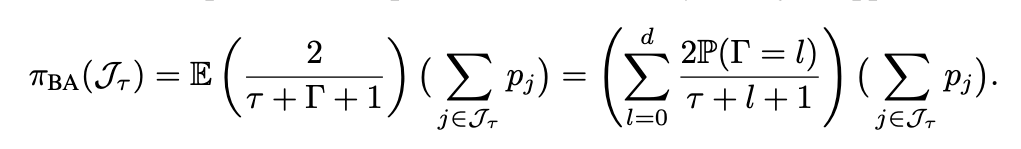

Blind approximation (BA; Dai and Li 2023). In high-D segmentation, the difference in distributions between \(\Gamma(\mathbf{x})\) and \(\Gamma_{-j}(\mathbf{x})\) is negligible.

RankDice: BA Algo

$$ \tau^* = \arg\max_{\tau \in \{0,1,\cdots,d\}} \Big( \sum_{j \in J_\tau(\mathbf{x})} \mathbb{E} \big( \frac{2p_j(\mathbf{x})}{\tau + \Gamma_{-j}(\mathbf{x}) + \gamma + 1 } \big) + \gamma \mathbb{E} \big( \frac{1}{\tau + \Gamma + \gamma} \big) \Big)  $$

Blind approximation (BA; Dai and Li 2023). In high-D segmentation, the difference in distributions between \(\Gamma(\mathbf{x})\) and \(\Gamma_{-j}(\mathbf{x})\) is negligible.

$$ \approx $$

$$\to 0 (d \to \infty)$$

Lemma 5 in Dai and Li (2023)

RankDice: BA Algo

RankDice: BA Algo

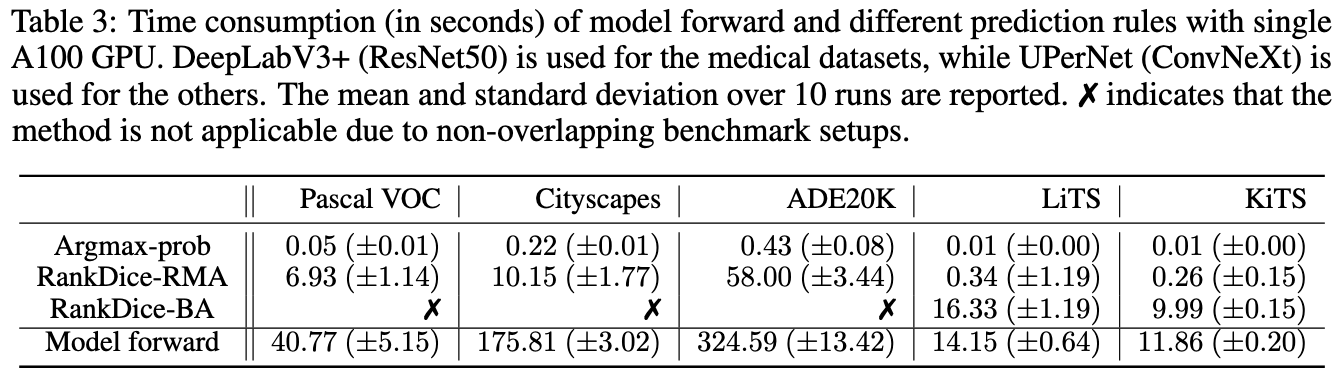

GPU via CUDA

O( d log(d) ) 😄

(approx 1000 times slower than T (at 0.5) 🥲)

RankDice: RMA

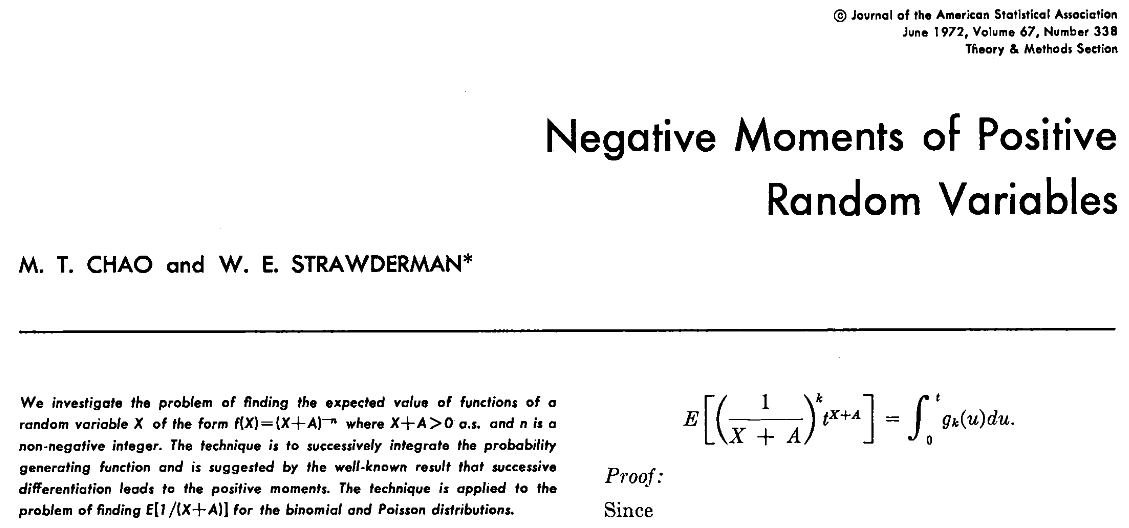

Chao, M. T., & Strawderman, W. E. (1972). JASA

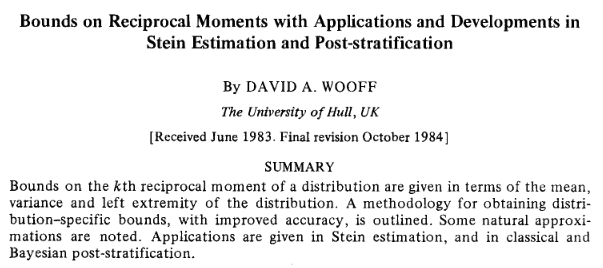

Wooff, David A. (1985) JRSS-b

RankDice: RMA

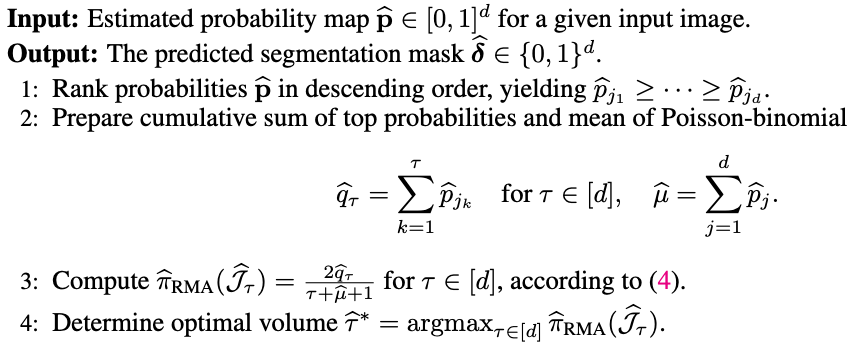

Theorem 2 (Wang and Dai, 2025). (Reciprocal moment approximation to RankSEG). Let \(\Gamma\) be a Poisson-binomial r.v., then for any \(\tau \geq 1\),

$$ (\mathbb{E}\Gamma + \tau)^{-1} \leq \mathbb{E}(\Gamma + \tau)^{-1} \leq \left(\frac{d+1}{d}\mathbb{E}\Gamma + \tau - 1\right)^{-1}. $$

RankDice: RMA

$$ \approx $$

$$ \approx $$

$$\to 0 (d \to \infty)$$

Theorem 2 in Wang and Dai (2025)

RankDice: RMA

$$ \approx $$

$$ \approx $$

$$\to 0 (d \to \infty)$$

Theorem 2 in Wang and Dai (2025)

• Three segmentation benchmark: VOC, CityScapes, ADE20K

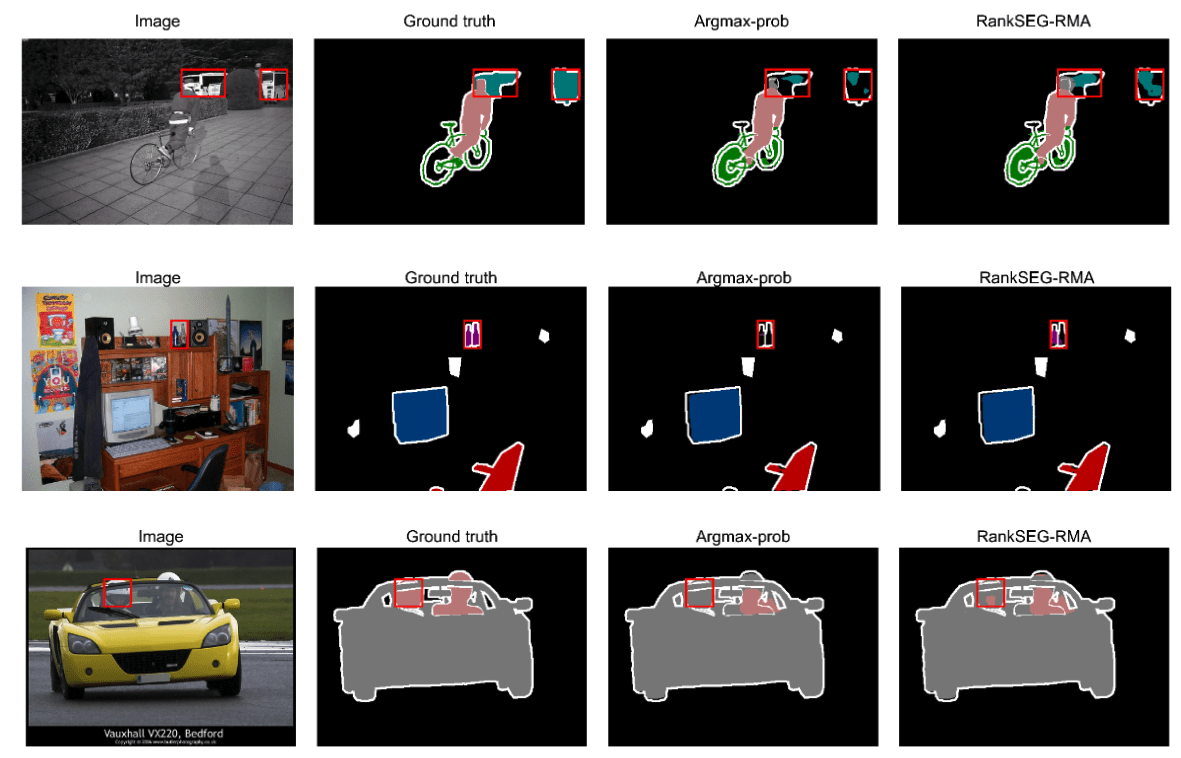

RankDice: Experiments

RankDice: Experiments

Source: Visual Object Classes Challenge 2012 (VOC2012)

• Three segmentation benchmark: VOC, CityScapes, ADE20K

RankDice: Experiments

Source: Visual Object Classes Challenge 2012 (VOC2012)

Source: The Cityscapes Dataset: Semantic Understanding of Urban Street Scenes

• Three segmentation benchmark: VOC, CityScapes, ADE20K

RankDice: Experiments

Source: Visual Object Classes Challenge 2012 (VOC2012)

Source: The Cityscapes Dataset: Semantic Understanding of Urban Street Scenes

Zhou, Bolei, et al. "Semantic understanding of scenes through the ade20k dataset." IJCV

• Three segmentation benchmark: VOC, CityScapes, ADE20K

RankDice: Experiments

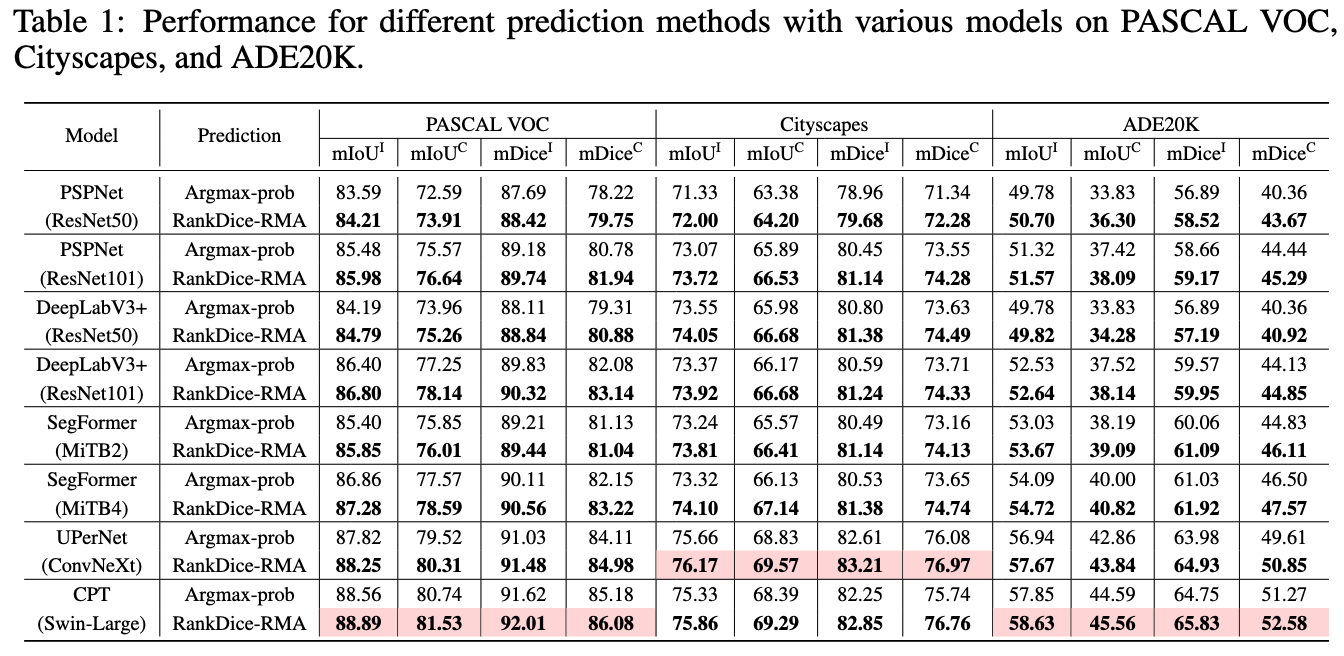

• Three segmentation benchmarks: VOC, CityScapes, ADE20K
  • Standard benchmarks, NOT cherry-picks
• Commonly used models: DeepLab-V3+, PSPNet, SegFormer
• The proposed framework  VS.  the existing frameworks
  • Based on the SAME trained neural networks
  • No implementation tricks

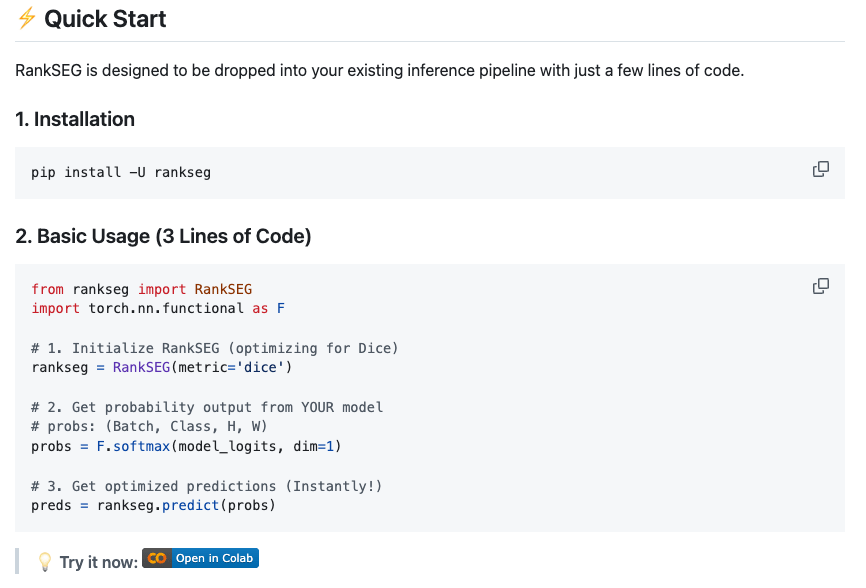

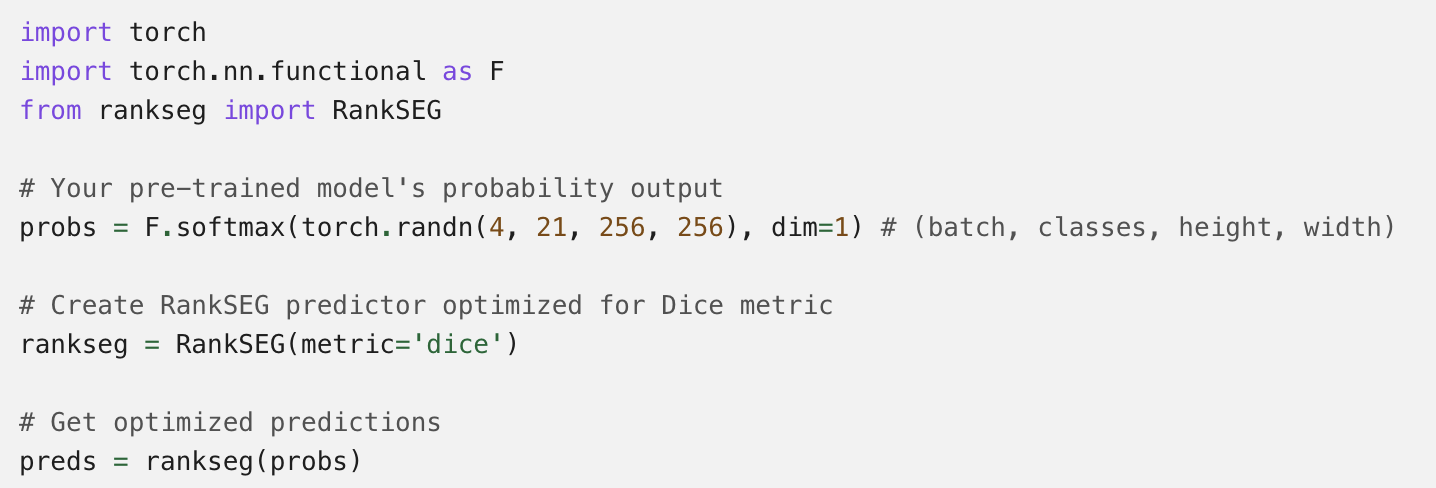

  • Open-Source python module and codes for replication
  • All trained neural networks available for download

RankDice: Experiments

RankDice: Experiments

RankDice: Experiments

RankDice: Experiments

RankDice: Experiments

RankDice: Experiments

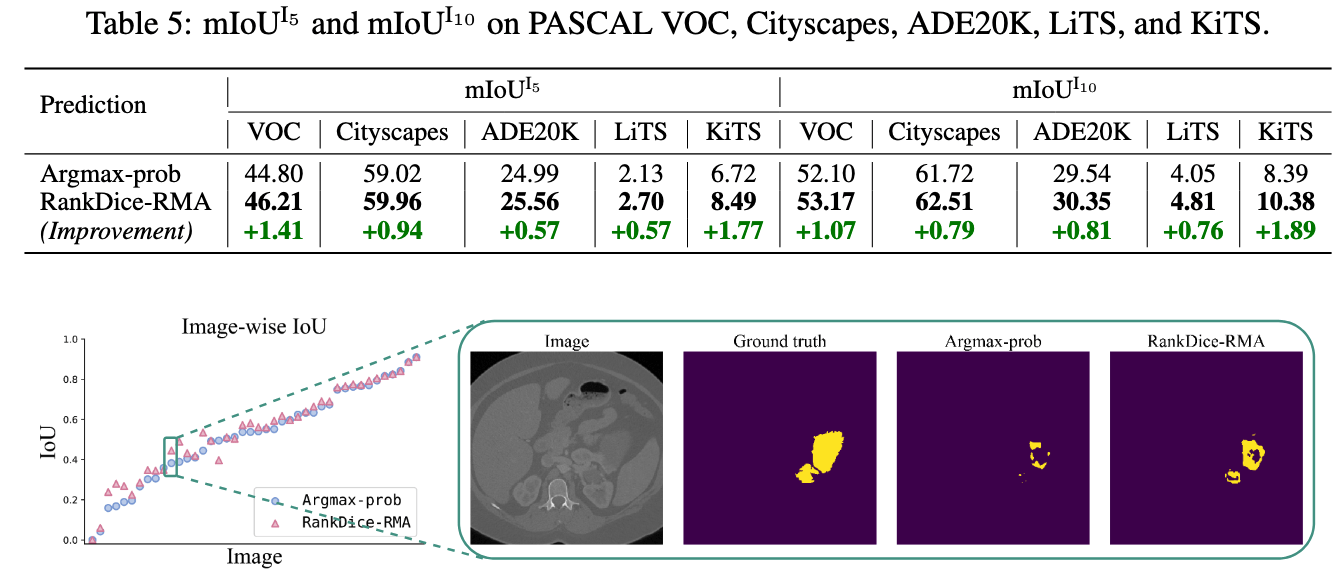

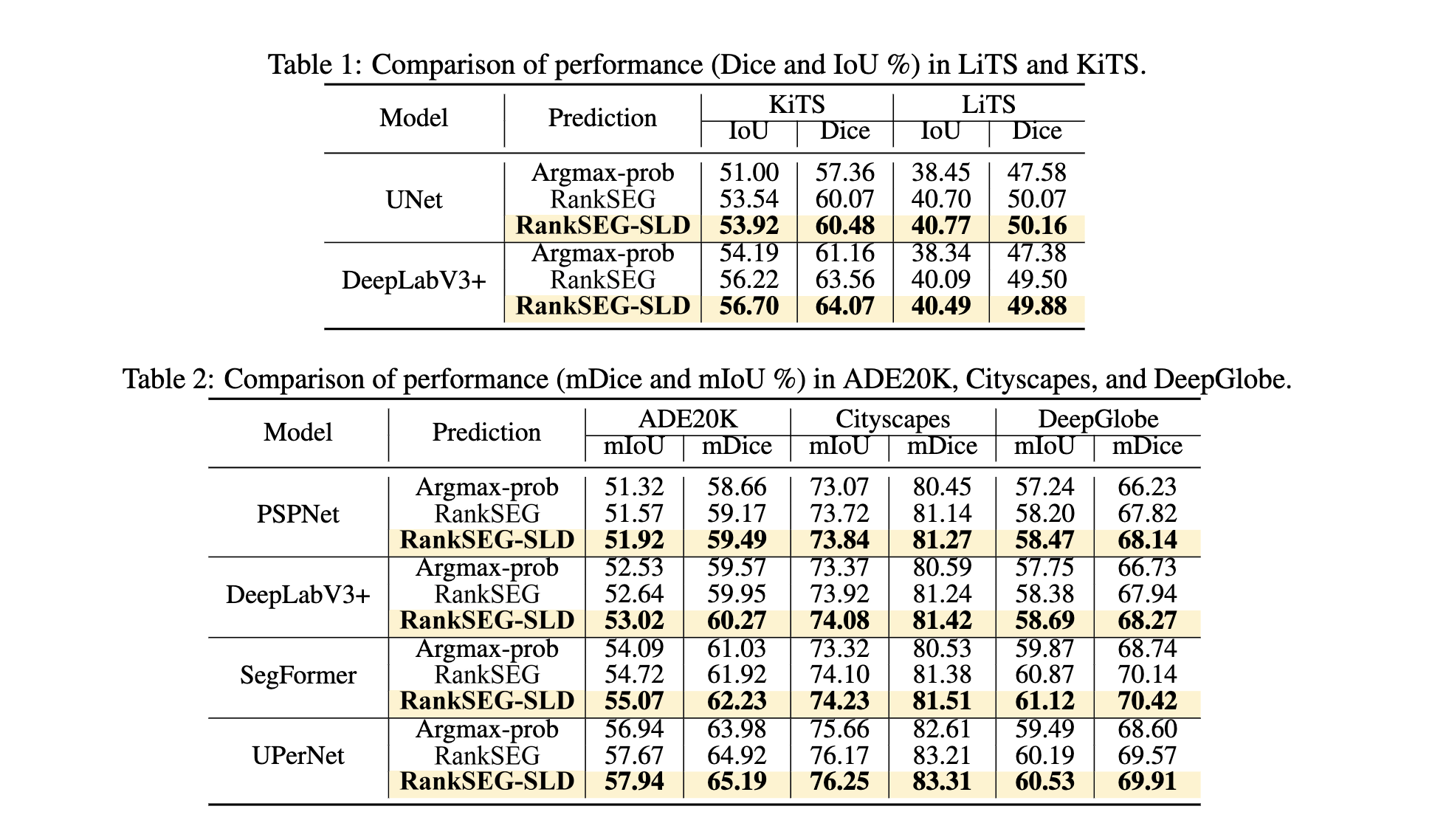

More experimental results in Dai and Li (2023) and Wang and Dai (2025)

Fisher consistency or Classification-Calibration

(Lin, 2004, Zhang, 2004, Bartlett et al 2006)

Classification

Segmentation

RankDice: Theory

RankDice: Theory

RankDice: Theory

RankDice: Theory

RankDice: Theory

• mRankDice: extension and challenge
• RankIoU
• Simulation
• Probability calibration
• ....

More results

• To our best knowledge, the proposed ranking-based segmentation framework RankSEG, is the first consistent segmentation framework with respect to the Dice/IoU metric.

• Three numerical algorithms with GPU parallel execution are developed to implement the proposed framework in large-scale and high-dimensional segmentation.

• We establish a theoretical foundation of segmentation with respect to the Dice metric, such as the Bayes rule, Dice-calibration, and a convergence rate of the excess risk for the proposed RankDice framework, and indicate inconsistent results for the existing methods.

• Our experiments suggest that the improvement of RankDice over the existing frameworks is significant.

Contribution

Thank you!

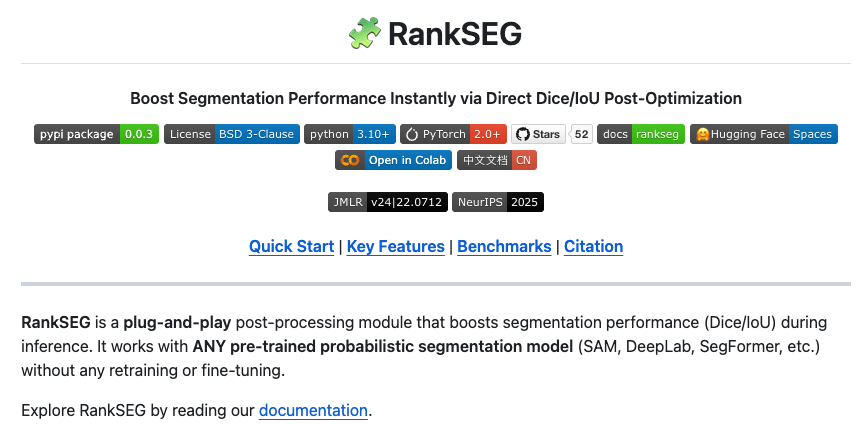

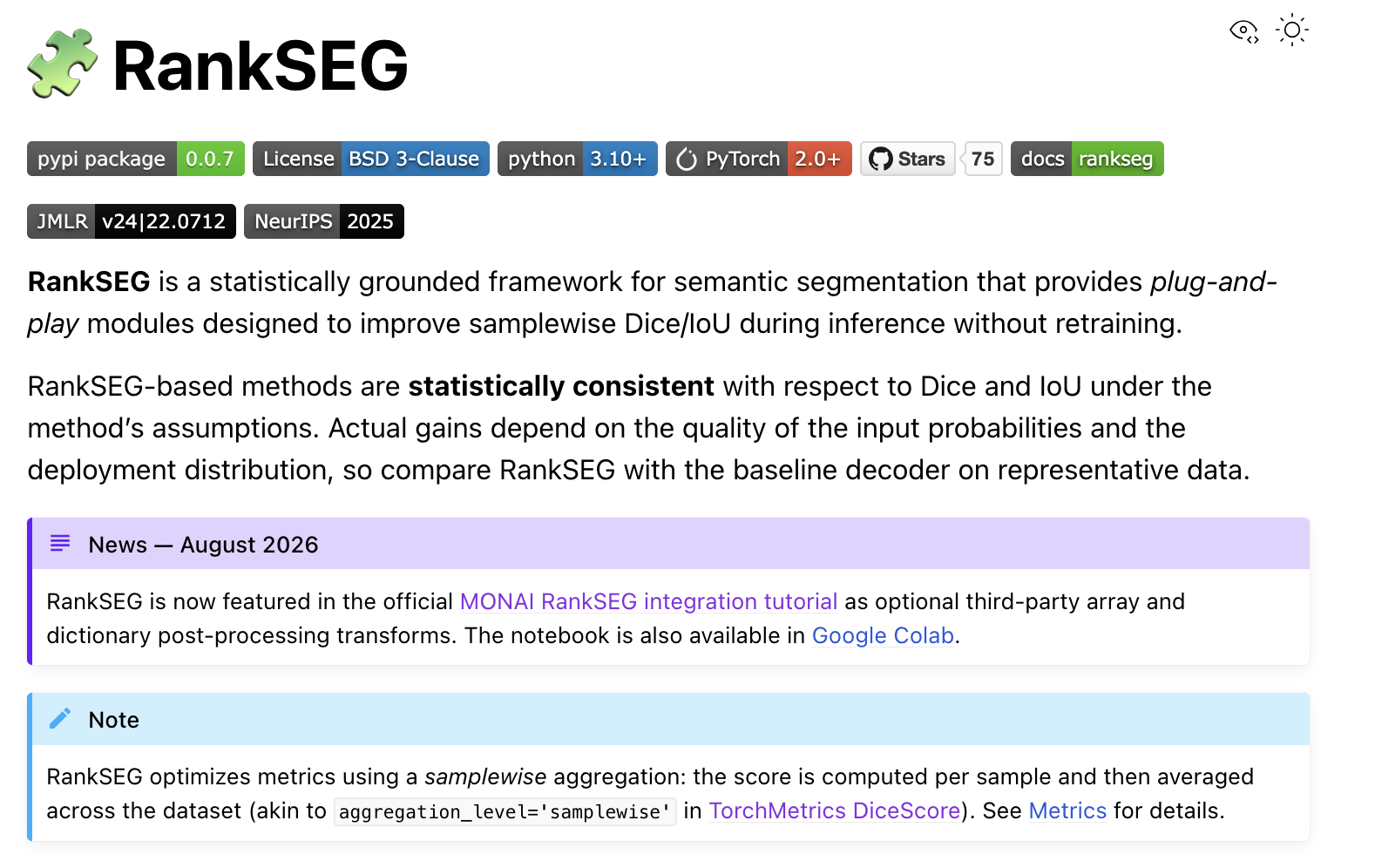

If you like RankSEG  please star 🌟 our Github repository, thank you for your support!
