TaLEYA MIRZA

@taleyaMirza

HOW TO PUBLISH

Google I/O 2019 Extended - Karachi

Why Publish Progressive web app to PLAystore ?

QUESTION

Better Discoverability



Your users have been asking you for years, “Is there an app for X(your website)? I don’t see it in the store.” People want apps from proprietary app stores, not on the free and open web.

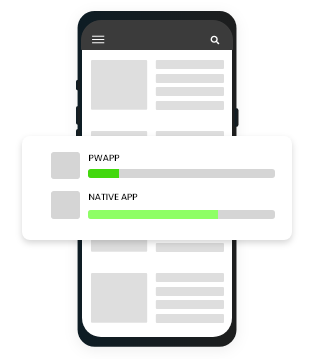

Lesser size

Lightweight Progressive web app (PWA) consumes lesser size than other native apps.

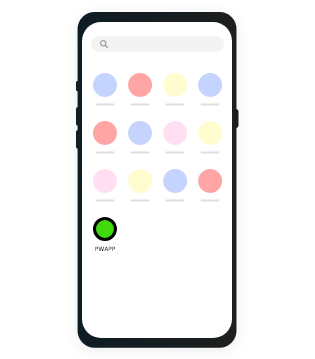

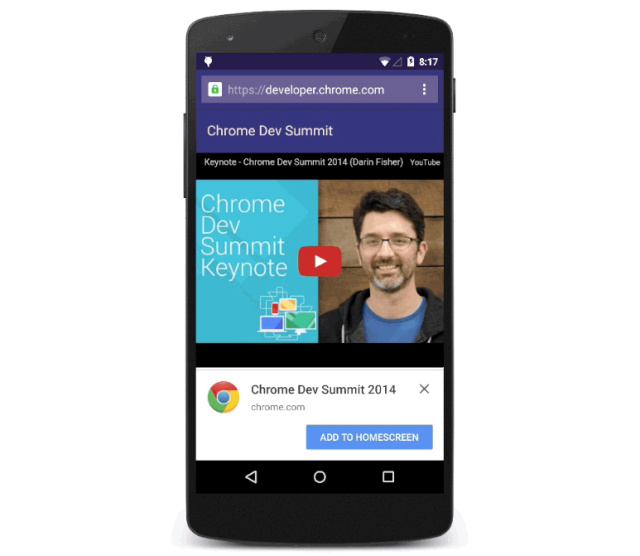

Remove “Add to Home-screen”

It’s irritating to find Add to Homescreen when landed up on sites. Why not encourage users to download app from playstore, if they really want to keep it.

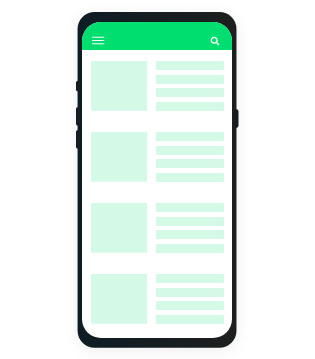

No URL BAR

Now you can hide url by default. Your users won’t even know it’s a PWA wrapped in APK, thus helps in branding better.

Feels like a NAtive App

PWA’s were introduced to feel websites like an app, but the url reminds one often, it’s just a website. With hidden url, now your users would feel it like any other app.

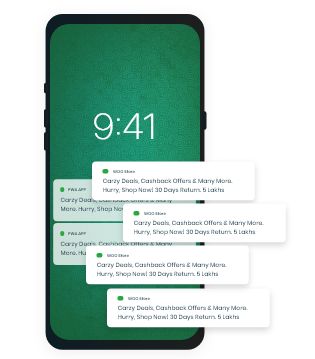

PWA App Push Notification

Send push notifications as its a PWA, integrated with all Push notification providers.

HOW?

QUESTION

THROUGH TWA

TRUSTED WEB ACTIVITY

Display web content in fullscreen wrapped within the apk render by the user browser but without any browser UI



Trusted -  verifies the app owner is the owner of the web content through Digital Asset links



Using Custom Tabs Protocol- that makes transition smooth between web content and native content

Offline Loading

The app works even in low connectivity or offline. The data can be saved heavenly using PWA android app.

Sync with chrome

If your user has a session on your website opened when the user installs the app from the Play Store, he/she will still be logged in.

Synced with web

Sync PWA Android app with website. Hence all the changes on the site will be reflected on mobile app in real-time.

PREREQUISITE

Google Play Developer Account



Install Android Studio - but don't worry you do'nt need to write java code



If you are owner of the app, access to you web hosting



Build a Progressive Web App that meets modern PWA standards

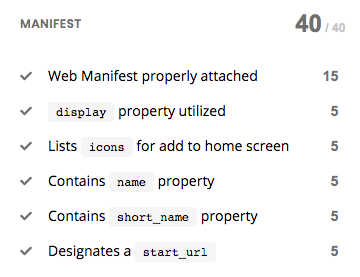

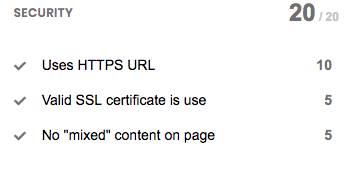

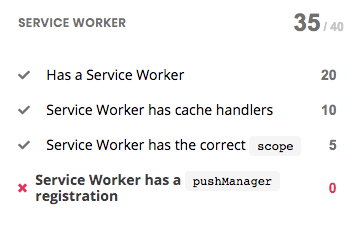

PWA Standards

APP REQUIREMENTS TO PUBLISH

Be compliant with Google Play Policies



Be an installable PWA


Achieve a lighthouse performance of 80+


Recommended: Have a privacy policy

STEPS TO PUBLISH PWA TO PLAYSTORE

LET's START

STEP# 01 - NEW PROJECT

STEP# 02 - GET TWA SUPPORT LIBRARY

Start a new application project in Android Studio with no activity

because trusted web activity is provided by a support library

  • Add Jitpack configuration in Project level build.gradle file and sync project
  • Now, in App level build.gradle
    •  add a compileOptions section to the bottom of the android section
    • Add custom tabs dependency to the dependencies section
//Project level build.gradle
allprojects {
   repositories {
       google()
       jcenter()
       maven { url "https://jitpack.io" }
   }
}

//App level build.gradle
android {
        ...
    compileOptions {
       sourceCompatibility JavaVersion.VERSION_1_8
       targetCompatibility JavaVersion.VERSION_1_8
    }
}

dependencies {
   implementation 'com.github.GoogleChrome.custom-tabs-client:customtabs:d08e93fce3'
}

STEP# 03 - Add the TWA Activity

STEP# 04 - Remove the URL bar

Setting up the TWA Activity is achieved by editing the Android App Manifest.



Trusted Web Activities require an association between the Android application and the website to be established to remove the URL bar.

  • Establish an association from app to the website

    • Open the string resources file app > res > values > strings.xml and add the Digital AssetLinks statement
    • Android App Manifest file, AndroidManifest.xml, link to the statement by adding a new meta-data tag, but this time as a child of the application tag
<resources>
    <string name="app_name">Sastaticket TWA</string>
    <string name="asset_statements">
        [{
            \"relation\": [\"delegate_permission/common.handle_all_urls\"],
            \"target\": {
                \"namespace\": \"web\",
                \"site\": \"https://staging.sastaticket.pk\"}
        }]
    </string>
</resources>
//Manifest File
<application
        android:allowBackup="true"
        android:icon="@mipmap/ic_launcher"
        android:label="@string/app_name"
        android:roundIcon="@mipmap/ic_launcher_round"
        android:supportsRtl="true"
        android:theme="@style/AppTheme">

    <meta-data
            android:name="asset_statements"
            android:resource="@string/asset_statements" />
    <activity>
            ...
    </activity>
</application>

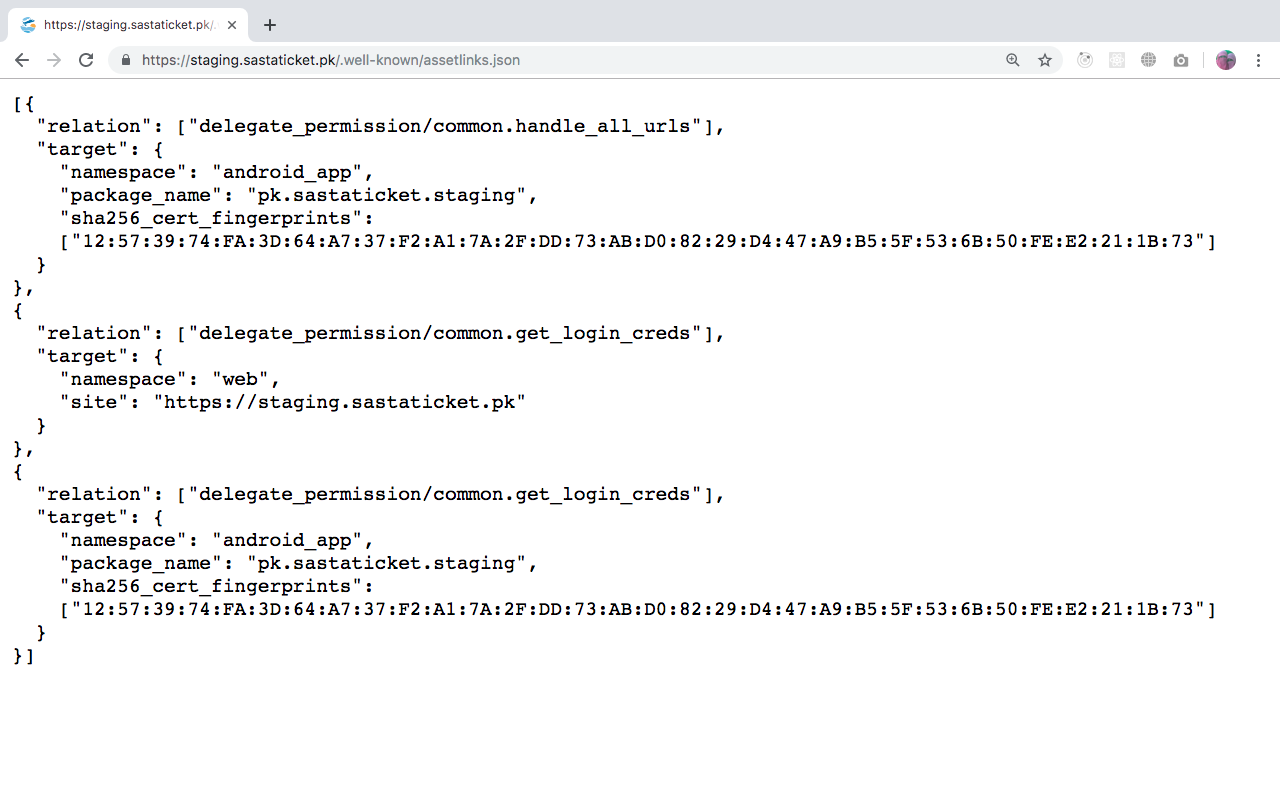

STEP# 05 - Host assetlink.json

Copy the generated statement and serve it from your domain, from the URL /.well-known/assetlinks.json.

  • Establish an association from the website to the app

Package Name and SHA-256 Fingerprint will be needed in order to create the association

To get SHA-256 Fingerprint, you need to sign the app and store credientials

With both pieces of information at hand, head over to the assetlinks generator, fill-in the fields and hit Generate Statement.

STEP# 07 - TEST THE APP

The output APK can be installed into a test device, using adb:

adb install app-release.apk

  • With the assetlinks file in place in your domain and the asset_statements tag configured in the Android application, the next step is generating a signed app. The steps for this are widely documented.

STEP# 06 - GENERATE A SIGNED APP

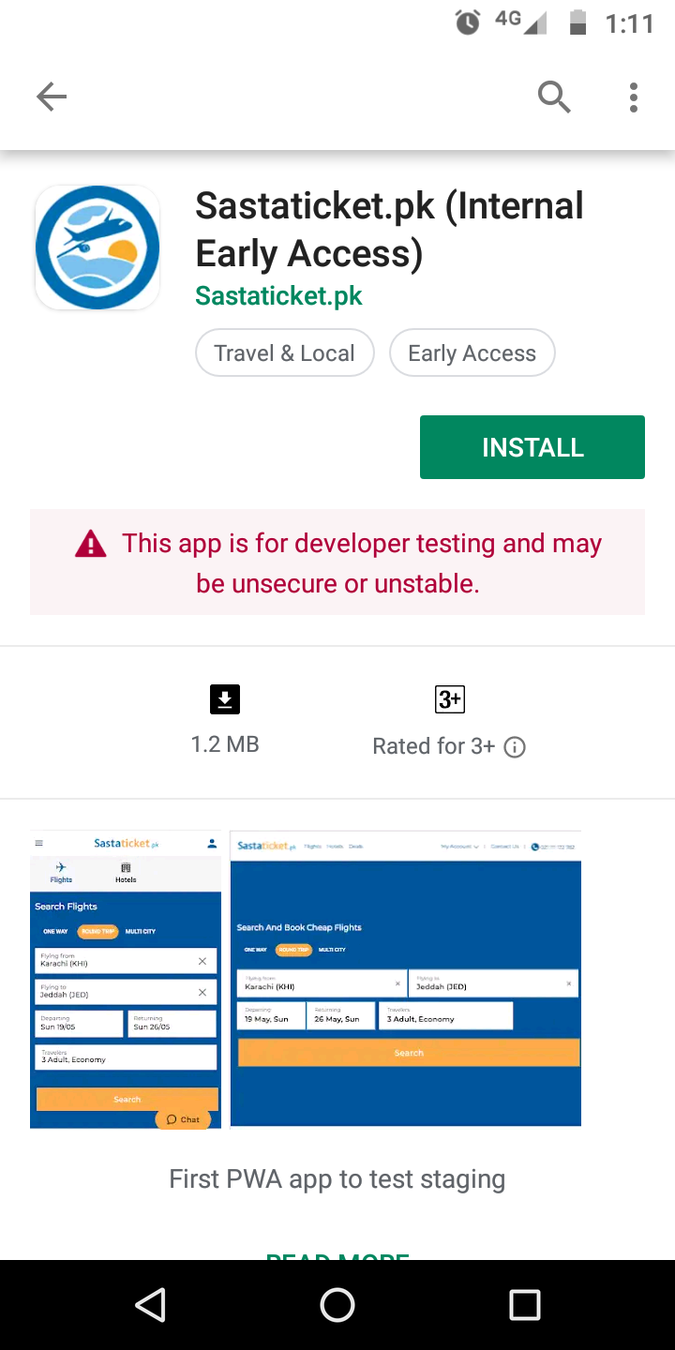

STEP# 08 - UPLOAD APP TO PLAYSTORE

You can now upload your .apk to the playstore by following the Android app uploading instructions

google Play Store

HURRAY

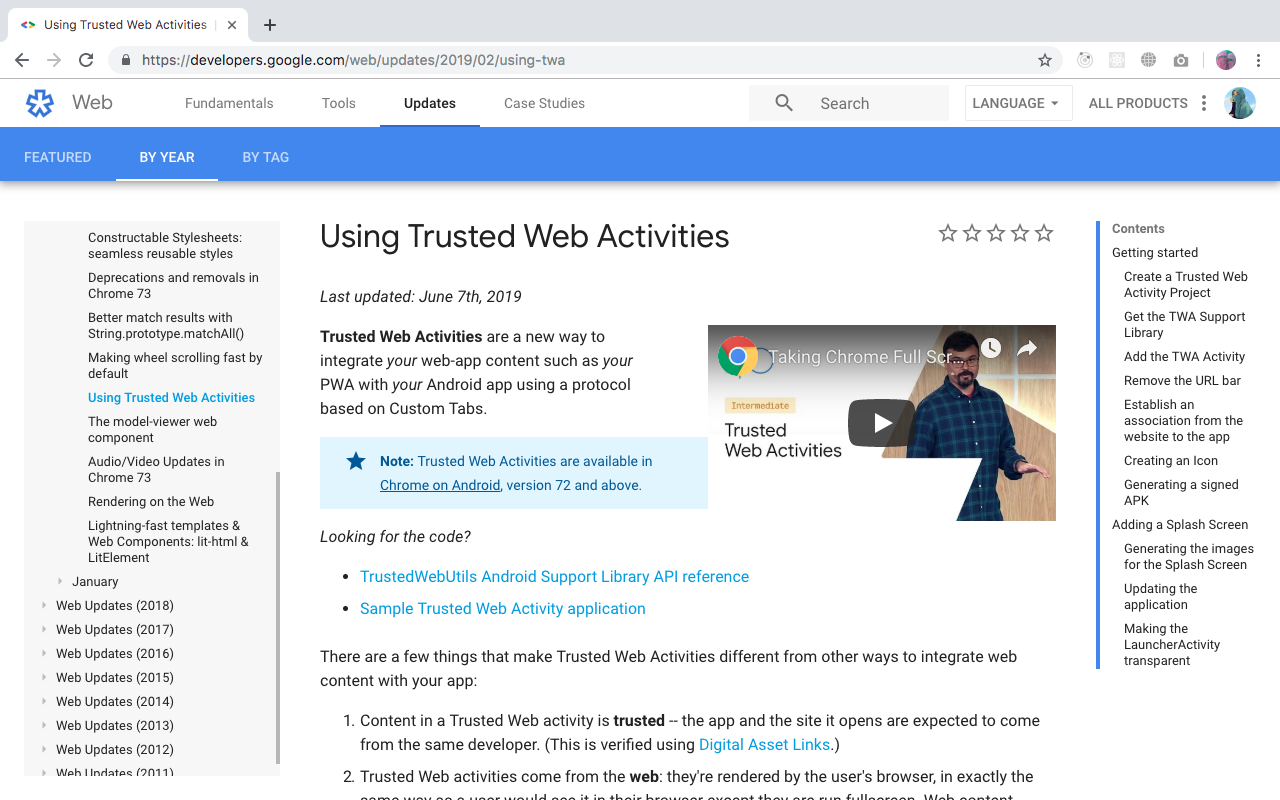

REFERENCES

TWA - Publish PWA to Play store [Google IO19 Extended]

By Taley'a Mirza (Talia)

TWA - Publish PWA to Play store [Google IO19 Extended]

Progressive Web App(PWA) has been evolving for the few past years. It allows us to use modern web capabilities to deliver an app-like experience to users, but a downside to PWAs was its lack of availability on the Play store and most of the clients wants to have their app in the Play Store for their customers. With TWA(Trusted Web Activity), Chrome v72+ enabled us to run our website in fullscreen mode without a browser toolbar within an APK (Android Package). In this talk, we will learning how to publish our PWA to Play Store within a few simple steps through TWA.
