This is me.
This title is
not interesting enough
Tableau Software Hates Him*!
This One Weird Trick Will Change How You Build Dashboards.
*Actually they don't hate me.
But before that...
Some background
Tableau Javascript API
Embedding & Portal Integration
BOOOOORING!
*Real* Tableau JavaScript API Examples
Add "Paging" support to Server
By Allan Walker, Jeffrey Shaffer
var viz, one, workbooka, activeSheet, Worksheet, worksheet;
$(function() {
var onePh = document.getElementById("tableauViz1");
var oneUrl = "https://public.tableau.com/views/RoslinginTableau_3/RoslingGapminder?:showVizHome=no&:display_spinner=no&:jsdebug=n&:embed=y&:display_overlay=no&:display_static_image=no&:animate_transition=yes";
var oneOptions = {
width: "100%",
height: "100vh",
hideTabs: false,
onFirstInteractive: function() {
workbooka = viz1.getWorkbook();
window.setTimeout("animate()", "1000");
}
};
viz1 = new tableauSoftware.Viz(onePh, oneUrl, oneOptions);
i = 1;
});
function animate() {
if (i <= 62) {
window.setTimeout("animate()", "2000");
animate1(i);
i++;
}
}
function animate1(a) {
workbooka.changeParameterValueAsync("ANIMATE", [a]);
}
Better Tables in Views
(defn get-data-and-show-modal!
[f]
(-> (:vizobj @viz)
(.getWorkbook)
(.getActiveSheet)
(f (clj->js @viz))
(.then (fn [data]
(swap! viz assoc :columns (.getColumns data) :data (.getData data))
(reagent-modals/modal! [modal] {:size :lg}) ))))
(defn underlying-button []
[:div.btn.btn-primary
{:disabled (not (:ready @viz))
:on-click (fn [] (get-data-and-show-modal! #(.getUnderlyingDataAsync %1 %2)))}
"Show underlying data"])
(defn summary-button []
[:div.btn.btn-primary
{:disabled (not (:ready @viz))
:on-click (fn [] (get-data-and-show-modal! #(.getSummaryDataAsync %1 %2)))}
"Show summary data"])
Custom Chart Types
BUT THERE ARE TWO ISSUES
1.
You need to use an external portal
2.
Solution?
The One Weird Trick
You won't believe what's next!
I WILL SHOW IT
Javascript without Embedding
METHODS:
1. Tableau Extensions
2. WDC as Frame
A Simple Example
Text
No need for external portal
Reusable "Plugins"
HOW?
var TableauLib = (function () {
function TableauLib() {
}
TableauLib.prototype.getTableau = function () {
if (!parent || !parent.parent) {
return null;
}
var grandParent = parent.parent;
return grandParent.tableau;
};
TableauLib.prototype.getCurrentViz = function () {
var tableau = this.getTableau();
if (!tableau) {
return null;
}
return tableau.VizManager.getVizs()[0];
};
//[...]
return TableauLib;
}());
And it's reusable.
And now some REAL* use cases
* Not real, actually
BOSS MAN

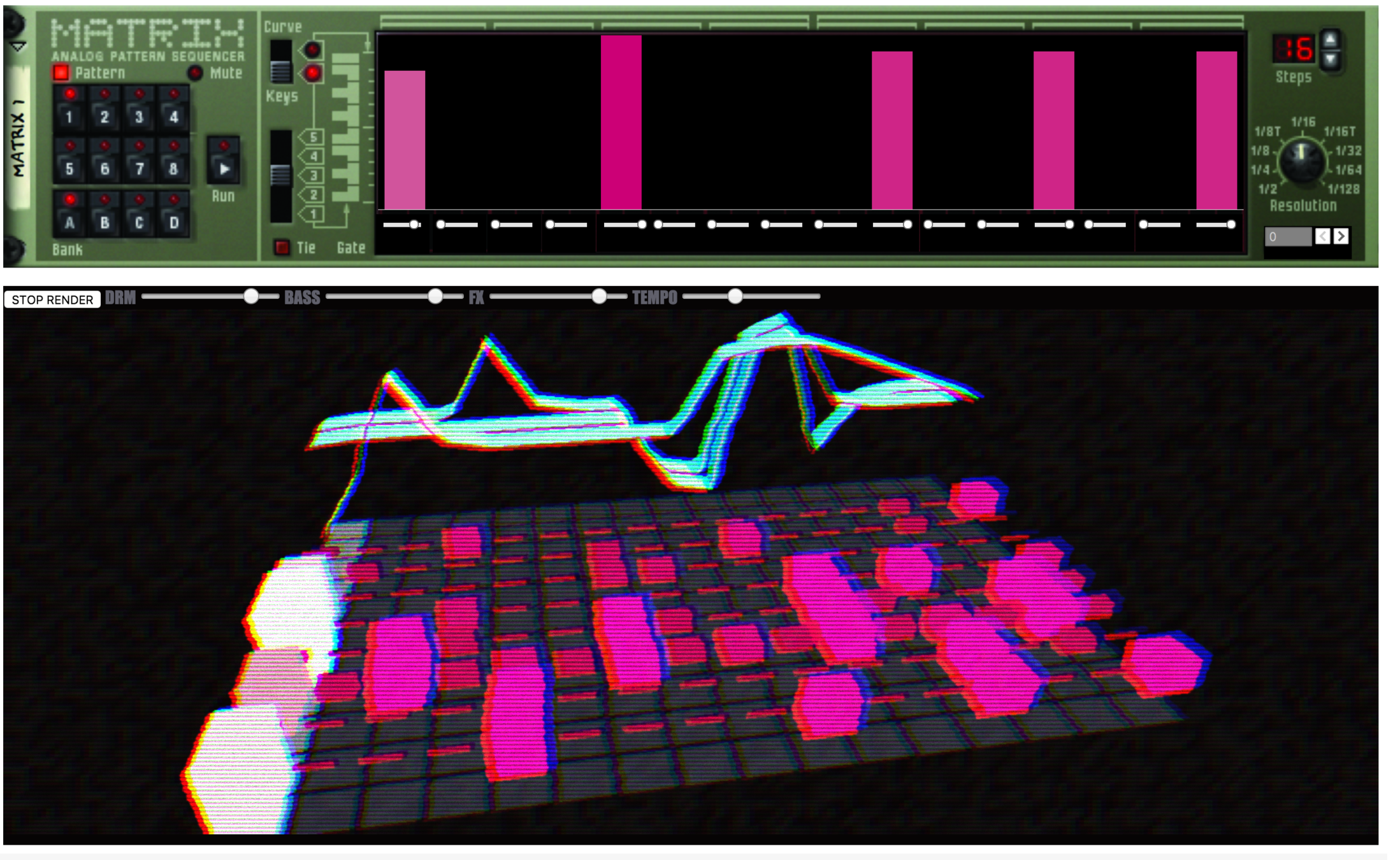

RECORD LABEL
Auto refresh
"This is awesome. I’ve deployed it and it’s screaming. Great find!"
Reusable and customizable
Configuration
Parameter | Description |
---|---|
autoRefresh_seconds | The number of seconds to count down from |
autoRefresh_radius | The radius of the arc in pixels |
autoRefresh_fontSize, autoRefresh_fontWeight, autoRefresh_fontColor, | The font style |
autoRefresh_fillStyle | The fill color |
autoRefresh_strokeStyle | The color of the stroke |
End-to-End Security
Use Case
Client side decryption
Database and Tableau Server do not "see" the decrypted data
D3.JS
+
TABLEAU
But Why?
"Can I get this icon in corn flower blue?"
D3 Brush Filters
By Chris DeMartini
http://www.datablick.com/blog/2017/3/2/building-towards-d3js-plugins-for-tableau
BUT WAIT!!!!!11
IT WORKS WITH FRELARD TOO!!!!!1
INSIDE THE DESKTOP!!!!!!!!!!!!!
Radar Chart
Collaboration
Write-back, comments, annotations
Data-point annotation on web
TabChat 2.0
And now something extreme.
Data17 Hackathon Entry
And the grand finale
with our guest star:
Tabular view & Excel Export
and this was just the beginning.
All sources & blog post on DataBoss
http://databoss.starschema.net/
Even more Questions?
Zen Area, 10.30-am-11.30pm
TC17
By Tamas Foldi
TC17
- 577
