D3.js

Data-Driven Documents

So D3 is really about giving us an API that's well-suited for creating and updating the DOM based on our data - hence the name Data-Driven Documents.

  • Low-level JavaScript visualization Library
  • Uses HTML, CSS and SVG
  • Works with modern browsers*
  • Data-driven DOM manipulation

D3.js is a JavaScript library for manipulating documents based on data. D3 helps you bring data to life using HTML, SVG, and CSS. D3’s emphasis on web standards gives you the full capabilities of modern browsers without tying yourself to a proprietary framework, combining powerful visualization components and a data-driven approach to DOM manipulation.

*Backwards-compatibility for older browsers can be provided by Sizzle.

Examples

d3.select("body")
    .append("p")
    .text("New paragraph!");

Adding Elements

<body>

</body>

<body>
    <p>New paragraph!</p>
</body>

A lot of similarities between D3 with other DOM frameworks such as jQuery or Prototype.



Yet styles, attributes, and other properties can be specified as functions of data in D3, not just simple constants.



D3 instead of jQuery?

var dataset = [ 5, 10, 15, 20, 25 ];

d3.select("body").selectAll("p")
    .data(dataset)
    .enter()
    .append("p")
    .text(function(d) { return d; });

Data

<body>

</body>

<body>
    <p>5</p>
    <p>10</p>
    <p>15</p>
    <p>20</p>
    <p>25</p>
</body>

.text("someString")


.text(someFunction())


.text(function(d) {
    return d;
})

For example, text() can take either simply a static string of text as an argument.



…or the result of a function.



…or an anonymous function itself can be the argument.

var dataset = [ 5, 10, 15, 20, 25 ];

d3.select("body").selectAll("div")
    .data(dataset)
    .enter()
    .append("div")
    .attr("class", "bar")
    .style("height", function(d) {
        var barHeight = d * 5;  //Scale up by factor of 5
        return barHeight + "px";
    });
<body>
    <div class="bar" style="height: 25px;"></div>
    <div class="bar" style="height: 50px;"></div>
    <div class="bar" style="height: 75px;"></div>
    <div class="bar" style="height: 100px;"></div>
    <div class="bar" style="height: 125px;"></div>
</body>

// Update…
var p = d3.select("body").selectAll("p")
    .data([4, 8, 15, 16, 23, 42])
    .text(String);

// Enter…
p.enter().append("p")
    .text(String);

// Exit…
p.exit().remove();

SVG

Using a SVG instead of native HTML elements is more reliable, visually consistent, and faster.

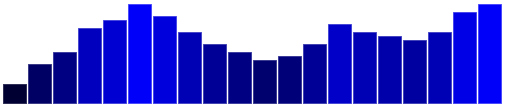

var w = 500;
var h = 100;
var barPadding = 1;

var dataset = [ 5, 10, 13, 19, 21, 25, 22, 18, 15, 13,
				11, 12, 15, 20, 18, 17, 16, 18, 23, 25 ];

//Create SVG element
var svg = d3.select("body")
	    .append("svg")
	    .attr("width", w)
    	    .attr("height", h);

svg.selectAll("rect")
   .data(dataset)
   .enter()
   .append("rect")
   .attr("x", function(d, i) {
   		return i * (w / dataset.length);
   })
   .attr("y", function(d) {
   		return h - (d * 4);
   })
   .attr("width", w / dataset.length - barPadding)
   .attr("height", function(d) {
   		return d * 4;
   })
   .attr("fill", function(d) {
		return "rgb(0, 0, " + (d * 10) + ")";
   });

Maps

http://tietyk.github.io/D3/

function draw(geo_data) {
  "use strict";
  var width = 750,
      height = 600,
      scale = 6500,
      translateX = -240,
      translateY = 7260;

  var projection = d3.geo.mercator()
      .scale(scale)
      .translate( [translateX, translateY]);

  var path = d3.geo.path().projection(projection);

  var svg = d3.select("#chart")
      .append("svg")
        .attr("width", width)
        .attr("height", height)
        .attr("class", "map");

  var map = svg.selectAll("path")
      .data(geo_data.features)
      .enter()
      .append("path")
        .attr("d", path)
        .style("fill", "lightBlue")
        .style("stroke", "black")
        .style("stroke-width", 0.5);
};

d3.json("provinces.geojson", draw);

Resources

Pros

  • Low level library => very customizable
  • Free
  • No dependencies
  • Build upon web standards of HTML, CSS, JS and SVG

Cons

  • Documentation not very detailed
  • No prebuilded charts or maps added
  • Steep learning curve
