We are Umbo Computer Vision

We build autonomous video security system

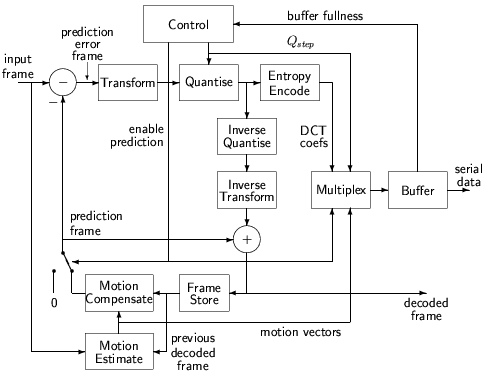

Why we should care about codec?

Machine Learning on the Cloud

• Video quality

• Bandwidth consumption

• Storage size

History of Video Codecs

H.265 IP Mess

Alliance for Open Media (AOM)

AV1

AOMedia Video 1

AV1: Status

• Released at 2018/03/28

• AV1 aims to be a video format for the web that is both state of the art and royalty free

• AV1 is meant to succeed its predecessor VP9 and compete with HEVC/H.265.

• AV1 is a combination of Google's VP10, Mozilla's Daala and Cisco's Thor

AV1: Development Process

• Coding tools are added as experiments into the AV1 codebase.

• The hardware team reviews the experiments to ensure it can be implemented in hardware.

• Each experiment also needs to pass an IP review to ensure no IPs are violated.

• Once reviews are passed the experiment can be enabled by default.

AV1: Container

• Audio: Opus

• Container: webm, mkv, mp4

• WebRTC:
  VP8, VP9, H.264, AV1

AV1: Profiles/Levels

AV1: Software Adoption

• Reference implementation: libaom-av1

• Another Rust implementation: rav1e

• Browser support
  Chrome: v69
  Firefox: v55

• FFMPEG: v4.0
  VLC: v3.0
  Gstreamer: v1.14

AV1: Hardware Adoption

• Early hardware support will be software running on non-CPU hardware.

  • ​CUDA, OpenCL

• Fixed-function hardware will take 12–18 months after bitstream freeze

  • ​March - Auguest 2019

• ​Google's codec group is developing a free AV1 HW decoder

AV1 Coding Tool Overview

• More block sizes

  • Prediction blocks

    • from 128x128 down to 4x4

    • Rectangular blocks:
      1:2, 2:1 and 1:4, 4:1 ratio

  • Transform sizes

    • from 64x64 down to 4x4

    • Rectangular transforms:
      1:2, 2:1 and 1:4, 4:1 ratios

• ​​More transform type

  • ​4 transform types
    DCT, ADST, FlipADST, Identity

• More prediction modes​

  • ​Intra: ​

    • 56 directions

    • Chroma from luma prediction

  • Inter:

    • ​Expanded reference list

    • Compound mode​

• New adaptive multi-symbol entropy coding​​​

• Spatial and temporal scalability

https://vimeo.com/269067164/description  https://youtu.be/yKEDf5-2sT4

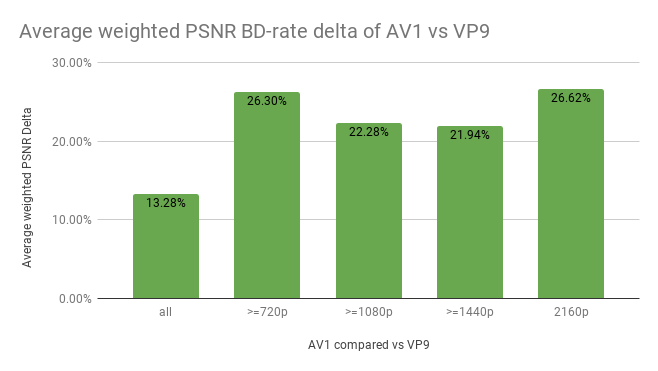

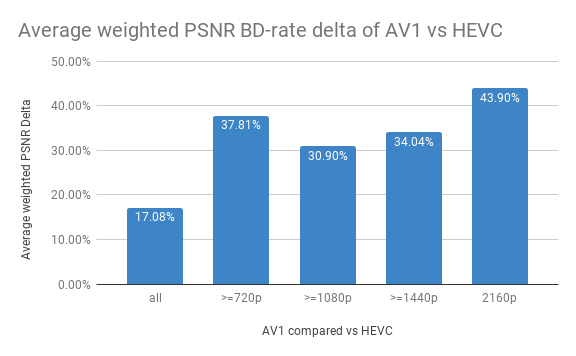

AV1 vs Other Codecs

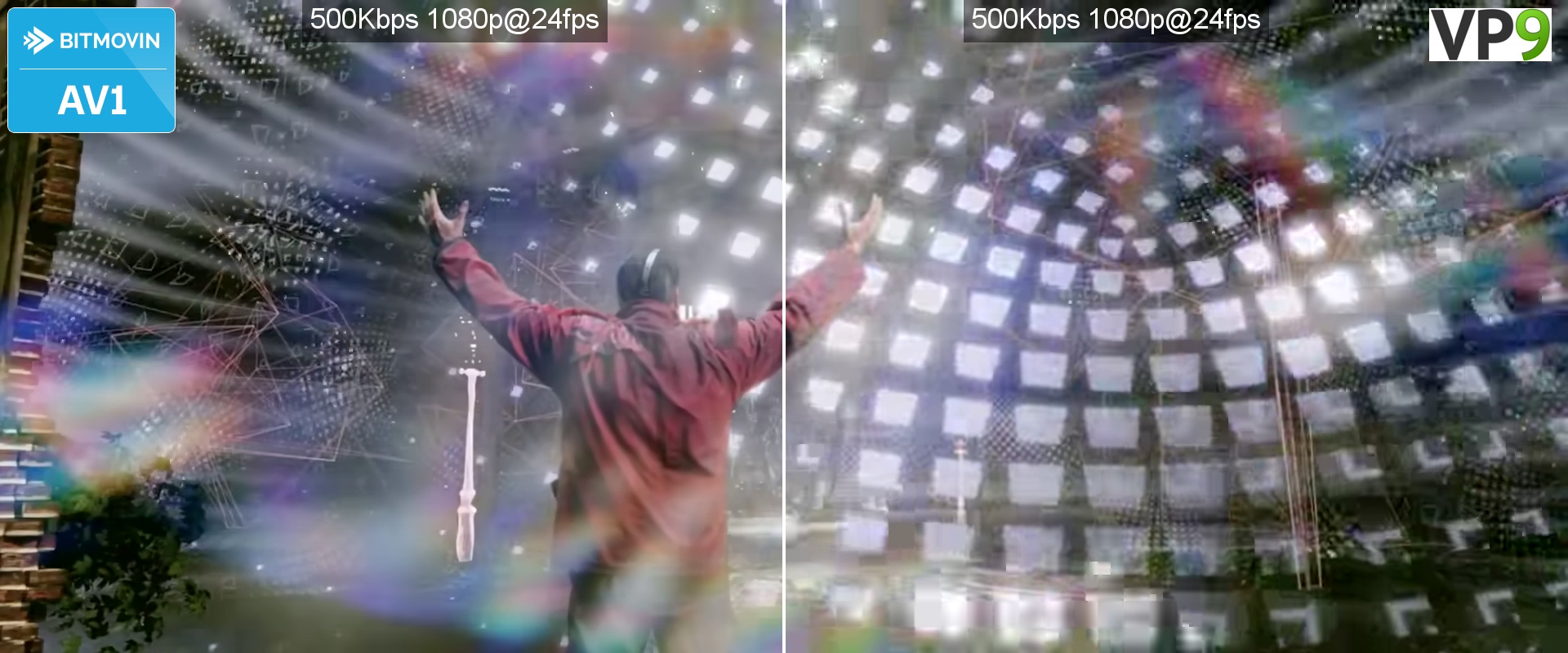

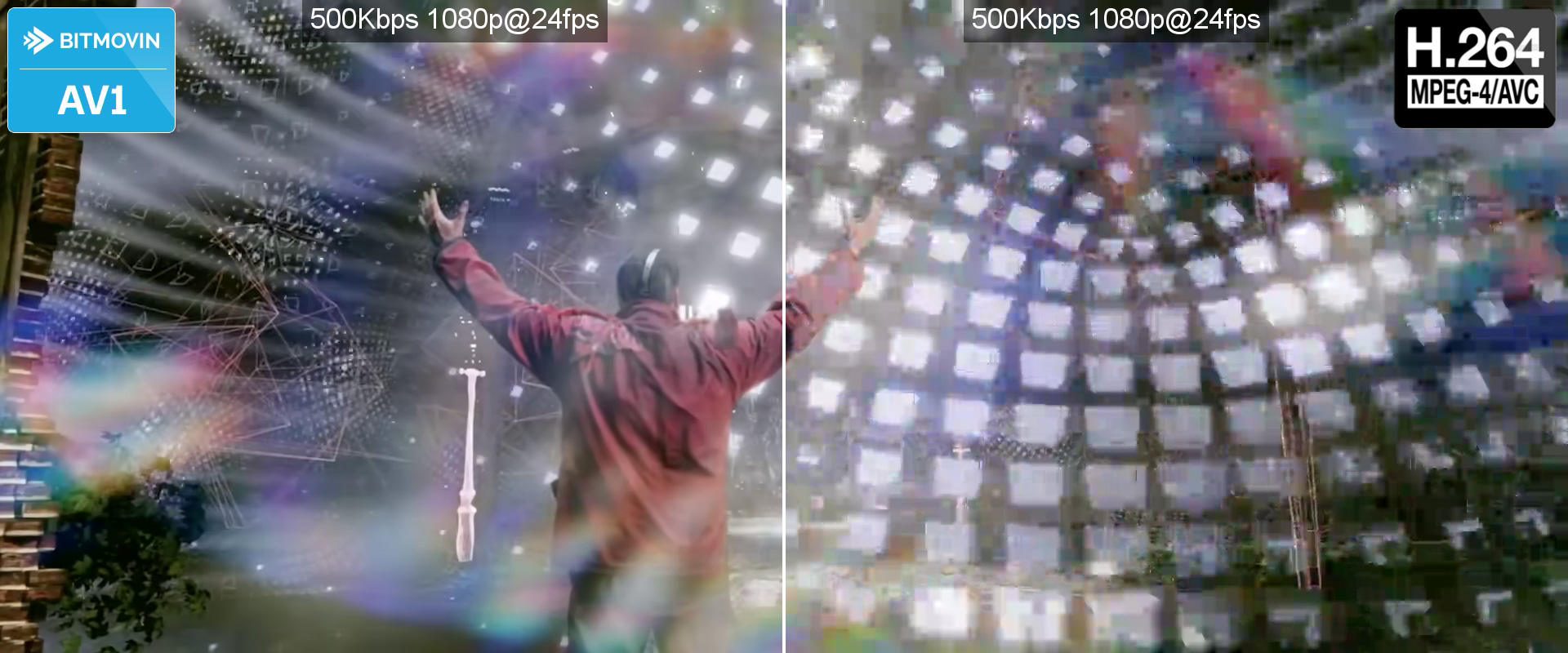

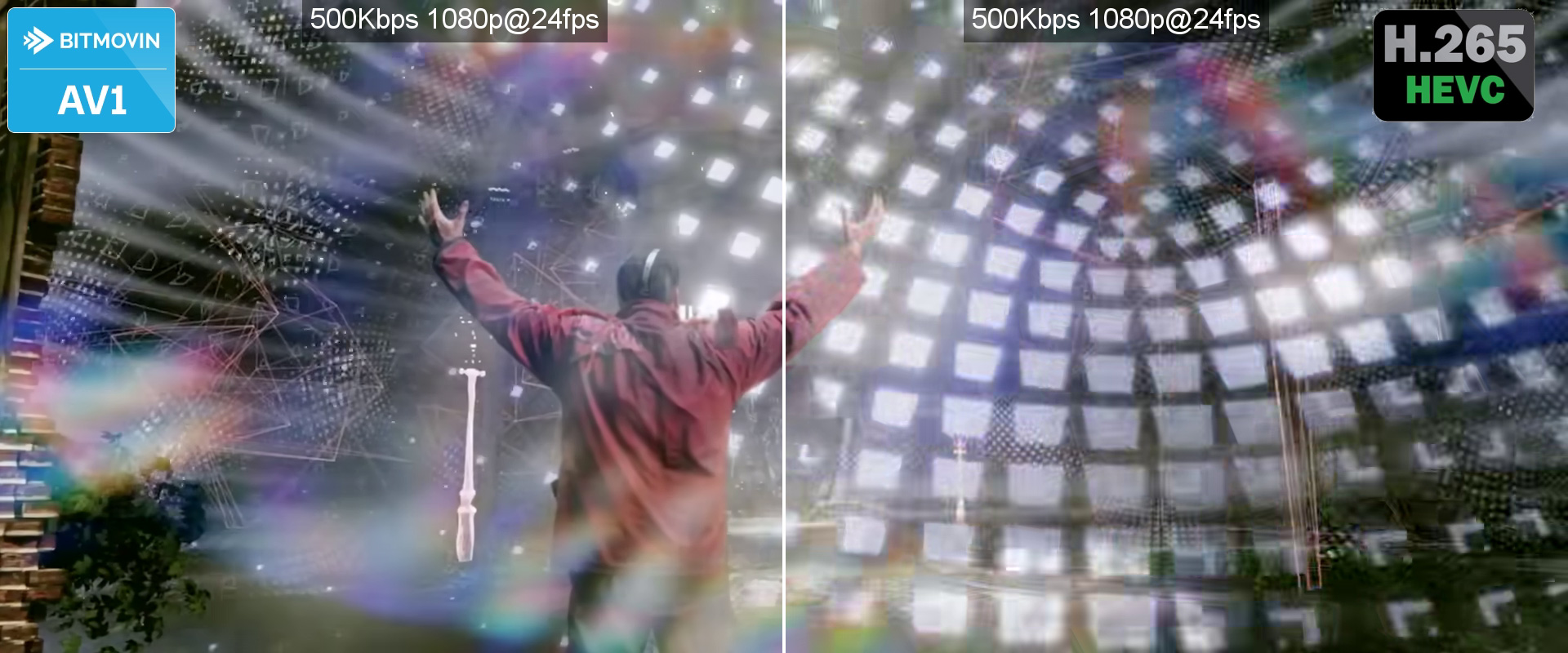

Bitmovin

This scientific evaluation puts AV1 to the test against industry standard codecs and shows that AV1 is able to outperform VP9 and even HEVC by up to 40%

https://goo.gl/61oeXa

https://goo.gl/o7Usv7

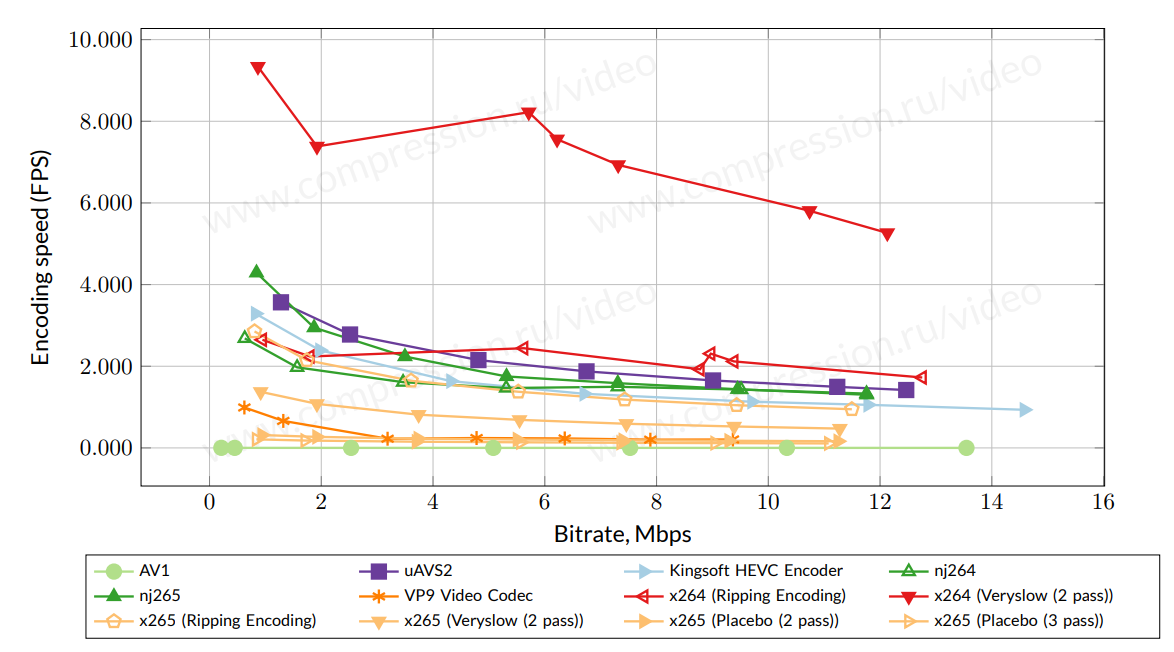

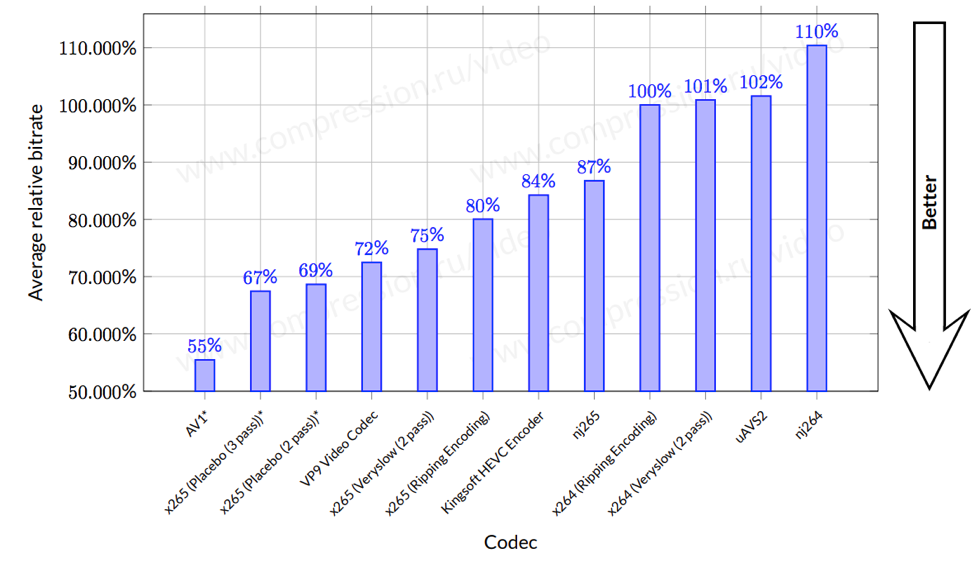

Moscow State University

AV1 has extremely high encoding quality inapproachable to other encoders and extremely low encoding speed due to lack of speed optimization.

https://goo.gl/zyNxxB

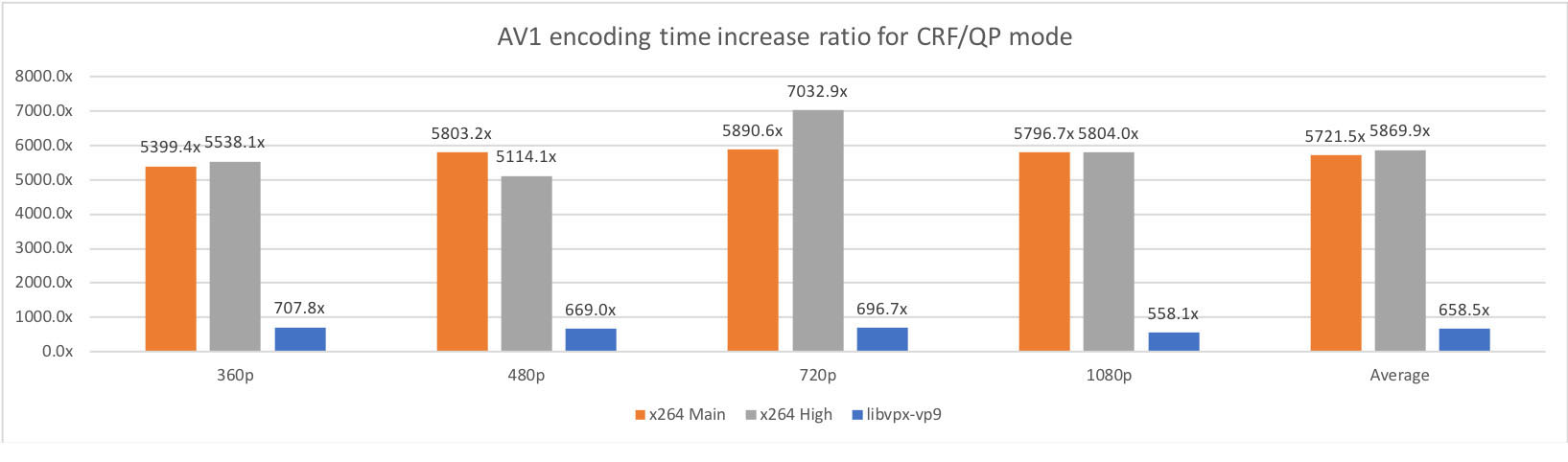

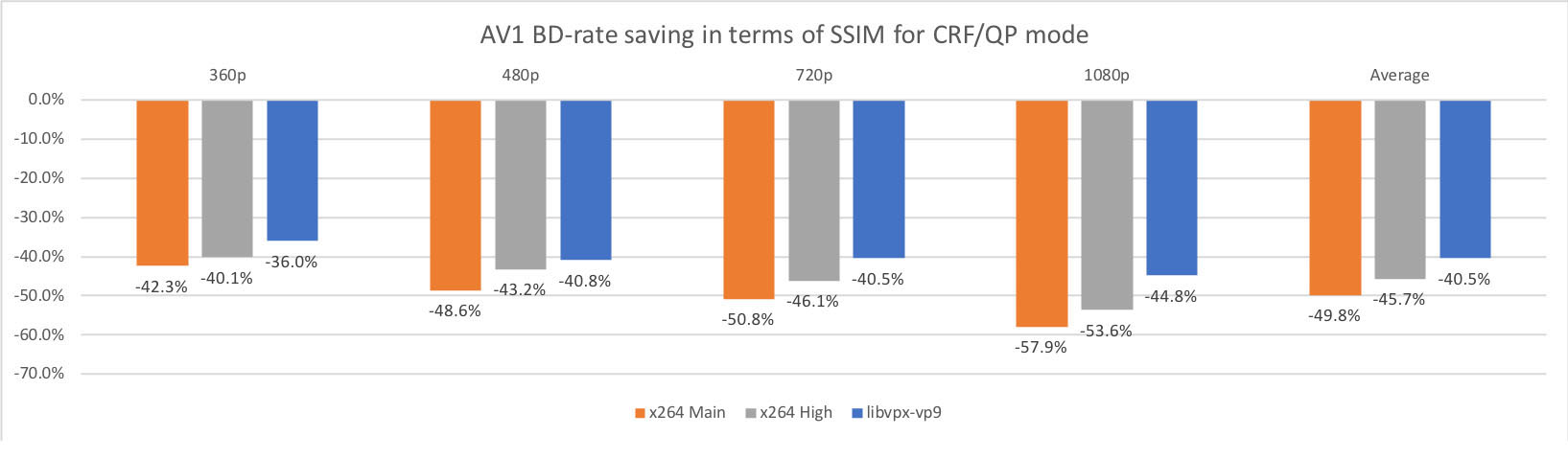

Facebook

Users watching AV1 content will enjoy better quality at the same bit rate or see 30% to 50% less buffering at the same quality compared with VP9 or H.264/AVC content.

https://bit.ly/2KOO13C

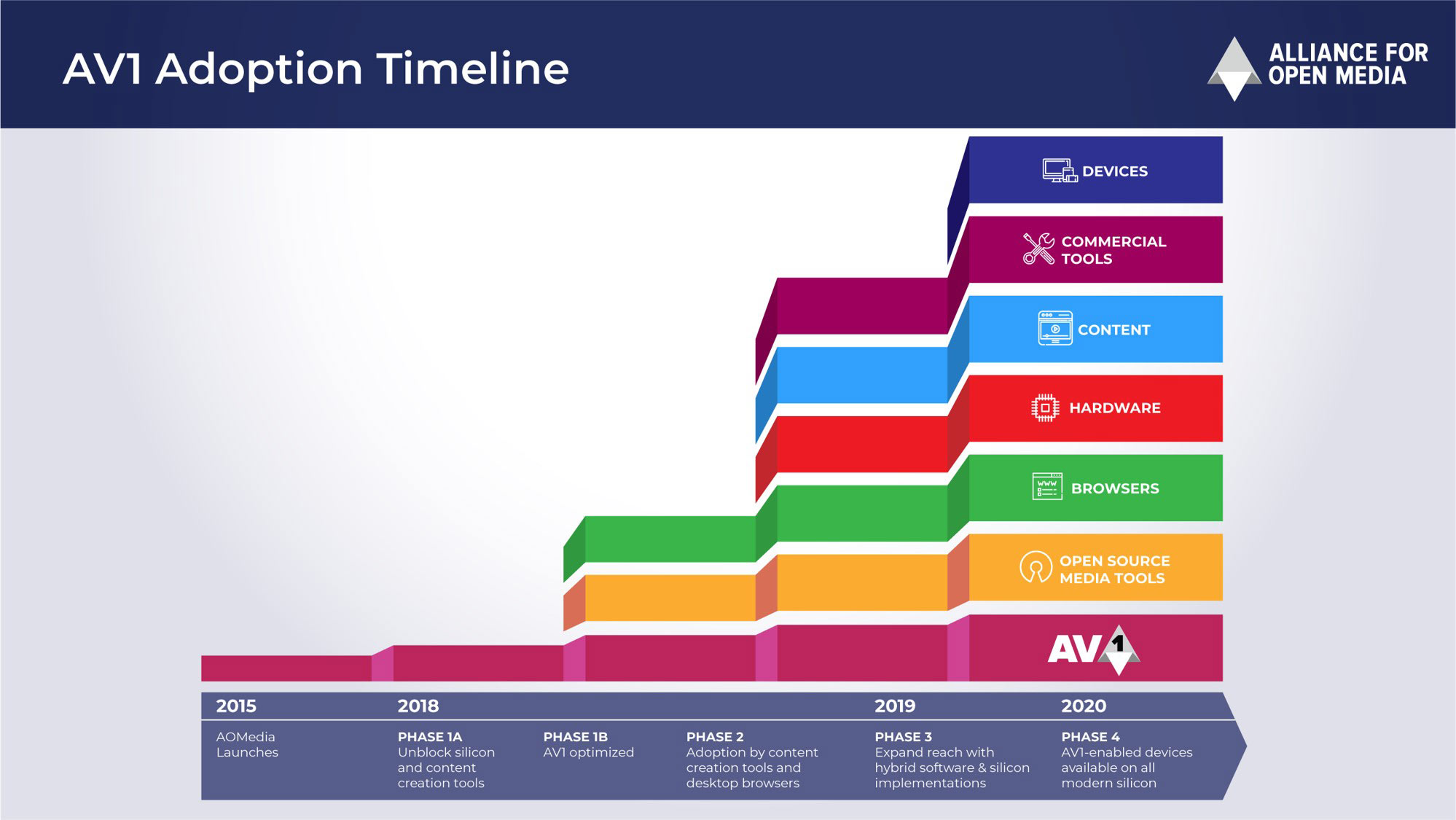

AV1 Roadmap

Conclusions

• AV1 is able to outperform VP9 and H.265

• Still needs lots of optimization

• Product adoption would be expected

• Hardware support is critical

• H.265 royalty fee issues
