Layout Management with Content Modeling in Mind

Stanford
Edition

How to Content Model in Drupal 8

Anton Staroverov

Me



Anton Staroverov

Design System Architect
at WONDROUS



Professional Product Manager, UX Designer and Front End Developer, all-in-one.

My Company


WONDROUS

at Basel, Switzerland

  • Corporate Platforms
  • Service Experiences
  • Mobile Web Apps

Previous Talks

What We Have

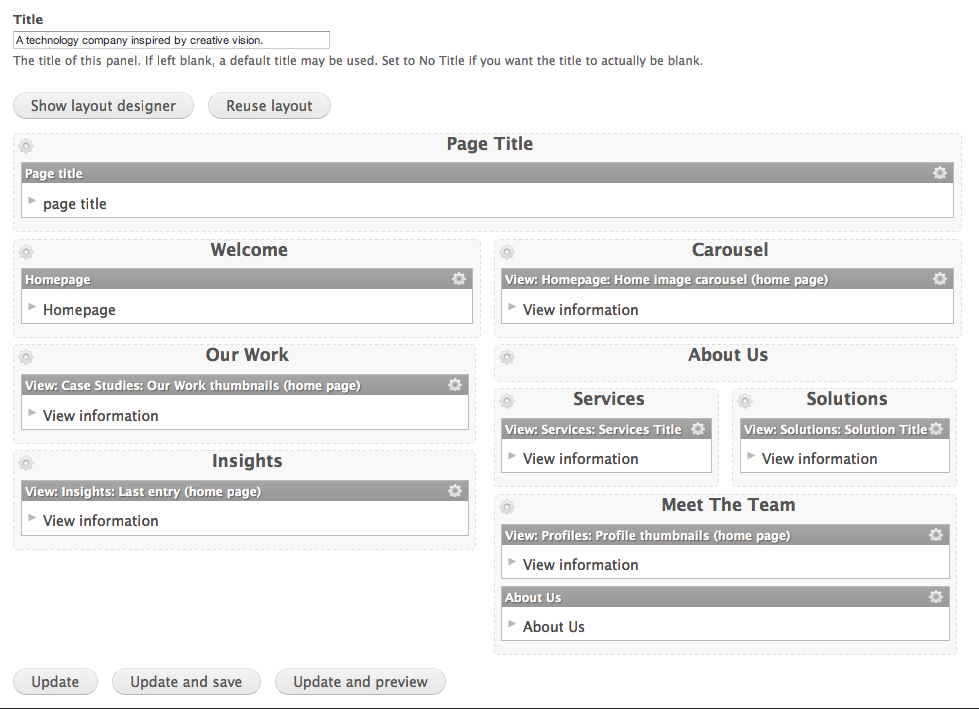

Panels

Panel is not Content Entity!

  • Tricky to Revision
  • Tricky to Translate
  • Tricky to Workflow
  • ...

Panel inside Panel:

  • Increases complexity.
  • Breaks the relation between
    host page and inner Panel.

Content

Nesting

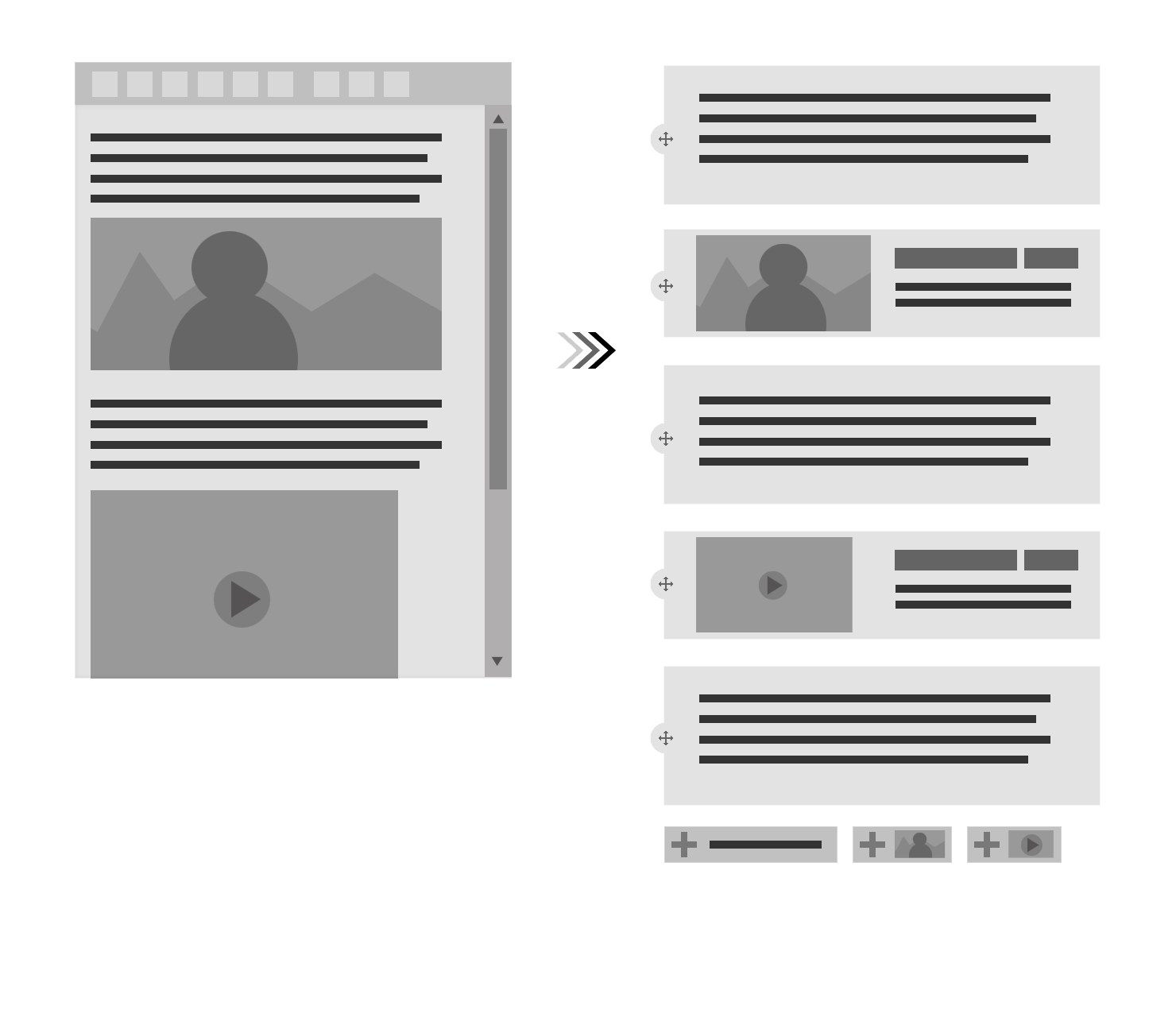

Paragraphs

Pattern

Paragraphs module utilizes Composite Pattern:

  • Page and its Paragraphs is a single whole.
  • Can't reuse Paragraphs.
  • Usually a single Paragraph holds both style options and data.
  • Nesting is tricky.

Custom Entity

Paragraph is custom Entity:

  • Can't mix Paragraphs with other content (Blocks in example).
  • Not friendly to contrib modules (IEF in example).

Atomic Design

Just for design...

Atomic Design is about making design, not buidling the content:

  • How to nest components?
  • How to provide data to nested components?
  • How to use Templates for Organisms?
  • Where is a difference between Page and Ogranism? Molecule and Organism?
  • Too atomic => hard to maintain similar structures on multiple pages.

but still not enough.

So powerful things...

Why?

What is Content?

Content is...

...everything!

Our Team

Mike

Liza

Alex

Lorem ipsum dolor sit amet, consectetur adipiscing elit.

Lorem ipsum dolor sit amet, consectetur adipiscing elit.

Lorem ipsum dolor sit amet, consectetur adipiscing elit.

Our Team

Mike

Lorem ipsum dolor sit amet, consectetur adipiscing elit.

Data type: Text

Data type: Profile

Content is...

  1. Data Model

Mike

Liza

Lorem ipsum dolor sit amet, consectetur adipiscing elit.

Lorem ipsum dolor sit amet, consectetur adipiscing elit.

Color 1

Color 2

Font size 1

Font size 2

Content is...

  1. Data Model
  2. Style Guide

Heading

Column 1

Column 2

Column 3

Content is...

  1. Data Model (model)
  2. Style Guide (view)
  3. Building Blocks (controller)

I. Data Model

Good news: Drupal is all about Data Models!

Entity + Fields

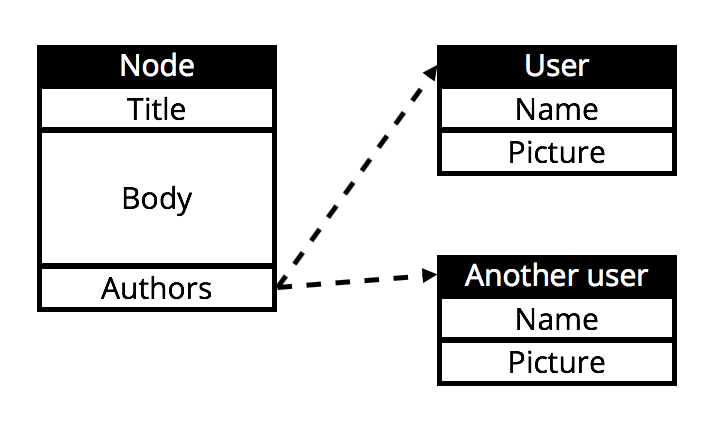

Entity Reference

Advanced:

  • ECK
  • Revisions
  • Translation
  • Moderation

II. Style Guide

Global styling



    h1, h2, h3, h4, h5, h6 {
      margin-bottom: 0.5rem;
      font-family: inherit;
      font-weight: 500;
      line-height: 1.1;
      color: inherit;
    }

Components


    <div class="card" style="width: 20rem;">
      <img class="card-img-top" src="...">
      <div class="card-body">
        <h4 class="card-title">Card title</h4>
        <p class="card-text">
          Some quick example text to build on
          the card title and make up the bulk
          of the card's content.
        </p>
        <a href="#" class="btn btn-primary">
          Go somewhere
        </a>
      </div>
    </div>

Layouts


    <div class="row">
      <div class="col">
        Column 1
      </div>
      <div class="col">
        Column 2
      </div>
    </div>

Utilities


    .bg-primary {
      background-color: #007bff;
    }
    .float-left {
      float: left;
    }
    .m-3 {
      margin: 1rem;
    }

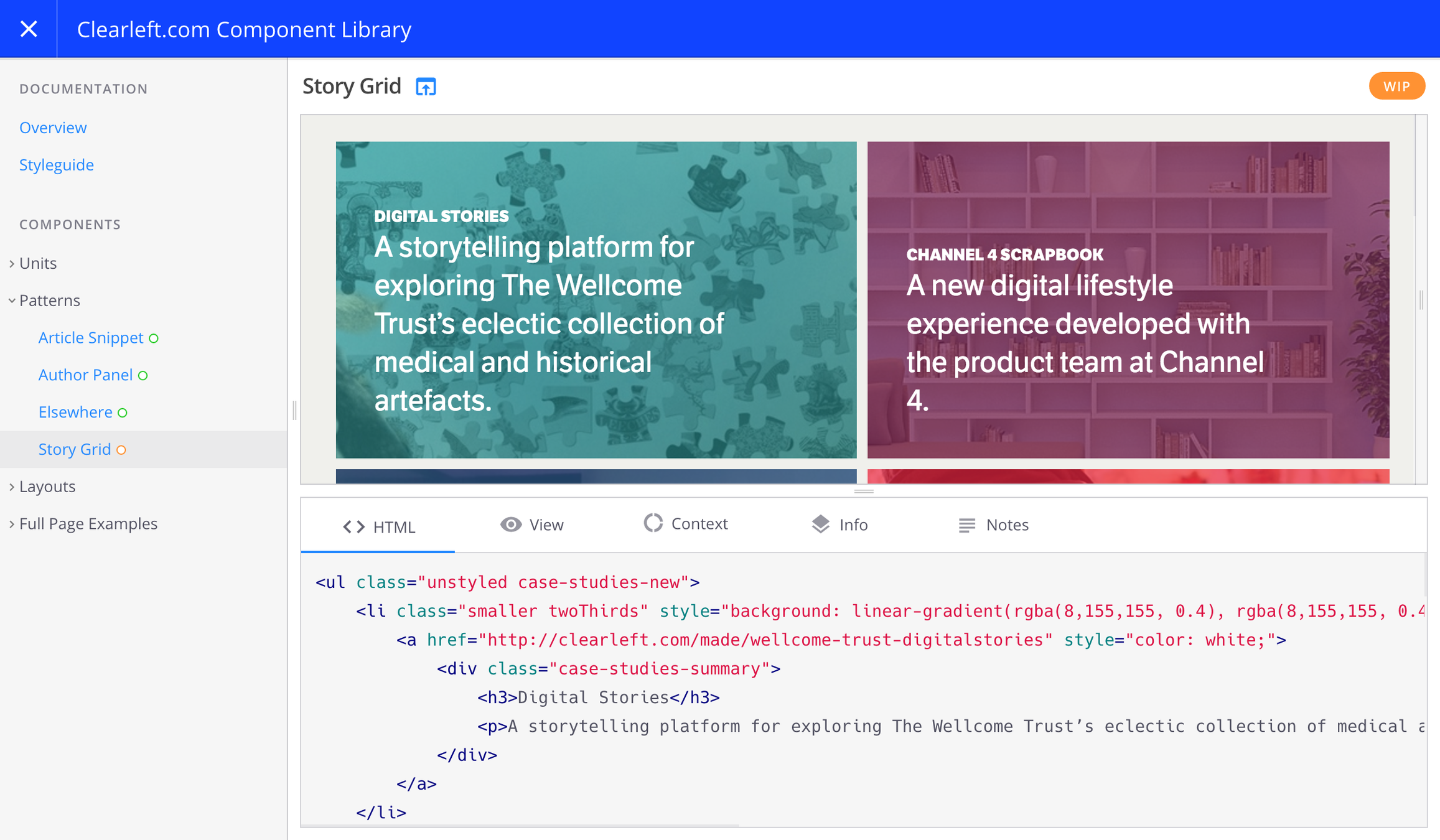

Fractal — Living Style Guide

Stop!

Where is Drupal?

Drupal is everywhere :)

  • Global styling — Theme's CSS
  • Components — Twig templates | UI Patterns
  • Layouts — Twig templates | Layout API
  • Utilities — Twig templates | Admin UI

Database

Style Guide

Building

Block

Content Instance

?

III. Building Blocks

Q: How to render simple data?

A: Twig Template!


    <div{{ attributes }}>
      {% if label %}
        <h2>{{ label }}</h2>
      {% endif %}
      {% block content %}
        {{ content }}
      {% endblock %}
    </div>

Q: How to render the same data
a bit differently?

A: CSS Modifiers!

Mike

Site Builder

Mike

Site Builder

Q: How to render the same data
quite differently?

A: Display Modes!

Mike

Site Builder

Mike

Site Builder

Q: How to render a dynamic list of objects?

A: Views!

Alex

Designer

Mike

Site Builder

• • •

Q: How to combine data?

A: Multi-value Entity Reference Field!

(exactly what Paragraphs module does)

Heading

Lorem ipsum dolor sit amet, consectetur adipiscing elit. Proin urna odio, aliquam vulputate faucibus id.

Wait! Let's look deeper:

Oh, that's a single-column layout!

Heading

Lorem ipsum dolor sit amet, consectetur adipiscing elit. Proin urna odio, aliquam vulputate faucibus id.

Q: What if I want two columns?

Heading

Lorem ipsum dolor sit amet, consectetur adipiscing elit. Proin urna odio, aliquam vulputate faucibus id.

Paragraphs way:

Lorem ipsum dolor sit amet, consectetur adipiscing elit. Proin urna odio, aliquam vulputate faucibus id.

Heading

2-column

Paragraph

Q: What if I want two columns inside second column?

Heading

Lorem ipsum dolor sit amet, consectetur adipiscing elit.

Paragraphs way:

Lorem ipsum dolor sit amet, consectetur adipiscing elit.

Heading

2-column

Paragraph

2-column

Paragraph

Pros

Each Paragraph is self-contained => can be viewed, edited separately.

Cons

  • Each time you use 2-column layout — new Entity is created.
  • Data should be loaded recursively.
  • Managing the overall layout becomes tricky.
  • It's hard to associate data and pages.

Q: Why so many Cons?

A: That should be a responsibility of the host page!



But not of the standalone Paragraphs!

Q: Is there an alternative?

A: Bricks!



https://drupal.org/project/bricks

Bricks way:

Lorem ipsum dolor sit amet, consectetur adipiscing elit.

Heading

Bricks way:

+

=

Layout nesting

Pros

  • Layouts are totally independent from data => can be reused!
  • Layout is stored as a content!
  • Data is stored as a flat table and loaded w/o recursion!
  • Managing the overall layout becomes deadly simple!
  • Data is directly associated with page!

Cons

  • Page is viewed and edited as a single whole.
    • Best practice: to split the page into smaller isolated sections.



  • Not that popular yet.
    • You can change it!

Bricks

https://drupal.org/project/bricks


Demo!

Notes

Note About Entity Reference

Can be used for both:

  • Data Model (references)
  • Building Block (nesting)

Note About Atomicity

Too atomic structures are hard to maintain in the real life.



=> Keep the balance.

Note About Paragraphs

First of all, this is some data model,
not representation.



Please try to keep the border!

Note About Layouts

Layout Builder is fancy.



But manipulates abstract blocks, not content (ie: Paragraphs).

Takeaways

  1. Separate Data, Styles and Building Blocks.
  2. Paragraphs does not work well for nested layouts.
  3. Try Bricks for complex cases.

Thanks.

Contribute

Drop an email to anton@wondrous.ch:

  • Subject: "Let's Content Model!"
  • Share your thoughts, or
  • Describe your complex case, or
  • List your Drupal skills

Evaluate

Submit your feedback: https://events.drupal.org/vienna2017/sessions/how-content-model-drupal-8



Take the survey!
https://www.surveymonkey.com/r/drupalconvienna
