• Download, unzip and launch EB RACE
• Apply for a license key
• Re-start EB RACE and enter your license key
• Click on "Start with Demo Files"
• You are now ready to implement your first script

Hello World

Prerequisites

Hello World

Create a New Script

Go to the Resource Explorer and select New -> New Script

Hello World

Give your script a name

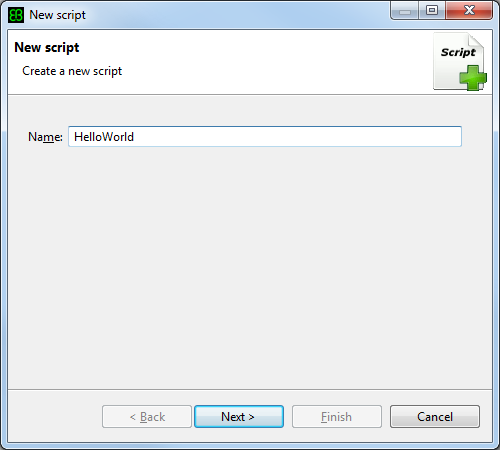

Give the script a meaningful name. You don't need to add a file extension, since it will be auto-completed with .xtend.
Xtend is the language that is internally used as scripting language. Learn more about Xtend.

Hello World

Select a execution context

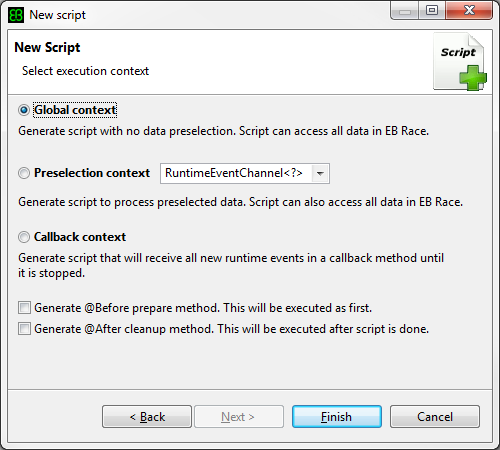

Scripts can be executed in various contexts. Select Global context and proceed with Finish.
Learn more about execution contexts later.

Hello World

The generated script skeleton

class HelloWorld
{

    extension RaceScriptContext _raceScriptContext
    extension RaceScriptBase _raceScriptBase

    new (RaceScriptContext raceScriptContext) {
    	_raceScriptContext = raceScriptContext
        _raceScriptBase = new RaceScriptBase(_raceScriptContext)
    }

    /**
	 * Add a meaningful content to the description tag to describe the feature, which is executed by this script
	 * The content of the description tag will be used in all UI widgets where the script can be invoked
	 * If the content is empty, then the classname.methodname will be used instead
	 */
    @Execute(context=ExecutionContext.GLOBAL, description="")
	def executeScript() {
	}
}

The new script HelloWorld.xtend will be created an opened in the editor. The basic code of your script will be created automatically for you. It contains a constructor, that will give you access to the EB RACE API. Therefore the constructor MUST NOT be touched. Additionally the skeleton of your script method will be generated. Methods with the annotation @Execute will automatically recognized from EB RACE. Learn more here.

Hello World

Add a console prompt to your script

class HelloWorld
{

    extension RaceScriptContext _raceScriptContext
    extension RaceScriptBase _raceScriptBase

    new (RaceScriptContext raceScriptContext) {
    	_raceScriptContext = raceScriptContext
        _raceScriptBase = new RaceScriptBase(_raceScriptContext)
    }

    /**
	 * Add a meaningful content to the description tag to describe the feature, which is executed by this script
	 * The content of the description tag will be used in all UI widgets where the script can be invoked
	 * If the content is empty, then the classname.methodname will be used instead
	 */
    @Execute(context=ExecutionContext.GLOBAL, description="")
	def executeScript() {
            /* YOUR CONSOLE PROMPT */
    	    consolePrintln("Hello EB RACE Script")
	}
}

Hello World

Execute your script

The new script HelloWorld.xtend will be created an opened in the editor.Scripts which are annotated with ExecutionContext.GLOBAL can be executed within the Resource Explorer.
Go to the folder Scripts, navigate to your script and execute it.

Hello World

See the result

As usual for a "Hello World" example we have picked the most simple use-case. Printing a string into the console.

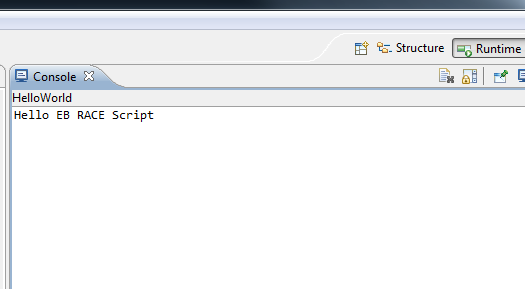

The console will be opened automatically in EB RACE.

Continue with this tutorial for more elaborated scripts.

Determine CPU Peaks

Use Case Description

We want to determine the highest value of a channel (i.e. the global peak) and visualize it as a time-marker. We want to apply this function for arbitrary channels and display the result in a line chart together with the markers.

Determine CPU Peaks

Setting the execution context

@Execute(context=ExecutionContext.PRESELECTION, description="Create a time-marker for the highest value")
def tutorial01(RuntimeEventChannel<?> channel) {
}

We want to call the script, in the context of the channel explorer.

So we need to set the ExecutionContext to PRESELECTION and add a RuntimeEventChannel as parameter.

The script is now registered and can be called.

And we can now add our code into the generated skeleton.

Determine CPU Peaks

Retrieve the events from a channel

@Execute(context=ExecutionContext.PRESELECTION, description="Create a time-marker for the highest value")
def tutorial01(RuntimeEventChannel<?> channel) {
    // get all events from a channel
    channel.events
}

First we need to get access to all events within the given channel.

This is a simple EB RACE API call:

Detmerine CPU Peaks

Determine the peak value

@Execute(context=ExecutionContext.PRESELECTION, description="Create a time-marker for the highest value")
def tutorial01(RuntimeEventChannel<?> channel) {
    // sort the events from a channel by its values and pick the highest (i.e. the ast element of the list)
    channel.events.sortBy[value as Double].last
}

To determine the event with the highest value, we need to sort the list of events and take the last entry from the list.

This is pure Xtend functionality

Determine CPU Peaks

Create a timemarker

@Execute(context=ExecutionContext.PRESELECTION, description="Create a time-marker for the highest value")
def tutorial01(RuntimeEventChannel<?> channel) {
    channel.events.sortBy[value as Double].last.createTimemarker("CPU Peak "+channel.name)
}

Since we have picked the event with the peak value, we can now create a marker at the given time-stamp and give the marker a meaningful name.

Detmermine CPU Peaks

Create a chart and jump to the marker

@Execute(context=ExecutionContext.PRESELECTION, description="Create a time-marker for the highest value")
def tutorial01(RuntimeEventChannel<?> channel) {
    channel.events.sortBy[value as Double].last.createTimemarker("CPU Peak "+channel.name).jumpTo
    createOrGetChart("CPU Load Overview", CHART_TYPE.LINE_CHART).add(channel)
}

Then visualize the cpu values in a chart and jump to the marker, that has just been created.

Determine CPUPeaks

See the result

See what happens, when the script is applied on several channels

Events & Channels

Events

• Events carry the basic run-time data of your system, such as cpu load, memory consumption, ipc messages, trace and logging data, etc.
• Events can either be acquired from a target agent plug-in and sent to EB RACE or created by an importer directly in EB RACE.
• An event always comes with a time-stamp along with any kind of value, whereas the value can be of primitive type or of any arbitrary complex type.
• Complex types can be transformed into structured trees by a corresponding decoder.
• Events can be accessed and created by use of the internal Script API

Events & Channels

Channels

• Channels are container for events of the same kind of data
• They do have a unique names, such as "cpu.p:targetagent:3460", whereas the "." in the name serves as a separator in the hierarchical channel view
• Channels with events of
  • numeric types (e.g. integer, double, etc.) can be visualized in Line Charts and Tables
  • boolean type can be visualized in Gantt Charts and Tables
  • complex types can be visualized in the decoder view as part of an EB RACE Table
• Channels can be accessed and created by use of the internal Script API

Execution Context

Overview

• In order to allow the best possible ease of use the scripts are designed to be executed directly within the EB RACE GUI.
• Depending on your use case scenario (e.g. postmortem vs. live analysis) you can tell EB RACE how to execute your scripts.
• This will be achieved by annotating your script methods with the tag @Execute and a corresponding context.
• There are three different context available:
  • Global
  • Preselection
  • Callback

Execution Context

Example Use Case

In order to explain the different execution contexts, take following use case, where you want to create a time-marker, whenever your cpu load is higher than 50%:

Scenario 1: You want to do the analysis post-mortem and you know your corresponding channel is named "cpu.system"

Scenario 2: You want to do the analysis for any kind of channel

Scenario 3: You want to do the anaylsis in case of live connection

Execution Context

Scenario 1 (Global)

@Execute(context=ExecutionContext.GLOBAL, description="")
def createMarkerForHighCpuLoad() {
    // you as a developer need to indicate the channel,
    // in this case "cpu.system".channel
    getChannel("cpu.system").events.filter[value as Double > 50].
        forEach[createTimemarker("High CPU Load")]
}

Scenario 1: You want to do the analysis post-mortem and you know your corresponding channel is named "cpu.system"

Execution Context

Preselection

@Execute(context=ExecutionContext.PRESELECTION, description="")
def createMarkerForHighCpuLoad(RuntimeEventChannel<?> channel) {
    // The channel was already selected by the user within the GUI
    // and can be accessed as parameter
    channel.allEventsFromChannel.filter[value as Double > 50].
        forEach[createTimemarker("High CPU Load")]
}

Scenario 2: You want to do the analysis for any kind of channel

Execution Context

Callback

@Execute(context=ExecutionContext.CALLBACK, description="")
def createMarkerForHighCpuLoad(List<RuntimeEvent<?>> events) {
    // You need to check if the list of events contain information
    // from the channel you are interested in.
    events.filter[channelName.equals("cpu.system")].
        filter[value as Double > 50].
        forEach[createTimemarker("High CPU Load")]
}

Scenario 3: You want to do the anaylsis in case of live connection

Execution Context

Summary

Lifecycle of a Script

Overview

Similar to a JUnit-Test an EB RACE Script follows the paradigm, that a script can undergo certain life cycle stages, where you can implement startup and cleanup code, if needed.

When creating a new script, the wizard asks you to generate corresponding skeletons for your method.

Lifecycle of a Script

Generated Code

@BeforeRaceScript
def setupScript() {
    // Your setup code
}

@Execute(context=ExecutionContext.GLOBAL, description="My description")
def executeScript() {
    // Your script code
}

@AfterRaceScript
def cleanup() {
     // Your cleanup code
}

setup

cleanup

execution

optional

optional

Lifecycle of a Script

The rules and workflow

• You are free to rename method names, the annotations are decisive.
• Every script is invoked with the order: @BeforeRaceScript -> @Execute -> @AfterRaceScript.
• The startup and cleanup methods are optional, they are only invoked when they are available.
• The lifecycle order applies for all execution contexts (Global, Preselection and Callback) in the same way.
• Whenever a script is stopped explicitly by the user (e.g. when ending a callback script during live-connection) the @AfterRaceScript method is called (if available).
