WeBoard

NTU ME - Andy Tseng

PET ( Personal Electric Transport )

Context

• Experiment Design
  • Research by online and daily experiment
  • Questionnaire to small group
  • Data evaluation to Taobao shopping data (halt)
• Prototype Plan
  • 4-in-1 PET
  • Electric Penny Board as addon for bike
  • Foldable PET with seat

Experiment Design

• Research by online and daily experiment
• Questionnaire to small group
• Data evaluation to Taobao shopping data (halt)

Research by online and daily experiment

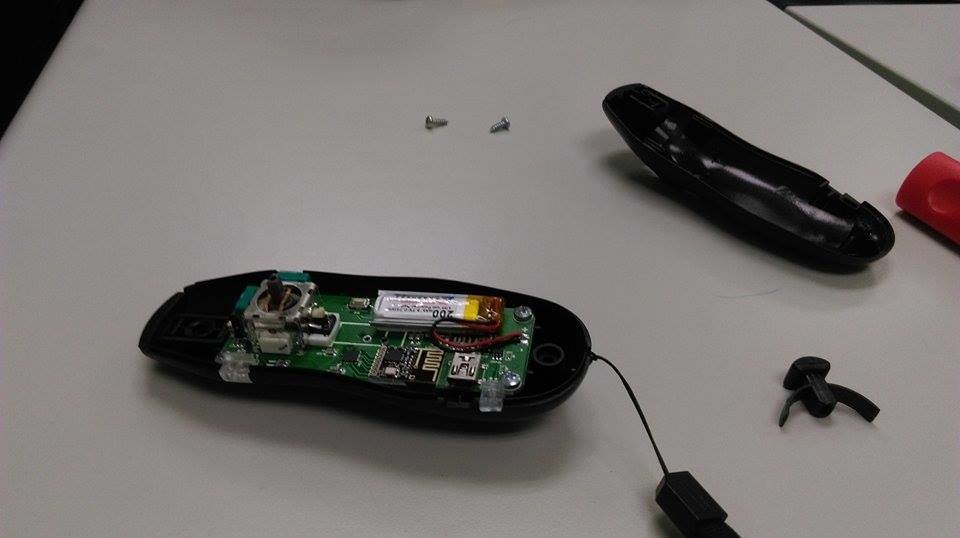

Interact with different device,

eg. electric skateboard,

kick scooter, electric circuits.

Quiz

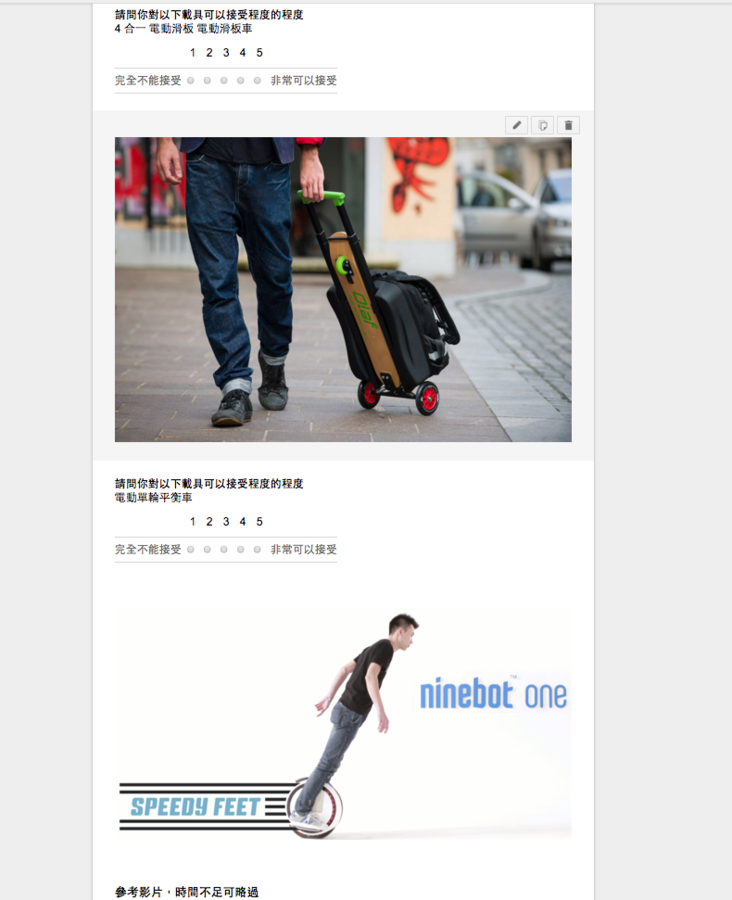

Random Image Test

Interaction Test

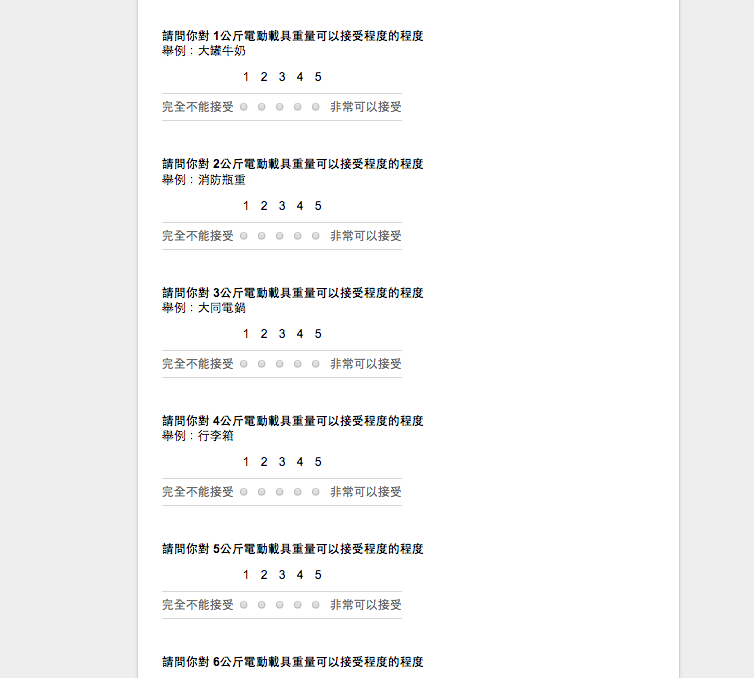

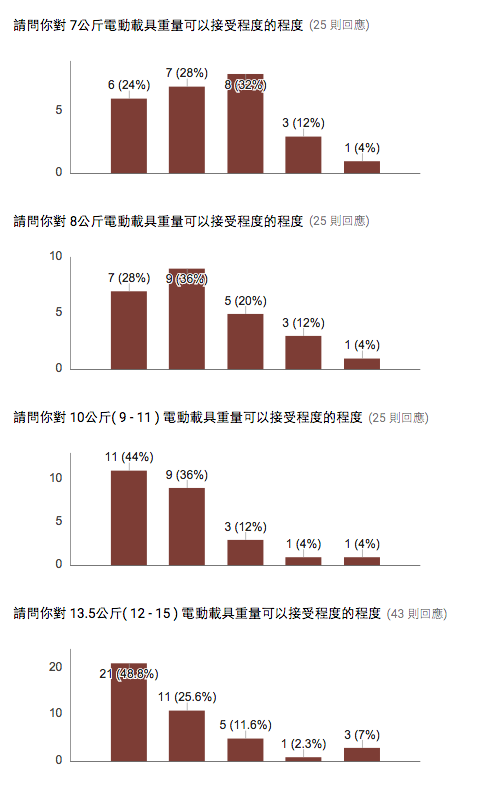

Weight Decay Test

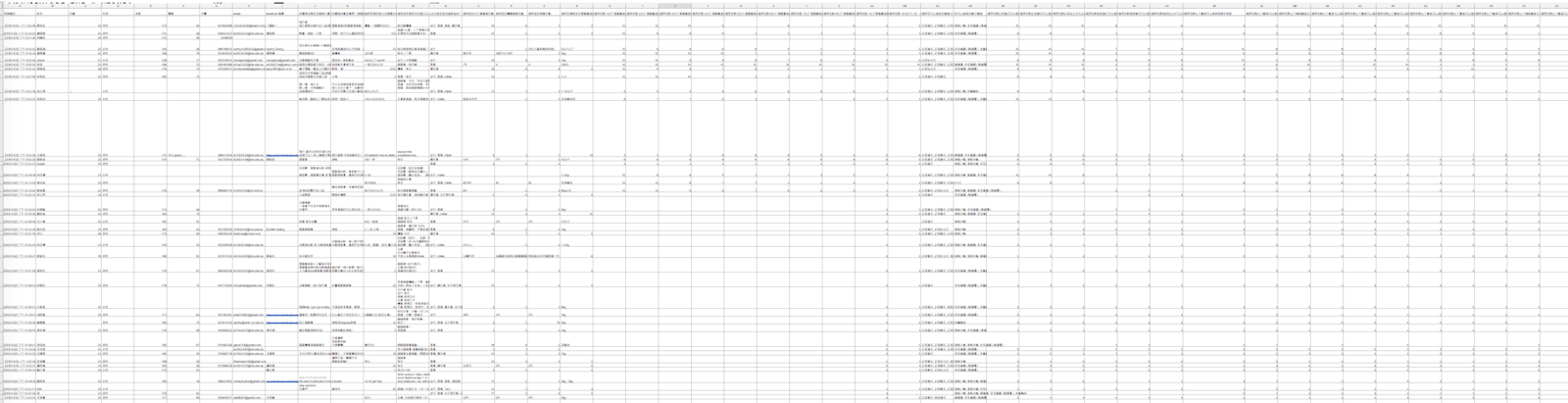

Lots of Data

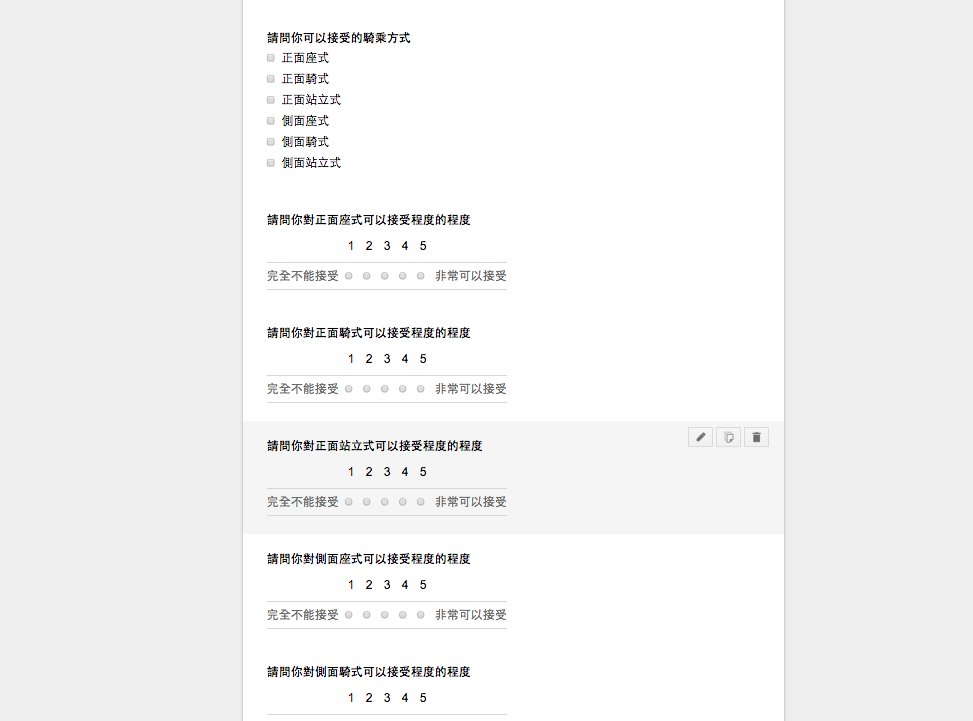

Questionnaire to small group

41 people took the quiz

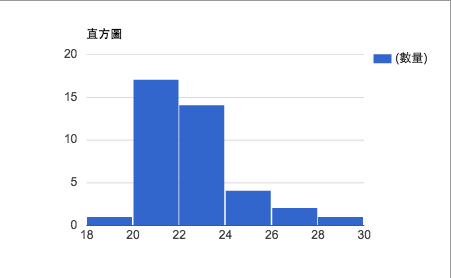

Ave 22 years old

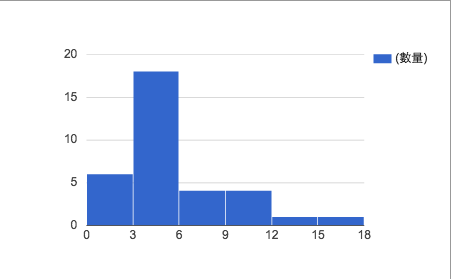

average weight : 5.38kg

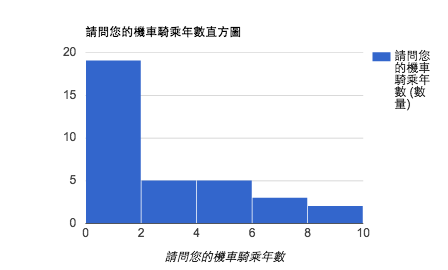

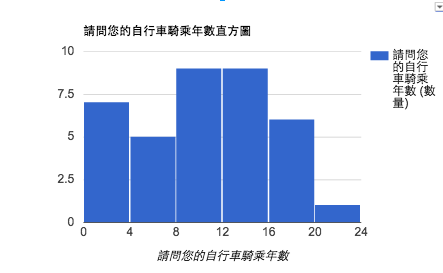

Driving History

Most learned bike in middle school.

Else learn it during college

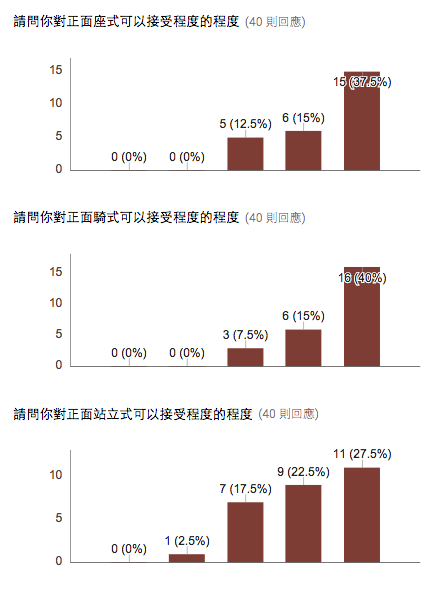

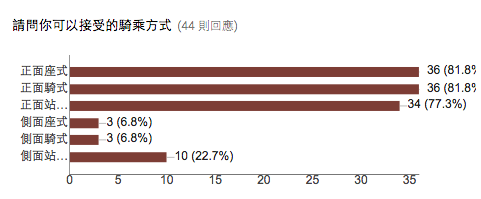

Posture

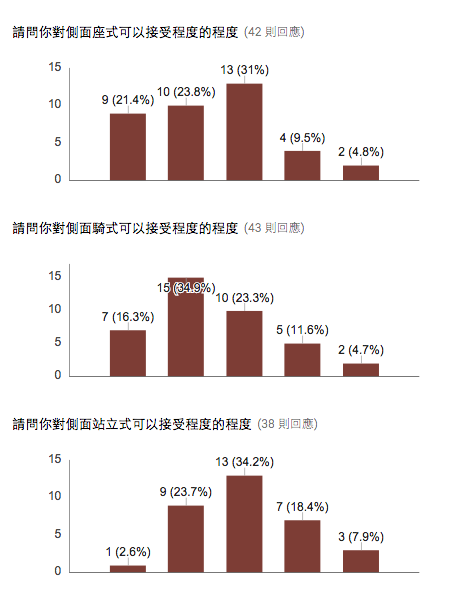

Posture

Weight Distribute

Neutral

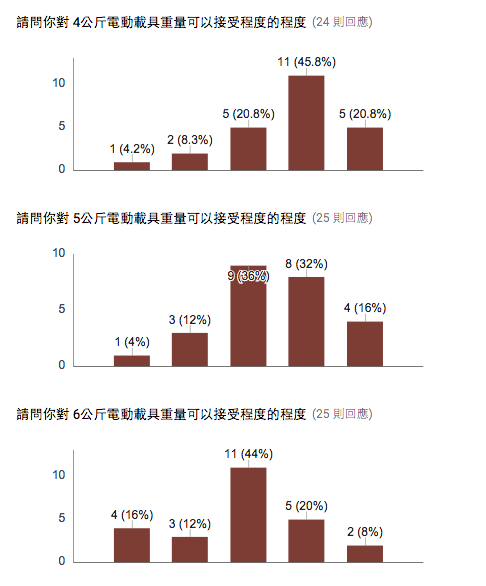

Weight Distribute

Weight Distribute

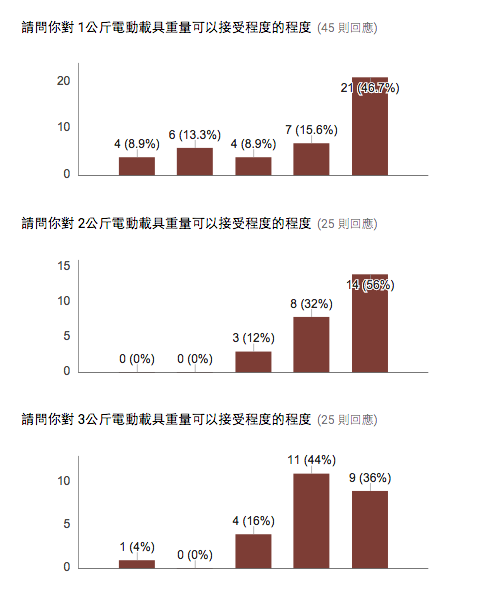

First class product: x<3kg

Second class product: 3kg<x<5kg

Third class product: 5kg<x<8kg

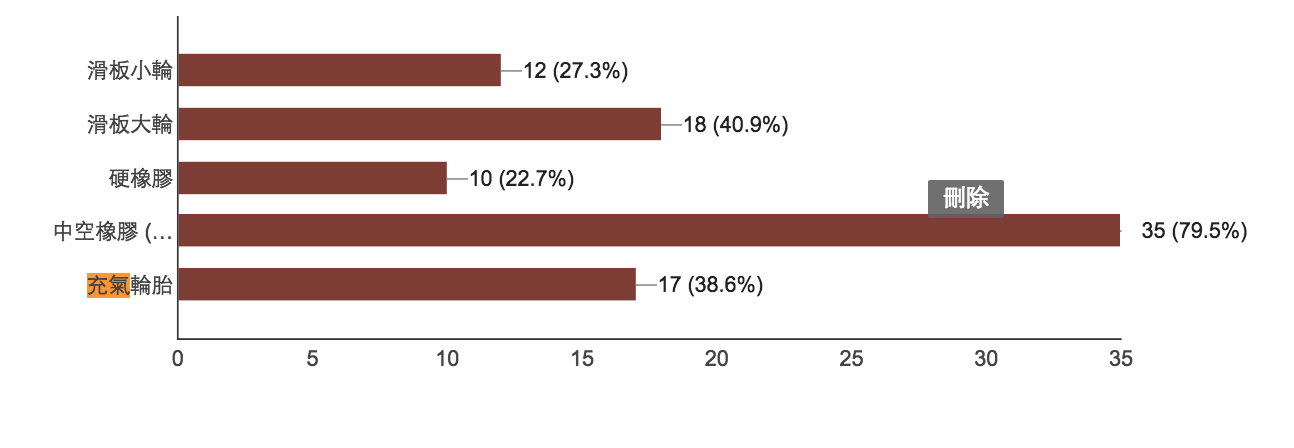

Wheel prefer

They need suspention

Random Test

Ave Control

5 Star

4 Star

Random Test

3 Star

2 Star

1 Star

Random Test

Control  result might depend on the popularity of devices

-> we have to normalize it.

Some extremely hate using body control

So decided not to use body control

body control is the best

Prototype Plan

Prototype Plan

4-in-1 PET

3.8kg + 1.1kg kit = 4.9kg

4-in-1 PET

Cost:

1. Board                             = 7050 NTD
2. Motor Kit                       = 1802 NTD
3. Battery                           = 2000 NTD
4. Power converter          = 1287 NTD
5. Wireless Controller     = 515    NTD

Total 12654 NTD

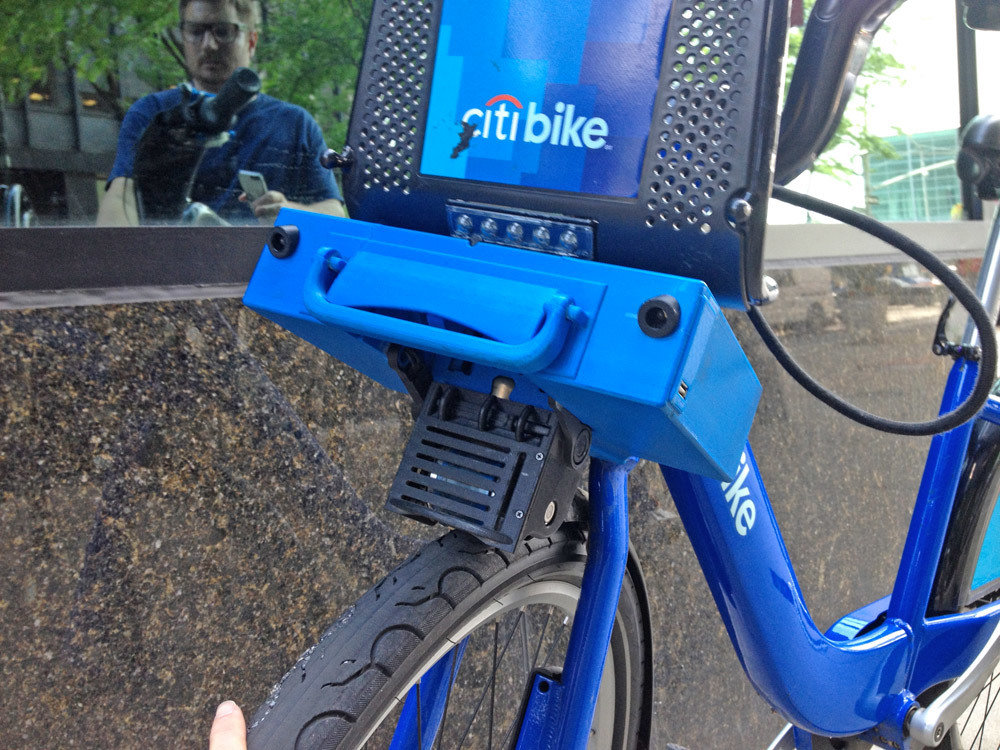

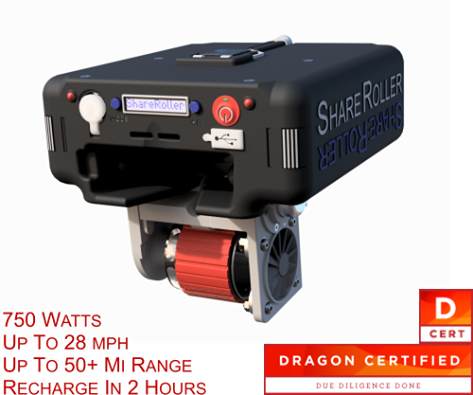

Electric Scooter (Bike Addon)

5.5kg + 1.1kg kit = 6.6kg ( comfort )

2.9kg + 1.1kg kit = 4kg ( extreme )

Electric Scooter (Bike Addon)

Cost:

1. Scooter                           = 6050 NTD
2. Motor Kit                       = 1802 NTD
3. Battery                           = 2000 NTD
4. Power converter          = 1287 NTD
5. Wireless Controller     = 515    NTD

Total 11654 NTD

Electric Scooter (Bike Addon)

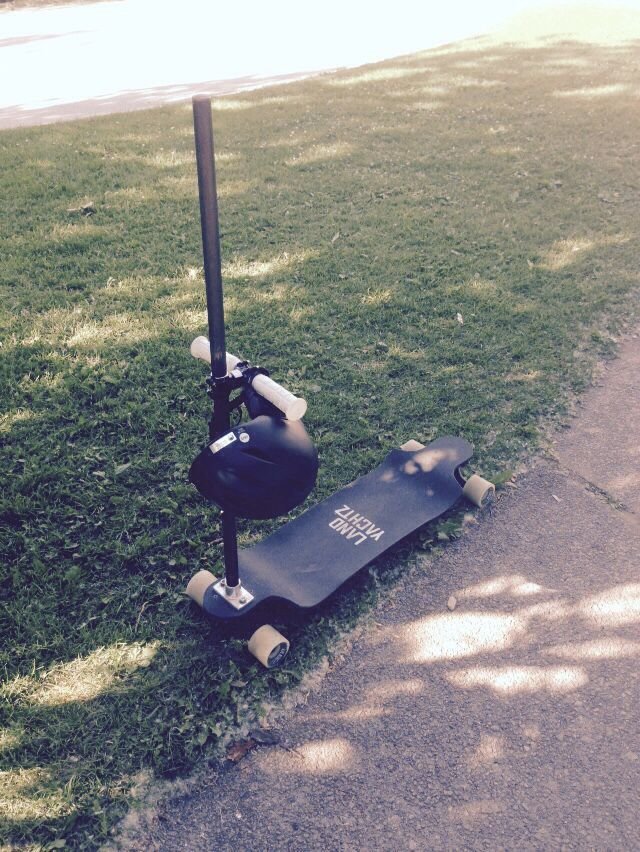

Electric Skateboard with handle

Cost:

1. Board                             = 3000 NTD
2. Handle                           = 1000 NTD
3. Motor Kit                       = 1802 NTD
4. Battery                           = 2000 NTD
5. Power converter          = 1287 NTD
6. Wireless Controller     = 515    NTD

Total 9604 NTD

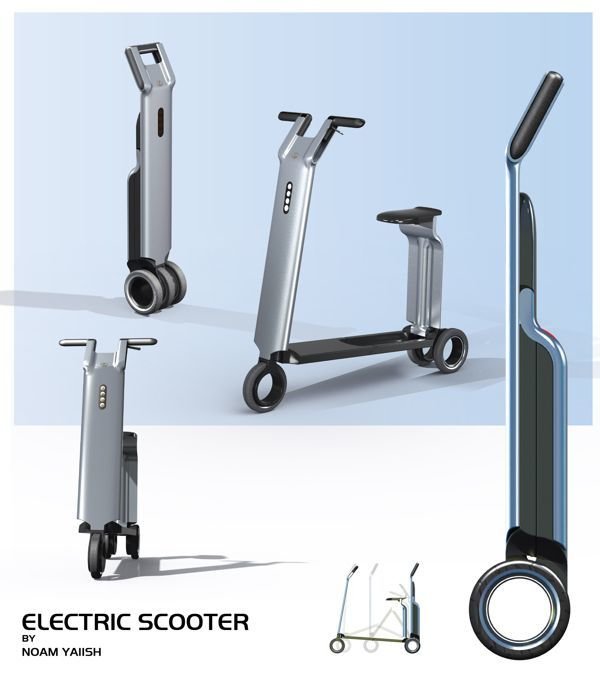

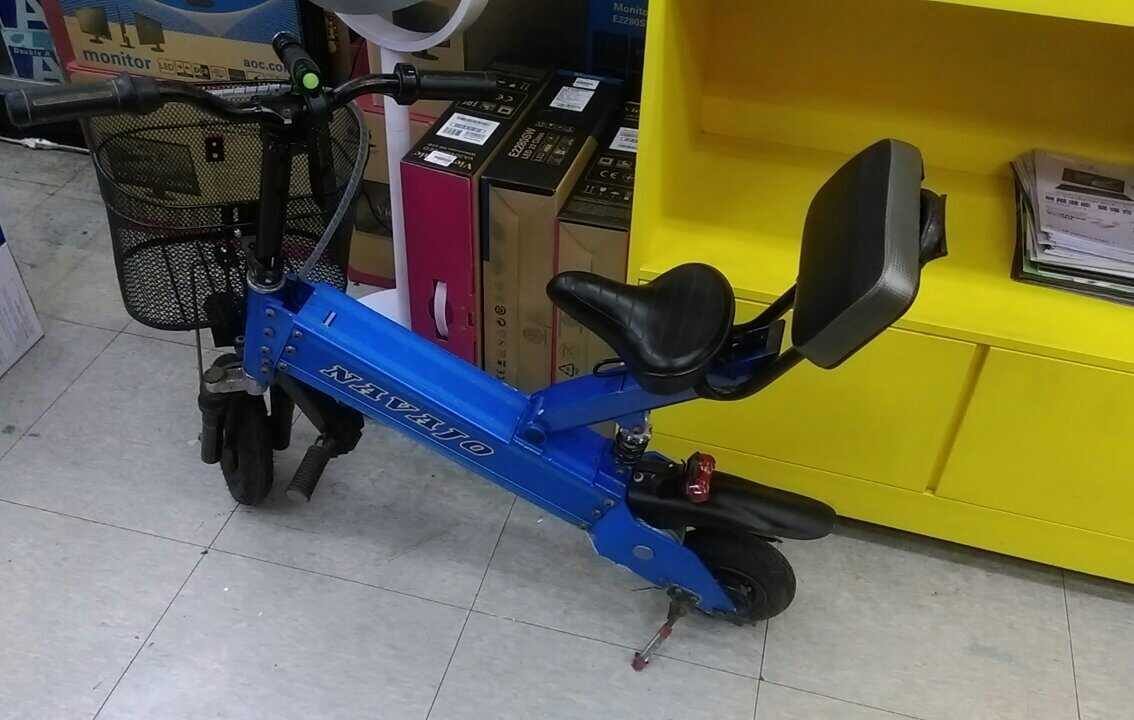

Foldable PET with seat
