Efficient Record-Level Wrapper Induction

Shuyi Zheng   Ruihua Song   Ji-Rong Wen   C. Lee Giles , 2009

Yan-Kai Lai, Yu-An Chou

Outline

• Abstract

• Introduction

• Data Representation

• System Overview

• Record Wrapper Induction

• Algorithm

• Record Clustering & Wrapper Generation

• Constructing Wrapper Libraries

• Record Extraction

• Record Disambiguation

• Experiments

• Conclusion

Abstract

• Web information is often presented in the form of record, e.g., a product record on a shopping website or a personal profile on a social utility website.
• In our system, we use a novel 「broom」 structure to represent both records and generated wrappers.

Introduction

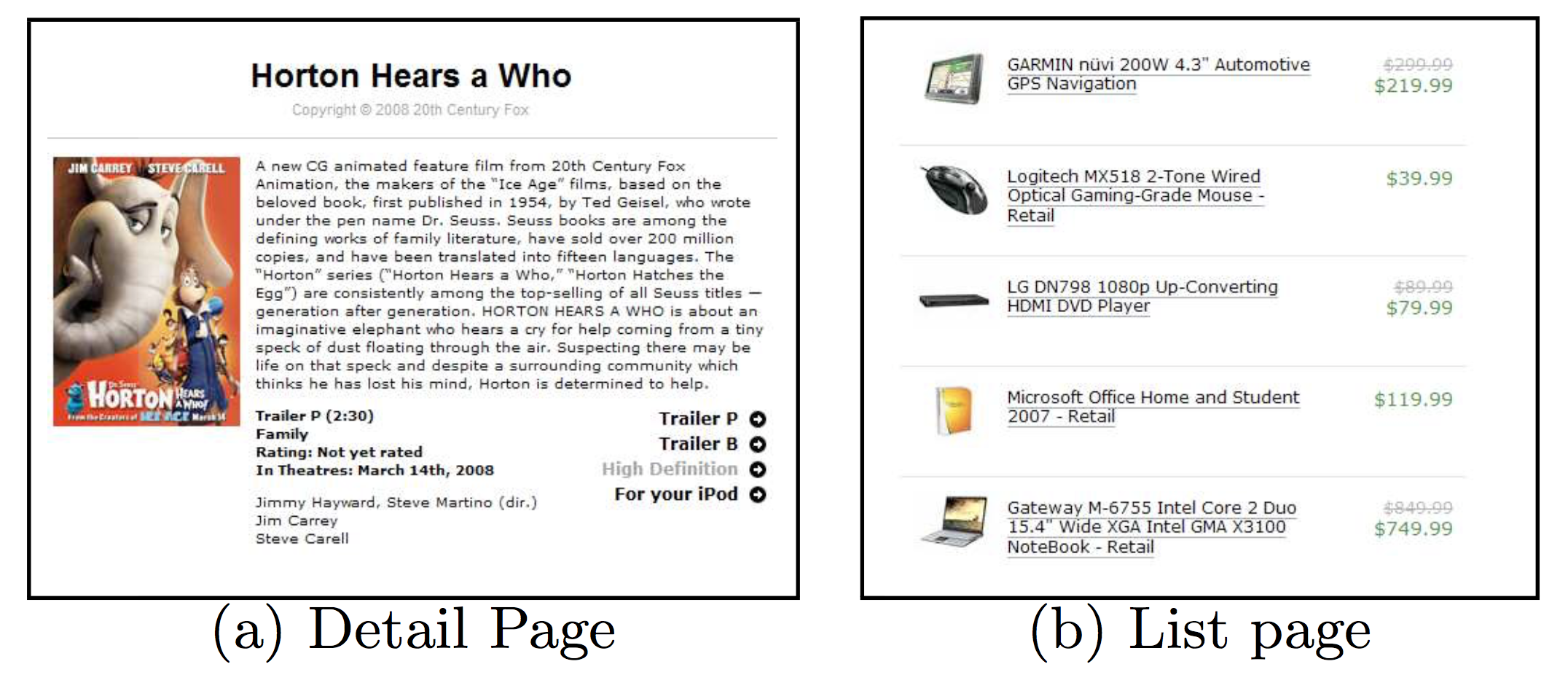

• Much Web information is presented in the form of a Web record which exists in both detail and list pages.

Introduction

• The task of extracting records from web pages is usually implemented by programs called wrappers.
• The process of leaning a wrapper from a group of similar pages is called wrapper induction

Introduction

• Most traditional wrapper techniques have issues dealing with web records since there is no clear boundary for partitioning different records from the HTML source.

Introduction

• This system is able to effectively extract records and identify their internal semantics at the same time.

• Our record-level wrapper technique makes the following contributions:

  • ​We propose a novel 「broom」 structure to represent a record

  • We propose using context words to disambiguate different attributes that are embedded in similar HTML tag trees.

Data Representation

• When a page has more than one record, we assign unique IDs (「record id」) to them.

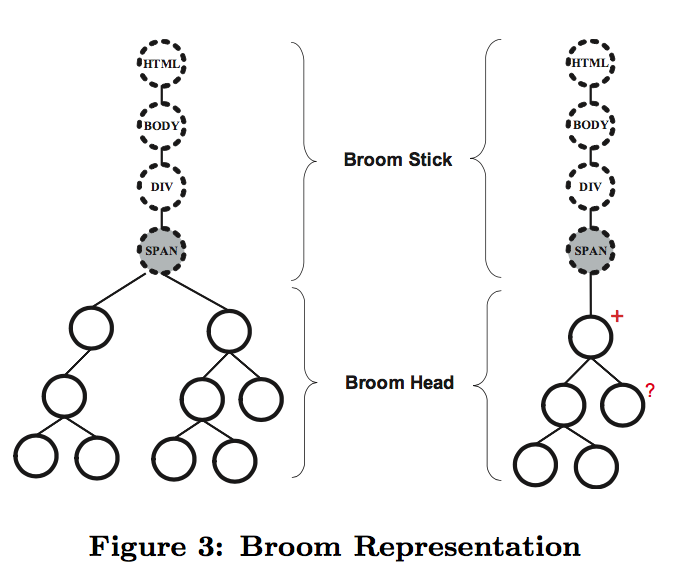

• A broom has two parts: the 「head」 and the 「stick」.

  • The broom head is a record region consisting of sub-trees of a DOM-tree;

  • The broom stick is a tag-path starting from the root tag HTML to the top of the record region.

• ​Wrappers are also represented in such broom structures.

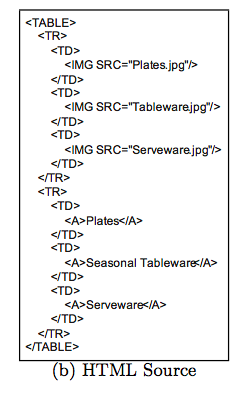

Data Representation

Data Representation

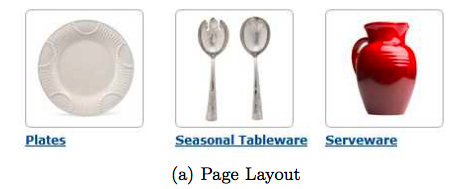

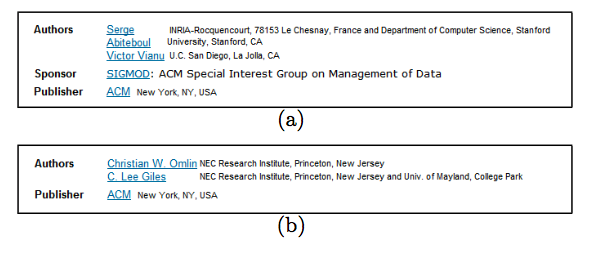

• For a specific website, different types of records may have the same sub-tree structure.
• Records in a website can be grouped by their tag- paths.

  • A wrapper should be used to only extract records which have the same tag-paths as itself.

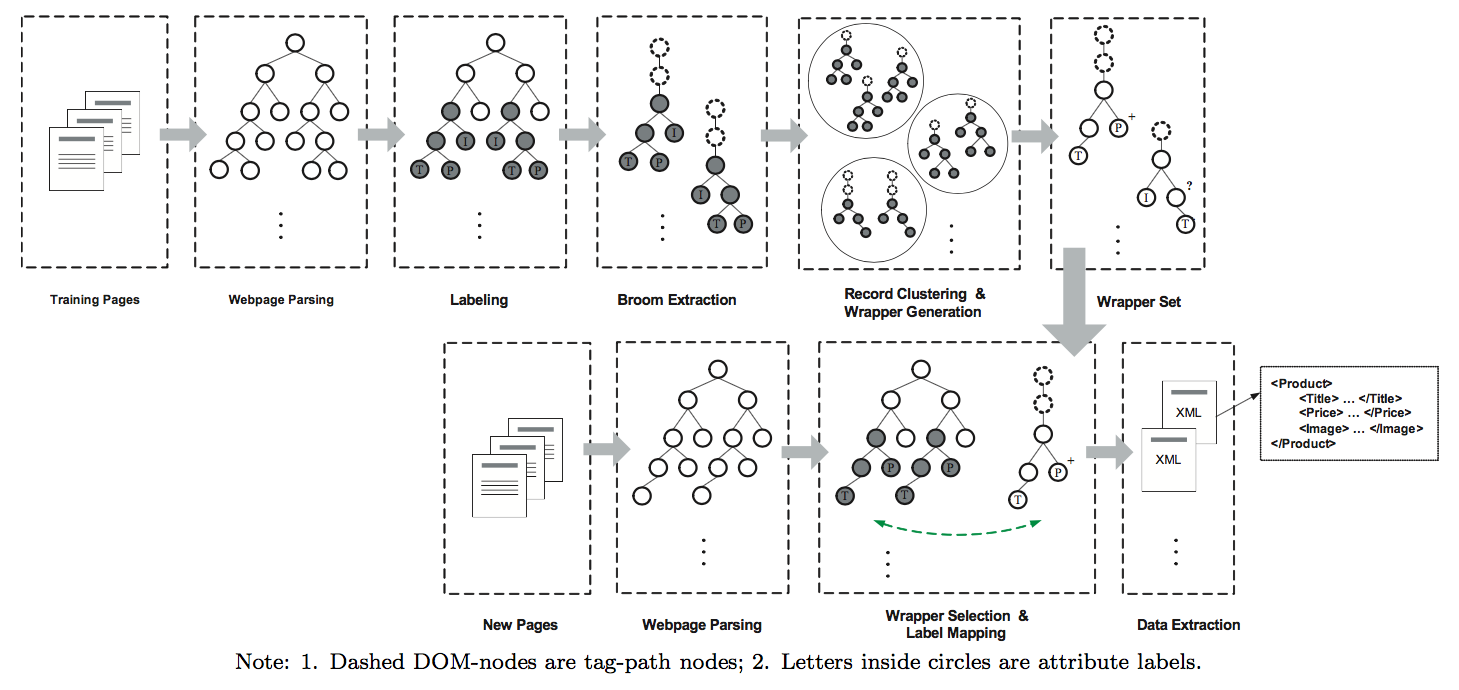

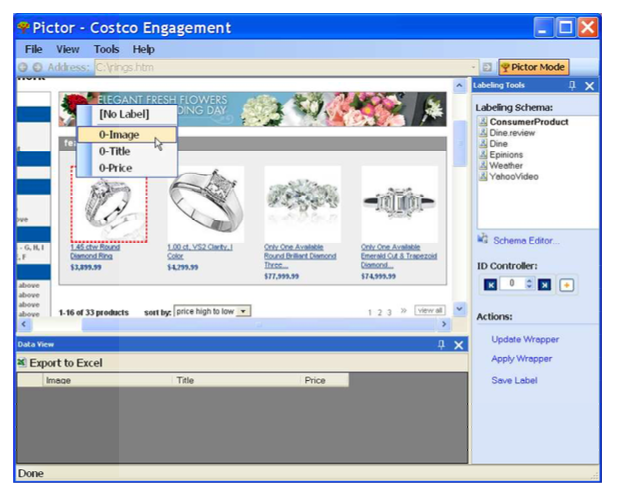

System Overview

System Overview

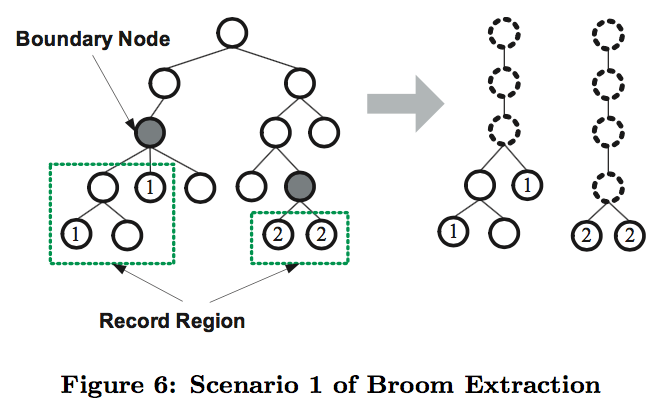

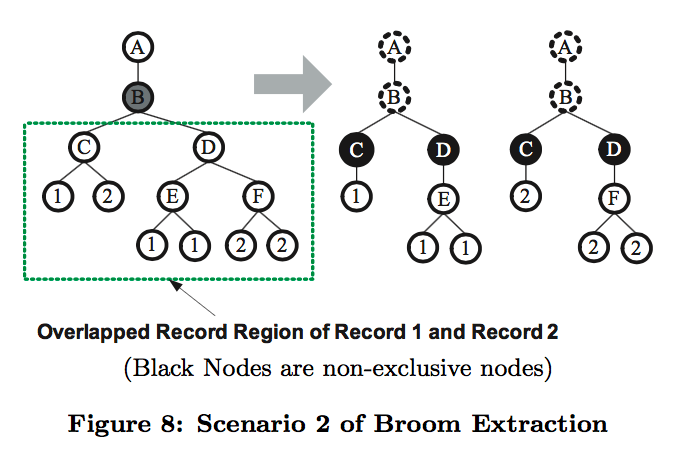

Record Wrapper Induction

• Definition
  1. Boundary Node：Given a labeled DOM- tree and a record ID i, then the boundary node of record i is the root node of a minimal sub-tree which can fully cover all nodes of record i.

  2. Record Region：Given a labeled DOM- tree and a record ID i, then the record region of record i is the smallest set of sub-trees (a forest) which satisfies the following conditions: (1) They can fully cover all nodes of record i (2) They are consecutive siblings rooted at the boundary node of record i.

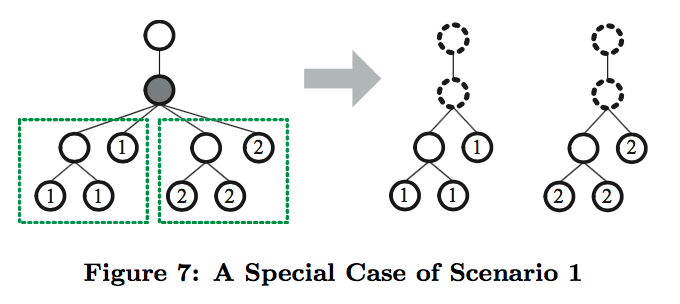

Record Wrapper Induction

Record Wrapper Induction

Record Wrapper Induction

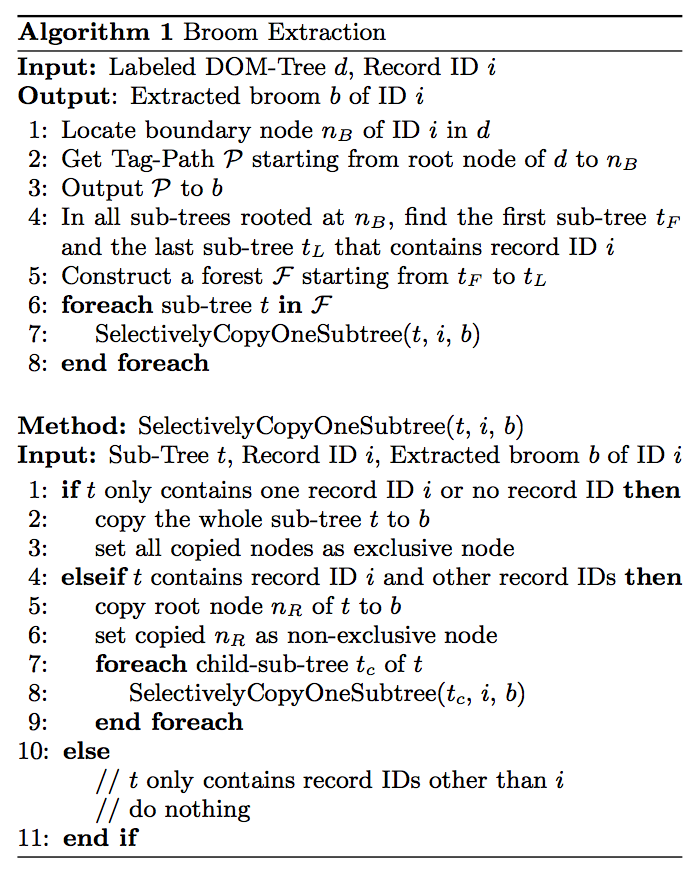

Algorithm

Record Clustering & Wrapper Generation

• As both template detection and wrapper generation are based on a well-defined pair-wise similarity metrics, that approach can achieve a joint optimization by the criterion of extraction accuracy.

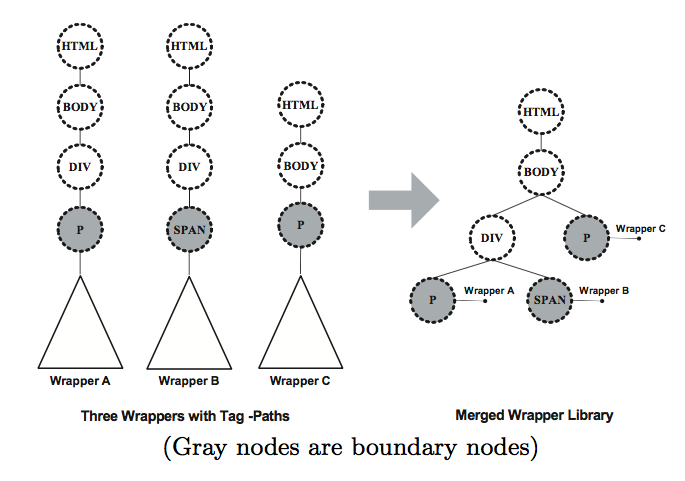

Constructing Wrapper Libraries

• The main task of this construction process is to merge different tag-paths into a tree structure
• This is a top-down process of merging same prefixes of multiple tag-paths

Constructing Wrapper Libraries

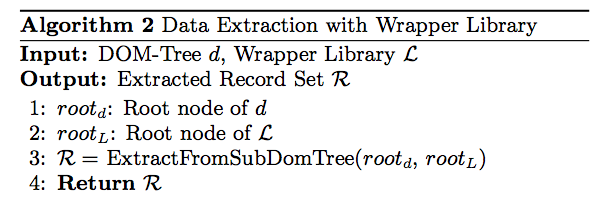

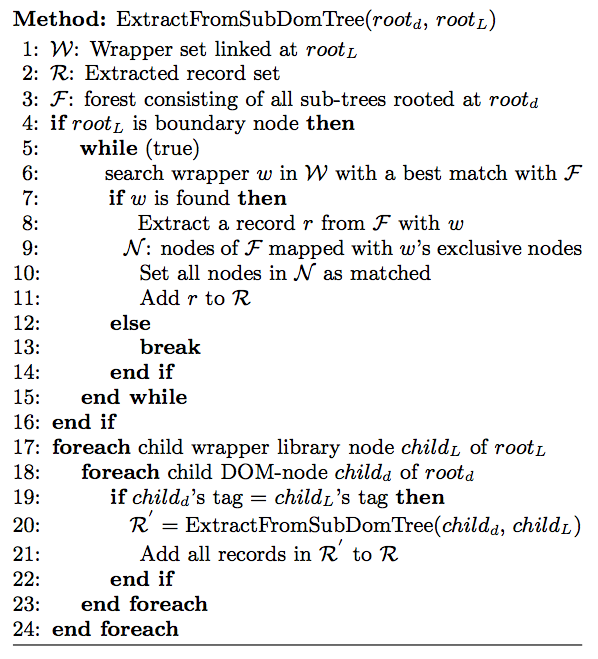

Record Extraction

Record Disambiguation

• Our approach considers surrounding text in wrapper induction selectively.

• There are multiple possible alignments with the same smallest aligning cost, the one with less text mismatch will be chosen as the final solution.

Experiments

• Dataset

  • We collected our experimental data from 16 real-life large- scale websites belonging to four different domains.​

Experiments

•       ：the extracted metadata
•       ：the manually labeled ground-truth metadata

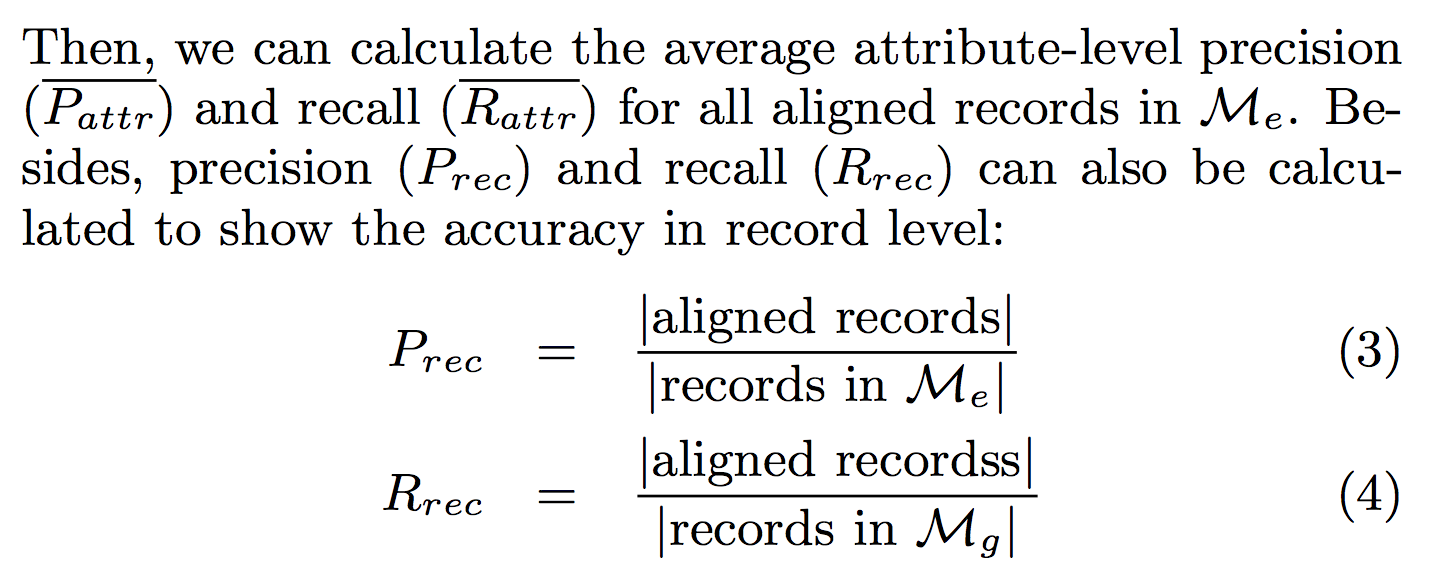

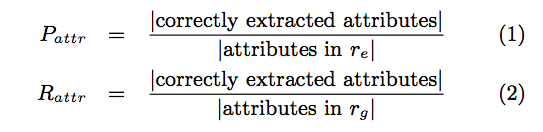

• suppose record       in       is aligned with record      in       , the attribute-level precision (         ) and recall (         ) for record re can be calculated with the following equations

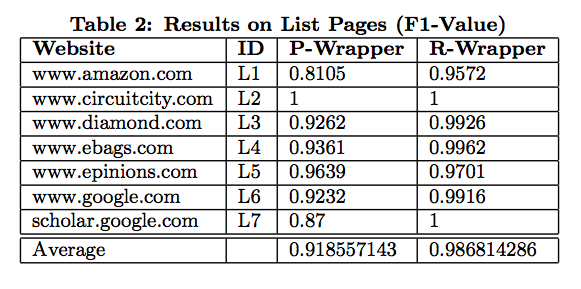

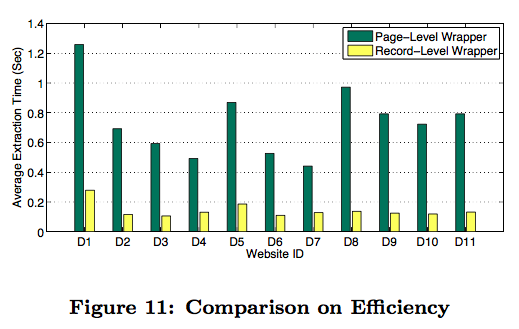

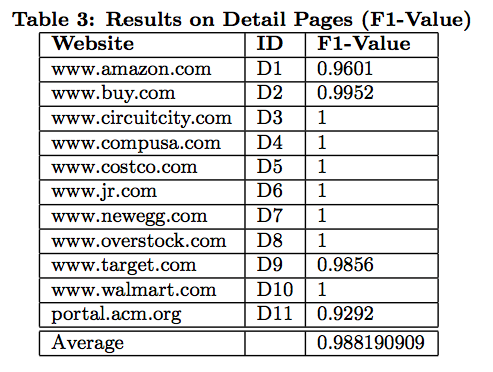

Experiments

Experiments

Experiments

Experiments

Conclusion

• This paper describes a record-level wrapper induction system which is able to effectively extract records and identify their internal semantics at the same time.

• Compared to traditional page-level wrapper methods, the proposed approach not only saves a lot of effort made in manually labeling but also performs data extraction more efficiently.
