HTML: mark it up!



3 Layers in the Web Browser

1. HTML - Structure of the page

2. CSS - Style / Presentation of the page

3. Javascript - Interaction, Dynamic, Logic of the page

Good practice to keep these layers and their code separate from each other.

HTML

Hyper Text Markup Language

Describes the structure of the web page.  HTML elements are

usually made up of two tags: an opening and closing tag with content inside of them.



Semantic HTML (HTML5) is HTML that is descriptive and has meaning. It keeps your HTML clean and every block of code has clear intent.

HTML Tags

HTML tags (elements) normally come in pairs, with an opening and closing tag

Tags act like containers, they tell you something about the information that lies between the tags.

<h1>     </h1>

HTML Tags

This is a header tag which is used for main headings

<h1>Goats in Trees!</h1>

HTML Tags

<h1>-<h6> section headings, with <h1> the largest and <h6> the smallest

<p> paragraph

<ul> unordered list

<ol> ordered list

<li> list element

<br> line break

<header> a group of introductory or navigational aids

<nav> a section with navigation links

<section> a generic section of a document

<article> a section with an independent item of content

<footer> usually at the end of a section

<div> misc grouping, generic section



<a> hyperlink

<span> grouping and applying styles to inline elements

<q> short inline quote





Grouping/Sections

Text

Inline

HTML Tags

<table> table

<thead> group header content in HTML table

<tbody>  group body content in HTML table

<tfoot> group footer content in HTML table

<tr> table row

<th> table head

<td> table data



<img> embed image

<video> embed video


Embedding Content

Tables

Forms

<form> section to collect user input

<input> most important form element

<input type = "text>  one-line input field

<input type = "radio"> radio button

<input type = "submit"> submit button

<button> clickable button



Attributes

Attributes provide additional information about the contents of an element.

They appear on the opening tag of the element and made up of a name and value pair

<div id="title" >

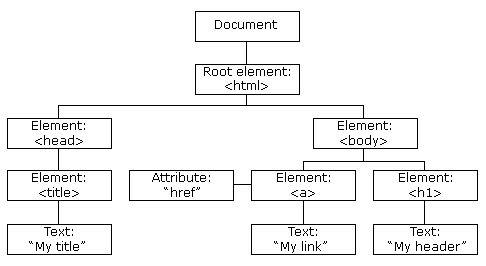

HTML Tree

HTML Structure

<!DOCTYPE html>
<html lang="en">
<head>
  <meta charset="UTF-8">
  <title>HTML Presentation</title>
  <link rel="stylesheet" href="css/styles.css">
</head>
<body>
  <p>Everything inside the body element is shown inside the main browser window.</p>

 <script src="js/app.js"></script>
</body>
</html>

<head> element contains information about the page (rather than the information that is shown in the browser), links up the CSS and Javascript files



<body> element is where everything is displayed in the main browser



Text Tags

Markup for text

Headings <h1> - <h6> Six levels of headings that vary in sizes

<h1> the largest size, used for main headings

<h2> used for subheadings



paragraph <p> paragraph tags, by default, the browser will show each paragraph on a new line

List Tags

Markup to create lists

Ordered Lists <ol> lists where each item in the list is numbered



Unordered Lists <ul> lists where each item in the list is a bullet point



List <li> list tags used for either ordered or unordered lists

Link Tags

Creating links

<a href="http://www.devleague.com" > DevLeague</a>

Image Tags

Adding Images

<img src="" alt="">

<img> element is used to add an image and must carry the src and alt attributes:

  • src: tells the browser where it can find the image
  • alt: provides a text description of the image which describes the image if you cannot see it

Table Tags

Adding tables

<table> element is used to create a table, the contents of the table are written out row by row

<tr> table row

<td> table data, each cell of  table

<th> table heading, used to represent the heading for either a column or a row





Extra Markup

<!-- --> comments



<div id="main"> ID attribute that can uniquely identify that element from other elements



<p class="notes"> Class attribute allows you to identify several elements as being different from other elements



Block Elements Elements that appear on a new line in the browser window (i.e. <h1>, <p>, <ul>, <li>



Inline Elements Elements that appear on the same line as their neighboring elements (i.e. <a>, <b>, <img>)









Additional Resources

  • http://www.w3schools.com/html/
  • https://developer.mozilla.org/en-US/docs/Web/HTML
  • https://gist.github.com/sgnl/63e11c4417101cdeb7f1
  • https://www.w3.org/wiki/HTML/Elements
  • https://developer.mozilla.org/en-US/docs/Web/HTML/Element
