My 2nd Camel Ride

• After 1st Camel ride, you should have a running camel route, please stop it.

• Now we are going to reformat the xml file to object, then object to JSON as output file format

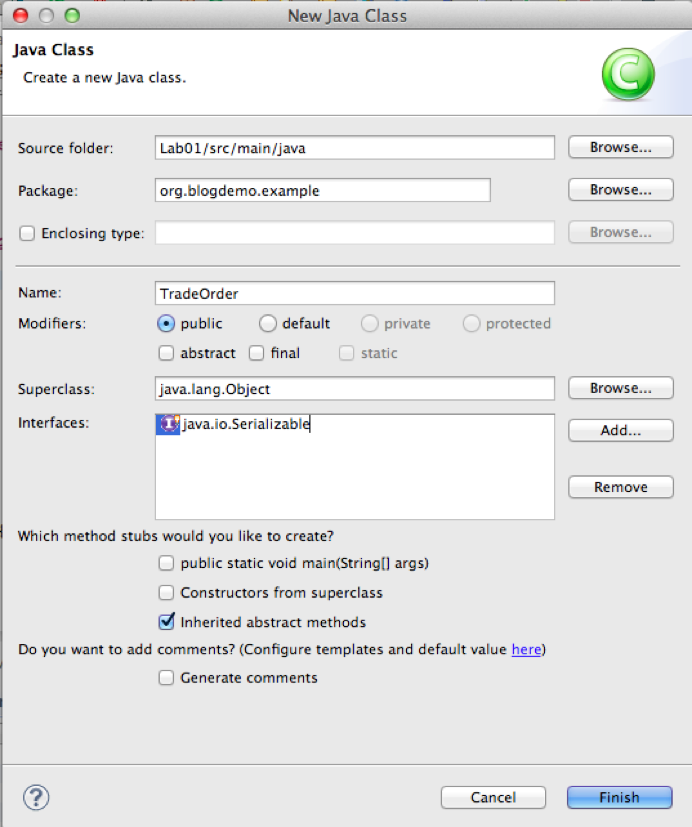

• Create a POJO named "TradeOrder"

Right click in project explore, click "new"  and click on "class" on the panel

package org.blogdemo.example;
import java.io.Serializable;
import javax.xml.bind.annotation.XmlRootElement;

@XmlRootElement
public class TradeOrder implements Serializable {
 private static final long serialVersionUID = -2812468154835390309L;
 String name;
 String custId;
 Integer vip;
 String stockId;
 Integer shares;
  Double cost;
  public String getName() {return name;}
 public void setName(String name) {this.name = name;}
  public String getCustId() {return custId;}
  public void setCustId(String custId) {this.custId = custId;}


public Integer getVip() {return vip;}
public void setVip(Integer vip) {this.vip = vip;}
public String getStockId() {return stockId;}
public void setStockId(String stockId) {this.stockId =stockId;}
public Integer getShares() {return shares;}
public void setShares(Integer shares) {this.shares = shares;}
public Double getCost() {return cost;}
public void setCost(Double cost) {this.cost = cost;}
public static long getSerialversionuid() {
  return serialVersionUID;
}
public String toString(){
  return "name:["+name+"] custId:["+custId+"] vip:["+vip+"] stockId:["+stockId+"] shares["+shares+"]";
}
}

Add a file that indicates the input format

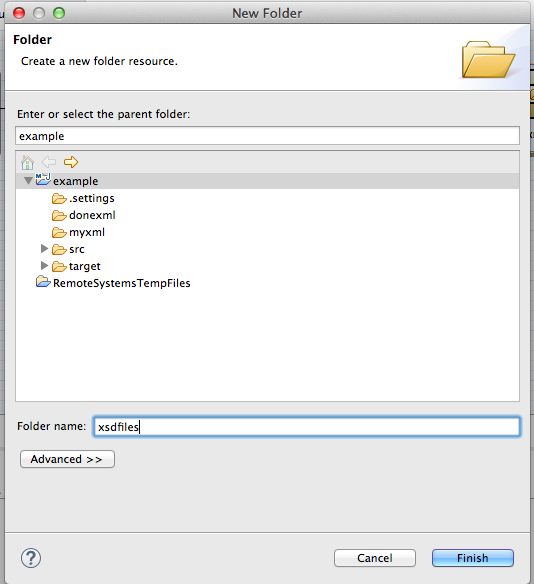

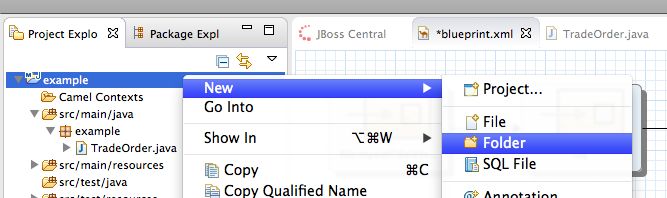

Create a fold by right click on example project in project explorer, click on "New" and choose "Folder"

Insert folder name as : xsdfiles

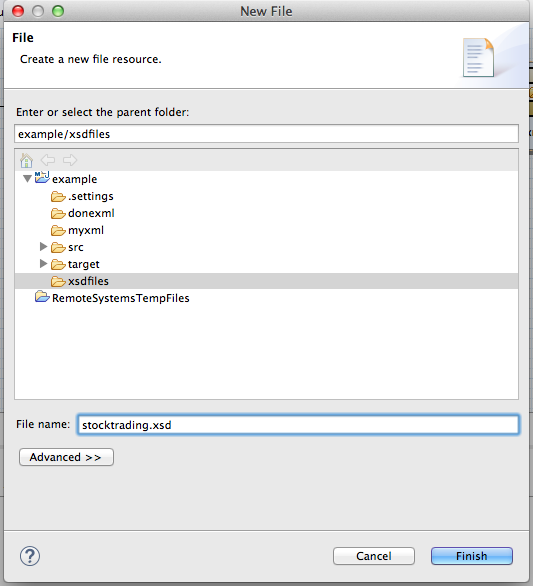

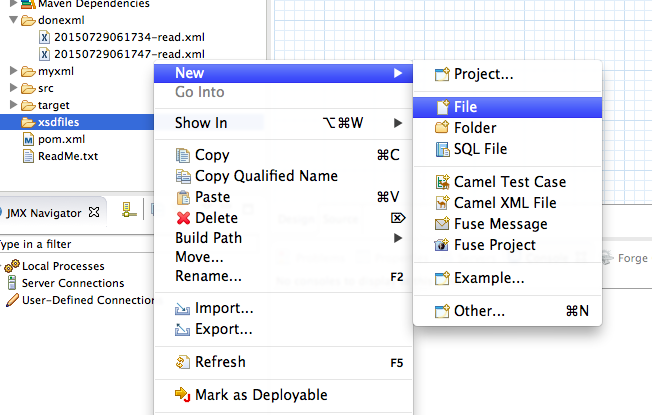

Right click on the "xsdfiles" folder, choose "New" and then click on "File"

Name the file as : stocktrading.xsd

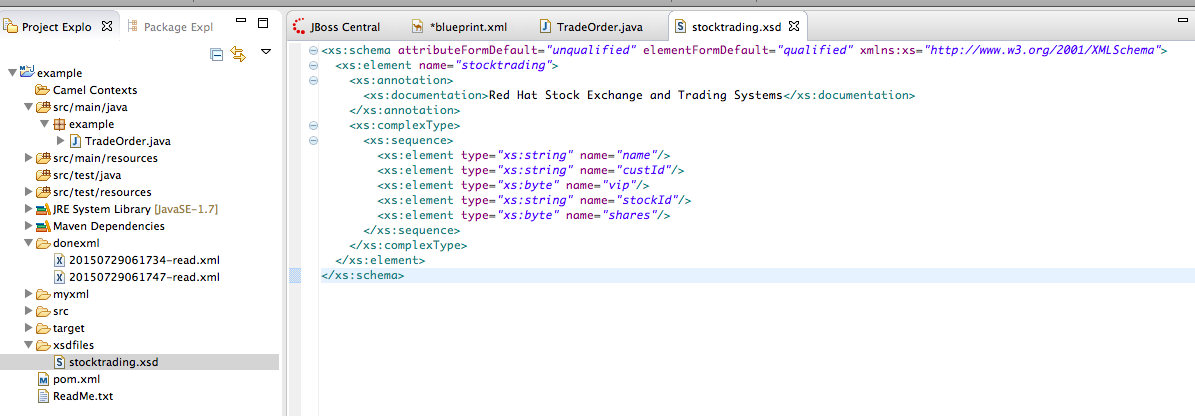

And enter the following content:

<xs:schema attributeFormDefault="unqualified" elementFormDefault="qualified" xmlns:xs="http://www.w3.org/2001/XMLSchema">
  <xs:element name="stocktrading">
    <xs:complexType>
      <xs:sequence>
        <xs:element type="xs:string" name="name"/>
        <xs:element type="xs:string" name="custId"/>
        <xs:element type="xs:byte" name="vip"/>
        <xs:element type="xs:string" name="stockId"/>
        <xs:element type="xs:byte" name="shares"/>
      </xs:sequence>
    </xs:complexType>
  </xs:element>
</xs:schema>

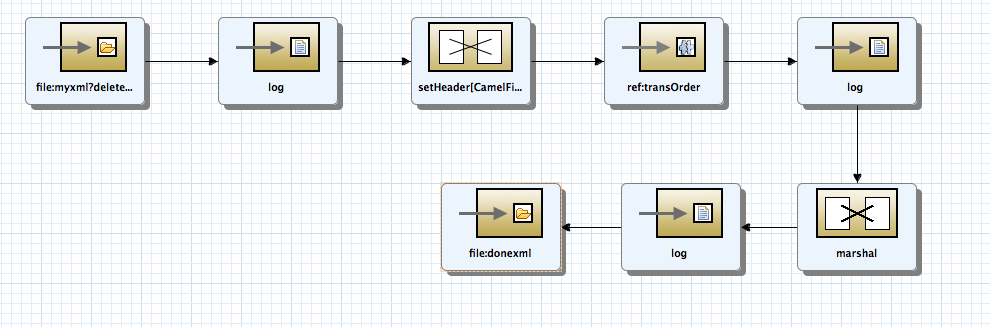

Modify the route to

• File Endpoint
  • Directory Name: myxml
  • Delete:true
• Log Endpoint
  • Message: ${in.header.CamelFileName} with content -> ${body}
• SetHeader
  • headerName: CamelFileName
  • language: simple
  • expression: ${date:now:yyyyMMddhhmmss}-read.xml

REMOVE:

• File Endpoint
  • Directory Name: donexml

Transform XML file to POJO for further processing:

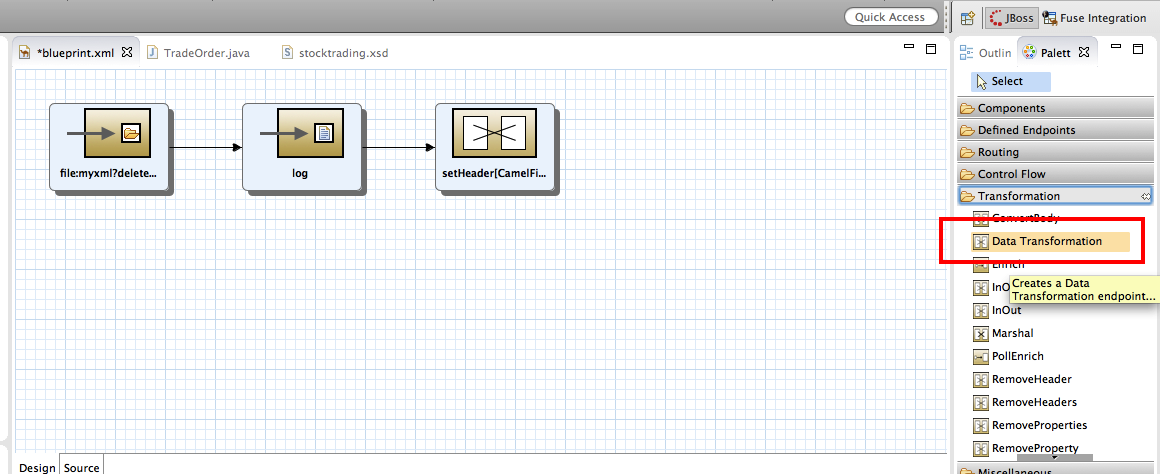

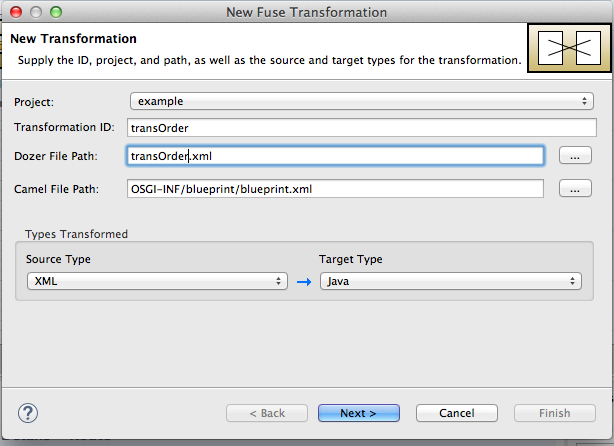

•  Data Transformation
  • Transform ID: transOrder
  • Dozer file path: transOrder.xml
  • Source Type: XML
  • Target Type: Java

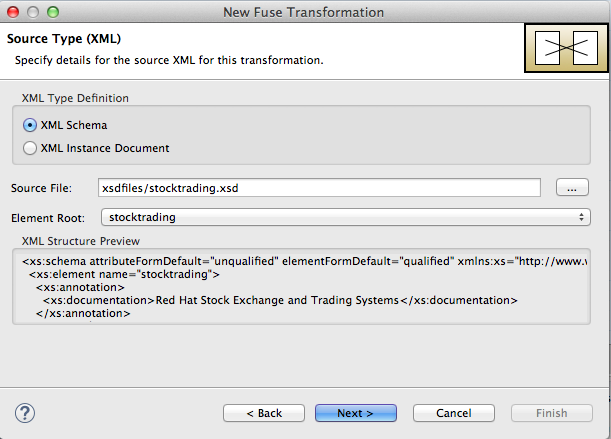

Configure source type of the file:

• XML Type Definition: XML Schema
• Source File: xsdfiles/stocktrading.xsd

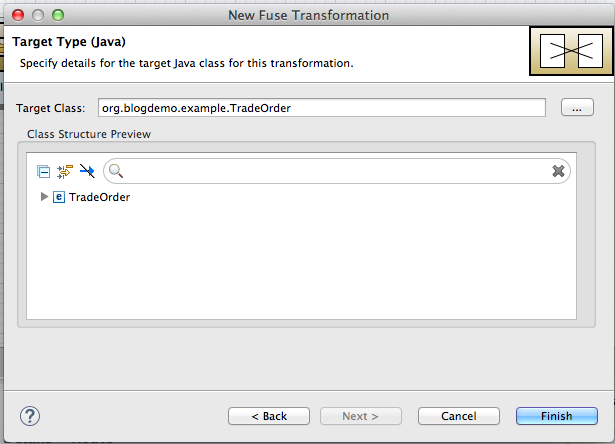

Configure Target Type:

• Target class: org.blogdemo.example.TradOrder

• Log Endpoint

  • Message:${body.name} has brought Stock ${body.stockId} with shares ${body.shares}

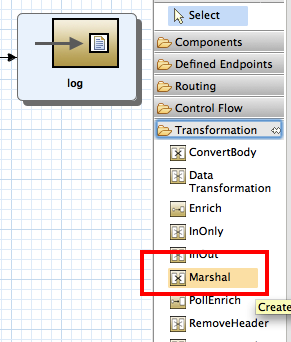

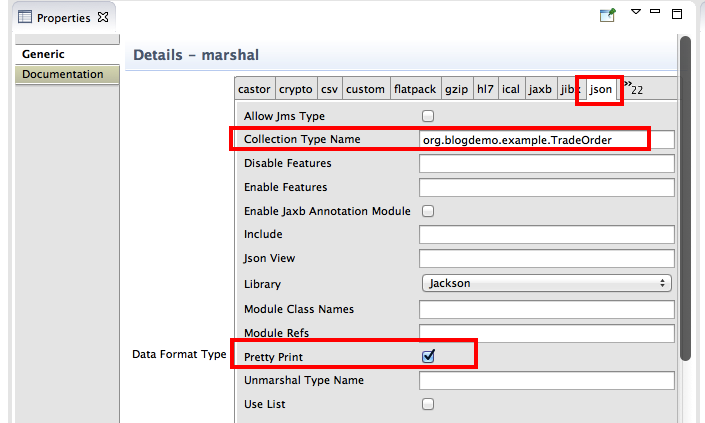

• Marshal (JSON)
  • Unmarshal Type Name: org.blogdemo.example.TradeOrder
  • Library: Jackson
  • PrettyPrint: true

• Log Endpoint
  • Message: JSON ${body}
•  File Endpoint
  • uri: file://donexml

Add the dependencies to your pom.xml

    <dependency>

         <groupId>org.apache.camel</groupId>

         <artifactId>camel-jackson</artifactId>

          <version>2.15.1.redhat-620133</version>

     </dependency>

Remove the un-needed dependencies

    <dependency>

      <groupId>org.apache.camel</groupId>

      <artifactId>camel-test-blueprint</artifactId>

      <version>2.15.1.redhat-620133</version>

    </dependency>

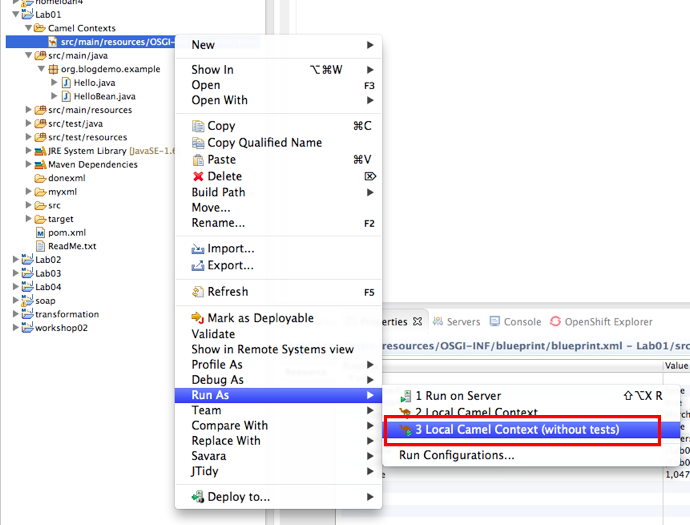

Now you can start running it!

APPENDIX - order01.xml

<?xml version="1.0" encoding="UTF-8"?>
<!-- Red Hat Stock Exchange and Trading Systems-->
<stocktrading>
    <name>Christina Lin</name>
    <custId>A123456789</custId>
    <vip>1</vip>
    <stockId>XYZ</stockId>
    <shares>11</shares>
</stocktrading>

APPENDIX - order02.xml

<?xml version="1.0" encoding="UTF-8"?>
<!-- Red Hat Stock Exchange and Trading Systems-->
<stocktrading>
    <name>Frank Jarrod</name>
    <custId>F475678678</custId>
    <vip>4</vip>
    <stockId>ABC</stockId>
    <shares>20</shares>
</stocktrading>

APPENDIX - order03.xml

<?xml version="1.0" encoding="UTF-8"?>
<!-- Red Hat Stock Exchange and Trading Systems-->
<multiple>
    <stocktrading>
        <name>John Osborn</name>
        <custId>K34567854</custId>
        <vip>1</vip>
        <stockId>KUJ</stockId>
        <shares>25</shares>
    </stocktrading>
    <stocktrading>
        <name>Sarah Fox</name>
        <custId>C3456767878</custId>
        <vip>5</vip>
        <stockId>SOU</stockId>
        <shares>10</shares>
    </stocktrading>
</multiple>

2nd Camel Ride completed!
