My 3rd Camel Ride

Christina Lin

Different VIP status file needs to be handled differently, so it's time to introduce our "Enterprise Integration Patterns" - Content-Based Router.

Subtitle

• File Endpoint

  • uri: file://myxml?delete=true

• Log Endpoint

  • Message: ${in.header.CamelFileName} with content -> ${body}

• Data Transformation

  • Transform ID: transOrder

  • Dozer file path: transOrder.xml

  • Source Type: XML

  • Target Type: Java

  • XML Type Definition: XML Schema
  • Source File: xsdfiles/stocktrading.xsd/
  • Target class: org.blogdemo.example.TradOrder

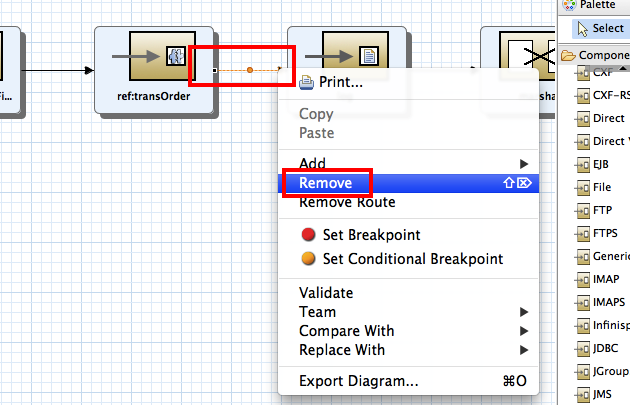

Remove links between Data Transformations & log

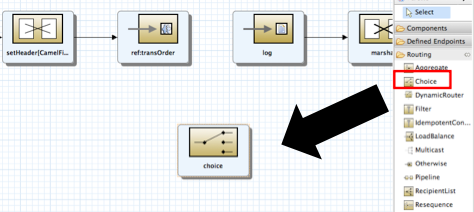

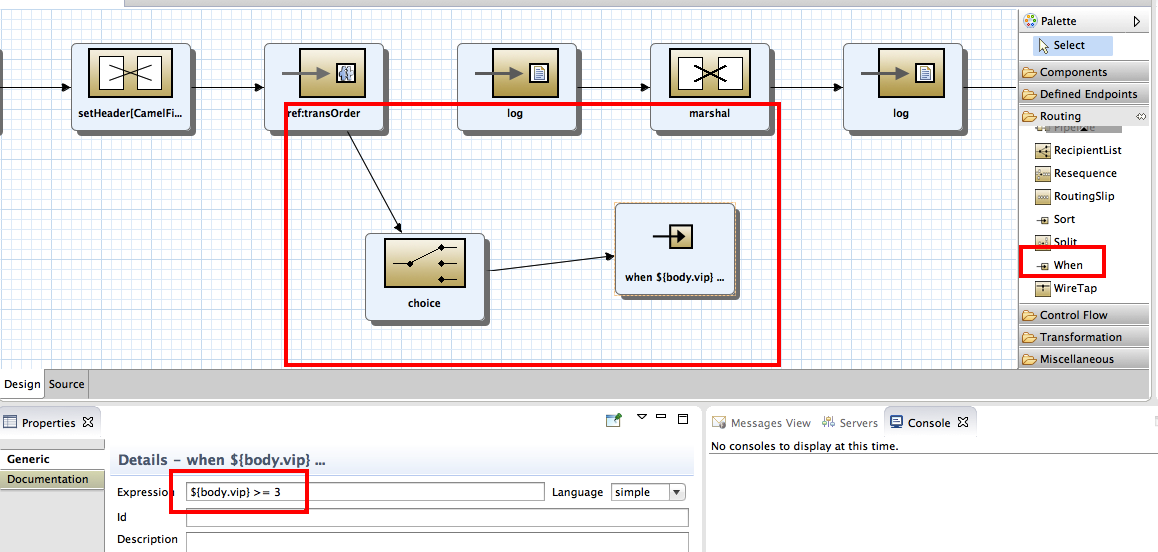

• Choice
  • When
    • language: simple
    • expression ${body.vip} >= 3

DON NOT SAVE YET!!!!!!!!

• Choice
  • When
    • language: simple
  •

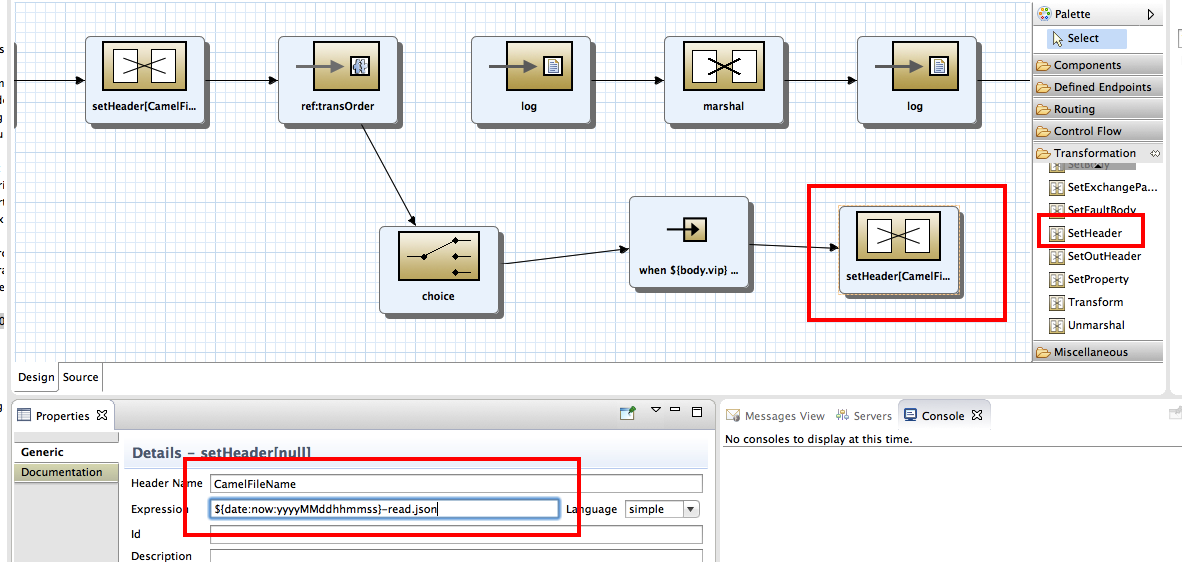

  • SetHeader
    • headerName: CamelFileName
    • language: simple
    • expression: ${date:now:yyyyMMddhhmmss}-read.json

•
  • Link setHeader to log node

And then Save

• Choice
  • setHeader
    • ​headerName: CamelFileName
    • language: simple
    • expression: ${date:now:yyyyMMddhhmmss}-read.json
  • log
    • message: ${body.name} has brought Stock ${body.stockId} with shares ${body.shares}
  • marshal (json)
    • Unmarshal Type Name: org.blogdemo.example.TradeOrder
    • Library: Jackson
    • PrettyPrint: true
  • log
    • message: JSON ${body}

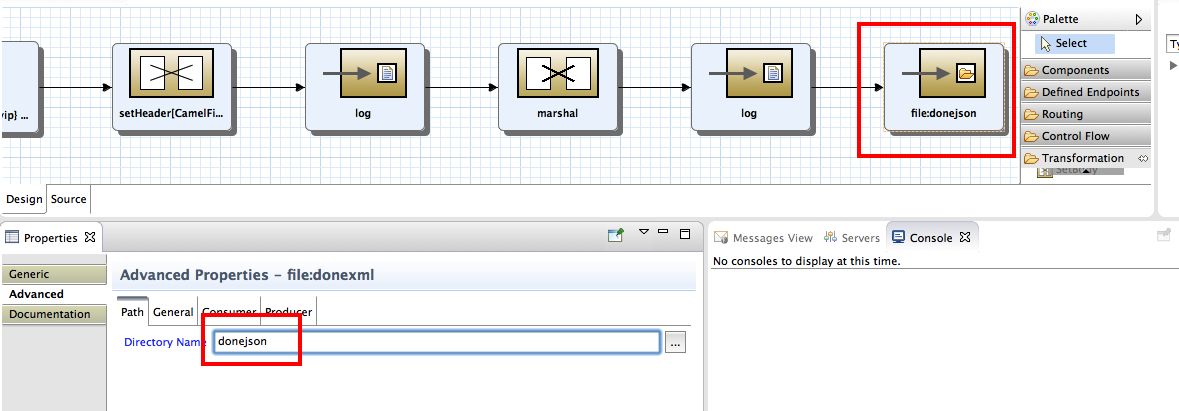

  • file
    • Directory Name:donejson

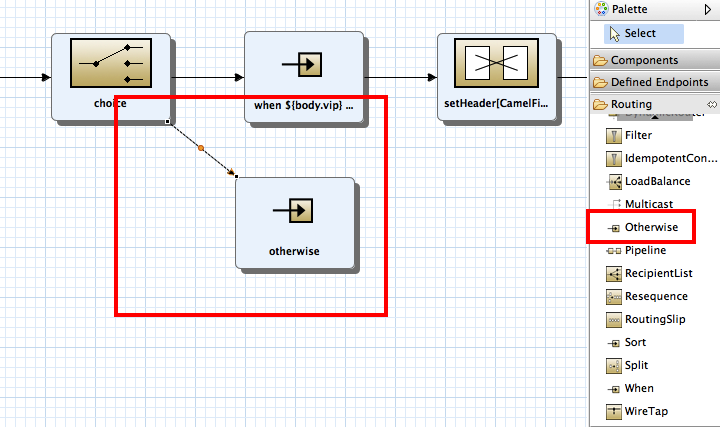

• Otherwise
  • SetHeader
    • headerName: CamelFileName
    • language: simple
    • expression: ${date:now:yyyyMMddhhmmss}-read.xml

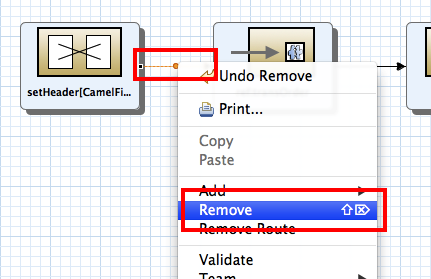

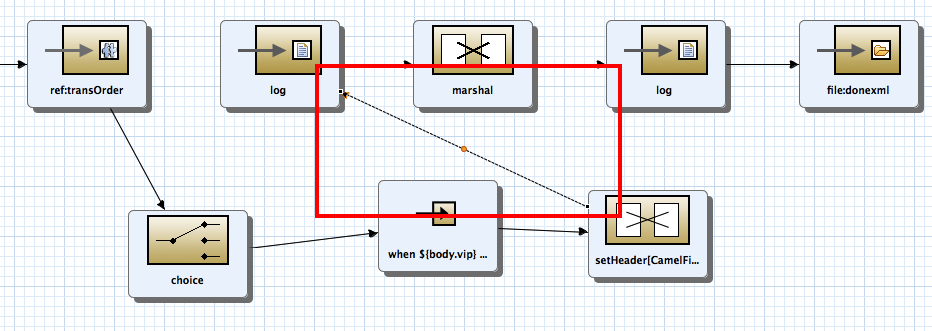

Move existing node, please remove the links to/from

the setHeader node

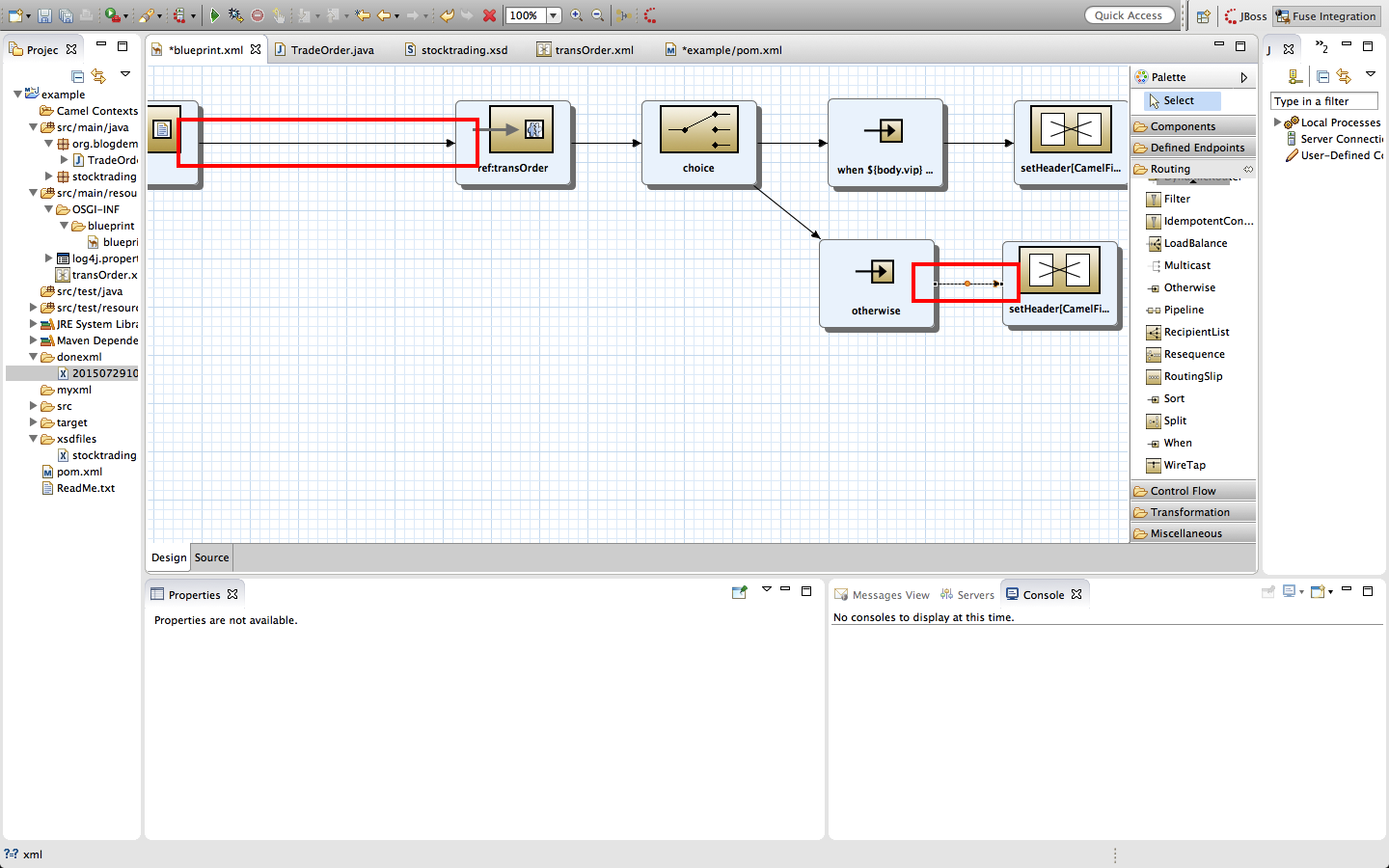

Move the setHeader node right after otherwise node and link them together

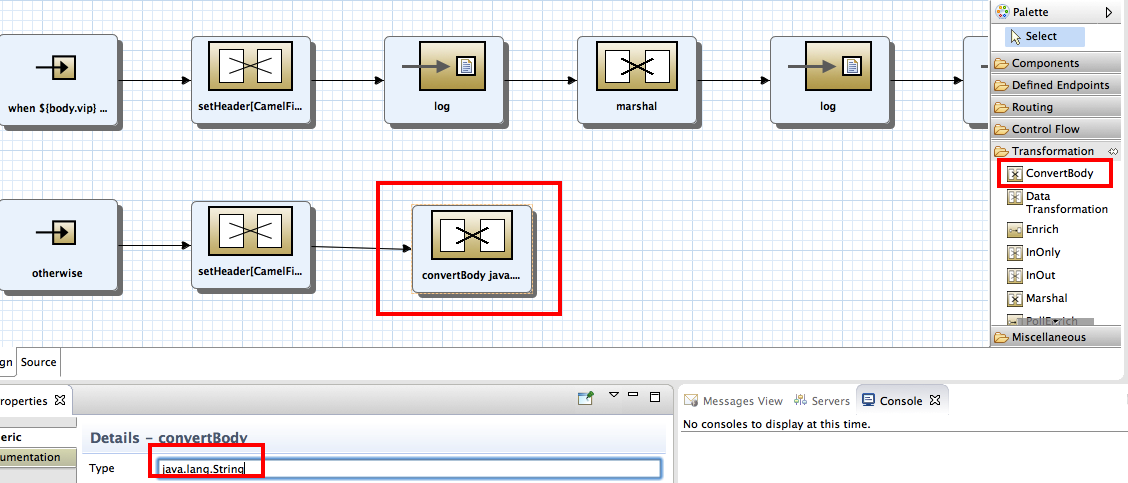

• Otherwise
•
•
  • Convert
    • type: java.lang.String

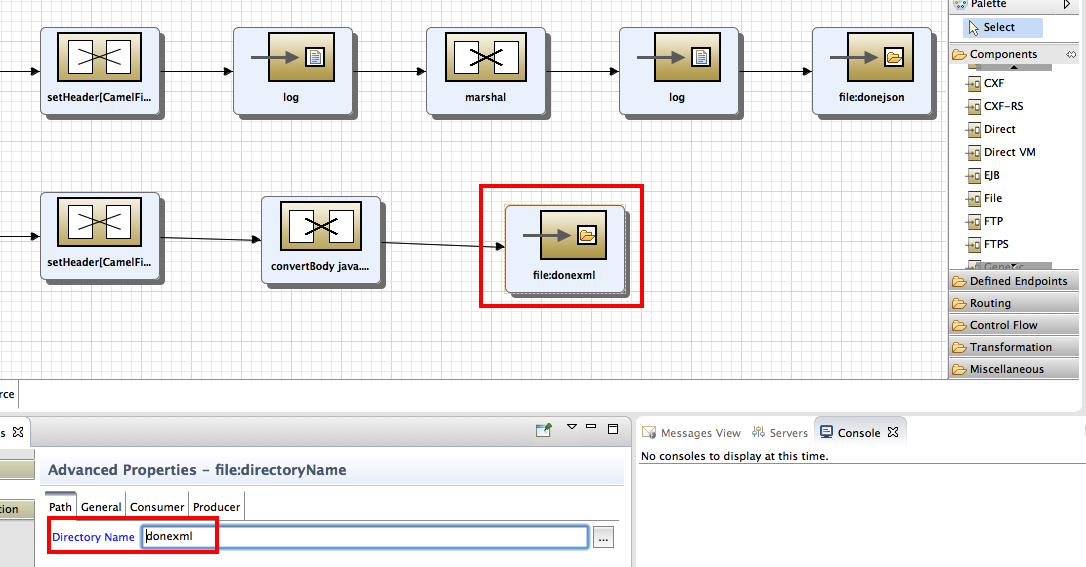

  • File Endpoint
    • uri: file://donejson

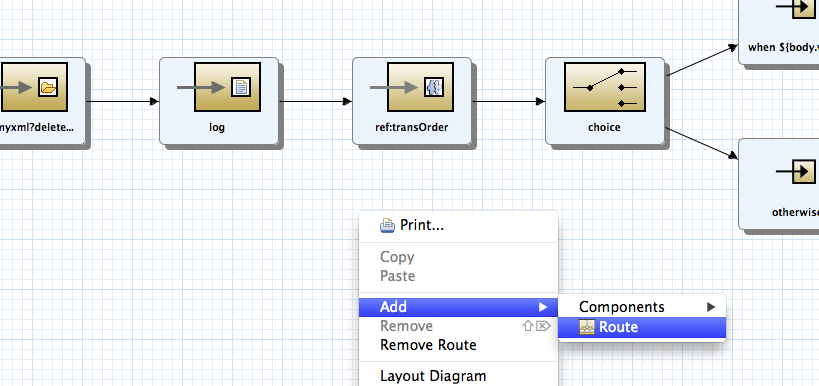

Another vendor comes alone, but they prefer to combine all their order in a XML file. Add a new route to the Camel Context to accommodate the changes without affecting the old one.

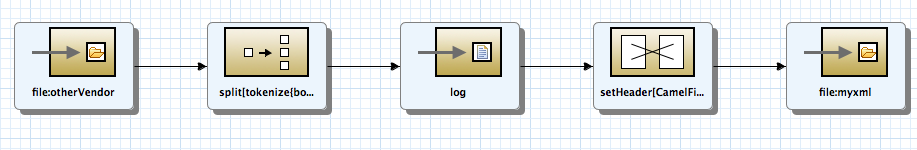

• File Endpoint
  • Directory Name: otherVendor
  • delete: true

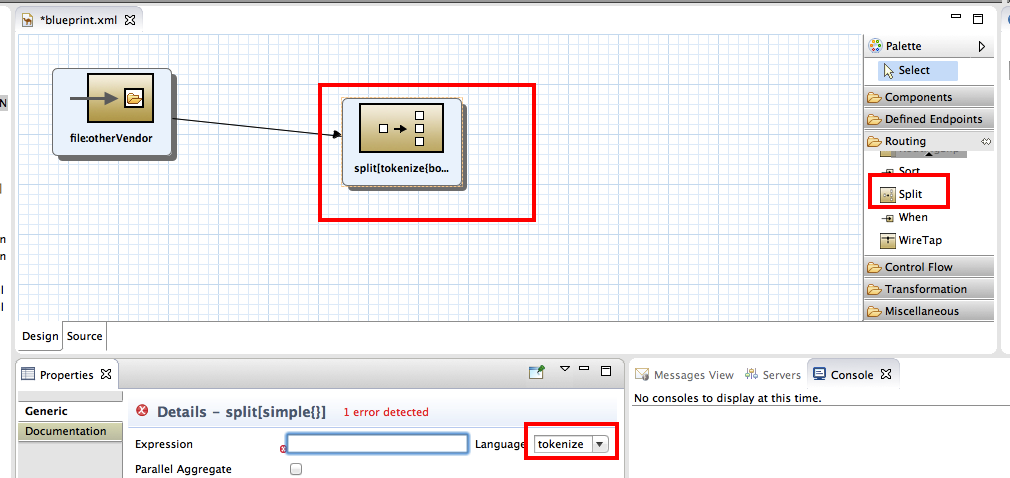

• Spilt Tag
  • language: tokenize
  • xml: true
  • token: stocktrading
  • <tokenize xml="true" token="stocktrading" />

Save the route after done dragging splitter to canvas

Go to source, and replace the spliter tokenize tag

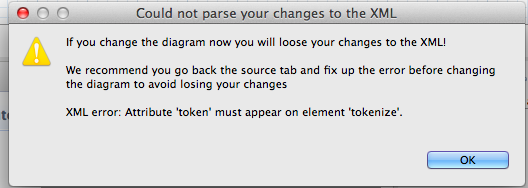

A pop-up  will appear, with warning, click ok

• Log Endpoint
  • Message: Multiple ${body}

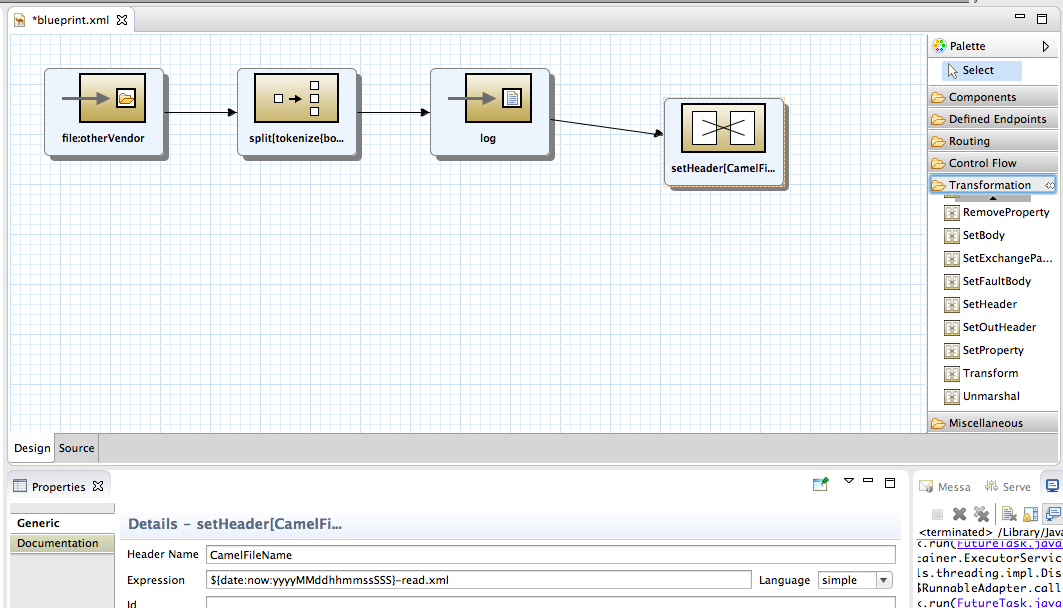

• SetHeader
  • headerName: CamelFileName
  • language: simple
  • expression: ${date:now:yyyyMMddhhmmssSSS}-read.xml

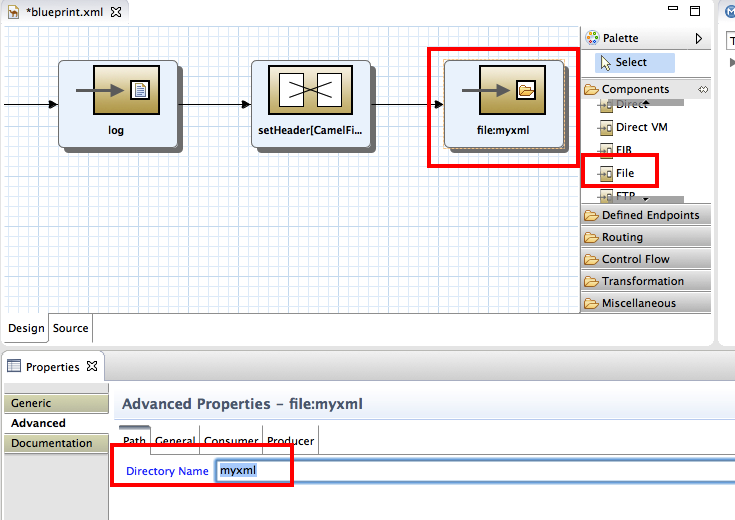

• File Endpoint
  • Directory Name: myxml

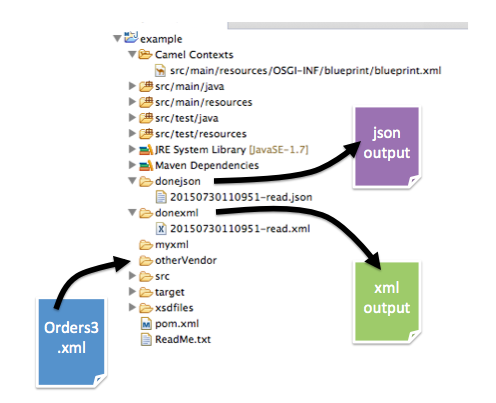

Run the application and put the new xml file in the otherVendor directory

APPENDIX - order01.xml

<?xml version="1.0" encoding="UTF-8"?>
<!-- Red Hat Stock Exchange and Trading Systems-->
<stocktrading>
    <name>Christina Lin</name>
    <custId>A123456789</custId>
    <vip>1</vip>
    <stockId>XYZ</stockId>
    <shares>11</shares>
</stocktrading>

APPENDIX - order02.xml

<?xml version="1.0" encoding="UTF-8"?>
<!-- Red Hat Stock Exchange and Trading Systems-->
<stocktrading>
    <name>Frank Jarrod</name>
    <custId>F475678678</custId>
    <vip>4</vip>
    <stockId>ABC</stockId>
    <shares>20</shares>
</stocktrading>

APPENDIX - order03.xml

<?xml version="1.0" encoding="UTF-8"?>
<!-- Red Hat Stock Exchange and Trading Systems-->
<multiple>
    <stocktrading>
        <name>John Osborn</name>
        <custId>K34567854</custId>
        <vip>1</vip>
        <stockId>KUJ</stockId>
        <shares>25</shares>
    </stocktrading>
    <stocktrading>
        <name>Sarah Fox</name>
        <custId>C3456767878</custId>
        <vip>5</vip>
        <stockId>SOU</stockId>
        <shares>10</shares>
    </stocktrading>
</multiple>

3rd Camel Ride completed!
