Secure Messaging With Ethereum


Reasoning about Ethereum's Role





Presented by: Cayman Nava (caymannava@gmail.com)

Outline


  • Messaging Requirements
  • Ethereum's Role
  • Message Storage
    • Examples
  • Rendezvous Point
    • Interlude - WebRTC
    • Examples

Messaging Requirements

  • What kind of messages?
    • Voice/Video
    • Picture/Text
  • Who can read the messages?
    • One-on-one (ex: text message)
    • Group-messaging (ex: Google hangouts)
    • Broadcast messaging (ex: Reddit)
  • How are the messages stored and transported?
    • Synchronous communication - messages sent to online parties
    • Asynchronous communication - messages stored for later retrieval
  • How to identify a person/persona? ethereum address or list

Ethereum's Role

  • Message storage
    • Messages stored in the blockchain
    • the WHAT of messaging
  • Rendezvous Point
    • Relationships stored in the blockchain
    • the WHO, WHERE, HOW of messaging
  • Others (not going to discuss)

Message Store

  • Benefits
    • Ease of broadcast
      • Anyone with the blockchain can access the message
      • No off-chain transport/storage
    • Asynchronous messages
      • Acts as a 'mailbox' that can be retrieved at any time
      • Parties don't need to be online to access messages
  • Considerations
    • Public message boards vs. Private mailboxes
      • read protection - encrypted data
      • write permission - contract rules limiting access (whitelist of ethereum addresses)
    • Other rules (ex: voting, categorizing, 'replying')

Message Store - Examples

Naive Eth-mail

  • How to use for messaging:
    • Creator can suicide mailbox if necessary
    • Any other address can send messages in tx.data[0]
    • Use app logic to display messages in contract
if tx.sender == CONTRACTCREATOR:
     if tx.data[0] == 1:
         suicide(CONTRACTCREATOR)
else:
     NEXTINDEX = contract.storage[999]
     contract.storage[1000 + NEXTINDEX] = tx.data[0]
     contract.storage[999] = NEXTINDEX + 1


https://gist.github.com/WeMeetAgain/10010529

Message Store - Examples

Naive Message Board

  • How to use for messaging:
    • Use tx.data[0] as topic, tx.data[1] as message
    • Use app logic to display messages for a topic
// data[0] = topic
// data[1] = message
if tx.data[0]:
    NEXTINDEX = contract.storage[sha3(tx.data[0])]
    contract.storage[sha3(tx.data[0]) + 1 + NEXTINDEX] = tx.data[1]
    contract.storage[sha3(tx.data[0])] = NEXTINDEX + 1




https://gist.github.com/WeMeetAgain/10010830

Rendezvous Point

  • Benefits
    • Flexible in approach
      • use any sort of transport
      • Possibly cheaper (less blockchain editing)
    • Possibility of more real-time communication
      • Not limited by 1 minute block updates
  • Considerations
    • Transport medium (ex: WebRTC, Bitmessage, etc)
      • Sync vs. Async (who needs to be online)
    • storing WHO vs HOW - tradeoffs
      • WHO - is less likely to change, still worrying about how
      • HOW - 'Trusted' communication, but long connection times if multiple handshakes need to be exchanged

Interlude - WEBRTC

webrtc.org

  • Web Real-time communications
  • P2P connections from browser (native, no plugins)
  • Secure communication, end-to-end encryption
  • Audio, video, data connections
  • Centralized component in peer discovery

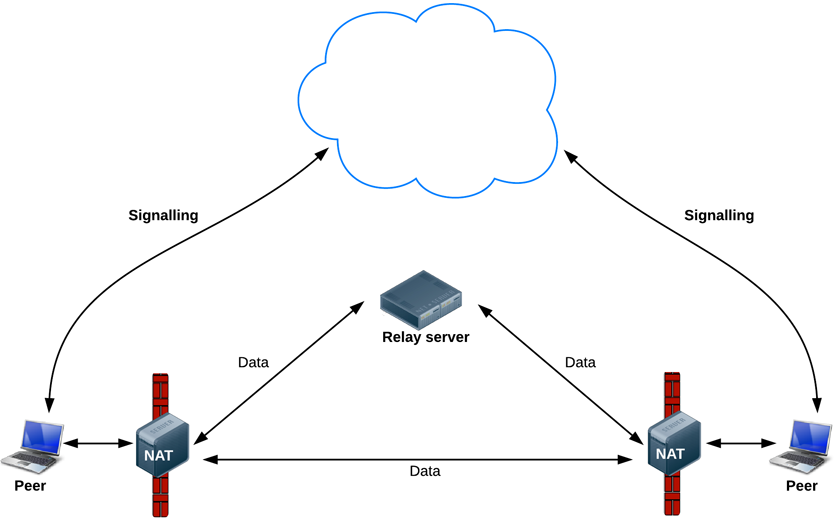

Interlude - WebRTC

Connecting to a peer

Rendezvous Point - ExampleS

WHO - Friend list

  • Uses ethereum address or contract to signify friend
  • How to use for messaging:
    • use app logic to only allow connections from 'friends'


if tx.sender != CONTRACTCREATOR:
stop
if tx.data[0] == 0:
contract.storage[1000+tx.data[1]] = tx.data[2]
elif tx.data[0] == 1:
suicide(CONTRACTCREATOR)


https://gist.github.com/WeMeetAgain/10010923

Rendezvous Point - Examples

WHO - topic-group connection

  • Uses ethereum address or contract for connection name/info
  • How to use for messaging:
    • add address to a topic
    • optionally link contract to address
    • use address or contract as means to initiate connections
    • use application logic to only allow connections from your current topic






https://gist.github.com/WeMeetAgain/9457099

if tx.data[0] == 0: // update contract
if tx.data[1] < 1000: // if the contractAddress isn't valid, stop
stop
contract.storage[tx.sender] = tx.data[1]
if tx.data[0] == 1: // update topic
if tx.data[1] < 1000: // if the topic isn't valid, stop
stop
if contract.storage[tx.sender + 1]: // if address has an old topic
TOPICROOT = sha3(32,contract.storage[tx.sender+1])
LEN = contract.storage[TOPICROOT]
INDEX = contract.storage[tx.sender + 2]
// set swapped address to new index position and set address index
contract.storage[TOPICROOT+INDEX] = contract.storage[TOPICROOT+LEN]
contract.storage[contract.storage[TOPICROOT+INDEX] + 2] = INDEX
contract.storage[LEN] = 0
// decrement old topic length
contract.storage[sha3(32,contract.storage[tx.sender + 1])] = LEN - 1
TOPICROOT = sha3(32,tx.data[1])
LEN = contract.storage[TOPICROOT]
// add address to topic list and increment length
contract.storage[TOPICROOT+LEN+1] = tx.sender
contract.storage[TOPICROOT] = LEN + 1
// store topic and index in list for later lookup
contract.storage[tx.sender+1] = tx.data[1]
contract.storage[tx.sender+2] = LEN + 1

End



Questions, comments, corrections?

    • caymannava@gmail.com






Interested in WebRTC (and making it more decentralized)?
    • caymannava@gmail.com
