Page Rendering

General Overview

You type the URL in the browser

You type the URL in the browser
Browser (further Bro) parses the URL to find the protocol, host, port, and path

You type the URL in the browser
Browser (further Bro) parses the URL to find the protocol, host, port, and path
Bro translates url into an IP number via DNS lookup

You type the URL in the browser
Browser (further Bro) parses the URL to find the protocol, host, port, and path
Bro translates url into an IP number via DNS lookup
Then a socket needs to be opened from the user's computer to that IP, on the port specified (most often 80)

When the connection is opened, the HTTP GET request is sent to the host

When the connection is opened, the HTTP request is sent to the host

The host forwards the request to the server software (e.g. Apache) configured to listen to specified port

When the connection is opened, the HTTP request is sent to the host

The host forwards the request to the server software (e.g. Apache) configured to listen to specified port

Server prepares HTTP response

To construct the response a database is (most likely) accessed based on params in path (or data) of the request

To construct the response a database is (most likely) accessed based on params in path (or data) of the request

Data from database is combined into a long string of text (probably HTML)

To construct the response a database is (most likely) accessed based on params in path (or data) of the request

Data from database is combined into a long string of text (probably HTML)
Meta information is added and HTML response is sent to the Bro

Bro receives the response and parses HTML

Bro receives the response and parses HTML
DOM tree is built from the HTML

Bro receives the response and parses HTML
DOM tree is built from the HTML
New requests are made to the server for each new resource that is found in HTML source (images, style sheets, scripts ...)

Bro receives the response and parses HTML
DOM tree is built from the HTML
New requests are made to the server for each new resource that is found in HTML source (images, style sheets, scripts ...)
Stylesheets are parsed, and the information added to the matching node in the DOM tree

Bro receives the response and parses HTML
DOM tree is built from the HTML
New requests are made to the server for each new resource that is found in HTML source (images, style sheets, scripts ...)
Stylesheets are parsed, and the information added to the matching node in the DOM tree
Javascript is parsed and executed

Finally Bro renders the page according to the DOM tree and the style information for each node

Finally Bro renders the page according to the DOM tree and the style information for each node
You can see the page on the screen!

document.write

document.write

The document.write outputs a string directly into the page. This is the most ancient method of appending to a document.

DEMO

document.write

Restrictions

Open document only

document.write

Restrictions

Open document only

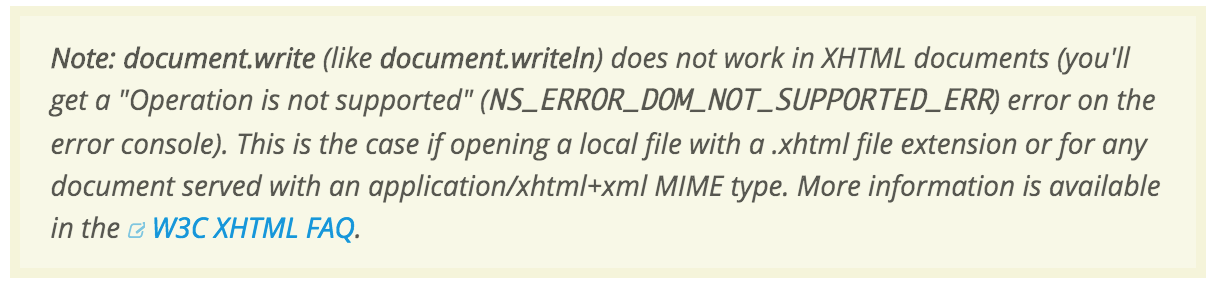

Doesn't work in XML parsing mode

document.write

Restrictions

Open document only
Doesn't work in XML parsing mode
Stops page rendering if you want to load external javascript (that can return 404)

document.write

Benefits and uses

In most cases, it is preferred to use DOM for modifications, because it is convenient, and there is innerHTML, which is almost the same.

But document.write is the fastest way to add a script-generated text into the page.

document.write

Benefits and uses

Also it is used to insert advertising scripts and counters:

document.write

Benefits and uses

Script URL generated automatically
Adding a random value prevents caching
Note that the closing </script> is split. Otherwise browser would think that the script finishes right at that </script>

document.write

Summary

It can append arbitrary, even partial, incomplete and malformed HTML into document.
It is very fast, because the browser doesn’t have to modify an existing DOM structure.
Works synchronous, blocks page rendering

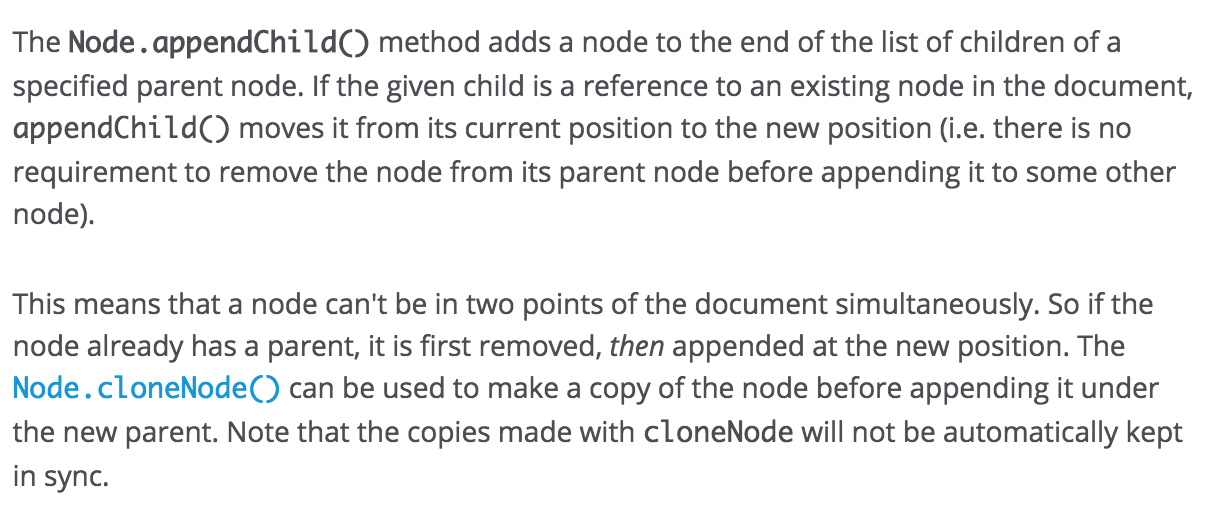

.appendChild

.appendChild

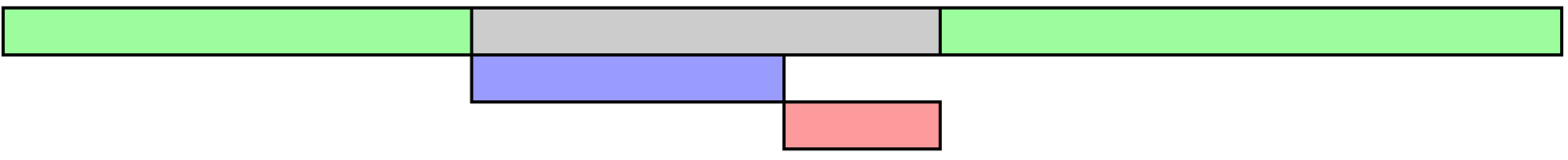

<script>

(without attributes)

The HTML file will be parsed until the script tag will be hit. At that point parsing will stop and a request will be made to fetch the file (if it's external). The script will then be executed before parsing is resumed.
