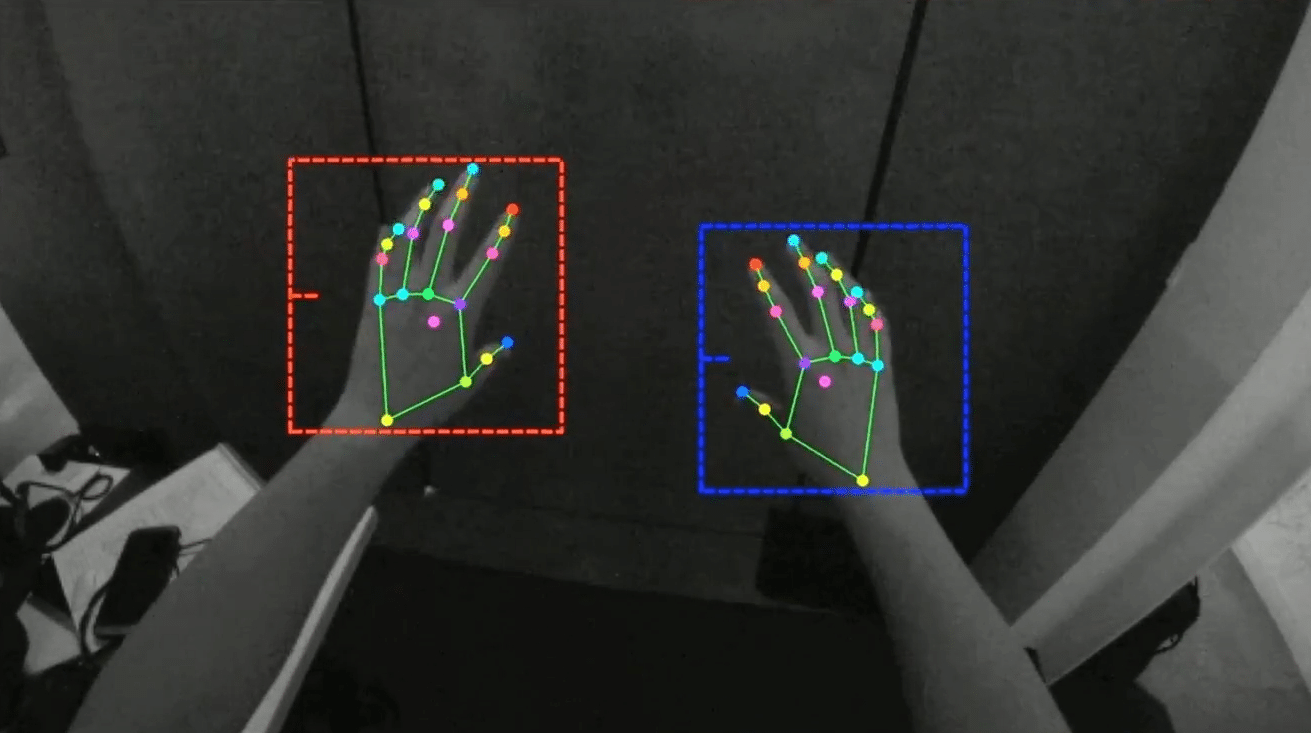

How it looks

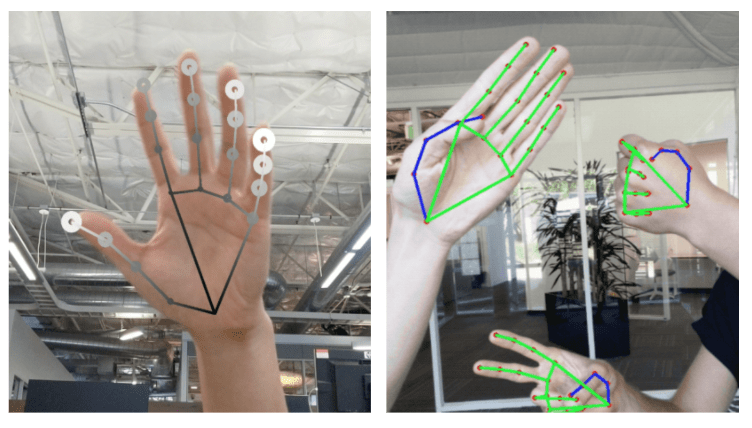

Hand Tracking isn't new

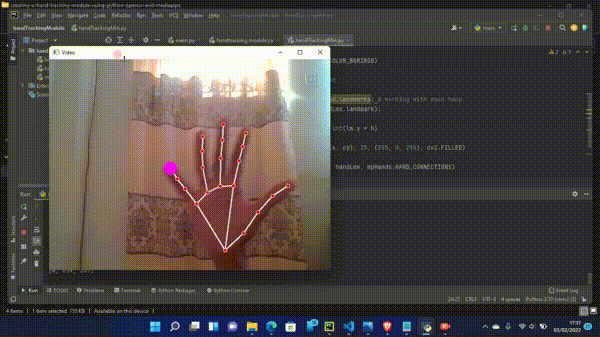

Mediapipe

MMPose

OpenCV

ARKit

But Quest 2's cameras are uhhh...

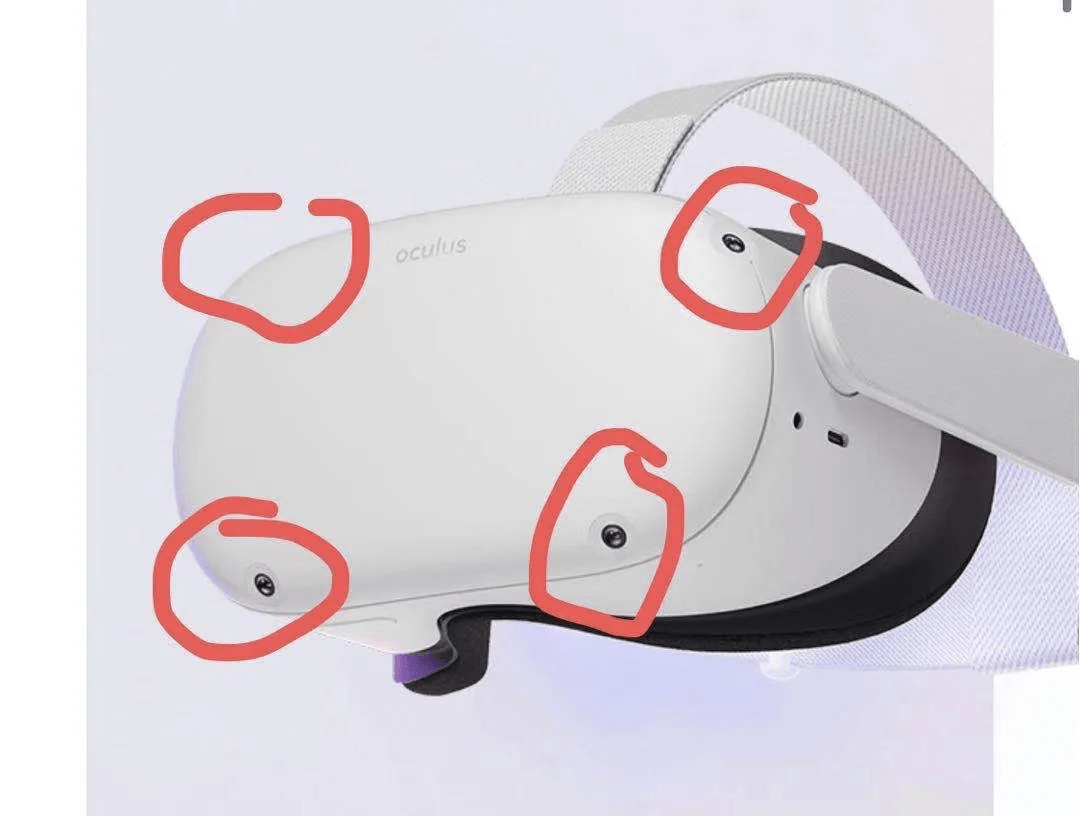

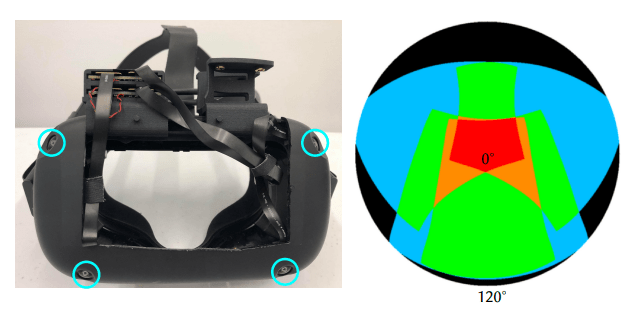

Quest 2 has 4 spaced-out fish-eye cameras

But Quest 2's cameras are uhhh...

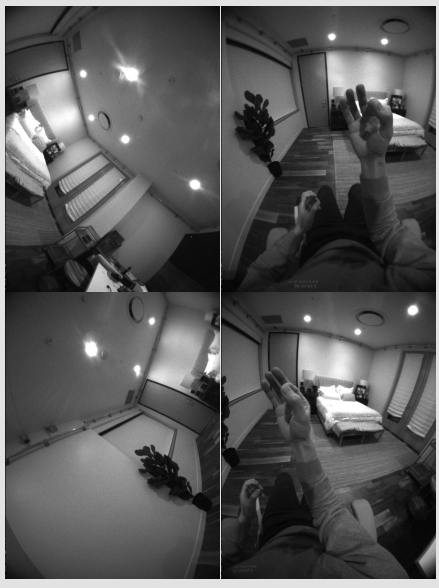

And they have overlaps

But Quest 2's cameras are uhhh...

All of this typical 2D training data is useless

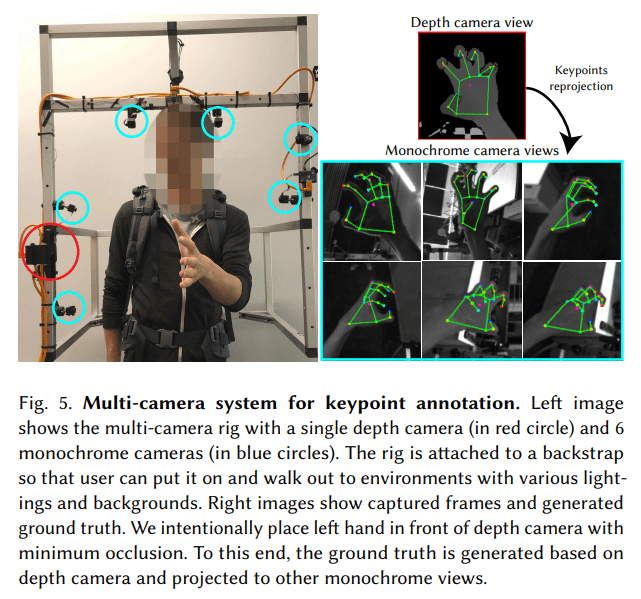

We need a specialized dataset

Which leads them to creating their own dataset

We need a specialized dataset

The RGB-D camera estimates the GT 3D landmarks

The fish-eye cameras project the 3D landmarks to get the fish-eye GT hand landmarks

Fish-eye cameras

RGB-D Camera

We need a specialized dataset

We need a specialized dataset

We need a specialized dataset

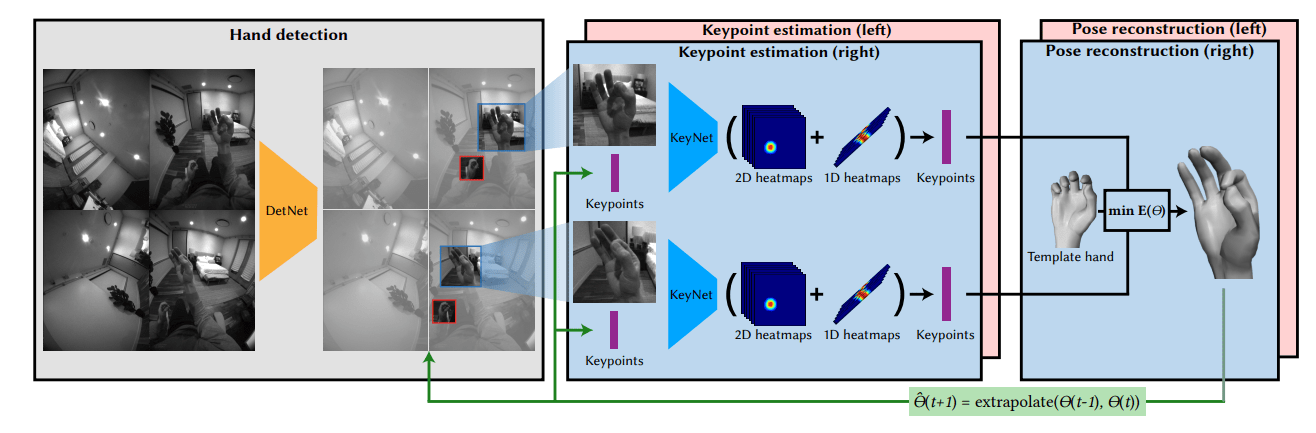

Real-time 🤯

...

1. Hand detection

2. Keypoint estimation

3. Pose reconstruction

Every frame, very smooth

Real-time 🤯

...

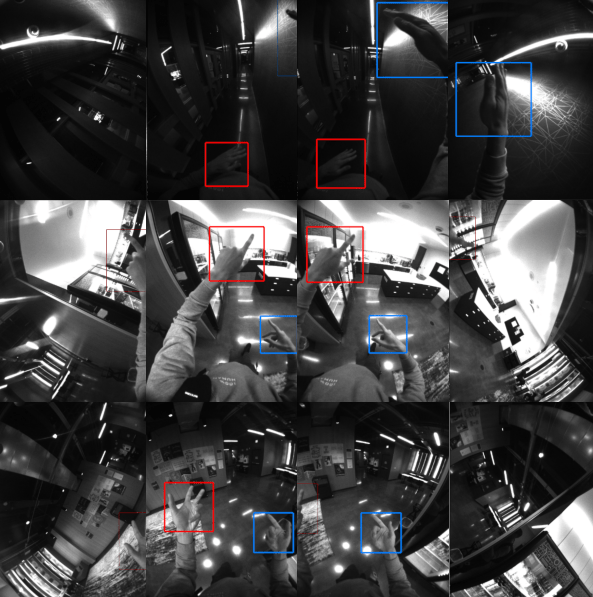

No need to run DetNet on every camera

Run once, get 3D keypoints, project them to all cameras

Real-time 🤯

After the first BBox is detected, same idea as in annotation

No need to run DetNet each frame

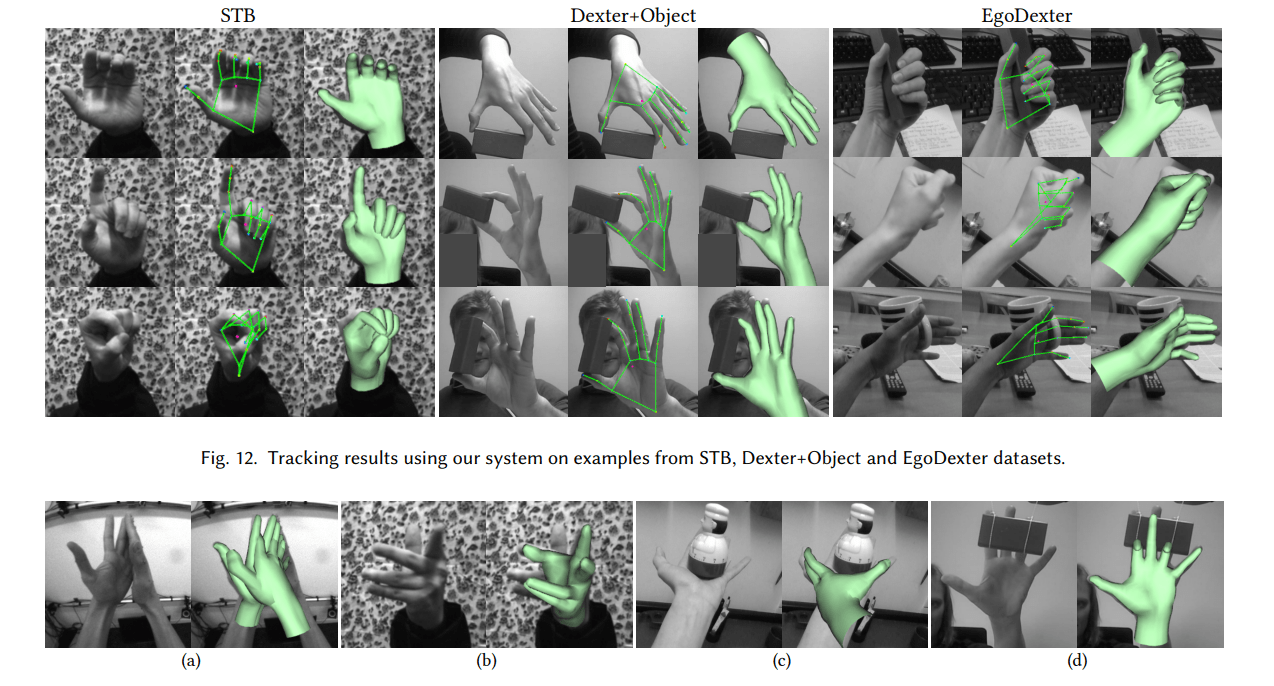

3D Hand mesh output

The mesh is a rigged parametric model

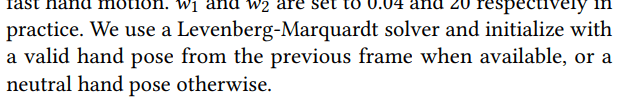

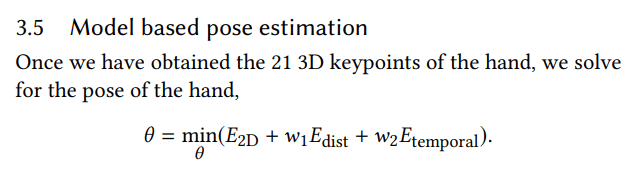

Levenberg-Marquadt solver optimizes the pose for each frame

Ambiguous hand scale

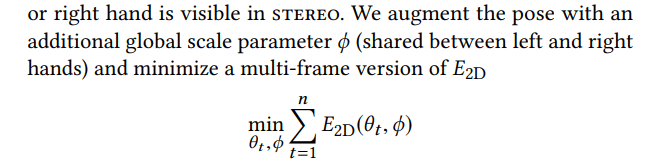

When the hand is visible from all cameras, a hand scale parameter is optimized

stereo region

Ambiguous hand scale

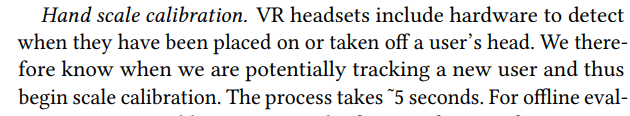

This is a heavy operation

So authors do this before hand tracking is even used

Estimating distance

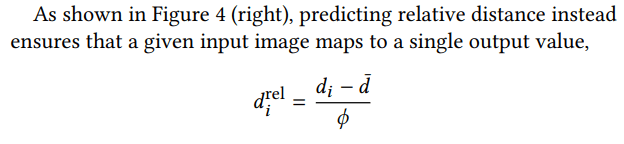

Keypoint estimator only predicts distance relative to the hand center

Actual hand distance is estimated after the model fitting

Hand size is fixed

So we can adjust the distance

Specialized hand tracking

They don't need a general-purpose hand detector

So, by design, they only output detections for left/right hand

Design decisions for hand tracking smoothness

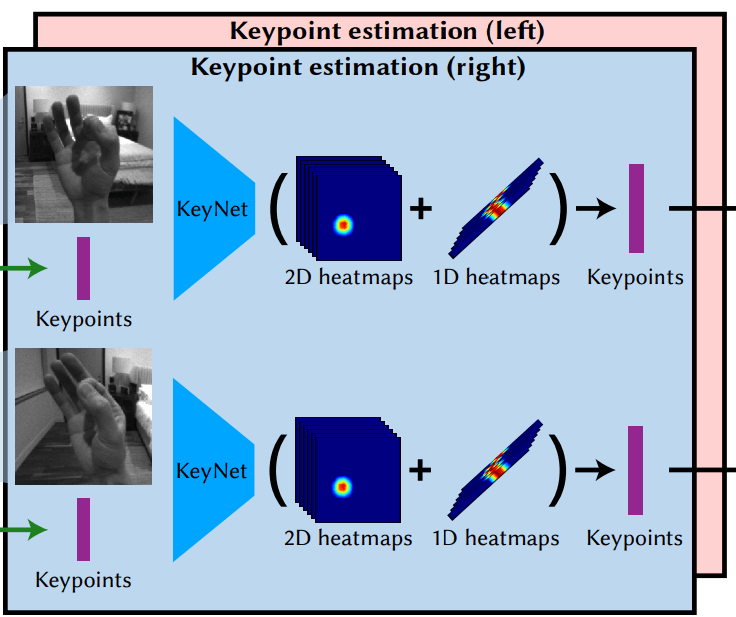

Keypoints are estimated via regressing heatmaps

Then doing a weighted average of pixel positions

Design decisions for hand tracking smoothness

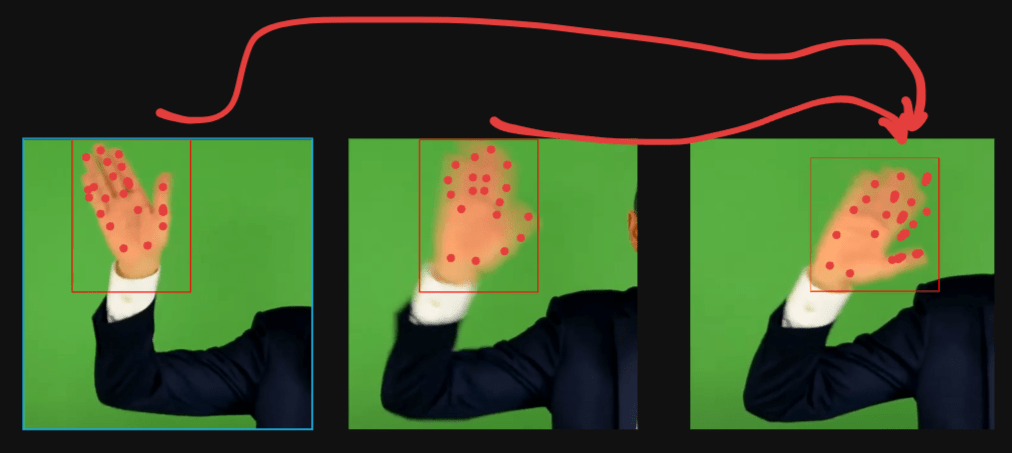

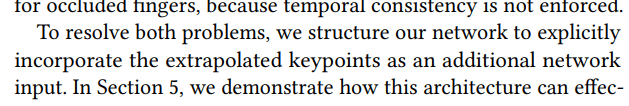

The next-frame "extrapolation" is used as input to the model

Design decisions for hand tracking smoothness

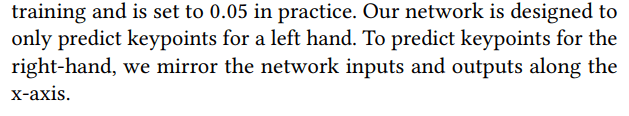

No need to train for both hands lol

Just train for one, then reflect

Design decisions for hand tracking smoothness

Smoothness isn't enforced in keypoint estimation

Only during mesh fitting

Design decisions for hand tracking smoothness

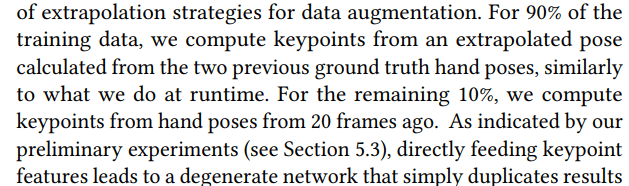

During training, the extrapolations are sometimes passed inaccurately

Otherwise the network just copies the input

Design decisions for hand tracking smoothness

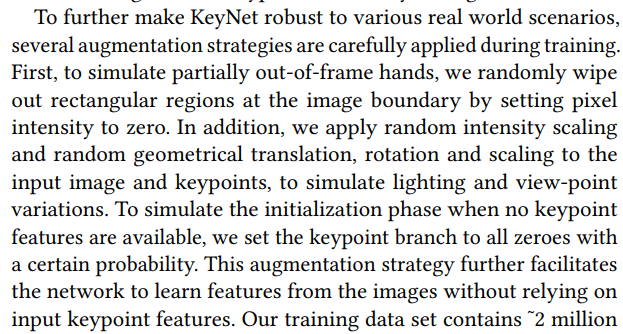

Lots&lots of augmentations

And keypoint dropouts
