Producer/Consumer

naive implementation

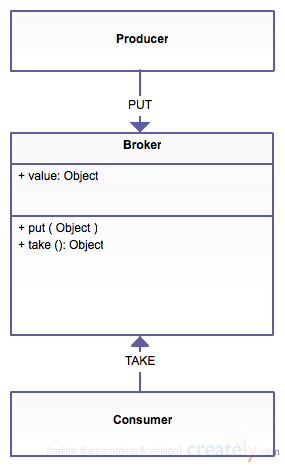

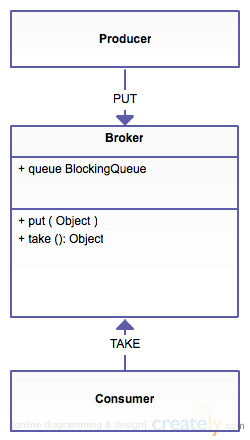

Simple Producer/Consumer

Thread 1

Thread 2

public class Broker<V> {

    private V value;

    public void put(V value) throws InterruptedException {
        synchronized (this) {
            while (this.value != null) {
                this.wait();
            }
            this.value = value;
            this.notify();
        }
    }

    public V take() throws InterruptedException {
        V result;
        synchronized (this) {
            while (value == null) {
                this.wait();
            }
            result = value;
            value = null;
            this.notify();
        }
        return result;
    }
}

Synchronized Broker

Method types

1. Wait-free. A method is wait-free if it guarantees that every call finishes its execution in a finite number of steps.

2. Lock-free algorithm. A method is lock-free if it guarantees that infinitely often some method call fin- ishes in a finite number of steps.

3. Obstruction-free. A method is obstruction-free if, from any point after which it executes in isolation, it finishes in a finite number of steps.

Properties

1. One element message queue. Elements size = 1

2. Blocking (wait/notify in while spurious wakeup prevention loop)

3. Lock type: Intrinsic lock

4. Main problem: multiple producer/consumer

Simple P/C. Read/Write lock

3. Lock type: Intrinsic lock. Read/Write lock. (locking free read)

Simple P/C. Reentrant Lock

3. Lock type: Reentrant Lock

Simple P/C. ReentrantReadWriteLock​

3. Lock type: Reentrant Lock. Read/Write lock. (locking free read)

Simple Producer/Consumer. CAS

public class CasBroker<V> {

    private volatile boolean stop = false;

    private AtomicReference<V> value = new AtomicReference<>();

    public V take() throws InterruptedException {
        V result;
        do {
            if(stop) throw new InterruptedException();
            result = this.value.get();
        } while (result == null || !value.compareAndSet(result, null));
        return result;
    }

    public void put(V value) throws InterruptedException {
        do {
            if(stop) throw new InterruptedException();
        } while (!this.value.compareAndSet(null, value));
    }

    public void stop() {
        this.stop = true;
    }
}

Properties

1. One element message queue. Elements size = 1.

2. Blocking using busy spin.

3. Lock type: CAS.


4. Main problem: multiple producer/consumer.

Simple Producer/Consumer. Exchanger

public class ExchangerBroker<V> {

    private Exchanger<V> exchanger = new Exchanger<>();

    public V take() throws InterruptedException {
        return exchanger.exchange(null);
    }

    public void put(V value) throws InterruptedException {
        exchanger.exchange(value);
    }
}

1. Lock type: CAS. Elimination arena

2. Only one producer/consumer as well (for producer/consumer problem)

3. False sharing prevention. @sun.misc.Contended

4. GC-less (uses pre-allocation)

Producer/Consumer

queue implementation

Queue Producer/Consumer

Thread 1

Thread 2

public class ABQBroker<V> {

    private BlockingQueue<V> queue;

    public void ABQBroker(int capacity) {
        queue = new ArrayBlockingQueue<>(capacity);
    }

    public void put(V value) throws InterruptedException {
        queue.put(value);
    }

    public V take() throws InterruptedException {
        return queue.take();
    }

    public List<V> take(int batchSize) {
        List<V> events = new ArrayList<>(batchSize);
        queue.drainTo(events, batchSize);
        return events;
    }
}

queue = new LinkedBlockingQueue<>(capacity);

BlockingQueue. ABQ. LinkedBlockingQueue.

Properties

1. N element message queue. Elements size = N

2. Not lock-free

3. Lock type: ReentrantLock.

ABQ - single lock for both put/take

LBQ - lock for put and separate lock for take

4. Main problem: overflowing, reliability, scalability

TransferQueue

1. TransferQueue is the same as BlockQueue but...

2. Method transfer has the same behavior as method put but block producer until consumer consume

3. Multiple producers don't block each other

public interface TransferQueue<E> extends BlockingQueue<E> {
    void transfer(E e) throws InterruptedException;
}

public class TransferQueueBroker<V> {

    private TransferQueue<V> queue;

    public void TransferQueueBroker(int capacity) {
        queue = new LinkedTransferQueue<>();
    }

    public void put(V value) throws InterruptedException {
        queue.transfer(value);
    }

    public V take() throws InterruptedException {
        return queue.take();
    }

    public List<V> take(int batchSize) {
        List<V> events = new ArrayList<>(batchSize);
        queue.drainTo(events, batchSize);
        return events;
    }
}

TransferQueue. Example

LMAX Disruptor. Generally about it. Introducing

LMAX aims to be the fastest trading platform in the world.

Disruptor has "mechanical sympathy" for the hardware it's running on, and that's lock-free.

It's GC less.

It's optimized to work with single producer and multiple consumers.

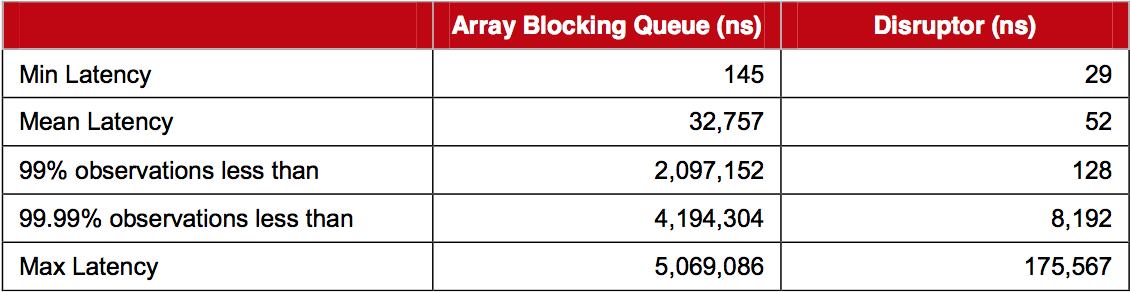

LMAX Disruptor. Really fast

Mean latency per hop for the Disruptor comes out at 52 nanoseconds compared to 32,757 nanoseconds for ArrayBlockingQueue. Profiling shows the use of locks and signalling via a condition variable are the main cause of latency for the ArrayBlockingQueue.

LMAX Disruptor

Data structure: ring buffer

Producer

Producer

Consumer3

Consumer2

Consumer

Consumer3

Consumer2

Consumer1

Consumer3 will be in busy spin

Producer and Consumers don't block each other

LMAX Disruptor. Algorithm

1. Lets get Single Producer/Single Consumer queue

2. Modify wait strategy: condition wait -> busy spin

3. Elements size is a power of 2

4. Change Volatile -> lazySet to remove store/load barrier

5. Add padding or @Contended

6. Add elements pre-allocation and redundant write elimination

LMAX Disruptor. Simple approximation

final T[] elements = T[capacity];

volatile long head, tail;//should be optimized by @Contended

public void put(final T item) {
    while (head - tail == elements.length) {/*spin until not full*/}

    elements[tail & elements.length] = item;//could be optimized by pre-allocation

    tail = tail + 1;//could be optimized by lazySet
}

public T take() {
    while (head == tail) {/*spin until not empty*/}

    final int index = head & elements.length;
    final T item = elements[index];
    elements[index] = null;//could be optimized by pre-allocation

    head = head + 1;//could be optimized by lazySet
    return item;
}

LMAX Disruptor. SingleProducerSequencer

protected long nextValue = -1;
protected long cachedValue = -1;
protected volatile Sequence consumerSequence;

public long next(int n) {
    if (n < 1) {
         throw new IllegalArgumentException("n must be > 0");
    }

    long currentValue = this.currentValue;

    long nextSequence = currentValue + n;
    long wrapPoint = nextSequence - this.bufferSize;
    long startValue = this.consumerPrevValue;

    if (wrapPoint > startValue || startValue > currentValue) {
        long minSequence;
        while (wrapPoint > (minSequence = Math.min(consumerSequence.get(),
                currentValue))) {
            UNSAFE.park(false, 1L);
        }
        this.consumerPrevValue = minSequence;
    }

    this.currentValue = nextSequence;
    return nextSequence;
}

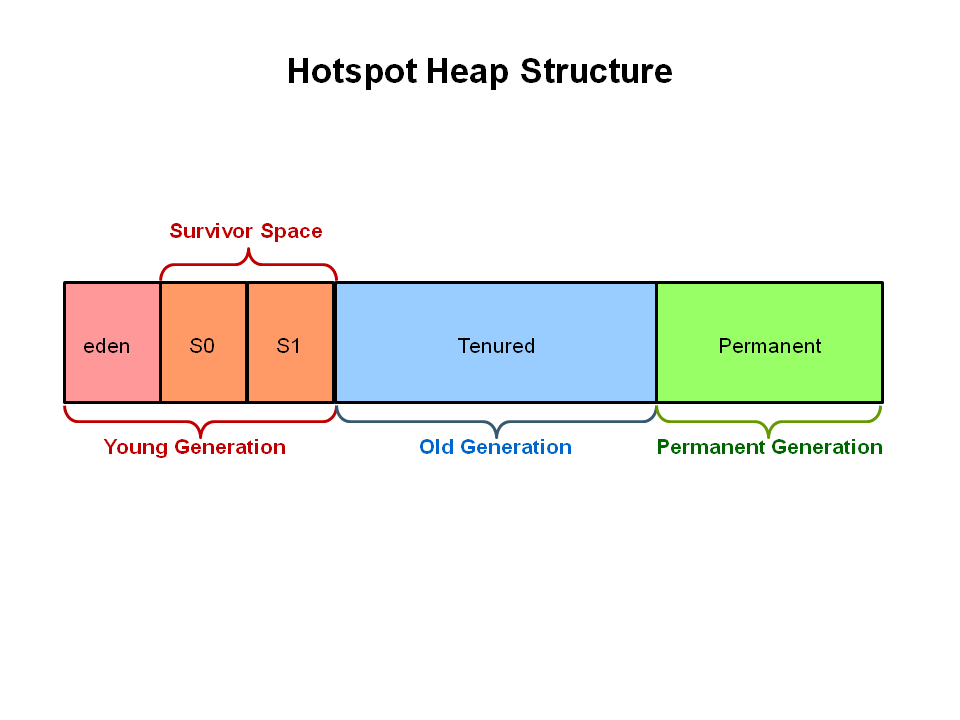

GC basics

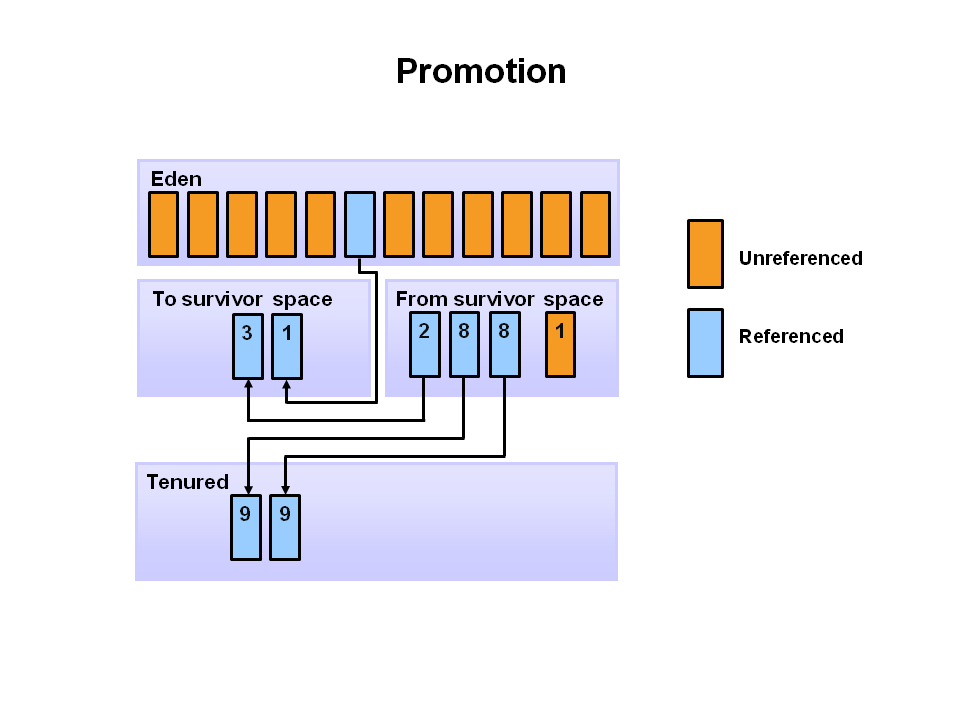

GC basics. Object movement

@Mutable
public class Data {

    long longValue;

    long dateTimeValue;

    boolean boolValue;

    char[] strValue;

    public void mutate(long longValue, long dateTimeValue, boolean boolValue,
        char[] strValue) {
        ...
    }
}

Mutable and primitive types

Disruptor Technical Paper: Garbage collectors work at their best when objects are either very short-lived or effectively immortal.

Disruptor<Data> disruptor = new Disruptor<>(new MyEventFactory(),
            BUFFER_SIZE, consumerExecutor,
            ProducerType.SINGLE, new YieldingWaitStrategy());

RingBuffer<Data> ringBuffer = disruptor.getRingBuffer();

public class Producer<Container extends Mutable<Data>, Data> {

    private final RingBuffer<Container> ringBuffer;

    public Producer(RingBuffer<Container> ringBuffer){
        this.ringBuffer = ringBuffer;
    }

    private final EventTranslatorOneArg<Container, Data> TRANSLATOR
            = (event, sequence, data) -> {
        event.setValue(data);
    };

    public void onData(Data data) {
        ringBuffer.publishEvent(TRANSLATOR, data);
    }
}

LMAX Disruptor. Producer

Properties

1. N element message queue. Elements size = N

2. Blocking

3. Lock-free. Why is it not wait-free? We've got busy spin in 1xN and CAS in NxN mode.

4. GC-less (uses pre-allocation)

5. Main problem: optimized for one producer

Producer/Consumer

queue scaling

1. Lets check how different queues scale

2. Lets change producer/consumer count equally

3. We'll set enough queue capacity and monitor queue to not allow queue to be empty or full all the time.

Question: how does synchronized (intrinsic lock) scale?

Queue scaling

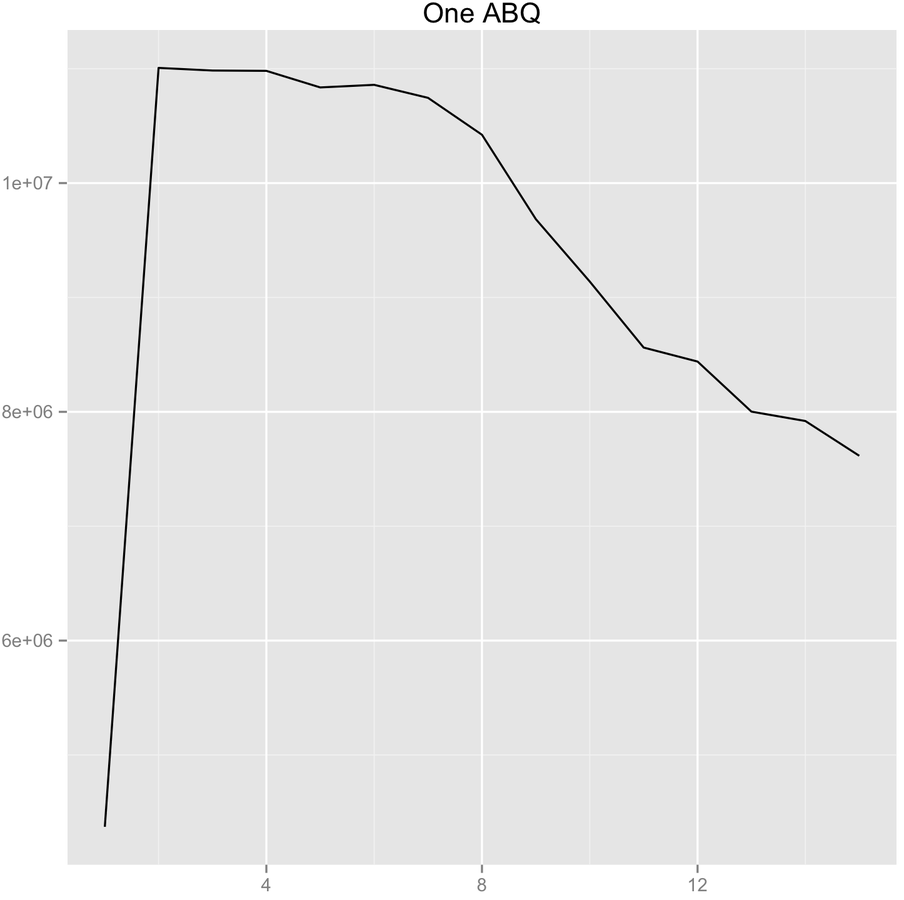

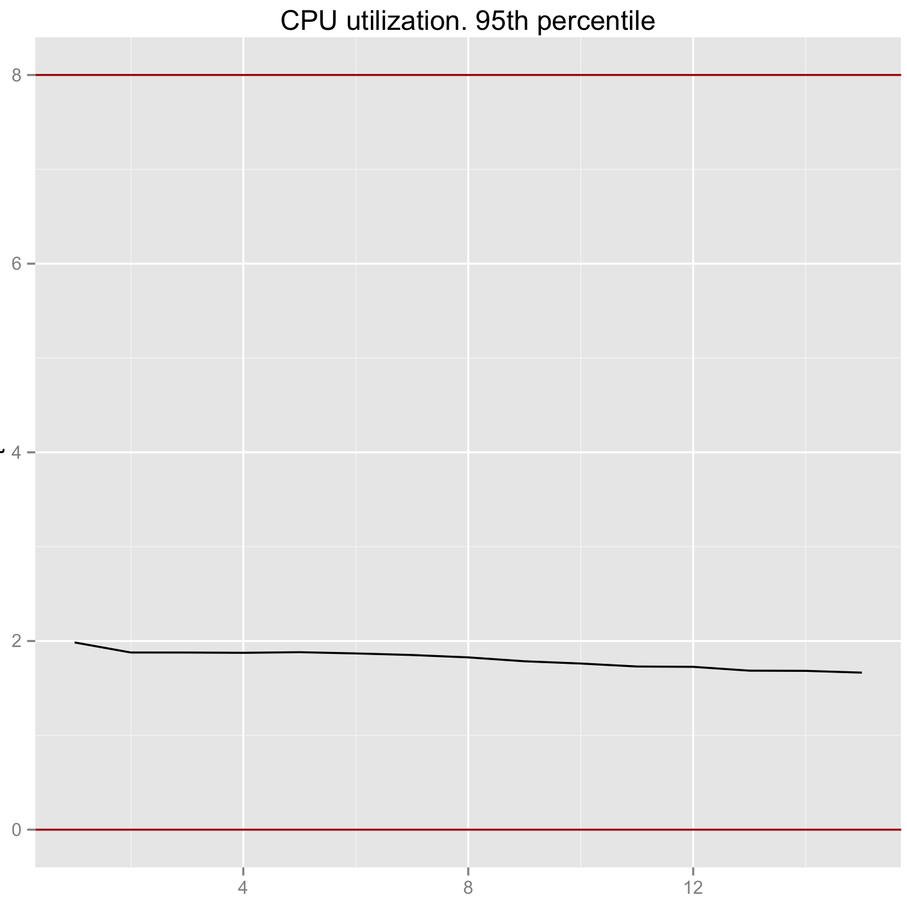

ABQ performance

Throughput

producer/consumer count

CPU Load

producer/consumer count

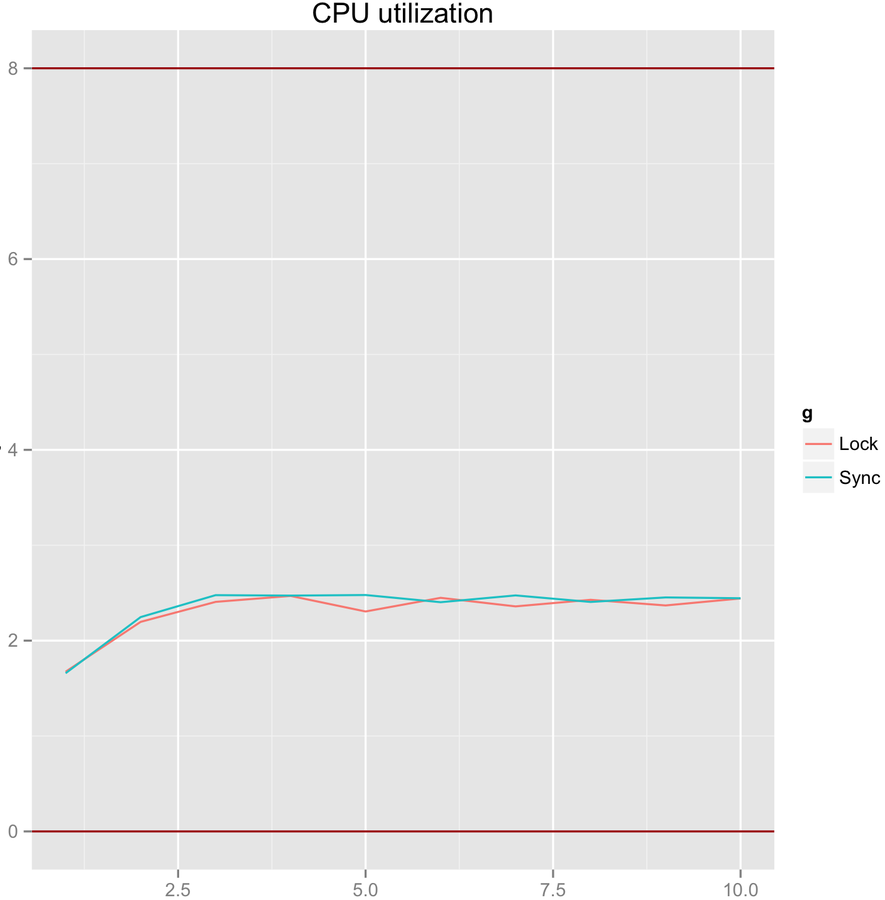

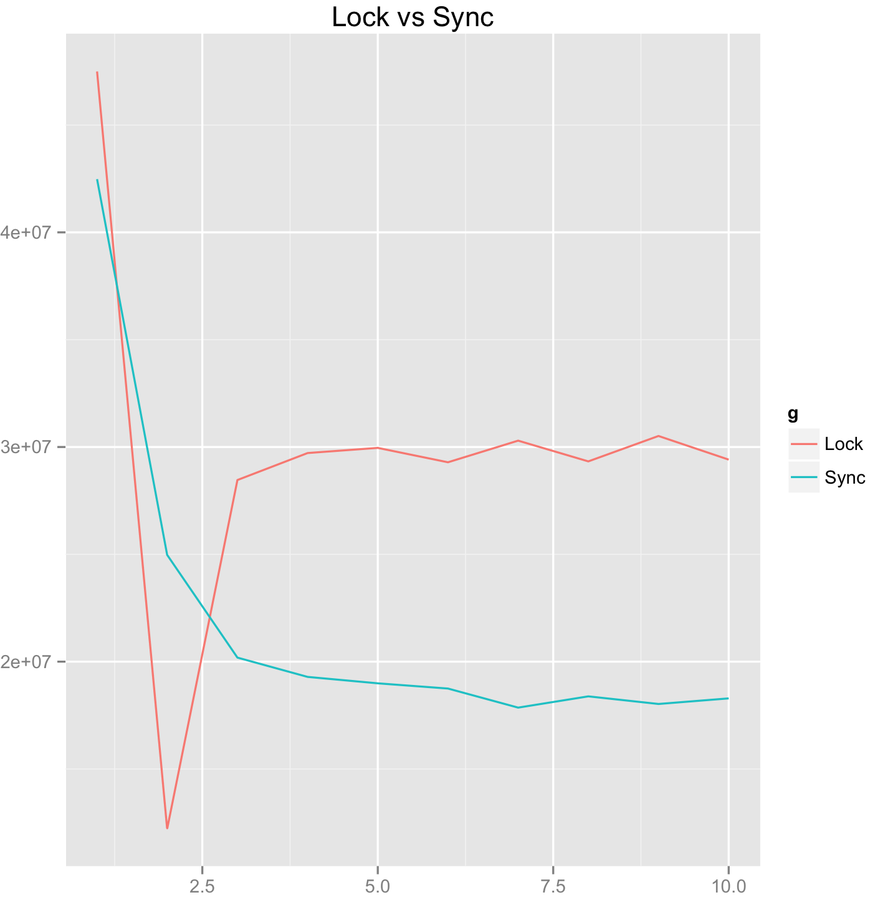

ReentrantLock vs Synchronized

Throughput

threads count

CPU Load

threads count

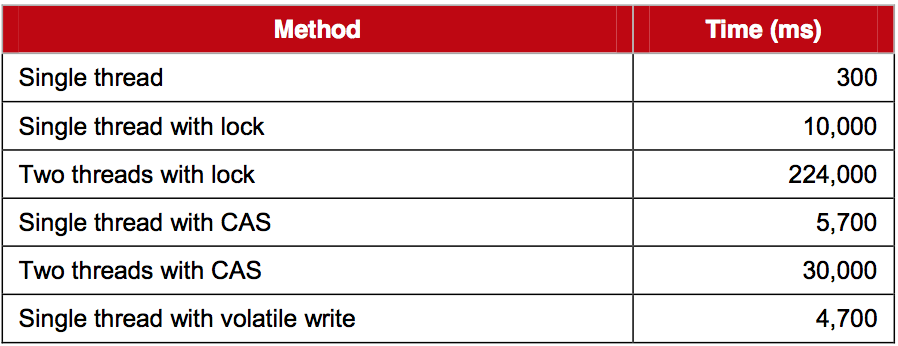

The Cost of Locks

The focus of this experiment is to call a function which increments a 64-bit counter in a loop 500 million times. This can be executed by a single thread on a 2.4Ghz Intel Westmere EP in just 300ms if written in Java.

producer/consumer count

Throughput

producer/consumer count

CPU Load

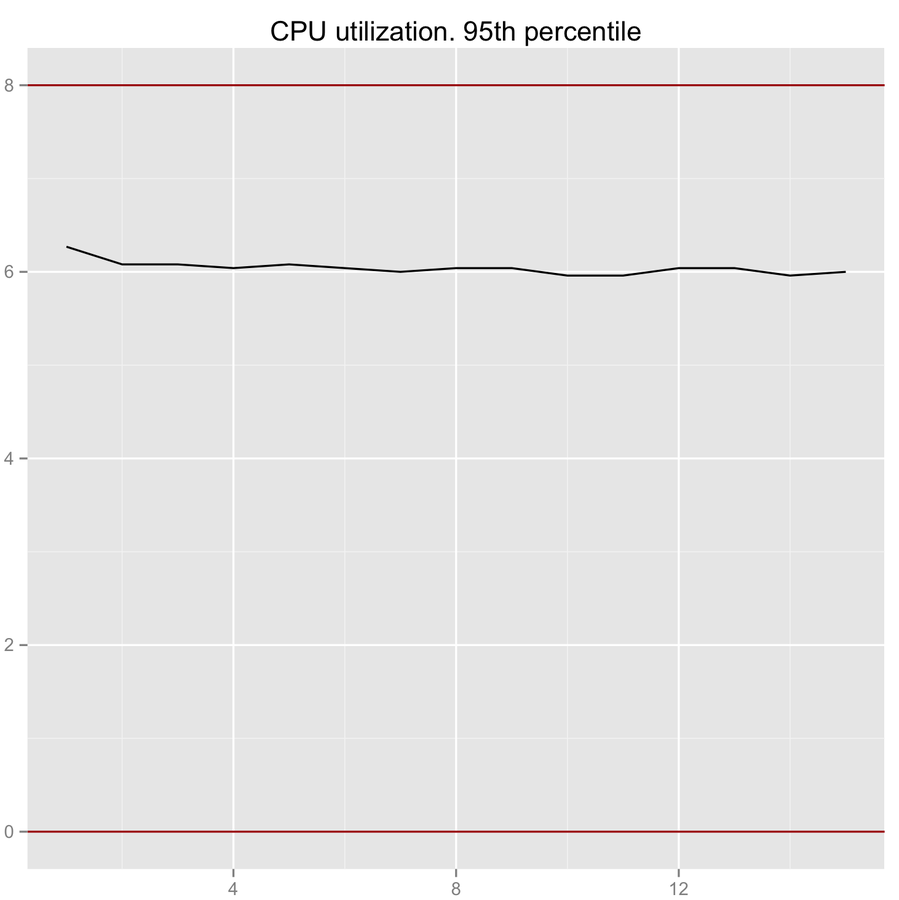

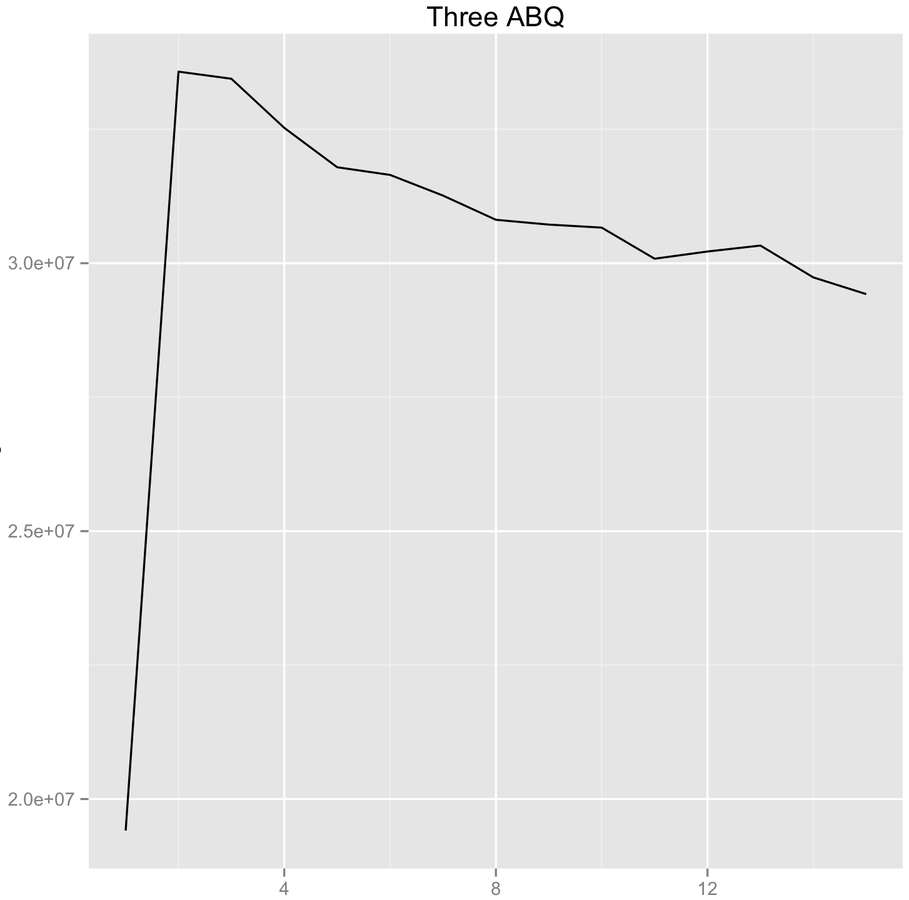

Max CPU utilization ABQ performance. Three ABQ

drainTo/take ABQ

Throughput

producer/consumer count

producer/consumer count

Throughput

producer/consumer count

CPU Load

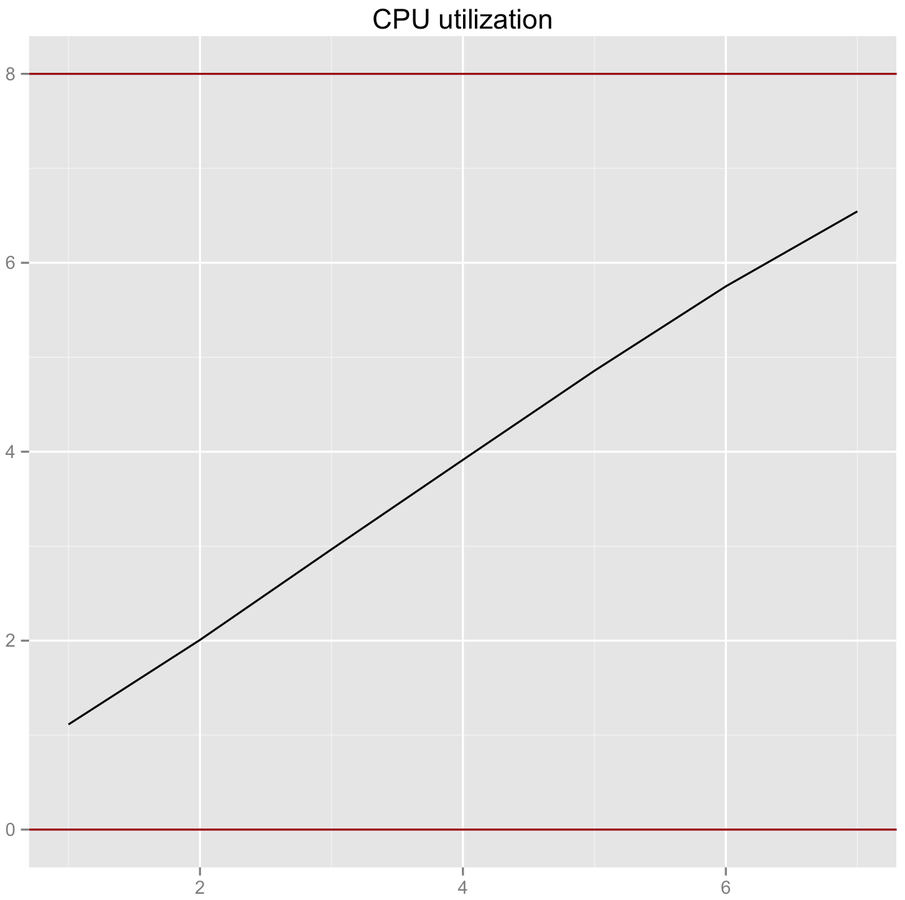

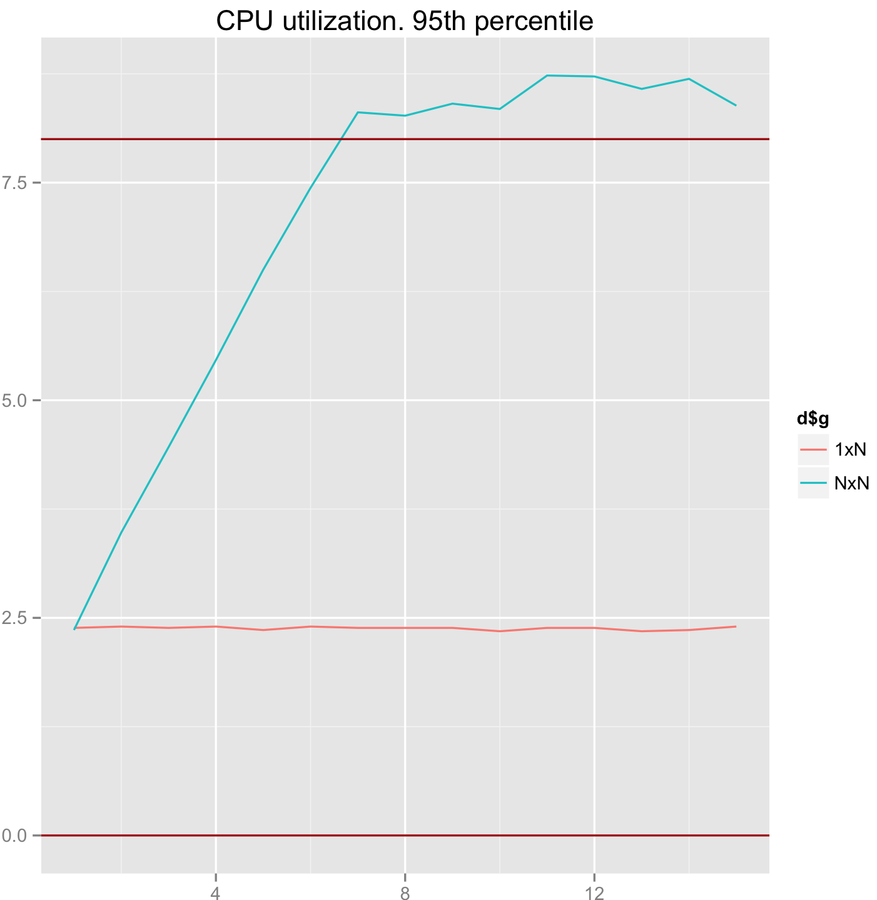

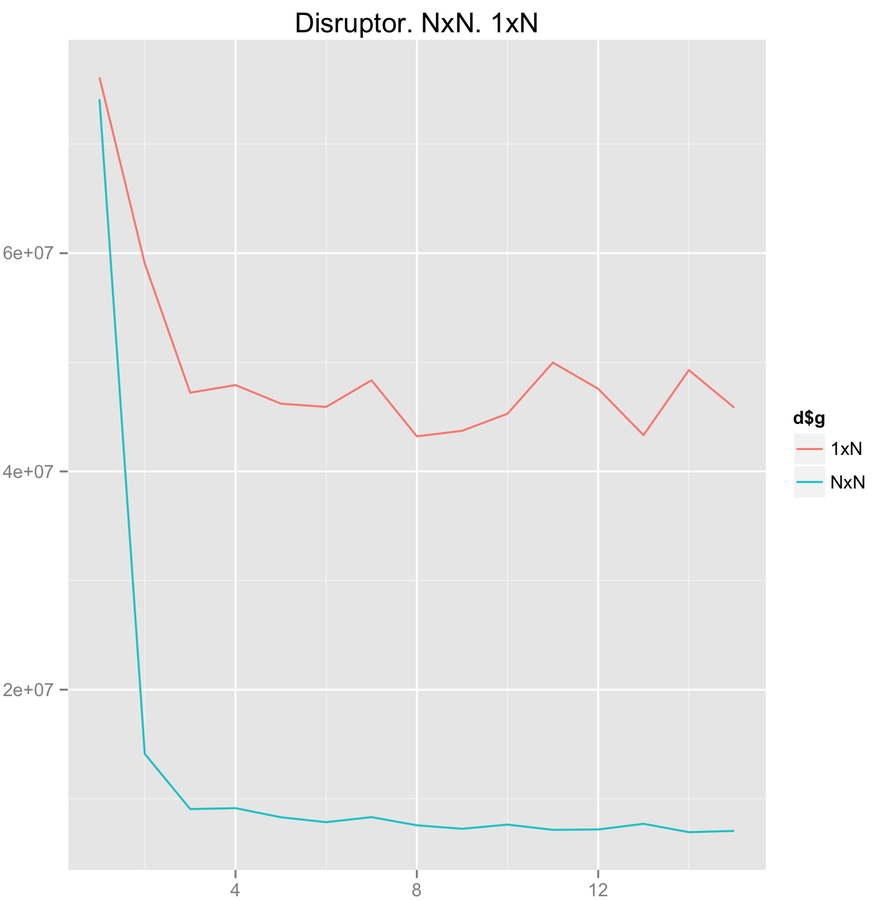

LMAX Disruptor performance

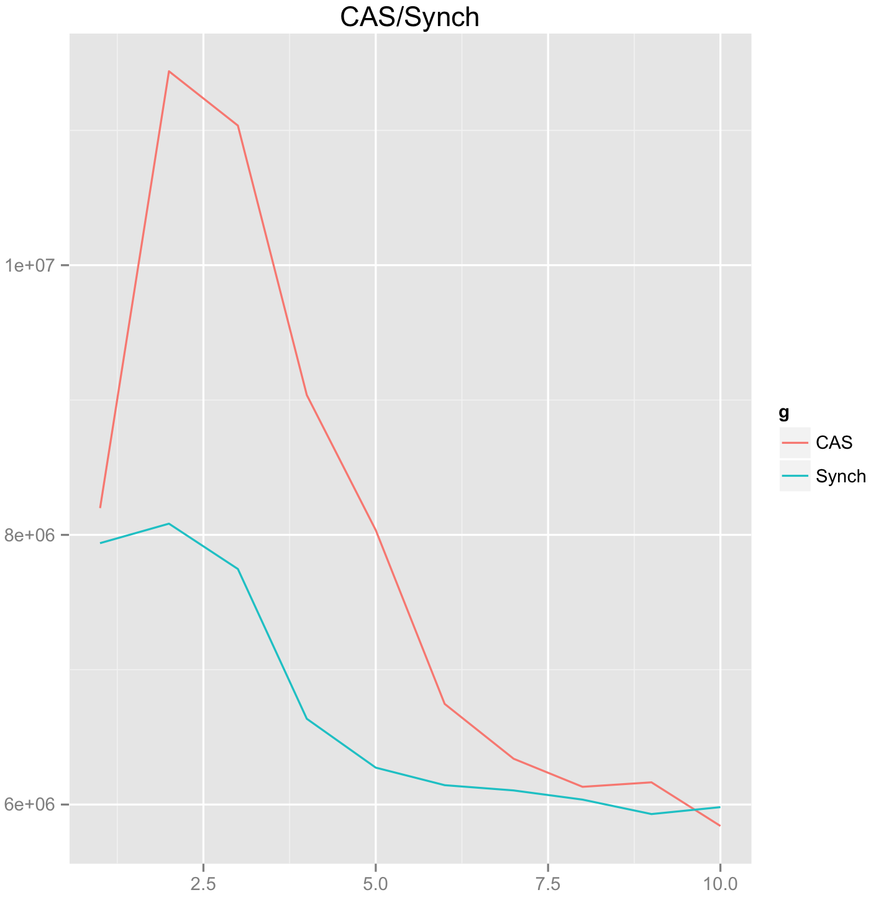

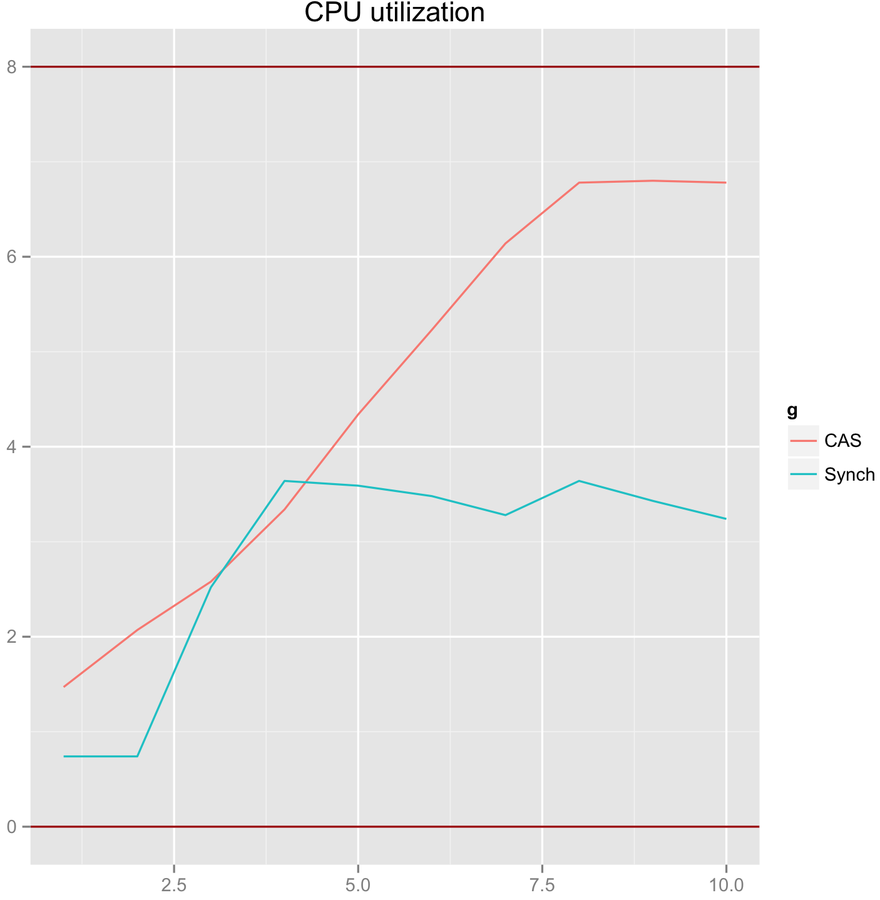

CAS scalability

1. CAS is more cheaper lock than synchronized or ReentrantLock.

2. On the other hand In high load environment CAS implies only more contention and CPU utilization.

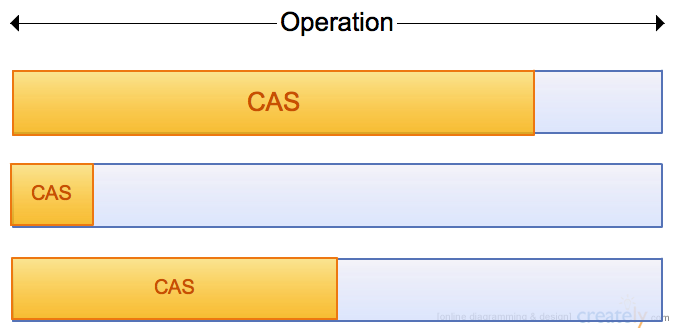

High contention

Small ratio

Optimal ratio

CAS scalability. Optimal ratio

Throughput

threads count

CPU Load

threads count

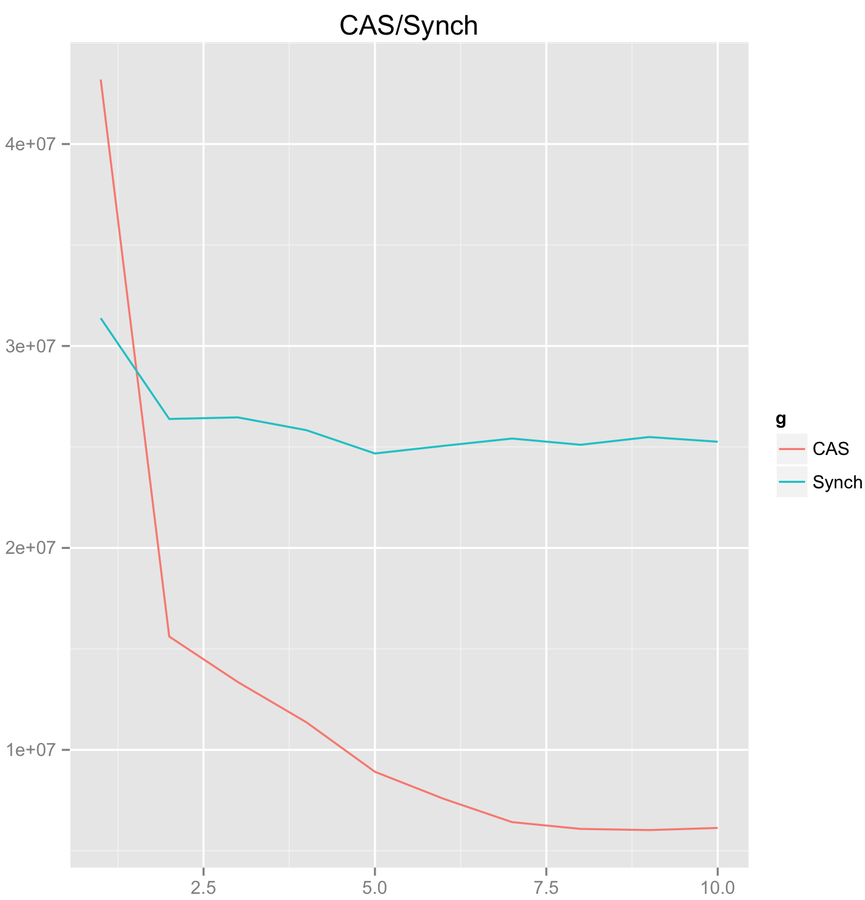

CAS scalability. High contention

Throughput

threads count

CPU Load

threads count

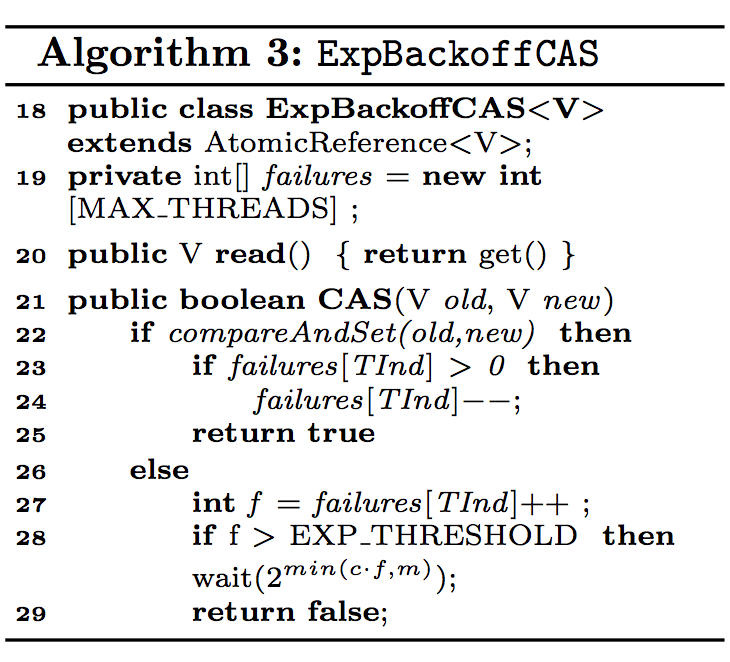

CAS. Backoff techniques

Exponential backoff is an algorithm that uses feedback to multiplicatively decrease the rate of some process, in order to gradually find an acceptable rate.

//~Constant Backoff by Thread.yield()

public void casMethod() {
    Integer current, next;
    boolean result;
    do {
        current = unsafeValue;
        next = current + 1;
        result = unsafe
.CAS(this, offset, current, next);
        if(!result) Thread.yield();
        //unsafe.park(false, 1);
    } while (!result);
}

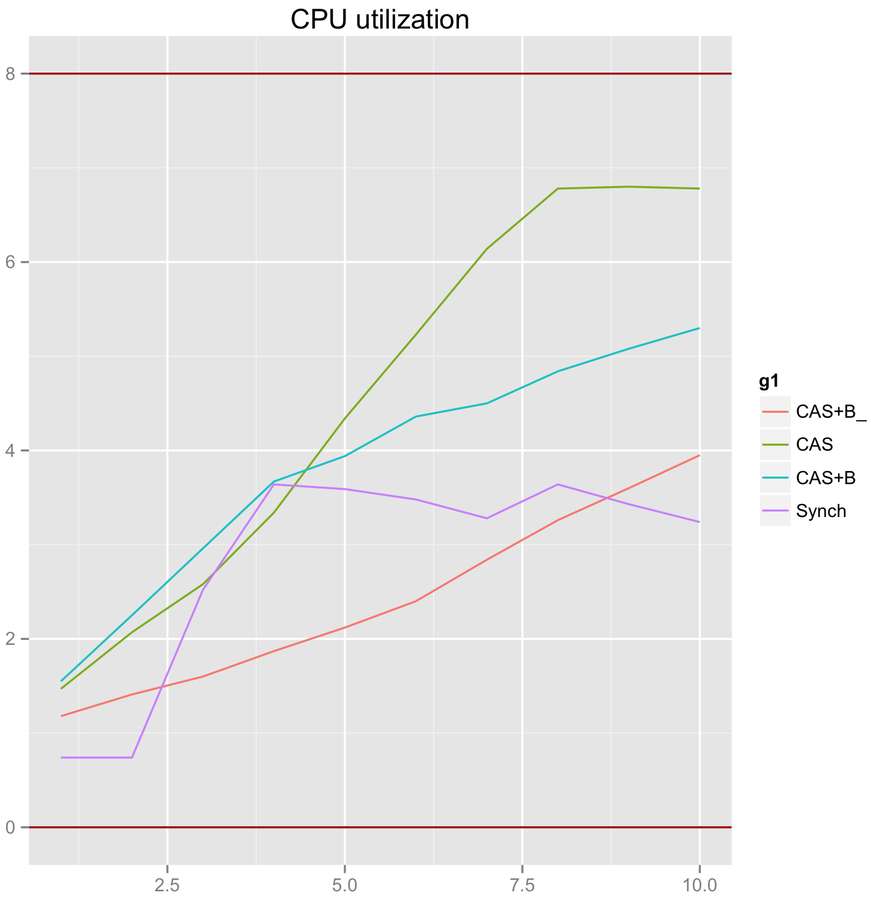

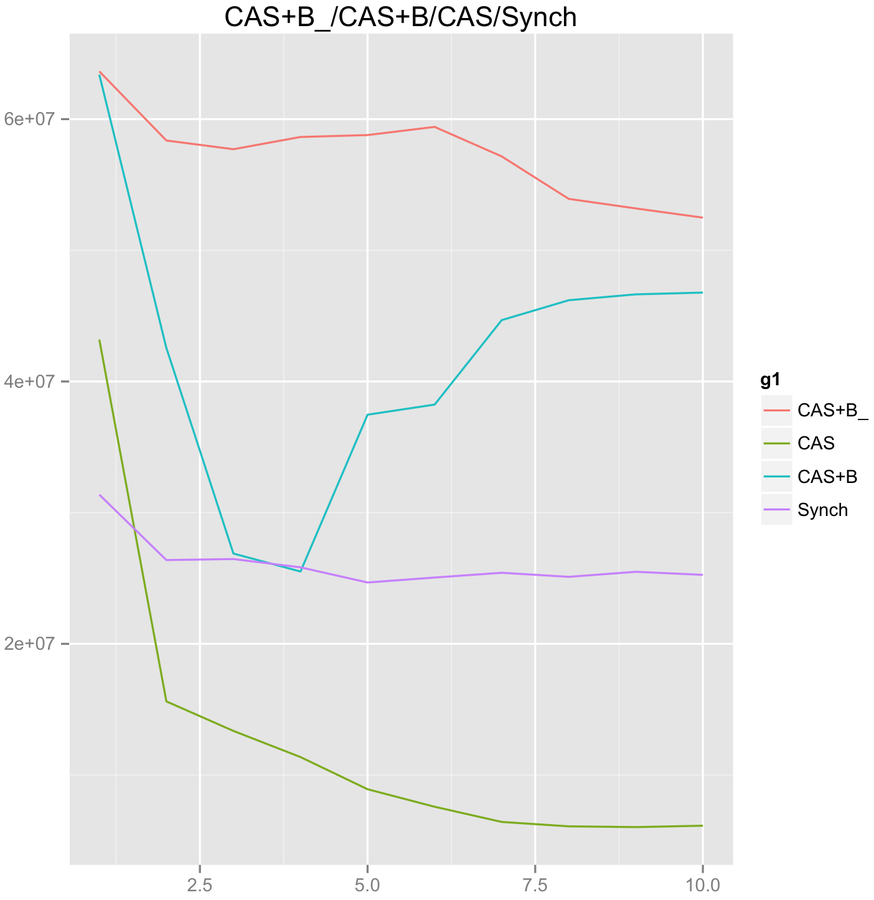

CAS scalability. High contention with Backoff

Throughput

threads count

CPU Load

threads count

CAS+B_ = UNSAFE.park(false, 1), CAS+B = Thread.yield()

Max CPU utilization performance

1. LMAX Disruptor. ~2.2e+08 (4x1x1)

2. ABQ. ~3.3e+07 (3x2x2)

3. CAS. ~2.2e+07 (3x1x1)

4. Exchanger ~1.8e+07 (3x1x1)

5. LBQ ~1.6e+07 (2x3x3)

7. Synchronized ~7.0e+05 (6x1x1)

Conclusions

1. Do test scaling. Most solutions have some limit

2. Decompose. Test each part separately. ReentrantLock

has worse performance than synchronized if threads = 2

3. Consider using several queues instead of one. And guarantee threads count limit

4. Modern solutions such LMAX Disruptor work better but it's more difficult to implement and support them

Producer/Consumer

queue solutions

Questions

1. Scalability

2. Reliability

3. Faul-tolerance

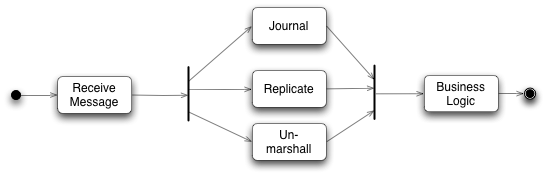

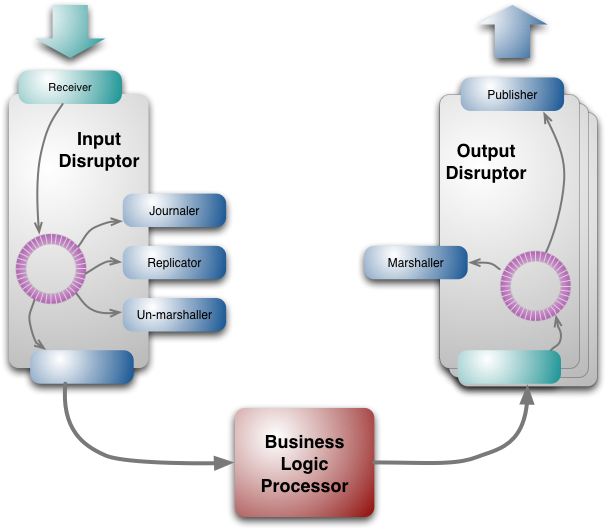

Disruptor. Reliability, Fault-tolerance

Details

Journaler is durable - Reliability

Replicator syncs nodes - Fail-over

Multiple instances

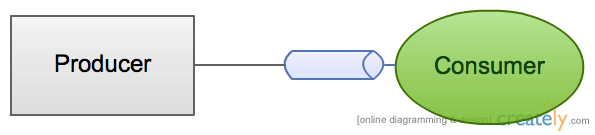

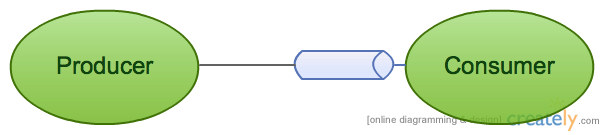

Actors. Akka

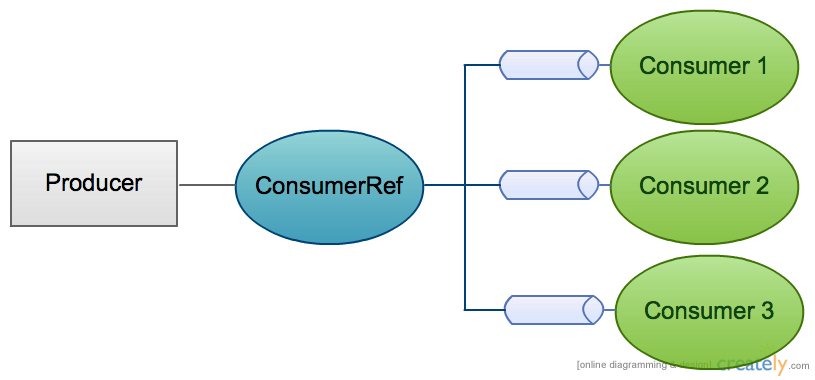

Akka. Router. Dispatcher. Mailbox

Router = Actor instance count/Consumer/Queue count

Dispatcher = How many threads? How are they creating?

Mailbox = Queue implementation (e.g. ABQ, Disruptor)

Properties

1. Actors programming model. (No synchronize code or working with complex concurrent data structure)

2. Configurable. Modular (Router, Dispatcher, Mailbox)

3. Scalable across network (Akka remoting)

4. Fault Tolerant

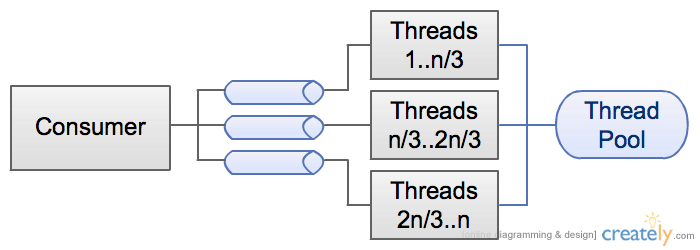

Multithreading scalability with Balancer

1. Naive approach

2. Thread.currentThread().getId() mod count.

Better. But it gives random results.

3. Thread binding

threads count

Throughput

threads count

CPU Load

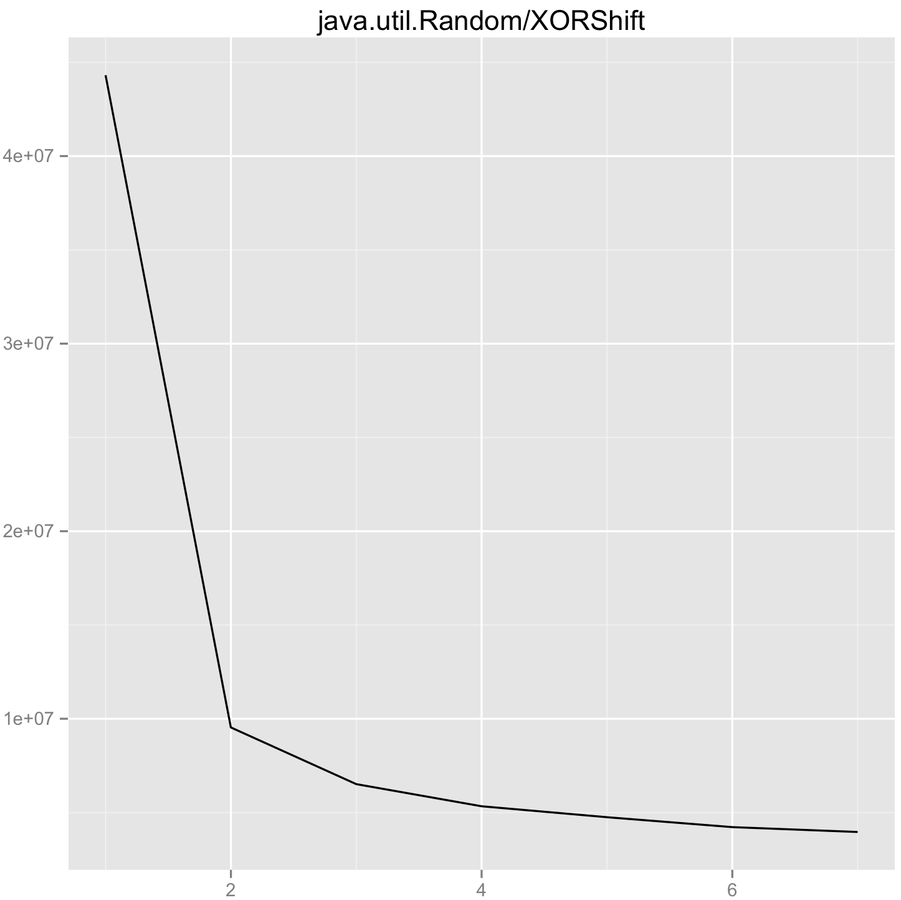

Randomizing performance

Multithreading scalability. Questions

1. What if n/m != integer?

2. What if I don't have Thread pool?

3. What if load can vary from time to time?

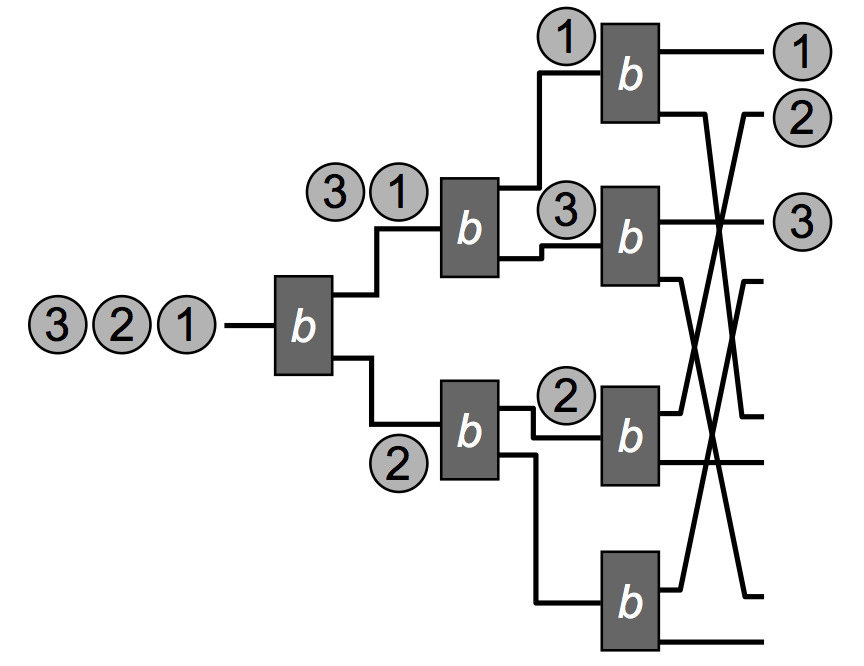

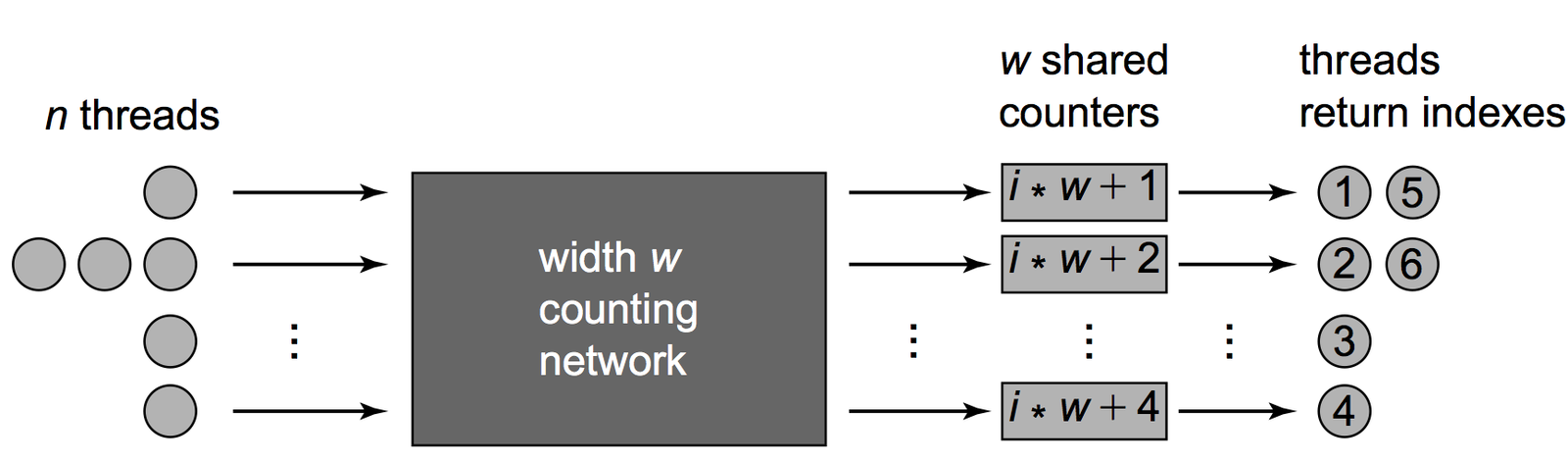

Counting network

A balancer is a simple switch with two input wires and two output wires, called the top and bottom wires (or sometimes the north and south wires)

Known algorithm: Bitonic Counting Network

Also there is Sorting network

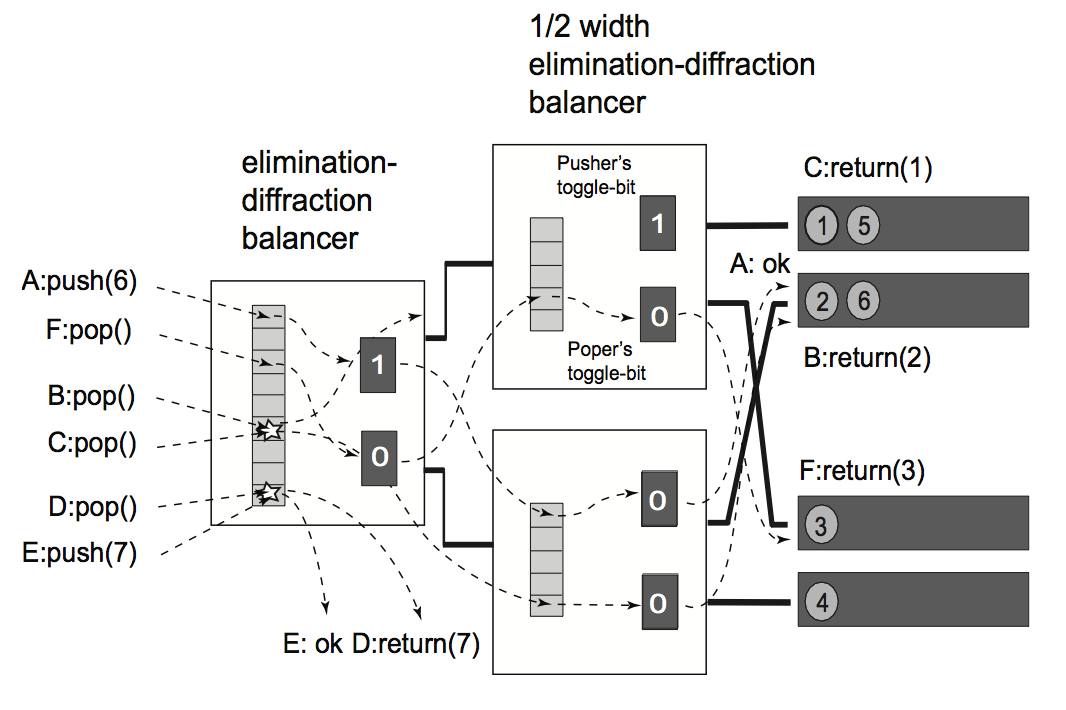

Diffraction Trees or counting trees

It's distributed technique for shared counting.

Bitonic counting networks have width w < n and depth O(log w^2). Diffraction trees has depth O(log w)

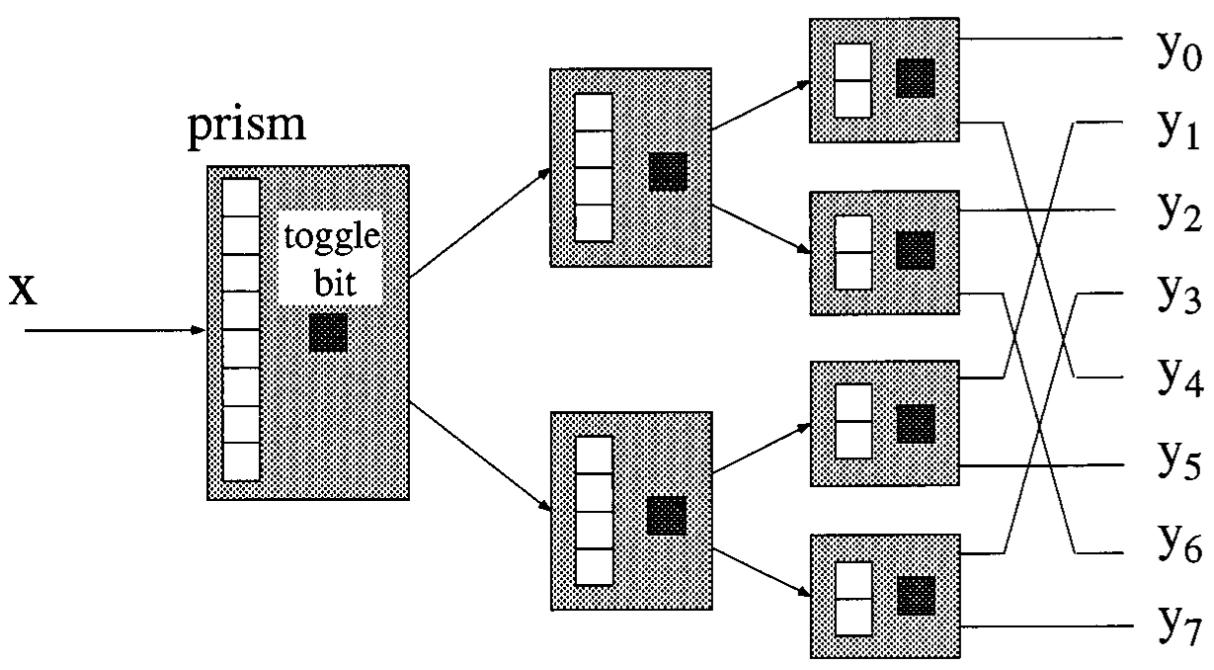

Diffraction Trees or counting trees

Introduces diffraction prism to eliminate contention on toggle bit

Elimination-Diffraction Trees

Producer/Consumer

external

queue implementation

Description

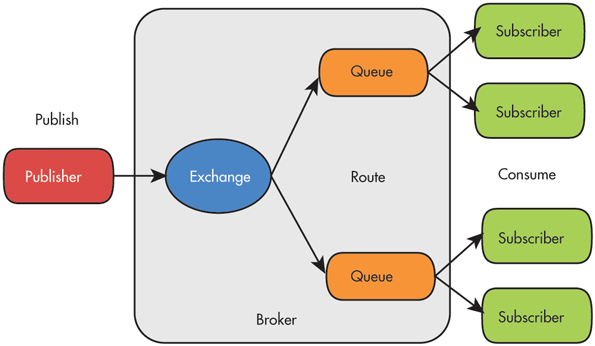

AMQP

Two protocols: AMQP, JMS

Motivation

1. Also implementation of producer/consumer

2. Reliable, fault tolerant, scalable solution. Transactional.

3. Interoperable. Connect subsystems which are implemented of different technologies stack

4. In case of AMQP two subsystems could have different queue clients

5. In case of using ESB you can connect different queue implementations

Solutions

1. Integrated to JEE server or Standalone?

2. Implementations

How to choose?

1. What are required properties?

2. Implementation. Decomposition

Network IO

Memory

queue

Disk

IO

Clustering

Transactional

Faul Tolerance

...

Other components

HornetQ

Netty NIO

RabbitMQ

Erlang Thread model

Erlang Thread model

Special cases

Events stream processing

Kafka

How much Apache Flume is high-throughput?

LinkedBlocking Queue

Transactional

2 LinkedBlocking Queue (put, take)

+ synchronized

1. It's not the best sink solution. What if I'd like to use Storm?

2. What If I don't need transactional?

Netcat source

NIO. Channels

What about Apache Kafka?

Consequent Write on

Disk

Clustering. Replication

Using ZooKeeper

NIO. Channels
No serialization protocol

There are only consequent write and read

Kafka. Cons

1. There is no support JMS, AMQP

2. It's not transactional

3. There is almost no Memory queue.

4. Maintain only Topics

Conslusion

• Consumer/producer world is very powerful
• Learn more. Make decision based on your deep knowledges about a solution
• Decompose. Study well. Decide what you should pay

References

1. Java Concurrency in Practice by Brian Goetz.

2. The Art of Multiprocessor Programming by Maurice Herlihy.

3. Руслан Черёмин — Disruptor и прочие фокусы.

4. The LMAX. Architecture.  http://martinfowler.com/articles/lmax.html

5. Disruptor: High performance alternative to bounded queues for exchanging data between concurrent threads by Martin Thompson.

6. Java Message Service by Mark Richards.
