QAOA - the project
HOBO vs QUBO
deep but not so much qubits
short, but many qubits
\theta
QUBO
HOBO
Why is HOBO interesting?
- Uses less qubits,
- By this feasible space takes most of the space
\frac{n!}{2^{n^2}} \approx \sqrt{2\pi n}\frac{2^{n\log_2 n - n\log_2 \mathrm e}}{2^{n^2}} \approx \color{LimeGreen} O(2^{-n^2})
\frac{n!}{2^{n \log_2(n)}} \approx \sqrt{2\pi n}\frac{n^n/\mathrm e^{-n}}{n^n} \approx \color{yellow} O(e^{-n})
Q: How many of bit assignments are feasible one (proper routes) for TSP?
QUBO:
HOBO:
We spend less time on finding feasible space, which we can use on optimizing the solution
This is not that simple
Solution: change the encoding (all the time)
HOBO requires much deeper circuits.
But can we benefit from reducing the feasible space, even w/o the improvement on the number of qubits?
1011_2 \leftrightarrow 0000100000000000
The idea
\Huge \dagger
HOBO-size mixer
Change of the encoding (from binary to one-hot vector at inverse)
QUBO objective encoding
\theta
\theta'
|00\ldots0\rangle
|00\ldots0\rangle
|+\rangle
|\varphi(\theta,\theta')\rangle
Quality measures
- Number of qubits is the number of the worst encoding
- Depth is equal to sum of depths of each part
- Number of measurement is tricky is as for objective Hamiltonian
\Huge \dagger
\theta
\theta'
depth

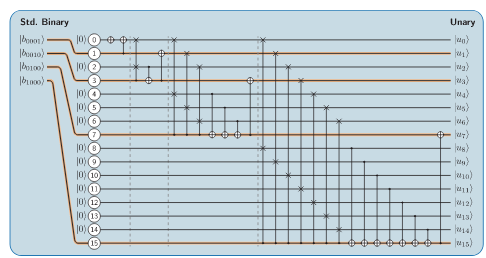

How to transform encoding?
\textrm{Looks like depth is $O(n)$ where $n$ is max number}
First bunch of tasks
- Implement quantum circuit for QUBO (use parallelism)
- implement encoding transformation (binary to unary)
- make notes
- prove it works (should be simple)
- compute the depth of the circuit (up to constant)
- determine no. measurements
Test if QAOA works!
Simplifications
\Huge \dagger
\theta
\theta'
Change of the encoding is a permutation, but because of we do uncomputation, we can do it up to local phases

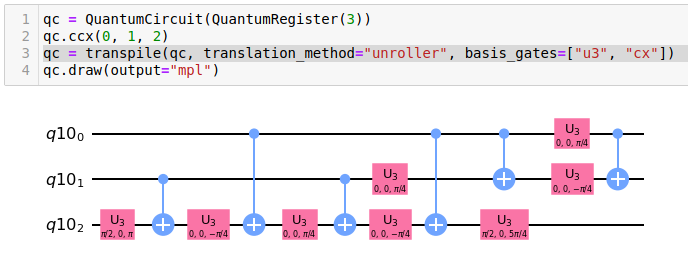

Depth 11
Depth 7

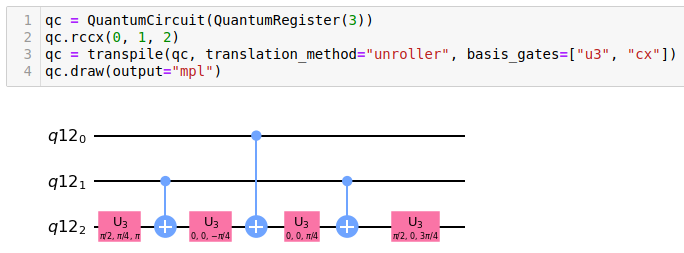

RCCX|111\rangle = \mathrm {e}^{\mathrm i \varphi} |
110\rangle
Mixing objective Hamiltonian
\Huge \dagger
\theta
\theta'
\theta'
Part of objective Hamiltonian in HOBO
Part of objective Hamiltonian in QUBO
Q: What is the objective Hamiltonian? probably sum of them
Affects depth and no. of measurements
Starting in W-state
\theta
\theta'
Q: How to generate W-state?
Problem with mixer Hamiltonian - how to define such?
|W \rangle = \frac{1}{\sqrt n}(|100\ldots0\rangle+|010\ldots0\rangle+|001\ldots0\rangle + |000\ldots1\rangle)
|W \rangle
Automatic testing
\Huge \dagger
\theta
\theta'
\theta'
| 0\rangle
We can make measurement to test, whether we still are at right place, and continue if only 0s are measured
Q1: Does it give any benefits? - test by simulation
Q2: Does it improve anything? - assumption on the strength of the noise
Q3: error correction?
Tools
- git (probably GitHub for now)
- Anaconda + Python + qiskit, or
- Julia + Yao
- TeX
QAOA - the project
By Adam Glos
