Git 101

concepts

GIT 101

Git 101:

Concepts

repository

//  Contains all of the project files

//  Stores each file's revision history

//  Can have multiple collaborators

//  Can be either public or private

//  There will be multiple copies

//  There is usually one central “master” copy

Git 101:

Concepts

Submodule

//  A Git repository that is nested within another repository

//  It's codebase is managed independently of its
     container's code

//  Does not automatically upgrade

Git 101:

Concepts

branch

//  A parallel version of a repository

//  Does not affect the primary master branch

//  Publish your changes by merging the branch
     back into the master branch



Git 101:

Concepts

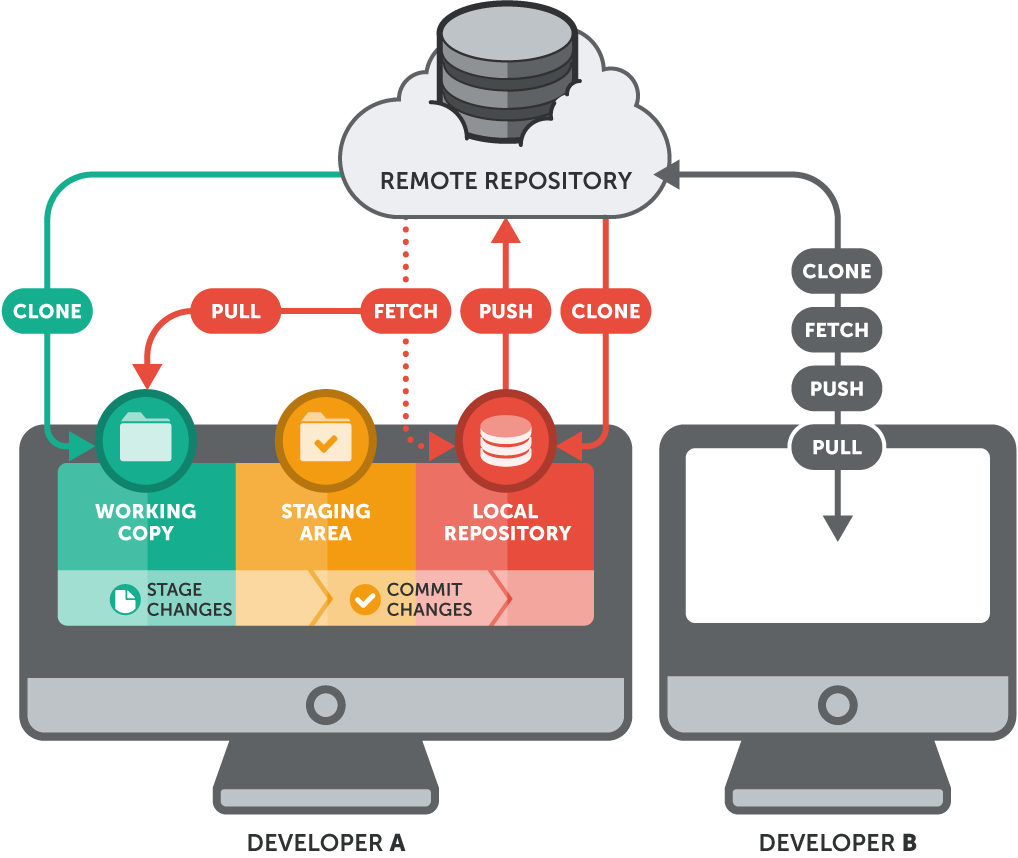

remote

//  The version of the
     repository that is hosted on
     a remote server (GitHub)

//  Local repository is
     connected to the remote
     so that changes can
     be synced

Git 101:

Concepts

Working Directory

//  Holds the current checkout of the files
     you are working on

//  Files in will be removed or replaced by Git
     as you switch branches

Git 101:

Concepts

Index

//  A staging area

//  Holds snapshots of changes are before they get
     committed to the repository

Git 101:

Concepts

Commit

//  A snapshot of the tracked contents of your
     working directory

//  Records what changes were made when and by who

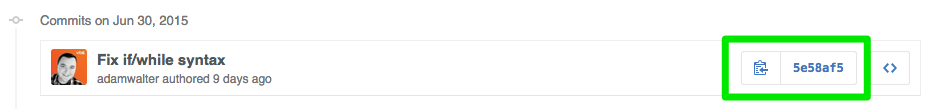

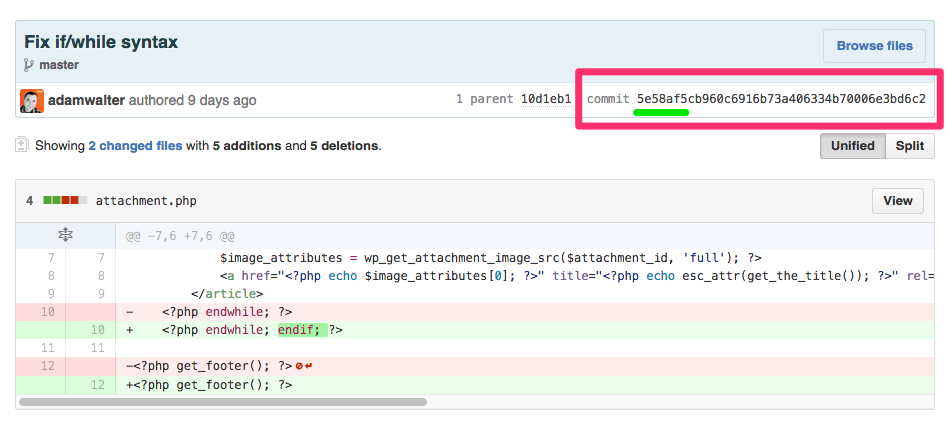

//  Tracked using a unique 40 character SHA1 hash

Git 101:

Concepts

Commit

Git 101:

Concepts

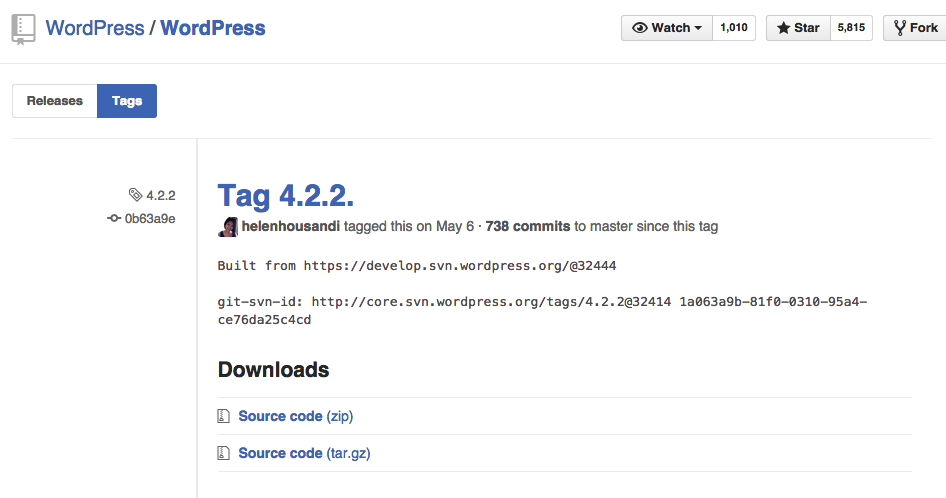

TAGs

//  Typically used to mark a particular commit using
     a memorable name

Git 101:

Concepts

.gitignore

//  Specify which files and directories Git should ignore

//  Committed into repository in order to share ignore
     rules with other users that clone the repository

Git 101:

Concepts

.gitignore


# Files
.DS_Store
error_log

# File types
*.log

# Directories
node_modules/
wp-content/cache/

# Ignore everything in wp-content except plugins and themes
wp-content/*
!wp-content/plugins/
!wp-content/themes/

Installation

GIT 101

Git 101:

Installation

Installation


$ git --version

Git 101:

Installation

Configuration

//  Global configuration


[user]
	name = Bill Swath
	email = user@example.com
[color]
	ui = true
[core]
	excludesfile = /Users/swath/.gitignore_global
	filemode = false
        editor = subl -n -w
~/.gitconfig

Git 101:

Installation

Configuration

//  Global configuration


$ git config --global user.name "[name]"

$ git config --global user.email "[email address]"

# Colorful output
$ git config --global color.ui auto

# Don't track file permission changes
$ git config --global core.filemode false

Git 101:

Installation

Configuration

//  Project configuration


[core]
        ...
[remote "origin"]
	url = git@github.com:VitalDevTeam/Skeleton.git
	fetch = +refs/heads/*:refs/remotes/origin/*
[branch "master"]
	remote = origin
	merge = refs/heads/master
[submodule "wp"]
	url = https://github.com/WordPress/WordPress.git
project/.git/config

Authentication

GIT 101

Git 101:

Authentication

SSH Key

//  Identify trusted computers and servers without
     using passwords

//  Required to push changes to remote

//  Required to clone private repositories



Basic commands

GIT 101

Git 101:

BASIC COMMANDS

init

$ git init
Initialized empty Git repository in /Users/vitaldesign/Dropbox/GitHub/test/.git/

$ ls -alh
total 0
drwxr-xr-x@  3 vitaldesign  501   102B Jul  9 12:19 ./
drwxr-xr-x@ 25 vitaldesign  501   850B Jul  9 12:19 ../
drwxr-xr-x@ 10 vitaldesign  501   340B Jul  9 12:19 .git/

Create a new repository locally

Git 101:

BASIC COMMANDS

clone

$ git clone git@github.com:VitalDevTeam/Nucleus.git nucleus
Cloning into 'nucleus'...
remote: Counting objects: 1548, done.
remote: Total 1548 (delta 0), reused 0 (delta 0), pack-reused 1548
Receiving objects: 100% (1548/1548), 1.17 MiB | 1.79 MiB/s, done.
Resolving deltas: 100% (915/915), done.
Checking connectivity... done.

Clone existing repository locally

Git 101:

BASIC COMMANDS

clone

SSH URL

Requires SSH key

HTTPS URL

Asks for password on every push

Git 101:

BASIC COMMANDS

clone --recursive

$ git clone --recursive git@github.com:VitalDevTeam/Skeleton.git skeleton2
Cloning into 'skeleton2'...
remote: Counting objects: 458, done.
remote: Total 458 (delta 0), reused 0 (delta 0), pack-reused 458
Receiving objects: 100% (458/458), 877.96 KiB | 0 bytes/s, done.
Resolving deltas: 100% (190/190), done.
Checking connectivity... done.
Submodule 'wp' (https://github.com/WordPress/WordPress.git) registered for path 'wp'
Cloning into 'wp'...
remote: Counting objects: 208388, done.
remote: Compressing objects: 100% (179/179), done.
remote: Total 208388 (delta 106), reused 0 (delta 0), pack-reused 208209
Receiving objects: 100% (208388/208388), 130.03 MiB | 2.49 MiB/s, done.
Resolving deltas: 100% (164374/164374), done.
Checking connectivity... done.
Submodule path 'wp': checked out '0b63a9e4b66eff7826bd7319ef767d24d9b55775'

Clone existing repository and all submodules locally

Git 101:

Basic Commands

add

# Add individual files
$ git add <filename> <filename> <filename> ...

# Add all files that have been changed
$ git add -u

# Add all files that have been changed AND new files
$ git add -A

Add your local changes to the staging area (index)

Git 101:

Basic Commands

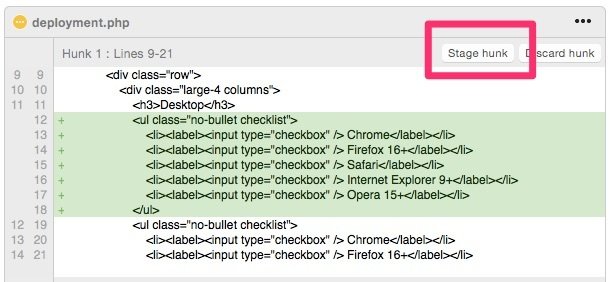

add -p

Add local changes to the staging area in hunks instead of whole files

Git 101:

BASIC Commands

status

$ git status
On branch master
Your branch is up-to-date with 'origin/master'.
Changes not staged for commit:
  (use "git add <file>..." to update what will be committed)
  (use "git checkout -- <file>..." to discard changes in working directory)

	modified:   bomp.php

no changes added to commit (use "git add" and/or "git commit -a")

Shows the differences between your working directory, the index, and previous commits

Git 101:

Basic Commands

commit

$ git commit -m 'Added awesome widget'
[master 68aa034] Added awesome widget
 1 files changed, 2 insertions(+), 1 deletions(-)

Takes the staged snapshot in the index and commits it to the project history

Commit a lot as you go!

Git 101:

Basic Commands

commit -m

Commit message best practices:

//  First line should be 50 characters or less

//  Second line should be blank

//  Omit the -m flag if you need to write more
     than 50 characters

//  Describe what the commit does to the repo and

     not what YOU did

Git 101:

Basic Commands

commit
Adds FAQs

Adds new custom post type plugin for FAQs
as well as 2 content block layouts for the FAQs.

# Please enter the commit message for your changes. Lines starting
# with '#' will be ignored, and an empty message aborts the commit.
# On branch master
#
# Initial commit
#
# Changes to be committed:
#       new file:   foo
#

Good example of a longer commit message

Git 101:

Basic Commands

commit

Change your default editor in Git so you can write commit messages easily:

On remote servers where you can't use apps:


$ git config --global core.editor "nano"

Git 101:

Basic Commands

push

$ git push origin master
Counting objects: 25, done.
Delta compression using up to 2 threads.
Compressing objects: 100% (25/25), done.
Writing objects: 100% (25/25), 2.43 KiB, done.
Total 25 (delta 4), reused 0 (delta 0)
To git@github.com:foo/bar.git
 * [new branch]      master -> master

Send your committed changes to a remote repository

Git 101:

Basic Commands

fetch

//  Get the latest changes from the
     remote repository without merging them

//  Changes can be compared to your local copy


$ git fetch origin
remote: Counting objects: 4006, done.
remote: Compressing objects: 100% (1322/1322), done.
remote: Total 2783 (delta 1526), reused 2587 (delta 1387)
Receiving objects: 100% (2783/2783), 1.23 MiB | 10 KiB/s, done.
Resolving deltas: 100% (1526/1526), completed with 387 local objects.
From github.com:foo/bar
   8e29b09..c7c5a10  master     -> origin/master

Git 101:

Basic Commands

pull

Fetch and merge changes from the remote repository to your local copy

Git 101:

Basic Commands

log

View the history of a repository


# View verbose commit history
$ git log

# View simple, one line commit history
$ git log --pretty=oneline

# View commit history with graphical branch chart
$ git log --name-status

BRANCHES

GIT 101

Git 101:

Branches

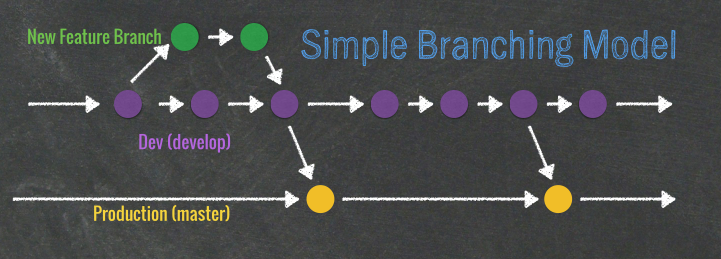

branch Model

Git 101:

BRANCHES

CREATING a BRANCH


$ git branch <branch>

Create a new branch

Git 101:

BRANCHES

Switch Branch


$ git checkout <branch>

Switch to a branch

Git 101:

BRANCHES

PUSH Branch


$ git push origin <branch>

Push branch to remote so others have access to it

Git 101:

BRANCHES

Merge Branch


$ git merge <branch>

Merge branch into current

Git 101:

BRANCHES

Merge Conflicts

//  2 people make edits on the same line

//  One person deletes a file that another was
     working on

//  2 people add a file with the same name

REFERENCES

Quick Reference Guide
http://rogerdudler.github.io/git-guide/



More Comprehensive Tutorial

https://www.git-tower.com/learn/git/ebook



Interactive 15-Minute Basic Tutorial

https://try.github.io



Interactive Branching Tutorial
http://pcottle.github.io/learnGitBranching
