Black widow evolution:magnetic braking by an ablated wind
Almog
Yalinewich
Pulsar
Coffee
7.2.20
Mass Loss from a Black Widow
Energy budget
\frac{G M_{\odot}^2}{R_{\odot}} \approx 10^{48} \rm \, erg
L_{\odot} t_H \approx 10^{50} \, \rm erg
Efficiency?
Albedo?
(regressive energy distribution)
Extremely Low Mass Companion
PSR J1719-1438 and PSR J2322-2650
Parker Wind
\frac{\partial}{\partial r} \left(\rho v r^2\right) =0
p = \frac{\rho k T}{\mu}
\rho v \frac{\partial v}{\partial r} + \frac{\partial p}{\partial r} = - \frac{G M \rho}{r^2}
\frac{1}{2} \left(1 - \frac{k T}{\mu v^2} \right ) \frac{\partial v^2}{\partial r} = \frac{2 k T}{\mu r} - \frac{G M}{r^2}

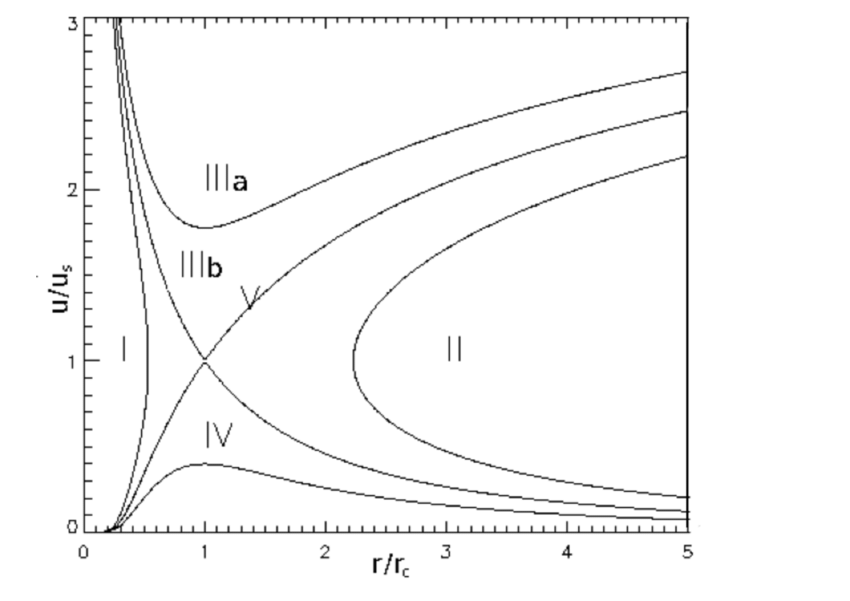

Sonic Point
c = v
R_b \approx \frac{G M}{c^2}
\left(1 - \frac{c^2}{v^2} \right ) \frac{\partial}{\partial r} \frac{v^2}{2} = \frac{2 c^2}{r} - \frac{G M}{r^2}
r \ll R_g
r \gg R_g
Hydrostatic
Coasting
Analytic Solution
\rho v \frac{\partial v}{\partial r} + \frac{\partial p}{\partial r} = - \frac{G M \rho}{r^2}
\rho v \frac{\partial v}{\partial r} + c^2\frac{\partial \rho}{\partial r} = - \frac{G M \rho}{r^2}
\frac{1}{2} v^2 + c^2 \ln \frac{\rho}{\rho_0} + \frac{G M}{R} - \frac{G M}{r} = 0
\rho_b \approx \rho_0 \exp \left(-R_b/R\right)
Complication: Heating & Cooling
\left(1 - \frac{c^2}{v^2} \right ) \frac{\partial}{\partial r} \frac{v^2}{2} = \frac{2 c^2}{r} - \frac{G M}{r^2} + \frac{\partial c^2}{\partial r}
R_b \approx \frac{G M}{c^2} / \left(1+\frac{d \ln c}{d \ln r}\right)
Mass flux
\dot{M} \approx \rho_b R_b^2 c
Radiative Processes
Heating
Inelastic Compton Scattering
Ionisation
H \approx \sigma F n x
\sigma \approx r_e^2
\sigma \approx \lambda r_e \left(\frac{E}{\varepsilon}\right)^3
lines
Inelastic Compton Scattering
x \approx \varepsilon /m_e c^2
Cooling
free free
free bound
C \approx \Lambda n^2
C_{ff} \approx \alpha \frac{m_e c^3}{r_e^4} \left(n r_e^3 \right)^2 \sqrt{\frac{k T}{m_e c^2}}
C_{fb} \approx \alpha^3 \frac{m_e c^3}{r_e^4} \left(n r_e^3 \right)^2 \sqrt{\frac{m_e c^2}{k T}}
lines
Cooling Function
Difficulty in cooling past 10,000 K
Minimum Pressure
p \propto \rho \cdot 10^4 K\propto \rho
High densities
constant temperature
Low densities
ff cooling
T \propto \frac{1}{\rho^2}
p \propto \rho T \propto \frac{1}{\rho}
minimum pressure
p_0
Temperature Scales
k T_g \approx \frac{G m}{R}
Escape temperature
Inverse Compton temperature
k T_{IC} \approx \varepsilon
Characteristic temperature
k T_{ch} \approx H \frac{R}{c_{ch}}
k T_{ch} \approx \left(\sigma^2 F^2 R^2 \mu\right)^{1/3}
Temperature Scales
k T_g \approx \frac{G m}{R}
Escape temperature
Inverse Compton temperature
k T_{IC} \approx \varepsilon
Characteristic temperature
k T_{ch} \approx H \frac{R}{c_{ch}}
k T_{ch} \approx \left(\sigma^2 F^2 R^2 \mu\right)^{1/3}
Hot Wind
T_g < T_{IC} < T_{ch}
Sonic point is extremely close to the surface
\frac{R_b}{R} - 1 \ll 1
Mass loss rate
\rho_b \approx \frac{p_0}{c_{IC}^2} \approx \frac{\mu p_0}{k T_{IC}}
\dot{M} \approx R^2 \rho_b c_{IC}
Intermediate Wind
T_g < T_{ch} < T_{IC}
Sonic point is withing a few stellar radii
R_b \approx R
Mass loss rate
\rho_b \approx \frac{p_0}{c_{ch}^2} \approx \frac{\mu p_0}{k T_{ch}}
\dot{M} \approx R^2 \rho_b c_{ch}
Cold Wind
T_{ch} < T_g < T_{IC}
Sonic point is much larger than stellar radius
R_b \gg R
speed of sound
c_s \approx v_g
\dot{M} \approx \frac{p_0}{c_{ch}} \frac{T_{ch}^2}{T_g^2}
velocity
k T_g \approx H \frac{R}{v}
mass loss

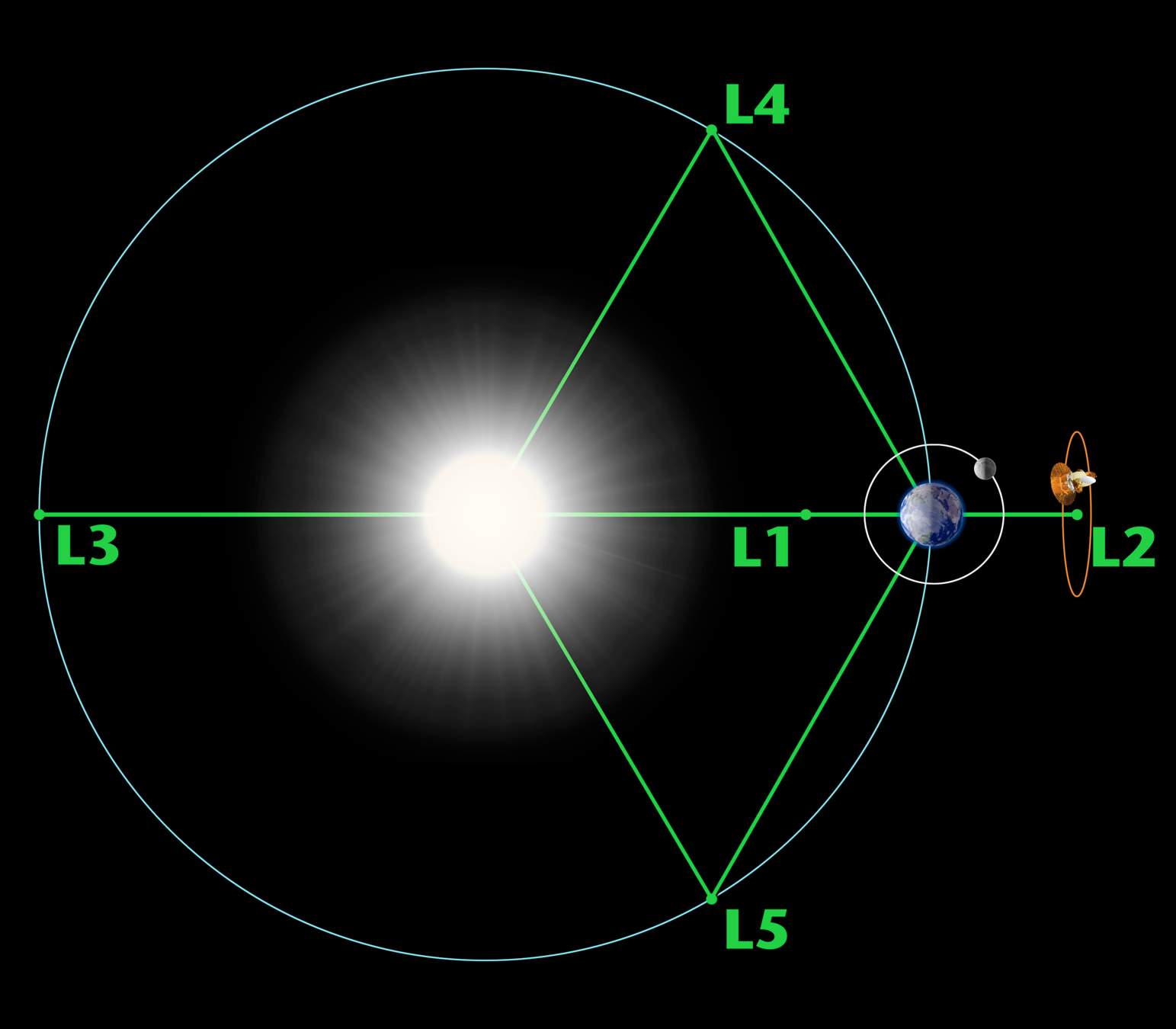

Roche Lobe Overflow
Gas escapes through narrow angle
\theta_g \approx \sqrt{\frac{T_{ch}}{T_g}}
Net mass loss
\dot{m} \approx R^2 \theta_g^2 \frac{p_0}{c_{ch}}

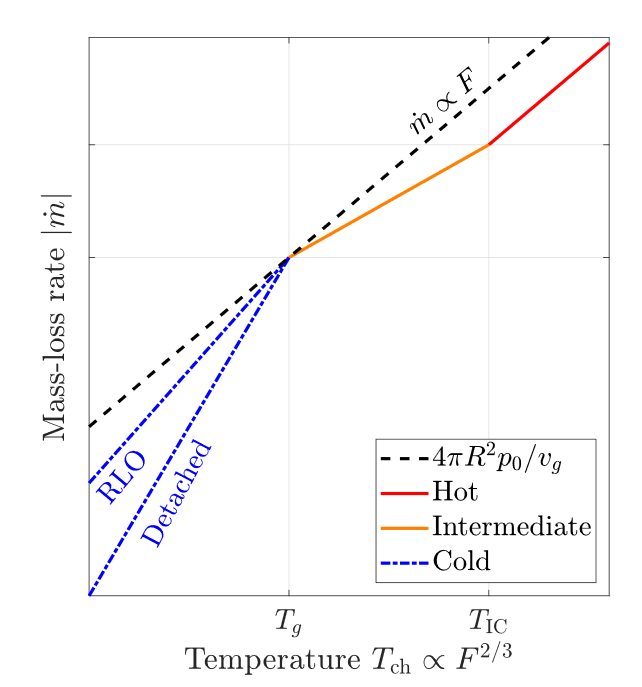

Mass Loss
Application
Characteristic temperature from Compton heating
k T_{ch} \approx \mu^{1/3} \left(\sigma_T F R\right)^{1/3}
Efficiency
\frac{G m \dot{m}}{R} \approx - \eta L_{\gamma} \left(\frac{R}{a}\right)^2
\eta \approx 2.2 \cdot 10^{-4} \left(\frac{L_{\gamma}}{L_{\odot}}\right)^{1/3} \left(\frac{m}{10^{-2} M_{\odot}}\right)^{1/9} \left(\frac{P_{\rm orb}}{1 \rm \, h}\right)^{-2/9}
Evaporation time
t_{\rm evap} \approx m/\dot{m} \approx
\approx 27 \, {\rm Gyr} \left(\frac{L_{\gamma}}{L_{\odot}}\right)^{-4/3} \left(\frac{m}{10^{-2} M_{\odot}}\right)^{8/9} \left(\frac{P_{\rm orb}}{1 \rm \, h}\right)^{-4/9}

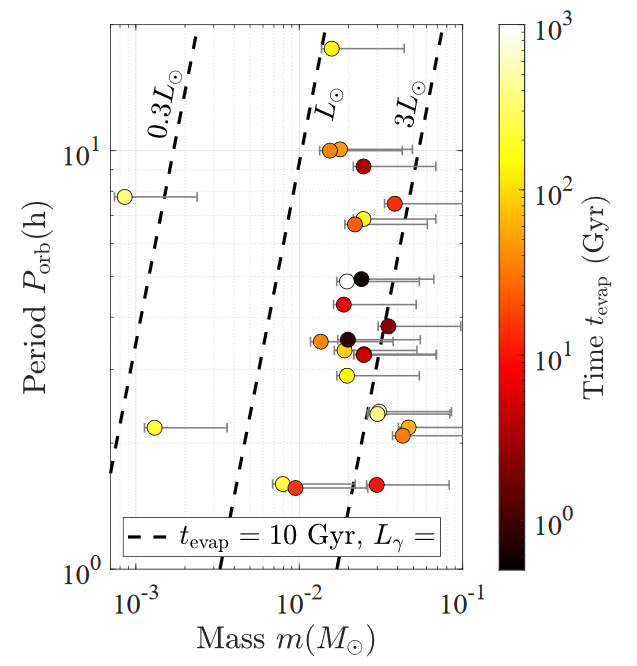

Comparison to Observations

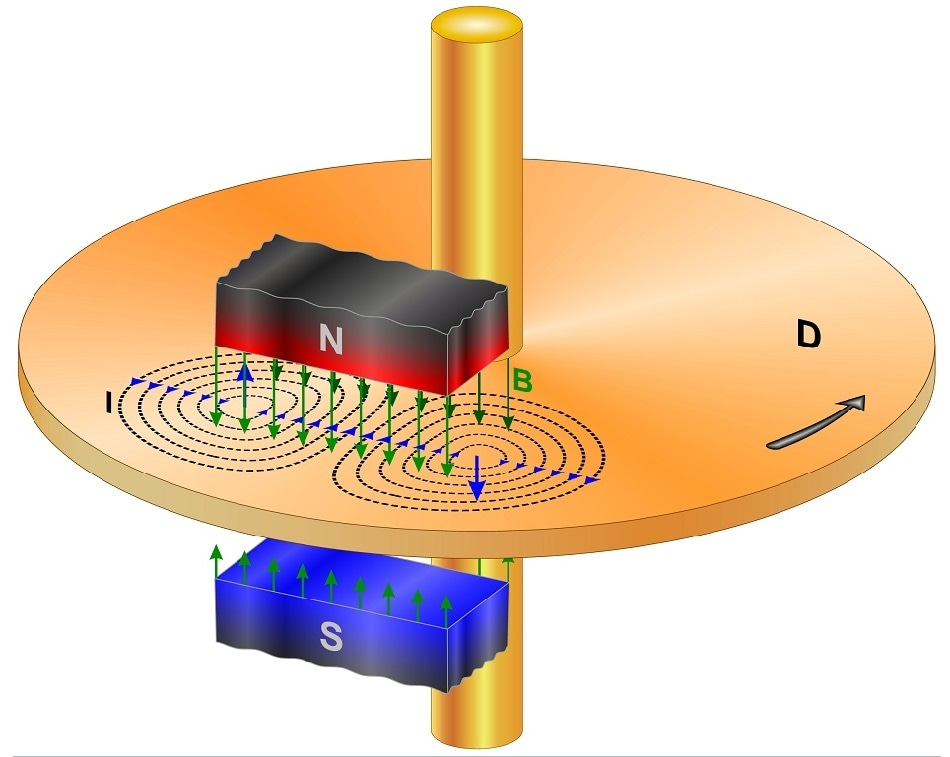

Magnetic Braking
Overview
Synchronised
Lagging
Magnetic breaking
compensation from orbital angular momentum
Net result: Depletion of orbital angular momentum
Alfven Radius

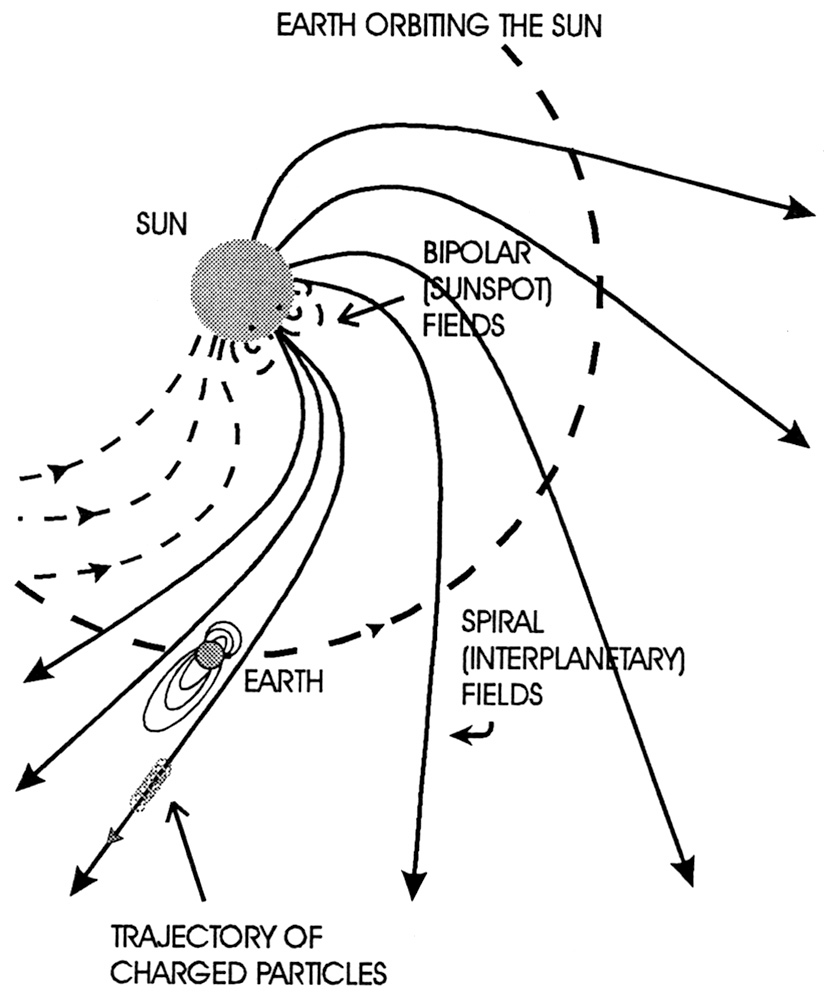

Split monopole magnetic field
B \approx B_0 \left(\frac{R_{NS}}{r}\right)^2
equilibrium between magnetic and ram pressure
B_0^2 R_A^2 \left(\frac{R}{R_A}\right)^4 \approx \dot{m} v \left(R_A\right)
Sun Spin Down
R_A \approx R \sqrt{\frac{B_{\odot}^2 R_{\odot}^2}{\dot{M}_{\odot} v_{\odot}}}
Matter is co - rotating up to the Alfven radius, so mass loss required for factor of two spin - down is
\frac{\Delta M}{M} \approx \frac{R^2}{R_A^2}
Spin Down Time
t_{\rm mag} \approx \frac{m}{\dot{m}} \frac{a^2}{R_A^2} \approx
\approx 31 \left(\frac{L_{\gamma}}{L_{\odot}}\right)^{-\frac{4}{9}} \left(\frac{P_{\rm orb}}{1 \, \rm h}\right)^{-\frac{34}{27}} \left(\frac{m}{10^2 M_{\odot}}\right)^{\frac{2}{27}} \left(\frac{B_0}{10^2 \, \rm G}\right)^{-\frac{4}{3}}
Evaporation time determined by
\min \left(t_{\rm evap}, t_{\rm mag}\right)

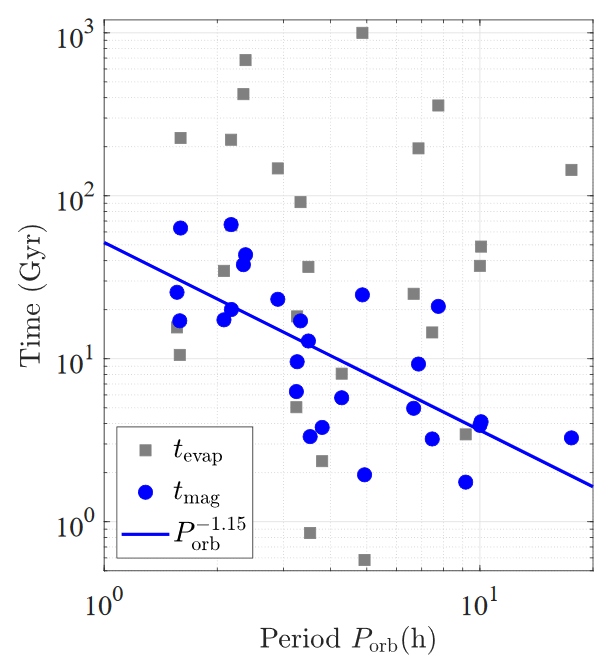

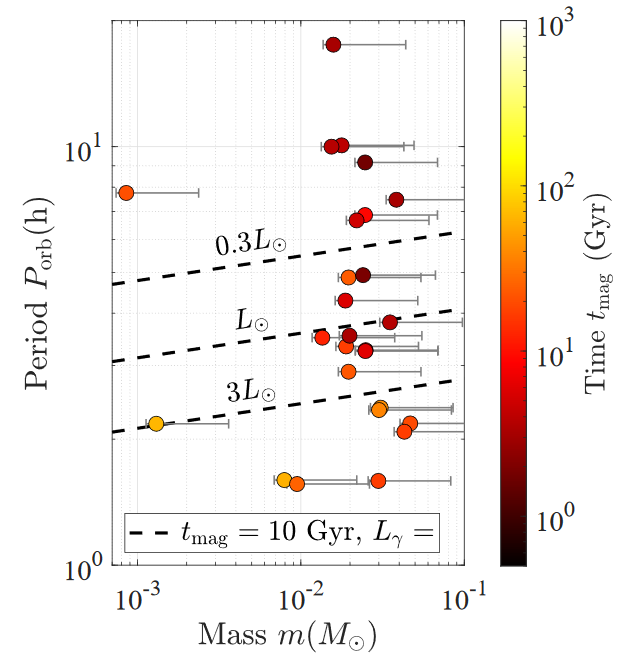

Comparison to Observations
Conclusion
Evaporation with fixed orbital parameters is too slow to explain observations
mass loss is regulated by magnetic braking
questions?
