Web Design I

http://slides.com/amandacheung/web-design

CDGD304 Amanda Cheung

Web design, HTML & CSS

Class 1

  • Welcome
  • Administrivia

Who am I?

I am...

Your TA: Siya

  • Studying interaction design at Dynamic Media Institute
  • Currently in thesis year
  • Undergrad in computer engineering
  • Loves designing, crafting and implementing interesting user experiences

I ♥ the web

I want you to be as excited about
the current state of the web as I am!

Course goals

  • Get you comfortable with the basics
  • Help you understand how to design for the web
  • Get you building stuff!



How we’re going to accomplish this

  • Lots of hands-on exercises
  • Lots of critical evaluation of websites
  • Just enough lecture and theory to get by
  • Not a one-size-fits-all approach



Administrivia

Homework setup

  • Fork https://github.com/acacheung/fall2016
    • Click "Settings" and change the repository name to [yourusername].github.io
    • (Click back to Admin) Next click on "Collaborators," type in "acacheung" and click add
  • Log in to GitHub Desktop
    • Find your "username.github.io" repository
    • Clone and open in finder
    • Open the "meee" folder and edit index.html
    • Commit
    • Sync!!
    • Visit [yourusername].github.io/meee/index.html to double-check

What is the web?



Wikipedia says:

"The world wide web is a system of interlinked hypertext documents accessed via the Internet. With a web browser, one can view web pages that may contain text, images, videos, and other multimedia and navigate between them via hyperlinks."

What can you do
on the web?



Just about anything...

The web is...

The good:

If you can dream if, you can build it

The bad:

There’s a LOT to learn



  • HTML/CSS/JavaScript
  • Design layout fundamentals
  • Typography
  • User experience
  • Marketing
  • Content strategy
  • Search engines

Who runs the internet?

NOBODY



  • Carriers have peering arrangements to deliver bandwidth (Comcast, Verizon)
  • Standards groups promote best practices (W3C, WHATWG)
  • Browser makers implement whatever they want (Mozilla, Webkit)
  • Servers serve pages (Apache, IIS, Nginx)
  • Scripting languages talk to servers (PHP, C#, Python)

Open source vs closed



  • Free as in “Beer” (closed source freeware) vs Free as in “Speech” (open source)
  • Open-source does not mean without cost
  • Closed source does not mean expensive
  • But usually that’s the case

Know your license!



  • CC BY, CC BY-SA, CC BY-ND, CC BY-NC, CC BY-NC-SA, CC BY-NC-ND Attribution, Share-Alike, No-Derivitives, Non Commercial (http://creativecommons.org/licenses/)
  • Unlicenses, public domain
  • GPL, LGPL, AGPL
  • BSD, MIT

HTML / CSS / JavaScript

What’s the point of each?



  • HTML - Semantics, Content, Information, Data
  • CSS - Layout and Styling
  • JavaScript - Creating Dynamism, Interaction

What is HTML?

  • Stands for Hypertext Markup Language
  • Invented by Tim Berners-Lee in 1991 to share scientific papers
​
<!DOCTYPE html>
<html>
  <head>
    <title>My Awesome Website</title>
    <link rel="stylesheet" href="style.css">
    <script src="application.js"></script>
  </head>
  <body>
    <header>
      <a class="logo" href="index.html">My Awesome Website</a>
      <nav>
        <a href="about.html">About</a>
        <a href="contact.html">Contact</a>
      </nav>
    </header>
    <main>
      <h1>Header</h1>
      <p>Lorem Ipsum</p>
    </main>
    <footer>
      © Copyright 2016
    </footer>
  </body>
</html>

How do we style it?

CSS!

​

Don’t fear the internet

by the amazing Jessica Hische & Russ Maschmeyer

​

UX Audit: Oyyo

  • Think about WHAT your end users might want,
  • WHY they want it,
  • HOW to provide it to them
  • What should they START doing?
  • STOP doing?
  • CONTINUE doing?



Go through the process of purchasing
the largest size of the Labyrinth rug

Homework

Class 2

Homework

Let’s talk HTML

Hypertext markup language

It gives content structure and meaning

History of HTML

  • Invented by Tim Berners-Lee
  • Created “hypertext” to share scientific papers
  • First web page August 6, 1991
  • Standardized by W3C
  • HTML4 in 1997
  • XHTML in 2000
  • HTML5 in 2014

Don’t fear the internet

Hamburger Text Markup Language

Review

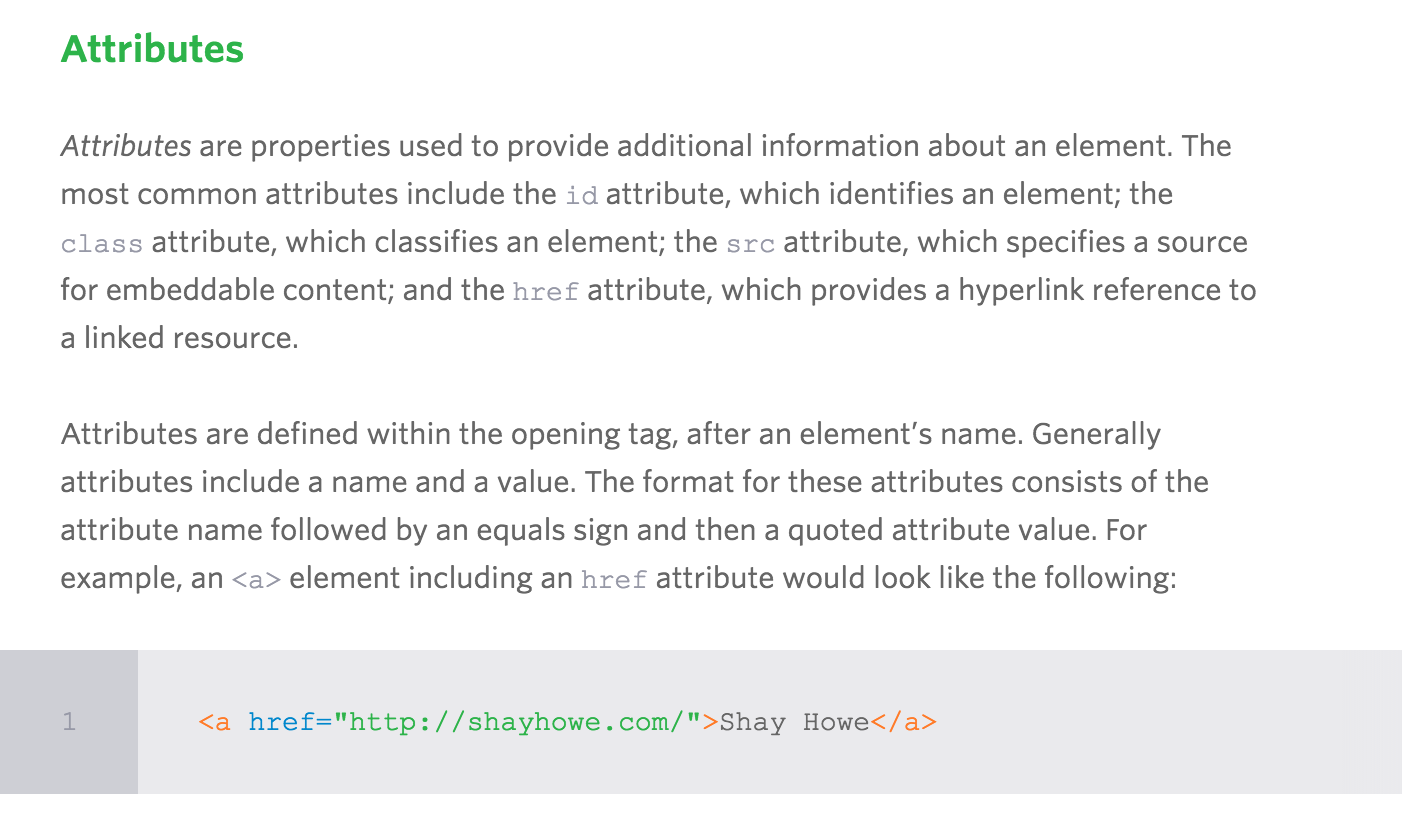

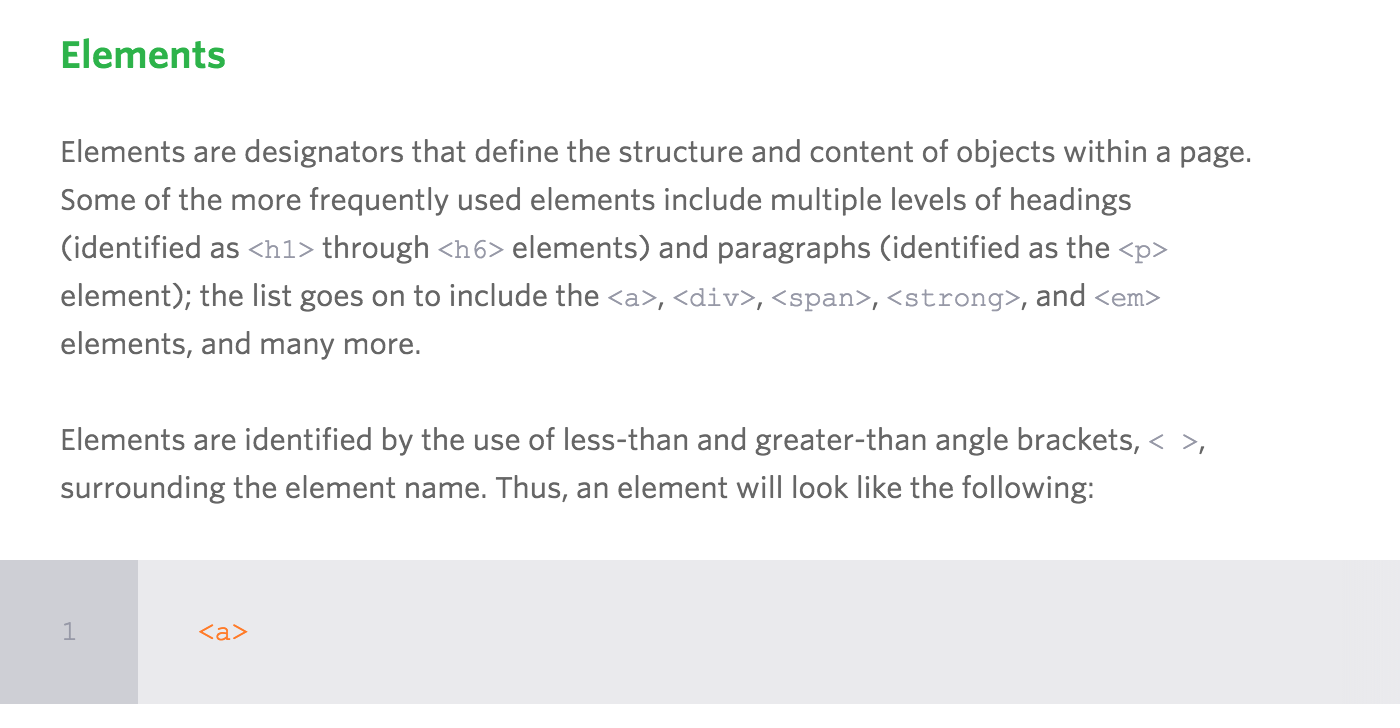

  • What are elements, tags and attributes?

Review

  • What are elements, tags and attributes?

Review

  • What are elements, tags and attributes?

Review

  • What are elements, tags and attributes?

In HTML you can write just the opening tag and it will
often work. Don’t do this. Unless it is a self-closing element,
always use open and close tags.

Common elements

  • <head> describes the web page, meta info

  • <body> visible page content

  • <header> group of introductory or navigational aids (headings, logo, nav, search)

  • <footer> (related links, copyright)

  • <div> defines a division or a section, a container/wrapper

  • <nav> links to other pages or parts within a page

  • <aside> tangential content related to its surrounding content, sidebar

  • <section> grouping of content with heading

  • <article> a self-contained piece of content (forum post, article, blog entry)

  • <p> paragraph text

  • <h1> most important heading

  • <h2> heading less important than h1

  • <span> generic inline container

  • <ul> unordered list

  • <ol> ordered list

  • <li> list item

  • <a> link, stands for anchor

<nav>

  • A section of a page that links to other pages
    or to parts within the page
  • Main navigation: home, about, contact
  • User navigation: login, register, account
  • Sidebar navigation: products, blogs, etc.

<section>

  • A group of content, typically with a heading
  • Ex: introduction, news items, contact information, chapters

<article>

  • Self-contained piece of content
  • Ex: forum post, magazine article, newspaper article, blog entry

<footer>

  • Represents the footer for the section it applies to (does not have to mean the bottom of the page)
  • Ex: information about its section, who wrote it, links to related documents, copyright data, appendices, indexes, colophons, license agreements

A List Apart

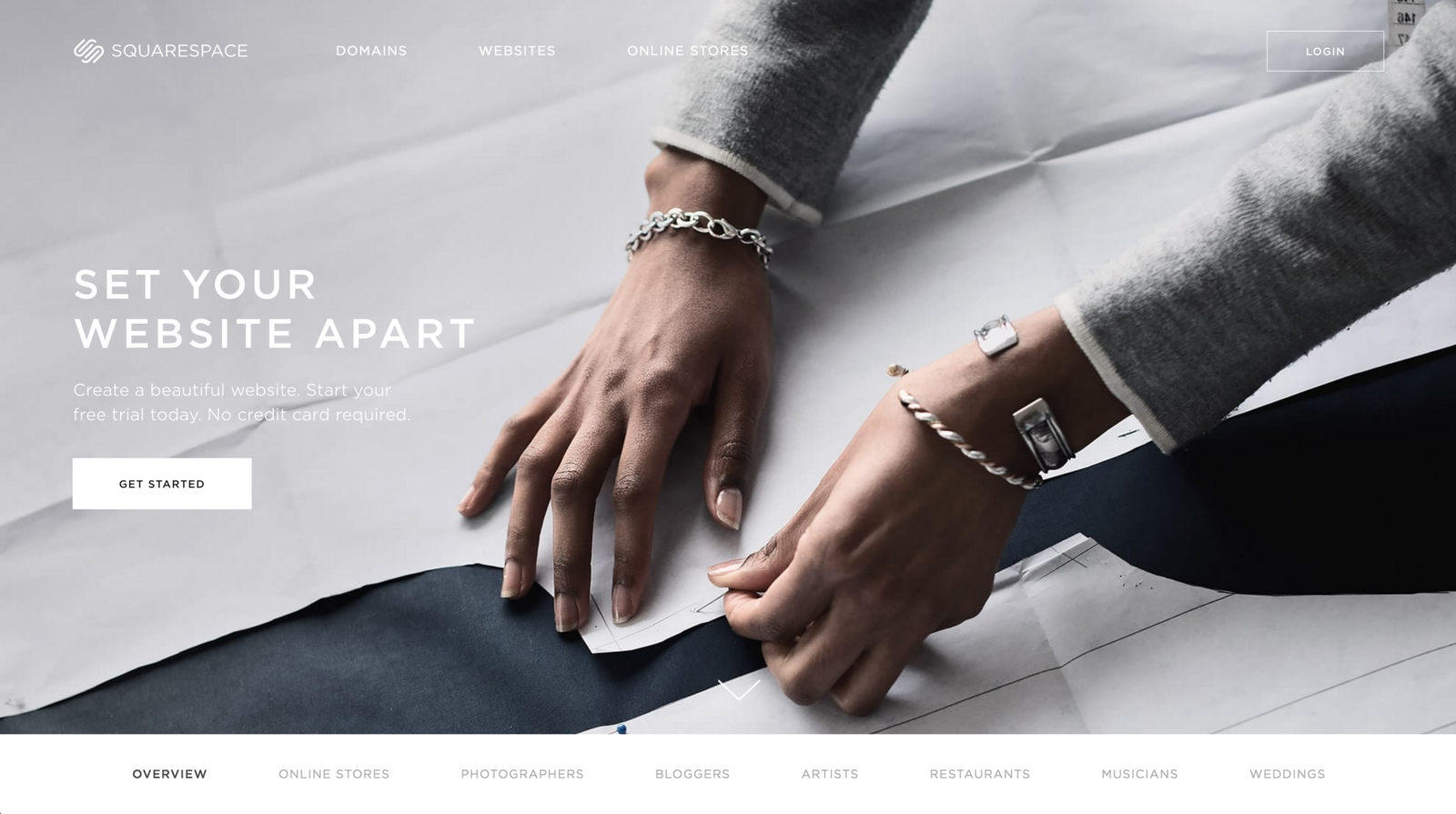

Squarespace

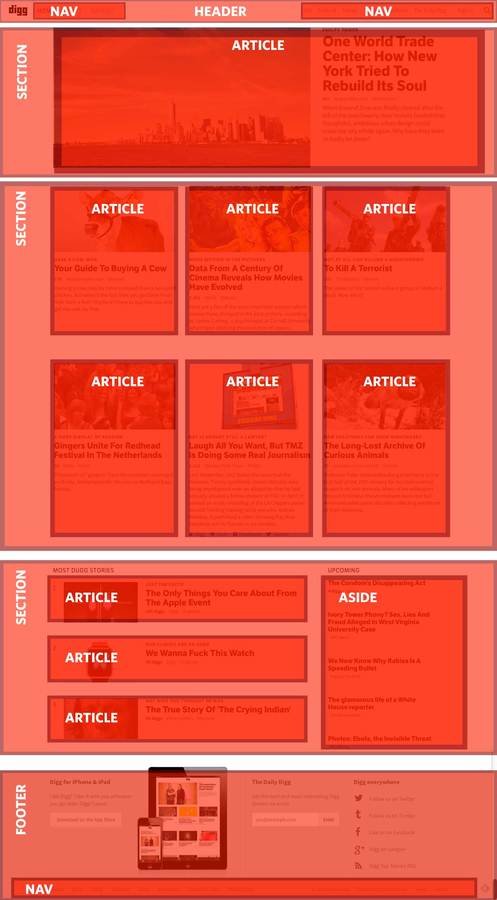

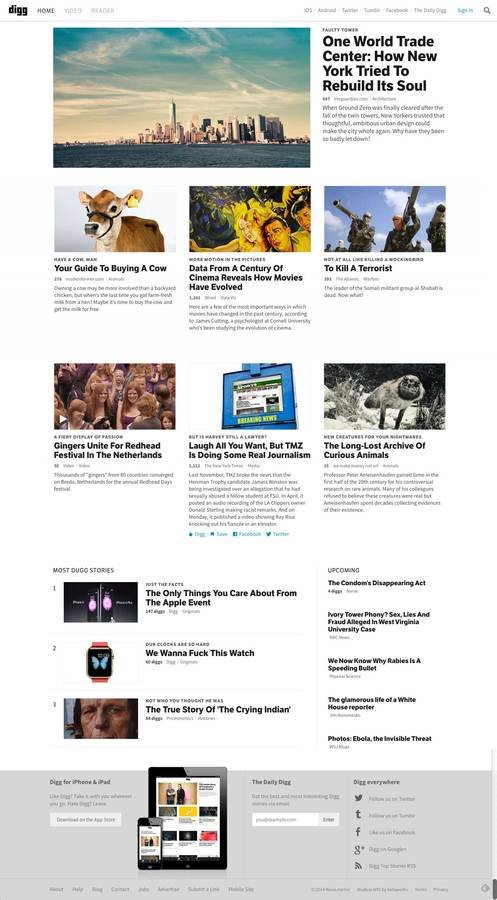

Digg

Remember!

Your first HTML chop!

  • Go to your Codepen (In-class Codepen assignment #1)
  • Write the HTML for this blog post (stop after the category tags)

Did you validate
your HTML?

Code style guides

Let’s go over @mdo’s HTML code guide

Homework

Class 3

Homework corrections

Don’t fear the internet

Don’t fear starting from scratch (Part 1)

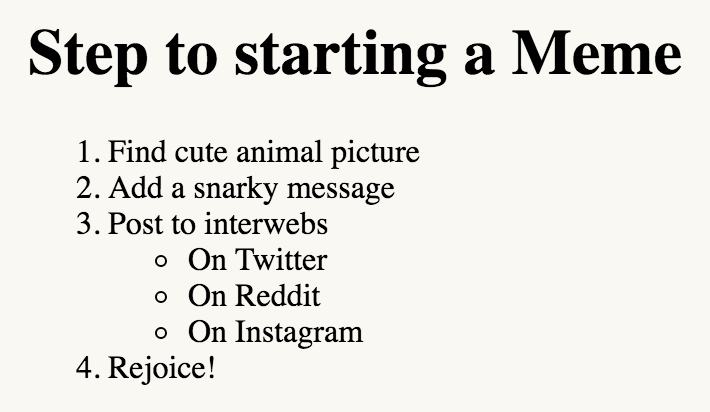

Lists

  • Ordered Lists (ex: numbered)
  • Unordered Lists (ex: bulleted)
  • Definition Lists
  • Can have lists inside of lists (aka nested)



Create this in a Codepen (In-class Codepen assignment #2)

Links

Directory relationships

  • If it’s in the same folder: contact.html
  • If it’s inside another folder inside your folder: images/logo.png
  • If it’s outside the folder you are in: ../index.html

One page scrolling site

  • Decide where on the page you want to link

  • Add the id="..." attribute inside the opening tag

  • Name the id something that makes sense

  • IDs are for identifying elements uniquely. Only occurs once.

  • In the nav, reference the anchor text using href="#id-name"

Create this in a Codepen (In-class Codepen assignment #3)

<header>
  <h1>MY PAGE</h1>
  <nav>
    <ul>
      <li><a>Home</a></li>
      <li><a>About</a></li>
      <li><a>Portfolio</a></li>
      <li><a>Contact</a></li>
   </ul>
  </nav>
</header>
<section>
  <h2>Bacon Ipsum</h1>
  <p> Brisket chuck leberkas short ribs tenderloin tongue. Filet mignon sirloin jerky chicken strip steak t-bone. Ribeye short ribs fatback pancetta ham boudin, pork biltong tenderloin leberkas ball tip pork chop bresaola. Spare ribs kielbasa pork loin hamburger pork chop rump beef. Chuck spare ribs pork chop shank ribeye, leberkas turkey pig. Tri-tip tongue turducken, pig jowl brisket tail tenderloin flank rump bresaola pork chop short loin shoulder.</p>

  <h2>About</h1>
  <p>T-bone strip steak beef ribs, tenderloin drumstick pancetta biltong sirloin jowl speck kielbasa ball tip. Filet mignon leberkas jerky, cow shankle spare ribs fatback venison tri-tip short ribs kielbasa brisket. Swine pork loin beef kielbasa, prosciutto boudin beef ribs hamburger pork chop short ribs meatloaf frankfurter bresaola. Chuck kielbasa tail boudin.</p>

  <h2>Portfolio</h1>
  <p>Ball tip swine salami, strip steak boudin chicken fatback. Kielbasa bresaola ribeye swine speck pork belly. T-bone chuck turducken, tail pig ball tip kielbasa. Ribeye kielbasa tenderloin spare ribs, turducken beef ribs prosciutto drumstick brisket pastrami strip steak. Jerky salami biltong chicken, ground round pig pork chop meatball pork corned beef pastrami turducken shoulder.</p>
  <p>Ball tip capicola chuck kielbasa prosciutto chicken. Meatloaf meatball corned beef pork belly, andouille frankfurter salami ground round biltong rump spare ribs. Capicola tail boudin, turducken pork belly ribeye bresaola bacon t-bone ball tip. Ribeye frankfurter spare ribs, ground round pork loin tail rump salami speck sirloin pastrami shank.</p>

  <h2>Contact</h1>
  <p>Ham hamburger capicola short loin pork loin kielbasa. Meatball biltong tri-tip pork belly speck pork loin, shankle bacon. Bacon frankfurter prosciutto, ribeye tri-tip jowl beef pork chop kielbasa bresaola t-bone pig shank short loin. Jerky brisket pork chop jowl.</p>
</section>

<style>
  body {
    width: 400px;
  }
  h1 {
    padding-top: 20px;
    font-size: 2em;
  }
  h2 {
    padding-top: 20px;
    font-size: 1.5em;
  }
  p {
    line-height: 1.5;
  }
  nav li {
    display: inline-block;
    padding-right: 20px;
    padding-bottom: 75px;
  }
</style>

Images

<img>



<img class="logo" src="logo.svg" alt="Google">

  • alt is required for code to validate
  • / not necessary at end of tag

Know your formats!

  • GIF - can be animated

  • PNG - supports transparency, smaller image (eg logos)

  • JPG - larger images

  • SVG - vector graphics, can be animated w/ code

  • ICO - favicon

Add images to your Dobot project

Special characters

Have you tried to type ampersands, copyright symbols, quotation marks, greater-than, or less-than signs into your code as text?



&   ©   “   ”   ♥   <   > ​



There are some characters that are used in HTML that you can't just type in, the browser will think it's code and not text to be displayed. When to use escapes.

Homework

Class 4

  • UX Audit: Waaark
    • You are coming out with a new product and want to build a website for it. You want to hire a web design studio. What would you want to know?
  • Introduction to CSS

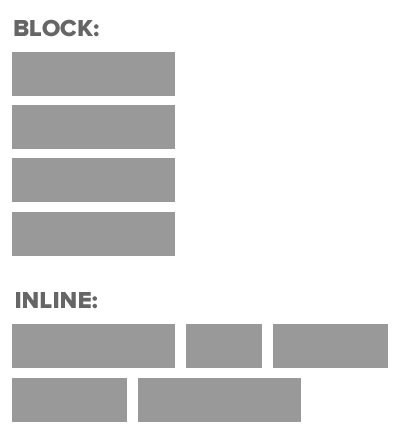

Block vs. inline elements

Example: https://github.com/
Alo-o/Alo-o.github.io/issues/3

Check your GitHub issues



  • Close the ones that you have fixed

  • You should always check how Siya and I will review your work

  • Everything should link from the class roster on second slide

  • In the future, we aren’t going to review things that have errors and warnings



Let’s go over anything you are confused about

You have to be able to ask the right questions

CSS

Cascading Style Sheets



  • Used for presentation
  • Controls the visual styles of your page
  • Controls the layout of your page (how stuff is positioned)
  • Can have different styles for different media formats (print, screen, mobile, etc.)

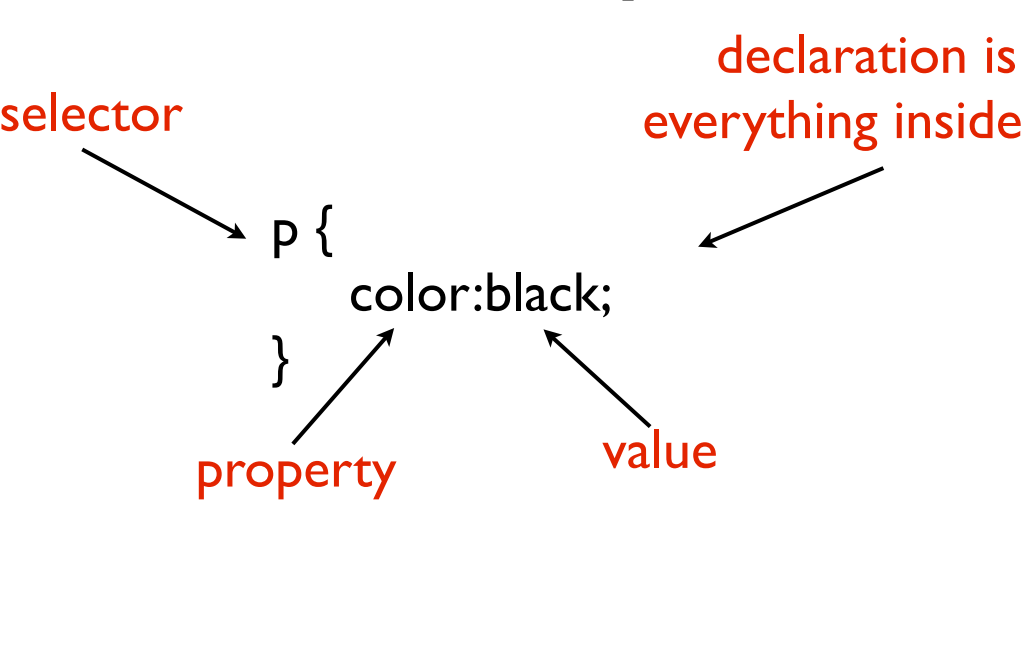

What CSS looks like

Best practice: name with classes (`.heading`)

Don’t fear the internet

Starting from scratch (Part 2)

Naming is hard

  • You can’t use spaces

  • JavaScript uses camelCase

  • I recommend using dashes - CSS uses dashes
    (`background-color`, `font-family`, etc).
    If you want to look at more complex naming conventions,
    check out BEM

  • Be consistent! - easier to read and remember what you wrote

Available selectors

  • Name of element
    p, div, h1

  • Class name
    Prefixed with a period (.)
    <div class=‘my-class-name’>This is my class name </div>
    .my-class-name

  • Element ID
    Prefixed with a hash / pound sign (#)
    <div id=‘my-id’> This is my id</div>
    #my-id

Properties

  • There are lots of them!

  • Two Primary types: Layout and style
    (Padding is layout, color is style)

  • Style generally inherits, layout doesn’t

  • Sometimes can be combined into one (called "shorthand"):
    padding: 10px 20px; = padding-top: 10px; padding-right: 20px; padding-bottom: 10px; padding-left: 20px;

  • Layout box properties go clockwise from midnight:
    top, right, bottom, left

Values

  • Colors: #fff, #ffffff, rgb(255,255,255), gray, black, red

  • Numbers: 0, 25px, 1.1em, 100%, vw, vh

  • `inherit` is a special property to force inheritence



A cheatsheet!

Remember!

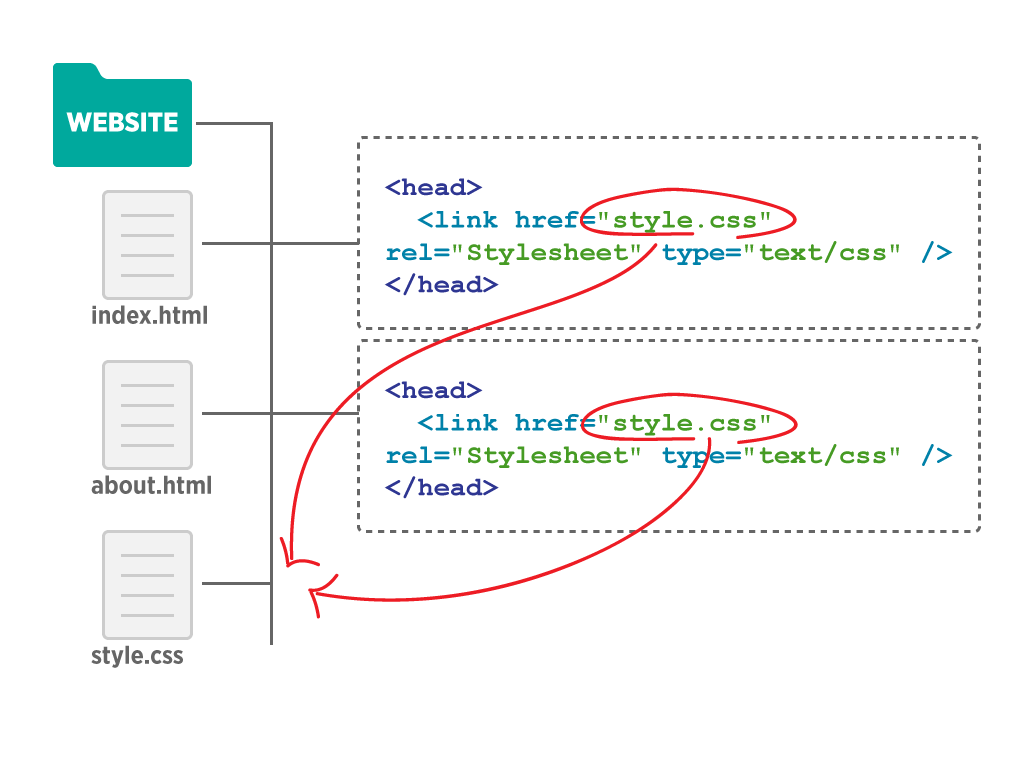

Ways to link up CSS

  • Inline :(
    Styles are written as attributes so nothing can be reused and these styles cannot be overridden

  • Embedded/Internal :/
    Written in one place (ex: bottom) of HTML file. Styles can only be used within that HTML file

  • External :)
    Written in a separate file and linked. Easiest to maintain

Selectors

  • Apply styles in multiple places
    Use a comma
    .heading, .description, p { color: red; }

  • Apply styles to nested elements
    Use a space
    .article button { border-radius: 5px; }

  • Pseudo-classes / pseudo-elements
    a.hover { color: blue; }
    article:last-child { border-bottom: 1px solid black; }
    article:not(:last-child) { border-bottom: 1px solid black; }

  • Apply to elements with a specific attribute
    input[type="radio"] { -webkit-appearance: none; }

<header>
  <h1>My Site!</h1>
  <nav><ul>
    <li><a href='#'>Link 1</a></li>
    <li><a href='#'>Link 2</a></li>
  </ul></nav>
</header>

<section>
  <article>
    <h1>Blog Post 1</h1>
    <p>Lorem ipsum dolor sit amet, consectetur adipiscing elit. Sed ac elit at nisl sagittis consequat sed eget tellus. Aliquam gravida, nunc sit amet viverra dictum, nibh justo semper massa</p>
    <p>Lorem ipsum dolor sit amet, consectetur adipiscing elit. Sed ac elit at nisl sagittis consequat sed eget tellus. Aliquam gravida, nunc sit amet viverra dictum, nibh justo semper massa</p>
  </article>
  <article>
    <h1>Blog Post 1</h1>
    <p>Lorem ipsum dolor sit amet, consectetur adipiscing elit. Sed ac elit at nisl sagittis consequat sed eget tellus. Aliquam gravida, nunc sit amet viverra dictum, nibh justo semper massa</p>
    <p>Lorem ipsum dolor sit amet, consectetur adipiscing elit. Sed ac elit at nisl sagittis consequat sed eget tellus. Aliquam gravida, nunc sit amet viverra dictum, nibh justo semper massa</p>
  </article>
</section>
<footer>
  <a href='#'>Link 1</a> | <a href='#'>Link 2</a>
</footer>

Selector combination

  • Add classes to the header and footer

  • Make both the header and footer have black backgrounds
    with white text

Create this in a Codepen (In-class Codepen assignment #4)

Cascade order

  • Inline style (defined directly with a style='....' attribute in the tag)

  • Number of id selectors

  • Number of class selectors

  • Number of tag selectors

  • Order of appearance last to first

  • Style inheritance



DEMO

In depth: A Specificity Battle!

Organizing your CSS

  • Start with a reset

  • Set base element styles (body, p, h1, h2)

  • Set your class styles

Homework

Class 5

  • UX Audit: Appy Fizz

    • This new website came out not too long ago. They want to work towards updates. As a designer, what would you suggest. Why?

  • Moar CSS

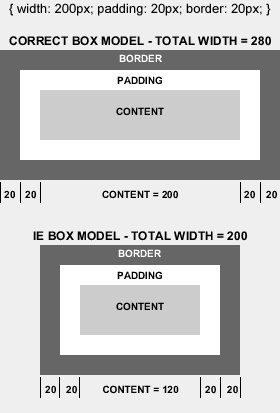

The box model!

<style>
  .box1 {
    background-color: teal;
  }

  .box2 {
    background-color: orange;
  }


</style>

<div class="box1">I'm a box</div>
<div class="box2">I'm box 2!</div>

Box model exercise

  • Set Box1 to be 100px in width with 24px of padding on all sides, and a red border of 10px.

  • What is the total amount of space it takes up horizontally?

Create this in a Codepen (NOT an In-class assignment)

Layout properties

  • Box model: margin, padding, width, height

  • Top, bottom, left, right

  • Border

  • Position [ static (default), relative, absolute, fixed ]

  • Float [ left, right, none ] (May have to use overflow: auto; or height will collapse. Can also use clears, but this requires an element after)

  • Clear [ left, right, both]

  • Display [ none, block, inline, inline-block ]

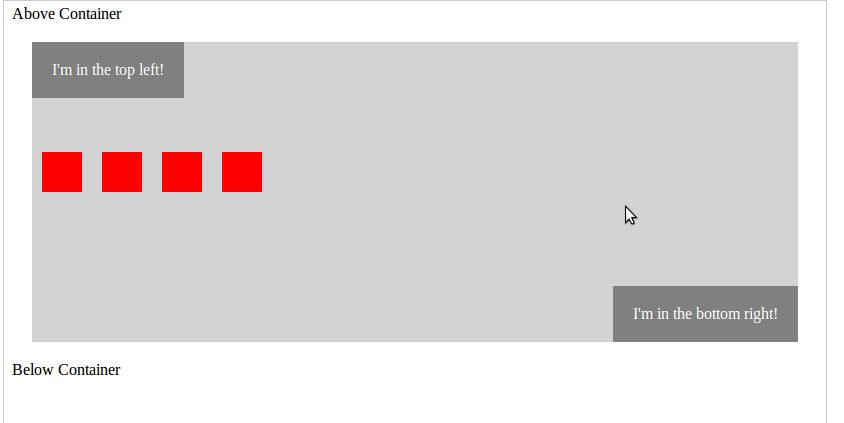

Positioning exercise

Create this in a Codepen (In-class Codepen assignment #6)

<style>
  .container {
    margin: 20px;
    height: 300px;
    background-color: lightgray;
  }
</style>

<span>Above Container</span>
<div class="container">
  <div class="top-left">I'm in the top left!</div>
  <div class="bottom-right">I'm in the bottom right!</div>
  <ul class="blocks">
    <li class="block"></li>
    <li class="block"></li>
    <li class="block"></li>
    <li class="block"></li>
  </ul>
</div>
<span>Below Container</span>

Positioning exercise

Create this in a Codepen (In-class Codepen assignment #6)

<nav>
  <a href="/">Home</a>
  <a href="/about.html">About</a>
  <a href="/blog.html">Blog</a>
  <a href="/contact.html">Contact</a>
</nav>

Nav exercise







Create this in a Codepen (In-class Codepen assignment #5)

body {
  margin-right: auto;
  margin-left: auto;
  width: 960px;
}

Centering content

How can this work within Dobot?

Homework

Class 6

  • UX Audit: Pleasure to burn

  • Work on Dobot

  • Intro to UX

  • Intro to Accessibility w/ the other web class

Helpful trick

Put background colors on elements to see what space it takes up.

It may not be what you expect.

.visually-hidden {
  border: 0;
  clip: rect(0 0 0 0);
  height: 1px;
  margin: -1px;
  overflow: hidden;
  padding: 0;
  position: absolute;
  width: 1px;
}

Visually hidden content

What is UX Design?

Wikipedia says: is the process of enhancing customer satisfaction and loyalty by improving the usability, ease of use, and pleasure provided in the interaction between the customer and the product. User experience design encompasses traditional human-computer interaction design, and extends it by addressing all aspects of a product or service as perceived by users. User experience is any aspect of a person's interaction with a given IT system, including the interface, graphics, industrial design, physical interaction, and the manual.

Know your audience

Know your content

Know your medium

You’re designing
for people...

  • With modern browsers

  • With old browsers

  • Who can’t see well

  • Who can’t see at all

  • Who visit your site every day

  • Who are visiting for the first time

  • Who aren’t people, but machines (SEO, access tech)

What is this?

Where do you look
to log into a site?

What should clicking
on the logo do?

User expectations

Good conventions

Bad conventions

Consistency & affordances

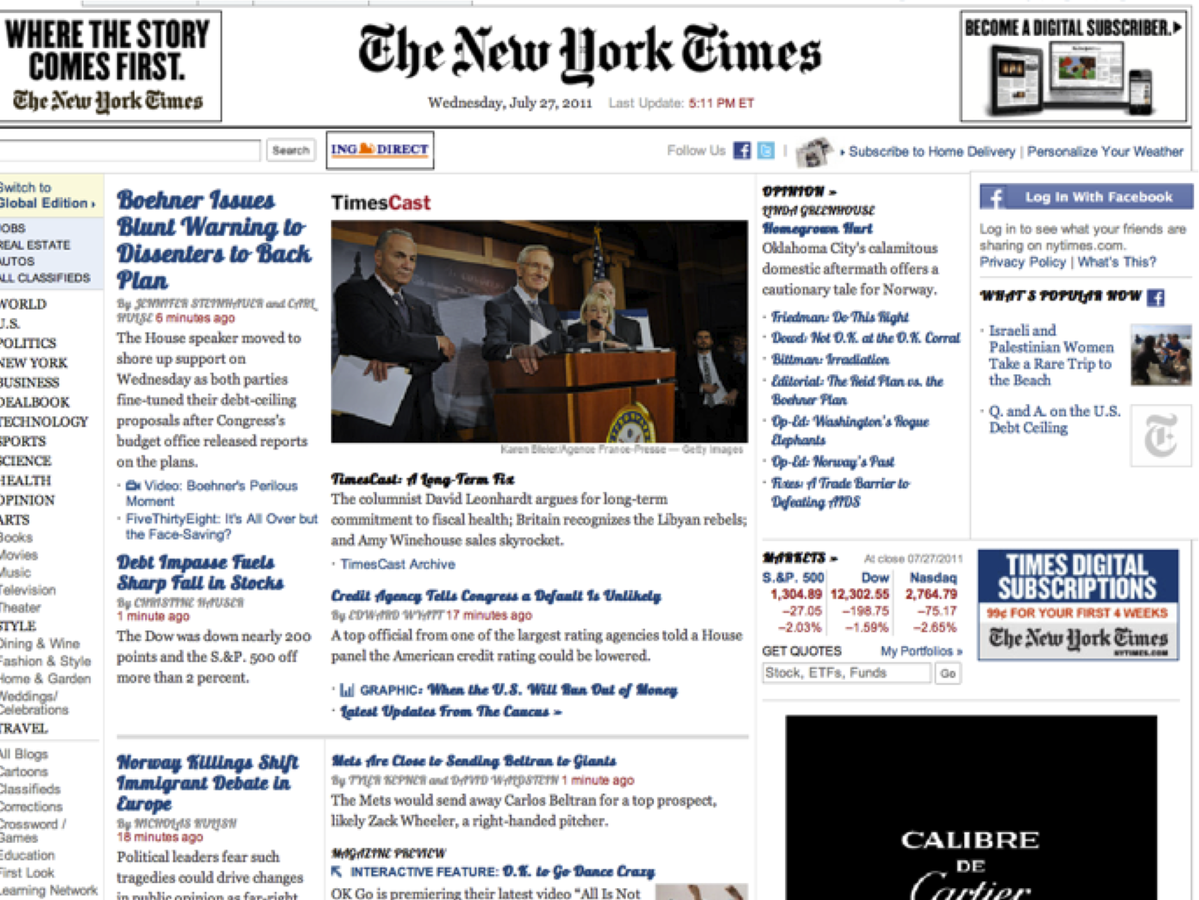

Hierarchy

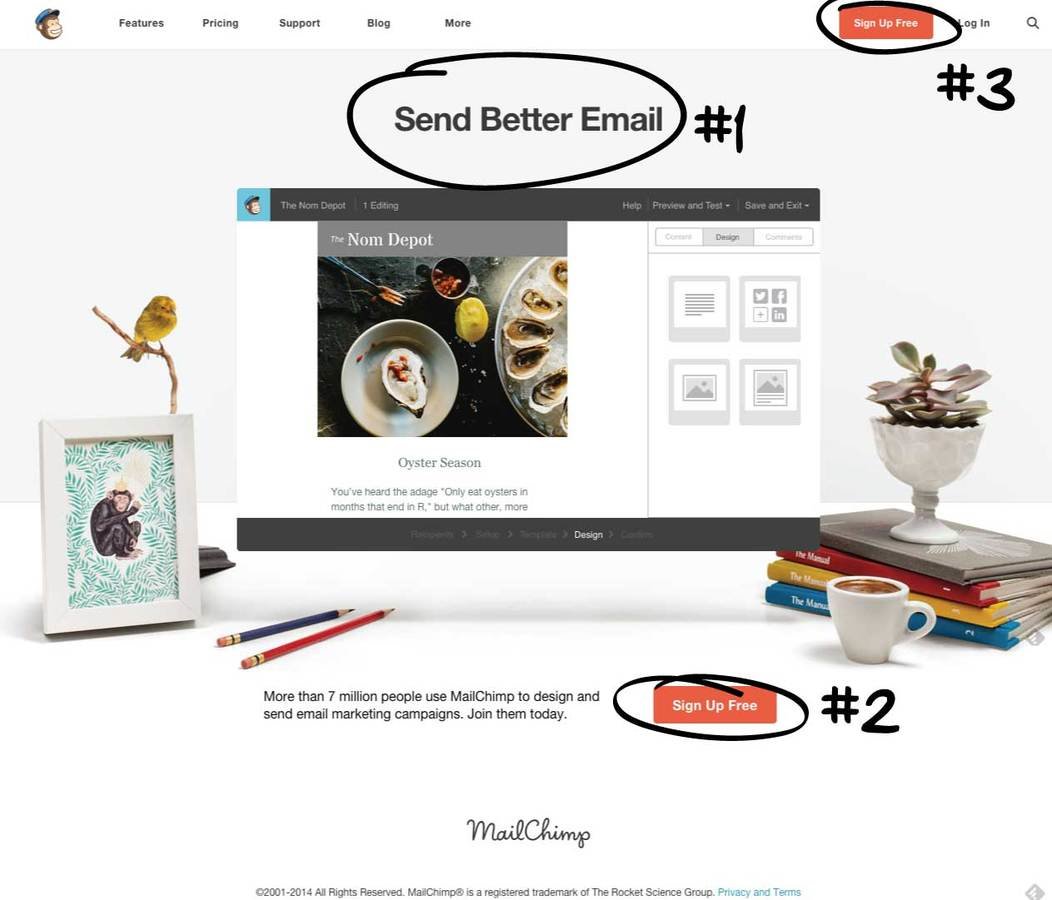

Call to action

Perceived performance

Things to think about

  • Site navigation - main, social, etc.
  • What do users want to see?
  • What do users need to see?
  • Does the site hierarchy make sense?
  • How many clicks deep?
  • Think about normal user flow (user stories)

Case study: Restaurants

  • They think: I want to show people how amazing the experience here is
  • Actual use case

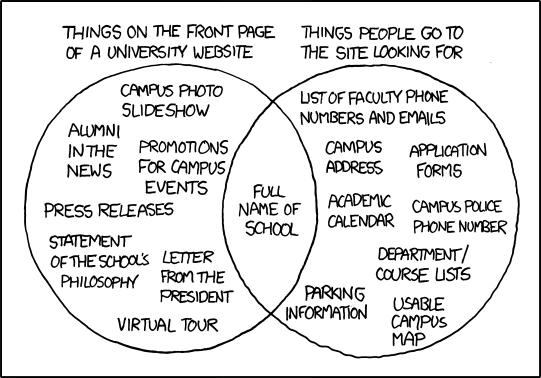

Case study: Universities

User stories & personas

  • Who is visiting your site?
  • What are their goals?
  • How can you help them?

Wireframes & sitemaps

Why make sitemaps?

  • Help you define the content on your site
  • Force you to break down all the pages and sections of your site
  • Help you work out how content will be organized
  • Help you create a better hierarchy

Wireframing

Great way to look at the big picture. Start with lower-fidelity mockups.



Examples



  • Sketch out what the user experience will be like
  • Illustrate page layout and functionality
  • Demonstrate how a user will navigate the site
  • Identify static and dynamically generated content areas



Some tools:

Pen & paper, Balsamiq, Mockingbird, Omnigraffle, And More!

Accessibility

with Andrew Ringler and Kyle Keane

http://massart.andrewringler.com/
web1-f16/materials/slides/6.pdf

Homework

  • Complete Dobot shop (Test for accessibility)

  • Wireframe and sitemap for final project

  • Start collecting content for final project (if portfolio, gather all images of work)

  • Read Shay Howe’s Responsive Web Design

Class 7

  • UX Audit: Target.com

    • Buy a new mattress

    • Only use keyboard navigation

    • Compare this to buying a backpack on Everlane

  • Siya and I will review everyone’s wireframes

  • Intro to Responsive Web Design

Barebones
Dobot demo

Portfolio inspiration

What is responsive design?

Wikipedia says: Responsive web design (RWD) is a web design approach aimed at crafting sites to provide an optimal viewing experience—easy reading and navigation with a minimum of resizing, panning, and scrolling—across a wide range of devices (from mobile phones to desktop computer monitors)

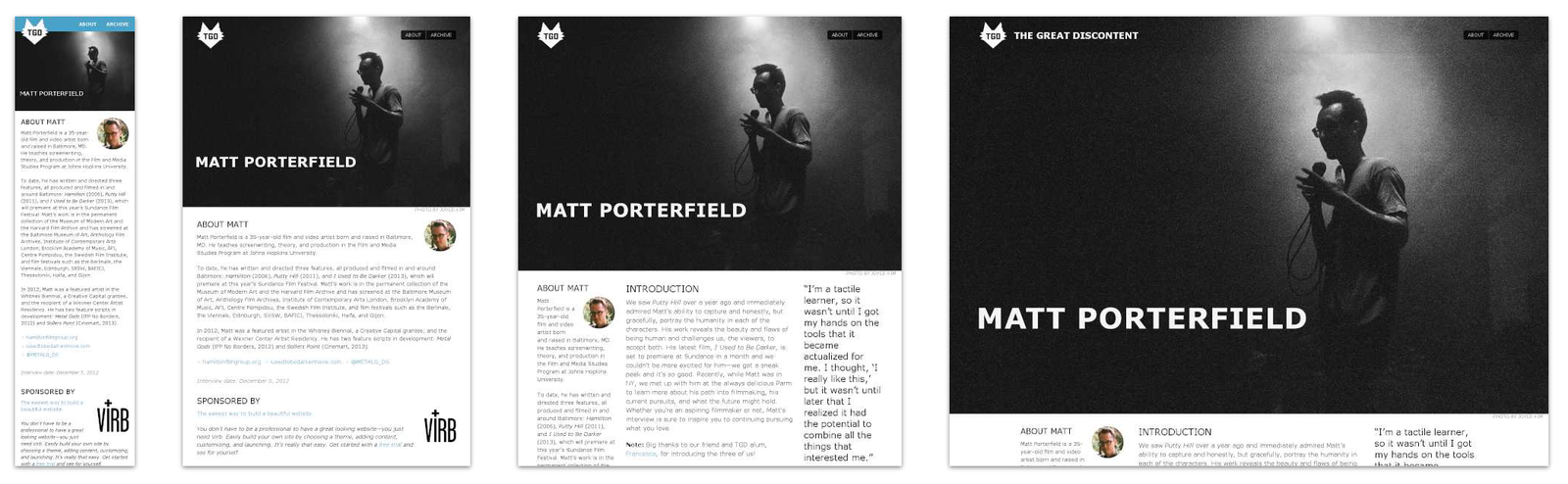

Example: The Great Discontent

What are other options?

  • Fixed: set width, styles do not change depending on resize, no media queries
  • Fluid: built using percentages, no media queries
  • Adaptive: media queries to target specific devices (mobile, tablet, desktop)
  • Native app: can work without an internet connection, higher quailty UX
  • Separate mobile site: created only for small screens, lighter and faster

Why do RWD?

Write the code once and have it functional
and legible across many devices.

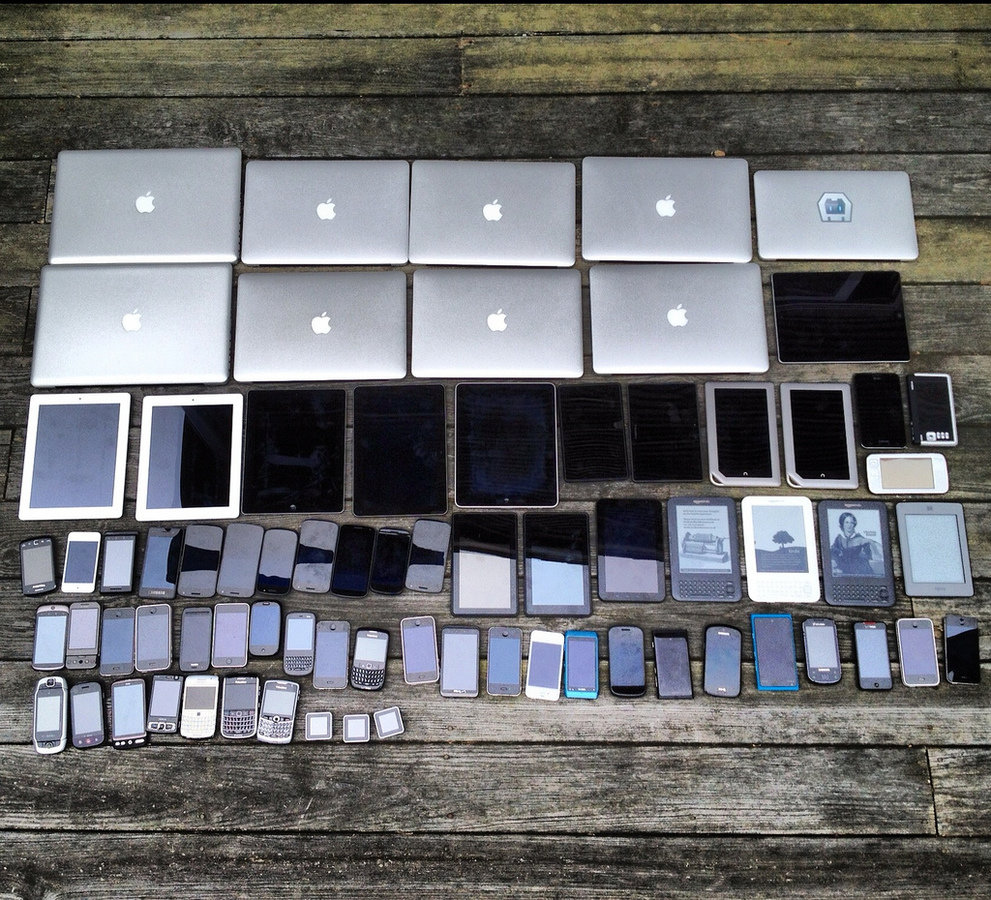

People are using a wide range of devices to complete their tasks now. Reading on mobile phones, shopping on tablets, etc.

More responsive sites

  • What do they think about when implementing?
  • Play with height & width of browser to see what is happening
  • Did it make sense for the site to be built responsively?



Boston Globe

"The first major, high-traffic, content-heavy website to adopt a responsive design" - Beaconfire Wire

"Raise[d] public awareness of this flexible, standards-based, multi-platform and user-focused web design approach"
- Jeffrey Zeldman



Built by Buffalo

Let’s try it out!

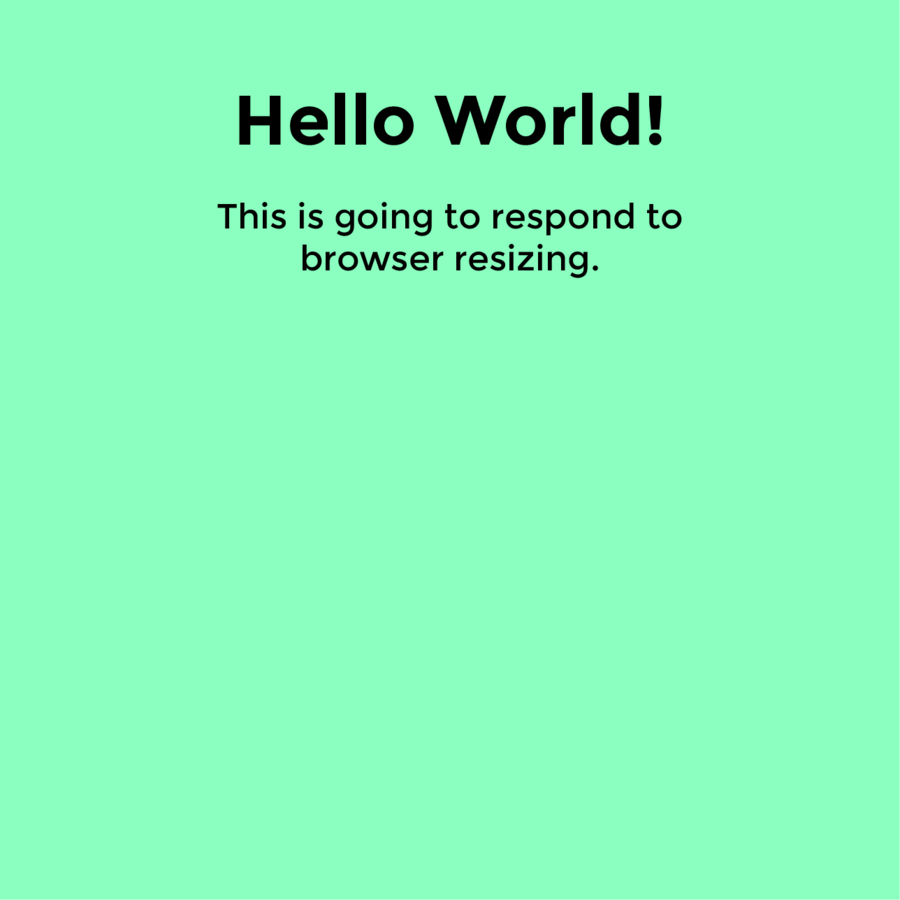

RWD Exercise #1

In-class CodePen assignment:

The font is Montserrat and the teal is #8affbf. Write CSS that changes the font sizes at different media queries.

How I would do it

  • Start mobile first
  • Move on to bigger widths slowly



Why mobile first?

Show more as we size up, not hide things when the screen gets more narrow. This is because mobile tends to have less bandwidth than devices with larger screen widths

Take a moment
to refactor!

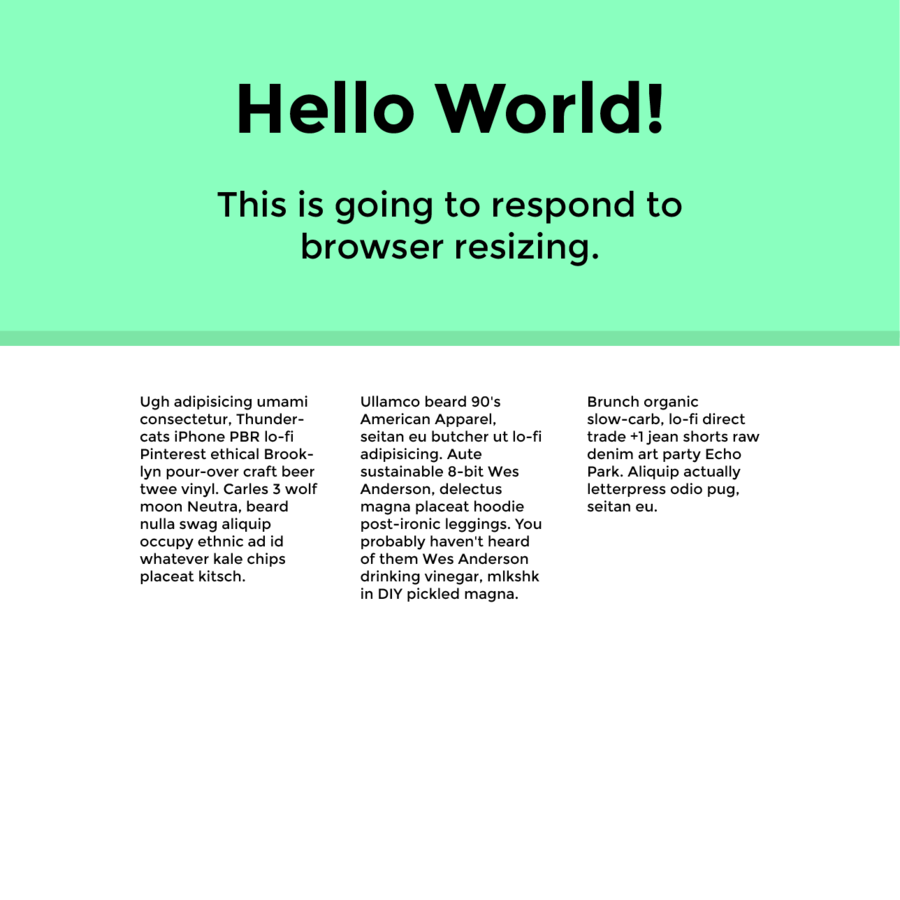

RWD Exercise #2

Copy taken from Hipster Ipsum

Darker teal hex color: #7ce5a6

One way to do it

Homework

Class 8

  • Check in on responsive Dobot and final project designs

  • Designing for Mobile

Test responsive Dobot

  • Add at least one media query to Responsive Dobot

  • Test on a device or with a simulator

  • Did anything not appear how you wanted it to?

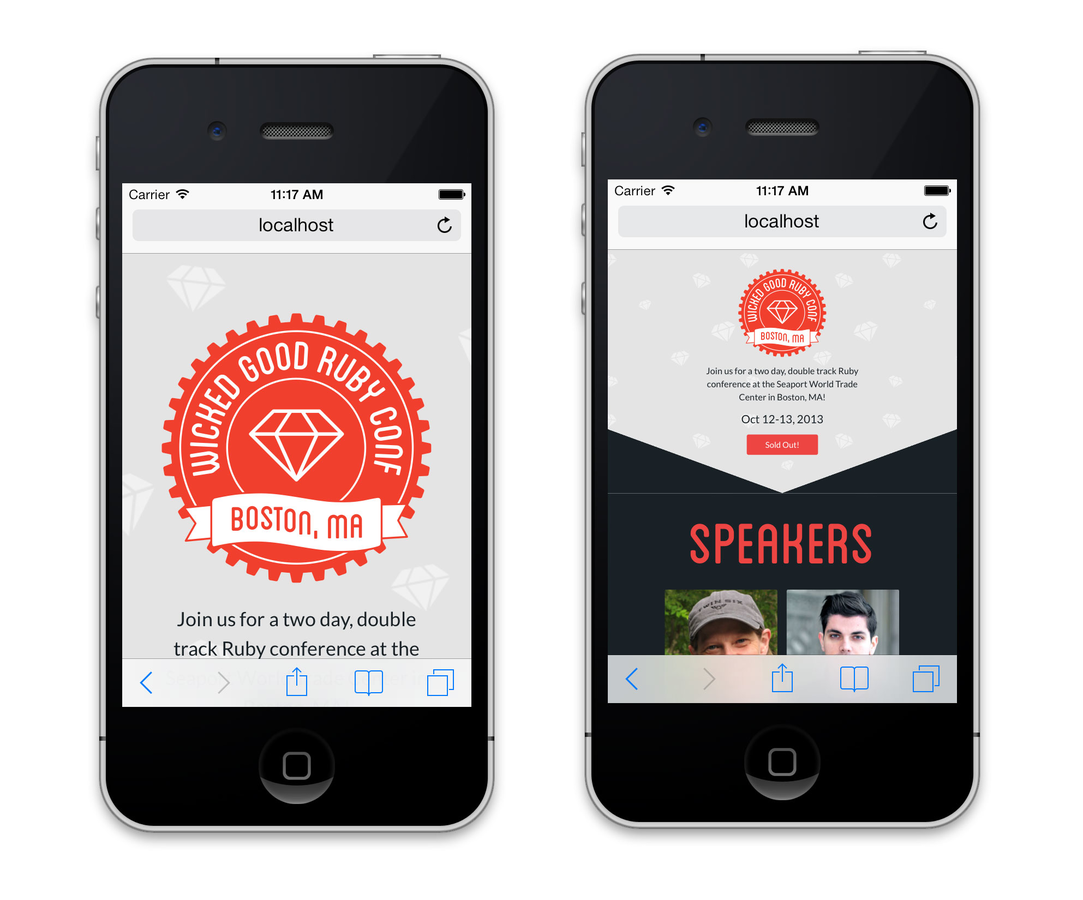

Don’t forget this meta tag!

<meta name="viewport" content="width=device-width">

Design for responsive

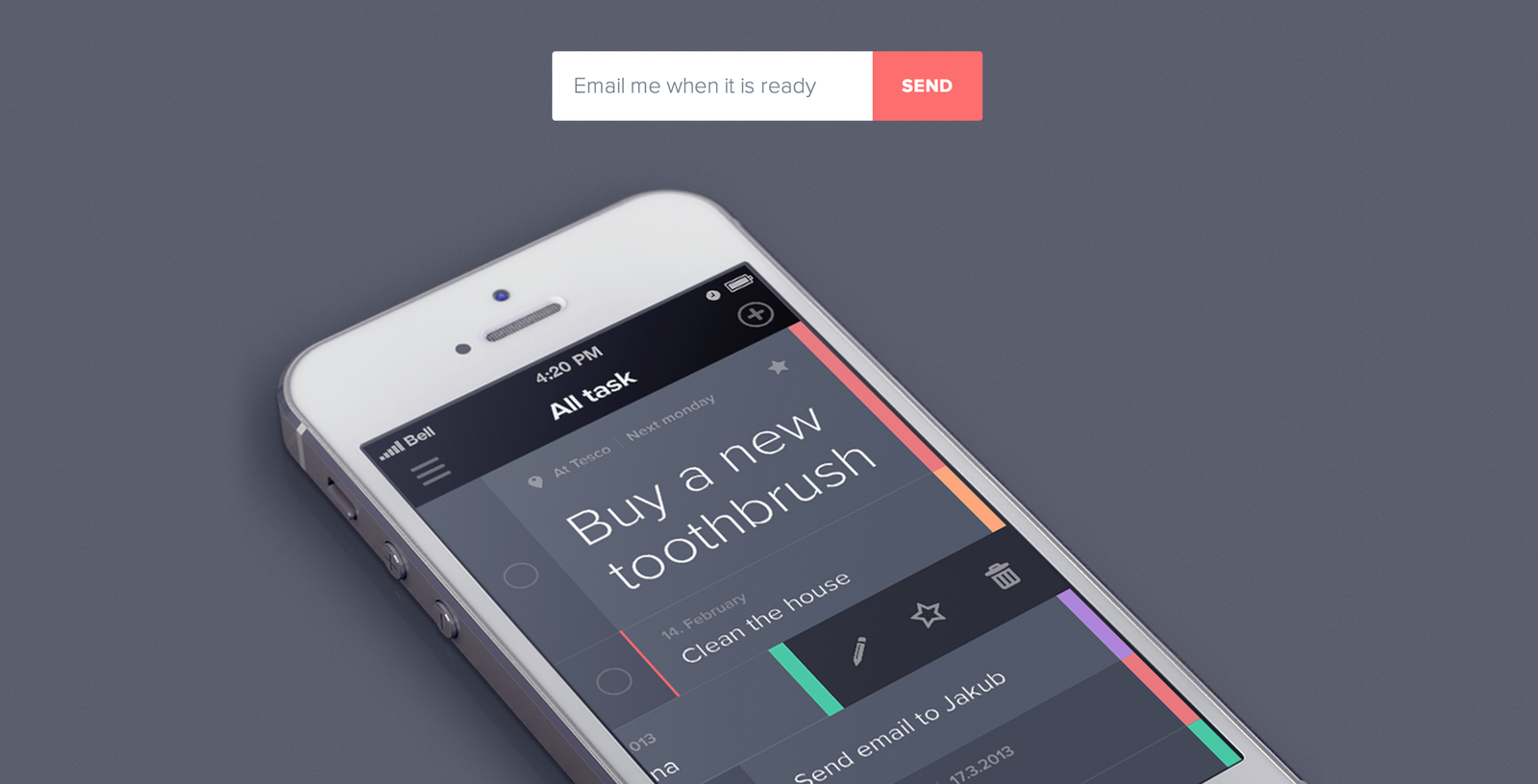

  • Why we are seeing more flat design

  • Why SVG's are awesome

  • Don't fight the web, work with it!

  • Doing as much of the design with CSS makes it more editable and if images are needed, they must be flexible

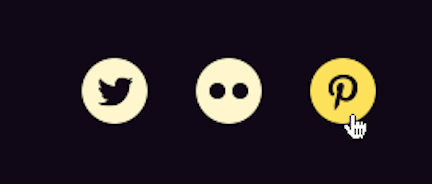

  • No hover states for touch screens, so don't hide content that can only be viewed by hover

  • Brad Frost's Resources

Think about the experience

Retina

  • Makes text look great, but what happens to images?

  • Need to double height and width for crisp images

  • What does this mean for performance?

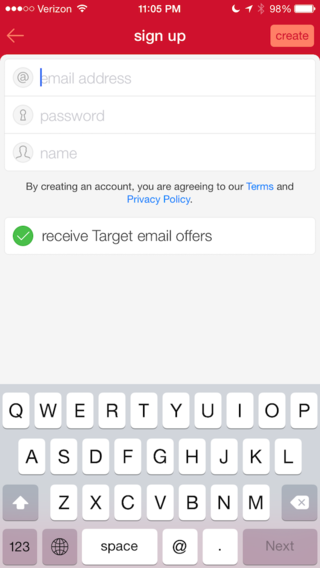

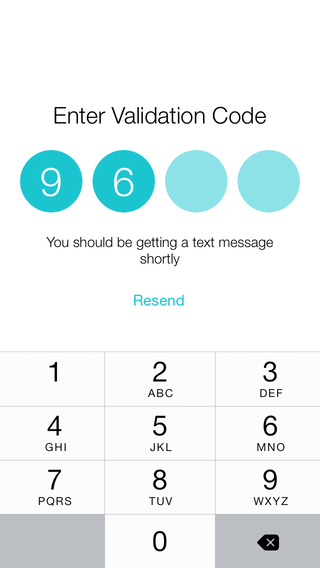

Smarter design

Don’t make users to more work than they have to

(Smart keyboards, default values, autocomplete, etc.)

Things to keep in mind

  • Don’t make users pinch to zoom, but allow them to zoom if they need to magnify something

  • How should thing layout at different browser widths? Stacking combined with resizing.

  • Follow good conventions

Mobile navigation

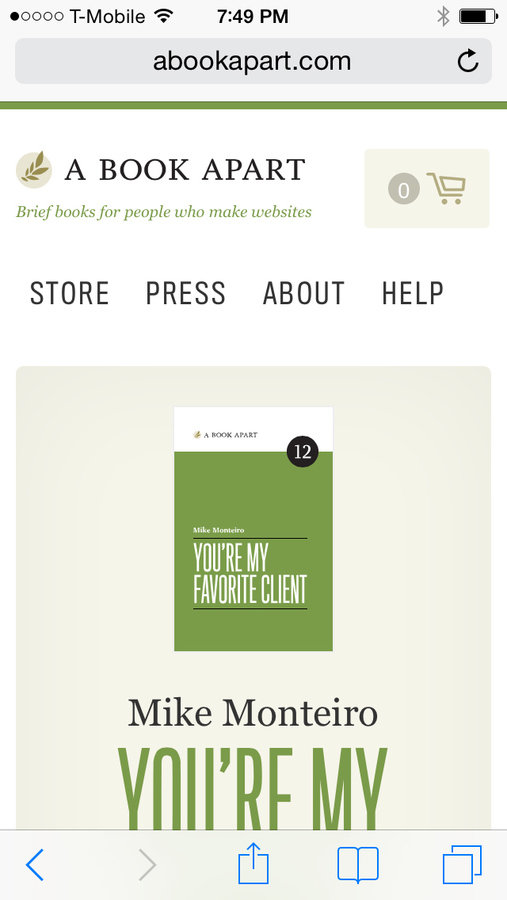

Display all

  • Menu items all fit in a small space at the top of the screen

  • Pros - very scannable, no digging

  • Cons - multiple rows?

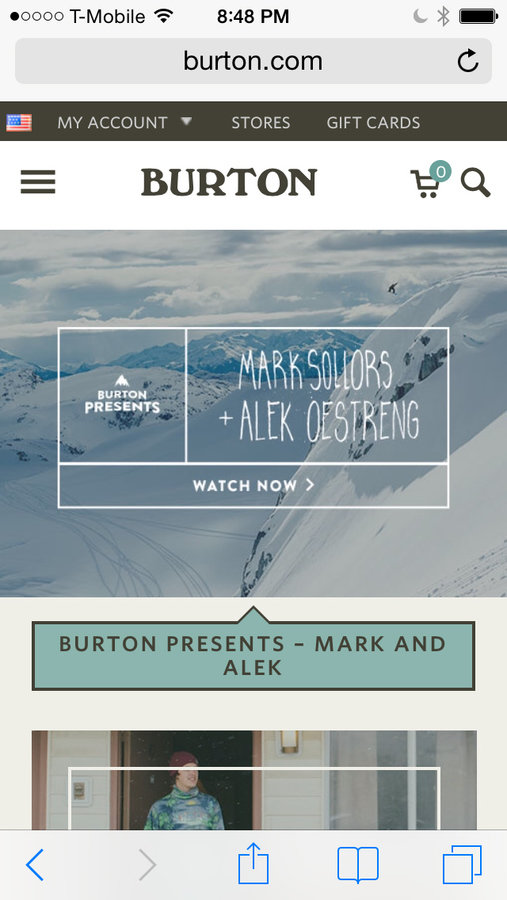

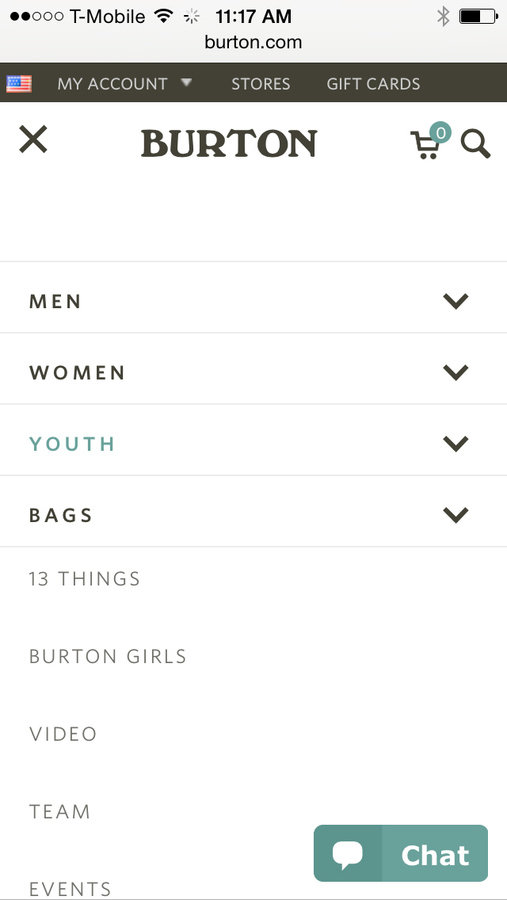

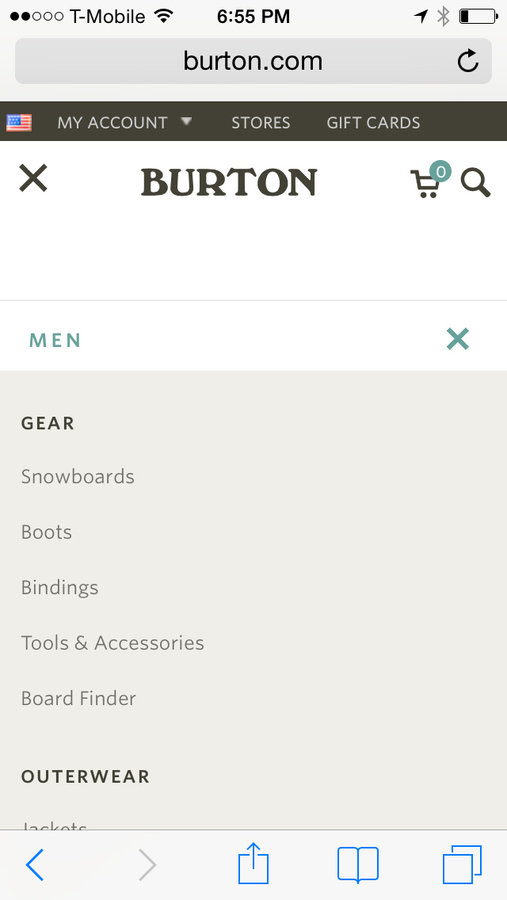

Hamburger menu

  • Tapping the hamburger icon shows a list of main menu items

  • Pros - can fit larger menu, scrollable

  • Cons - lower discoverability, less efficient

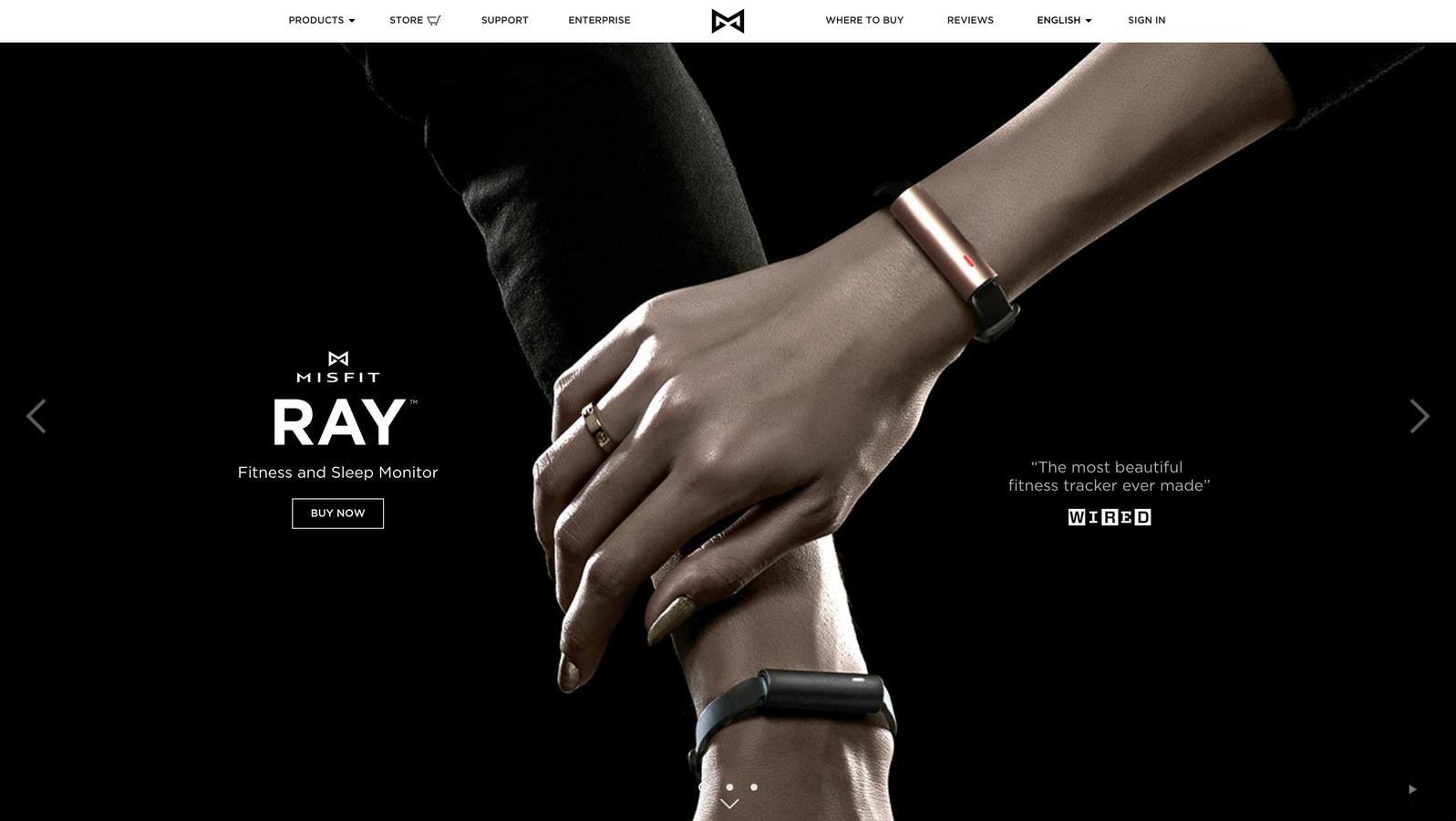

Responsive inspiration

Homework

  • Responsive Dobot shop due

  • Finish visual design of final project

Class 9

  • Check final project designs and any questions on Dobot

  • Introduction to web typography

In the past, we were limited to...

Web-safe fonts

Arial, Georgia, Verdana, Times, Trebuchet, etc.

Now we have @fontface!













For more on how to use @fontface:
https://css-tricks.com/snippets/css/using-font-face/

@font-face {
  font-family: 'MyWebFont';
  src:  url('myfont.woff2') format('woff2'),
        url('myfont.woff') format('woff');
}

Pros

  • We have more fonts to use!

  • Dynamic, selectable, printable, and easily edited text

  • Easy to implement

Cons

  • Easy to overuse

  • Licensing - if it’s not open sourced and
    you don’t have a license - don’t use it

  • Can have FOUT (flash of unstyled text)

Where to find fonts

Free problems

  • Quality not guarantee

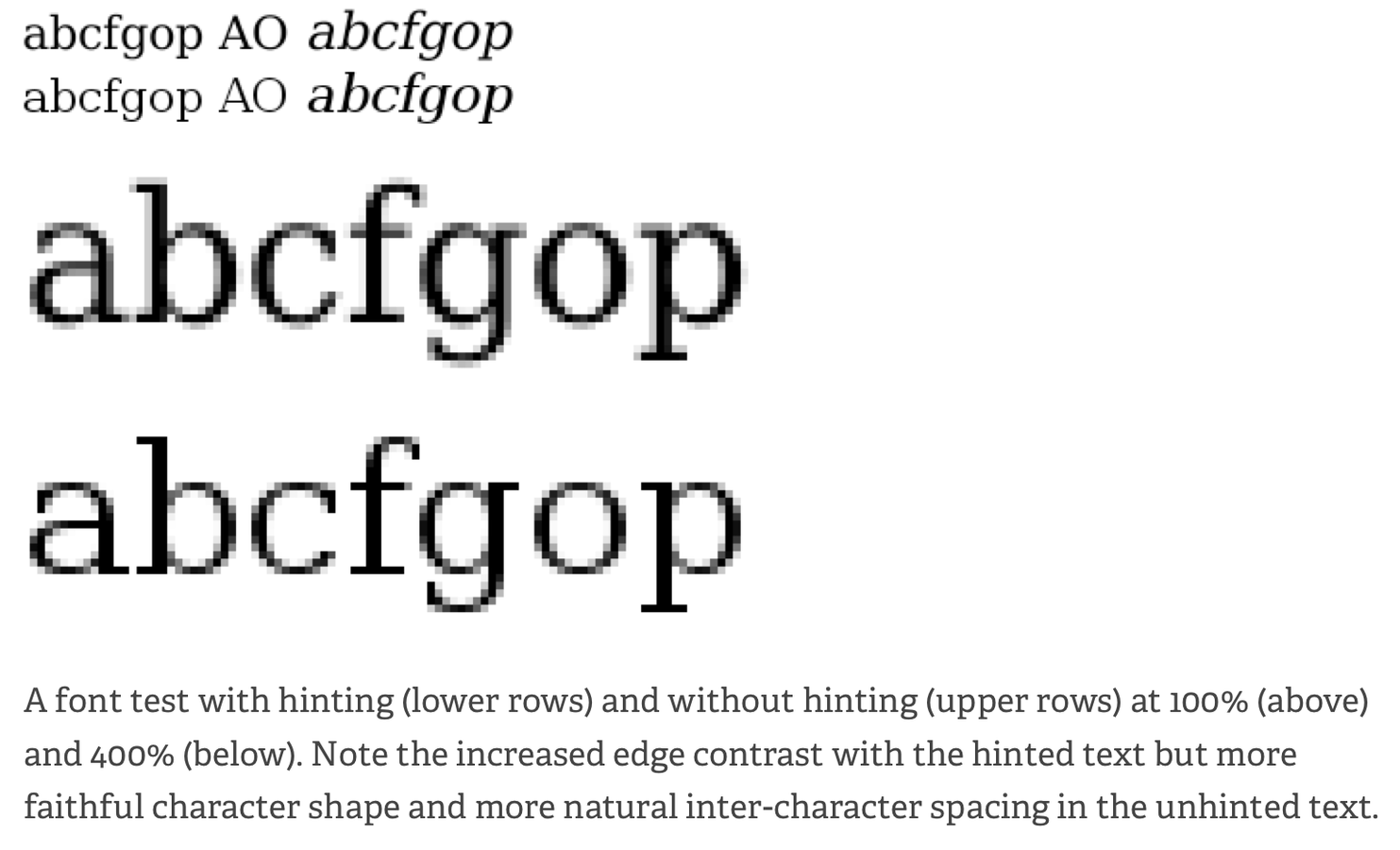

  • Unknown rendering (hinting)

  • Poorly drawn

  • Poorly kerned

  • Incomplete set

Licensing

  • Make sure you own the license

  • Read the End User License Agreement (EULA)

  • Desktop licenses are not the same as web

  • Avoid liability issues

Check your 1, I, and l

Does the number one, capital “i”, and lowercase “L”
need to be distinct?

Readability

At small sizes fonts with larger variation in weights
will be harder to read.

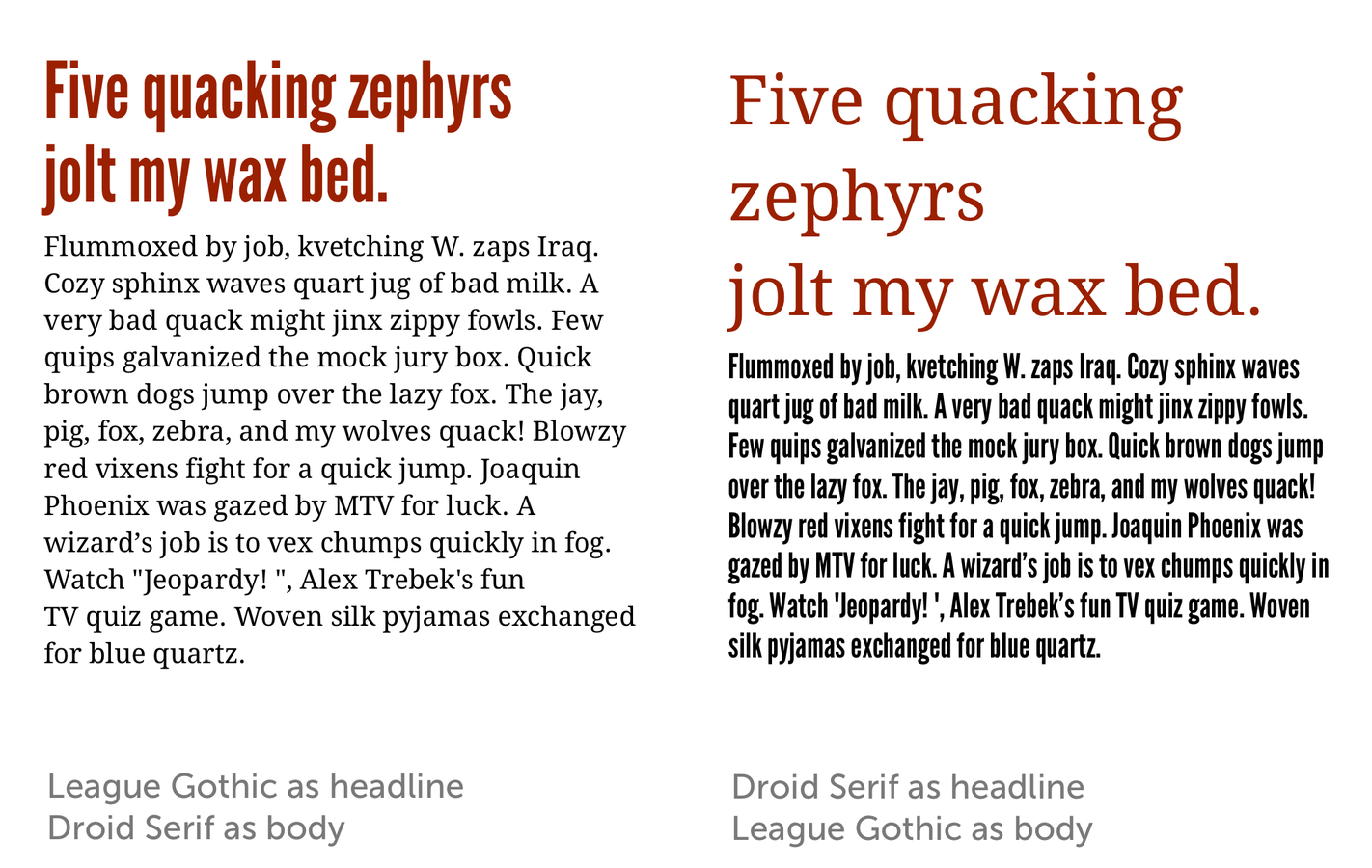

Headline vs Text

Appropriate

Always honor your content and audience first. Choose fonts that are relevant to your subject before choosing what’s new and trendy.

Type rules

  • Size: 16px is the new minimum body text size
  • Space:
    • ​Keep line length readable, not too long or short
    • Adjust the line-height to give more space in between rows
  • How many characters per line?

    • ​According to Robert Bringhurst 45 to 75.

    • Recent web studies show that 66 might be the “web ideal”

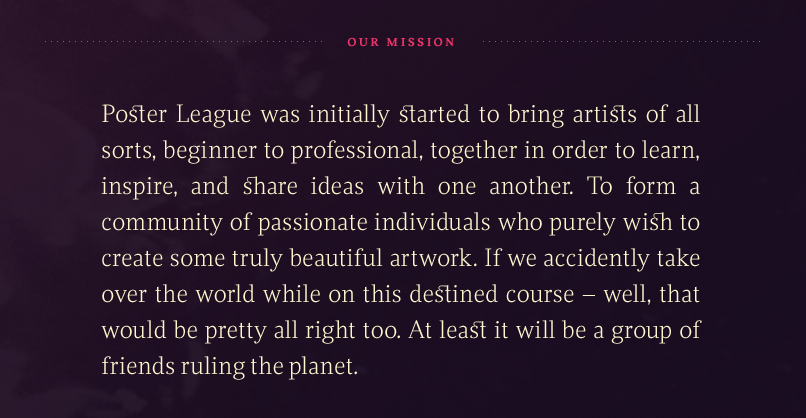

Line height

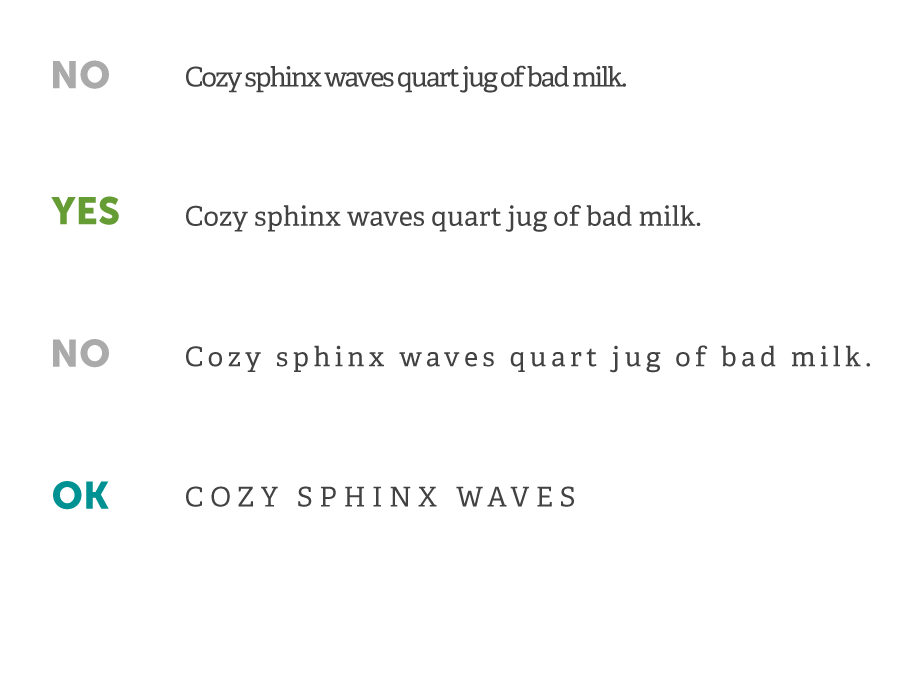

Letter spacing

Smart quotes

"dumb double quotes"

“smart double quotes”

'dumb single quotes'

‘smart single quotes’

Typographical sins

Include fonts in Dobot

@font-face {
  font-family: 'quatro';
  src: url('/fonts/quatroslab_regular-webfont.eot');
  src: url('/fonts/quatroslab_regular-webfont.eot?#iefix') format('embedded-opentype'),
       url('/fonts/quatroslab_regular-webfont.woff2') format('woff2'),
       url('/fonts/quatroslab_regular-webfont.woff') format('woff'),
       url('/fonts/quatroslab_regular-webfont.ttf') format('truetype'),
       url('/fonts/quatroslab_regular-webfont.svg#quatro_slabregular') format('svg');
  font-weight: normal;
  font-style: normal;
}

@font-face {
  font-family: 'etica-semibold';
  src: url('/fonts/lft_etica_semibold-webfont.eot');
  src: url('/fonts/lft_etica_semibold-webfont.eot?#iefix') format('embedded-opentype'),
       url('/fonts/lft_etica_semibold-webfont.woff2') format('woff2'),
       url('/fonts/lft_etica_semibold-webfont.woff') format('woff'),
       url('/fonts/lft_etica_semibold-webfont.ttf') format('truetype'),
       url('/fonts/lft_etica_semibold-webfont.svg#lft_etica_sbsemibold') format('svg');
  font-weight: normal;
  font-style: normal;
}

@font-face {
  font-family: 'etica';
  src: url('/fonts/lft_etica_reg-webfont.eot');
  src: url('/fonts/lft_etica_reg-webfont.eot?#iefix') format('embedded-opentype'),
       url('/fonts/lft_etica_reg-webfont.woff2') format('woff2'),
       url('/fonts/lft_etica_reg-webfont.woff') format('woff'),
       url('/fonts/lft_etica_reg-webfont.ttf') format('truetype'),
       url('/fonts/lft_etica_reg-webfont.svg#lft_eticaregular') format('svg');
  font-weight: normal;
  font-style: normal;
}

Custom fonts exercise

In-class CodePen assignment:

Add your favorite Google Fonts font
to an h1 that thickens font-weight upon hover

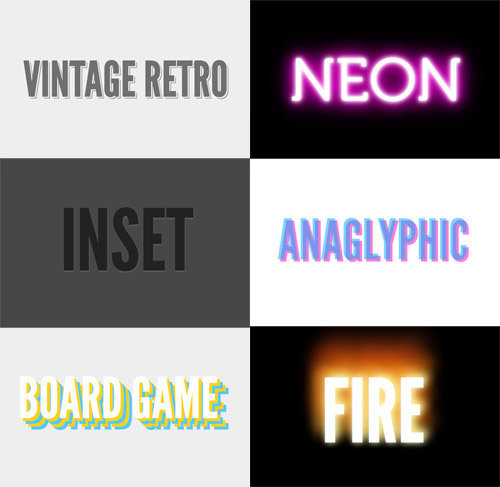

Cool font effects

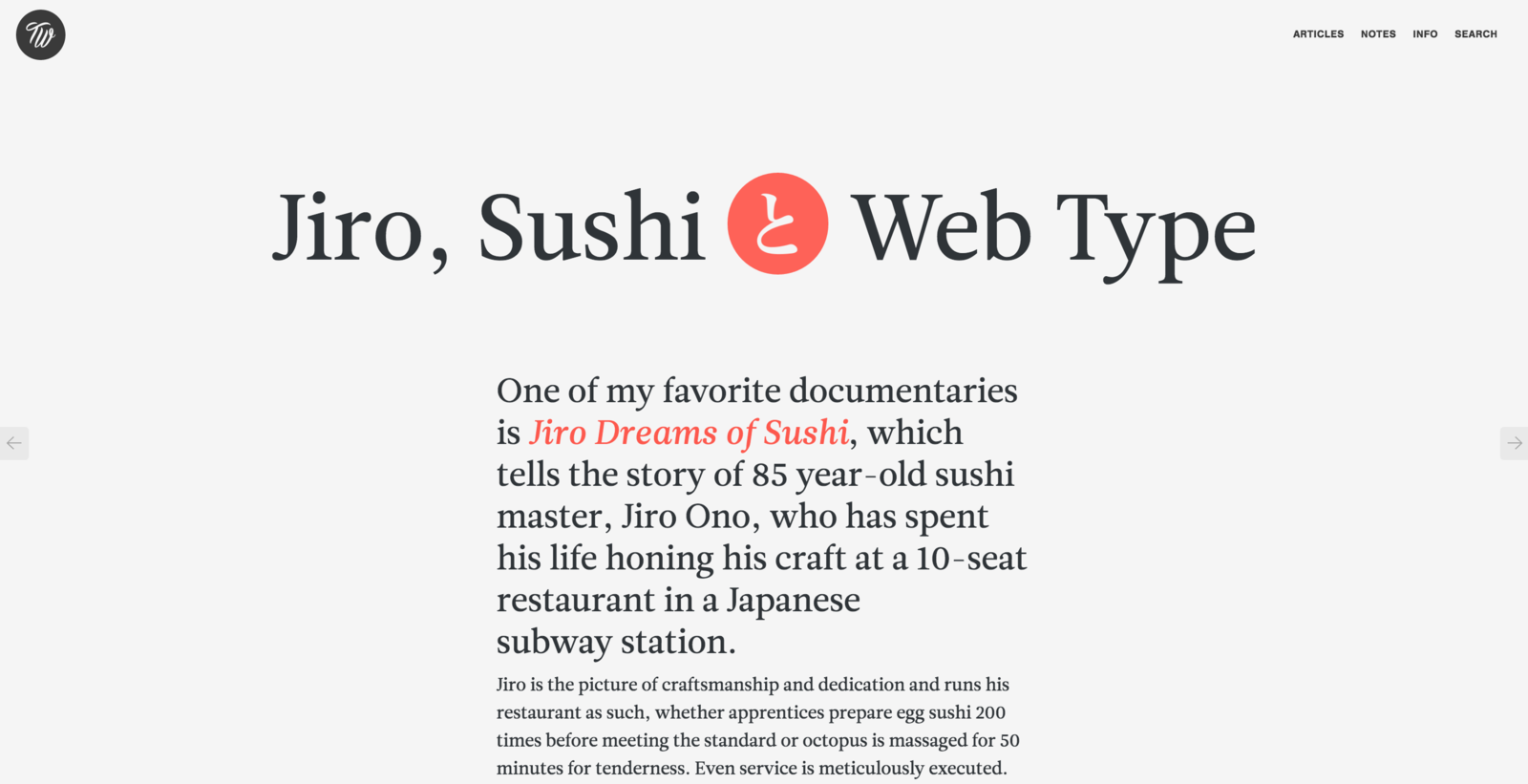

Web type resources

Linking to pages

Same page link

https://css-tricks.com/snippets/jquery/smooth-scrolling/

Same site link (relative)

https://css-tricks.com/quick-reminder-about-file-paths/

Different site link (absolute)

https://css-tricks.com/snippets/html/open-link-in-a-new-window/​

target="_blank"

Homework

Class 10

Final project working session

Class 11

  • Intro jQuery

  • Work on final projects

A little bit of jQuery

Toggle menu items for hamburger menu

For reference

Hosting your site

Can use GitHub pages to host so
you only need to buy a domain name

Instructions

Poster League exercise

In-class CodePen assignment

Social icons exercise

In-class CodePen assignment from Poster League’s footer











Awesome if you can use inline SVG’s, but you can
also use images that are in the SVG format.

Inline SVG’s w/ Icomoon

  1. Select your icon
  2. Generate SVG
  3. Get code
  4. Copy symbol definition(s) into your <defs> (should be first thing within body tag)







  5. Copy HTML (SVG<use>) where you want your icon to show up
<body>
  <svg display="none" width="0" height="0" version="1.1" xmlns="http://www.w3.org/2000/svg" xmlns:xlink="http://www.w3.org/1999/xlink">
    <defs>
      Add your symbols here
    </defs>
  </svg>
  ...
</body>

<svg class="icon icon-twitter"><use xlink:href="#icon-twitter"></use></svg>

Homework

Final project!

Class 12

Final project working session

Last class :*(

  • Present your projects!

  • <3

Stay in touch!

Web Design I

By Amanda Cheung

Made with Slides.com

Web Design I

Class slides for Web Design I (CDGD304) at Massachusetts College of Art and Design

  • 6,454

More from Amanda Cheung
