Reverse Engineering

Aneesh Dogra

Palash Bansal

• What is Reverse Engineering?
• x86 Assembly
  • Registers
  • Flags
  • Stack
  • Hello world in assembly
• Disassembly
  • Examples including printf and scanf
• Reversing a real binary with an authentication system

What is RE?

• Its the process of taking an application, process, network traffic or anything you can observe about a computer system and figure out how the computer system works without having any access to the documentation and/or source code.

• Its very important in the security industry, for example anti virus companies use reverse engineering to understand malware and then developing protection mechanisms against it.

Motivation!

Reversing is a vital skill to have when you want to understand what a program is actually doing, and when you don't have access to its source code.

Intro to the CPU

1. The CPU reads the machine code a program consists of and executes it.
2. Machine code is just an encoding of instructions that can be understood by the CPU.

Execute

x86 Assembly

1. Assembly language is a low level language in which there is a very strong correspondence between the language and the machine code.
2. Each assembly language is specific to a particular architecture.

Some terms:

• Instruction Set: the complete set of all the instructions in machine code that can be recognized and executed by a central processing unit.
• Opcodes: In computing, an opcode (abbreviated from operation code) is the portion of a machine language instruction that specifies the operation to be performed. Beside the opcode itself, instructions usually specify the data they will process, in form of operands.
• Registers: A special, high-speed storage area within the CPU. All data must be represented in a register before it can be processed.

More about x86

Assembly is a very low level language, so its somewhat different from the languages we all use everyday to write software.

1. Each instruction is represented by a mnemonic.
2. ^ translates to opcodes, understandable by the CPU.
3. In assembly we use registers and stack to store data.
4. Addressing and memory segmentation. (Address = <segment> + <offset>)

Registers

If EAX = 0x12345678? What is the value of AX, AH, AL?

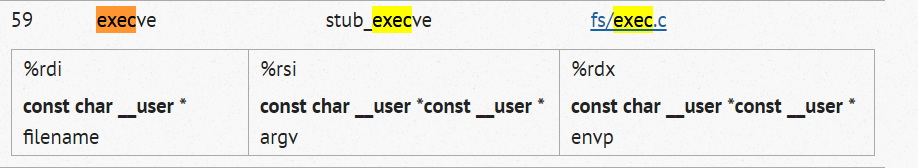

Syscall

Flags

The FLAGS register is the status register in Intel x86 microprocessors that contains the current state of the processor.

A simple function

int function()
{
    return 1;
};

function:
mov eax, 1
ret

MACHINE CODE

We took an example of a simple function that returns 1 every time.

The function boils down to 2 lines of assembly and  6 bytes of opcode

Understanding Assembly

function:
mov eax, 1
ret

The first line is a label. Which suggests that we are starting a block definition in assembly.

The second line is a mov instruction it moves 1 into the eax register.

The third line returns from the function. Similar to return in C.

Hello World!

#include <stdio.h>
int main()
{
    printf("hello, world\n");
    return 0;
}

Lets try to disassemble the program using GDB. GDB is a GNU Debugger that can transform machine code to readable assembly code very easily.

continued..

Dissassembly

Techniques for attempting to convert the raw machine code of an executable file into equivalent code in assembly language and the high-level languages C and C++

Understanding Dissassembly

(gdb) disassemble main
Dump of assembler code for function main:
   0x000000000040052d <+0>:	push   rbp
   0x000000000040052e <+1>:	mov    rbp,rsp
   0x0000000000400531 <+4>:	mov    edi,0x4005d4
   0x0000000000400536 <+9>:	call   0x400410 <puts@plt>
   0x000000000040053b <+14>:	mov    eax,0x0
   0x0000000000400540 <+19>:	pop    rbp
   0x0000000000400541 <+20>:	ret
End of assembler dump.

Firstly, we push the old base pointer on the stack. Then we replace the base pointer with the current stack pointer.

We push some address to edi and call puts.

Then we reset the rbp and return.

Examining memory at 0x4005d4

Stack

• ESP and EBP registers are mainly used to deal with the stack in X86 Assembly.
• ESP is a register that holds the top address of the stack.
• The stack grows downward so  when you push an entry to the stack the ESP gets decremented by the size of that entry.
• EBP is the base pointer register. Its usually set to ESP at the start of the function. After you push and pop things from the stack ESP is changed but the EBP is not.
• EBP is used as a reference so as to access the local variables of the function.

Stack is a very crucial data structure in assembly its used to store local variables, pass variables to a function, store return addresses of a function and more.

Stack instructions

• POP: retrieve the data from memory pointed by ESP, loads it into the instruction operand (often a register) and then add 4 to the stack pointer
• PUSH: subtracts from ESP and then writes the contents of its sole operand to the memory address pointed by ESP.

The most frequently used stack access instructions are PUSH and POP

Functions!

push ebp
mov ebp, esp
sub esp, X

The function definition usually begins with:

• We push a copy of ebp on the stack so that we don't lose it. Then we update the EBP with the current ESP and subtract X number of bytes from ESP.
• Can someone guess what X is?

mov esp, ebp
pop ebp
ret 0

The function definition usually ends with:

• We reset ESP with the current function's EBP and then store the topmost value of ESP into EBP.

Passing args to functions

Arguments to functions are passed via the stack.

Caller:

push arg3
push arg2
push arg1
call function
add esp, 12 ; 4*3=12

Callee:

Passing args to Printf!

#include <stdio.h>
int main()
{
  printf("a=%d; b=%d; c=%d", 1, 2, 3);
  return 0;
}

main proc near
 var_10 = dword ptr -10h
 var_C = dword ptr -0Ch
 var_8 = dword ptr -8
 var_4 = dword ptr -4

 push ebp
 mov ebp, esp
 and esp, 0FFFFFFF0h
 sub esp, 10h
 mov eax, offset aADBDCD ; "a=%d; b=%d; c=%d"
 mov [esp+10h+var_4], 3
 mov [esp+10h+var_8], 2
 mov [esp+10h+var_C], 1
 mov [esp+10h+var_10], eax
 call _printf
 mov eax, 0
 leave
 retn
main endp

Lets compile the C program in gcc and see what we get in IDA.

what does esp & 0xFFFFFFF0 do?

"x86 processors are designed to load code and data more quickly from even doubleword addresses."

Using scanf

#include <stdio.h>
int main()
{
 int x;
 printf ("Enter X:\n");
 scanf ("%d", &x);
 printf ("You entered %d...\n", x);
 return 0;
};

main proc near
        var_20 = dword ptr -20h
        var_1C = dword ptr -1Ch
        var_4 = dword ptr -4
        push ebp
        mov ebp, esp
        and esp, 0FFFFFFF0h
        sub esp, 20h
        mov [esp+20h+var_20], offset aEnterX ; "Enter X:"
        call _puts
        mov eax, offset aD ; "%d"
        lea edx, [esp+20h+var_4]
        mov [esp+20h+var_1C], edx
        mov [esp+20h+var_20], eax
        call ___isoc99_scanf
        mov edx, [esp+20h+var_4]
        mov eax, offset aYouEnteredD___ ; "You entered %d...\n"
        mov [esp+20h+var_1C], edx
        mov [esp+20h+var_20], eax
        call _printf
        mov eax, 0
        leave
        retn
main endp

Lets compile the C program in gcc and see what we get in IDA.

LEA == &

Reversing a CrackMe!

We'll try to reverse engineer a very easy crackme, crackmes are programs written by people as challenges, to help learn reverse engineering.

They're usually authentication systems we need to break to get the success message by reverse engineering the code.

Getting file information

To start reverse engineering the file we must know what type it is. Easiest way to do this is using the file command on ubuntu.

>> file crackme

>> crackmecpp: ELF 32-bit LSB  executable, Intel 80386, version 1 (SYSV), dynamically linked (uses shared libs), for GNU/Linux 2.6.26, BuildID[sha1]=901287c7af167a087acdd19e0bc0087c2a993481, not stripped

GDB

Let's open the file in GDB and get the disassembly.

>> gdb crackme

(gdb) > set disassembly-flavor intel

(gdb) > disassemble main

Usually main is a opening function of most programs, if main doesn't work we can try looking at the symbol table for functions.

Disassembly

   0x0804876c <+0>:	push   ebp
   0x0804876d <+1>:	mov    ebp,esp
   0x0804876f <+3>:	and    esp,0xfffffff0; alignment
   0x08048772 <+6>:	sub    esp,0x20; reserve 0x20 bytes for storage (local variables)

; function call 1
   0x08048775 <+9>:	mov    DWORD PTR [esp+0x4],0x80488c0
   0x0804877d <+17>:	mov    DWORD PTR [esp],0x8049be0
   0x08048784 <+24>:	call   0x8048640 <_ZStlsISt11char_traitsIcEERSt13basic_ostreamIcT_ES5_PKc@plt>

; function call 2
   0x08048789 <+29>:	lea    eax,[esp+0x1c]
   0x0804878d <+33>:	mov    DWORD PTR [esp+0x4],eax
   0x08048791 <+37>:	mov    DWORD PTR [esp],0x8049b40
   0x08048798 <+44>:	call   0x8048650 <_ZNSirsERi@plt>

   0x0804879d <+49>:	mov    eax,DWORD PTR [esp+0x1c]
   0x080487a1 <+53>:	cmp    eax,0x4d2
   0x080487a6 <+58>:	je     0x80487af <main()+67>
   0x080487a8 <+60>:	mov    eax,0x63
   0x080487ad <+65>:	jmp    0x80487c8 <main()+92>

; function call 3

   0x080487af <+67>:	mov    DWORD PTR [esp+0x4],0x80488cb
   0x080487b7 <+75>:	mov    DWORD PTR [esp],0x8049be0
   0x080487be <+82>:	call   0x8048640 <_ZStlsISt11char_traitsIcEERSt13basic_ostreamIcT_ES5_PKc@plt>
   0x080487c3 <+87>:	mov    eax,0x1

Function call 1

0x08048775 <+9>:	mov    DWORD PTR [esp+0x4],0x80488c0
0x0804877d <+17>:	mov    DWORD PTR [esp],0x8049be0
0x08048784 <+24>:	call   0x8048640 <_ZStlsISt11char_traitsIcEERSt13basic_ostreamIcT_ES5_PKc@plt>

We could start by looking at the arguments passed to the function to understand what its starting to do.

 (gdb) > x/1s 0x80488c0
0x80488c0:    "Passcode: "

Looks like we're calling COUT here. Moving on!

Function call 2

   0x08048789 <+29>:	lea    eax,[esp+0x1c]
   0x0804878d <+33>:	mov    DWORD PTR [esp+0x4],eax
   0x08048791 <+37>:	mov    DWORD PTR [esp],0x8049b40
   0x08048798 <+44>:	call   0x8048650 <_ZNSirsERi@plt>

   0x0804879d <+49>:	mov    eax,DWORD PTR [esp+0x1c]
   0x080487a1 <+53>:	cmp    eax,0x4d2

Here we're passing a pointer and an address to the function. After the function executes, we're comparing the pointer's value with 0x4d2 which is 1234 in decimal.

Looks like the function populates the pointer value. Which suggests its the CIN function.

Are we done?

We just found gold! We found, that the program compares the value we give it against 1234 and makes a decision about based on it. Let's try entering 1234 in the passcode field.

We won!

Reversing is not about understand what the whole program does, its about getting an idea, doing experiments and understanding the relevant parts.

Thanks
