Another Dataset

Tiny ImageNet

Image size 64x64x3
200 classes
- Each class: 500 train / 50 test
Use @1 Accuracy as evaluation metrics

Experiment

Net1 up-half networks

Net2 up-half networks

Net2 down-half networks

Net1 down-half networks

675,392

1,340,224

19,988,068

10,544,740

ResNet18

(w/o pretrained)

ResNet34

(w/o

pretrained)

2 residual block

2 residual block + FC

2 residual block

2 residual block + FC

Adam, 1e-4

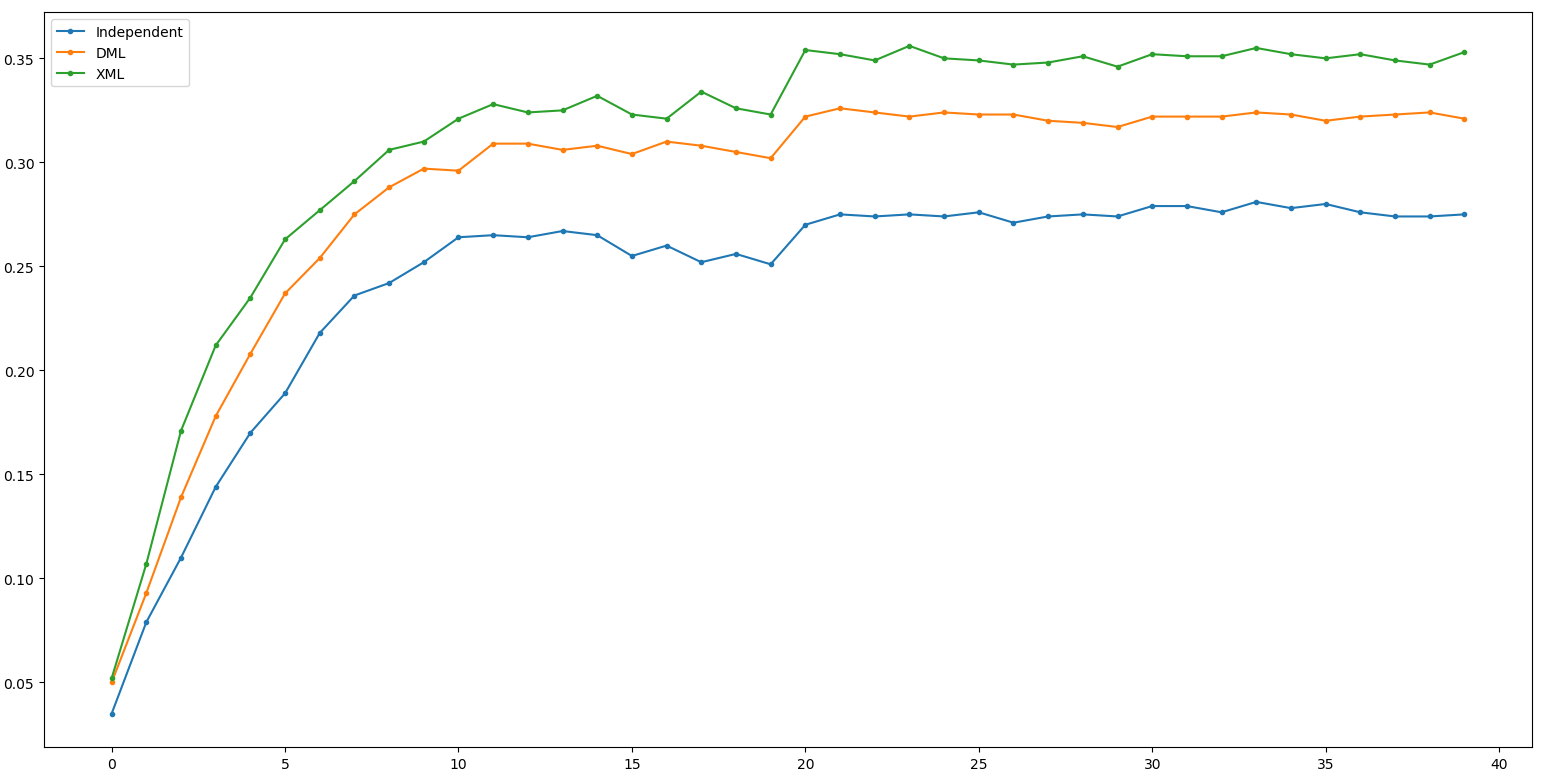

Result - ResNet34

Independent: 31.1 DML: 35.5(+4.4) XML: 37.2(+1.7)

(Net 1: ResNet34, Net 2: ResNet18)

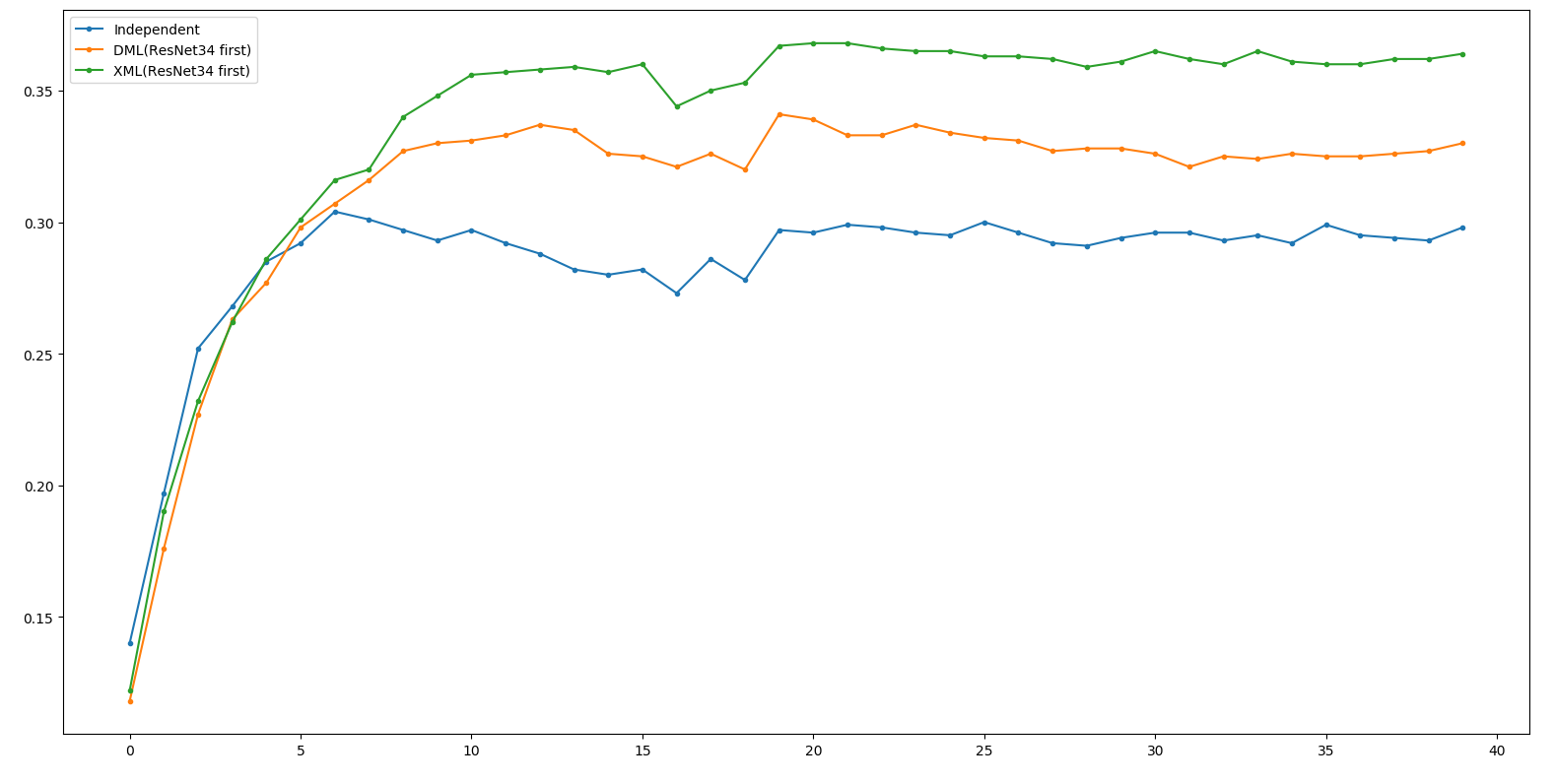

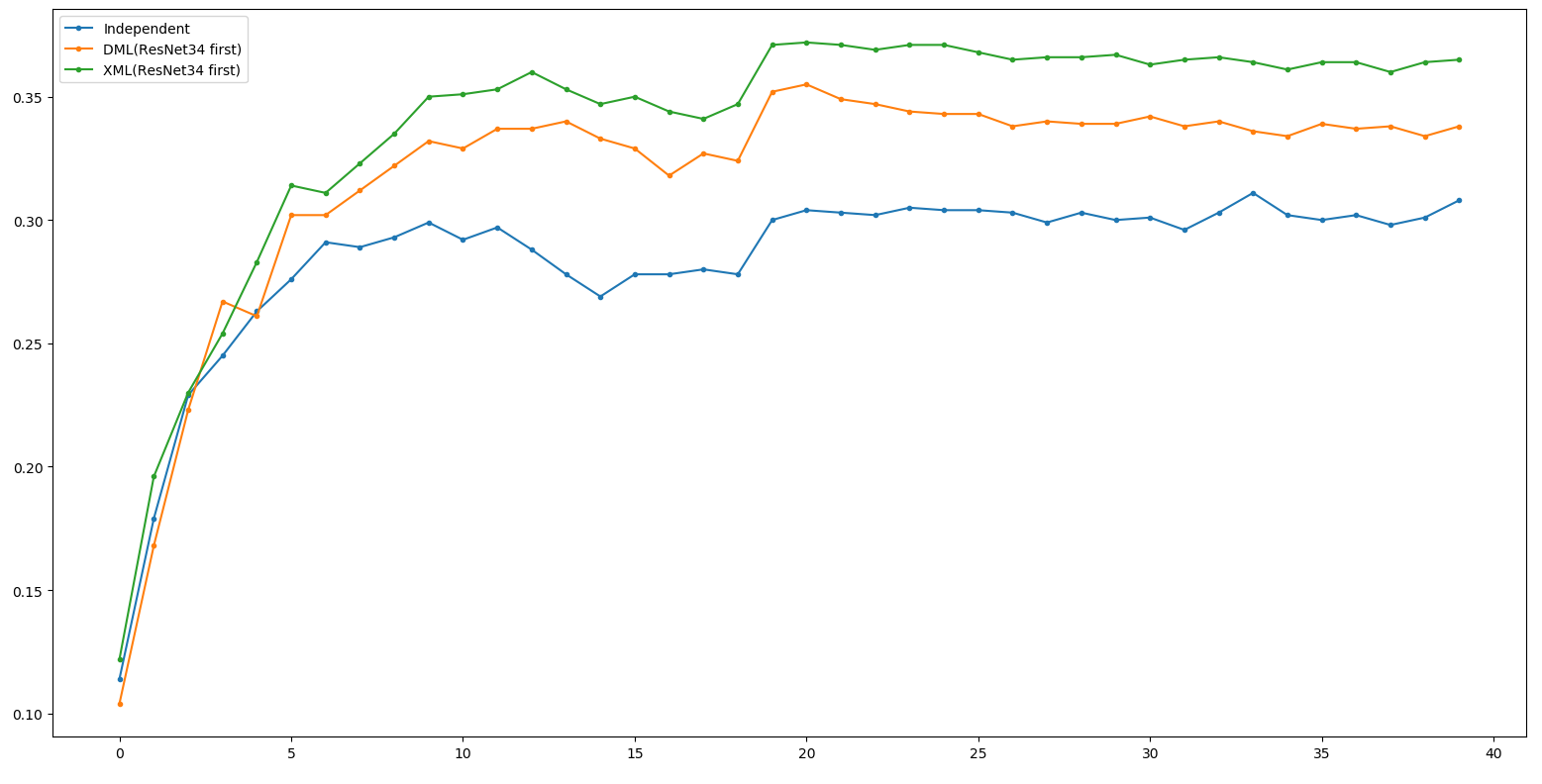

Result - ResNet18

Independent: 30.4 DML: 34.1(+3.7) XML: 36.8(+2.7)

(Net 1: ResNet34, Net 2: ResNet18)

Conclusion

在Cifar100 / Tiny Imagenet都顯現出XML比DML還要強。
直接train大model會發現其極容易overfit，且DML拯救不回來，但XML卻可以。
- 仔細看看會發現: ResNet34在Tiny容易overfit到比ResNet18更差，但XML不會。

Xross can be good in this case

Up Half	Down Half	Accuracy
ResNet34	ResNet34	0.37177
ResNet34	ResNet18	0.37089
ResNet18	ResNet34	0.37604
ResNet18	ResNet18	0.36835

Xross maybe good.

XML Ensemble: 39.3 (+2.2)

DML Ensemble: 37.3 (+2.2)

Independent Ensemble: 32.2 (+1.9)

Cohort Learning

(Deep Mutual Learning也有做過。)

DML & XML loss

# DML
kl_loss = [ KL(teacher_pred, student_pred) for teacher_pred in teachers_pred]
kl_loss = sum(kl_loss) / len(kl_loss)
loss = 0.5 * criterion(student_logits, labels) + 0.5 * kl_loss

# ========
# DML part: logits loss & KL-loss (mimic others K-1 model)
original_loss = [criterion(student_logits, labels)]
kl_loss_self = [ KL(teacher_pred, student_pred) for teacher_pred in teachers_pred ]
kl_loss_self = [sum(kl_loss_self) / len(kl_loss_self)]

# XML part: up mimic + logits (K-1), down mimic + logits (K-1)
kl_up_mimic = [ KL(teacher_pred, up_mimic) for up_mimic, teacher_pred in zip(cat_teacher_down_pred, teachers_pred)]
kl_down_mimic = [ KL(teacher_pred, down_mimic) for down_mimic, teacher_pred in zip(cat_teacher_up_pred, teachers_pred)]
loss_up_mimic = [ criterion(up_mimic_logits, labels) for up_mimic_logits in cat_teacher_down_logits]
loss_down_mimic = [ criterion(down_mimic_logits, labels) for down_mimic_logits in cat_teacher_up_logits]

loss = sum(original_loss + kl_loss_self + kl_up_mimic + kl_down_mimic + loss_up_mimic + loss_down_mimic) / (2 * len(teachers))

DML: 0.5 logits + 0.5 sum(KL) / (K - 1)

XML: (DML loss + up-mimic + down-mimic) / (2K)

Experiment

Net1 up-half networks

Net2 up-half networks

Net2 down-half networks

Net1 down-half networks

4,126,528

1,444,928

22,472,904

63,117,512

ResNeXt50
(no

pretrained)

ResNet50
(no

pretrained)

Net3 up-half networks

Net3 down-half networks

1,412,416

21,977,288

WRN50

(no

pretrained)

Optimizer: Adam 1e-4

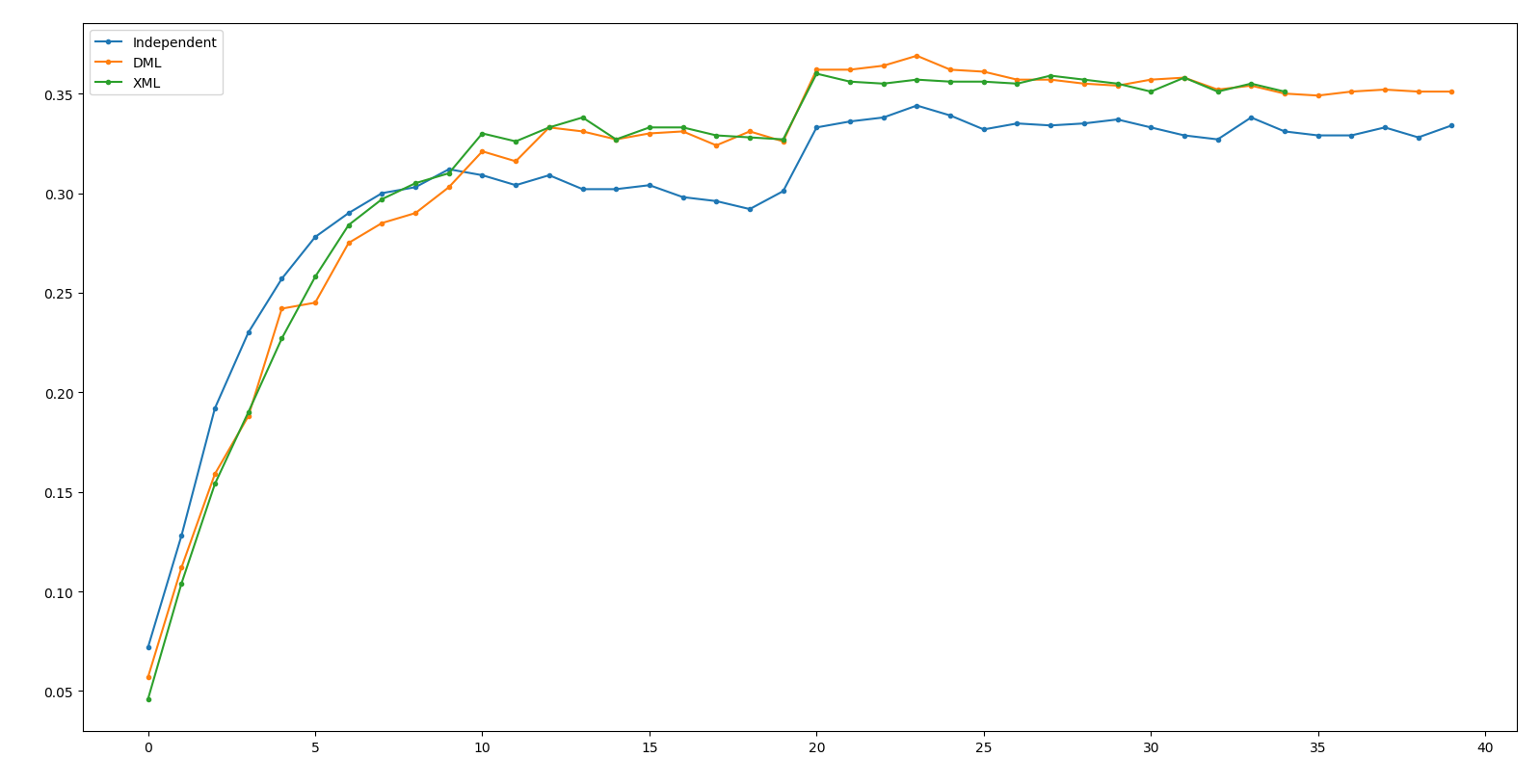

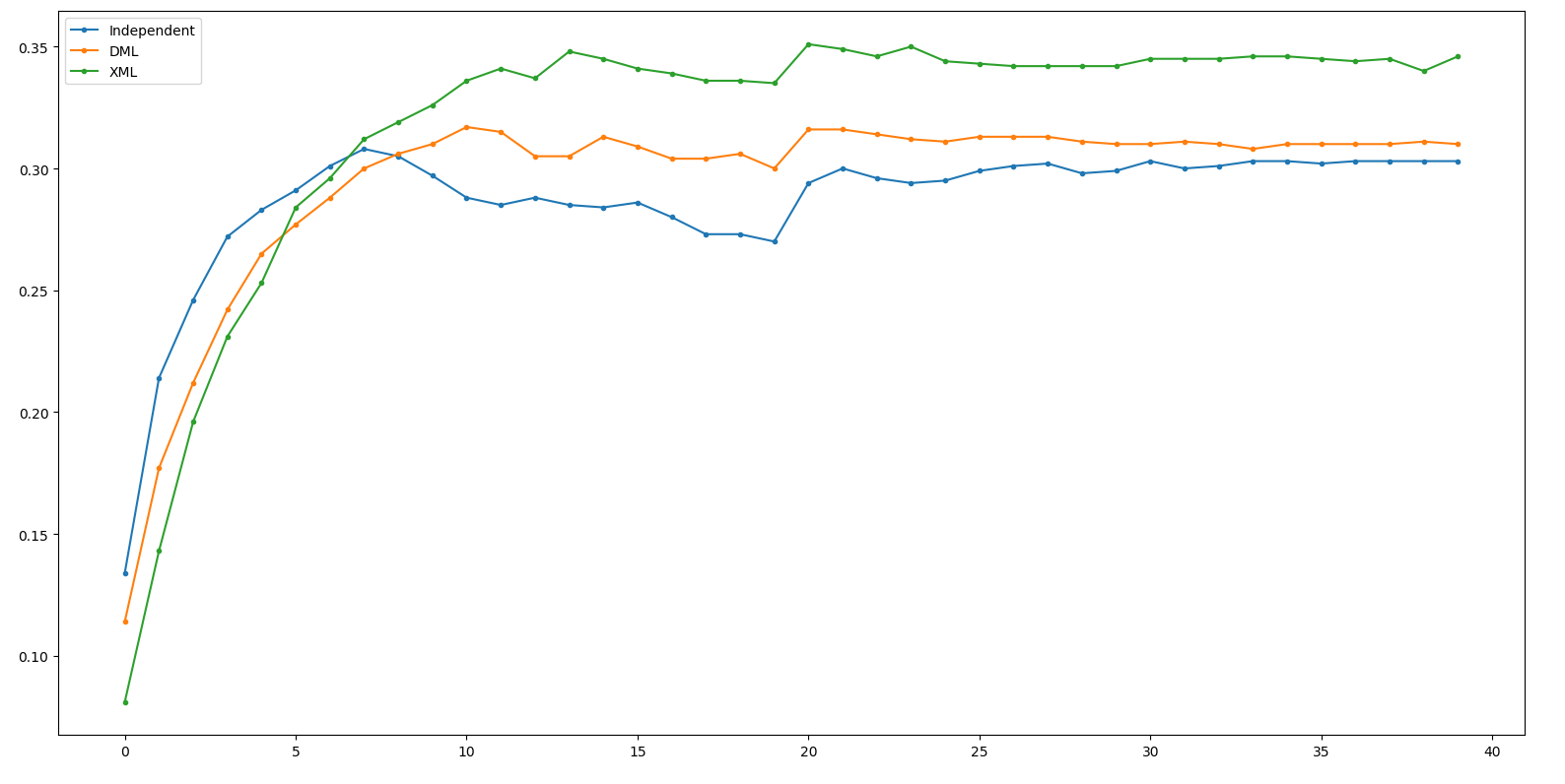

Result - WRN50

Independent: 34.4 DML: 36.9(+2.5) XML: 36.0(-0.9)

(Net 1: WRN50, Net 2: ResNet18, Net 3: ResNeXt50)

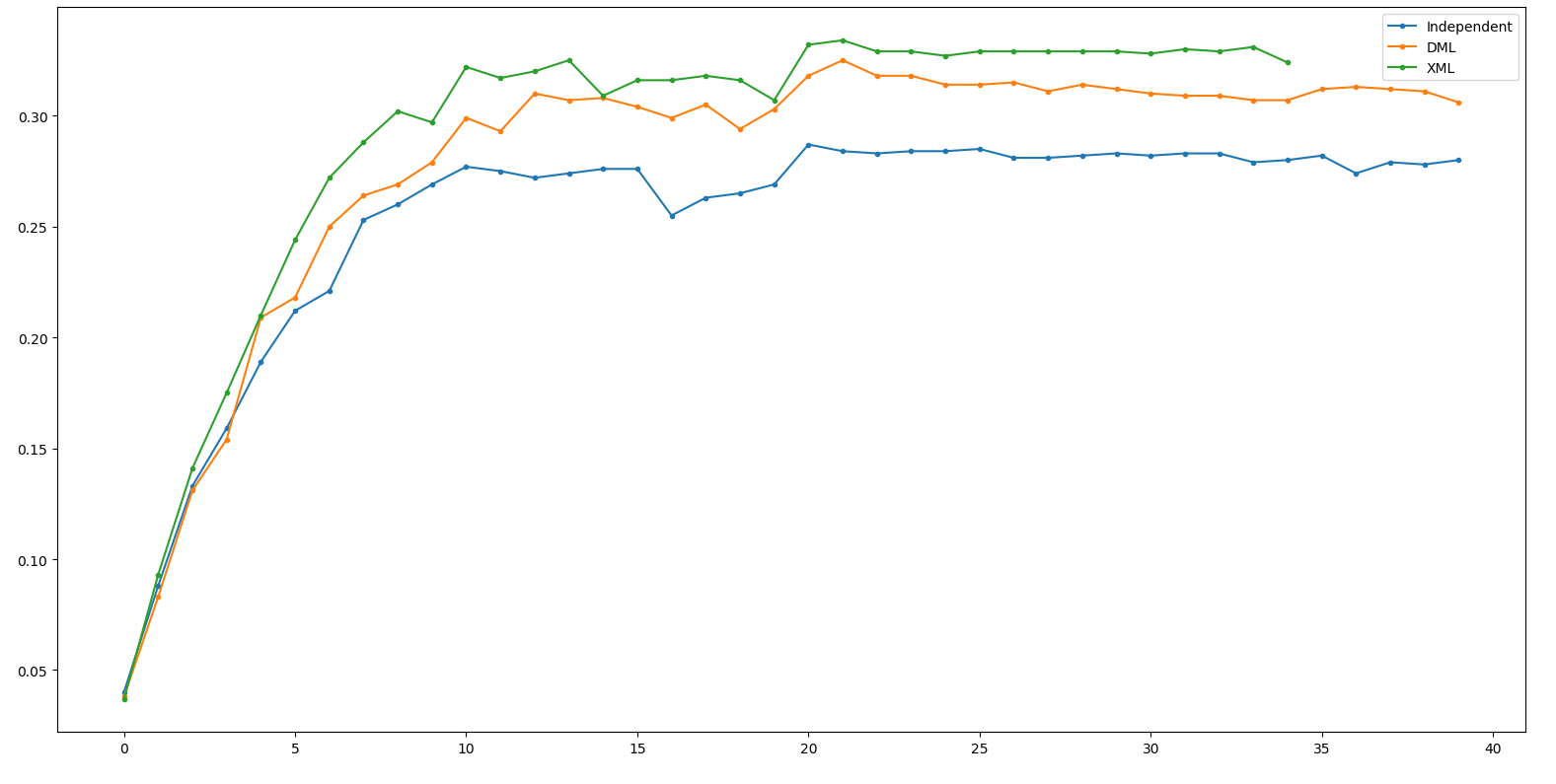

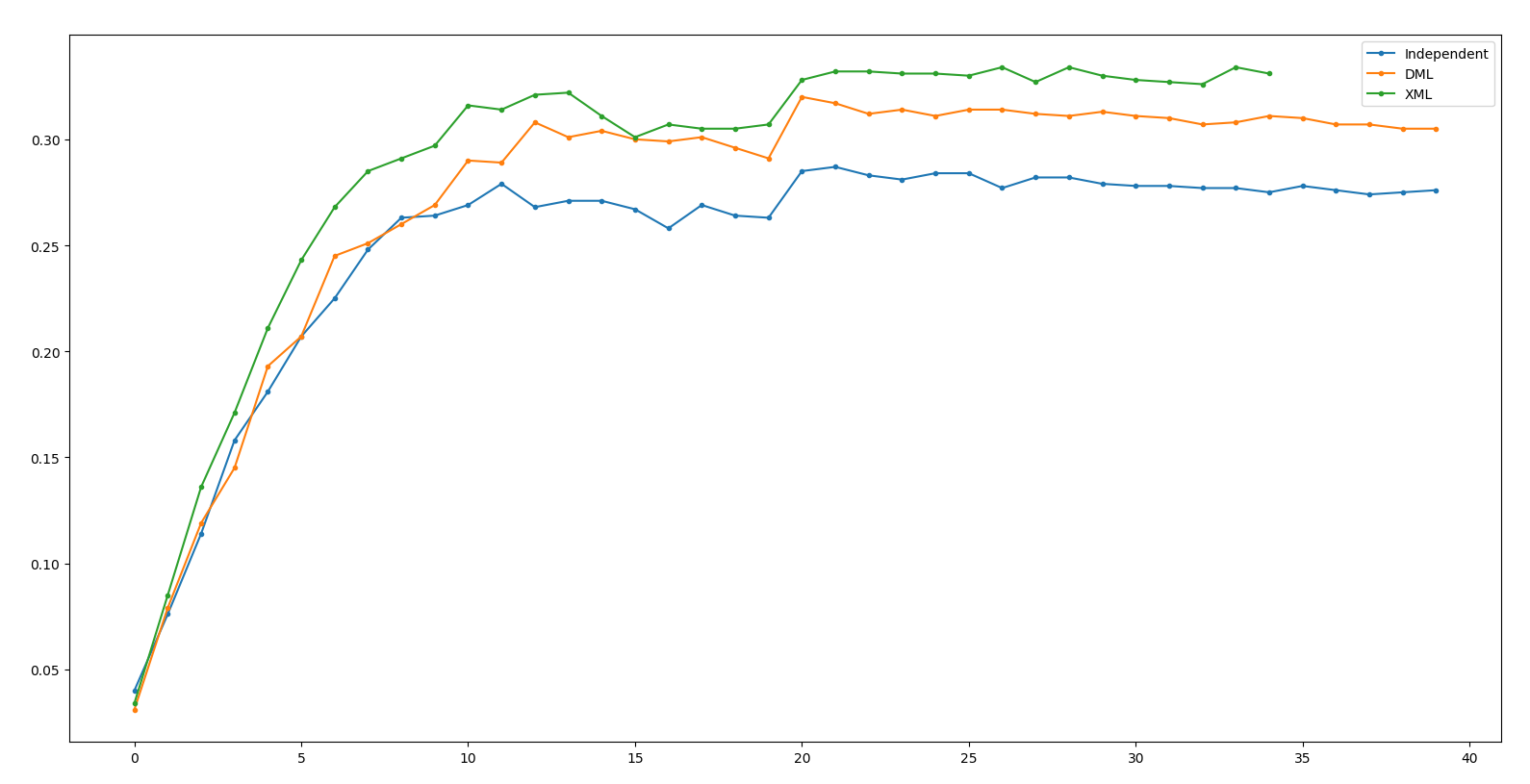

Result - ResNet50

Independent: 28.7 DML: 32.5(+3.8) XML: 33.4(+0.9)

(Net 1: WRN50, Net 2: ResNet18, Net 3: ResNeXt50)

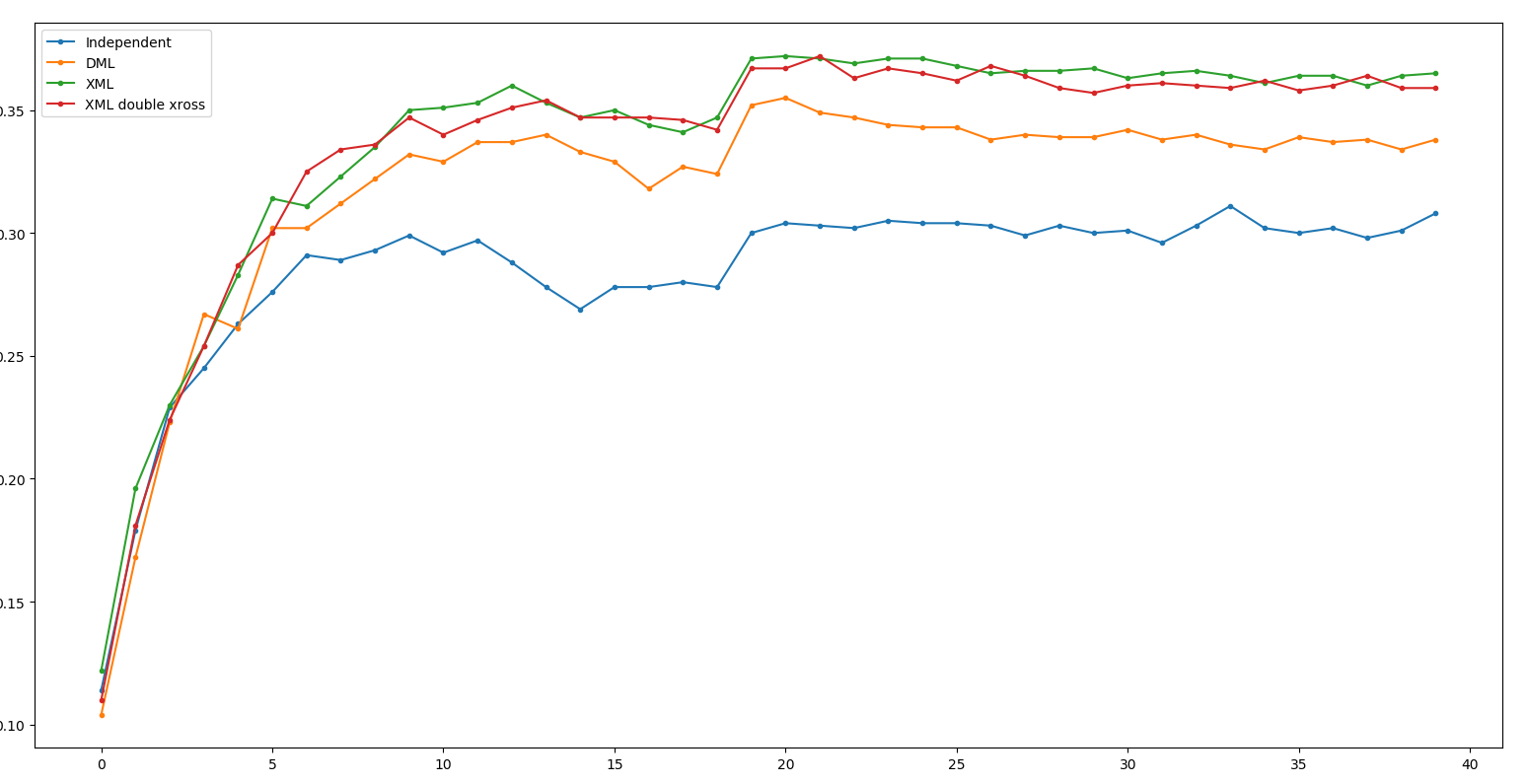

Result - ResNeXt50

Independent: 28.7 DML: 32.0(+3.3) XML: 33.4(+1.4)

(Net 1: WRN50, Net 2: ResNet18, Net 3: ResNeXt50)

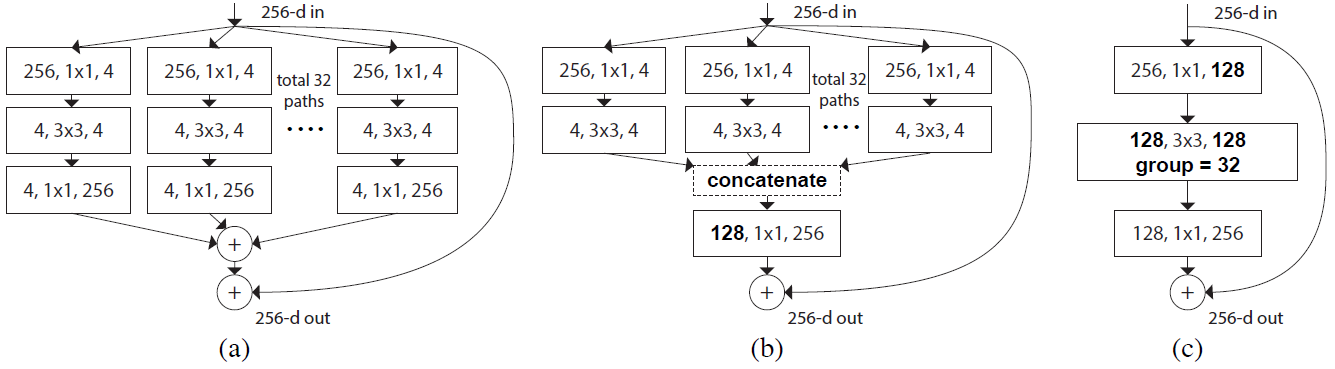

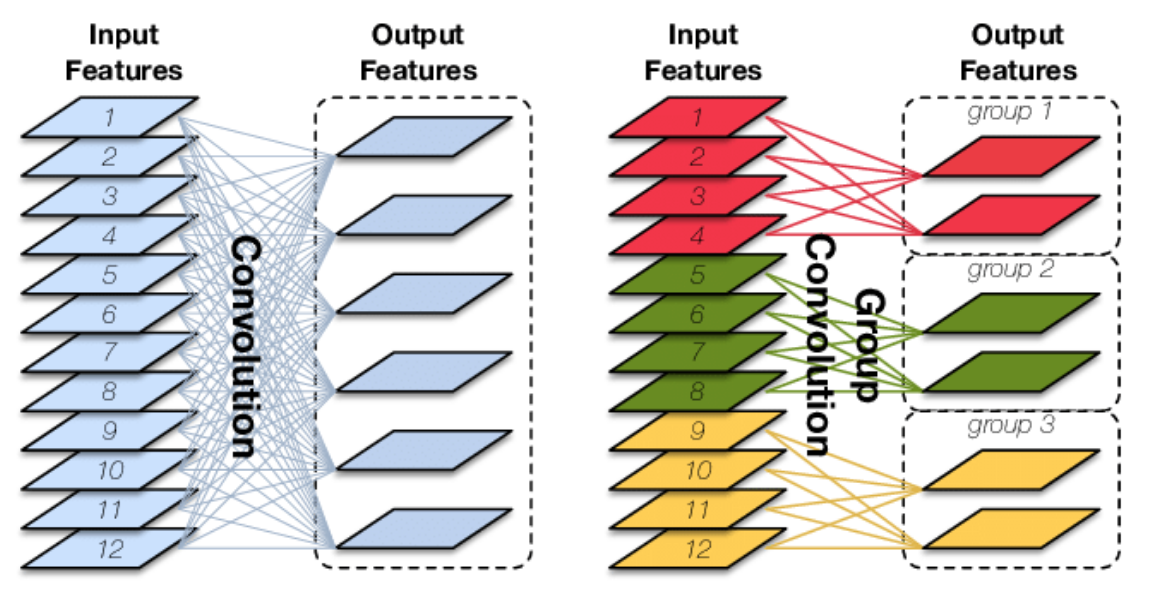

Note - Group Conv

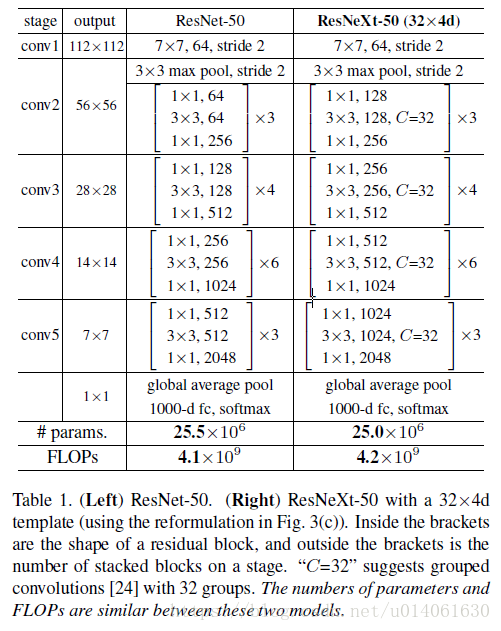

Note - ResNet50 ns ResNeXt

Conv 4 的neuron數加多，

而用Group Conv的neuron數少

Conclusion

Cohorts Learning XML也比DML更為優秀。
ResNeXt-50 在少參數下還比較好的原因： Group Conv

Now Loss

Net1 up-half networks

Net2 up-half networks

Net2 down-half networks

Net1 down-half networks

Net3 up-half networks

Net3 down-half networks

Mimic 2

Mimic 3

Mimic 2 & 3

Mimic 2

Mimic 3

XML in pretrained

Experiment

Net1 up-half networks

Net2 up-half networks

Net2 down-half networks

Net1 down-half networks

4,126,528

1,444,928

22,472,904

63,117,512

ResNeXt50
(pretrained)

ResNet50
(pretrained)

Net3 up-half networks

Net3 down-half networks

1,412,416

21,977,288

WRN50

(pretrained)

Optimizer: Adam 1e-4

Result - WRN50

Independent: 67.4 DML: 69.0(+1.6) XML: 67.0(-2.0)

(Net 1: WRN50, Net 2: ResNet50, Net 3: ResNeXt50)

Result - ResNet50

Independent: 64.7 DML: 66.0(+1.3) XML: 65.1(-0.9)

(Net 1: WRN50, Net 2: ResNet50, Net 3: ResNeXt50)

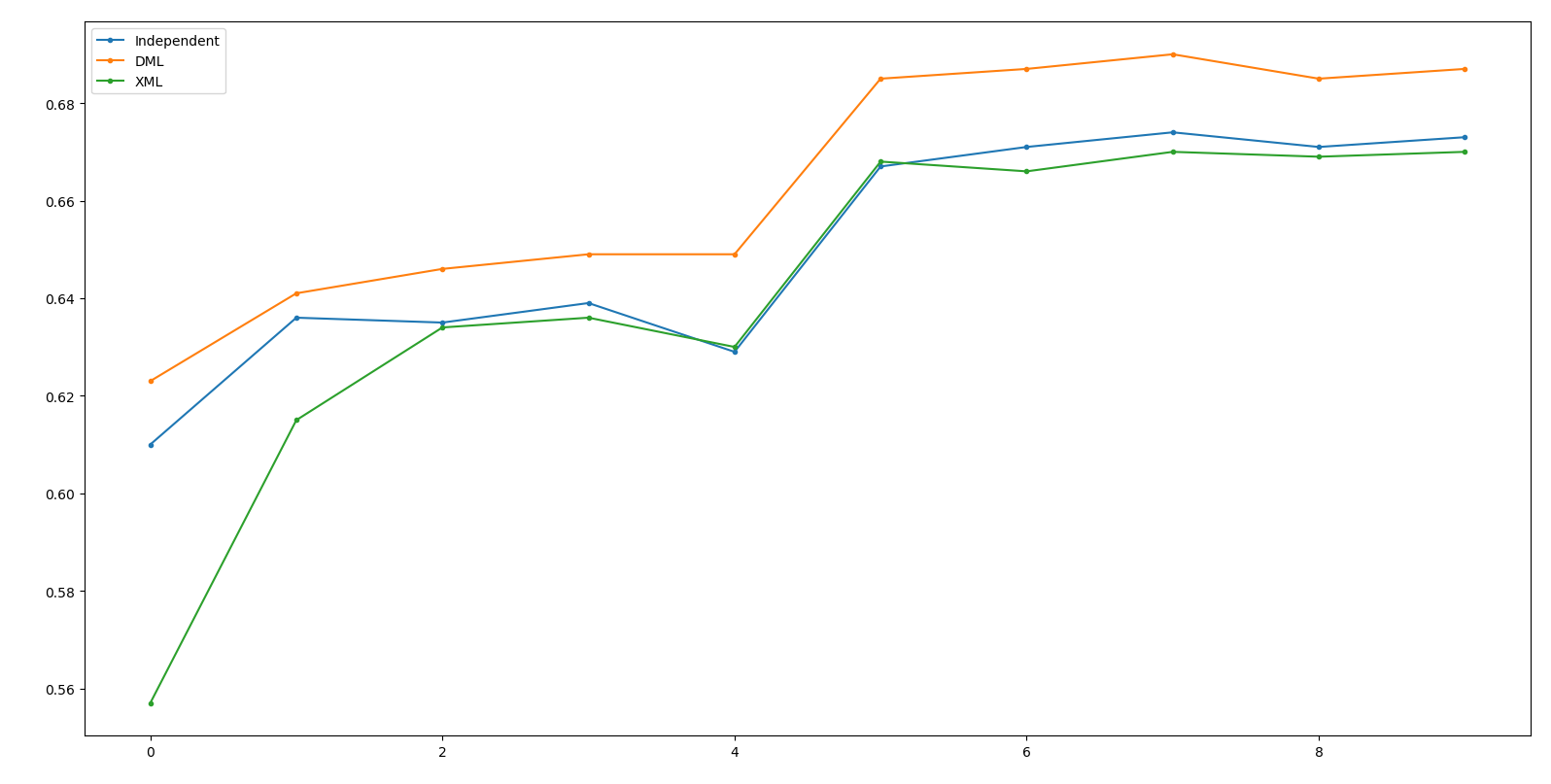

Result - ResNeXt50

Independent: 68.0 DML: 69.3(+1.3) XML: 67.7(-1.6)

(Net 1: WRN50, Net 2: ResNet50, Net 3: ResNeXt50)

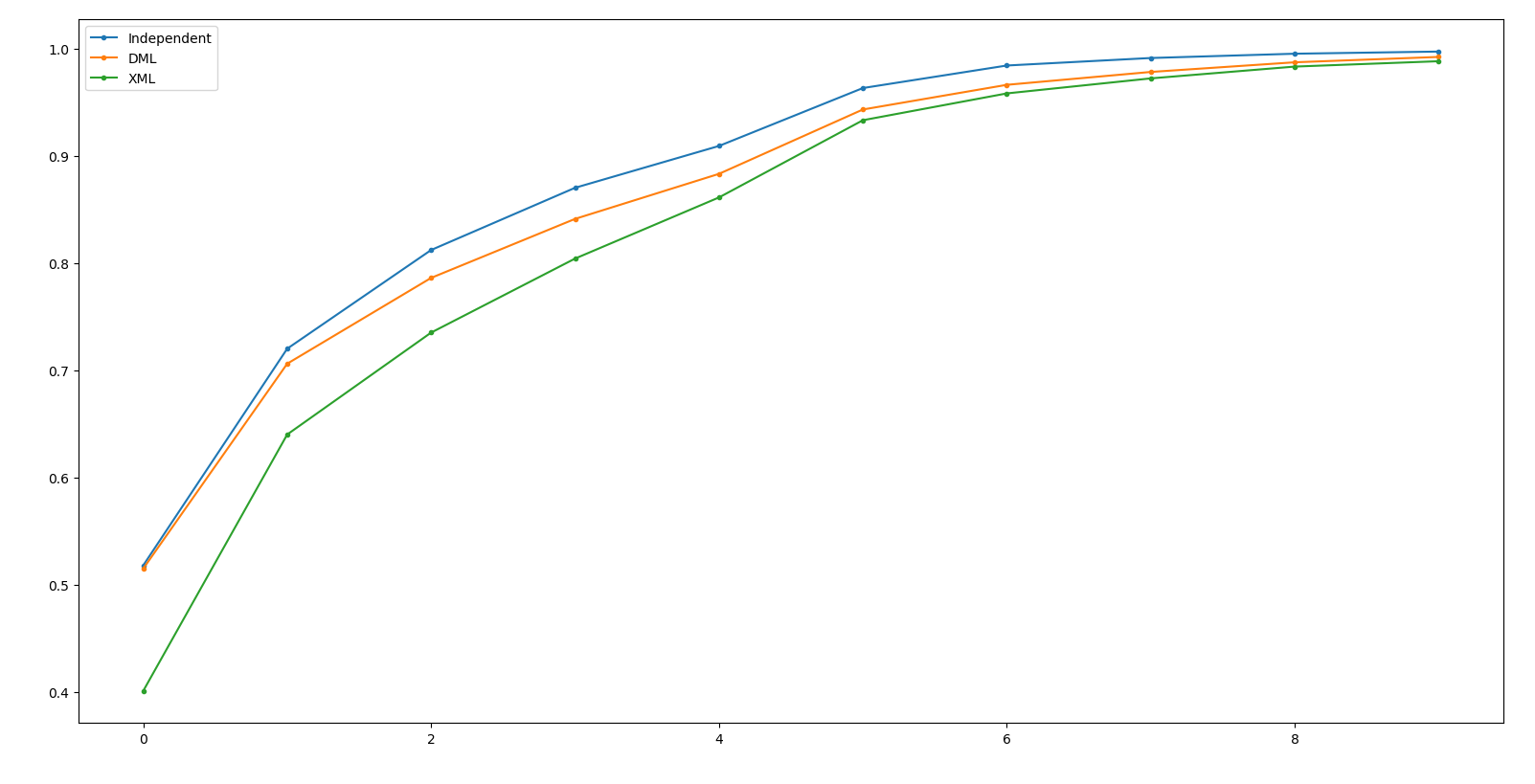

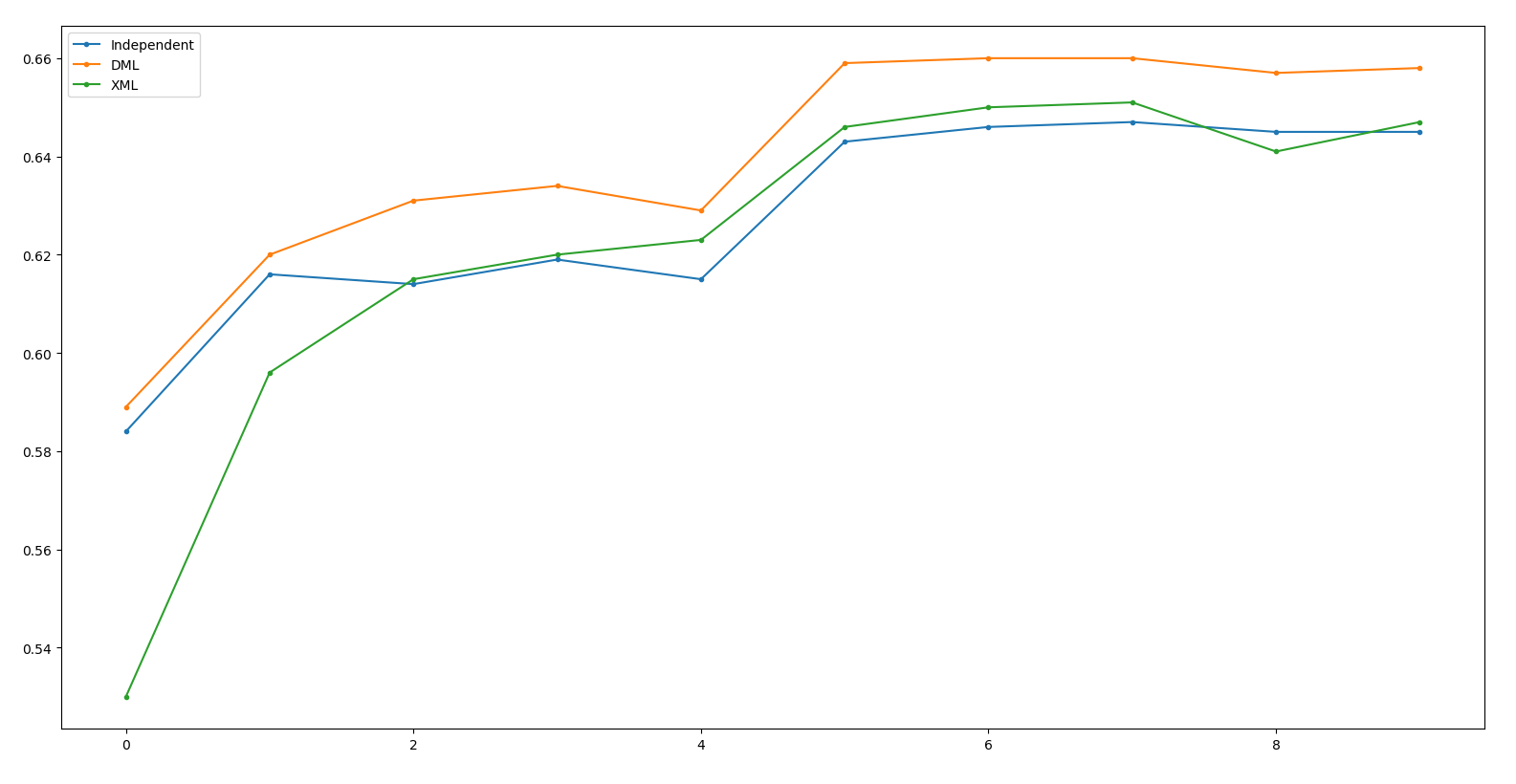

Result - ResNeXt50 @ train

XML 比較難train起來，但對於相同的train acc, val並沒比較高。

Deep Look in Cohorts

Xross can't be good in this case (pretrained)

Up Half	Down Half	Accuracy
WRN50	WRN50	0.66757
WRN50	ResNet50	0.64931
WRN50	ResNeXt50	0.66142
ResNet50	WRN50	0.64130
ResNet50	ResNet50	0.64638
ResNet50	ResNeXt50	0.64599
ResNeXt50	WRN50	0.65185
ResNeXt50	ResNet50	0.64423
ResNeXt50	ResNeXt50	0.67744

But Maybe only pretrained??

Ensemble

Acc	WRN50	ResNet18	ResNeXt50
Independent	67.2	64.4	68.0
DML	68.2	65.8	69.3
XML	66.7	64.6	67.7

Recall

Acc	Ensemble 3
Independent	71.8
DML	72.0
XML	69.8

Xross without pretrained

Up Half	Down Half	Accuracy	#params
WRN50	WRN50	0.35507	67,244,040
WRN50	ResNet50	0.33203	26,599,432
WRN50	ResNeXt50	0.33281	26,103,816
ResNet50	WRN50	0.35390	64,562,440
ResNet50	ResNet50	0.32939	23,917,832
ResNet50	ResNeXt50	0.33203	23,422,216
ResNeXt50	WRN50	0.35458	65,529,928
ResNeXt50	ResNet50	0.33095	23,885,320
ResNeXt50	ResNeXt50	0.33447	23,389,704

Xross Works!

More about

pre-trained?

Use XML in pre-trained, may solve this problem.

Conclusion

要讓pretrained model去做XML果然還是不太可能的。
- 因為本來pretrained model中間就沒有要去fit 其他model的輸出。
它甚至會做的比原本Independent的更爛。
- 因為它會大幅破壞pretrained後的parameters。

Next Steps

因為pretrained model是用imagenet -> classification 去做pretrained的，那麼如果在pretrained的時候直接使用XML會不會比較好？
有沒有一種mapping方法讓neuron可以轉換？
Gram Matrix

Channel Mapping Problem

~ Try to fix the failure of XML in pre-trained situation~

Channel Mapping

Net1

Net2

1

2

3

1

2

3

Mapping
Table

1 -> 3

2 -> 1

3 -> 2

Why Channel Mapping is Needed?

If it can be done appropriately, Explainable AI

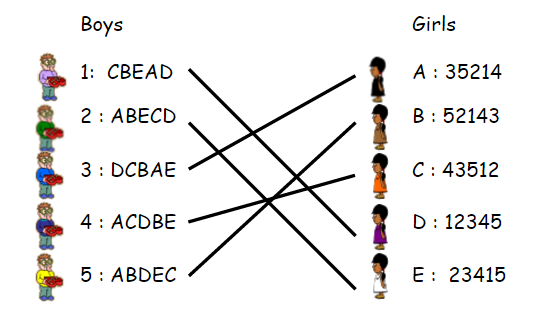

Stable Marriage Problem

Gale-Shapley Algorithm

1. Match boys max(girl)
2. Match it, if conflict, hold on.
3. Do it until all pairs be matched.

Why not max the sum of relations?

在NN的channel中，也許優先批配比較重要?

Experiment

Net1 up-half networks

Net2 up-half networks

Net2 down-half networks

Net1 down-half networks

675,392

1,340,224

19,988,068

10,544,740

ResNet18

(pretrained)

ResNet34

(pretrained)

2 residual block

2 residual block + FC

2 residual block

2 residual block + FC

Adam, 1e-4

Measure Weight - 1

(128, 8, 8) -> (128, 64, 64)
A * B^T
對0做std

原始Matching分數：-0.0005
Random Mapping : -0.04
Gale Mapping : 1.77

Gale round: 92/18/12/4/1/1/1

Result - ResNet34

Independent: 59.6 DML: 61.0(+1.4)

XML: 60.0(-1.0) XML_m: 60.6(-0.4)

(Net 1: ResNet34, Net 2: ResNet18)

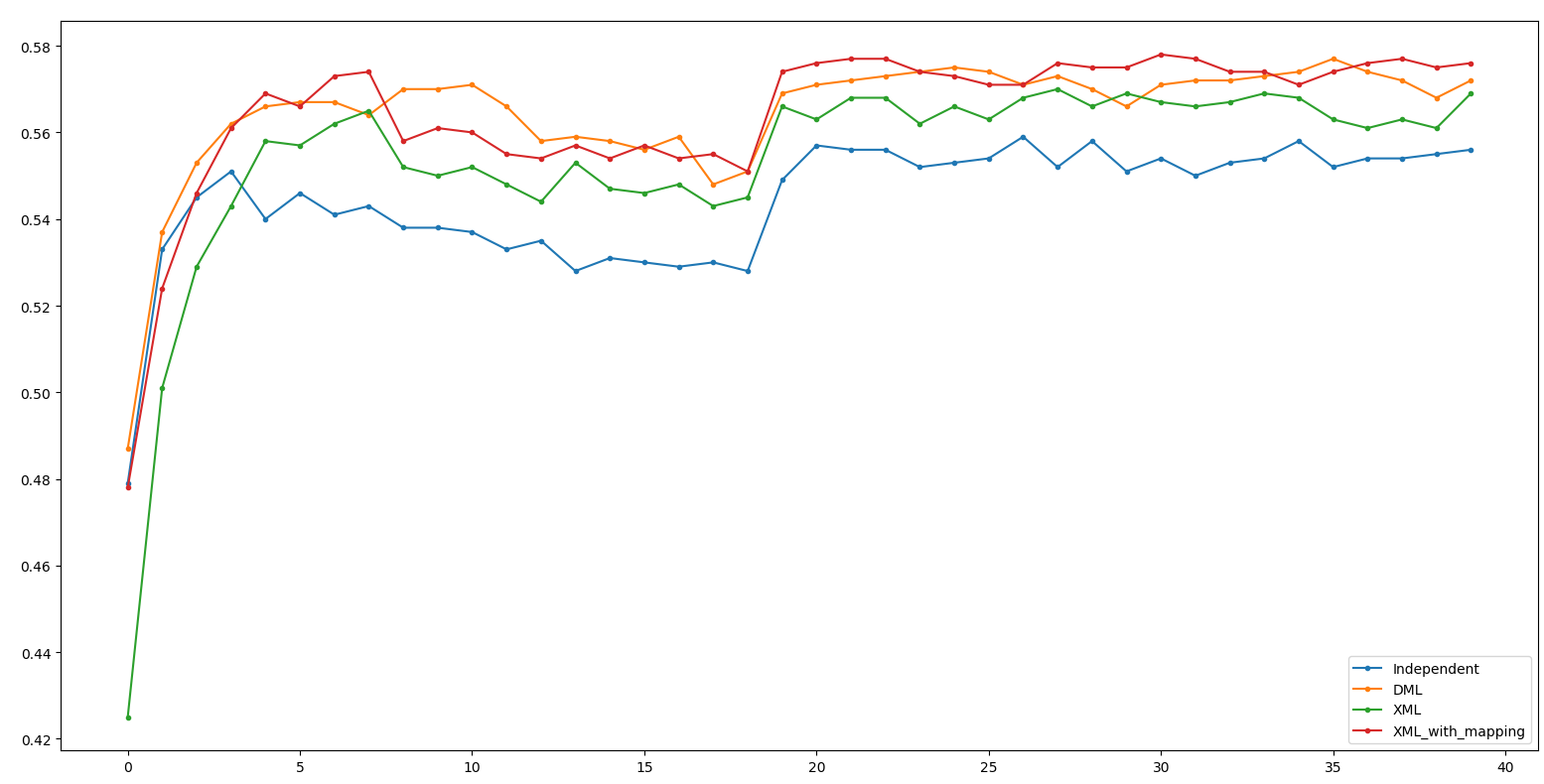

Result - ResNet18

Independent: 55.9 DML: 57.7(+1.8)

XML: 57.0(-0.7) XML_m: 57.8(+0.1)

(Net 1: ResNet34, Net 2: ResNet18)

Xross Result

Up Half	Down Half	Accuracy
ResNet34	ResNet34	0.58798
ResNet34	ResNet18	0.57802
ResNet18	ResNet34	0.56269
ResNet18	ResNet18	0.56845

Up Half	Down Half	Accuracy
ResNet34	ResNet34	0.59843
ResNet34	ResNet18	0.59277
ResNet18	ResNet34	0.57695
ResNet18	ResNet18	0.57763

經過Mapping - 比較能做到Dynamic Computation

沒經過Mapping

1.Better evaluation method, or measure it with importance.

maybe like bipartite-mahalanobis?

2. Can we use this trick to evaluate what feature does networks learned?

this may need to take a look in pruning.

Next Steps

More about
Mapping Result

Measure Weight - 2

(128, 8, 8) -> (128, 64, 64)
A * B^T /|A||B|
while(對0做std -> 1std)

原始Matching分數：-0.0329
Random Mapping : 0.1133
Gale Mapping : 4.07

Gale round: 95/22/9/1/1

Measure Weight - 3

Just L2 loss

原始Matching分數：?
Random Mapping : ?
Gale Mapping : ?

Gale round: very long

Measure Weight - 4

Just L2 loss + stdandize

原始Matching分數：-0.04
Random Mapping : 0.04
Gale Mapping : 4.09

Gale round: 96/26/7/3/1

Result Table

Method	ResNet34	ResNet18
DML (baseline)	61.0	57.7
XML no mapping	59.7	56.8
XML + bmm + std	60.6 / 60.3	57.8 / 58.0
XML + cos + std	60.1	57.7
XML + L2	60.3	58.2
XML + L2 + std	60.3	58.1

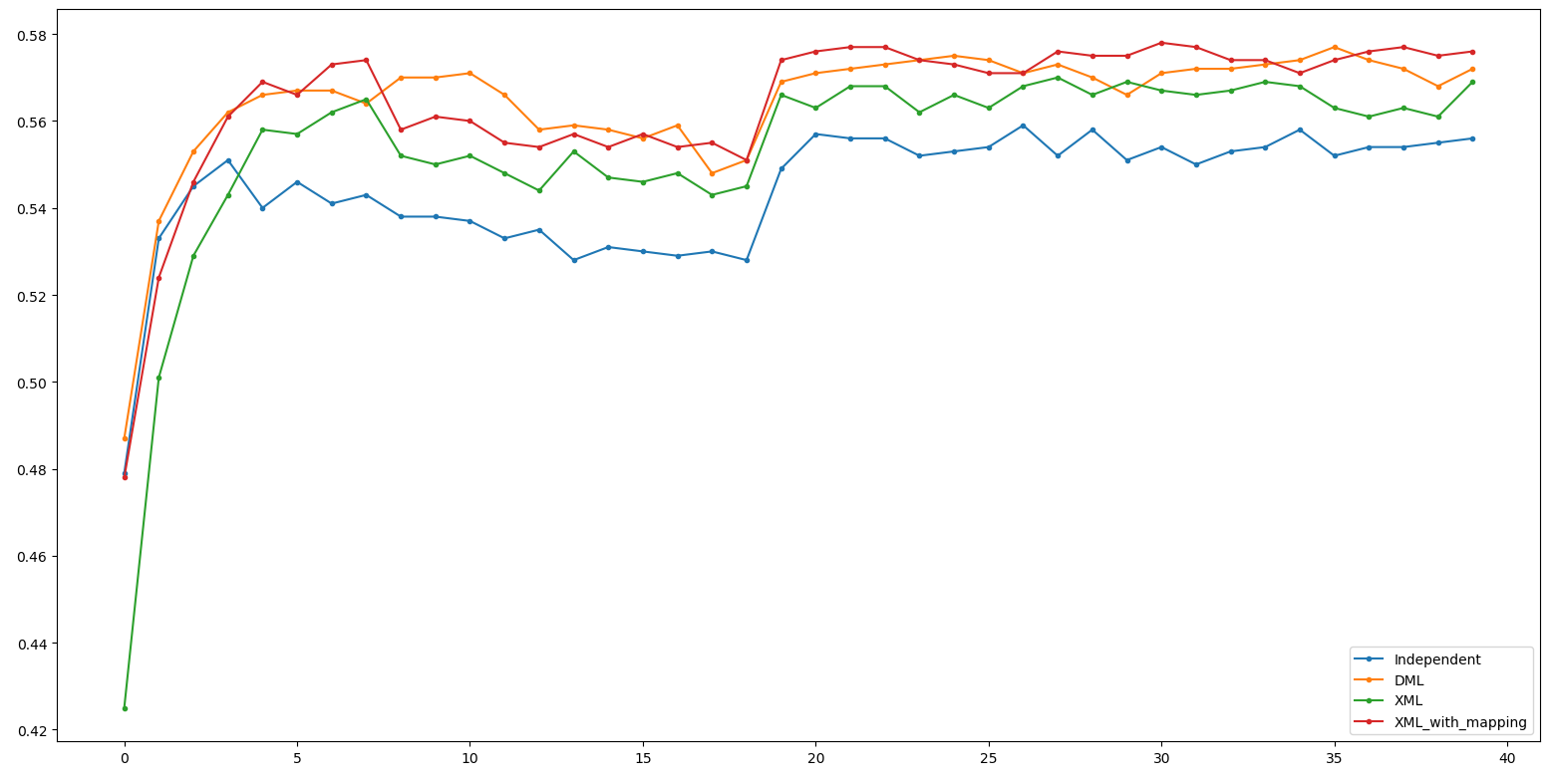

Deep Look - ResNet34

ResNet34 - DML Seems good, or maybe it's failure of gale-shapley algorithm

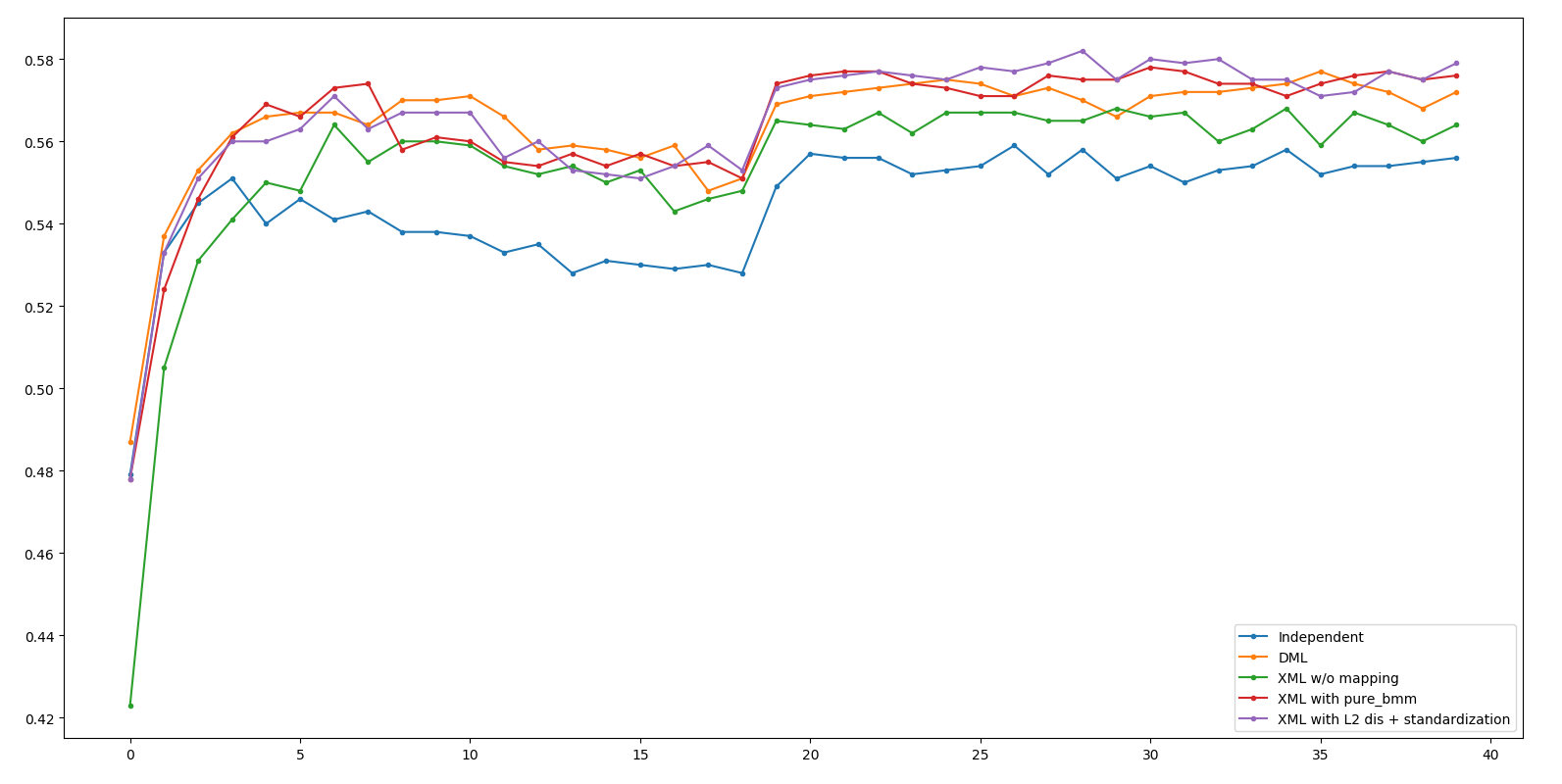

Deep Look - ResNet18

Channel Mapping

without pre-training

We know the importance about initialization.

And, XML's mid neuron maybe can deem to be "Initialization"?

Mapping Result

No-pretrained

原始Matching分數: 0.111
Random Mapping: -0.17
Gale Mapping : 1.718

pretrained:

原始Matching分數：-0.04
Random Mapping : 0.04
Gale Mapping : 4.09

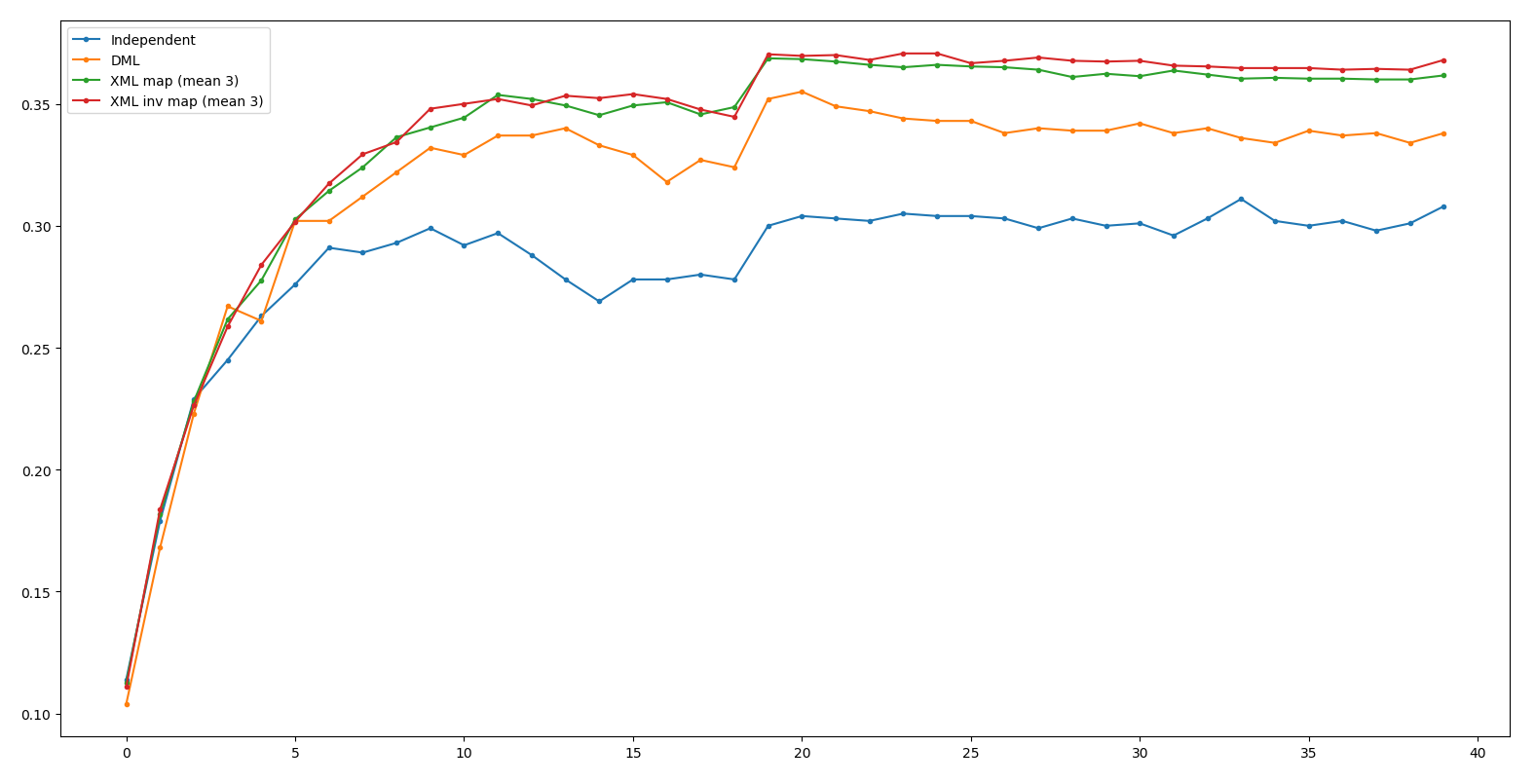

看來是想太多 - ResNet34

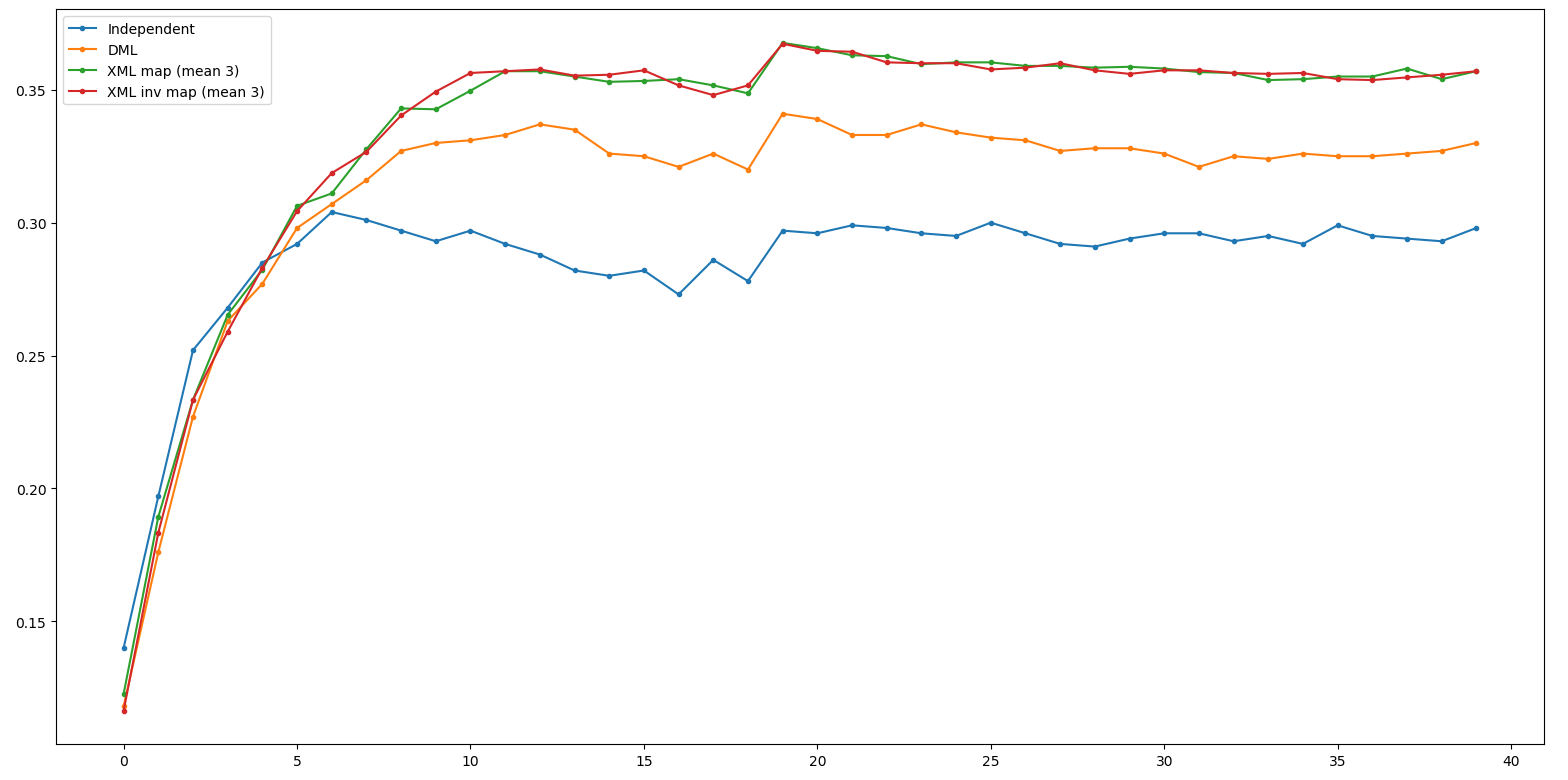

看來是想太多 - ResNet18

Cohorts Learning Revenge by Channel Mapping

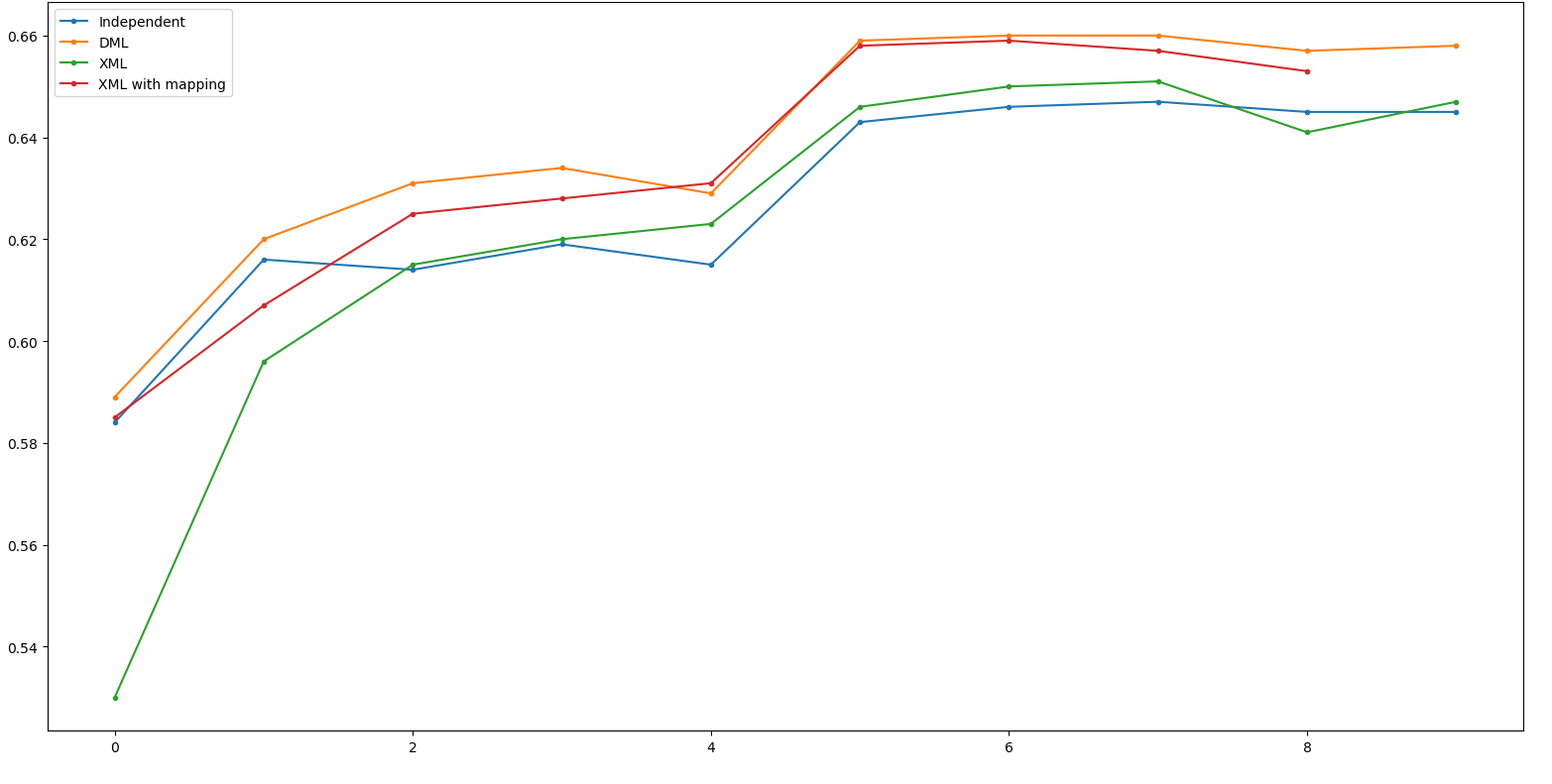

Result - WRN50

Independent: 67.4 DML: 69.0(+1.6)

XML: 67.0(-2.0) XML_m: 68.3(-0.7)

(Net 1: WRN50, Net 2: ResNet50 Net 3: RexNeXt50)

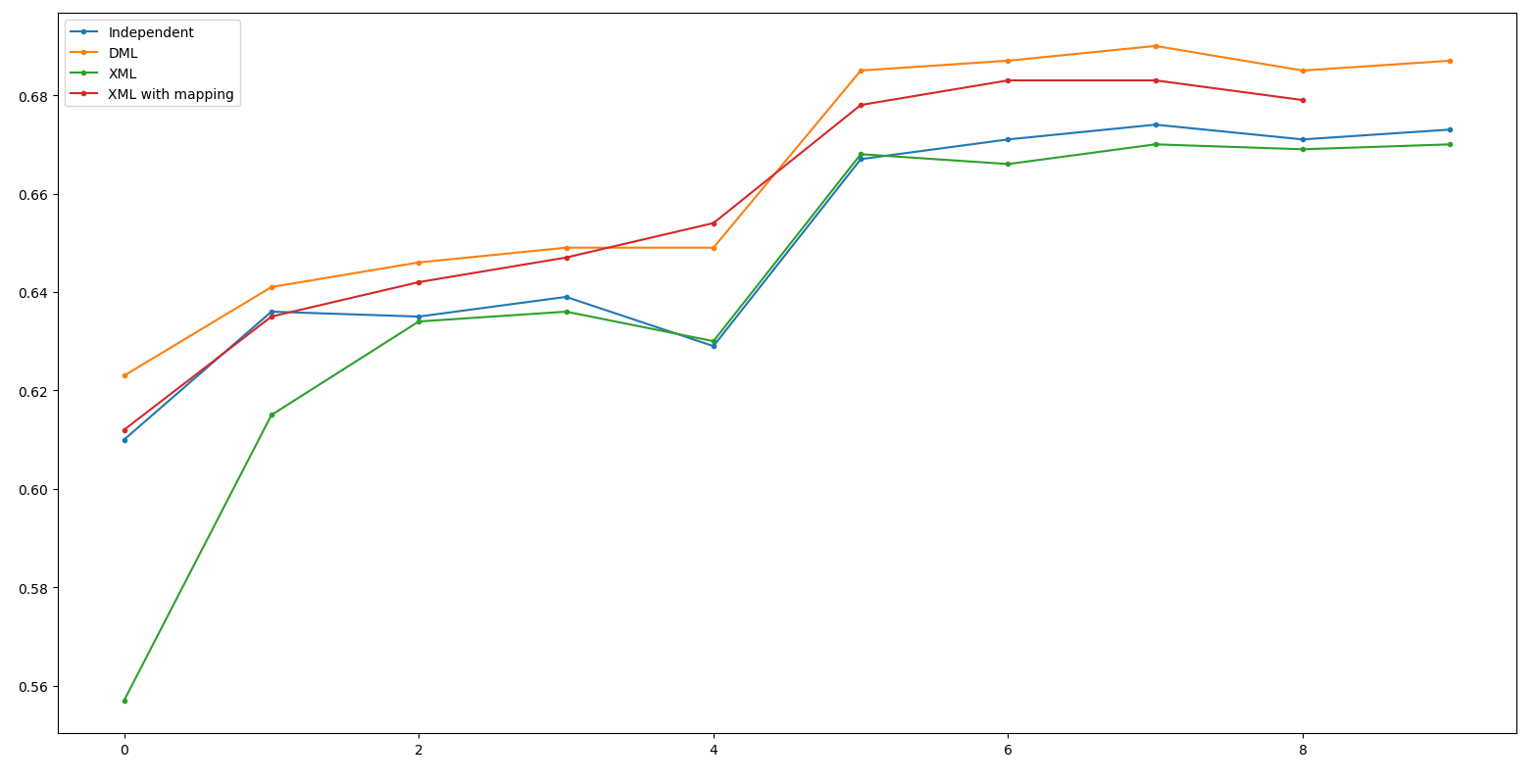

Result - ResNet50

Independent: 64.7 DML: 66.0(+1.3)

XML: 65.1(-0.9) XML_m: 65.9(-0.1)

(Net 1: WRN50, Net 2: ResNet50 Net 3: RexNeXt50)

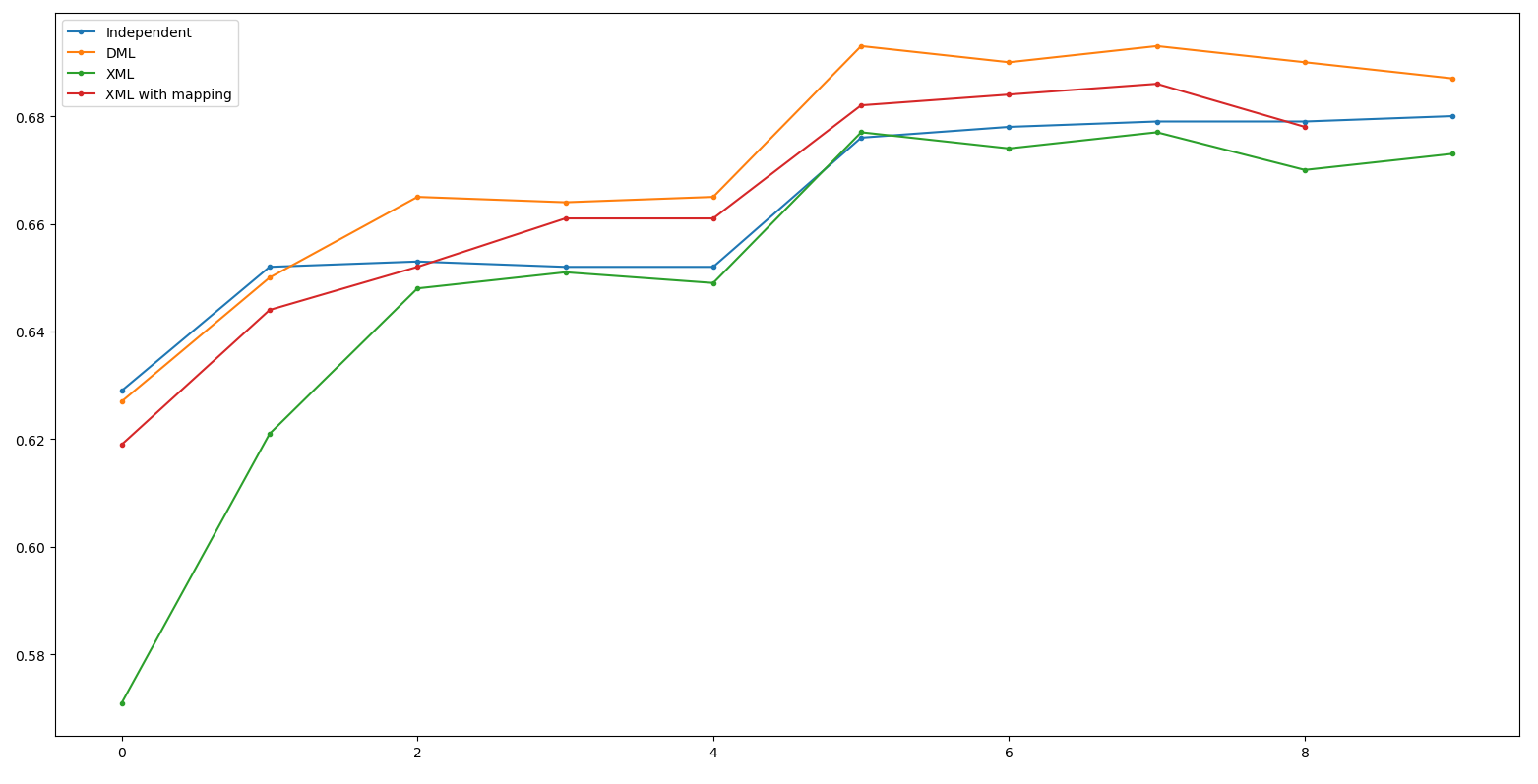

Result - ResNeXt50

Independent: 68.0 DML: 69.3(+1.3)

XML: 67.7(-1.6) XML_m: 68.6(-0.7)

(Net 1: WRN50, Net 2: ResNet50 Net 3: RexNeXt50)

Result - Xross Table

Up Half	Down Half	Accuracy	#params
WRN50	WRN50	0.65371	67,244,040
WRN50	ResNet50	0.64550	26,599,432
WRN50	ResNeXt50	0.65859	26,103,816
ResNet50	WRN50	0.64941	64,562,440
ResNet50	ResNet50	0.64316	23,917,832
ResNet50	ResNeXt50	0.65332	23,422,216
ResNeXt50	WRN50	0.65390	65,529,928
ResNeXt50	ResNet50	0.64462	23,885,320
ResNeXt50	ResNeXt50	0.66562	23,389,704

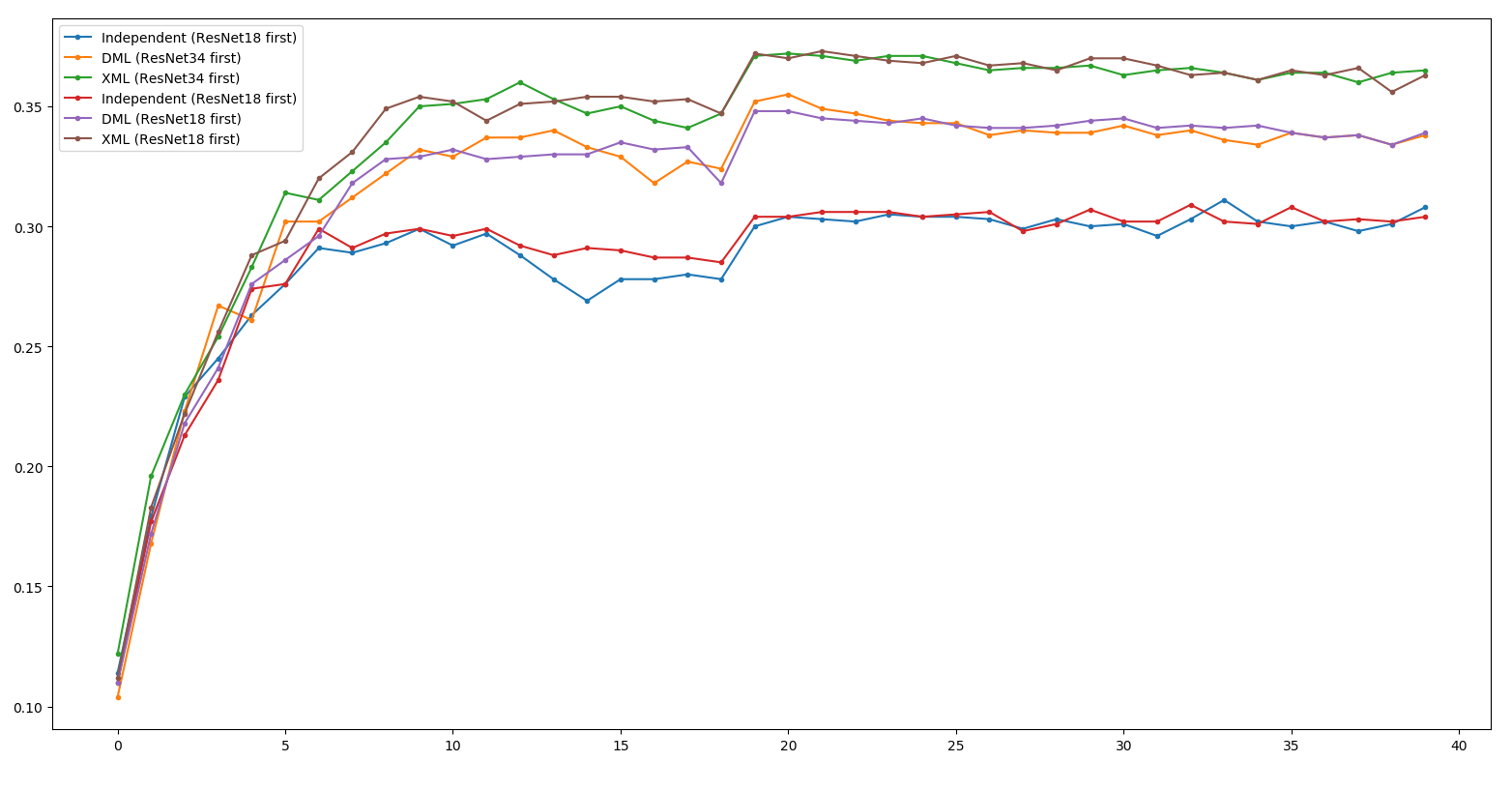

Learning Order

Why Learning Order Diff?

Net 2 所要學習的對象，
是Net 1已經看過x的model。
所以理論上來說Net 2 會學的比較好。

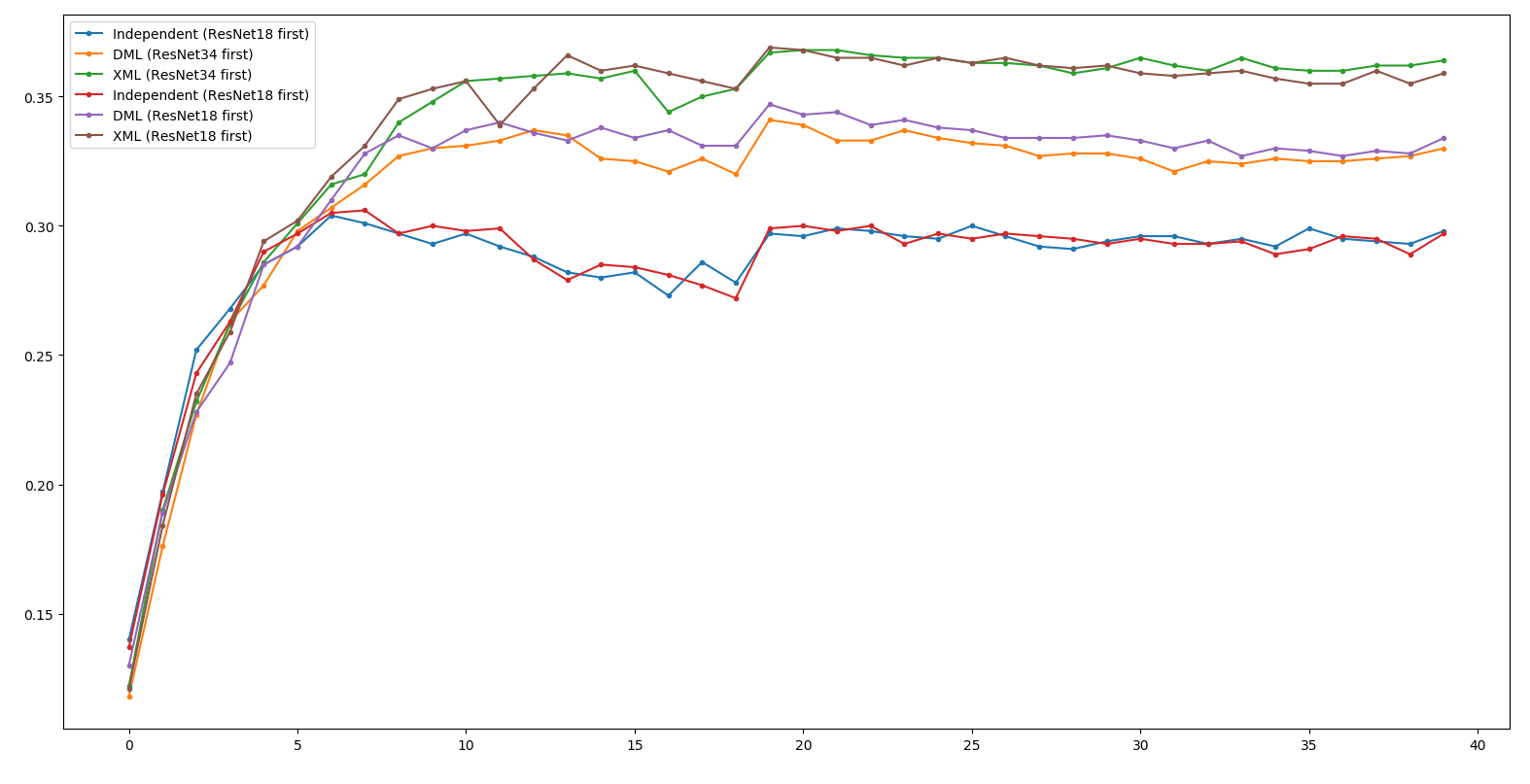

Little Result - ResNet18

XML 18 first ~= XML 34 first >> DML 18 first > DML 34 first

>> Independent

Little Result - ResNet34

XML 18 first ~= XML 34 first >> DML 34 first > DML 18 first

>> Independent

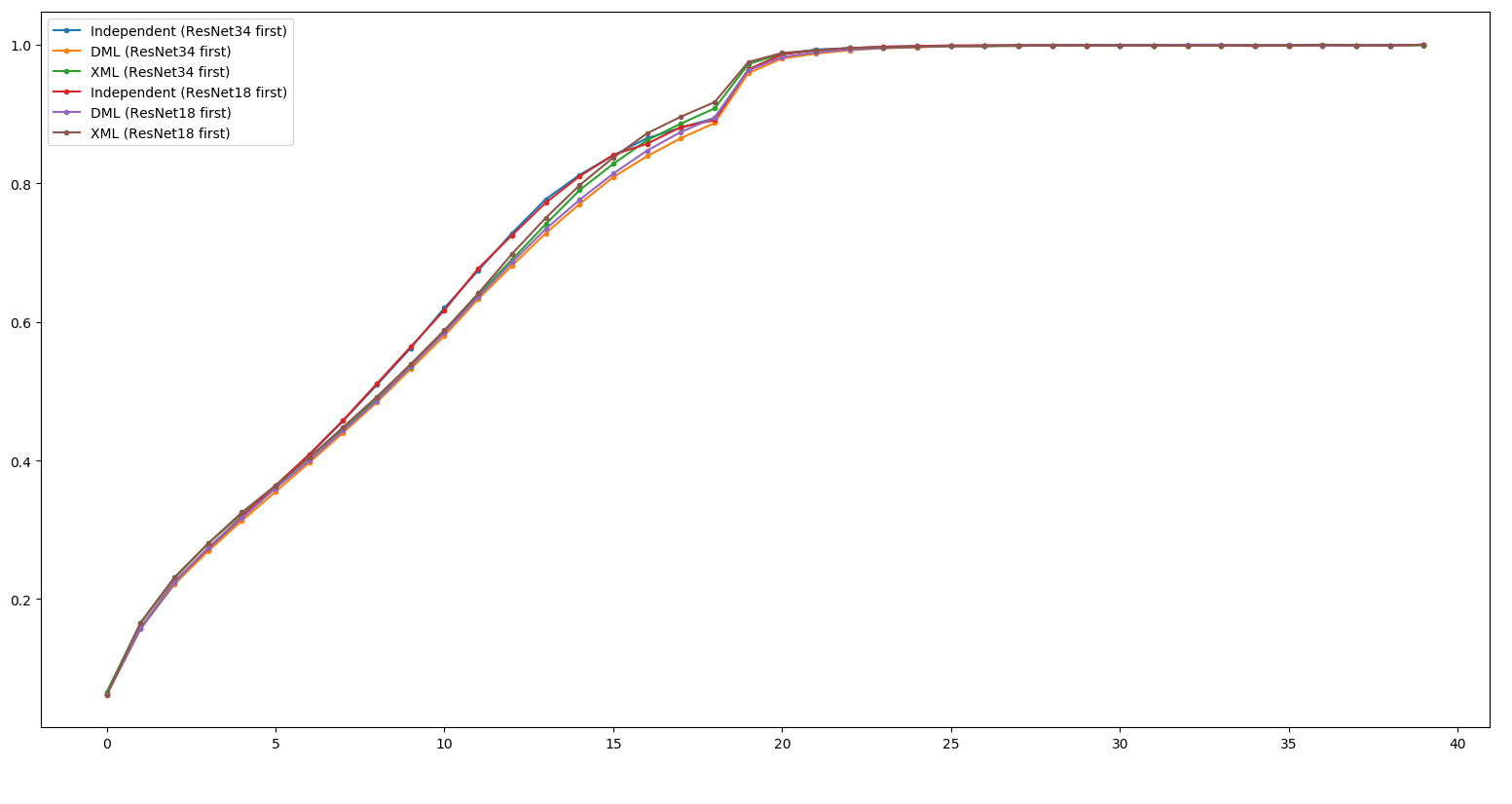

Appendix - ResNet34 @ Train

> More Generalized Minima.
Overfit / Train Curve 接近一致。

Conclusion

XML比DML強大，即使DML順序比較好也一樣。
XML 比較沒有需要去做順序的排列。

Next Step?

Shape Link up

Results Above are same shape in the middle.

Then, we use 1 by 1 convolution layer to connect different shape.

Overall Experiment

Net1 up-half networks

Net2 up-half networks

Net2 down-half networks

Net1 down-half networks

683,072

1,412,416

21,977,288

10,596,040

ResNet18

ResNeXt50

(512,8,8)

1x1 conv + relu

(128,8,8)

Experiment 1 (train 1)

Net1 up-half networks

Net2 down-half networks

Net1 down-half networks

1x1 conv + relu
(128, 512)

(128,8,8)

(512,8,8)

train Net1

fixed (train Net 2)

Net2 down-half networks

1x1 conv + relu
(512, 128)

Net2 down-half networks

(512,8,8)

(128,8,8)

Net1 down-half networks

Result - ResNeXt50

Independent: 28.1 DML: 32.6(+4.5) XML: 35.6(+3.0)

(Net 1: ResNeXt50, Net 2: ResNet18)

Result - ResNet18

Independent: 30.8 DML: 31.7(+0.9) XML: 35.1(+3.4)

(Net 1: ResNeXt50, Net 2: ResNet18)

其實它根本就train的起來啊XD

Experiment 2 (train 1)

Net1 up-half networks

Net2 down-half networks

Net1 down-half networks

(128,8,8)

(512,8,8)

train Net1

fixed (train Net 2)

Net2 down-half networks

(512,8,8)

(128,8,8)

Net1 down-half networks

1x1 conv + relu
(128, 512)

1x1 conv + relu
(512, 128)

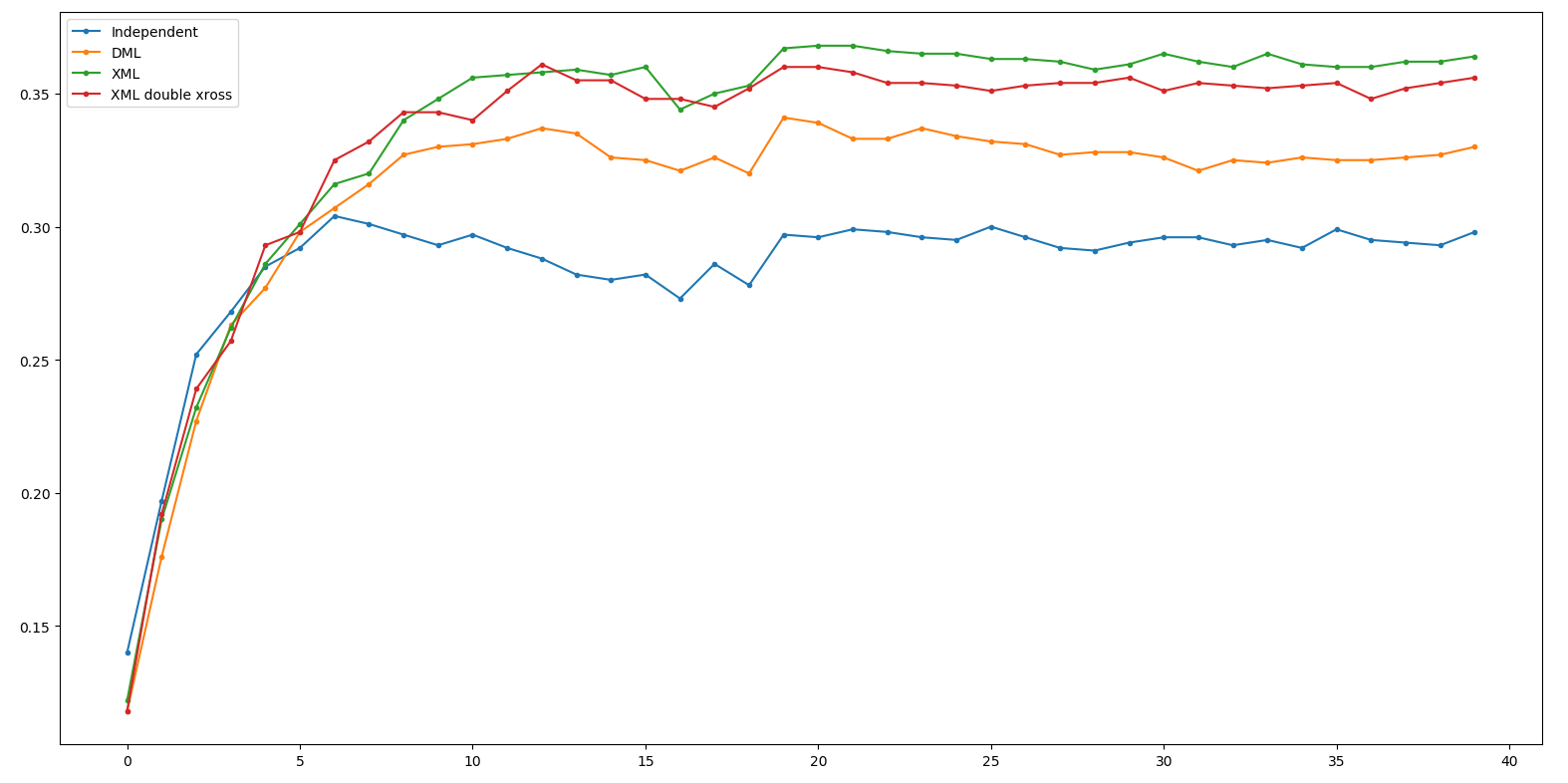

double train

Experiment 3 (Independent)

Net1 up-half networks

Net1 down-half networks

1x1 conv + relu
(128, 512)

(128,8,8)

(512,8,8)

1x1 conv + relu
(512, 128)

Experiment 4 (Not yet)

Net1 up-half networks

Net2 up-half networks

683,072

1,412,416

ResNet18

ResNeXt50

(128,8,8)

(512,8,8)

(374,8,8)

(128,8,8)

Net2 down-half networks

Net1 down-half networks

21,977,288

10,596,040

Experiment 5 (Not yet)

Net1 up-half networks

Net2 up-half networks

683,072

1,412,416

ResNet18 * 4

ResNeXt50

(128,8,8) * 4

(512,8,8)

Net2 down-half networks

Net1 down-half networks

21,977,288

10,596,040

Multiple Xross

Experiment

Net1
Part1

first + layer1

ResNet18

(w/o pretrained)

ResNet34

(w/o

pretrained)

Adam, 1e-4

Net2
Part1

first + layer1

Net2
Part2

layer 2

Net2
Part3

layer 3,4

Net1
Part2

layer 2

Net1
Part3

layer 3,4

157,504

231,488

19,988,068

10,544,740

1,106,036

517,888

Experiment

Net1
Part1

first + layer1

ResNet18

(w/o pretrained)

ResNet34

(w/o

pretrained)

Adam, 1e-4

Net2
Part1

first + layer1

Net2
Part2

layer 2

Net2
Part3

layer 3,4

Net1
Part2

layer 2

Net1
Part3

layer 3,4

157,504

231,488

19,988,068

10,544,740

1,106,036

517,888

Result - ResNet34

Independent: 0.311 DML: 0.355
XML: 0.372 XML double xross: 0.372 (+0.0)

Result - ResNet18

Independent: 0.304 DML: 0.341
XML: 0.368 XML double xross: 0.361 (-0.7)

Result Table

Part1	Part2	Part3	Accuracy	#Params
ResNet34	ResNet34	ResNet34	36.572	21.32m
ResNet34	ResNet34	ResNet18	36.044	11.88m
ResNet34	ResNet18	ResNet34	36.181	20.73m
ResNet34	ResNet18	ResNet18	35.986	11.29m
ResNet18	ResNet34	ResNet34	35.654	21.25m
ResNet18	ResNet34	ResNet18	36.201	11.80m
ResNet18	ResNet18	ResNet34	35.820	20.66m
ResNet18	ResNet18	ResNet18	35.966	11.22m

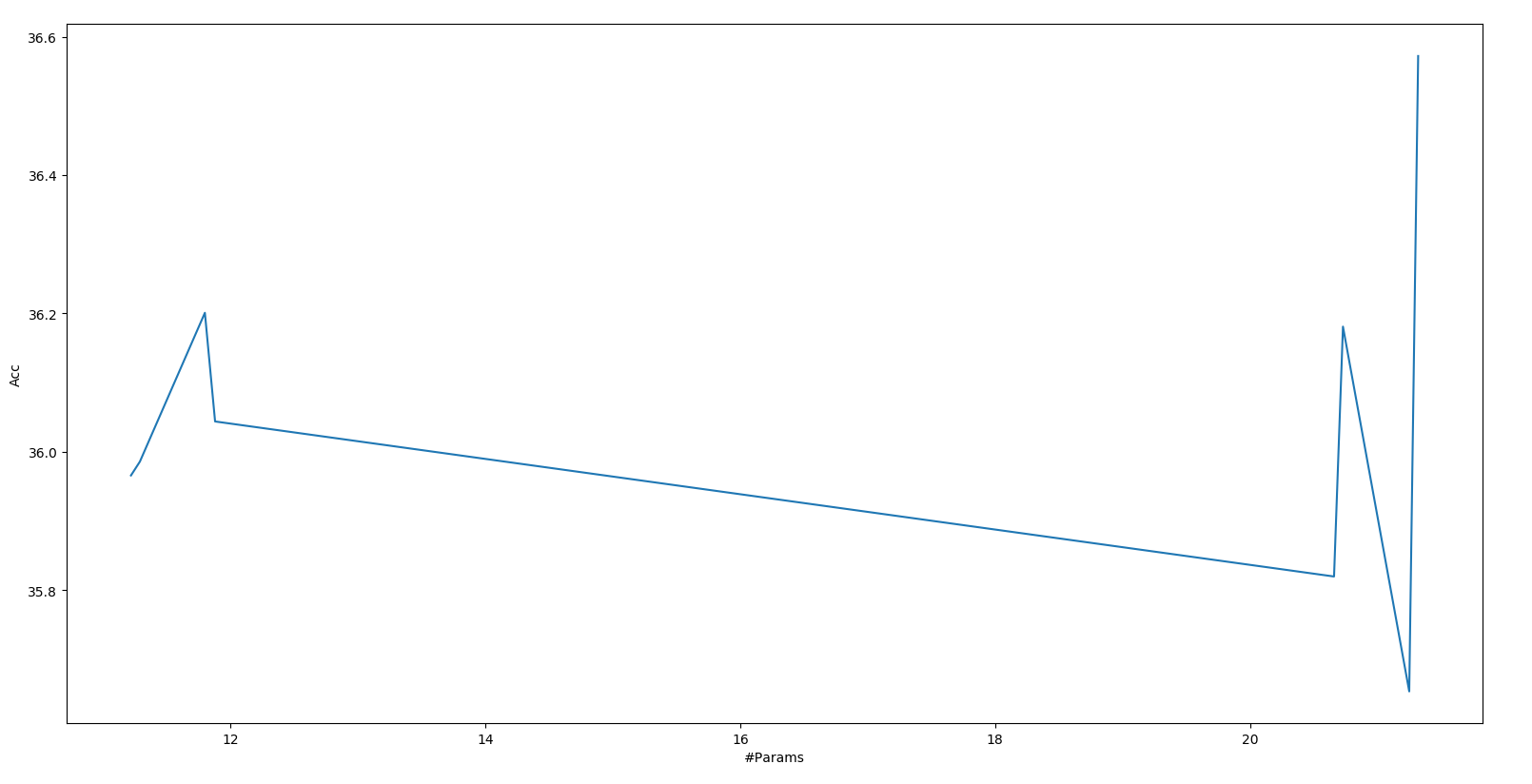

Param - Acc

需要更多實驗來找到如何切以及如何取

(Maybe) Next Steps

Next Steps

What About KD?
More Survey of Dynamic Computation
Issue: When to store and can it Xross?
Issue: When to split and how to find it?

Mutual Learning But One Pretrained

對於KD來說，
其中一個是pretrained。

既然使用pretrained的model做XML是有用的，那麼會不會對其中一個已經pretrained好的model做Mutual Learning也會比原本好呢?

Experiment

Dynamic Computation

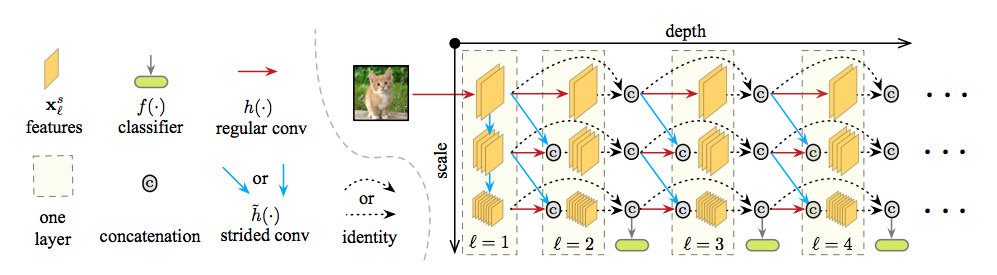

MSDNet (ICLR '18)

大致上就是做出一個二維個Blocks。

縱軸表示複雜度，橫軸表示作到第幾個。

如果作到一半需要quit，就直接接classifier

提出兩點重要的Dynamic Computation依據:

1. 限時內要跑完。 2. 限定資源跑完。

Dynamic Computation

Net1 part1 networks

Net2 part1 networks

Net3 part1

networks

Net1 part2 networks

Net2 part2 networks

Net3 part2

networks

Net1 part3 networks

Net2 part3 networks

Net3 part3

networks

Time Cost

Not easy -
Ensemble Combination

Net1 part1

networks

Net1 part2 networks

Net2 part2 networks

Ensemble

Ensemble maybe good - Experiment

Net1 part1

networks

Net1 part2 networks

Net2 part2 networks

Ensemble

When to store?

Net1 epoch1
Acc: 0.30

Net2 epoch1
Acc: 0.56

Net1 epoch2
Acc: 0.56

Net2 epoch2
Acc: 0.50

Net1 epoch3
Acc: 0.54

Net2 epoch3
Acc: 0.54

Net1 epoch4
Acc: 0.53

Net2 epoch4
Acc: 0.70

Can be cross?

Net1 epoch2
half Acc: 0.56

Net2 epoch4
half Acc: 0.70

Net1 epoch2
half Acc: 0.56

Net2 epoch4
half Acc: 0.70

?

Conclusion

Xross Learning can be applied in different dataset.
Pretrained model not works, we can
- Use XML to Pre-trained .
- Apply Channel Mapping -> ~DML but can dynamic
Cohorts Learning maybe not improve model by some case.
- Maybe we need to more KL divergence / mimic loss.
Different #Chs does not matter. (if output feature sizes are the same)
Multiple Xross Learning may worse than Single Xross, but still better than DML, and can be dynamic.
- More flexible than MSD-net?

Further Question or Next Step?

Pretrain - Warmup

Net1 up-half networks

Net2 up-half networks

683,072

1,412,416

ResNet18

ResNet34

1x1 conv + relu

L2-loss

Experiment 2 (warm-up)

Net1 up-half networks

Net2 down-half networks

1x1 conv + relu

train Net1

train Net 2

Net2 up-half networks

Net1 down-half networks

1x1 conv + relu

Further Problem in Xross Mutual Learning

Another Dataset

Tiny ImageNet

Experiment

Result - ResNet34

Result - ResNet18

Conclusion

Xross can be good in this case

Cohort Learning

DML & XML loss

Experiment

Result - WRN50

Result - ResNet50

Result - ResNeXt50

Note - Group Conv

Note - ResNet50 ns ResNeXt

Conclusion

Now Loss

XML in pretrained

Experiment

Result - WRN50

Result - ResNet50

Result - ResNeXt50

Result - ResNeXt50 @ train

Deep Look in Cohorts

Xross can't be good in this case (pretrained)

Ensemble

Xross without pretrained

More about

pre-trained?

Conclusion

Next Steps

Channel Mapping Problem

Channel Mapping

Net1

Net2

Mapping Table

Why Channel Mapping is Needed?

If it can be done appropriately, Explainable AI

Stable Marriage Problem

Gale-Shapley Algorithm

1. Match boys max(girl) 2. Match it, if conflict, hold on. 3. Do it until all pairs be matched.

Why not max the sum of relations?

Experiment

Measure Weight - 1

(128, 8, 8) -> (128, 64, 64) A * B^T 對0做std

原始Matching分數：-0.0005 Random Mapping : -0.04 Gale Mapping : 1.77

Result - ResNet34

Result - ResNet18

Xross Result

1.Better evaluation method, or measure it with importance.

2. Can we use this trick to evaluate what feature does networks learned?

Next Steps

More about Mapping Result

Measure Weight - 2

(128, 8, 8) -> (128, 64, 64) A * B^T /|A||B| while(對0做std -> 1std)

原始Matching分數：-0.0329 Random Mapping : 0.1133 Gale Mapping : 4.07

Measure Weight - 3

Just L2 loss

原始Matching分數：? Random Mapping : ? Gale Mapping : ?

Measure Weight - 4

Just L2 loss + stdandize

原始Matching分數：-0.04 Random Mapping : 0.04 Gale Mapping : 4.09

Result Table

Deep Look - ResNet34

Deep Look - ResNet18

Channel Mapping

without pre-training

We know the importance about initialization.

Mapping Result

No-pretrained

原始Matching分數: 0.111 Random Mapping: -0.17 Gale Mapping : 1.718

pretrained:

原始Matching分數：-0.04 Random Mapping : 0.04 Gale Mapping : 4.09

看來是想太多 - ResNet34

看來是想太多 - ResNet18

Cohorts Learning Revenge by Channel Mapping

Result - WRN50

Result - ResNet50

Result - ResNeXt50

Further Problem in
Xross Mutual Learning

Mapping
Table

1. Match boys max(girl)
2. Match it, if conflict, hold on.
3. Do it until all pairs be matched.

(128, 8, 8) -> (128, 64, 64)
A * B^T
對0做std

原始Matching分數：-0.0005
Random Mapping : -0.04
Gale Mapping : 1.77

More about
Mapping Result

(128, 8, 8) -> (128, 64, 64)
A * B^T /|A||B|
while(對0做std -> 1std)

原始Matching分數：-0.0329
Random Mapping : 0.1133
Gale Mapping : 4.07

原始Matching分數：?
Random Mapping : ?
Gale Mapping : ?

原始Matching分數：-0.04
Random Mapping : 0.04
Gale Mapping : 4.09

原始Matching分數: 0.111
Random Mapping: -0.17
Gale Mapping : 1.718

原始Matching分數：-0.04
Random Mapping : 0.04
Gale Mapping : 4.09

對於KD來說，
其中一個是pretrained。

Not easy -
Ensemble Combination
