Continuous Everything

An introduction to automating integration and deployment

continuous integration

Continuous Integration (CI) is a development practice that requires developers to integrate code into a shared repository several times a day. Each check-in is then verified by an automated build, allowing teams to detect problems early.

Source https://insights.sei.cmu.edu/devops/2015/01/continuous-integration-in-devops-1.html

  1. Push Code Changes
  2. CI server clones repository
  3. Build runs
  4. Test suite runs
  5. Fail / Succeed
  6. Notify

Instant Feedback

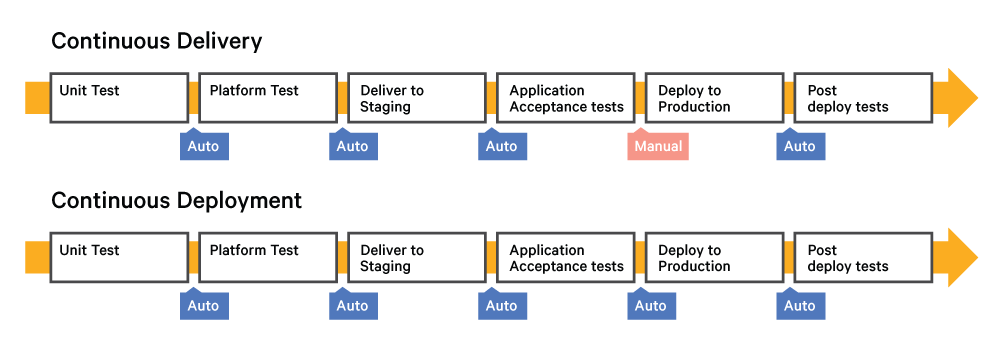

Continuous Deployment

Continuous Deployment

and

Continuous delivery (CD) is a software engineering approach in which teams produce software in short cycles, ensuring that the software can be reliably released at any time.

Source https://puppet.com/blog/continuous-delivery-vs-continuous-deployment-what-s-diff

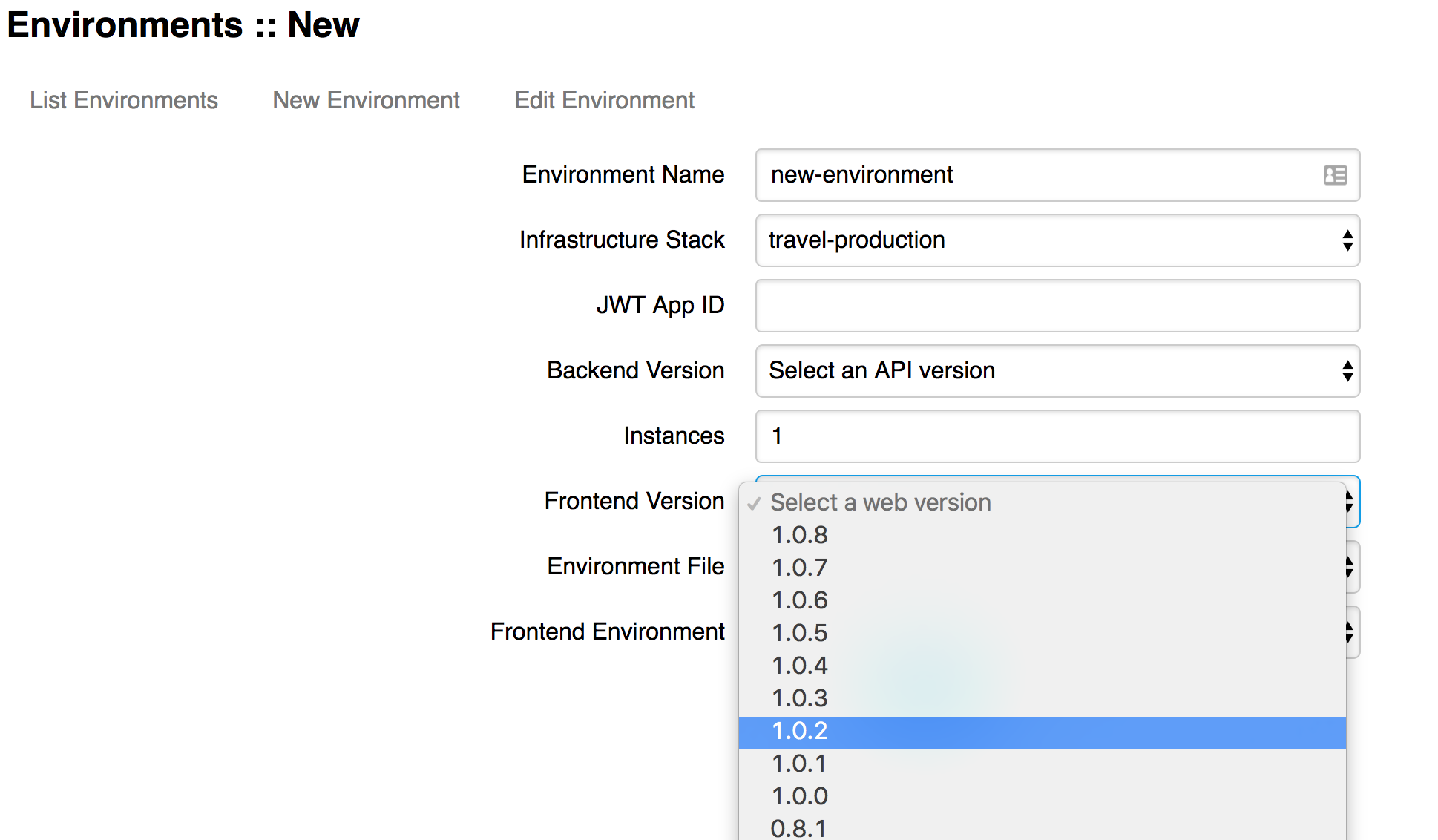

Repeatable Deployments

How do we do this?

Requirements

  • Source Control
  • Continuous Integration Server

Sample Project

"I'm tired of Bronco Bama and Mitt Romney"

"I'm tired of Bronco Bama and Mitt Romney"

Live Demonstration

Setup Job Runner

# Add necessary packages (URL shortened)
curl -L https://goo.gl/DS0dXg | sudo bash

# Install GitLab CI Multi Runner
sudo yum install gitlab-ci-multi-runner

# Register a runner
sudo gitlab-ci-multi-runner register

Add Project Dependencies

# Install PHP
sudo yum install php php-ldap php-curl php-xml

# Install Composer
curl -sS https://getcomposer.org/installer | php

# Put Composer where we want it
sudo mv composer.phar /usr/local/bin/composer

Job Runner Set Up

[ec2-user@ip-172-30-2-67 ~]$ sudo gitlab-ci-multi-runner register
Running in system-mode.

Please enter the gitlab-ci coordinator URL (e.g. https://gitlab.com/):
https://gitlab.msu.edu/ci
Please enter the gitlab-ci token for this runner:
sEcretTOKEN12
Please enter the gitlab-ci description for this runner:
[ip-172-30-2-67]:
Please enter the gitlab-ci tags for this runner (comma separated):
php
Whether to run untagged builds [true/false]:
[false]:
Whether to lock Runner to current project [true/false]:
[false]:
Registering runner... succeeded                     runner=7rhzHU6A
Please enter the executor: docker+machine, kubernetes, docker, shell, ssh, virtualbox, docker-ssh+machine, docker-ssh, parallels:
shell
Runner registered successfully. Feel free to start it, but if it's running already the config should be automatically reloaded!

Setup Project

# Clone the repository
git clone git@gitlab.msu.edu:atomaka/broncobama.git

# Create a branch
git checkout -b feature/continuous-integration

# Install PHP_CodeSniffer
composer require --dev squizlabs/php_codesniffer

# Generate a .gitlab-ci.yml file
vim .gitlab-ci.yml

.gitlab-ci.yml

stages:
- analyze

style:
  stage: analyze
  script:
  - ./vendor/bin/phpcs src/
  tags:
  - php
  1. Change code
  2. Push code
  3. Create merge request
    1. CI Runs

On Success

On Failure

  • Nothing
    • Go back and fix
  • Merge
  • Deploy
    • Continuously

But We Can Do A Lot More

Example

Other Talks

Resources

Try It For Yourself

An Introduction to Continuous Everything

By Andrew Tomaka

An Introduction to Continuous Everything
