I pull one value synchronously

let value = "You pull me";

I pull multiple values synchronously

let values = ["You", "pull", "me"];

Lodash can wrap a synchronous collection and expose operators

Reactive programming is about letting values get pushed to you while you describe how to react to them

One value gets pushed asynchronously

getSentenceAsync()
    .then((value) => {
        // "I get pushed to you afterwards"
    })
;

Multiple values get pushed asynchronously

getWordsObservable()
    .subscribe((value) => {
        // "I", "get", "pushed", "to", "you", "afterwards"
    })
;

RxJS can wrap an asynchronous collection and expose operators

How do you get daily news about a given topic ?

• You go get it from the source
• You find articles on the web
• You've subscribed to newsletters

If you've subscribed, when does it end ?

• Never
• The topic is over
• When they loose their database, the servers burn
• When you unsubscribe

So, to put words on it:

• To get the news you expect (the Observable)
• You give your email address as the way to get notified (the Observer)
• To a service that expects your email to register you (the Subscriber)
• When subscribing you get an email with a link to unsubscribe (Subscription)

The very common demo: Autocomplete

• Extract term ("pluck" = "ceuillir" in french)
• Trim
• Debounce
• Ignore same term
• Search if term is long enough
• Display

inputEventsObservable
  .pluck('target', 'value')
  .map(term => term.trim())
  .debounceTime(200)
  .distinctUntilChanged()
  .switchMap(term => term.length > 2 ? getPlaces({input: term}) : Rx.Observable.of([]))
  .subscribe(showResults)
;

Someone asked me why not filtering by term length before using the operator switchMap.

Well, switchMap is switching to the observable you decide to create from the incoming data. We want it to switch to an empty array of results when the term gets too short. Filtering first disables that.

The example can be complexified a bit to be debounced in the switchMap to enable switching to this empty array of results instantly, when the term gets too short or when scheduling a new request.

From an Observable

Rx.Observable.from

Rx.Observable.from([0, 1, 2, 3]).subscribe((v) => {
  /* 0, 1, 2, 3 */
});

Rx.Observable.from(otherObservable);

From an Array

function* gen(i) {
  while (true) yield i *= 2;
}

Rx.Observable.from(gen(1)).take(4).subscribe((v) => {
  /* 2, 4, 8, 16 */
});

From an iterator

Rx.Observable.from(Promise.resolve(1)).subscribe((v) => {
  /* 1 */
});

From a Promise (at least Thenable)

and everything with an iterator factory implemented on it's [Symbol.iterator] property

From event sources

From event emitters

// DOM nodes
Rx.Observable.fromEvent(document, 'click');

// DOM node lists
Rx.Observable.fromEvent(document.childNodes, 'click');

// jQuery like collections
Rx.Observable.fromEvent($(document), 'click');

// standard event emitters
let ee = new EventEmitter();
setInterval(() => ee.emit('tick'), 1000);
Rx.Observable.fromEvent(ee, 'tick');

From a callback style function

From functions

// Functions with callback as last argument
let callbackStyleFunction = (input, cb) => { cb(input * 2); };
let getObservable = Rx.Observable.bindCallback(callbackStyleFunction);
getObservable(1).subscribe((v) => {
  /* 2 */
});

// Same for NodeJS callback style functions
let nodeCallbackStyleFunction = (input, cb) => { cb(null, input * 2); };
let getObservable = Rx.Observable.bindNodeCallback(nodeCallbackStyleFunction);
getObservable(1).subscribe((v) => {
  /* 2 */
});

From a node callback style function

Observable / Subscriber relation

• Basically, an observable is built from a function that manipulates any potential subscriber
• And returns the way to handle unsubscription

const obs = Rx.Observable.create((subscriber) => {
  let timers = [
    setTimeout(() => { subscriber.next(0);    }, 1000), // obs will notify 0 after 1 second
    setTimeout(() => { subscriber.complete(); }, 2000), // obs will complete after 2 seconds
    setTimeout(() => { subscriber.error(1)    }, 3000)  // obs won't fail cause completed before
  ];

  return () => {
    timers.forEach(clearTimeout);
  };
});

http://www.webpackbin.com/EJkzVj8X-

Observable / Subscriber relation

http://www.webpackbin.com/EJkzVj8X-

obs.subscribe({
  next(v) {},
  complete() {},
  error(e) {}
});

• To subscribe, you use the extraction operator subscribe and pass an object matching the observer interface

Hot / cold observables

Cold: the subscriber handler

• starts running on subscription
• runs once per subscription

Hot: the subscriber handler

• starts running on creation
• runs once for all subscriptions

Real life example:

• Cold: a movie you buy, it is played when you start it, someone else can buy the same and start it when he wants too
• Hot: a performance, it is done once, if you arrive late, you miss the beginning

Hot / cold observables

Subject

A subject is an observable and an observer:

• It's an observable so you can subscribe to it
• It's an observer so you can push values

What does it imply ?

• It can be a medium to connect two parts of code that have to be decoupled
• It's a hot observable since when we push values to it, we do not wait for any subscription, simple Subjects won't re emit those values
• There are other kinds of subjects that can replay the values that were pushed before subscribing (ReplaySubject)

RxJS
The very common comparison

"Think of Rx as Lodash for events"

• Both let you wrap a collection
• The wrapper exposes operators
• With Lodash, the wrapped collection is synchronous and is finite
• With RxJS, the wrapped collection can be asynchronous and can be infinite

(Let's say the events are numbers)

I write a synchronous monad with Lodash

let numbers = [1, 2, 3, 4];

let squaredOdds = _(numbers)
    .filter((v) => v % 2) // keep odd numbers
    .map((v) => v * v)
    .value()
;

// [1, 9]

I write an observable from values and react to them

let numbersObservable = getObservableFrom([1, 2, 3, 4]);

numbersObservable
    .filter((v) => v % 2) // keep odd numbers
    .map((v) => v * v)
    .subscribe((squareOdds) => {
        // 1, 9
    })
;

I may not know when it ends, if it does

let secondObservable = observeTimeEverySecond();

let subscriptionToSeconds = secondObservable
    .scan((count) => count + 1, 0)
    .subscribe((seconds) => {
        // 1, 2, 3 ...
    })
;

You can unsubscribe, but it will never end

subscriptionToSeconds.unsubcribe();

// time never ends

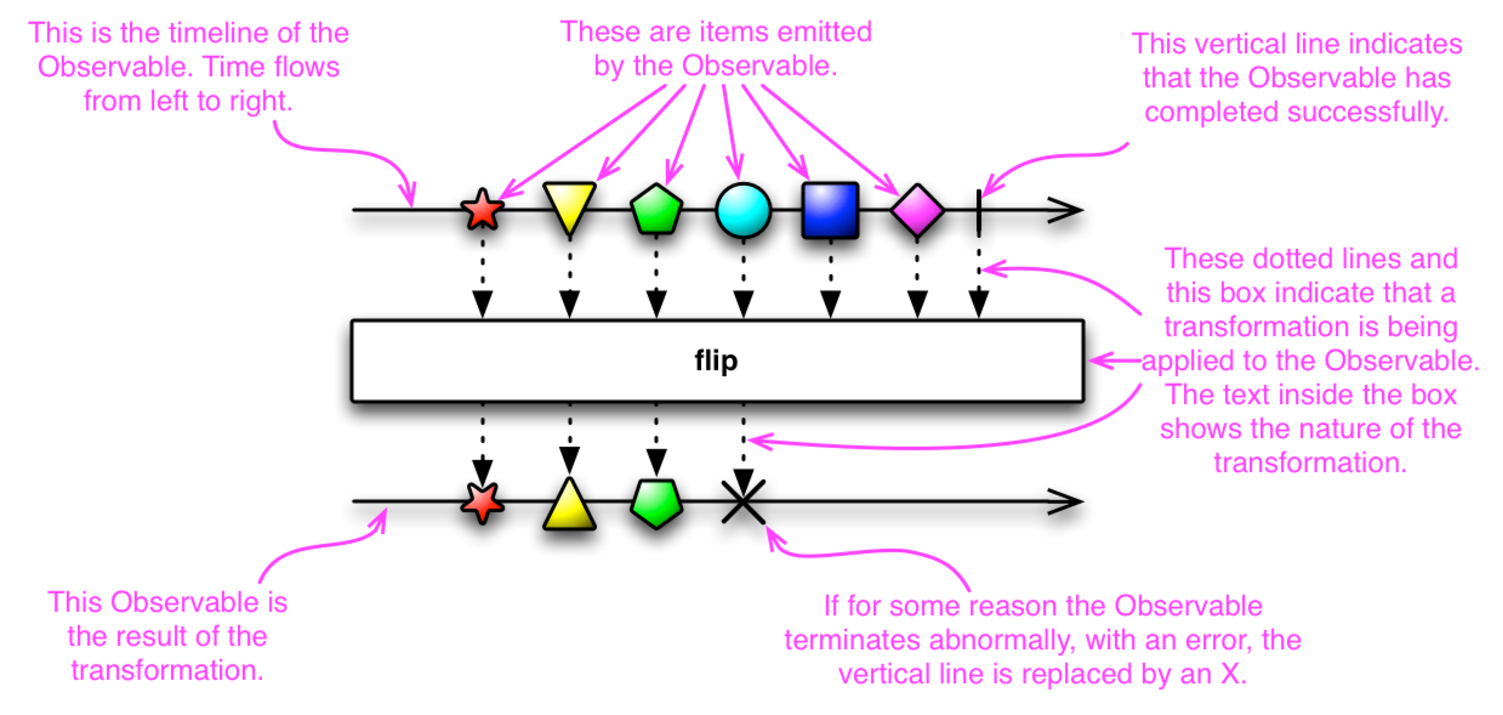

Marble diagrams

Visualization of collection's items through time and their transformation/displacement.

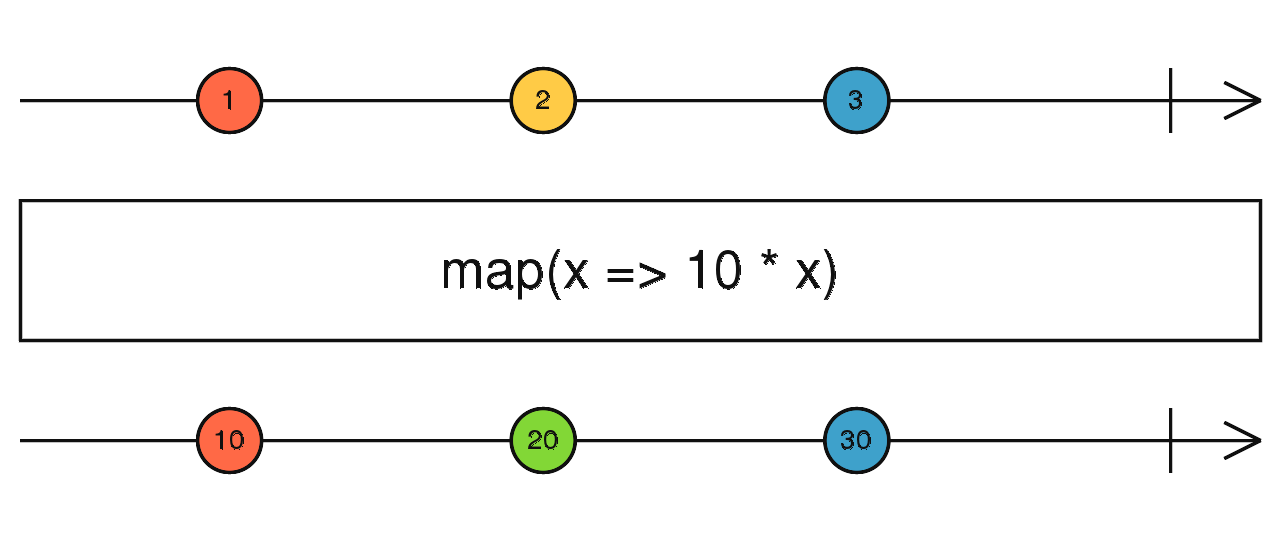

map, filter ...

A lot of the classical data operators are there to work on array collections.

Example: trimming a search term

Remember the autocompletion example

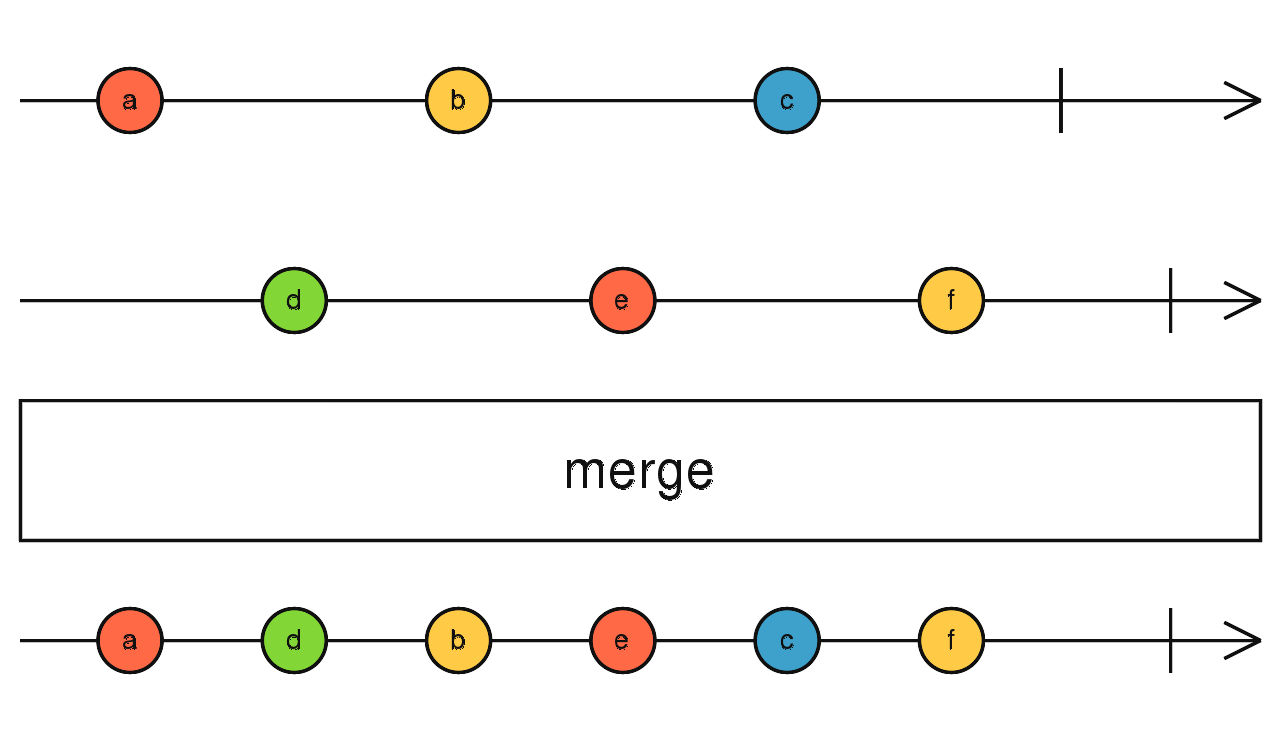

merge

The combination operators can work with multiple observables.

Example: you may combine multiple sources of results for displaying your application events

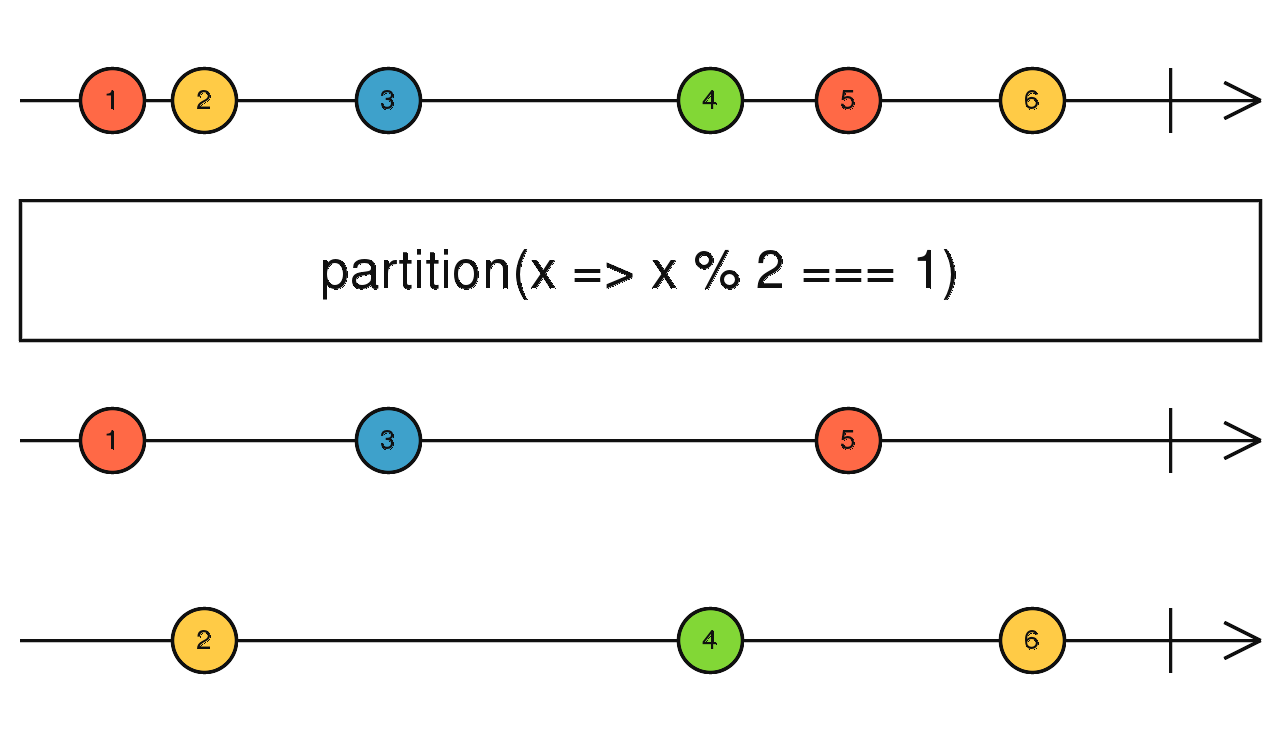

Partition

The partition operator can generate an array of two observables.

Example: some binary test on incoming data

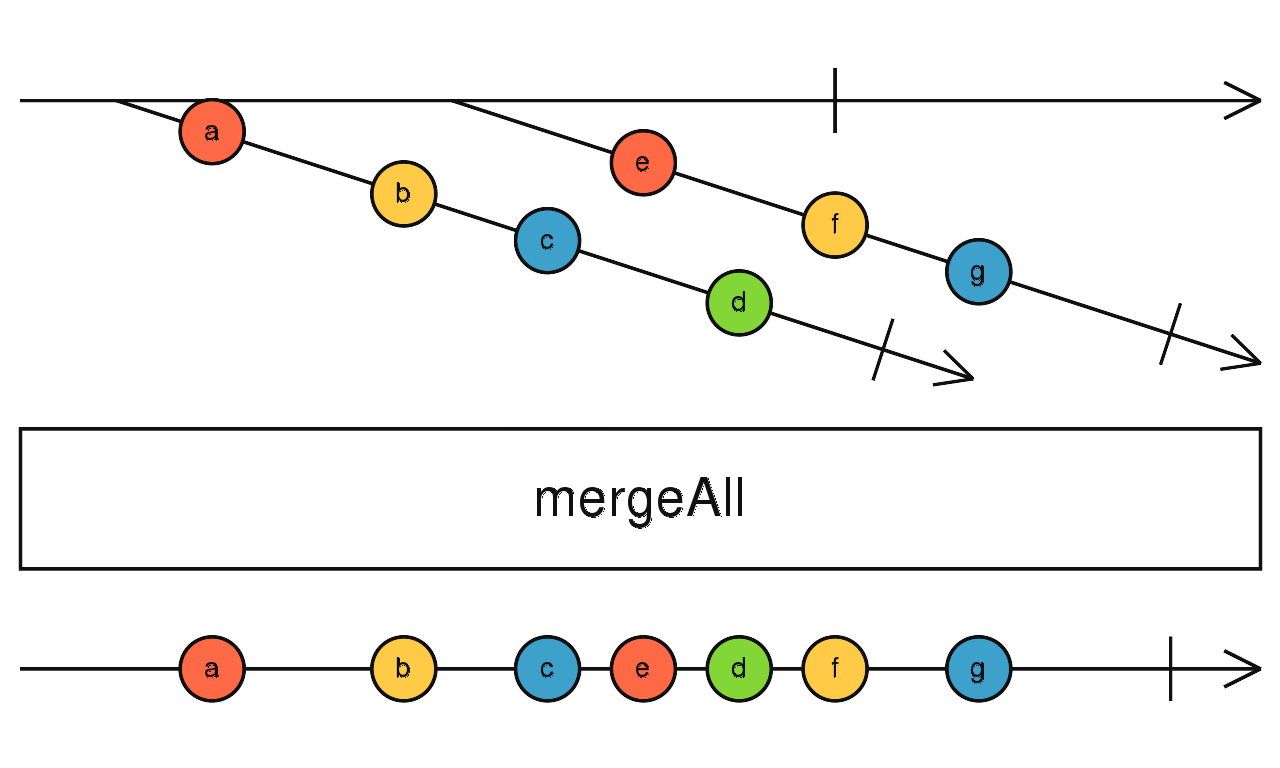

mergeAll

Merge incoming observables

Can someone imagine the difference with a switch operator ?

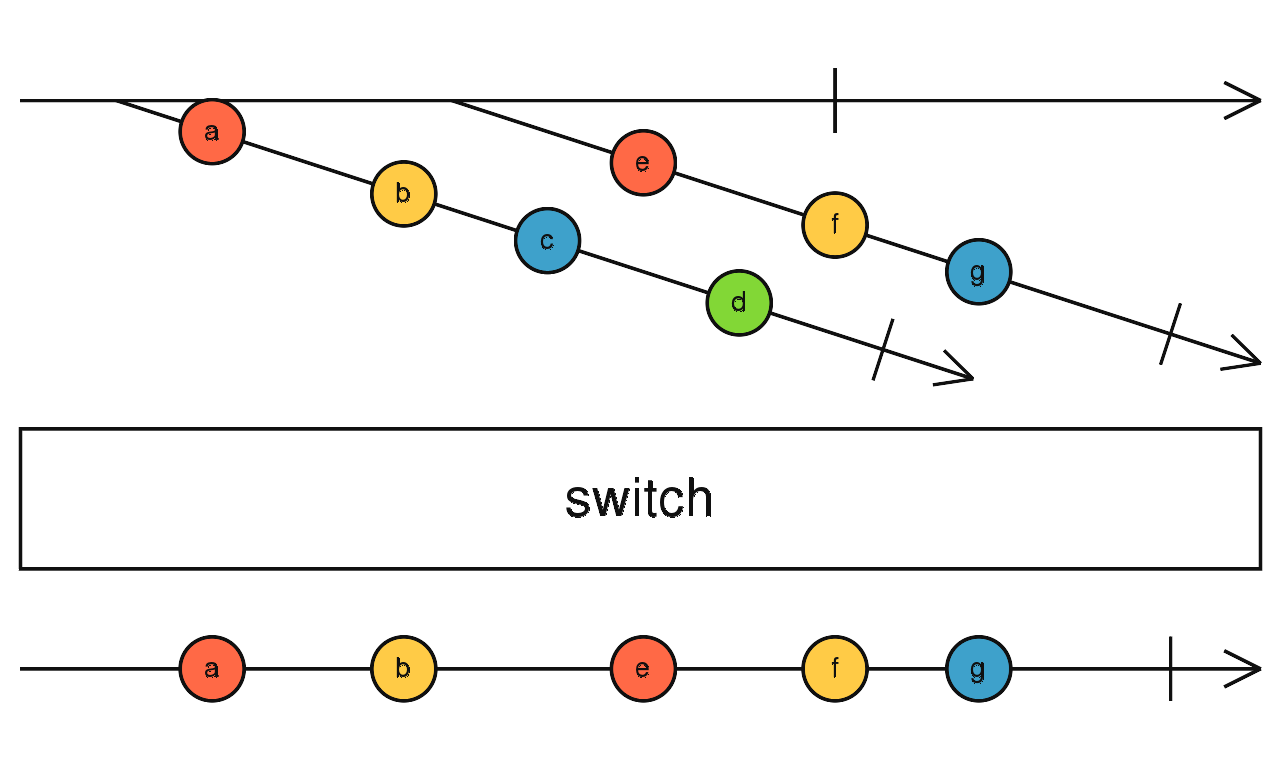

Switch

The switching operators can switch to the newly started observable.

Notice that unsubscribing the observable we give up while switching, calls the implemented unsubcription process of the previous one.

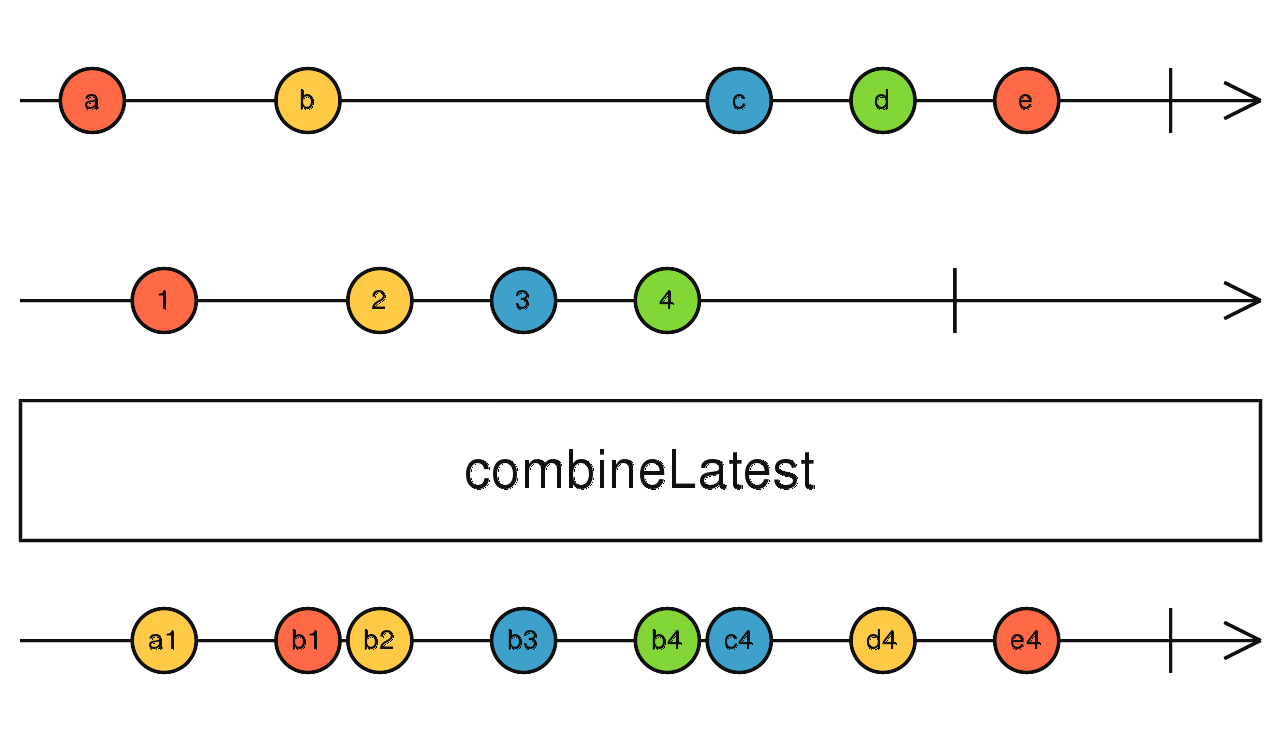

combineLatest

Some combination operators emit combined values of combined observables if all of them has emitted at least once

That's the case of displays that has no meaning when some data is missing, but should react to every change.

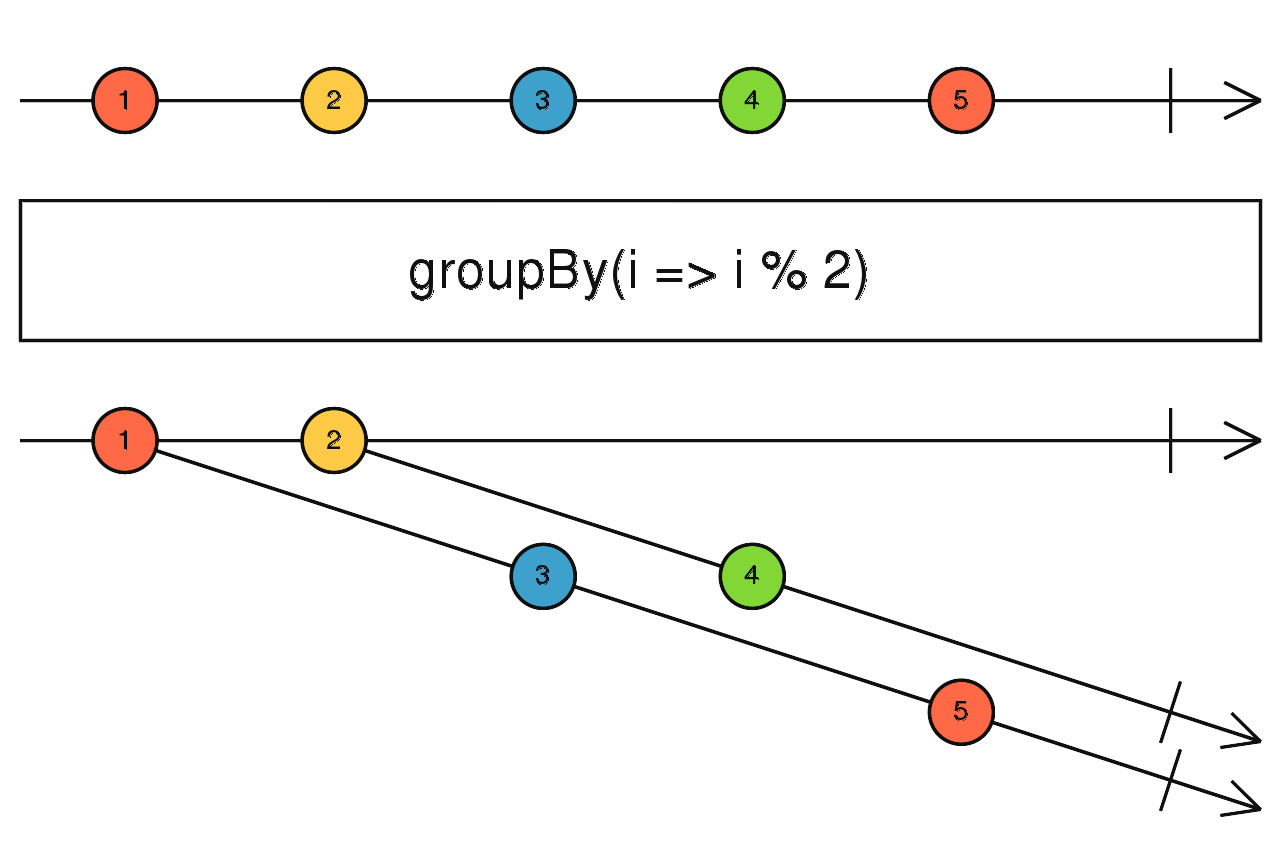

GroupBy

The grouping operators can generate multiple observable based on a predicate.

Example: you may have a source of events that is already a merge of heterogeneous events you want to separate before subscribing.

A real life example of groupBy

You may subscribe to an undetermined set of newsletters and group them by topic.

You don't know the topics at first, you may only provide the criteria. First time a newsletter is created for a given topic, it will create a new stream of newsletters for this topic.

That's what groupBy does.

-> What would you have written with vanilla JS to implement this ?

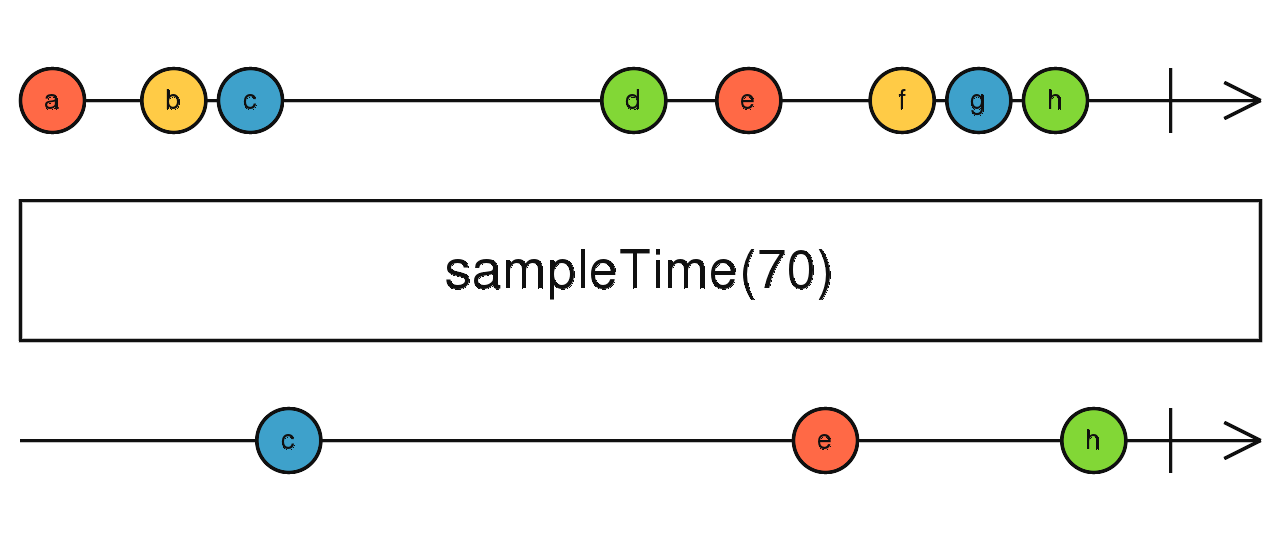

Every 70ms, sample.

Sample

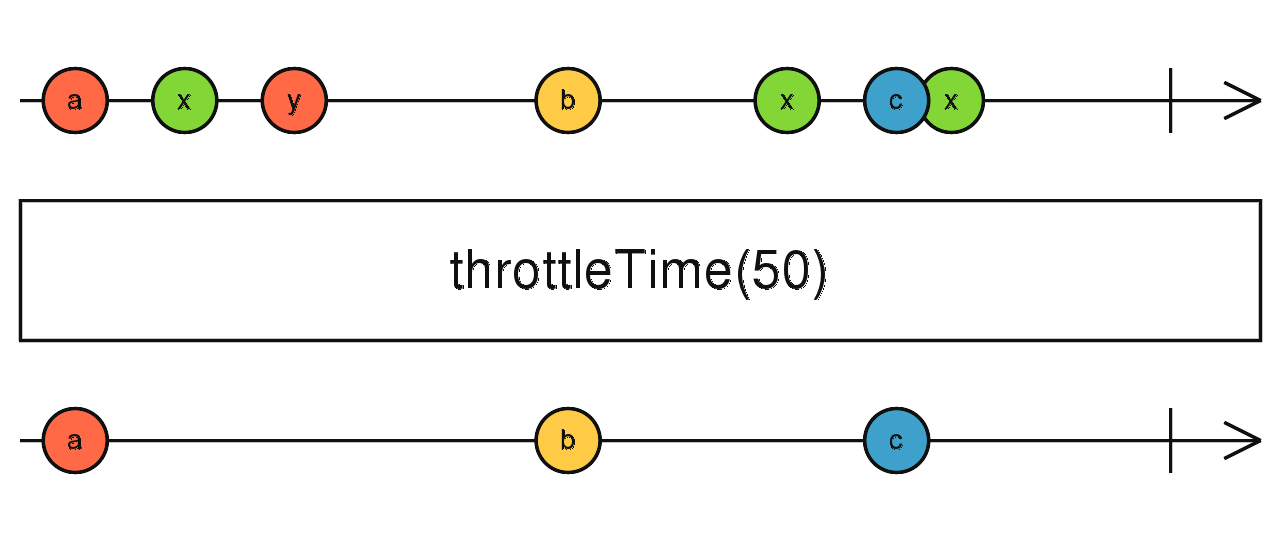

Accept then ignore during 50ms.

Throttle & Audit

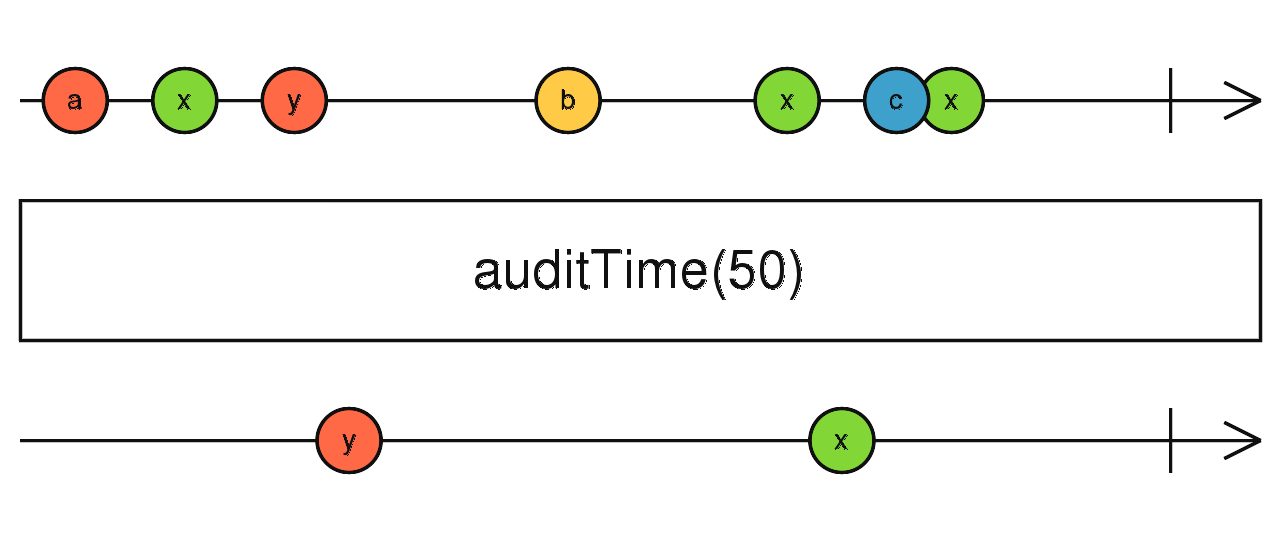

Schedule sampling in 50ms when not already scheduled.

Schedule sampling in 50ms then cancel and reschedule.

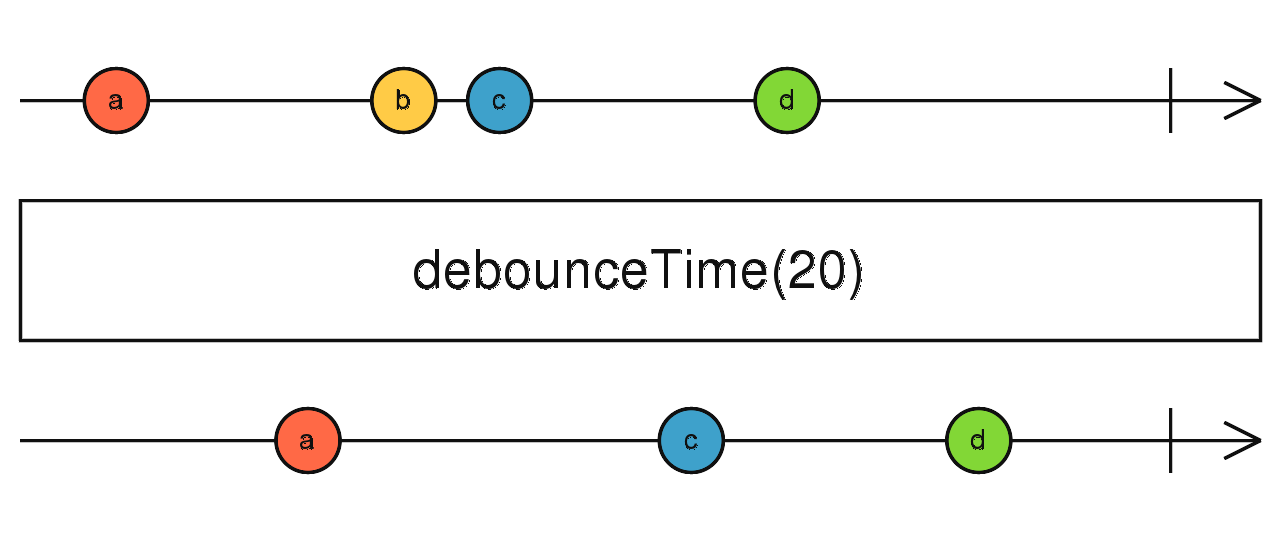

Debounce

Schedulers

• Schedulers are used to schedule when a subscription starts and when data are emitted.

• It lets place a task in another event loop, letting multiple tasks work concurrently.

• Existing ones
  • immediate (synchronous, recursive) - default
  • queue (synchronous, trampoline)
  • asap (next tick)
  • async (periodically)
  • animationFrame (next animation frame)

Notifications

• Dematerialized observables transport data.

• Materialized observables transport notifications that are objects determining themselves whether they are data, completions or errors.

• You can go forth and back from the former to the latter with materialize and dematerialize operators.

• Subscribing multiple times to a transformed observable makes the transform chain being traversed for each subscription: it actually subscribes to the source, before any transformation.

• You can publish this transform chain with the operator publish. This gives a Connectable that is not connected to the source.
  It will wait for being connected with the operator connect before calling subscribers.

• To implement this, a Connectable holds a Subject internally. The type of Subject depends on the operator used:
  publish, publishReplay, publishBehavior, publishLast.
  You may even provide your own Subject or a factory of it, with the operator multicast.

Transform chains are not new sources

• A Connectable can connect automatically when there is at least one subscription and unsubscribe when all left, with the operator refCount.

• .publish().refCount() = .share(): the transform chain is traversed once if there is at least one subscription. If you want another type of Subject, don't use share.

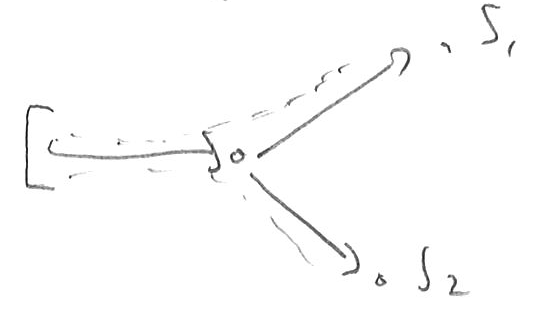

Sharing transform chains

Source
observable

Transformed
observable

Operator

Subscription

Subject (observer and observable)

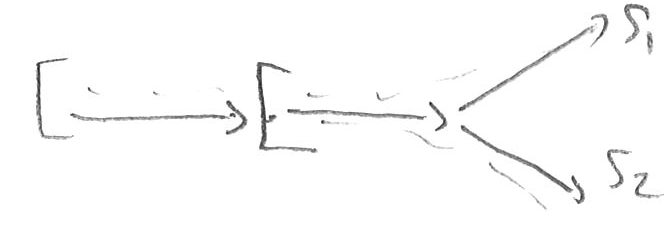

A source observable with two successive transformations

A shared observable (the new source for subscribers)

• A transformed observable
• which is transformed and subscribed twice separately

• A transformed observable
• which is shared
• then transformed and subscribed twice separately

Ex 1: warm up

function fromArray<T>(v: T[]): Observable<T> {
  /* implement this */
}

b) Implement a function which takes a synchronous array and transform it to an observable

function search(term: string): Observable<string[]> {
  /* implement this */
}

c) Implement a function takes a string and provide an array of strings

a) Implement a subscription which simply logs everything that goes out of a given an observable

Ex 2: Mapping to asynchronous processes

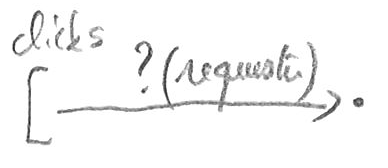

Listen to clicks on a button and map it to a request so that

• a) no new request starts till the previous one ends
• b) all requests start and all results are used
• c) requests are queued
• d) the previous request is cancelled when a new one starts

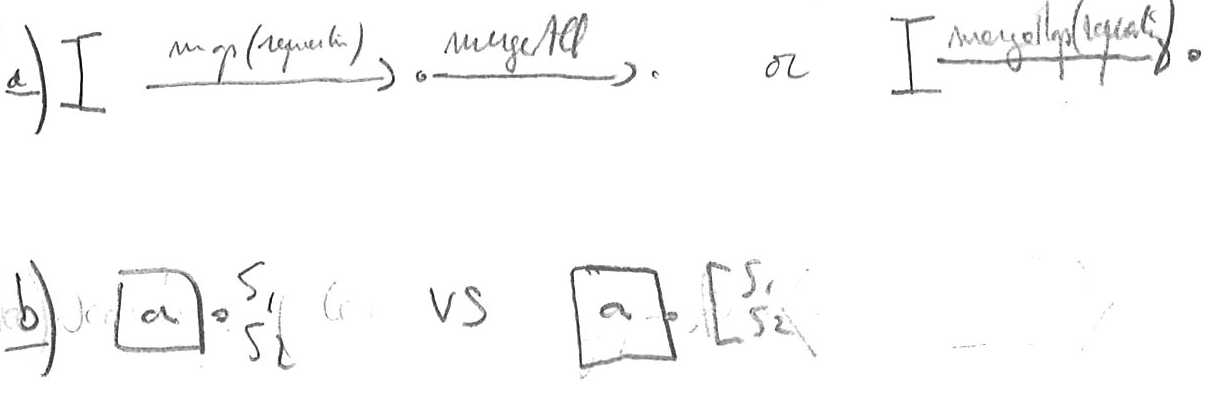

Ex 3: Using a subject

a) Map a subject to requests, then merge all requests

b) Contract it to one operator use

c) Subscribe twice and compare with and without sharing

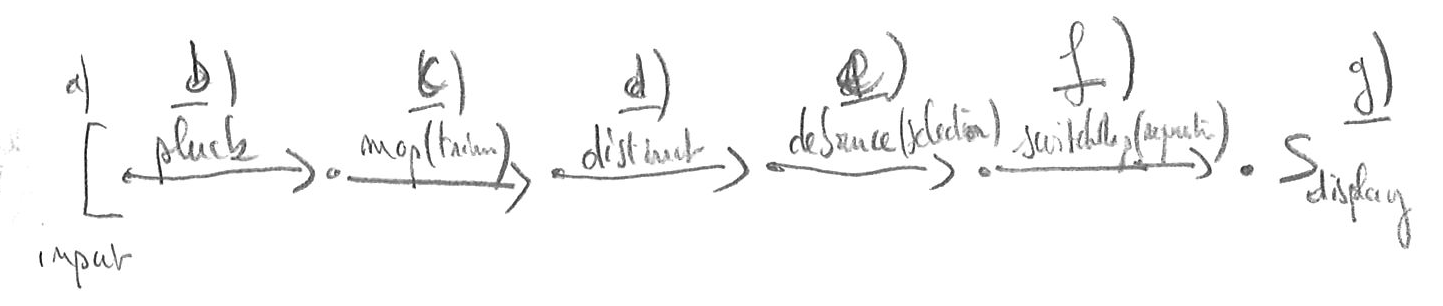

Ex 4: Reimplement autocomplete

a) Listen to input events from a DOM input

b) Extract value of input events from a DOM input

c) Trim it to get a search term

d) Ignore events if the term did not change

e) Debounce based on the term length (no delay if term is too short)

f) Call the search function of first exercise and cancel it when a new request is required

g) (optional) Display results

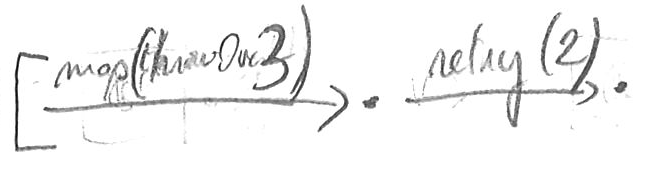

Ex 5: retry a process

a) Transform some source with a function which throws in some condition

b) Implement retrial a given amount of times
