Weasel Architecture
1
Alexander Isenko
13.02.2018
In-House presentation @ iteratec
Architecture #1
2
13.02.2018
Alexander Isenko

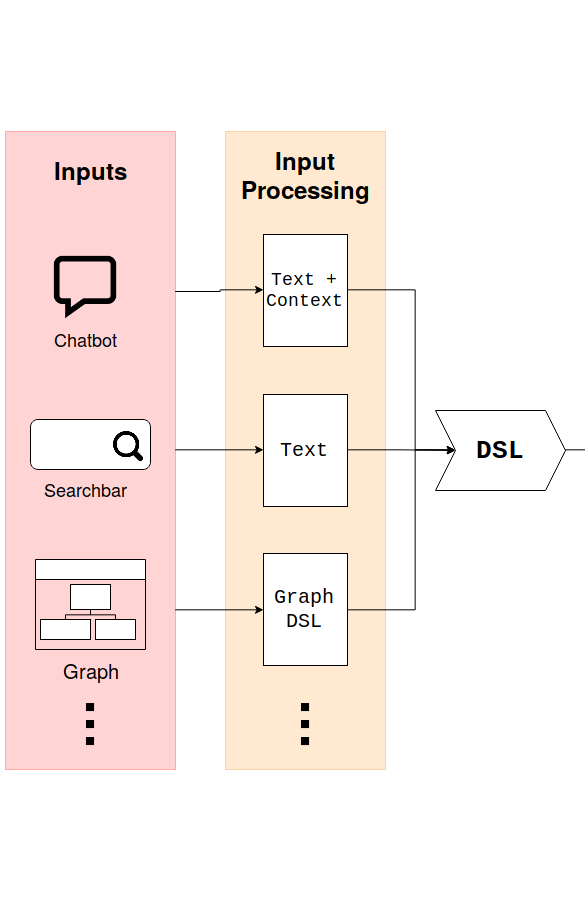

Architecture
3
13.02.2018
- Only one input for MVP
- Every input has a custom processing block
- it parses the input into a Domain-specific Language
- created based on what the Sources accept
- e.g 'Software Concept' for iteraSkill
Alexander Isenko

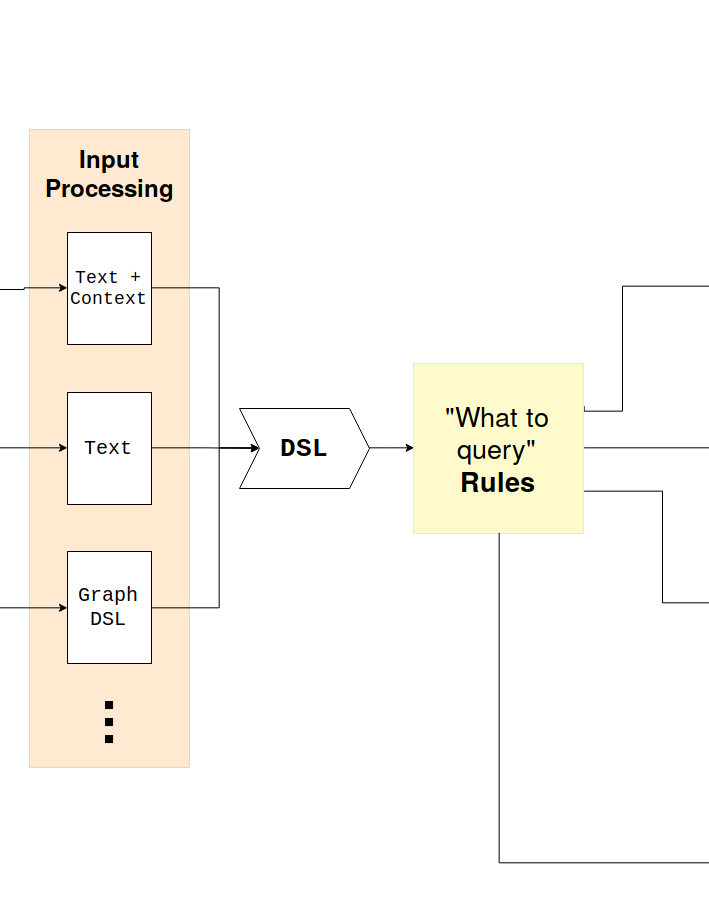

DSL
4
13.02.2018
\mathcal{S} = \{ sources \} \text{ e.g (iteraSkill, iteraChat)}
\mathcal{R} = \{ rule_s | rule_s \in s, s \in \mathcal{S} \} \text{ e.g all rules}
data Query = QIS IteraSkillQuery Query
| QW WikiQuery Query
| None
data IteraSkillQuery = WhoKnows String
| GetPerson String
whoKnowsRule :: [String] -> IteraSkillQuery
whoKnowsRule ("Who" : "knows" : lang : _) = WhoKnows lang
whoIsRule :: [String] -> IteraSkillQuery
whoIsRule ("Who" : "is" : person : _) = GetPerson personQ = \{ q\;|\;q \leftarrow \text{rule}(w)\land \text{Accept}(\text{rule}(w)), \forall \text{rule} \in \mathcal{R}, w = \text{input} \}
Alexander Isenko
DSL
5
13.02.2018
data Query = QIS IteraSkillQuery Query
| QW WikiQuery Query
| None
parseQuery :: Query -> IO ()
parseQuery (OIS query rest) =
sendIteraSkillAPIRequest query >> parseQuery rest
parseQuery (OW query rest) =
sendWikiAPIRequest query >> parseQuery rest
parseQuery None = return ()
data Query = QIS IteraSkillQuery Query
| QW WikiQuery Query
| QComplex IteraSkillQuery WikiQuery Query
| None
parseQuery :: Query -> IO ()
parseQuery (OIS query rest) =
sendIteraSkillAPIRequest query >> parseQuery rest
parseQuery (OW query rest) =
sendWikiAPIRequest query >> parseQuery rest
parseQuery (QComplex isq wq) =
sendIteraSkillAPIRequest isq
>> sendWikiAPIRequest wq >> parseQuery rest
parseQuery None = return ()Alexander Isenko

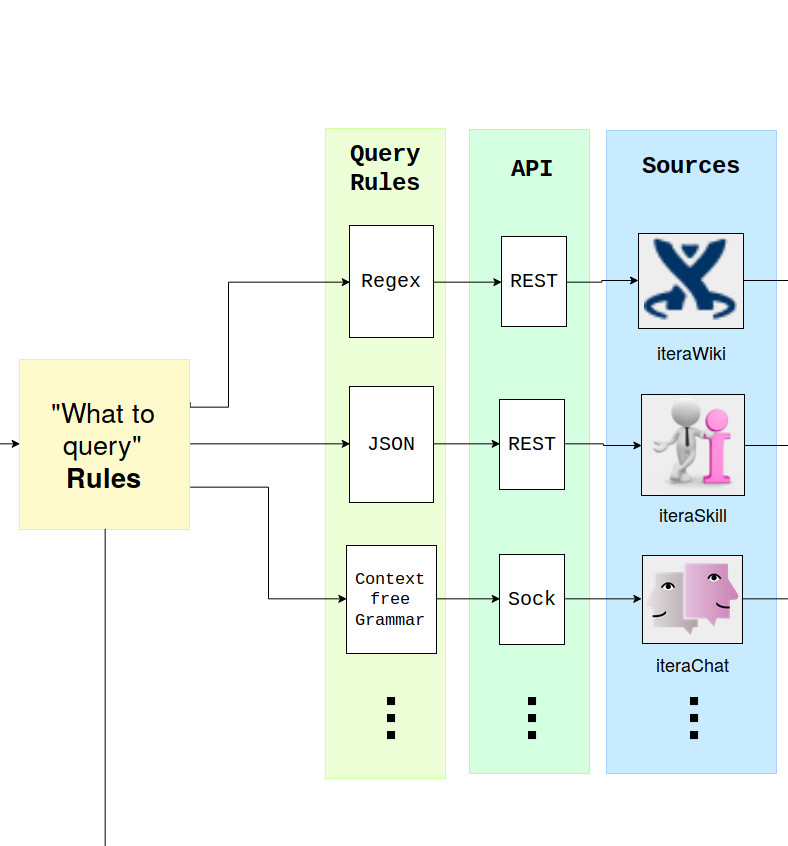

API Access
6
13.02.2018
- every source has a custom query format
- after the formatting, we can send the API request
- they are totally separate and don't depend on each other
Alexander Isenko

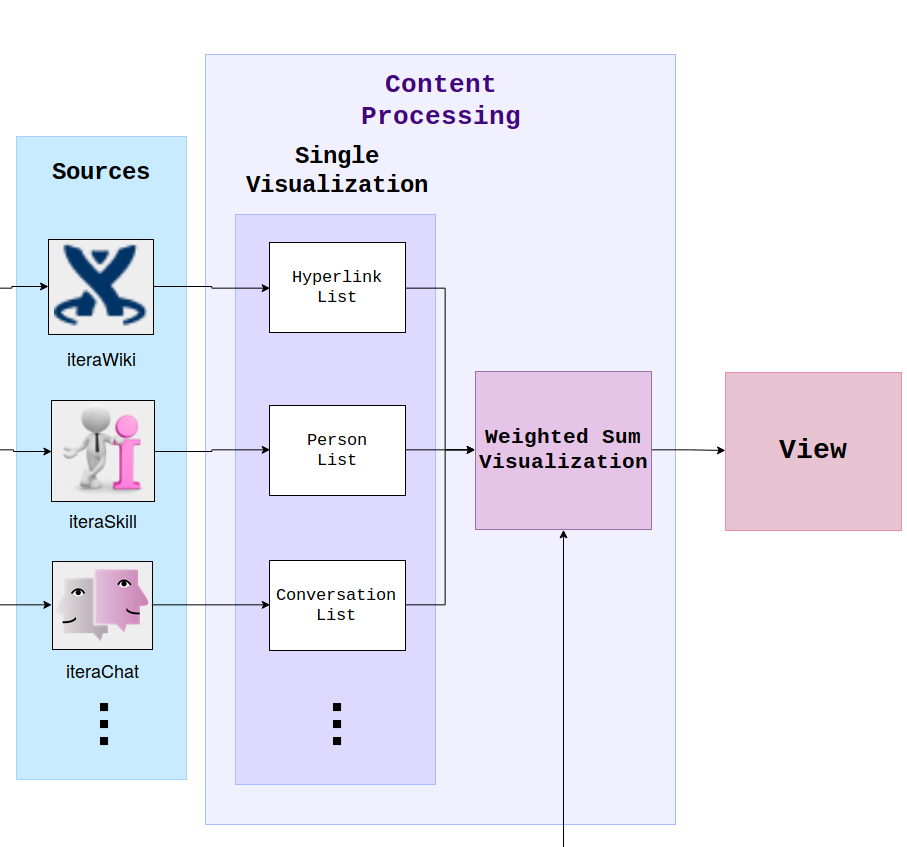

Content Processing
7
13.02.2018
- every source has a visualisation concept
- it's going to be sorted visualized based on our rules
- this creates our final view which will be shown to the user
Alexander Isenko
Content Processing
7
13.02.2018
- every source has a visualisation concept
- it's going to be sorted visualized based on our rules
- this creates our final view which will be shown to the user
Alexander Isenko

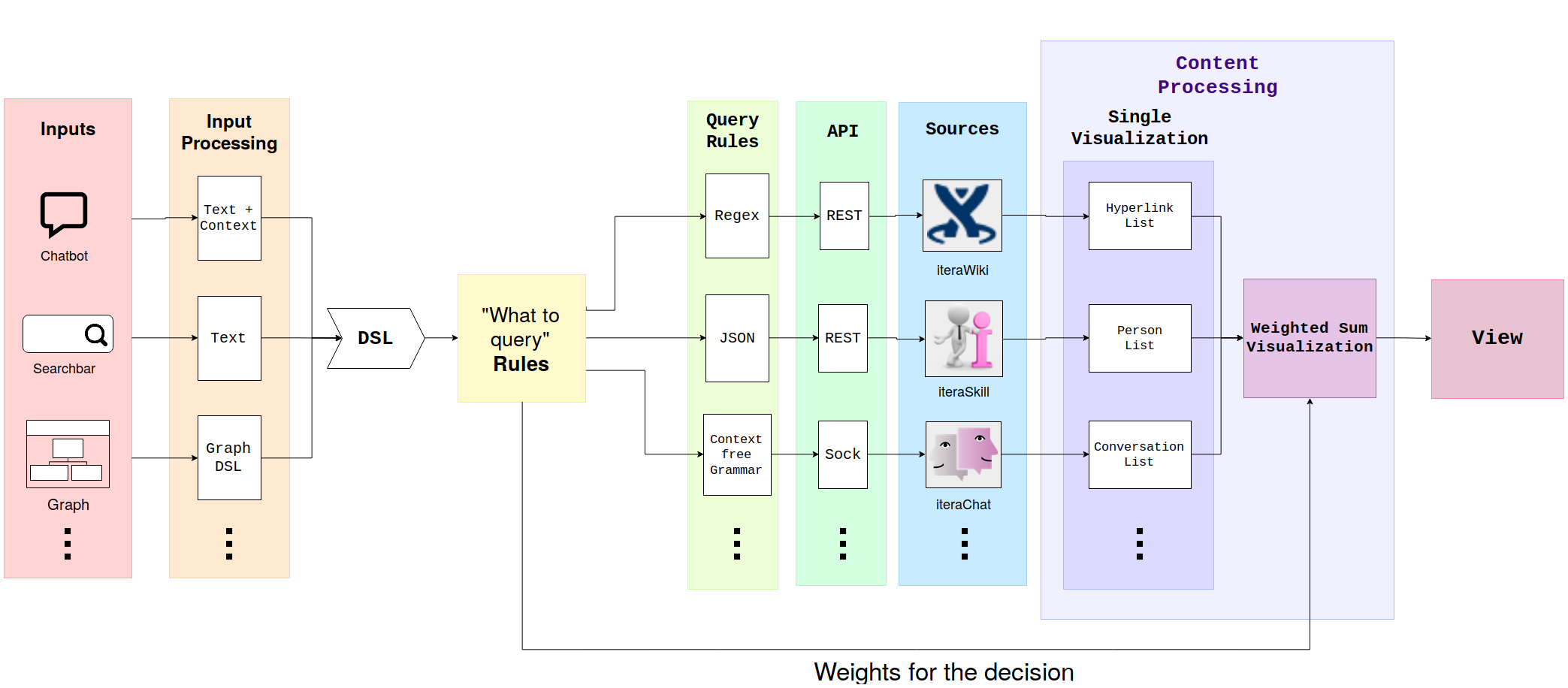

Full Architecture
8
13.02.2018
Alexander Isenko
Weasel Architecture
By cirquit
Weasel Architecture
Presentation at Iteratec
