GIS for energy simulation and analysis 2 : using skills in complex models, analyses and visualisations.

Analysing the air pollution at schools and nurseries.

In the last lecture I introduced a case study about roadside pollution.
As a recap
- DEFRA provide estimates of roadside air pollution, estimated from traffic counts and emissions factors as well as measured pollution and dispersion modelling.
- This dataset was combined with data on schools to identify establishments within 150 m of roads exceeding the EU limit value of 40 µg/m3 of NO2.
  - Used in the poisoned playgrounds campaign
- A GIS was used to calculate euclidean distances to all roads in the dataset
- Results presented in a web GIS
Today we'll dive into that case study, looking in more detail at the data and methods used, extending it to a new use case and also look at how this could become the basis of a commercial project.
I also have some advanced visualisations to show you, demonstrating how I moved beyond GIS.
None of these are about energy, but the process and methods are directly transferable

NO2 / Pm2.5 and schools

Background
- ClientEarth had seen some similar analysis and wanted to commission some work to underpin a campaign about children's exposure to air pollution in schools
- They didn't have the technical skills so reached out to our research group
- They wanted to quantify the schools exposed to pollutant levels exceeding EU limits of 40 µg/m3 of NO2.
- As an output they wanted a spreadsheet of all schools with pollutant exposure.
- An academic project, so there was also lots of scope for analysis

Air pollution
- Data describing annual mean concentrations of NO2 and other pollutants 4 metres from major roads was obtained from Defra
  - 2015 pollution levels and spatial road data https://uk-air.defra.gov.uk/data/gis-mapping
- UK NO2 concentration in 1km2 grid square https://uk-air.defra.gov.uk/data/laqm-background-maps?year=2013
Schools - to cover whole UK multiple datasets necessary
- England and Wales - http://www.education.gov.uk/edubase/home.xhtml
- Scotland - http://www.gov.scot/Topics/Statistics/Browse/School-Education/Datasets/contactdetails
- Northern Ireland - http://data.nicva.org/dataset/school-locations, http://apps.education-ni.gov.uk/appinstitutes/default.aspx

Data

Some Additional data was necessary
- OS Code-Point Open dataset provided coordinates of Scottish postcode unit (the full, most detailed postcode), used to geolocate schools
- Northern Irish postcode unit coordinates were obtained from FreeMapTools10, as above
- Basemap data for use in static maps was obtained from ESRI11
- Local Authority polygons were obtained from InFuse
Data manipulation
- Removed columns
- The remaining columns were harmonised so that establishment name, address andcontact details were described as a minimum.
- School types were derived from multiple columns
- A consistent unique reference number was given to all establishments.
- OSGB 1936, used as the standard
- Where spatial data was missing derived from postcode.
- Northern Irish coordinates have been projected from Irish National Grid coordinate system the before the calculation of proximity.

Pollutant concentrations were assigned to educational establishments in four ways:
- The closest road in the roads database to each establishment was identified and the concentration of all pollutants at that road assigned to the establishment, as well as distance in metres (m),
- The closest road to each establishment which exceeded 40μg/m3 of NO2 was identified and the concentration of all pollutants at that road assigned to the establishment, as well as distance in metres (m),
- The grid square within which each establishment is located was identified and the 2013 NO2 concentration in that square was attributed to the establishment
- all roads from the roads database within1 km of each establishment were identified and all pollutants and distance in metres recorded.
Analysis using ArcGIS

Schools and limit values

Using 2015 data and a distance of 150 m or less to roads exceeding the EU limit value. Schools within 150 m of roads exceeding the limit value by type:

1020 Educational establishment in GB
981 in England
12 in Wales
11 in Scotland
16 in Northern Ireland

Rank	Local Authority Name	Number Of Pupils
1	Hackney, London Borough of	18323
2	Camden, London Borough of	15955
3	Tower Hamlets, London Borough of	14977
4	Lambeth, London Borough of	14780
5	Kensington & Chelsea, Royal Borough of	14274
6	Wandsworth, London Borough of	13162
7	Southwark, London Borough of	12517
8	Islington, London Borough of	10705
9	Westminster, London Borough of	10673
10	Newham, London Borough of	9870
11	Hammersmith & Fulham, London Borough of	9774
12	Haringey, London Borough of	9516
13	Lewisham, London Borough of	8000
14	Birmingham City Council	7250
15	Hounslow, London Borough of	6899
16	Enfield, London Borough of	6515
17	Ealing, London Borough of	6009
18	Barnet, London Borough of	5907
19	Stockport Metropolitan Borough Council	5660
20	Merton, London Borough of	4312

Text

Excellent visual outcomes and a national campaign ...

http://samkallen.co.uk/poisoned_playgrounds.html
But terrible mapping ......... Back to that at the end

NO2 and Nurseries

Background
- UCL IEDE researchers and PhD students had some funding to retrofit a London nursery with mechanical ventilation and carry out a longitudinal study of the indoor air quality.
- They were aware of my previous analysis and wanted to repeat this with a different set of data
- I approached this differently having improved my knowledge of the data and coding skills
All code and links to data available https://github.com/ucesres/no2_nurseries
I will go through the steps to carry out this analysis, feel free to follow along - downloading the data should only take a couple of minutes
Simpler than previous analysis, less data and more knowledge

NO2 and Nurseries

Step 1: Identify and filter up to data air quality data
- In this case I was only interested in concentrations
- For London there is a dataset which includes modelled 2016 ground level concentrations of annual mean NOx, NO2, PM10 and PM2.5 in µg/m3 at 20m grid resolution. For PM10, it also includes the number of daily means exceeding 50 µg/m3. https://data.london.gov.uk/dataset/london-atmospheric-emissions-inventory--laei--2016
- Load them into a python native format

# Load them into a pandas table
no2 = pandas.read_csv('../data/CSV/LAEI2016_2016_NO2.csv')
pm25 = pandas.read_csv('../data/CSV/LAEI2016_2016_PM25.csv')

NO2 and Nurseries

Step 2: Identify and filter up to data nursery data
- The previous project identified educational establishment data, from https://get-information-schools.service.gov.uk/Downloads
- Again load into pandas - this dataset, unusually is not utf8 encoded, so needs some wrangling

edub = pandas.read_csv('../data/edubasealldata20190816.csv', encoding = "ISO-8859-1", low_memory = False)

There are several ways of filtering edubase to show only nurseries
- By incorporating ancillary data in this case a list of London boroughs from wikipedia https://en.wikipedia.org/wiki/List_of_London_boroughs. The data shows that there are 5598 educational establishments in London.
- In Python ...

bors = ['Barking and Dagenham', 'Barnet' ,'Bexley','Brent', 'Bromley','Camden','Croydon','Ealing',
'Enfield','Greenwich','Hackney', 'Hammersmith and Fulham','Haringey','Harrow','Havering','Hillingdon'
,'Hounslow','Islington', 'Kensington and Chelsea','Kingston upon Thames', 'Lambeth', 'Lewisham',
'Merton', 'Newham', 'Redbridge', 'Richmond upon Thames', 'Southwark', 'Sutton', 'Tower Hamlets',
'Waltham Forest','Wandsworth','Westminster']

len(edub.loc[edub["LA (name)"].isin(bors)])

The EstablishmentTypeGroup (name) field has a "local authority nursery school" option, but there are only 95 of these in London

len(edub.loc[(edub["LA (name)"].isin(bors) & (edub["PhaseOfEducation (name)"] == "Nursery"))])

PhaseOfEducation (name) has a "nursery" option these are the same as the local authority option. Common sense suggests this is a low figure.

len(edub.loc[(edub["LA (name)"].isin(bors) & (edub["TypeOfEstablishment (name)"] == "Local authority nursery school"))])

A better filter are establishments which have nursery classes, where there are 2316, this doesn't include all of the nursery labelled establishment

len(edub.loc[(edub["LA (name)"].isin(bors) & (edub["NurseryProvision (name)"] == "Has Nursery Classes"))])
# 2316
len(edub.loc[(edub["LA (name)"].isin(bors) & (edub["NurseryProvision (name)"] == "Has Nursery Classes")  &
(edub["TypeOfEstablishment (name)"] == "Local authority nursery school"))])
# 81

So both filters are used and the dataframe cleaned up

nurseries =nurseries.append(edub.loc[(edub["LA (name)"].isin(bors) &
(edub["TypeOfEstablishment (name)"] == "Local authority nursery school"))])

nurseries = nurseries.drop_duplicates('URN')

nurseries = nurseries.loc[nurseries.Easting !=0]

nurseries.to_csv("../data/london_nurseries_edubase_2019.csv")

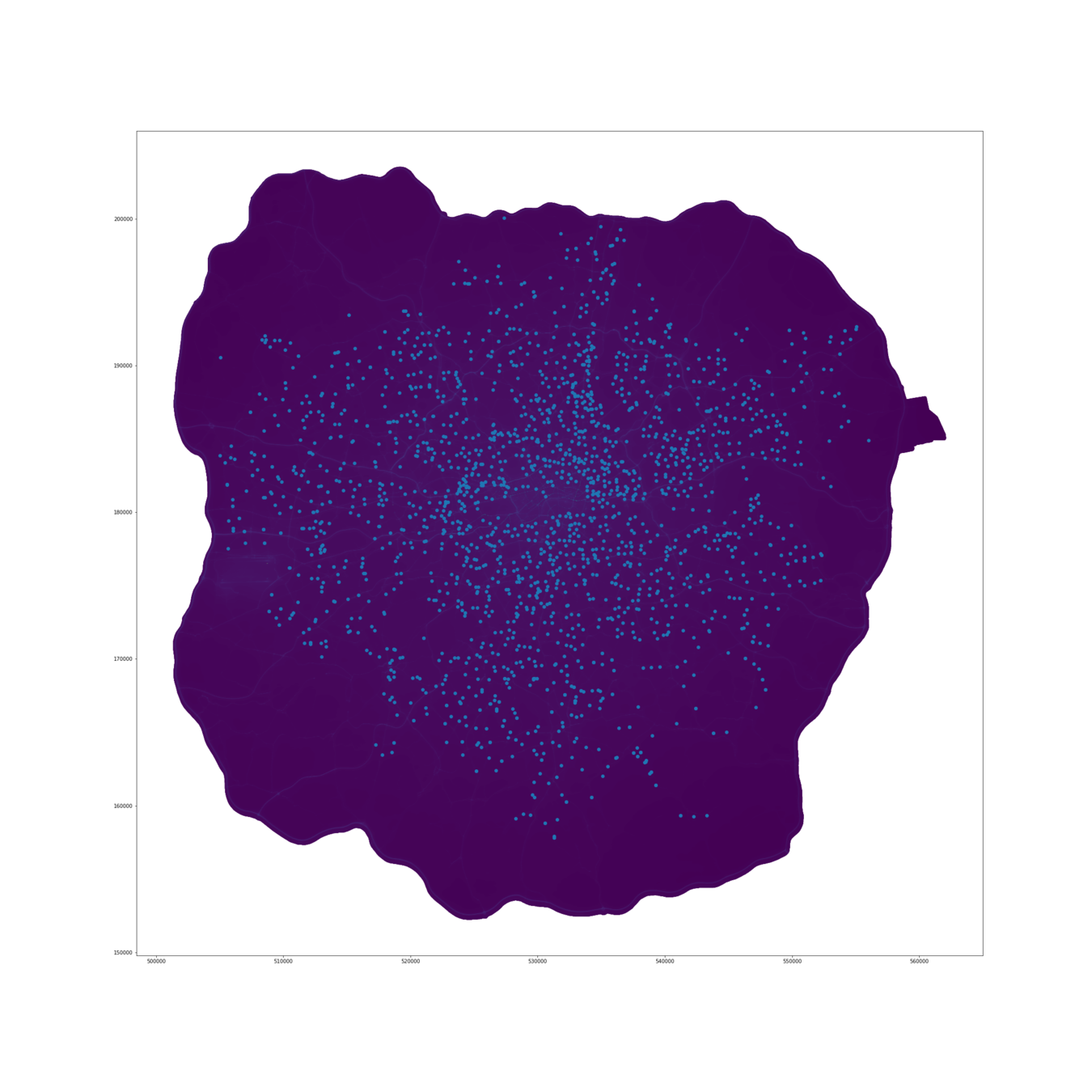

To establish that the schools data extraction is complete, the coordinates are OK and the projections similar - plot them on top of each other

plt.figure(figsize=(30,30))
plt.scatter(no2.x.values, no2.y.values,c = no2.conc.values )
plt.scatter(nurseries.Easting.values, nurseries.Northing.values)

Use KD nearest neighbours from scipy to calculate the closest points, as a position in a list of points

from scipy.spatial import KDTree
from shapely.geometry import Point

nursery_pts = nurseries[["Easting", "Northing"]].values

no2_tree = KDTree(no2[['x','y']].values)

nearest_no2 = no2_trees.query(nursery_pts)

pm25_tree = KDTree(pm25[['x','y']].values)

nearest_pm25 = pm25_tree.query(nursery_pts)

Extract into a neat form

no2_x = []
no2_y = []
no2_concs = []
for i in nearest_no2[1]:
    no2_x.append(no2.loc[i]["x"])
    no2_y.append(no2.loc[i]["y"])
    no2_concs.append(no2.loc[i]["conc"])
nurseries["no2_x"] = no2_x
nurseries["no2_y"] = no2_y
nurseries["no2_µg/m3"] = no2_concs

pm_x = []
pm_y = []
pm_concs =[]

for i in nearest_pm25[1]:
    pm_x.append(pm25.loc[i]["x"])
    pm_y.append(pm25.loc[i]["y"])
    pm_concs.append(pm25.loc[i]["conc"])
nurseries["pm_x"] = pm_x
nurseries["pm_y"] = pm_y
nurseries["pm25_µg/m3"] = pm_concs

Test that the difference is less that 1/2 of the grid square (10 m)

max(nurseries["pm_x"] - nurseries["Easting"])

max(nurseries["pm_y"] - nurseries["Northing"])

max(nurseries["no2_y"] - nurseries["Northing"])

max(nurseries["no2_x"] - nurseries["Easting"])

nurseries.to_csv("../data/london_nurseries_edubase_2019_with_concs.csv")

Project complete

Web GIS and advanced vis examples

To convert data to geojson

lats = []
lons = []
for i in nurs.index:
    r = requests.get("https://www.bgs.ac.uk/data/webservices/CoordConvert_LL_BNG.cfc?method=BNGtoLatLng&easting="
    +str(nurs.loc[i]["Easting"])+"&northing="+str(nurs.loc[i]["Northing"]), verify=False)
    rr = json.loads(r.text)
    lats.append(rr["LATITUDE"])
    lons.append(rr["LONGITUDE"])

nurs["x"] = lons
nurs["y"] = lats

def data2geojson(df):
    features = []
    insert_features = lambda X: features.append(
            geojson.Feature(geometry=geojson.Point((X["X"],
                                                    X["Y"],
                                                    0)),
                            properties=dict(URN=X["URN"],
                                            NO2_conc=X['no2_µg/m3'],
                                            PM25_conc=X['pm25_µg/m3'],
                                            EstablishmentName= X['EstablishmentName'],
                                            NumberOfPupils=X['NumberOfPupils'],
                                            Address=X['Street']
                                           )))
    df.apply(insert_features, axis=1)
    with open('nursery.geojson', 'w', encoding='utf8') as fp:
        geojson.dump(geojson.FeatureCollection(features), fp, sort_keys=True, ensure_ascii=False)

 data2geojson(nurs)
