foundations of data science for everyone

IX: Clustering
Farid Qamar

this slide deck: https://slides.com/faridqamar/fdfse_9

1

clustering

Machine Learning

unsupervised learning

identify features and create models that allow to understand structure in the data

unsupervised learning

identify features and create models that allow to understand structure in the data

supervised learning

extract features and create models that allow prediction where the correct answer is known for a subset of the data

unsupervised learning

identify features and create models that allow to understand structure in the data

unsupervised learning

identify features and create models that allow to understand structure in the data

supervised learning

extract features and create models that allow prediction where the correct answer is known for a subset of the data

  • clustering
  • Principle Component Analysis
  • Apriori (association rule)
  • k-Nearest Neighbors
  • regression
  • Support Vector Machines
  • Classification/Regression Trees
  • Neural Networks

Machine Learning

objects

features

target

Supervised ML

data as a function of another number characterizing the system

Unsupervised ML

objects

features

data is represented by objects, each of which has associated features

Unsupervised ML

example data object:

Flatiron Building, NYC

wikipedia.org/wiki/Flatiron_Building

example features:

  • height
  • energy use
  • number of floors
  • number of occupants
  • age in years
  • zipcode
  • footprint
  • owner

float

float

integer

integer

integer

integer/string

array (lat/lon)

string

Unsupervised ML

Nf = number of features

No = number of objects

2D dataset (Nf x No)

https://www.netimpact.org/chapters/new-york-city-professional

Clustering

Goal:

Find a pattern by dividing the objects into groups such that the objects within a group are more similar to each other than objects outside the group

Clustering

Goal:

Find a pattern by dividing the objects into groups such that the objects within a group are more similar to each other than objects outside the group

Internal Criterion:

members of the cluster should be similar to each other (intra-cluster compactness)

External Criterion:

objects outside the cluster should be dissimilar from the objects inside the cluster

Internal Criterion:

members of the cluster should be similar to each other (intra-cluster compactness)

External Criterion:

objects outside the cluster should be dissimilar from the objects inside the cluster

Internal Criterion:

members of the cluster should be similar to each other (intra-cluster compactness)

External Criterion:

objects outside the cluster should be dissimilar from the objects inside the cluster

mammals

birds

fish

zoologist's clusters

Internal Criterion:

members of the cluster should be similar to each other (intra-cluster compactness)

External Criterion:

objects outside the cluster should be dissimilar from the objects inside the cluster

walk

fly

swim

mobility clusters

Internal Criterion:

members of the cluster should be similar to each other (intra-cluster compactness)

External Criterion:

objects outside the cluster should be dissimilar from the objects inside the cluster

orange/red/green

black/white/blue

photographer's clusters

Internal Criterion:

members of the cluster should be similar to each other (intra-cluster compactness)

External Criterion:

objects outside the cluster should be dissimilar from the objects inside the cluster

The optimal clustering depends on

  • how you define similarity/distance
  • the purpose of the clustering

Clustering

Find a pattern by dividing the objects into groups such that the objects within a group are more similar to each other than objects outside the group

Goal:

  • Define similarity/dissimilarity function
  • Figure out the grouping of objects based on the chosen similarity/dissimilarity function
    • Objects within a cluster are similar
    • Objects across clusters are not so similar

How:

Clustering

we can define similarity in terms of distance

common measure of distance is the  squared Euclidean distance

(aka., L2-norm, sum of squared differences)

\text{distance}_{i,j}^2 = \sum_{k=1}^N(x_{ik} - x_{jk})^2

also called the inertia

Clustering

example:

if the data is on buildings with the features: year built (Y) and energy use (E), the distance between two objects (1 and 2):

\text{distance}^2_{bldg 1,2} = (Y_{bldg,1} - Y_{bldg,2})^2 + (E_{bldg,1} - E_{bldg,2})^2

Types of Clustering

Density-based Clustering

Distribution-based Clustering

Hierarchical Clustering

Centroid-based Clustering

2

k-Means clustering

k-Means: the objective function

objective: minimizing the aggregate distance within the cluster

total intra-cluster variance =

\sum_k\sum_{i\in k}(\vec{x}_i - \vec{\mu}_k)^2

hyperparameters: must declare the number of clusters                                        prior to clustering

k-Means Clustering

  1. choose k initial centers
  2. calculate the inertia
  3. assign each object to the nearest cluster center
  4. update the cluster centers to be the average of their assigned population
  5. calculate the inertia
  6. IF the inertia has not changed, stop

      Else, go back to step 3

k-Means Clustering

  1. choose k initial centers
  2. calculate the inertia
  3. assign each object to the nearest cluster center
  4. update the cluster centers to be the average of their assigned population
  5. calculate the inertia
  6. IF the inertia has not changed, stop

      Else, go back to step 3

k-Means Clustering

  1. choose k initial centers
  2. calculate the inertia
  3. assign each object to the nearest cluster center
  4. update the cluster centers to be the average of their assigned population
  5. calculate the inertia
  6. IF the inertia has not changed, stop

      Else, go back to step 3

k-Means Clustering

  1. choose k initial centers
  2. calculate the inertia
  3. assign each object to the nearest cluster center
  4. update the cluster centers to be the average of their assigned population
  5. calculate the inertia
  6. IF the inertia has not changed, stop

      Else, go back to step 3

k-Means Clustering

  1. choose k initial centers
  2. calculate the inertia
  3. assign each object to the nearest cluster center
  4. update the cluster centers to be the average of their assigned population
  5. calculate the inertia
  6. IF the inertia has not changed, stop

      Else, go back to step 3

k-Means Clustering

  1. choose k initial centers
  2. calculate the inertia
  3. assign each object to the nearest cluster center
  4. update the cluster centers to be the average of their assigned population
  5. calculate the inertia
  6. IF the inertia has not changed, stop

      Else, go back to step 3

k-Means Clustering

  1. choose k initial centers
  2. calculate the inertia
  3. assign each object to the nearest cluster center
  4. update the cluster centers to be the average of their assigned population
  5. calculate the inertia
  6. IF the inertia has not changed, stop

      Else, go back to step 3

k-Means Clustering

  1. choose k initial centers
  2. calculate the inertia
  3. assign each object to the nearest cluster center
  4. update the cluster centers to be the average of their assigned population
  5. calculate the inertia
  6. IF the inertia has not changed, stop

      Else, go back to step 3

k-Means Clustering

  1. choose k initial centers
  2. calculate the inertia
  3. assign each object to the nearest cluster center
  4. update the cluster centers to be the average of their assigned population
  5. calculate the inertia
  6. IF the inertia has not changed, stop

      Else, go back to step 3

k-Means Clustering

  1. choose k initial centers
  2. calculate the inertia
  3. assign each object to the nearest cluster center
  4. update the cluster centers to be the average of their assigned population
  5. calculate the inertia
  6. IF the inertia has not changed, stop

      Else, go back to step 3

k-Means Clustering

  1. choose k initial centers
  2. calculate the inertia
  3. assign each object to the nearest cluster center
  4. update the cluster centers to be the average of their assigned population
  5. calculate the inertia
  6. IF the inertia has not changed, stop

      Else, go back to step 3

k-Means Clustering

  1. choose k initial centers
  2. calculate the inertia
  3. assign each object to the nearest cluster center
  4. update the cluster centers to be the average of their assigned population
  5. calculate the inertia
  6. IF the inertia has not changed, stop

      Else, go back to step 3

k-Means Clustering

  1. choose k initial centers
  2. calculate the inertia
  3. assign each object to the nearest cluster center
  4. update the cluster centers to be the average of their assigned population
  5. calculate the inertia
  6. IF the inertia has not changed, stop

      Else, go back to step 3

k-Means Clustering

  1. choose k initial centers
  2. calculate the inertia
  3. assign each object to the nearest cluster center
  4. update the cluster centers to be the average of their assigned population
  5. calculate the inertia
  6. IF the inertia has not changed, stop

      Else, go back to step 3

k-Means Clustering

  1. choose k initial centers
  2. calculate the inertia
  3. assign each object to the nearest cluster center
  4. update the cluster centers to be the average of their assigned population
  5. calculate the inertia
  6. IF the inertia has not changed, stop

      Else, go back to step 3

k-Means Clustering

  1. choose k initial centers
  2. calculate the inertia
  3. assign each object to the nearest cluster center
  4. update the cluster centers to be the average of their assigned population
  5. calculate the inertia
  6. IF the inertia has not changed, stop

      Else, go back to step 3

k-Means Clustering

  1. choose k initial centers
  2. calculate the inertia
  3. assign each object to the nearest cluster center
  4. update the cluster centers to be the average of their assigned population
  5. calculate the inertia
  6. IF the inertia has not changed, stop

      Else, go back to step 3

k-Means Clustering

  1. choose k initial centers
  2. calculate the inertia
  3. assign each object to the nearest cluster center
  4. update the cluster centers to be the average of their assigned population
  5. calculate the inertia
  6. IF the inertia has not changed, stop

      Else, go back to step 3

choosing k clusters

2

.

1

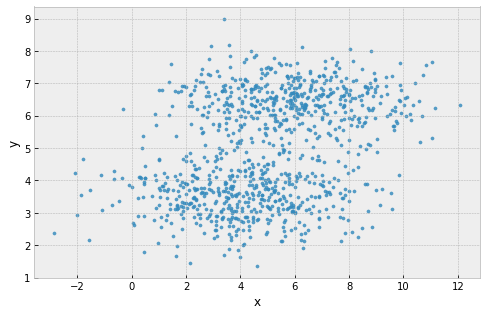

if low number of variables:

Visualize and pick k manually

Choosing number of clusters k

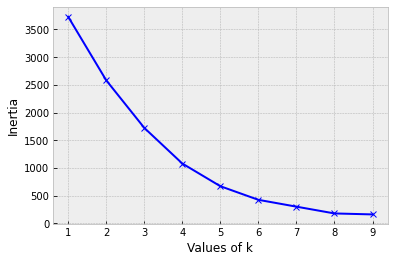

or...use the Elbow Method

  • Calculate the distance of all points to their nearest cluster center
  • Calculate the inertia (sum the distances)
  • Find the "Elbow"
    • point after which the inertia starts decreasing linearly

Choosing number of clusters k

or...use the Elbow Method

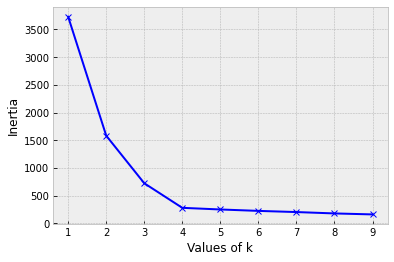

"Elbow" inflection point

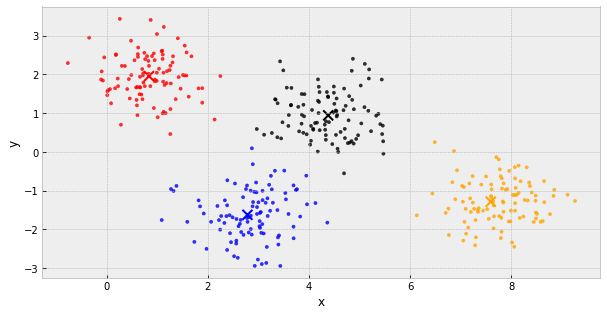

Optimal k = 4 centers

  • Calculate the distance of all points to their nearest cluster center
  • Calculate the inertia (sum the distances)
  • Find the "Elbow"
    • point after which the inertia starts decreasing linearly

Choosing number of clusters k

or...use the Elbow Method

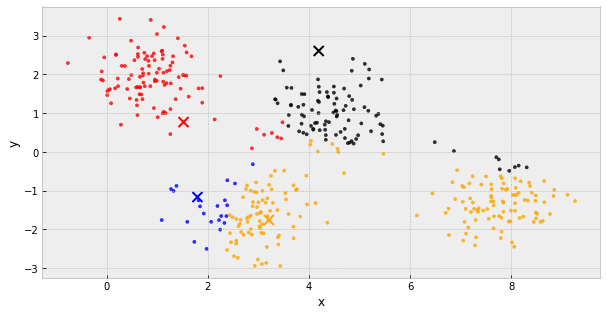

But...this doesn't always work!

  • Calculate the distance of all points to their nearest cluster center
  • Calculate the inertia (sum the distances)
  • Find the "Elbow"
    • point after which the inertia starts decreasing linearly

Choosing number of clusters k

problems with k-Means

2

.

2

Problems with k-Means

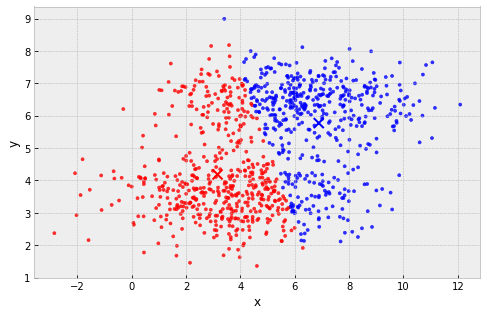

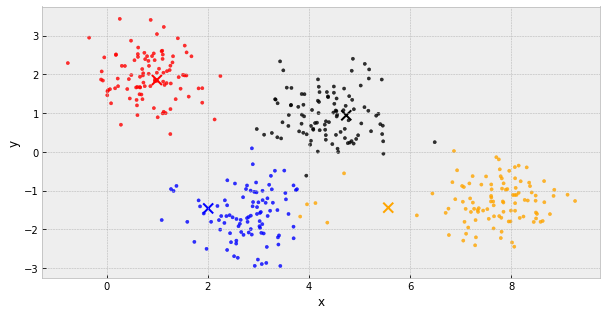

highly dependent on initial location of k centers

source: https://realpython.com/k-means-clustering-python/

Problems with k-Means

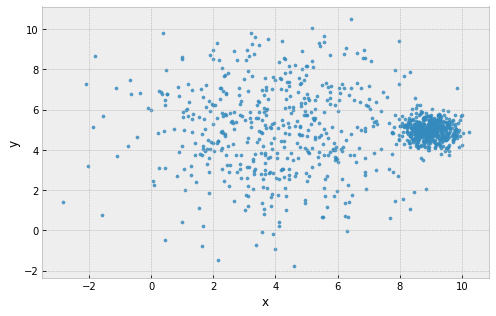

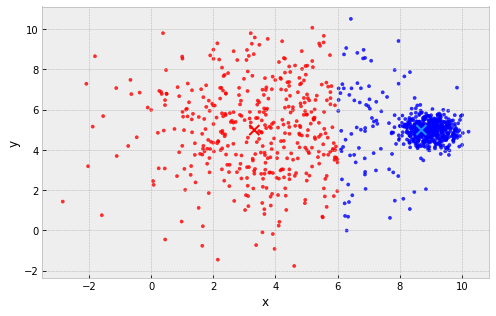

example: 2 clusters, one large and one small

clusters are assumed to all be the same size

Problems with k-Means

clusters are assumed to all be the same size

example: 2 clusters, one large and one small

Problems with k-Means

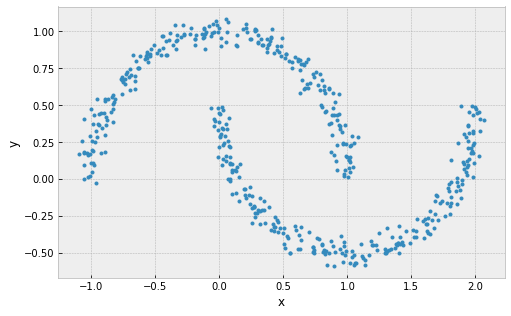

clusters are assumed to have the same extent in every direction

example: 2 'squashed' clusters with different widths in different directions

Problems with k-Means

example: 2 'squashed' clusters with different widths in different directions

clusters are assumed to have the same extent in every direction

Problems with k-Means

clusters are must be linearly separable (convex sets)

example: 2 non-convex sets

Problems with k-Means

example: 2 non-convex sets

clusters are must be linearly separable (convex sets)

3

DBSCAN

DBSCAN

Density-based spatial clustering of applications with noise

One of the most common clustering algorithms and most cited in scientific literature

DBSCAN

Density-based spatial clustering of applications with noise

One of the most common clustering algorithms and most cited in scientific literature

Defines cluster membership based on local density:

Nearest Neighbors algorithm

DBSCAN

Density-based spatial clustering of applications with noise

Requires 2 parameters:

minPts

minimum number of points to form a dense region

maximum distance for points to be considered part of a cluster

ε

DBSCAN

Density-based spatial clustering of applications with noise

Requires 2 parameters:

minPts

minimum number of points to form a dense region

ε

maximum distance for points to be considered part of a cluster

2 points are considered neighbors if distance between them <= ε

DBSCAN

Density-based spatial clustering of applications with noise

Requires 2 parameters:

minPts

ε

maximum distance for points to be considered part of a cluster

minimum number of points to form a dense region

2 points are considered neighbors if distance between them <= ε

regions with number of points >= minPts are considered dense

DBSCAN

  • A point p is a core point if at least minPts are within distance ε (including p)
  • A point q is directly reachable from p if point q is within distance ε from core point p
  • A point q is reachable from p if there is a path p1, ..., pn with p1 = p and pn = q, where each pi+1is directly reachable from pi
  • All points not reachable from any other point are outliers or noise points

Algorithm:

DBSCAN

ε

minPts = 3

DBSCAN

ε

minPts = 3

DBSCAN

ε

minPts = 3

ε

DBSCAN

ε

minPts = 3

directly reachable

DBSCAN

ε

minPts = 3

core

dense region

DBSCAN

ε

minPts = 3

DBSCAN

ε

minPts = 3

directly reachable to

DBSCAN

ε

minPts = 3

reachable to

DBSCAN

ε

minPts = 3

DBSCAN

ε

minPts = 3

reachable

DBSCAN

ε

minPts = 3

DBSCAN

ε

minPts = 3

DBSCAN

ε

minPts = 3

ε

DBSCAN

ε

minPts = 3

directly reachable

DBSCAN

ε

minPts = 3

core

dense region

DBSCAN

ε

minPts = 3

reachable

DBSCAN

ε

minPts = 3

DBSCAN

ε

minPts = 3

noise/outliers

DBSCAN

source: https://www.digitalvidya.com/blog/the-top-5-clustering-algorithms-data-scientists-should-know/

DBSCAN

PROs:

  • Does not require knowledge of the number of clusters
  • Deals (and identifies) noise and outliers
  • Capable of finding arbitrarily shaped and sized clusters



CONs:

  • Highly sensitive to choice of ε and minPts
  • cannot work for clusters with different densities

Foundations of Data Science for Everyone - IX : Clustering

By Farid Qamar

Made with Slides.com

Foundations of Data Science for Everyone - IX : Clustering

  • 722

More from Farid Qamar
